Basic information

Entry
Database: EMDB / ID: EMD-10963
TitleCryo-EM map of the tail of the small subunit of the mitoribosome from Neurospora crassa.
Map dataMap of SSU tail.
Sample
  • Complex: Mitoribosome of Neurospora crassa
Biological speciesNeurospora crassa (fungus)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.86 Å
AuthorsAmunts A / Itoh Y / Naschberger A
Funding support Sweden, European Union, 4 items
OrganizationGrant numberCountry
Swedish Research CouncilNT_2015-04107 Sweden
European Research Council (ERC)(ERC-2018-StG-805230European Union
Knut and Alice Wallenberg Foundation2018.0080 Sweden
European Molecular Biology Organization (EMBO)H2020-MSCA-IF-2017European Union
CitationJournal: Nat Commun / Year: 2020
Title: Analysis of translating mitoribosome reveals functional characteristics of translation in mitochondria of fungi.
Authors: Yuzuru Itoh / Andreas Naschberger / Narges Mortezaei / Johannes M Herrmann / Alexey Amunts /
Abstract: Mitoribosomes are specialized protein synthesis machineries in mitochondria. However, how mRNA binds to its dedicated channel, and tRNA moves as the mitoribosomal subunit rotate with respect to each ...Mitoribosomes are specialized protein synthesis machineries in mitochondria. However, how mRNA binds to its dedicated channel, and tRNA moves as the mitoribosomal subunit rotate with respect to each other is not understood. We report models of the translating fungal mitoribosome with mRNA, tRNA and nascent polypeptide, as well as an assembly intermediate. Nicotinamide adenine dinucleotide (NAD) is found in the central protuberance of the large subunit, and the ATPase inhibitory factor 1 (IF) in the small subunit. The models of the active mitoribosome explain how mRNA binds through a dedicated protein platform on the small subunit, tRNA is translocated with the help of the protein mL108, bridging it with L1 stalk on the large subunit, and nascent polypeptide paths through a newly shaped exit tunnel involving a series of structural rearrangements. An assembly intermediate is modeled with the maturation factor Atp25, providing insight into the biogenesis of the mitoribosomal large subunit and translation regulation.
History
DepositionApr 29, 2020-
Header (metadata) releaseNov 11, 2020-
Map releaseNov 11, 2020-
UpdateMay 26, 2021-
Current statusMay 26, 2021Processing site: PDBe / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.0201
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by height
  • Surface level: 0.0201
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_10963.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationMap of SSU tail.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 400 pix.
= 424. Å		1.06 Å/pix.
x 400 pix.
= 424. Å		1.06 Å/pix.
x 400 pix.
= 424. Å

Surface

Projections

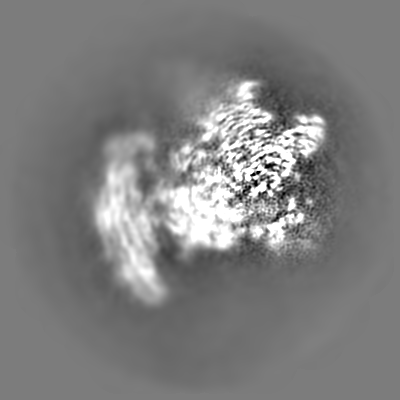

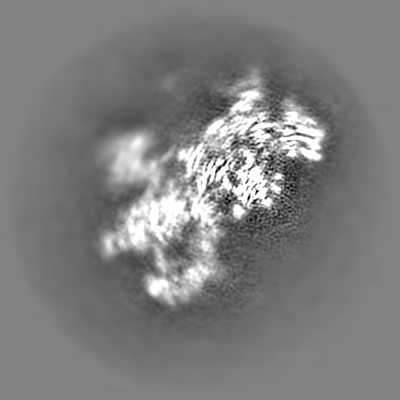

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.06 Å
Density

Histogram

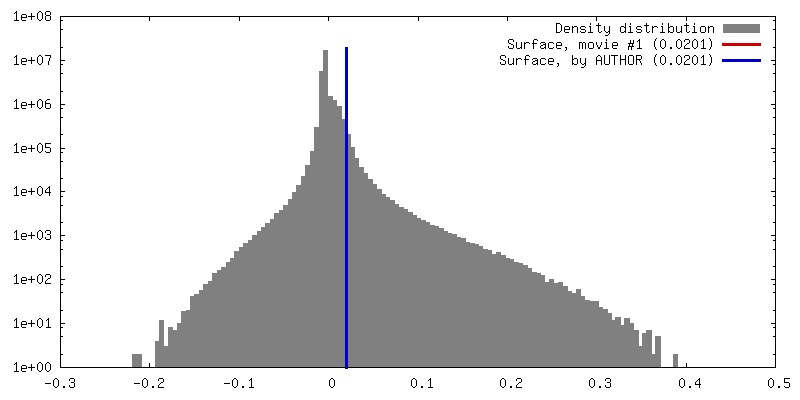

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0201 / Movie #1: 0.0201
Minimum - Maximum-0.2164417 - 0.41310343
Average (Standard dev.)-0.00015227034 (±0.005866381)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 423.99997 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z1.061.061.06
M x/y/z400400400
origin x/y/z0.0000.0000.000
length x/y/z424.000424.000424.000
α/β/γ90.00090.00090.000
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS400400400
D min/max/mean-0.2160.413-0.000

-
Supplemental data

-
Mask #1

Fileemd_10963_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_10963_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_10963_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Mitoribosome of Neurospora crassa

EntireName: Mitoribosome of Neurospora crassa
Components
  • Complex: Mitoribosome of Neurospora crassa

-
Supramolecule #1: Mitoribosome of Neurospora crassa

SupramoleculeName: Mitoribosome of Neurospora crassa / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#38
Source (natural)Organism: Neurospora crassa (fungus) / Strain: K5-15-23-1

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
Component:
ConcentrationFormulaName
20.0 mMHEPES-KOH4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid-KOH
15.0 mMKClPotassium chloride
15.0 mMMg(C2H3O2)2Magnesium acetate
0.05 %DDMn-Dodecyl B-D-maltoside
0.0075 %Cardiolipin1,3-bis(sn-3-phosphatidyl)-sn-glycerol
2.0 mMDTTDithiothreitol
GridModel: Quantifoil R2/2 / Material: COPPER / Support film - Material: CARBON / Support film - topology: CONTINUOUS / Support film - Film thickness: 2.7 nm
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Name: GIF Quantum LS / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Detector mode: COUNTING / Digitization - Frames/image: 1-20 / Number real images: 3172 / Average electron dose: 35.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 70.0 µm / Calibrated magnification: 130000 / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionSoftware - Name: Gctf
Startup modelType of model: EMDB MAP
EMDB ID:

3551

Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.86 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: RELION / Number images used: 131806
Initial angle assignmentType: PROJECTION MATCHING / Software - Name: RELION
Final angle assignmentType: PROJECTION MATCHING / Software - Name: RELION
Final 3D classificationSoftware - Name: RELION

+
