- EMDB-70910: Heteromeric GluA1/A2 in the inactive state, transmembrane domain (TMD) -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-70910
TitleHeteromeric GluA1/A2 in the inactive state, transmembrane domain (TMD)
Map dataGluA1A2 ZK (TMD only, sharpened map, local refinement)
Sample
  • Complex: Heteromeric GluA1A2 with competitive antagonist ZK
KeywordsGluA1A2 heterotetramer ZK iGluR / MEMBRANE PROTEIN
Biological speciesRattus norvegicus (Norway rat)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.55 Å
AuthorsYen LY / Newton TP / Gangwar SP / Sobolevsky AI
Funding support United States, 9 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)U24 GM129539 United States
Simons FoundationSF349247 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)U24 GM129541 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)F31NS132554 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS139087 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS083660 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS107253 United States
National Institutes of Health/National Institute of Arthritis and Musculoskeletal and Skin Diseases (NIH/NIAMS)AR078814 United States
National Institutes of Health/National Cancer Institute (NIH/NCI)CA206573 United States
CitationJournal: Nat Commun / Year: 2026
Title: Auxiliary subunits reshape structural asymmetry and functional plasticity in heterotetrameric GluA1/A2 AMPA receptor core.
Authors: Laura Y Yen / Thomas P Newton / Maria V Yelshanskaya / Muhammed Aktolun / Shanti Pal Gangwar / Rasmus P Clausen / Maria G Kurnikova / Alexander I Sobolevsky /
Abstract: AMPA-subtype ionotropic glutamate receptors (AMPARs) mediate the fast component of excitatory neurotransmission. They govern synaptic plasticity that underlies learning and memory, while their ...AMPA-subtype ionotropic glutamate receptors (AMPARs) mediate the fast component of excitatory neurotransmission. They govern synaptic plasticity that underlies learning and memory, while their dysregulation is implicated in numerous neurological disorders. The functional diversity of AMPARs arises from variations in their subunit composition and also their association with auxiliary subunits. While multiple structures of homomeric AMPARs have been reported, structural information for the heteromeric core - particularly in the absence of auxiliary subunits, which would serve as a functional and structural baseline - has been limited. Here, we report cryo-electron microscopy structures of GluA1/A2, the most abundant AMPAR di-heteromer in the brain, in the closed, open, and desensitized states. Using molecular dynamics (MD) simulations and cross-correlating structural and functional information, we find that auxiliary subunits increase the diameter of channel pore, which corresponds to larger conductance. Likewise, we find that recovery from desensitization slows with greater disruption of two-fold rotational symmetry of the ligand-binding domain dimer in the desensitized state. Both receptor activation and desensitization vary with the type and number of associated auxiliary proteins. These structures offer a foundation for uncovering how auxiliary subunits reshape structural asymmetry and functional plasticity in heterotetrameric AMPARs.
History
DepositionMay 31, 2025-
Header (metadata) releaseApr 8, 2026-
Map releaseApr 8, 2026-
UpdateApr 8, 2026-
Current statusApr 8, 2026Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_70910.map.gz / Format: CCP4 / Size: 343 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationGluA1A2 ZK (TMD only, sharpened map, local refinement)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 448 pix.
= 370.048 Å		0.83 Å/pix.
x 448 pix.
= 370.048 Å		0.83 Å/pix.
x 448 pix.
= 370.048 Å

Surface

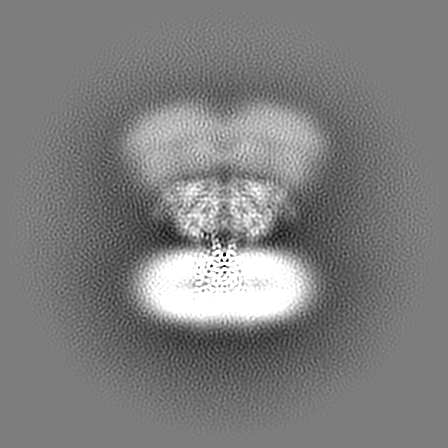

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.826 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.07
Minimum - Maximum-0.45632502 - 0.6596021
Average (Standard dev.)0.0000842874 (±0.007479268)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions448448448
Spacing448448448
CellA=B=C: 370.04797 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: GluA1A2 ZK (TMD only, half map A)

Fileemd_70910_half_map_1.map
AnnotationGluA1A2 ZK (TMD only, half map A)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: GluA1A2 ZK (TMD only, half map A)

Fileemd_70910_half_map_2.map
AnnotationGluA1A2 ZK (TMD only, half map A)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Heteromeric GluA1A2 with competitive antagonist ZK

EntireName: Heteromeric GluA1A2 with competitive antagonist ZK
Components
  • Complex: Heteromeric GluA1A2 with competitive antagonist ZK

-
Supramolecule #1: Heteromeric GluA1A2 with competitive antagonist ZK

SupramoleculeName: Heteromeric GluA1A2 with competitive antagonist ZK / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Rattus norvegicus (Norway rat)
Molecular weightTheoretical: 556 KDa

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration4.5 mg/mL
BufferpH: 8
Component:
ConcentrationFormulaName
150.0 mMNaClsodium chloride
20.0 mMC4H11NO3Tris-HCl (pH 8.0)
0.05 %C56H92O29digitonin
100.0 uMC14H15N3O6F3PZK-200775

Details: 150 mM NaCl, 20 mM Tris-HCl pH 8.0, and 0.05% digitonin, 100 uM ZK-200775
GridModel: UltrAuFoil R1.2/1.3 / Material: GOLD / Mesh: 300 / Support film - Material: GOLD / Support film - topology: HOLEY / Support film - Film thickness: 500
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 298 K / Instrument: FEI VITROBOT MARK IV
DetailsThe sample had compositional heterogeneity, with broken particles seen throughout. Otherwise, sample was monodisperse

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 45.7 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 100.0 µm / Illumination mode: SPOT SCAN / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 5527903
CTF correctionSoftware - Name: cryoSPARC / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER / Details: ab initio from the experimental data
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.55 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 76183
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
FSC plot (resolution estimation)

+
