Basic information

Entry
Database: EMDB / ID: EMD-26921
TitleStaphylococcus epidermidis RP62a CRISPR effector subcomplex with non-self target RNA bound
Map data
Sample
  • Complex: Staphylococcus epidermidis RP62a CRISPR effector subcomplex with target RNA bound
    • Protein or peptide: CRISPR system Cms endoribonuclease Csm3
    • Protein or peptide: CRISPR system Cms protein Csm4
    • Protein or peptide: CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 (subtype III-A)
    • RNA: Staphylococcus epidermidis RP62A CRISPR RNA: Repeat plus Spacer sequence 2
    • RNA: CRISPR non-self RNA target
Function / homology
Function and homology information


exonuclease activity / defense response to virus / endonuclease activity / RNA binding / ATP binding
Similarity search - Function
: / CRISPR RNA silencing complex Cmr2 subunit, second helical domain / Csm4, C-terminal / CRISPR Csm4 C-terminal domain / CRISPR-associated RAMP Csm3 / CRISPR type III-associated RAMP protein Csm4 / CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 / Csm1, subunit domain B / Csm1 subunit domain B / CRISPR type III-associated protein ...: / CRISPR RNA silencing complex Cmr2 subunit, second helical domain / Csm4, C-terminal / CRISPR Csm4 C-terminal domain / CRISPR-associated RAMP Csm3 / CRISPR type III-associated RAMP protein Csm4 / CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 / Csm1, subunit domain B / Csm1 subunit domain B / CRISPR type III-associated protein / RAMP superfamily / GGDEF domain profile. / GGDEF domain / HD domain / HD domain / Reverse transcriptase/Diguanylate cyclase domain
Similarity search - Domain/homology
CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 (subtype III-A) / CRISPR system Cms endoribonuclease Csm3 / CRISPR system Cms protein Csm4
Similarity search - Component
Biological speciesStaphylococcus epidermidis (bacteria) / Staphylococcus epidermidis RP62A (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.49 Å
AuthorsSmith EM / Ferrell SH / Tokars VL / Mondragon A
Funding support United States, 4 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R35-GM118108 United States
American Cancer Society134255-PF-20-041-01-DMC United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)U24 GM129541 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)U24 GM129539 United States
CitationJournal: Structure / Year: 2022
Title: Structures of an active type III-A CRISPR effector complex.
Authors: Eric M Smith / Sé Ferrell / Valerie L Tokars / Alfonso Mondragón /
Abstract: Clustered regularly interspaced short palindromic repeats (CRISPR) and their CRISPR-associated proteins (Cas) provide many prokaryotes with an adaptive immune system against invading genetic material. ...Clustered regularly interspaced short palindromic repeats (CRISPR) and their CRISPR-associated proteins (Cas) provide many prokaryotes with an adaptive immune system against invading genetic material. Type III CRISPR systems are unique in that they can degrade both RNA and DNA. In response to invading nucleic acids, they produce cyclic oligoadenylates that act as secondary messengers, activating cellular nucleases that aid in the immune response. Here, we present seven single-particle cryo-EM structures of the type III-A Staphylococcus epidermidis CRISPR effector complex. The structures reveal the intact S. epidermidis effector complex in an apo, ATP-bound, cognate target RNA-bound, and non-cognate target RNA-bound states and illustrate how the effector complex binds and presents crRNA. The complexes bound to target RNA capture the type III-A effector complex in a post-RNA cleavage state. The ATP-bound structures give details about how ATP binds to Cas10 to facilitate cyclic oligoadenylate production.
History
DepositionMay 9, 2022-
Header (metadata) releaseJul 6, 2022-
Map releaseJul 6, 2022-
UpdateAug 17, 2022-
Current statusAug 17, 2022Processing site: RCSB / Status: Released

-

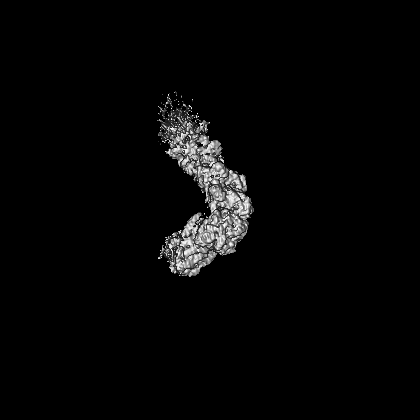

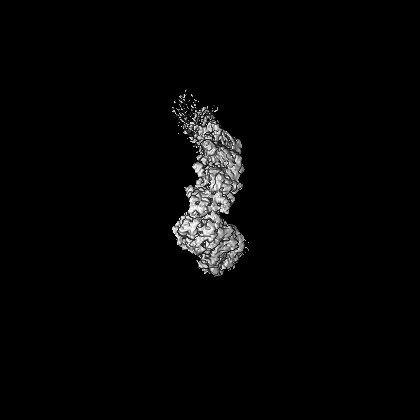

Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_26921.map.gz / Format: CCP4 / Size: 282.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Voxel sizeX=Y=Z: 1.1 Å
Density
Contour LevelBy AUTHOR: 0.215
Minimum - Maximum-0.7110227 - 1.6146238
Average (Standard dev.)-0.0006974081 (±0.02936087)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions420420420
Spacing420420420
CellA=B=C: 462.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_26921_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_26921_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_26921_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Staphylococcus epidermidis RP62a CRISPR effector subcomplex with ...

EntireName: Staphylococcus epidermidis RP62a CRISPR effector subcomplex with target RNA bound
Components
  • Complex: Staphylococcus epidermidis RP62a CRISPR effector subcomplex with target RNA bound
    • Protein or peptide: CRISPR system Cms endoribonuclease Csm3
    • Protein or peptide: CRISPR system Cms protein Csm4
    • Protein or peptide: CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 (subtype III-A)
    • RNA: Staphylococcus epidermidis RP62A CRISPR RNA: Repeat plus Spacer sequence 2
    • RNA: CRISPR non-self RNA target

-
Supramolecule #1: Staphylococcus epidermidis RP62a CRISPR effector subcomplex with ...

SupramoleculeName: Staphylococcus epidermidis RP62a CRISPR effector subcomplex with target RNA bound
type: complex / Chimera: Yes / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Staphylococcus epidermidis (bacteria) / Strain: RP62a

-
Macromolecule #1: CRISPR system Cms endoribonuclease Csm3

MacromoleculeName: CRISPR system Cms endoribonuclease Csm3 / type: protein_or_peptide / ID: 1 / Number of copies: 5 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus epidermidis RP62A (bacteria) / Strain: ATCC 35984 / RP62A
Molecular weightTheoretical: 24.033975 KDa
SequenceString: MYSKIKISGT IEVVTGLHIG GGGESSMIGA IDSPVVRDLQ TKLPIIPGSS IKGKMRNLLA KHFGLKMKQE SHNQDDERVL RLFGSSEKG NIQRARLQIS DAFFSEKTKE HFAQNDIAYT ETKFENTINR LTAVANPRQI ERVTRGSEFD FVFIYNVDEE S QVEDDFEN ...String:
MYSKIKISGT IEVVTGLHIG GGGESSMIGA IDSPVVRDLQ TKLPIIPGSS IKGKMRNLLA KHFGLKMKQE SHNQDDERVL RLFGSSEKG NIQRARLQIS DAFFSEKTKE HFAQNDIAYT ETKFENTINR LTAVANPRQI ERVTRGSEFD FVFIYNVDEE S QVEDDFEN IEKAIHLLEN DYLGGGGTRG NGRIQFKDTN IETVVGEYDS TNLKIK

-
Macromolecule #2: CRISPR system Cms protein Csm4

MacromoleculeName: CRISPR system Cms protein Csm4 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus epidermidis RP62A (bacteria) / Strain: ATCC 35984 / RP62A
Molecular weightTheoretical: 34.551938 KDa
SequenceString: MTLATKVFKL SFKTPVHFGK KRLSDGEMTI TADTLFSALF IETLQLGKDT DWLLNDLIIS DTFPYENELY YLPKPLIKID SKEEDNHKA FKKLKYVPVH HYNQYLNGEL SAEDATDLND IFNIGYFSLQ TKVSLIAQET DSSADSEPYS VGTFTFEPEA G LYFIAKGS ...String:
MTLATKVFKL SFKTPVHFGK KRLSDGEMTI TADTLFSALF IETLQLGKDT DWLLNDLIIS DTFPYENELY YLPKPLIKID SKEEDNHKA FKKLKYVPVH HYNQYLNGEL SAEDATDLND IFNIGYFSLQ TKVSLIAQET DSSADSEPYS VGTFTFEPEA G LYFIAKGS EETLDHLNNI MTALQYSGLG GKRNAGYGQF EYEIINNQQL SKLLNQNGKH SILLSTAMAK KEEIESALKE AR YILTKRS GFVQSTNYSE MLVKKSDFYS FSSGSVFKNI FNGDIFNVGH NGKHPVYRYA KPLWLEV

-
Macromolecule #3: CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1...

MacromoleculeName: CRISPR system single-strand-specific deoxyribonuclease Cas10/Csm1 (subtype III-A)
type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus epidermidis RP62A (bacteria) / Strain: ATCC 35984 / RP62A
Molecular weightTheoretical: 87.685781 KDa
SequenceString: MNKKNILMYG SLLHDIGKII YRSGDHTFSR GTHSKLGHQF LSQFSEFKDN EVLDNVAYHH YKELAKANLD NDNTAYITYI ADNIASGID RRDIIEEGDE EYEKQLFNFD KYTPLYSVFN IVNSEKLKQT NGKFKFSNES NIEYPKTENI QYSSGNYTTL M KDMSHDLE ...String:
MNKKNILMYG SLLHDIGKII YRSGDHTFSR GTHSKLGHQF LSQFSEFKDN EVLDNVAYHH YKELAKANLD NDNTAYITYI ADNIASGID RRDIIEEGDE EYEKQLFNFD KYTPLYSVFN IVNSEKLKQT NGKFKFSNES NIEYPKTENI QYSSGNYTTL M KDMSHDLE HKLSIKEGTF PSLLQWTESL WQYVPSSTNK NQLIDISLYD HSRITCAIAS CIFDYLNENN IHNYKDELFS KY ENTKSFY QKEAFLLLSM DMSGIQDFIY NISGSKALKS LRSRSFYLEL MLEVIVDQLL ERLELARANL LYTGGGHAYL LVS NTDKVK KKITQFNNEL KKWFMSEFTT DLSLSMAFEK CSGDDLMNTS GNYRTIWRNV SSKLSDIKAH KYSAEDILKL NHFH SYGDR ECKECLRSDI DINDDGLCSI CEGIINISND LRDKSFFVLS ETGKLKMPFN KFISVIDYEE AEMLVQNNNQ VRIYS KNKP YIGIGISTNL WMCDYDYASQ NQDMREKGIG SYVDREEGVK RLGVVRADID NLGATFISGI PEKYNSISRT ATLSRQ LSL FFKYELNHLL ENYQITAIYS GGDDLFLIGA WDDIIEASIY INDKFKEFTL DKLTLSAGVG MFSGKYPVSK MAFETGR LE EAAKTGEKNQ ISLWLQEKVY NWDEFKKNIL EEKLLVLQQG FSQTDEHGKA FIYKMLALLR NNEAINIARL AYLLARSK M NEDFTSKIFN WAQNDKDKNQ LITALEYYIY QIREAD

-
Macromolecule #4: Staphylococcus epidermidis RP62A CRISPR RNA: Repeat plus Spacer s...

MacromoleculeName: Staphylococcus epidermidis RP62A CRISPR RNA: Repeat plus Spacer sequence 2
type: rna / ID: 4 / Number of copies: 1
Source (natural)Organism: Staphylococcus epidermidis RP62A (bacteria) / Strain: ATCC 35984 / RP62A
Molecular weightTheoretical: 11.811033 KDa
SequenceString:
ACGAGAACUA GUAAUAAUUG UCAUUUGCAU ACGUUAC

-
Macromolecule #5: CRISPR non-self RNA target

MacromoleculeName: CRISPR non-self RNA target / type: rna / ID: 5 / Number of copies: 1
Source (natural)Organism: Staphylococcus epidermidis RP62A (bacteria)
Molecular weightTheoretical: 12.789641 KDa
SequenceString:
AGCCUGGUAA CGUAUGCAAA UGACAAUUAU UACUAUCCAG

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration3.2 mg/mL
BufferpH: 8
Component:
ConcentrationFormulaName
50.0 mMC4H11NO32-Amino-2-(hydroxymethyl)propane-1,3-diol
250.0 mMNaClSodium chlorideNaClSodium chloride
1.0 mMC4H10O2S2Dithiothreitol
GridModel: C-flat-1.2/1.3 / Material: COPPER / Mesh: 400 / Support film - Material: CARBON / Support film - topology: HOLEY / Pretreatment - Type: GLOW DISCHARGE
Details: cryo-EM grids were prepared by glow discharging for 10 seconds at 15 mA in a Pelco easiGlow glow discharger.
VitrificationCryogen name: ETHANE / Chamber humidity: 95 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV
Details: 3 ul of the protein-RNA complex were added to the grid and allowed to incubate for 10 seconds. After incubation the grid was blotted in a Vitrobot Mark IV (FEI Thermo Fischer) (humidity 95% ...Details: 3 ul of the protein-RNA complex were added to the grid and allowed to incubate for 10 seconds. After incubation the grid was blotted in a Vitrobot Mark IV (FEI Thermo Fischer) (humidity 95% and temperature 4 C) for 3 seconds with a force of 0 before plunge freezing in liquid ethane..

-
Electron microscopy

MicroscopeTFS KRIOS
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsCalibrated magnification: 44454 / Illumination mode: OTHER / Imaging mode: BRIGHT FIELDBright-field microscopy / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.5 µm
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number real images: 2455 / Average electron dose: 49.5 e/Å2
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Particle selectionNumber selected: 2368249
CTF correctionSoftware - Name: cryoSPARC
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final 3D classificationSoftware - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final reconstructionApplied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 3.49 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 168418
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

6nbt

chain_id: A

6nbt

chain_id: B

6nbt

chain_id: C

6nbt

chain_id: D

6nbt

chain_id: E
RefinementSpace: REAL / Protocol: OTHER
Output model

PDB-7uzx:
Staphylococcus epidermidis RP62a CRISPR effector subcomplex with non-self target RNA bound

+
