- EMDB-25904: CryoEM map of SARS-CoV-2 S protein in complex with Receptor Bindi... -
+
Open data
-
Basic information
Entry | Database: EMDB / ID: EMD-25904 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Title | CryoEM map of SARS-CoV-2 S protein in complex with Receptor Binding Domain antibody DH1042 | |||||||||
![]() | CryoEM map of SARS-CoV-2 S protein in complex with Receptor Binding Domain antibody DH1042 | |||||||||
![]() |
| |||||||||
Function / homology | ![]() Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / host cell endoplasmic reticulum-Golgi intermediate compartment membrane ...Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / entry receptor-mediated virion attachment to host cell / receptor-mediated endocytosis of virus by host cell / Attachment and Entry / membrane fusion / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / receptor ligand activity / host cell surface receptor binding / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / membrane / identical protein binding / plasma membrane Similarity search - Function | |||||||||
Biological species | ![]() ![]() ![]() | |||||||||
Method | single particle reconstruction / cryo EM / Resolution: 3.42 Å | |||||||||
![]() | Manne K / May A / Acharya P | |||||||||
Funding support | ![]()
| |||||||||
![]() | ![]() Title: Structural diversity of the SARS-CoV-2 Omicron spike. Authors: Sophie M-C Gobeil / Rory Henderson / Victoria Stalls / Katarzyna Janowska / Xiao Huang / Aaron May / Micah Speakman / Esther Beaudoin / Kartik Manne / Dapeng Li / Rob Parks / Maggie Barr / ...Authors: Sophie M-C Gobeil / Rory Henderson / Victoria Stalls / Katarzyna Janowska / Xiao Huang / Aaron May / Micah Speakman / Esther Beaudoin / Kartik Manne / Dapeng Li / Rob Parks / Maggie Barr / Margaret Deyton / Mitchell Martin / Katayoun Mansouri / Robert J Edwards / Gregory D Sempowski / Kevin O Saunders / Kevin Wiehe / Wilton Williams / Bette Korber / Barton F Haynes / Priyamvada Acharya Abstract: Aided by extensive spike protein mutation, the SARS-CoV-2 Omicron variant overtook the previously dominant Delta variant. Spike conformation plays an essential role in SARS-CoV-2 evolution via ...Aided by extensive spike protein mutation, the SARS-CoV-2 Omicron variant overtook the previously dominant Delta variant. Spike conformation plays an essential role in SARS-CoV-2 evolution via changes in receptor binding domain (RBD) and neutralizing antibody epitope presentation affecting virus transmissibility and immune evasion. Here, we determine cryo-EM structures of the Omicron and Delta spikes to understand the conformational impacts of mutations in each. The Omicron spike structure revealed an unusually tightly packed RBD organization with long range impacts that were not observed in the Delta spike. Binding and crystallography revealed increased flexibility at the functionally critical fusion peptide site in the Omicron spike. These results reveal a highly evolved Omicron spike architecture with possible impacts on its high levels of immune evasion and transmissibility. | |||||||||
History |
|
-

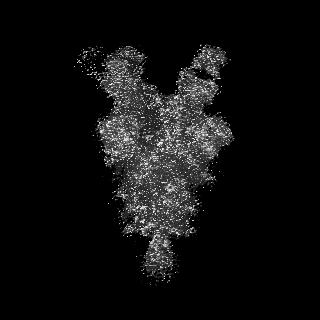

Structure visualization
Movie |
![]() |
---|---|
Structure viewer | EM map: ![]() ![]() ![]() |
Supplemental images |
-
Downloads & links
-EMDB archive
Map data | ![]() | 118.1 MB | ![]() | |
---|---|---|---|---|
Header (meta data) | ![]() ![]() | 20.5 KB 20.5 KB | Display Display | ![]() |
Images | ![]() | 42.7 KB | ||
Archive directory | ![]() ![]() | HTTPS FTP |
-Validation report
Summary document | ![]() | 518.6 KB | Display | ![]() |
---|---|---|---|---|
Full document | ![]() | 518.1 KB | Display | |
Data in XML | ![]() | 6.8 KB | Display | |
Data in CIF | ![]() | 7.7 KB | Display | |
Arichive directory | ![]() ![]() | HTTPS FTP |
-Related structure data
Related structure data | ![]() 7thtMC ![]() 7teiC ![]() 7tf8C ![]() 7tl1C ![]() 7tl9C ![]() 7tlaC ![]() 7tlcC ![]() 7tldC ![]() 7touC ![]() 7tovC ![]() 7towC ![]() 7toxC ![]() 7toyC ![]() 7tozC ![]() 7tp0C ![]() 7tp1C ![]() 7tp2C ![]() 7tp7C ![]() 7tp8C ![]() 7tp9C ![]() 7tpaC ![]() 7tpcC ![]() 7tpeC ![]() 7tpfC ![]() 7tphC ![]() 7tplC M: atomic model generated by this map C: citing same article ( |
---|---|
Similar structure data |
-
Links
EMDB pages | ![]() ![]() |
---|---|
Related items in Molecule of the Month |
-

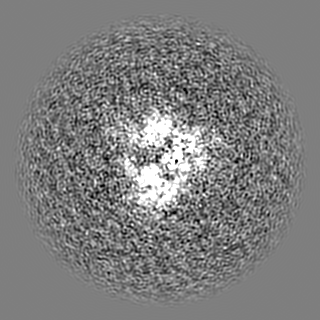

Map
File | ![]() | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Annotation | CryoEM map of SARS-CoV-2 S protein in complex with Receptor Binding Domain antibody DH1042 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Voxel size | X=Y=Z: 1.058 Å | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

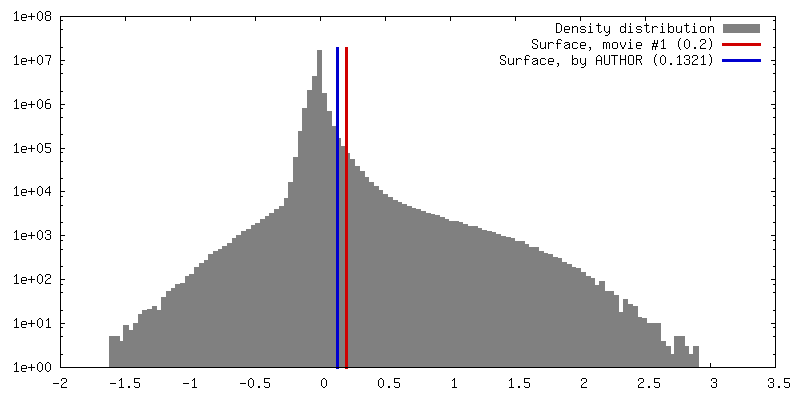

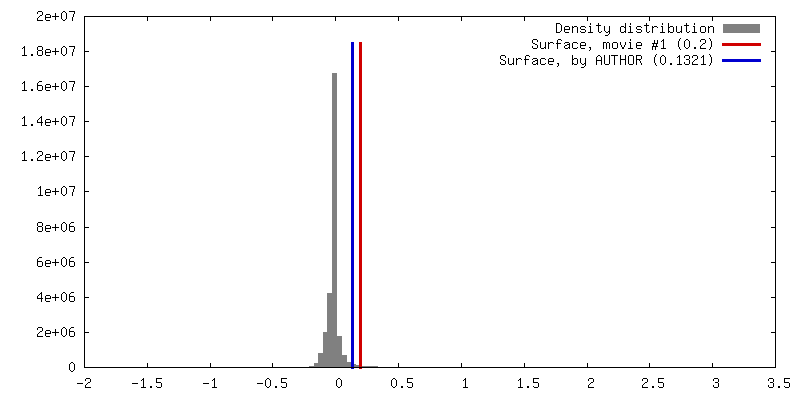

Density |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Symmetry | Space group: 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Details | EMDB XML:
CCP4 map header:
|
-Supplemental data
-
Sample components
-Entire : Severe acute respiratory syndrome-related coronavirus spike glyco...
Entire | Name: Severe acute respiratory syndrome-related coronavirus spike glycoprotein in complex with RBD antibody DH1042 |
---|---|
Components |
|
-Supramolecule #1: Severe acute respiratory syndrome-related coronavirus spike glyco...
Supramolecule | Name: Severe acute respiratory syndrome-related coronavirus spike glycoprotein in complex with RBD antibody DH1042 type: complex / ID: 1 / Chimera: Yes / Parent: 0 / Macromolecule list: #1 |
---|
-Supramolecule #2: Spike glycoprotein
Supramolecule | Name: Spike glycoprotein / type: complex / ID: 2 / Chimera: Yes / Parent: 1 / Macromolecule list: #1 |
---|---|
Source (natural) | Organism: ![]() ![]() |
-Supramolecule #3: Antibody DH1042
Supramolecule | Name: Antibody DH1042 / type: complex / ID: 3 / Chimera: Yes / Parent: 1 / Macromolecule list: #2-#3 |
---|---|
Source (natural) | Organism: ![]() |
-Macromolecule #1: Spike glycoprotein
Macromolecule | Name: Spike glycoprotein / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: ![]() ![]() |
Molecular weight | Theoretical: 124.125477 KDa |
Recombinant expression | Organism: ![]() |
Sequence | String: AYTNSFTRGV YYPDKVFRSS VLHSTQDLFL PFFSNVTWFH AIHVSGTNGT KRFDNPVLPF NDGVYFASTE KSNIIRGWIF GTTLDSKTQ SLLIVNNATN VVIKVCEFQF CNDPFLGVYY HKNNKSWMES EFRVYSSANN CTFEYVSQPF LMDLEGKQGN F KNLREFVF ...String: AYTNSFTRGV YYPDKVFRSS VLHSTQDLFL PFFSNVTWFH AIHVSGTNGT KRFDNPVLPF NDGVYFASTE KSNIIRGWIF GTTLDSKTQ SLLIVNNATN VVIKVCEFQF CNDPFLGVYY HKNNKSWMES EFRVYSSANN CTFEYVSQPF LMDLEGKQGN F KNLREFVF KNIDGYFKIY SKHTPINLVR DLPQGFSALE PLVDLPIGIN ITRFQTLLAL HRSYLTPGDS SSGWTAGAAA YY VGYLQPR TFLLKYNENG TITDAVDCAL DPLSETKCTL KSFTVEKGIY QTSNFRVQPT ESIVRFPNIT NLCPFGEVFN ATR FASVYA WNRKRISNCV ADYSVLYNSA SFSTFKCYGV SPTKLNDLCF TNVYADSFVI RGDEVRQIAP GQTGKIADYN YKLP DDFTG CVIAWNSNNL DSKVGGNYNY LYRLFRKSNL KPFERDISTE IYQAGSTPCN GVEGFNCYFP LQSYGFQPTN GVGYQ PYRV VVLSFELLHA PATVCGPKKS TNLVKNKCVN FNFNGLTGTG VLTESNKKFL PFQQFGRDIA DTTDAVRDPQ TLEILD ITP CSFGGVSVIT PGTNTSNEVA VLYQDVNCTE VPVAIHADQL TPTWRVYSTG SNVFQTRAGC LIGAEHVNNS YECDIPI GA GICASYQTQT NSPRRARSVA SQSIIAYTMS LGAENSVAYS NNSIAIPTNF TISVTTEILP VSMTKTSVDC TMYICGDS T ECSNLLLQYG SFCTQLNRAL TGIAVEQDKN TQEVFAQVKQ IYKTPPIKDF GGFNFSQILP DPSKPSKRSF IEDLLFNKV TLADAGFIKQ YGDCLGDIAA RDLICAQKFN GLTVLPPLLT DEMIAQYTSA LLAGTITSGW TFGAGAALQI PFAMQMAYRF NGIGVTQNV LYENQKLIAN QFNSAIGKIQ DSLSSTASAL GKLQDVVNQN AQALNTLVKQ LSSNFGAISS VLNDILSRLD P PEAEVQID RLITGRLQSL QTYVTQQLIR AAEIRASANL AATKMSECVL GQSKRVDFCG KGYHLMSFPQ SAPHGVVFLH VT YVPAQEK NFTTAPAICH DGKAHFPREG VFVSNGTHWF VTQRNFYEPQ IITTDNTFVS GNCDVVIGIV NNTVYDPLQP ELD S |
-Macromolecule #2: DH1042 heavy chain
Macromolecule | Name: DH1042 heavy chain / type: protein_or_peptide / ID: 2 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: ![]() |
Molecular weight | Theoretical: 13.476164 KDa |
Recombinant expression | Organism: ![]() |
Sequence | String: QVQLVQSGAE VKKPGSSVKV SCKASGGTFS SYAISWVRQA PGQGLEWMGR IIPMFGIANY AQKFQGRVTI TADKSTSTAY LELSSLRSE DTAVYYCARY MVTRDQYYYD MDVWGQGTTV TVS |
-Macromolecule #3: DH1042 light chain
Macromolecule | Name: DH1042 light chain / type: protein_or_peptide / ID: 3 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: ![]() |
Molecular weight | Theoretical: 11.431628 KDa |
Recombinant expression | Organism: ![]() |
Sequence | String: DIQMTQSPSS LSASVGDRVT ITCRASQSIS NYLNWYQQKP GKAPKLLIYA ASSLQSGVPS RFSGSGSGTD FTLTISSLQP EDFATYYCQ QSYSPPPTFG QGTKLEI |
-Macromolecule #6: 2-acetamido-2-deoxy-beta-D-glucopyranose
Macromolecule | Name: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 6 / Number of copies: 33 / Formula: NAG |
---|---|
Molecular weight | Theoretical: 221.208 Da |
Chemical component information | ![]() ChemComp-NAG: |
-Experimental details
-Structure determination
Method | cryo EM |
---|---|
![]() | single particle reconstruction |
Aggregation state | particle |
-
Sample preparation
Buffer | pH: 7.4 |
---|---|
Grid | Model: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Support film - Material: CARBON / Support film - topology: HOLEY / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 30 sec. / Pretreatment - Atmosphere: AIR |
Vitrification | Cryogen name: ETHANE |
-
Electron microscopy
Microscope | FEI TITAN KRIOS |
---|---|
Temperature | Min: 93.15 K / Max: 93.15 K |
Image recording | Film or detector model: GATAN K3 (6k x 4k) / Number real images: 14444 / Average electron dose: 54.02 e/Å2 |
Electron beam | Acceleration voltage: 300 kV / Electron source: ![]() |
Electron optics | Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.75 µm |
Sample stage | Specimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN |
Experimental equipment | ![]() Model: Titan Krios / Image courtesy: FEI Company |
+
Image processing
-Atomic model buiding 1
Initial model |
| ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Refinement | Protocol: AB INITIO MODEL | ||||||||||||||
Output model | ![]() PDB-7tht: |
