EMDB-52449: Structure of the transcribing Pol II-TCR-RECQL5 complex

Basic information

Entry

Database: EMDB / ID: EMD-52449

• Title: Structure of the transcribing Pol II-TCR-RECQL5 complex
• Map data: Sharpened overall map of EC-TCR-RECQL5

Sample

• Complex: PolII-TCR-RECQL5 complex
  • Protein or peptide: x 18 types
  • DNA: x 2 types
  • RNA: x 1 types
• Ligand: x 2 types

• Keywords: transcription elongation / DNA helicase / transcription-coupled repair / RNA polymerase II / TRANSCRIPTION

Function / homology

Function:

mitotic DNA-templated DNA replication / RNA polymerase inhibitor activity / negative regulation of double-strand break repair via nonhomologous end joining / chromosome separation / regulation of transcription-coupled nucleotide-excision repair / nucleotide-excision repair complex / response to auditory stimulus / four-way junction helicase activity / DNA protection / transcription elongation factor complex / regulation of transcription elongation by RNA polymerase II / B-WICH complex positively regulates rRNA expression / RNA Polymerase I Transcription Initiation / RNA Polymerase I Promoter Escape / RNA Polymerase I Transcription Termination / RNA Polymerase III Transcription Initiation From Type 1 Promoter / RNA Polymerase III Transcription Initiation From Type 2 Promoter / RNA Polymerase III Transcription Initiation From Type 3 Promoter / Formation of RNA Pol II elongation complex / Formation of the Early Elongation Complex / Transcriptional regulation by small RNAs / RNA Polymerase II Pre-transcription Events / TP53 Regulates Transcription of DNA Repair Genes / FGFR2 alternative splicing / RNA polymerase II transcribes snRNA genes / mRNA Capping / mRNA Splicing - Minor Pathway / Processing of Capped Intron-Containing Pre-mRNA / RNA Polymerase II Promoter Escape / RNA Polymerase II Transcription Pre-Initiation And Promoter Opening / RNA Polymerase II Transcription Initiation / RNA Polymerase II Transcription Elongation / RNA Polymerase II Transcription Initiation And Promoter Clearance / RNA Pol II CTD phosphorylation and interaction with CE / Estrogen-dependent gene expression / mRNA Splicing - Major Pathway / mRNA Polyadenylation / Formation of TC-NER Pre-Incision Complex / Dual incision in TC-NER / Gap-filling DNA repair synthesis and ligation in TC-NER / double-strand break repair via classical nonhomologous end joining / single strand break repair / RNA polymerase binding / positive regulation of DNA-templated transcription, elongation / positive regulation by virus of viral protein levels in host cell / spindle assembly involved in female meiosis / chromatin-protein adaptor activity / ATP-dependent chromatin remodeler activity / epigenetic programming in the zygotic pronuclei / transcription preinitiation complex / UV-damage excision repair / DNA metabolic process / ATP-dependent DNA damage sensor activity / biological process involved in interaction with symbiont / regulation of mitotic cytokinesis / regulation of mitotic cell cycle phase transition / negative regulation of transcription elongation by RNA polymerase II / regulation of miRNA-mediated gene silencing / regulation of natural killer cell activation / WD40-repeat domain binding / regulation of cell cycle phase transition / Cul4A-RING E3 ubiquitin ligase complex / Cul4-RING E3 ubiquitin ligase complex / regulation of stem cell population maintenance / positive regulation of transcription by RNA polymerase III / positive regulation of transcription by RNA polymerase I / Cul4B-RING E3 ubiquitin ligase complex / RNA polymerase II complex binding / RNA Polymerase I Transcription Initiation / ubiquitin ligase complex scaffold activity / response to UV / negative regulation of adipose tissue development / DNA 3'-5' helicase / regulation of cellular response to stress / viral release from host cell / maintenance of transcriptional fidelity during transcription elongation by RNA polymerase II / 3'-5' DNA helicase activity / cullin family protein binding / protein tyrosine kinase activator activity / ATP-dependent activity, acting on DNA / translation elongation factor activity / neurogenesis / regulation of DNA-templated DNA replication initiation / positive regulation of viral genome replication / positive regulation of gluconeogenesis / protein autoubiquitination / termination of RNA polymerase III transcription / positive regulation of double-strand break repair via homologous recombination / transcription initiation at RNA polymerase III promoter / ubiquitin-like ligase-substrate adaptor activity / DNA damage checkpoint signaling / RNA polymerase I complex / RNA polymerase III complex / RNA polymerase II, core complex / transcription elongation by RNA polymerase I / tRNA transcription by RNA polymerase III / protein localization to chromatin / transcription by RNA polymerase I / transcription-coupled nucleotide-excision repair / replication fork

Domain/homology:

: / UV-stimulated scaffold protein A / : / : / Uncharacterized conserved protein (DUF2043) / UVSSA N-terminal domain / Zinc finger UVSSA-type profile. / : / Rad26/CSB winged helix DNA-binding domain / DNA excision repair protein Rad28/ERCC8/Ckn1/ATCSA-1 / RecQ helicase-like 5 / RecQ helicase protein-like 5 (RecQ5) / : / Transcription elongation factor 1 / Transcription elongation factor 1 superfamily / Transcription elongation factor Elf1 like / Set2 Rpb1 interacting domain / SRI (Set2 Rpb1 interacting) domain / ATP-dependent DNA helicase RecQ, zinc-binding domain / RecQ zinc-binding / DNA helicase, ATP-dependent, RecQ type / ENTH/VHS / DNA/RNA helicase, ATP-dependent, DEAH-box type, conserved site / DEAH-box subfamily ATP-dependent helicases signature. / : / RSE1/DDB1/CPSF1 second beta-propeller / Cleavage/polyadenylation specificity factor, A subunit, C-terminal / Cleavage/polyadenylation specificity factor, A subunit, N-terminal / : / CPSF A subunit region / RSE1/DDB1/CPSF1 first beta-propeller / : / SNF2-like, N-terminal domain superfamily / SNF2, N-terminal / SNF2-related domain / DNA-directed RNA polymerase II subunit Rpb4-like / RNA polymerase Rpb4/RPC9, core / DNA-directed RNA-polymerase II subunit / RNA polymerase Rpb1 C-terminal repeat / RNA polymerase II, heptapeptide repeat, eukaryotic / Eukaryotic RNA polymerase II heptapeptide repeat. / RNA polymerase Rpb1, domain 6 / RNA polymerase Rpb1, domain 6 / RNA polymerase Rpb1, domain 7 / RNA polymerase Rpb1, domain 7 superfamily / RNA polymerase Rpb1, domain 7 / Rpb4/RPC9 superfamily / Pol II subunit B9, C-terminal zinc ribbon / RNA polymerase RBP11 / RNA polymerase subunit Rpb4/RPC9 / RNA polymerase Rpb4 / Zinc finger TFIIS-type signature. / RNA polymerase Rpb7-like , N-terminal / RNA polymerase Rpb7-like, N-terminal domain superfamily / RNA polymerase subunit Rpb7-like / SHS2 domain found in N terminus of Rpb7p/Rpc25p/MJ0397 / HRDC-like superfamily / RNA polymerase Rpb2, domain 5 / RNA polymerase Rpb2, domain 5 / RNA polymerase Rpb2, domain 4 / RNA polymerase Rpb2, domain 4 / DNA-directed RNA polymerase, M/15kDa subunit / RNA polymerases M/15 Kd subunit / RNA polymerase subunit 9 / DNA-directed RNA polymerase M, 15kDa subunit, conserved site / RNA polymerases M / 15 Kd subunits signature. / DNA-directed RNA polymerase subunit/transcription factor S / RNA polymerase, Rpb8 / DNA-directed RNA polymerases I, II, and III subunit RPABC4 / RNA polymerase Rpb8 / RNA polymerase subunit 8 / RNA polymerase, Rpb5, N-terminal / RNA polymerase Rpb5, N-terminal domain superfamily / RNA polymerase Rpb5, N-terminal domain / : / DNA-directed RNA polymerase, subunit RPB6 / DNA-directed RNA polymerase subunit RPABC5/Rpb10 / RNA polymerases, subunit N, zinc binding site / RNA polymerase subunit RPB10 / RNA polymerases N / 8 kDa subunit / RNA polymerases N / 8 Kd subunits signature. / RNA polymerase, subunit H/Rpb5, conserved site / RNA polymerases H / 23 Kd subunits signature. / DNA directed RNA polymerase, 7 kDa subunit / Zinc finger, TFIIS-type / RNA polymerase archaeal subunit P/eukaryotic subunit RPABC4 / Transcription factor S-II (TFIIS) / Zinc finger TFIIS-type profile. / C2C2 Zinc finger / RNA polymerase subunit CX / DNA-directed RNA polymerase, 30-40kDa subunit, conserved site / DNA-directed RNA polymerase subunit Rpo3/Rpb3/RPAC1 / RNA polymerases D / 30 to 40 Kd subunits signature. / DNA-directed RNA polymerase Rpb11, 13-16kDa subunit, conserved site / DNA-directed RNA polymerase subunit Rpo11 / RNA polymerases L / 13 to 16 Kd subunits signature. / RNA polymerase subunit RPABC4/transcription elongation factor Spt4 / DNA-directed RNA polymerase, RBP11-like dimerisation domain / RNA polymerase Rpb3/Rpb11 dimerisation domain / RNA polymerase, subunit H/Rpb5 C-terminal

Component:

Transcription elongation factor 1 homolog / DNA-directed RNA polymerase subunit beta / DNA-directed RNA polymerases I, II, and III subunit RPABC4 / DNA-directed RNA polymerases I, II, and III subunit RPABC2 / DNA-directed RNA polymerase subunit / DNA-directed RNA polymerase II subunit RPB4 / DNA-directed RNA polymerases I, II, and III subunit RPABC5 / DNA-directed RNA polymerase subunit / DNA-directed RNA polymerase RBP11-like dimerisation domain-containing protein / DNA-directed RNA polymerases I, II, and III subunit RPABC3 / DNA-directed RNA polymerase II subunit RPB3 / DNA-directed RNA polymerases I, II, and III subunit RPABC1 / ATP-dependent DNA helicase Q5 / DNA-directed RNA polymerase II subunit RPB9 / DNA excision repair protein ERCC-6 / DNA excision repair protein ERCC-8 / DNA damage-binding protein 1 / UV-stimulated scaffold protein A

• Biological species: Homo sapiens (human) / Sus scrofa domesticus (domestic pig) / synthetic construct (others)
• Method: single particle reconstruction / cryo EM / Resolution: 3.5 Å
• Authors: Zhang L / Zhang S

Funding support

United Kingdom, 1 items

Organization	Grant number	Country
Medical Research Council (MRC, United Kingdom)	MC_UP_1201/30	United Kingdom

• Citation: Journal: Nat Struct Mol Biol / Year: 2025; Title: Structural basis of RECQL5-induced RNA polymerase II transcription braking and subsequent reactivation.; Authors: Luojia Zhang / Yuliya Gordiyenko / Tomos Morgan / Catarina Franco / Ana Tufegdžić Vidaković / Suyang Zhang / ; Abstract: Abnormally fast transcription elongation can lead to detrimental consequences such as transcription-replication collisions, altered alternative splicing patterns and genome instability. Therefore, elongating RNA polymerase II (Pol II) requires mechanisms to slow its progression, yet the molecular basis of transcription braking remains unclear. RECQL5 is a DNA helicase that functions as a general elongation factor by slowing down Pol II. Here we report cryo-electron microscopy structures of human RECQL5 bound to multiple transcription elongation complexes. Combined with biochemical analysis, we identify an α-helix of RECQL5 responsible for binding Pol II and slowdown of transcription elongation. We further reveal that the transcription-coupled DNA repair (TCR) complex allows Pol II to overcome RECQL5-induced transcription braking through concerted actions of its translocase activity and competition with RECQL5 for engaging Pol II. Additionally, RECQL5 inhibits TCR-mediated Pol II ubiquitination to prevent activation of the DNA repair pathway. Our results suggest a model in which RECQL5 and the TCR complex coordinately regulate transcription elongation rates to ensure transcription efficiency while maintaining genome stability.

History

Deposition	Jan 3, 2025	-
Header (metadata) release	Jul 16, 2025	-
Map release	Jul 16, 2025	-
Update	Oct 1, 2025	-
Current status	Oct 1, 2025	Processing site: PDBe / Status: Released

Map

• File: Download / File: emd_52449.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
• Annotation: Sharpened overall map of EC-TCR-RECQL5
• Voxel size: X=Y=Z: 0.8156 Å

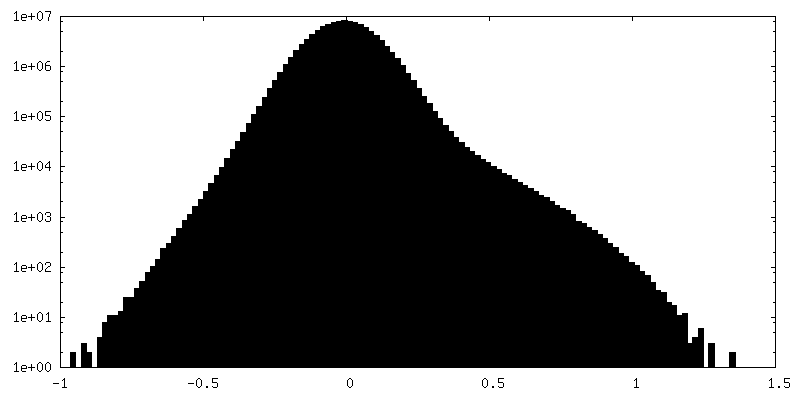

Density

Contour Level	By AUTHOR: 0.15
Minimum - Maximum	-0.41570458 - 0.9116962
Average (Standard dev.)	0.0010411539 (±0.02855194)

• Symmetry: Space group: 1

Details

EMDB XML:

Map geometry	Axis order X Y Z Origin 0 0 0 Dimensions 480 480 480 Spacing 480 480 480
Cell	A=B=C: 391.48798 Å α=β=γ: 90.0 °

Supplemental data

Additional map: Non-sharpened overall map of EC-TCR-RECQL5

• File: emd_52449_additional_1.map
• Annotation: Non-sharpened overall map of EC-TCR-RECQL5

Additional map: Locally filtered and sharpened overall map of EC-TCR-RECQL5

• File: emd_52449_additional_2.map
• Annotation: Locally filtered and sharpened overall map of EC-TCR-RECQL5

Half map: Half map of EC-TCR-RECQL5

• File: emd_52449_half_map_1.map
• Annotation: Half map of EC-TCR-RECQL5

Half map: Half map of EC-TCR-RECQL5

• File: emd_52449_half_map_2.map
• Annotation: Half map of EC-TCR-RECQL5

Sample components

Entire : PolII-TCR-RECQL5 complex

• Entire: Name: PolII-TCR-RECQL5 complex

Components

• Complex: PolII-TCR-RECQL5 complex
  • Protein or peptide: DNA-directed RNA polymerase subunit
  • Protein or peptide: DNA-directed RNA polymerase subunit beta
  • Protein or peptide: DNA-directed RNA polymerase II subunit RPB3
  • Protein or peptide: RNA polymerase II subunit D
  • Protein or peptide: DNA-directed RNA polymerase II subunit E
  • Protein or peptide: DNA-directed RNA polymerases I, II, and III subunit RPABC2
  • Protein or peptide: DNA-directed RNA polymerase subunit
  • Protein or peptide: DNA-directed RNA polymerases I, II, and III subunit RPABC3
  • Protein or peptide: DNA-directed RNA polymerase II subunit RPB9
  • Protein or peptide: DNA-directed RNA polymerases I, II, and III subunit RPABC5
  • Protein or peptide: DNA-directed RNA polymerase II subunit RPB11-a
  • Protein or peptide: RNA polymerase II, I and III subunit K
  • DNA: Non-template DNA
  • Protein or peptide: ATP-dependent DNA helicase Q5
  • RNA: RNA
  • DNA: Template DNA
  • Protein or peptide: DNA excision repair protein ERCC-8
  • Protein or peptide: DNA excision repair protein ERCC-6
  • Protein or peptide: UV-stimulated scaffold protein A
  • Protein or peptide: DNA damage-binding protein 1
  • Protein or peptide: Transcription elongation factor 1 homolog
• Ligand: ZINC ION
• Ligand: MAGNESIUM ION

Supramolecule #1: PolII-TCR-RECQL5 complex

• Supramolecule: Name: PolII-TCR-RECQL5 complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#21
• Source (natural): Organism: Homo sapiens (human)

Macromolecule #1: DNA-directed RNA polymerase subunit

• Macromolecule: Name: DNA-directed RNA polymerase subunit / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 217.450078 KDa

Sequence

String:

MHGGGPPSGD SACPLRTIKR VQFGVLSPDE LKRMSVTEGG IKYPETTEGG RPKLGGLMDP RQGVIERTGR CQTCAGNMTE CPGHFGHIE LAKPVFHVGF LVKTMKVLRC VCFFCSKLLV DSNNPKIKDI LAKSKGQPKK RLTHVYDLCK GKNICEGGEE M DNKFGVEQ PEGDEDLTKE KGHGGCGRYQ PRIRRSGLEL YAEWKHVNED SQEKKILLSP ERVHEIFKRI SDEECFVLGM EP RYARPEW MIVTVLPVPP LSVRPAVVMQ GSARNQDDLT HKLADIVKIN NQLRRNEQNG AAAHVIAEDV KLLQFHVATM VDN ELPGLP RAMQKSGRPL KSLKQRLKGK EGRVRGNLMG KRVDFSARTV ITPDPNLSID QVGVPRSIAA NMTFAEIVTP FNID RLQEL VRRGNSQYPG AKYIIRDNGD RIDLRFHPKP SDLHLQTGYK VERHMCDGDI VIFNRQPTLH KMSMMGHRVR ILPWS TFRL NLSVTTPYNA DFDGDEMNLH LPQSLETRAE IQELAMVPRM IVTPQSNRPV MGIVQDTLTA VRKFTKRDVF LERGEV MNL LMFLSTWDGK VPQPAILKPR PLWTGKQIFS LIIPGHINCI RTHSTHPDDE DSGPYKHISP GDTKVVVENG ELIMGIL CK KSLGTSAGSL VHISYLEMGH DITRLFYSNI QTVINNWLLI EGHTIGIGDS IADSKTYQDI QNTIKKAKQD VIEVIEKA H NNELEPTPGN TLRQTFENQV NRILNDARDK TGSSAQKSLS EYNNFKSMVV SGAKGSKINI SQVIAVVGQQ NVEGKRIPF GFKHRTLPHF IKDDYGPESR GFVENSYLAG LTPTEFFFHA MGGREGLIDT AVKTAETGYI QRRLIKSMES VMVKYDATVR NSINQVVQL RYGEDGLAGE SVEFQNLATL KPSNKAFEKK FRFDYTNERA LRRTLQEDLV KDVLSNAHIQ NELEREFERM R EDREVLRV IFPTGDSKVV LPCNLLRMIW NAQKIFHINP RLPSDLHPIK VVEGVKELSK KLVIVNGDDP LSRQAQENAT LL FNIHLRS TLCSRRMAEE FRLSGEAFDW LLGEIESKFN QAIAHPGEMV GALAAQSLGE PATQMTLNTF HYAGVSAKNV TLG VPRLKE LINISKKPKT PSLTVFLLGQ SARDAERAKD ILCRLEHTTL RKVTANTAIY YDPNPQSTVV AEDQEWVNVY YEMP DFDVA RISPWLLRVE LDRKHMTDRK LTMEQIAEKI NAGFGDDLNC IFNDDNAEKL VLRIRIMNSD ENKMQEEEEV VDKMD DDVF LRCIESNMLT DMTLQGIEQI SKVYMHLPQT DNKKKIIITE DGEFKALQEW ILETDGVSLM RVLSEKDVDP VRTTSN DIV EIFTVLGIEA VRKALERELY HVISFDGSYV NYRHLALLCD TMTCRGHLMA ITRHGVNRQD TGPLMKCSFE ETVDVLM EA AAHGESDPMK GVSENIMLGQ LAPAGTGCFD LLLDAEKCKY GMEIPTNIPG LGAAGPTGMF FGSAPSPMGG ISPAMTPW N QGATPAYGAW SPSVGSGMTP GAAGFSPSAA SDASGFSPGY SPAWSPTPGS PGSPGPSSPY IPSPGGAMSP SYSPTSPAY EPRSPGGYTP QSPSYSPTSP SYSPTSPSYS PTSPNYSPTS PSYSPTSPSY SPTSPSYSPT SPSYSPTSPS YSPTSPSYSP TSPSYSPTS PSYSPTSPSY SPTSPSYSPT SPSYSPTSPS YSPTSPSYSP TSPSYSPTSP SYSPTSPNYS PTSPNYTPTS P SYSPTSPS YSPTSPNYTP TSPNYSPTSP SYSPTSPSYS PTSPSYSPSS PRYTPQSPTY TPSSPSYSPS SPSYSPTSPK YT PTSPSYS PSSPEYTPTS PKYSPTSPKY SPTSPKYSPT SPTYSPTTPK YSPTSPTYSP TSPVYTPTSP KYSPTSPTYS PTS PKYSPT SPTYSPTSPK GSTYSPTSPG YSPTSPTYSL TSPAISPDDS DEEN

UniProtKB: DNA-directed RNA polymerase subunit

Macromolecule #2: DNA-directed RNA polymerase subunit beta

• Macromolecule: Name: DNA-directed RNA polymerase subunit beta / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 134.041422 KDa

Sequence

String:

MYDADEDMQY DEDDDEITPD LWQEACWIVI SSYFDEKGLV RQQLDSFDEF IQMSVQRIVE DAPPIDLQAE AQHASGEVEE PPRYLLKFE QIYLSKPTHW ERDGAPSPMM PNEARLRNLT YSAPLYVDIT KTVIKEGEEQ LQTQHQKTFI GKIPIMLRST Y CLLNGLTD RDLCELNECP LDPGGYFIIN GSEKVLIAQE KMATNTVYVF AKKDSKYAYT GECRSCLENS SRPTSTIWVS ML ARGGQGA KKSAIGQRIV ATLPYIKQEV PIIIVFRALG FVSDRDILEH IIYDFEDPEM MEMVKPSLDE AFVIQEQNVA LNF IGSRGA KPGVTKEKRI KYAKEVLQKE MLPHVGVSDF CETKKAYFLG YMVHRLLLAA LGRRELDDRD HYGNKRLDLA GPLL AFLFR GMFKNLLKEV RIYAQKFIDR GKDFNLELAI KTRIISDGLK YSLATGNWGD QKKAHQARAG VSQVLNRLTF ASTLS HLRR LNSPIGRDGK LAKPRQLHNT LWGMVCPAET PEGHAVGLVK NLALMAYISV GSQPSPILEF LEEWSMENLE EISPAA IAD ATKIFVNGCW VGIHKDPEQL MNTLRKLRRQ MDIIVSEVSM IRDIREREIR IYTDAGRICR PLLIVEKQKL LLKKRHI DQ LKEREYNNYS WQDLVASGVV EYIDTLEEET VMLAMTPDDL QEKEVAYCST YTHCEIHPSM ILGVCASIIP FPDHNQSP R NTYQSAMGKQ AMGVYITNFH VRMDTLAHVL YYPQKPLVTT RSMEYLRFRE LPAGINSIVA IASYTGYNQE DSVIMNRSA VDRGFFRSVF YRSYKEQESK KGFDQEEVFE KPTRETCQGM RHAIYDKLDD DGLIAPGVRV SGDDVIIGKT VTLPENEDEL EGTNRRYTK RDCSTFLRTS ETGIVDQVMV TLNQEGYKFC KIRVRSVRIP QIGDKFASRH GQKGTCGIQY RQEDMPFTCE G ITPDIIIN PHAIPSRMTI GHLIECLQGK VSANKGEIGD ATPFNDAVNV QKISNLLSDY GYHLRGNEVL YNGFTGRKIT SQ IFIGPTY YQRLKHMVDD KIHSRARGPI QILNRQPMEG RSRDGGLRFG EMERDCQIAH GAAQFLRERL FEASDPYQVH VCN LCGIMA IANTRTHTYE CRGCRNKTQI SLVRMPYACK LLFQELMSMS IAPRMMSV

UniProtKB: DNA-directed RNA polymerase subunit beta

Macromolecule #3: DNA-directed RNA polymerase II subunit RPB3

• Macromolecule: Name: DNA-directed RNA polymerase II subunit RPB3 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 31.439074 KDa

Sequence

String:

MPYANQPTVR ITELTDENVK FIIENTDLAV ANSIRRVFIA EVPIIAIDWV QIDANSSVLH DEFIAHRLGL IPLTSDDIVD KLQYSRDCT CEEFCPECSV EFTLDVRCNE DQTRHVTSRD LISNSPRVIP VTSRNRDNDP SDYVEQDDIL IVKLRKGQEL R LRAYAKKG FGKEHAKWNP TAGVAFEYDP DNALRHTVYP KPEEWPKSEY SELDEDESQA PYDPNGKPER FYYNVESCGS LR PETIVLS ALSGLKKKLS DLQTQLSHEI QSDVLTIN

UniProtKB: DNA-directed RNA polymerase II subunit RPB3

Macromolecule #4: RNA polymerase II subunit D

• Macromolecule: Name: RNA polymerase II subunit D / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 16.331255 KDa

Sequence

String:

MAAGGSDPRA GDVEEDASQL IFPKEFETAE TLLNSEVHML LEHRKQQNES AEDEQELSEV FMKTLNYTAR FSRFKNRETI ASVRSLLLQ KKLHKFELAC LANLCPETAE ESKALIPSLE GRFEDEELQQ ILDDIQTKRS FQY

UniProtKB: DNA-directed RNA polymerase II subunit RPB4

Macromolecule #5: DNA-directed RNA polymerase II subunit E

• Macromolecule: Name: DNA-directed RNA polymerase II subunit E / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 24.644318 KDa

Sequence

String:

MDDEEETYRL WKIRKTIMQL CHDRGYLVTQ DELDQTLEEF KAQFGDKPSE GRPRRTDLTV LVAHNDDPTD QMFVFFPEEP KVGIKTIKV YCQRMQEENI TRALIVVQQG MTPSAKQSLV DMAPKYILEQ FLQQELLINI TEHELVPEHV VMTKEEVTEL L ARYKLREN QLPRIQAGDP VARYFGIKRG QVVKIIRPSE TAGRYITYRL VQ

UniProtKB: DNA-directed RNA polymerases I, II, and III subunit RPABC1

Macromolecule #6: DNA-directed RNA polymerases I, II, and III subunit RPABC2

• Macromolecule: Name: DNA-directed RNA polymerases I, II, and III subunit RPABC2; type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 14.477001 KDa

Sequence

String:

MSDNEDNFDG DDFDDVEEDE GLDDLENAEE EGQENVEILP SGERPQANQK RITTPYMTKY ERARVLGTRA LQIAMCAPVM VELEGETDP LLIAMKELKA RKIPIIIRRY LPDGSYEDWG VDELIISD

UniProtKB: DNA-directed RNA polymerases I, II, and III subunit RPABC2

Macromolecule #7: DNA-directed RNA polymerase subunit

• Macromolecule: Name: DNA-directed RNA polymerase subunit / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 19.314283 KDa

Sequence

String:

MFYHISLEHE ILLHPRYFGP NLLNTVKQKL FTEVEGTCTG KYGFVIAVTT IDNIGAGVIQ PGRGFVLYPV KYKAIVFRPF KGEVVDAVV TQVNKVGLFT EIGPMSCFIS RHSIPSEMEF DPNSNPPCYK TMDEDIVIQQ DDEIRLKIVG TRVDKNDIFA I GSLMDDYL GLVS

UniProtKB: DNA-directed RNA polymerase subunit

Macromolecule #8: DNA-directed RNA polymerases I, II, and III subunit RPABC3

• Macromolecule: Name: DNA-directed RNA polymerases I, II, and III subunit RPABC3; type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 17.162273 KDa

Sequence

String:

MAGILFEDIF DVKDIDPEGK KFDRVSRLHC ESESFKMDLI LDVNIQIYPV DLGDKFRLVI ASTLYEDGTL DDGEYNPTDD RPSRADQFE YVMYGKVYRI EGDETSTEAA TRLSAYVSYG GLLMRLQGDA NNLHGFEVDS RVYLLMKKLA F

UniProtKB: DNA-directed RNA polymerases I, II, and III subunit RPABC3

Macromolecule #9: DNA-directed RNA polymerase II subunit RPB9

• Macromolecule: Name: DNA-directed RNA polymerase II subunit RPB9 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 14.541221 KDa

Sequence

String:

MEPDGTYEPG FVGIRFCQEC NNMLYPKEDK ENRILLYACR NCDYQQEADN SCIYVNKITH EVDELTQIIA DVSQDPTLPR TEDHPCQKC GHKEAVFFQS HSARAEDAMR LYYVCTAPHC GHRWTE

UniProtKB: DNA-directed RNA polymerase II subunit RPB9

Macromolecule #10: DNA-directed RNA polymerases I, II, and III subunit RPABC5

• Macromolecule: Name: DNA-directed RNA polymerases I, II, and III subunit RPABC5; type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 7.655123 KDa

Sequence

String:

MIIPVRCFTC GKIVGNKWEA YLGLLQAEYT EGDALDALGL KRYCCRRMLL AHVDLIEKLL NYAPLEK

UniProtKB: DNA-directed RNA polymerases I, II, and III subunit RPABC5

Macromolecule #11: DNA-directed RNA polymerase II subunit RPB11-a

• Macromolecule: Name: DNA-directed RNA polymerase II subunit RPB11-a / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 13.310284 KDa

Sequence

String:

MNAPPAFESF LLFEGEKKIT INKDTKVPNA CLFTINKEDH TLGNIIKSQL LKDPQVLFAG YKVPHPLEHK IIIRVQTTPD YSPQEAFTN AITDLISELS LLEERFRVAI KDKQEGIE

UniProtKB: DNA-directed RNA polymerase RBP11-like dimerisation domain-containing protein

Macromolecule #12: RNA polymerase II, I and III subunit K

• Macromolecule: Name: RNA polymerase II, I and III subunit K / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Sus scrofa domesticus (domestic pig)
• Molecular weight: Theoretical: 7.018244 KDa

Sequence

String:

MDTQKDVQPP KQQPMIYICG ECHTENEIKS RDPIRCRECG YRIMYKKRTK RLVVFDAR

UniProtKB: DNA-directed RNA polymerases I, II, and III subunit RPABC4

Macromolecule #14: ATP-dependent DNA helicase Q5

• Macromolecule: Name: ATP-dependent DNA helicase Q5 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA 3'-5' helicase
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 109.024859 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MSSHHTTFPF DPERRVRSTL KKVFGFDSFK TPLQESATMA VVKGNKDVFV CMPTGAGKSL CYQLPALLAK GITIVVSPLI ALIQDQVDH LLTLKVRVSS LNSKLSAQER KELLADLERE KPQTKILYIT PEMAASSSFQ PTLNSLVSRH LLSYLVVDEA H CVSQWGHD FRPDYLRLGA LRSRLGHAPC VALTATATPQ VQEDVFAALH LKKPVAIFKT PCFRANLFYD VQFKELISDP YG NLKDFCL KALGQEADKG LSGCGIVYCR TREACEQLAI ELSCRGVNAK AYHAGLKASE RTLVQNDWME EKVPVIVATI SFG MGVDKA NVRFVAHWNI AKSMAGYYQE SGRAGRDGKP SWCRLYYSRN DRDQVSFLIR KEVAKLQEKR GNKASDKATI MAFD ALVTF CEELGCRHAA IAKYFGDALP ACAKGCDHCQ NPTAVRRRLE ALERSSSWSK TCIGPSQGNG FDPELYEGGR KGYGD FSRY DEGSGGSGDE GRDEAHKREW NLFYQKQMQL RKGKDPKIEE FVPPDENCPL KEASSRRIPR LTVKAREHCL RLLEEA LSS NRQSTRTADE ADLRAKAVEL EHETFRNAKV ANLYKASVLK KVADIHRASK DGQPYDMGGS AKSCSAQAEP PEPNEYD IP PASHVYSLKP KRVGAGFPKG SCPFQTATEL METTRIREQA PQPERGGEHE PPSRPCGLLD EDGSEPLPGP RGEVPGGS A HYGGPSPEKK AKSSSGGSSL AKGRASKKQQ LLATAAHKDS QSIARFFCRR VESPALLASA PEAEGACPSC EGVQGPPMA PEKYTGEEDG AGGHSPAPPQ TEECLRERPS TCPPRDQGTP EVQPTPAKDT WKGKRPRSQQ ENPESQPQKR PRPSAKPSVV AEVKGSVSA SEQGTLNPTA QDPFQLSAPG VSLKEAANVV VKCLTPFYKE GKFASKELFK GFARHLSHLL TQKTSPGRSV K EEAQNLIR HFFHGRARCE SEADWHGLCG PQR

UniProtKB: ATP-dependent DNA helicase Q5

Macromolecule #17: DNA excision repair protein ERCC-8

• Macromolecule: Name: DNA excision repair protein ERCC-8 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 44.10716 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MLGFLSARQT GLEDPLRLRR AESTRRVLGL ELNKDRDVER IHGGGINTLD IEPVEGRYML SGGSDGVIVL YDLENSSRQS YYTCKAVCS IGRDHPDVHR YSVETVQWYP HDTGMFTSSS FDKTLKVWDT NTLQTADVFN FEETVYSHHM SPVSTKHCLV A VGTRGPKV QLCDLKSGSC SHILQGHRQE ILAVSWSPRY DYILATASAD SRVKLWDVRR ASGCLITLDQ HNGKKSQAVE SA NTAHNGK VNGLCFTSDG LHLLTVGTDN RMRLWNSSNG ENTLVNYGKV CNNSKKGLKF TVSCGCSSEF VFVPYGSTIA VYT VYSGEQ ITMLKGHYKT VDCCVFQSNF QELYSGSRDC NILAWVPSLY EPVPDDDETT TKSQLNPAFE DAWSSSDEEG

UniProtKB: DNA excision repair protein ERCC-8

Macromolecule #18: DNA excision repair protein ERCC-6

• Macromolecule: Name: DNA excision repair protein ERCC-6 / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO; EC number: Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 168.673547 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MPNEGIPHSS QTQEQDCLQS QPVSNNEEMA IKQESGGDGE VEEYLSFRSV GDGLSTSAVG CASAAPRRGP ALLHIDRHQI QAVEPSAQA LELQGLGVDV YDQDVLEQGV LQQVDNAIHE ASRASQLVDV EKEYRSVLDD LTSCTTSLRQ INKIIEQLSP Q AATSRDIN RKLDSVKRQK YNKEQQLKKI TAKQKHLQAI LGGAEVKIEL DHASLEEDAE PGPSSLGSML MPVQETAWEE LI RTGQMTP FGTQIPQKQE KKPRKIMLNE ASGFEKYLAD QAKLSFERKK QGCNKRAARK APAPVTPPAP VQNKNKPNKK ARV LSKKEE RLKKHIKKLQ KRALQFQGKV GLPKARRPWE SDMRPEAEGD SEGEESEYFP TEEEEEEEDD EVEGAEADLS GDGT DYELK PLPKGGKRQK KVPVQEIDDD FFPSSGEEAE AASVGEGGGG GRKVGRYRDD GDEDYYKQRL RRWNKLRLQD KEKRL KLED DSEESDAEFD EGFKVPGFLF KKLFKYQQTG VRWLWELHCQ QAGGILGDEM GLGKTIQIIA FLAGLSYSKI RTRGSN YRF EGLGPTVIVC PTTVMHQWVK EFHTWWPPFR VAILHETGSY THKKEKLIRD VAHCHGILIT SYSYIRLMQD DISRYDW HY VILDEGHKIR NPNAAVTLAC KQFRTPHRII LSGSPMQNNL RELWSLFDFI FPGKLGTLPV FMEQFSVPIT MGGYSNAS P VQVKTAYKCA CVLRDTINPY LLRRMKSDVK MSLSLPDKNE QVLFCRLTDE QHKVYQNFVD SKEVYRILNG EMQIFSGLI ALRKICNHPD LFSGGPKNLK GLPDDELEED QFGYWKRSGK MIVVESLLKI WHKQGQRVLL FSQSRQMLDI LEVFLRAQKY TYLKMDGTT TIASRQPLIT RYNEDTSIFV FLLTTRVGGL GVNLTGANRV VIYDPDWNPS TDTQARERAW RIGQKKQVTV Y RLLTAGTI EEKIYHRQIF KQFLTNRVLK DPKQRRFFKS NDLYELFTLT SPDASQSTET SAIFAGTGSD VQTPKCHLKR RI QPAFGAD HDVPKRKKFP ASNISVNDAT SSEEKSEAKG AEVNAVTSNR SDPLKDDPHM SSNVTSNDRL GEETNAVSGP EEL SVISGN GECSNSSGTG KTSMPSGDES IDEKLGLSYK RERPSQAQTE AFWENKQMEN NFYKHKSKTK HHSVAEEETL EKHL RPKQK PKNSKHCRDA KFEGTRIPHL VKKRRYQKQD SENKSEAKEQ SNDDYVLEKL FKKSVGVHSV MKHDAIMDGA SPDYV LVEA EANRVAQDAL KALRLSRQRC LGAVSGVPTW TGHRGISGAP AGKKSRFGKK RNSNFSVQHP SSTSPTEKCQ DGIMKK EGK DNVPEHFSGR AEDADSSSGP LASSSLLAKM RARNHLILPE RLESESGHLQ EASALLPTTE HDDLLVEMRN FIAFQAH TD GQASTREILQ EFESKLSASQ SCVFRELLRN LCTFHRTSGG EGIWKLKPEY C

UniProtKB: DNA excision repair protein ERCC-6

Macromolecule #19: UV-stimulated scaffold protein A

• Macromolecule: Name: UV-stimulated scaffold protein A / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 80.72168 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MDQKLSKLVE ELTTSGEPRL NPEKMKELKK ICKSSEEQLS RAYRLLIAQL TQEHAEIRLS AFQIVEELFV RSHQFRMLVV SNFQEFLEL TLGTDPAQPL PPPREAAQRL RQATTRAVEG WNEKFGEAYK KLALGYHFLR HNKKVDFQDT NARSLAERKR E EEKQKHLD KIYQERASQA EREMQEMSGE IESCLTEVES CFRLLVPFDF DPNPETESLG MASGMSDALR SSCAGQVGPC RS GTPDPRD GEQPCCSRDL PASAGHPRAG GGAQPSQTAT GDPSDEDEDS DLEEFVRSHG LGSHKYTLDV ELCSEGLKVQ ENE DNLALI HAARDTLKLI RNKFLPAVCS WIQRFTRVGT HGGCLKRAID LKAELELVLR KYKELDIEPE GGERRRTEAL GDAE EDEDD EDFVEVPEKE GYEPHIPDHL RPEYGLEAAP EKDTVVRCLR TRTRMDEEVS DPTSAAAQLR QLRDHLPPPS SASPS RALP EPQEAQKLAA ERARAPVVPY GVDLHYWGQE LPTAGKIVKS DSQHRFWKPS EVEEEVVNAD ISEMLRSRHI TFAGKF EPV QHWCRAPRPD GRLCERQDRL KCPFHGKIVP RDDEGRPLDP EDRAREQRRQ LQKQERPEWQ DPELMRDVEA ATGQDLG SS RYSGKGRGKK RRYPSLTNLK AQADTARARI GRKVFAKAAV RRVVAAMNRM DQKKHEKFSN QFNYALN

UniProtKB: UV-stimulated scaffold protein A

Macromolecule #20: DNA damage-binding protein 1

• Macromolecule: Name: DNA damage-binding protein 1 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 127.097469 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MSYNYVVTAQ KPTAVNGCVT GHFTSAEDLN LLIAKNTRLE IYVVTAEGLR PVKEVGMYGK IAVMELFRPK GESKDLLFIL TAKYNACIL EYKQSGESID IITRAHGNVQ DRIGRPSETG IIGIIDPECR MIGLRLYDGL FKVIPLDRDN KELKAFNIRL E ELHVIDVK FLYGCQAPTI CFVYQDPQGR HVKTYEVSLR EKEFNKGPWK QENVEAEASM VIAVPEPFGG AIIIGQESIT YH NGDKYLA IAPPIIKQST IVCHNRVDPN GSRYLLGDME GRLFMLLLEK EEQMDGTVTL KDLRVELLGE TSIAECLTYL DNG VVFVGS RLGDSQLVKL NVDSNEQGSY VVAMETFTNL GPIVDMCVVD LERQGQGQLV TCSGAFKEGS LRIIRNGIGI HEHA SIDLP GIKGLWPLRS DPNRETDDTL VLSFVGQTRV LMLNGEEVEE TELMGFVDDQ QTFFCGNVAH QQLIQITSAS VRLVS QEPK ALVSEWKEPQ AKNISVASCN SSQVVVAVGR ALYYLQIHPQ ELRQISHTEM EHEVACLDIT PLGDSNGLSP LCAIGL WTD ISARILKLPS FELLHKEMLG GEIIPRSILM TTFESSHYLL CALGDGALFY FGLNIETGLL SDRKKVTLGT QPTVLRT FR SLSTTNVFAC SDRPTVIYSS NHKLVFSNVN LKEVNYMCPL NSDGYPDSLA LANNSTLTIG TIDEIQKLHI RTVPLYES P RKICYQEVSQ CFGVLSSRIE VQDTSGGTTA LRPSASTQAL SSSVSSSKLF SSSTAPHETS FGEEVEVHNL LIIDQHTFE VLHAHQFLQN EYALSLVSCK LGKDPNTYFI VGTAMVYPEE AEPKQGRIVV FQYSDGKLQT VAEKEVKGAV YSMVEFNGKL LASINSTVR LYEWTTEKEL RTECNHYNNI MALYLKTKGD FILVGDLMRS VLLLAYKPME GNFEEIARDF NPNWMSAVEI L DDDNFLGA ENAFNLFVCQ KDSAATTDEE RQHLQEVGLF HLGEFVNVFC HGSLVMQNLG ETSTPTQGSV LFGTVNGMIG LV TSLSESW YNLLLDMQNR LNKVIKSVGK IEHSFWRSFH TERKTEPATG FIDGDLIESF LDISRPKMQE VVANLQYDDG SGM KREATA DDLIKVVEEL TRIH

UniProtKB: DNA damage-binding protein 1

Macromolecule #21: Transcription elongation factor 1 homolog

• Macromolecule: Name: Transcription elongation factor 1 homolog / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
• Source (natural): Organism: Homo sapiens (human)
• Molecular weight: Theoretical: 9.475881 KDa
• Recombinant expression: Organism: Trichoplusia ni (cabbage looper)

Sequence

String:

MGRRKSKRKP PPKKKMTGTL ETQFTCPFCN HEKSCDVKMD RARNTGVISC TVCLEEFQTP ITYLSEPVDV YSDWIDACEA ANQ

UniProtKB: Transcription elongation factor 1 homolog

Macromolecule #13: Non-template DNA

• Macromolecule: Name: Non-template DNA / type: dna / ID: 13 / Number of copies: 1 / Classification: DNA
• Source (natural): Organism: synthetic construct (others)
• Molecular weight: Theoretical: 14.494314 KDa

Sequence

String:

(DC)(DT)(DA)(DG)(DT)(DT)(DG)(DA)(DT)(DC) (DT)(DC)(DA)(DT)(DA)(DT)(DT)(DT)(DC)(DA) (DT)(DT)(DC)(DC)(DT)(DA)(DC)(DT)(DC) (DA)(DG)(DG)(DA)(DG)(DA)(DA)(DG)(DG)(DA) (DG) (DC)(DA)(DG)(DA)(DG)(DC)(DG)

Macromolecule #16: Template DNA

• Macromolecule: Name: Template DNA / type: dna / ID: 16 / Number of copies: 1 / Classification: DNA
• Source (natural): Organism: synthetic construct (others)
• Molecular weight: Theoretical: 14.269129 KDa

Sequence

String:

(DC)(DG)(DC)(DT)(DC)(DT)(DG)(DC)(DT)(DC) (DC)(DT)(DT)(DC)(DT)(DC)(DC)(DC)(DA)(DT) (DC)(DC)(DT)(DC)(DT)(DC)(DG)(DA)(DT) (DG)(DG)(DC)(DT)(DA)(DT)(DG)(DA)(DG)(DA) (DT) (DC)(DA)(DA)(DC)(DT)(DA)(DG)

Macromolecule #15: RNA

• Macromolecule: Name: RNA / type: rna / ID: 15 / Number of copies: 1
• Source (natural): Organism: synthetic construct (others)
• Molecular weight: Theoretical: 14.490756 KDa

Sequence

String:

ACAUCAUAAC AUUUGAACAA GAAUAUAUAU ACAAAAUCGA GAGGA

Macromolecule #22: ZINC ION

• Macromolecule: Name: ZINC ION / type: ligand / ID: 22 / Number of copies: 10 / Formula: ZN
• Molecular weight: Theoretical: 65.409 Da

Macromolecule #23: MAGNESIUM ION

• Macromolecule: Name: MAGNESIUM ION / type: ligand / ID: 23 / Number of copies: 2 / Formula: MG
• Molecular weight: Theoretical: 24.305 Da

Experimental details

Structure determination

• Method: cryo EM
• Processing: single particle reconstruction
• Aggregation state: particle

Sample preparation

• Buffer: pH: 7.5 ; Details: 20 mM HEPES pH 7.5, 50 mM KCl, 4 mM MgCl2, 1 mM DTT
• Grid: Model: Quantifoil R3.5/1 / Material: COPPER / Mesh: 200
• Vitrification: Cryogen name: ETHANE / Chamber humidity: 100 % / Instrument: FEI VITROBOT MARK IV

Electron microscopy

• Microscope: TFS KRIOS
• Image recording: Film or detector model: FEI FALCON IV (4k x 4k) / Number grids imaged: 1 / Average electron dose: 36.6 e/Ų
• Electron beam: Acceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
• Electron optics: C2 aperture diameter: 50.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.5 µm / Nominal defocus min: 0.5 µm / Nominal magnification: 96000
• Sample stage: Specimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
• Experimental equipment: Model: Titan Krios / Image courtesy: FEI Company

Image processing

• CTF correction: Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
• Startup model: Type of model: NONE / Details: CryoSPARC ab initio
• Final reconstruction: Number classes used: 1 / Resolution.type: BY AUTHOR / Resolution: 3.5 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 19458
• Initial angle assignment: Type: MAXIMUM LIKELIHOOD
• Final angle assignment: Type: MAXIMUM LIKELIHOOD
