Basic information

Entry
Database: EMDB / ID: EMD-48919
TitleCryoEM structure of Azotobacter vinelandii bacterioferritin
Map data
Sample
  • Complex: Bacterioferritin
    • Protein or peptide: Bacterioferritin
  • Ligand: PROTOPORPHYRIN IX CONTAINING FE
KeywordsMetal storage / METAL BINDING PROTEIN
Function / homology
Function and homology information


ferroxidase / ferroxidase activity / ferric iron binding / iron ion transport / intracellular iron ion homeostasis / heme binding / cytosol
Similarity search - Function
Bacterioferritin signature. / Bacterioferritin / Ferritin-like diiron domain / Ferritin-like diiron domain profile. / Ferritin/DPS protein domain / Ferritin-like domain / Ferritin-like / Ferritin-like superfamily
Similarity search - Domain/homology
Biological speciesAzotobacter vinelandii (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.96 Å
AuthorsWarmack RA
Funding support United States, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM143836 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM152765 United States
CitationJournal: Structure / Year: 2025
Title: CryoEM-enabled visual proteomics reveals de novo structures of oligomeric protein complexes.
Authors: Yuanbo Shen / Ailiena O Maggiolo / Tianzheng Zhang / Rebeccah A Warmack /
Abstract: Single particle cryoelectron microscopy (cryoEM) and cryoelectron tomography (cryoET) are powerful methods for unveiling unique and functionally relevant structural states. Aided by mass spectrometry ...Single particle cryoelectron microscopy (cryoEM) and cryoelectron tomography (cryoET) are powerful methods for unveiling unique and functionally relevant structural states. Aided by mass spectrometry and machine learning, they promise to facilitate the visual exploration of proteomes. Leveraging visual proteomics, we interrogate structures isolated from a complex cellular milieu by cryoEM to identify and classify molecular structures and complexes de novo. By comparing three automated model building programs, CryoID, DeepTracer, and ModelAngelo, we determine the identity of six distinct oligomeric protein complexes from partially purified extracts of the nitrogen-fixing bacterium Azotobacter vinelandii using both anaerobic and aerobic cryoEM, including two original oligomeric structures. Overall, by allowing the study of near-native oligomeric protein states, cryoEM-enabled visual proteomics reveals unique structures that correspond to relevant species observed in situ.
History
DepositionFeb 3, 2025-
Header (metadata) releaseJul 16, 2025-
Map releaseJul 16, 2025-
UpdateSep 17, 2025-
Current statusSep 17, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_48919.map.gz / Format: CCP4 / Size: 729 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.65 Å/pix.
x 576 pix.
= 374.4 Å		0.65 Å/pix.
x 576 pix.
= 374.4 Å		0.65 Å/pix.
x 576 pix.
= 374.4 Å

Surface

Projections

Slices (1/3)

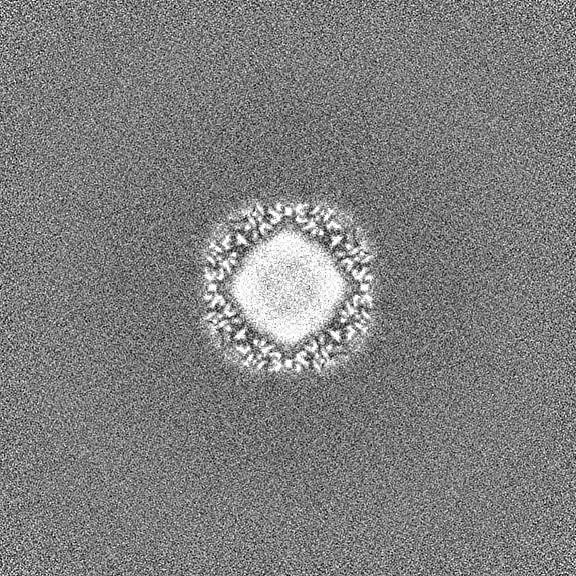

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.65 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.377
Minimum - Maximum-0.9296934 - 2.071564
Average (Standard dev.)-0.0010321388 (±0.046177723)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions576576576
Spacing576576576
CellA=B=C: 374.4 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_48919_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_48919_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Bacterioferritin

EntireName: Bacterioferritin
Components
  • Complex: Bacterioferritin
    • Protein or peptide: Bacterioferritin
  • Ligand: PROTOPORPHYRIN IX CONTAINING FE

-
Supramolecule #1: Bacterioferritin

SupramoleculeName: Bacterioferritin / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Azotobacter vinelandii (bacteria) / Strain: DJ

-
Macromolecule #1: Bacterioferritin

MacromoleculeName: Bacterioferritin / type: protein_or_peptide / ID: 1 / Number of copies: 24 / Enantiomer: LEVO / EC number: ferroxidase
Source (natural)Organism: Azotobacter vinelandii (bacteria) / Strain: DJ
Molecular weightTheoretical: 17.998574 KDa
SequenceString:
MKGDKIVIQH LNKILGNELI AINQYFLHAR MYEDWGLEKL GKHEYHESID EMKHADKLIK RILFLEGLPN LQELGKLLIG EHTKEMLEC DLKLEQAGLP DLKAAIAYCE SVGDYASREL LEDILESEED HIDWLETQLD LIDKIGLENY LQSQMD

UniProtKB: Bacterioferritin

-
Macromolecule #2: PROTOPORPHYRIN IX CONTAINING FE

MacromoleculeName: PROTOPORPHYRIN IX CONTAINING FE / type: ligand / ID: 2 / Number of copies: 12 / Formula: HEM
Molecular weightTheoretical: 616.487 Da
Chemical component information

ChemComp-HEM:
PROTOPORPHYRIN IX CONTAINING FE

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: -2.5 µm / Nominal defocus min: -0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.96 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 15105
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
