Basic information

Entry
Database: EMDB / ID: EMD-44916
TitleSingle particle cryoEM structure of the Pf80S ribosome in the POST state (nrt with P- and E-site tRNA)
Map datastructure of the Pf80S ribosome in the POST state (nrt with P- and E-site tRNA)
Sample
  • Complex: Sucrose gradient purified 80S ribosome from P. falciparum
    • Protein or peptide: x 73 types
    • RNA: x 7 types
Keywordsribosome / malaria / single particle / translation
Function / homology
Function and homology information


RMTs methylate histone arginines / : / Protein methylation / Translesion synthesis by REV1 / : / Translesion Synthesis by POLH / Translesion synthesis by POLK / Translesion synthesis by POLI / Josephin domain DUBs / Metalloprotease DUBs ...RMTs methylate histone arginines / : / Protein methylation / Translesion synthesis by REV1 / : / Translesion Synthesis by POLH / Translesion synthesis by POLK / Translesion synthesis by POLI / Josephin domain DUBs / Metalloprotease DUBs / DNA Damage Recognition in GG-NER / Formation of Incision Complex in GG-NER / : / Formation of TC-NER Pre-Incision Complex / Dual incision in TC-NER / Gap-filling DNA repair synthesis and ligation in TC-NER / PTK6 Regulates RTKs and Their Effectors AKT1 and DOK1 / ER Quality Control Compartment (ERQC) / Iron uptake and transport / L13a-mediated translational silencing of Ceruloplasmin expression / SRP-dependent cotranslational protein targeting to membrane / : / Formation of a pool of free 40S subunits / Formation of the ternary complex, and subsequently, the 43S complex / Ribosomal scanning and start codon recognition / GTP hydrolysis and joining of the 60S ribosomal subunit / : / Nonsense Mediated Decay (NMD) independent of the Exon Junction Complex (EJC) / Nonsense Mediated Decay (NMD) enhanced by the Exon Junction Complex (EJC) / : / Synthesis of active ubiquitin: roles of E1 and E2 enzymes / Aggrephagy / Orc1 removal from chromatin / CDK-mediated phosphorylation and removal of Cdc6 / FBXL7 down-regulates AURKA during mitotic entry and in early mitosis / KEAP1-NFE2L2 pathway / UCH proteinases / Ub-specific processing proteases / Neddylation / Antigen processing: Ubiquitination & Proteasome degradation / MAPK6/MAPK4 signaling / ABC-family proteins mediated transport / AUF1 (hnRNP D0) binds and destabilizes mRNA / preribosome / endonucleolytic cleavage to generate mature 3'-end of SSU-rRNA from (SSU-rRNA, 5.8S rRNA, LSU-rRNA) / protein-RNA complex assembly / maturation of LSU-rRNA / endonucleolytic cleavage in ITS1 to separate SSU-rRNA from 5.8S rRNA and LSU-rRNA from tricistronic rRNA transcript (SSU-rRNA, 5.8S rRNA, LSU-rRNA) / cytosolic ribosome / chloroplast / ribosomal large subunit biogenesis / maturation of LSU-rRNA from tricistronic rRNA transcript (SSU-rRNA, 5.8S rRNA, LSU-rRNA) / maturation of SSU-rRNA from tricistronic rRNA transcript (SSU-rRNA, 5.8S rRNA, LSU-rRNA) / maturation of SSU-rRNA / small-subunit processome / maintenance of translational fidelity / modification-dependent protein catabolic process / protein tag activity / rRNA processing / large ribosomal subunit / ribosome biogenesis / ribosomal small subunit biogenesis / ribosomal small subunit assembly / 5S rRNA binding / ribosomal large subunit assembly / small ribosomal subunit / small ribosomal subunit rRNA binding / large ribosomal subunit rRNA binding / cytosolic small ribosomal subunit / ubiquitin-dependent protein catabolic process / cytosolic large ribosomal subunit / cytoplasmic translation / negative regulation of translation / rRNA binding / protein ubiquitination / structural constituent of ribosome / ribosome / translation / ribonucleoprotein complex / mRNA binding / ubiquitin protein ligase binding / nucleolus / mitochondrion / RNA binding / zinc ion binding / nucleus / cytosol / cytoplasm
Similarity search - Function
: / : / : / : / : / : / Ribosomal protein L2, archaeal-type / Ribosomal L28e/Mak16 / Ribosomal L28e protein family / : ...: / : / : / : / : / : / Ribosomal protein L2, archaeal-type / Ribosomal L28e/Mak16 / Ribosomal L28e protein family / : / Ribosomal protein S26e signature. / Ribosomal protein L41 / Ribosomal protein L41 / Ribosomal protein L13e, conserved site / Ribosomal protein L13e signature. / Ribosomal protein S26e / Ribosomal protein S26e superfamily / Ribosomal protein S26e / : / Ribosomal protein S12e signature. / Ribosomal protein L29e / Ribosomal L29e protein family / Ribosomal protein S12e / Ribosomal protein S5, eukaryotic/archaeal / Ribosomal protein L22e / Ribosomal protein L22e superfamily / Ribosomal L22e protein family / Ribosomal protein S21e / Ribosomal protein S21e superfamily / Ribosomal protein S21e / Ribosomal protein S19e, conserved site / Ribosomal protein S19e signature. / Ribosomal protein S2, eukaryotic / Ribosomal protein L38e / Ribosomal protein L38e superfamily / Ribosomal L38e protein family / Ribosomal protein L13e / Ribosomal protein L13e / Ribosomal protein L19, eukaryotic / Ribosomal protein L10e, conserved site / Ribosomal protein L10e signature. / Ribosomal protein L44e signature. / 40S Ribosomal protein S10 / 60S ribosomal protein L18a/ L20, eukaryotes / Ribosomal protein L10e / Plectin/S10, N-terminal / Plectin/S10 domain / Ribosomal protein L18/L18-A/B/e, conserved site / Ribosomal protein L18e signature. / Ribosomal protein L34e, conserved site / Ribosomal protein L34e signature. / : / Ribosomal protein L5 eukaryotic, C-terminal / Ribosomal L18 C-terminal region / Ribosomal protein S10, eukaryotic/archaeal / Ribosomal L40e family / Ribosomal protein L23/L25, N-terminal / Ribosomal protein L23, N-terminal domain / Ribosomal protein S30 / Ribosomal protein S30 / Ribosomal protein L44e / Ribosomal protein L44 / Ribosomal protein S25 / 50S ribosomal protein L18Ae/60S ribosomal protein L20 and L18a / S25 ribosomal protein / Ribosomal protein L30e signature 1. / Ribosomal_L40e / Ribosomal protein L40e / Ribosomal protein L40e superfamily / Ribosomal protein L36e signature. / Ribosomal protein 50S-L18Ae/60S-L20/60S-L18A / Ribosomal protein S8e subdomain, eukaryotes / Ribosomal proteins 50S-L18Ae/60S-L20/60S-L18A / Ribosomal protein 60S L18 and 50S L18e / Ribosomal protein S17e, conserved site / Ribosomal protein S17e signature. / Eukaryotic Ribosomal Protein L27, KOW domain / Ribosomal protein S2, eukaryotic/archaeal / Ribosomal protein L27e / Ribosomal protein L27e superfamily / Ribosomal L27e protein family / : / Ribosomal protein L39e, conserved site / Ribosomal protein L39e signature. / Ribosomal protein L30e signature 2. / 40S ribosomal protein S29/30S ribosomal protein S14 type Z / Ribosomal protein L30e, conserved site / 60S ribosomal protein L35 / Ribosomal protein S3, eukaryotic/archaeal / 60S ribosomal protein L19 / : / Ribosomal protein L34Ae / Ribosomal protein L34e / Ribosomal protein L7A/L8 / Ribosomal protein L6e / Ribosomal protein L13, eukaryotic/archaeal / Ribosomal protein L30/YlxQ / 60S ribosomal protein L6E / Ribosomal protein L7, eukaryotic / 40S ribosomal protein S4, C-terminal domain
Similarity search - Domain/homology
40S ribosomal protein S16 / 60S ribosomal protein L6, putative / 40S ribosomal protein S11 / Ribosomal protein L15 / 60S ribosomal protein L39 / 40S ribosomal protein S29, putative / Ribosomal protein L37 / 40S ribosomal protein S19 / 60S ribosomal protein L18-2, putative / 60S ribosomal protein L19 ...40S ribosomal protein S16 / 60S ribosomal protein L6, putative / 40S ribosomal protein S11 / Ribosomal protein L15 / 60S ribosomal protein L39 / 40S ribosomal protein S29, putative / Ribosomal protein L37 / 40S ribosomal protein S19 / 60S ribosomal protein L18-2, putative / 60S ribosomal protein L19 / 60S ribosomal protein L27a, putative / 60S ribosomal protein L41 / 60S ribosomal protein L29 / 60S ribosomal protein L26, putative / 40S ribosomal protein S11, putative / 40S ribosomal protein S15A, putative / Large ribosomal subunit protein eL43 / 40S ribosomal protein S26 / Small ribosomal subunit protein eS30 / Large ribosomal subunit protein eL42 / 40S ribosomal protein S23, putative / Small ribosomal subunit protein eS12 / 60S ribosomal protein L7, putative / Small ribosomal subunit protein eS1 / 60S ribosomal protein L32 / 40S ribosomal protein S9, putative / 40S ribosomal protein S24 / 60S ribosomal protein L2 / Large ribosomal subunit protein uL4 / 60S ribosomal protein L31 / 40S ribosomal protein S17, putative / 60S ribosomal protein L36 / 60S ribosomal protein L13 / Large ribosomal subunit protein eL22 / 40S ribosomal protein S5, putative / 40S ribosomal protein S10, putative / 60S ribosomal protein L11a, putative / 60S ribosomal protein L34 / Ubiquitin-60S ribosomal protein L40 / 40S ribosomal protein S15 / Large ribosomal subunit protein uL22 / 40S ribosomal protein S6 / 60S ribosomal protein L18a / 60S ribosomal protein L23, putative / 60S ribosomal protein L23 / 60S ribosomal protein L6, putative / 60S ribosomal protein L24, putative / 40S ribosomal protein S27 / 40S ribosomal protein S7 / 40S ribosomal protein S19 / 40S ribosomal protein S21 / 60S ribosomal protein L35ae, putative / 60S ribosomal protein L28 / 60S ribosomal protein L38 / 40S ribosomal protein S18, putative / 60S ribosomal protein L35, putative / 40S ribosomal protein S4 / 60S ribosomal protein L3 / Small ribosomal subunit protein uS2 / 60S ribosomal protein L30e, putative / 60S ribosomal protein L13, putative / Small ribosomal subunit protein uS10 / 40S ribosomal protein S3 / 40S ribosomal protein S28e, putative / 60S ribosomal protein L27 / Small ribosomal subunit protein uS5 / 60S ribosomal protein L14, putative / 60S ribosomal protein L21 / 60S ribosomal protein L7a / 60S ribosomal protein L5, putative / 40S ribosomal protein S25 / 60S ribosomal protein L10, putative / 40S ribosomal protein S8
Similarity search - Component
Biological speciesPlasmodium falciparum 3D7 (eukaryote)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.3 Å
AuthorsAnton L / Haile M / Ho CM
Funding support United States, Switzerland, France, 3 items
OrganizationGrant numberCountry
National Institutes of Health/Office of the DirectorDP5OD029613 United States
Swiss National Science FoundationP2BSP3_200205 Switzerland
Human Frontier Science Program (HFSP)LT000452/2021-L France
CitationJournal: Nat Struct Mol Biol / Year: 2025
Title: Integrated structural biology of the native malarial translation machinery and its inhibition by an antimalarial drug.
Authors: Leonie Anton / Wenjing Cheng / Meseret T Haile / Jerzy M Dziekan / David W Cobb / Xiyan Zhu / Leyan Han / Emerson Li / Anjali Nair / Carolyn L Lee / Hanyu Wang / Hangjun Ke / Guoan Zhang / ...Authors: Leonie Anton / Wenjing Cheng / Meseret T Haile / Jerzy M Dziekan / David W Cobb / Xiyan Zhu / Leyan Han / Emerson Li / Anjali Nair / Carolyn L Lee / Hanyu Wang / Hangjun Ke / Guoan Zhang / Emma H Doud / Alan F Cowman / Chi-Min Ho /
Abstract: Our understanding of cellular events is hampered by the gap between the resolution at which we can observe events inside cells and our ability to replicate physiological conditions in test tubes. ...Our understanding of cellular events is hampered by the gap between the resolution at which we can observe events inside cells and our ability to replicate physiological conditions in test tubes. Here, we show in Plasmodium falciparum, a non-model organism of high medical importance, that this gap can be bridged by using an integrated structural biology approach to visualize events inside the cell at molecular resolution. We determined eight high-resolution structures of the native malarial ribosome in actively translating states inside P. falciparum-infected human erythrocytes using in situ cryo-electron tomography. Following perturbation with a Plasmodium-specific translation inhibitor, we then observed a decrease in elongation factor-bound ribosomal states and an apparent upregulation of ribosome biogenesis in inhibitor-treated parasites. Our work elucidates new molecular details of the malarial translation elongation cycle and demonstrates direct multiscale visualization of drug-induced phenotypic changes in the structure and localization of individual molecules within the native cellular context.
History
DepositionMay 17, 2024-
Header (metadata) releaseMay 28, 2025-
Map releaseMay 28, 2025-
UpdateDec 10, 2025-
Current statusDec 10, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_44916.map.gz / Format: CCP4 / Size: 476.8 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Annotationstructure of the Pf80S ribosome in the POST state (nrt with P- and E-site tRNA)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 500 pix.
= 415. Å		0.83 Å/pix.
x 500 pix.
= 415. Å		0.83 Å/pix.
x 500 pix.
= 415. Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.83 Å
Density

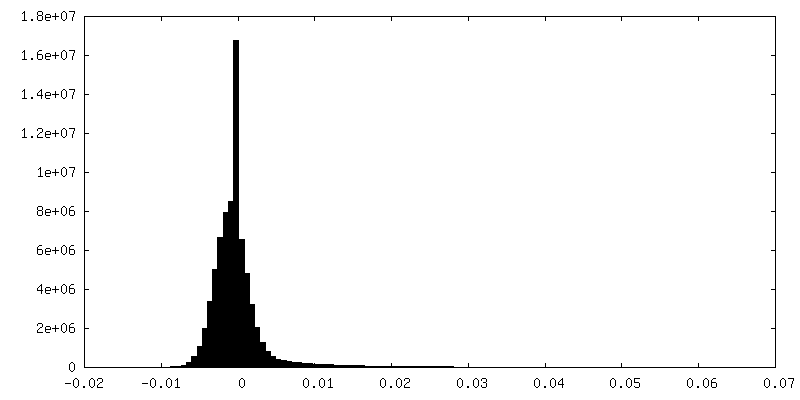

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.00404
Minimum - Maximum-0.019831887 - 0.08267447
Average (Standard dev.)0.0004854705 (±0.0031890688)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions500500500
Spacing500500500
CellA=B=C: 415.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: Half Map B

Fileemd_44916_half_map_1.map
AnnotationHalf Map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half Map A

Fileemd_44916_half_map_2.map
AnnotationHalf Map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Sucrose gradient purified 80S ribosome from P. falciparum

EntireName: Sucrose gradient purified 80S ribosome from P. falciparum
Components
  • Complex: Sucrose gradient purified 80S ribosome from P. falciparum
    • Protein or peptide: 40S ribosomal protein S24
    • Protein or peptide: 40S ribosomal protein S25
    • Protein or peptide: 40S ribosomal protein S26
    • Protein or peptide: 40S ribosomal protein S27
    • Protein or peptide: 40S ribosomal protein S28e
    • Protein or peptide: 40S ribosomal protein S30
    • RNA: E-site tRNA
    • RNA: 18S ribosomal RNA
    • Protein or peptide: 40S ribosomal protein S3a
    • Protein or peptide: 40S ribosomal protein SA
    • Protein or peptide: 40S ribosomal protein S3
    • Protein or peptide: 40S ribosomal protein S9
    • Protein or peptide: 40S ribosomal protein S4
    • Protein or peptide: 40S ribosomal protein S5
    • Protein or peptide: 40S ribosomal protein S6
    • Protein or peptide: 40S ribosomal protein S5
    • Protein or peptide: 40S ribosomal protein S7
    • Protein or peptide: 40S ribosomal protein S15A
    • Protein or peptide: 40S ribosomal protein S8
    • Protein or peptide: 40S ribosomal protein S16
    • Protein or peptide: 40S ribosomal protein S20e
    • Protein or peptide: 40S ribosomal protein S10
    • Protein or peptide: 40S ribosomal protein S11
    • Protein or peptide: 40S ribosomal protein S23
    • Protein or peptide: 40S ribosomal protein S12
    • Protein or peptide: 40S ribosomal protein S18
    • Protein or peptide: 40S ribosomal protein S29
    • Protein or peptide: 40S ribosomal protein S15
    • Protein or peptide: 40S ribosomal protein S11
    • Protein or peptide: 40S ribosomal protein S17
    • Protein or peptide: 40S ribosomal protein S19
    • Protein or peptide: 40S ribosomal protein S19
    • Protein or peptide: 40S ribosomal protein S21
    • RNA: 28S ribosomal RNA
    • RNA: 5.8S ribosomal RNA
    • RNA: 5S ribosomal RNA
    • Protein or peptide: 60S ribosomal protein L13
    • Protein or peptide: 60S ribosomal protein L27
    • Protein or peptide: 60S ribosomal protein L28
    • Protein or peptide: 60S ribosomal protein L29
    • Protein or peptide: 60S ribosomal protein L30e
    • Protein or peptide: 60S ribosomal protein L31
    • Protein or peptide: 60S ribosomal protein L14
    • Protein or peptide: 60S ribosomal protein L32
    • Protein or peptide: 60S ribosomal protein L35ae
    • Protein or peptide: 60S ribosomal protein L34
    • Protein or peptide: 60S ribosomal protein L36
    • Protein or peptide: 60S ribosomal protein L38
    • Protein or peptide: 60S ribosomal protein L39
    • Protein or peptide: Ubiquitin-60S ribosomal protein L40
    • Protein or peptide: Ribosomal protein L15
    • Protein or peptide: Large ribosomal subunit protein eL43
    • Protein or peptide: Large ribosomal subunit protein eL42
    • Protein or peptide: 60S ribosomal protein L6
    • Protein or peptide: 60S ribosomal protein L7a
    • Protein or peptide: Ribosomal protein L37
    • Protein or peptide: 60S ribosomal protein L13
    • Protein or peptide: 60S ribosomal protein L23, putative
    • Protein or peptide: 60S ribosomal protein L18-2
    • Protein or peptide: 60S ribosomal protein L27a
    • Protein or peptide: 60S ribosomal protein L10
    • Protein or peptide: 60S ribosomal protein L5
    • Protein or peptide: 60S ribosomal protein L17
    • Protein or peptide: 60S ribosomal protein L23
    • Protein or peptide: 60S ribosomal protein L19
    • Protein or peptide: 60S ribosomal protein L26
    • Protein or peptide: 60S ribosomal protein L35
    • Protein or peptide: 60S ribosomal protein L7
    • Protein or peptide: 60S ribosomal protein L2
    • Protein or peptide: 60S ribosomal protein L3
    • Protein or peptide: 60S ribosomal protein L4
    • Protein or peptide: 60S ribosomal protein L11a
    • Protein or peptide: 60S ribosomal protein L18a
    • Protein or peptide: 60S ribosomal protein L6
    • Protein or peptide: 60S ribosomal protein L21
    • Protein or peptide: 60S ribosomal protein L41
    • Protein or peptide: 60S ribosomal protein L22
    • Protein or peptide: 60S ribosomal protein L24
    • RNA: P-site tRNA
    • RNA: mRNA

+
Supramolecule #1: Sucrose gradient purified 80S ribosome from P. falciparum

SupramoleculeName: Sucrose gradient purified 80S ribosome from P. falciparum
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#80
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 4 MDa

+
Macromolecule #1: 40S ribosomal protein S24

MacromoleculeName: 40S ribosomal protein S24 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 15.431478 KDa
SequenceString:
MTDQFTIRVK KYMSNPLLRR KQFALEILHP NKGSVAKKEV KERLAKMYKL NNVNTIVLFG FKTLFGGGRT KGFGLIYKNV DAVKKFEKK YRLVREGLID KETKAGRRAS KELKNRRKKV RGTEKTKVSG AKKK

UniProtKB: 40S ribosomal protein S24

+
Macromolecule #2: 40S ribosomal protein S25

MacromoleculeName: 40S ribosomal protein S25 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 11.691931 KDa
SequenceString:
MPPKERKTKE QIAAAAAASG RTKKKKWGKG KNKEKLNHAV FIDKSLHSKI LECKNMKVIT PSAIAEKYKV NLSVARAVIN HLADKKLIA EVCVQSHSQK LYTKVA

UniProtKB: 40S ribosomal protein S25

+
Macromolecule #3: 40S ribosomal protein S26

MacromoleculeName: 40S ribosomal protein S26 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 12.539681 KDa
SequenceString:
MPKKRRNGGR SKHNRGHVNP LRCSNCGRCV PKDKAIKRFN IRNIVDTSAQ RDIKEASVYS TFQLPKLYIK QCYCVSCAIH SRFVRVRSR EQRRVRKETA KHVNPSQL

UniProtKB: 40S ribosomal protein S26

+
Macromolecule #4: 40S ribosomal protein S27

MacromoleculeName: 40S ribosomal protein S27 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 9.154856 KDa
SequenceString:
MNVDLLNPDP VEESKKHKLK RLIPTPNSYF MDVKCPGCLQ ITTLFSHAQN VVLCGSCNIM LCQPTGGKCK LTEGCSFRKK IE

UniProtKB: 40S ribosomal protein S27

+
Macromolecule #5: 40S ribosomal protein S28e

MacromoleculeName: 40S ribosomal protein S28e / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 7.5088 KDa
SequenceString:
MEKSKLAKVE KVLGRTGSRG GVIQVRAQFM GDSELAGRFL IRNVKGPVRE GDILALLETE REARRLR

UniProtKB: 40S ribosomal protein S28e, putative

+
Macromolecule #6: 40S ribosomal protein S30

MacromoleculeName: 40S ribosomal protein S30 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 6.508725 KDa
SequenceString:
MGKVHGSLAR AGKVKNQTPK VPKLDKKKRL TGRAKKRQLY NRRFSDNGGR KKGPNSKA

UniProtKB: Small ribosomal subunit protein eS30

+
Macromolecule #9: 40S ribosomal protein S3a

MacromoleculeName: 40S ribosomal protein S3a / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 30.111678 KDa
SequenceString: MAVGKNKRTS KGKKGGKKKV TDVFTKKEWY DLKAPKMFLV RNFGKTLVTK TIGKKLATDS LKGRIYEVNL ADLNNDEDQA HKKIKLSCD HIINRDCYTD FCGLSITRDK LCSLIRKGYT LIEGHTDVKT LDNYHLRMFC IAFTKKRQNQ TKSTCYAQTS Q IKKIRKKM ...String:
MAVGKNKRTS KGKKGGKKKV TDVFTKKEWY DLKAPKMFLV RNFGKTLVTK TIGKKLATDS LKGRIYEVNL ADLNNDEDQA HKKIKLSCD HIINRDCYTD FCGLSITRDK LCSLIRKGYT LIEGHTDVKT LDNYHLRMFC IAFTKKRQNQ TKSTCYAQTS Q IKKIRKKM VDIMTAEASK VLLKDLVKKF IPESIGKEIE KQCKKIYPLQ NVLIRKVKIL KRPKLDISKL MELHTDPKEE SG KNVNALP ESKEATNILT AELKH

UniProtKB: Small ribosomal subunit protein eS1

+
Macromolecule #10: 40S ribosomal protein SA

MacromoleculeName: 40S ribosomal protein SA / type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 29.891182 KDa
SequenceString: MSNKKGQSPK EESIAKMLIC KVHIGTKNLE NKMKRYVYTR AKDGVHIINL AKTYEKLQLA ARIIVAISNP ADVVVVSARP FGSRAVLKF AQYTGAQAIA GRWTPGMLTN QIIQKFTEPR LLIVTDPRTD AQSVKESAYA NIPVIALCDS DSPLEHVDIA I PCNNKGKE ...String:
MSNKKGQSPK EESIAKMLIC KVHIGTKNLE NKMKRYVYTR AKDGVHIINL AKTYEKLQLA ARIIVAISNP ADVVVVSARP FGSRAVLKF AQYTGAQAIA GRWTPGMLTN QIIQKFTEPR LLIVTDPRTD AQSVKESAYA NIPVIALCDS DSPLEHVDIA I PCNNKGKE SIALMYWLLA QEVLYLKGVI PRSEPWNVMV DMFLWRDPEQ FELKNLANEE NTPTAPHLIE NQYAAEAPYD EW TKKEEWN DNTNEDWKNP IAAEEW

UniProtKB: Small ribosomal subunit protein uS2

+
Macromolecule #11: 40S ribosomal protein S3

MacromoleculeName: 40S ribosomal protein S3 / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 24.709908 KDa
SequenceString: MSAPISKKRK FINDGVFQAE LNEFLARILA EDGYSGVEVR VTPIRTEVII RATRTREVLG DKGRRIRELT SLVQKRFFNK STNSVELFA ERVEHRGLCA MAQAESLRYK LLKGLAVRRA CYGVLRHIME SGAKGCEVIV SGKLRAQRAK SMKFRDGYLI S TGEPSKRF ...String:
MSAPISKKRK FINDGVFQAE LNEFLARILA EDGYSGVEVR VTPIRTEVII RATRTREVLG DKGRRIRELT SLVQKRFFNK STNSVELFA ERVEHRGLCA MAQAESLRYK LLKGLAVRRA CYGVLRHIME SGAKGCEVIV SGKLRAQRAK SMKFRDGYLI S TGEPSKRF VNTATRSAQL KQGVLGIKVK IMLPTAIDTR TGLTSILPDN ISVLEPKTDT VDL

UniProtKB: 40S ribosomal protein S3

+
Macromolecule #12: 40S ribosomal protein S9

MacromoleculeName: 40S ribosomal protein S9 / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 22.172076 KDa
SequenceString:
MPKSYRNYSK TARNPKRPFE KERLDQELKL IGEYGLKNKR EIWRVQYLLA KIRSAARYLL TLDEKSSKRI FQGEALLRRM VRQGLLGEN EEKLDYVLGL TLPKLLERRL QTKVFKLGLA KSVHHARVLI RQRHIRVGKQ MVDIPSFLVR VDSEKHIDFA T TSPFGGAR PGRVKRKSLK KQKEKTEAEA E

UniProtKB: 40S ribosomal protein S9, putative

+
Macromolecule #13: 40S ribosomal protein S4

MacromoleculeName: 40S ribosomal protein S4 / type: protein_or_peptide / ID: 13 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 29.83033 KDa
SequenceString: MGKGIKKHLK RVNAPSHWML NKMGGQYAPK TSSGPHKLLE SIPLVILLRN RLKYALTFDE VKMILIQKIV KVDNKVRTDC TFPVGLMDV IHITKSNEYF RLLYDIKGRF VPHRITNEES KYKLCKVKKI LLRKGRLSIA VTHDGRSIPY IHPDVKVNDT V RLDLETGK ...String:
MGKGIKKHLK RVNAPSHWML NKMGGQYAPK TSSGPHKLLE SIPLVILLRN RLKYALTFDE VKMILIQKIV KVDNKVRTDC TFPVGLMDV IHITKSNEYF RLLYDIKGRF VPHRITNEES KYKLCKVKKI LLRKGRLSIA VTHDGRSIPY IHPDVKVNDT V RLDLETGK VLEHLKFQVG SLVMVTAGHS VGRVGVISSI DKNMGTYDII HVKDSRNKVF ATRLSNVFVI GDNTKPYISL PR EKGIKLD IIEERRNRLK ALNN

UniProtKB: 40S ribosomal protein S4

+
Macromolecule #14: 40S ribosomal protein S5

MacromoleculeName: 40S ribosomal protein S5 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 30.008768 KDa
SequenceString: MEDRGGFSRG FGRGVRGTRG RGGRGARGRG RGSAEDDLKN WVPVTKLGRL VKEGKIVSIE EIYLHSLPIK EYQIIDYFFQ PNECSHPLK DDVVKIMPVQ KQTRAGQRTR FKAFVAIGDG NGHCGLGVKC AKEVATAIRG AIISAKLSLI PVRRGYWGNK I GDPHTVPM ...String:
MEDRGGFSRG FGRGVRGTRG RGGRGARGRG RGSAEDDLKN WVPVTKLGRL VKEGKIVSIE EIYLHSLPIK EYQIIDYFFQ PNECSHPLK DDVVKIMPVQ KQTRAGQRTR FKAFVAIGDG NGHCGLGVKC AKEVATAIRG AIISAKLSLI PVRRGYWGNK I GDPHTVPM KVSGKCGSVR IRLVPAPRGT QIVGAPTTKK MLNFAGIKDC FSSSCGKTKT KGNFLRAIFN ALSKTYGYLT PD LWKVTNF DKSPYEEWSD FLETYQNLKG IKGTV

UniProtKB: Small ribosomal subunit protein uS5

+
Macromolecule #15: 40S ribosomal protein S6

MacromoleculeName: 40S ribosomal protein S6 / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 35.473766 KDa
SequenceString: MKLNISNPLN NVQKSIEIDD EKKLLPFMEK RIGNAVPGDS IGEEFTGYVF RITGGNDKQG FPMIQGVLTN NRVRLLFKKG MKCYRPRKK GERKRKSVRG CIVGQDLSAL NLTLVKKGVN EIPGLTDKAV GKKLGPKRAS KIRKLFNLDK SDDVRKYVIG R AITKNGKT ...String:
MKLNISNPLN NVQKSIEIDD EKKLLPFMEK RIGNAVPGDS IGEEFTGYVF RITGGNDKQG FPMIQGVLTN NRVRLLFKKG MKCYRPRKK GERKRKSVRG CIVGQDLSAL NLTLVKKGVN EIPGLTDKAV GKKLGPKRAS KIRKLFNLDK SDDVRKYVIG R AITKNGKT KFIKPKIQRL VTEKRLLRKR NLLQAKEKRR LEKKQQLKEY KQLLNKYRSE LNQQHDVETT KKKKVKKSLS KT NKTASKS KLNTKQEQKD KTEKKQNKTN NIKNDKSEKK EQAKKKTKTN ENTQQTKQNK PDKKNKAKK

UniProtKB: 40S ribosomal protein S6

+
Macromolecule #16: 40S ribosomal protein S5

MacromoleculeName: 40S ribosomal protein S5 / type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 21.898484 KDa
SequenceString: METTTADIKL FKKWSYEEIN IADLSLVDCI AVSQKACVYT PHTAGRYQKK RFRKALCPIV ERLVNSMMMH GRNNGKKLKA IRIVAYAFE IIHLMTGENP LQVFVNAVQK GGPREDSTRI GSAGVVRRQA VDVSPLRRVN QAIYLICTGA RNAAFRNIKS I SECLAEEI ...String:
METTTADIKL FKKWSYEEIN IADLSLVDCI AVSQKACVYT PHTAGRYQKK RFRKALCPIV ERLVNSMMMH GRNNGKKLKA IRIVAYAFE IIHLMTGENP LQVFVNAVQK GGPREDSTRI GSAGVVRRQA VDVSPLRRVN QAIYLICTGA RNAAFRNIKS I SECLAEEI INCANESSSS YAIKKKDEIE RVAKANR

UniProtKB: 40S ribosomal protein S5, putative

+
Macromolecule #17: 40S ribosomal protein S7

MacromoleculeName: 40S ribosomal protein S7 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 22.52474 KDa
SequenceString: MDAVQKRVLK SNPSDLEKEI AQCLLDIELS SSSDIKTDAK EIKLLSCDLI EVEKLKKKTI LIYIPYKIYT TYVRKIQRKL INELEKKTK KYVVLVAKRT ILKGKQKNKS FKIIPRSRTL TSVYDSILED IVSPSEIIGK RISMKADGKR VFKIMLDSKE R QRDNIEEK ...String:
MDAVQKRVLK SNPSDLEKEI AQCLLDIELS SSSDIKTDAK EIKLLSCDLI EVEKLKKKTI LIYIPYKIYT TYVRKIQRKL INELEKKTK KYVVLVAKRT ILKGKQKNKS FKIIPRSRTL TSVYDSILED IVSPSEIIGK RISMKADGKR VFKIMLDSKE R QRDNIEEK LISFAAVYKK ITRRDAVFSL PPTNEK

UniProtKB: 40S ribosomal protein S7

+
Macromolecule #18: 40S ribosomal protein S15A

MacromoleculeName: 40S ribosomal protein S15A / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.900678 KDa
SequenceString:
MVRMSVLADC LKTINNAEKR GRRQVLIRPS SKVVIKFLQY MQKKGYIGSF EIVDDHRSGK IVVNLLGRIN KCAVISPRYD VKLDEIEKI ITSILPSRLF GHLILTTPYG IMDHEEARRK HTGGKVLGFF F

UniProtKB: 40S ribosomal protein S15A, putative

+
Macromolecule #19: 40S ribosomal protein S8

MacromoleculeName: 40S ribosomal protein S8 / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 25.105992 KDa
SequenceString: MGISRDGRHK LRLTGGKKKI HKKKRKYELG RPPSNTKLGS RQVHVVRGRG RNYKYRAIKL DSGSFSWPTF GISKNTRIID VVYNASNNE LVRTKTLVKN CIVVIDSHPF TTWYENTFGT TLGKKKKEKK EEDNKEENKQ EVENNEEAAK DETTKTYGVI K KIGKSKNI ...String:
MGISRDGRHK LRLTGGKKKI HKKKRKYELG RPPSNTKLGS RQVHVVRGRG RNYKYRAIKL DSGSFSWPTF GISKNTRIID VVYNASNNE LVRTKTLVKN CIVVIDSHPF TTWYENTFGT TLGKKKKEKK EEDNKEENKQ EVENNEEAAK DETTKTYGVI K KIGKSKNI DPLLLEQFKQ GRVLACISSR PGQCGKADGY IIEGDELLFY KRKMDKKKRN

UniProtKB: 40S ribosomal protein S8

+
Macromolecule #20: 40S ribosomal protein S16

MacromoleculeName: 40S ribosomal protein S16 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.318242 KDa
SequenceString:
MTTKVKRVQT FGKKKTAVAV ATVTNGKGLI KLNGKNLDLV EPYILKTKVY EPLWLIGSGK LKNLDIRIRV KGGGQTSQIY AIRQAIGKG IISYYQKYVD ESTKKELKDV LLRYDRSLLV GDTRRCEPKK FGGKGARARY QKSYR

UniProtKB: 40S ribosomal protein S16

+
Macromolecule #21: 40S ribosomal protein S20e

MacromoleculeName: 40S ribosomal protein S20e / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 13.534918 KDa
SequenceString:
MSKLMKGAID NEKYRLRRIR IALTSKNLRA IEKVCSDIMK GAKEKNLNVS GPVRLPVKTL RITTRKSPCG EGTNTWDRFE LRIYKRLID LYSQCEVVTQ MTSINIDPVV EVEVIITDS

UniProtKB: Small ribosomal subunit protein uS10

+
Macromolecule #22: 40S ribosomal protein S10

MacromoleculeName: 40S ribosomal protein S10 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.510201 KDa
SequenceString:
MDKQTLPHHK YSYIPKQNKK LIYEYLFKEG VIVVEKDAKI PRHPHLNVPN LHIMMTLKSL KSRNYVEEKY NWKHQYFILN NEGIEYLRE FLHLPPSIFP ATLSKKTVNR APKMDEDISR DVRQPMGRGR AFDRRPFE

UniProtKB: 40S ribosomal protein S10, putative

+
Macromolecule #23: 40S ribosomal protein S11

MacromoleculeName: 40S ribosomal protein S11 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.105612 KDa
SequenceString:
MASKKVKTPQ PETAIVSGPQ PKEGELVFGV AHIFASFNDT FIHVTDLSGR ETLVRITGGM KVKADRDESS PYAAMMAAQD VAARLKELG VTAIHIKLRA SGGTKSKTPG PGAQSALRAL ARSGLKIGRI EDVTPIPTDS TRKKSGRRGR RL

UniProtKB: 40S ribosomal protein S11

+
Macromolecule #24: 40S ribosomal protein S23

MacromoleculeName: 40S ribosomal protein S23 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.166962 KDa
SequenceString:
MGSGKPSGLR AARKLRIRRR TQRWADKSYK KSHLGTRWKS NPFRGSSHAK GIVVEKVAIE AKQPNSAYRK CVRVQLIKNG KKITAFVPG DGCLNFIDEN DEVLVSGFGR SGHSVGDLPG VKFKVVKVAR VSLLALFKEK KEKPRS

UniProtKB: 40S ribosomal protein S23, putative

+
Macromolecule #25: 40S ribosomal protein S12

MacromoleculeName: 40S ribosomal protein S12 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 15.414444 KDa
SequenceString:
MSDVESADNN VVVEEKAVFD NVTAIQKVIK NAHVHDGLKI GIREVIKSIE SQEAKVCFLS DVCSEPAYKK LITTLCAEKN IPLFMVQND SKDLGHWAGL FKLDNEGNAR KIIGASSVAV VDFGEDSAEK DFLLSQNQTV TA

UniProtKB: Small ribosomal subunit protein eS12

+
Macromolecule #26: 40S ribosomal protein S18

MacromoleculeName: 40S ribosomal protein S18 / type: protein_or_peptide / ID: 26 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 17.928947 KDa
SequenceString:
MSLQVIDNND FQHILRILNT NVDGKEKVII ALTAIKGIGK RMATVICKQA NVDPTKRAGE LTTEEIDNIV HIMSTPTQFK IPDWFLNRR KDLKEGKNIH VIANQLDSYL REDLERMKKI RLHRGLRHHW GLRVRGQHTK TTGRRGRTVG VAKKKGA

UniProtKB: 40S ribosomal protein S18, putative

+
Macromolecule #27: 40S ribosomal protein S29

MacromoleculeName: 40S ribosomal protein S29 / type: protein_or_peptide / ID: 27 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 6.430679 KDa
SequenceString:
MGCILNVHPK KYGQGSRQCR VCSNKHAIIR KYNINICRQC FRERADIIGF KKYR

UniProtKB: 40S ribosomal protein S29, putative

+
Macromolecule #28: 40S ribosomal protein S15

MacromoleculeName: 40S ribosomal protein S15 / type: protein_or_peptide / ID: 28 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 17.286469 KDa
SequenceString:
MGRMYGKGKG ISSSTLPYKR KQPSWLKQKP SEIEDAIIKL AKKGQTPSQI GATLRDNYGI PQVKSVTGNK ILRILRAQGI ATTIPEDLY FLIKKAVSMR KHLEKNKKDK DCKFRLILTE SKIHRISRYY KRKKLLPSNW KYQSSTASAL IA

UniProtKB: 40S ribosomal protein S15

+
Macromolecule #29: 40S ribosomal protein S11

MacromoleculeName: 40S ribosomal protein S11 / type: protein_or_peptide / ID: 29 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 18.801189 KDa
SequenceString:
MATTLDVQHE RAYQKQEGAS FFNSKKIKKG SKSYIRYWKK VGLGFATPKE AKEGVYVDKK CPFTGNVSIR GRILKGMVIS NKMKRTIII RRNYLHYVKK YNRFEKRHKN IPCHCSPCFD VKEGDIVTVG QCRPLSKTVR FNVLHVEKHQ IFGSARKQFV L F

UniProtKB: 40S ribosomal protein S11, putative

+
Macromolecule #30: 40S ribosomal protein S17

MacromoleculeName: 40S ribosomal protein S17 / type: protein_or_peptide / ID: 30 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.096985 KDa
SequenceString:
MGRVRTKTIK RAARQIVEKY YAKLTLDFQI NKKITEEVAI IPSKRMKNKV AGFVTHLMKR IQKGPVRGIS LKLQEEERER RLDFVPEKS QIDVSVIYVE PDTLRMIKSL GINISNMKVH NPMINTNQQK QNRMNNQF

UniProtKB: 40S ribosomal protein S17, putative

+
Macromolecule #31: 40S ribosomal protein S19

MacromoleculeName: 40S ribosomal protein S19 / type: protein_or_peptide / ID: 31 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.800764 KDa
SequenceString:
MEDANKPKKR TFRTFQYRGV DLDKLLDLSQ DELIKLFKAR QRRKFQRGIS KKAKSLLKKI RKSKKNCEPG EKPNPVPTHL RNMTIIPEM VGSIVAVHNG KQYTNVEIKP EMIGYYLGEF SITYKHTRHG KPGIGATHSS RFIPLK

UniProtKB: 40S ribosomal protein S19

+
Macromolecule #32: 40S ribosomal protein S19

MacromoleculeName: 40S ribosomal protein S19 / type: protein_or_peptide / ID: 32 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 19.75792 KDa
SequenceString:
MAEQFTEDIG VVNKRLLEPV PFVKTNNCIK DVDADLFIRS YATHLKLHNK ITYPKWCTFV KTGKGRKLAP LNEDWYFIRA SSILRRLYL HPDIGVGFLR RQFSSKQRRG VAPNHTSLAS GKILRSILQQ LENLGYVEQN PKKKGRRLTT KGENAINNFA R YINKKVYN KE

UniProtKB: 40S ribosomal protein S19

+
Macromolecule #33: 40S ribosomal protein S21

MacromoleculeName: 40S ribosomal protein S21 / type: protein_or_peptide / ID: 33 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 9.157478 KDa
SequenceString:
MFNDQKVLVD IYIPRKCSAT SRLIPAKEHG AVQINVGMVD ANGVYNGKTE TFAISGHVRQ NGESDACLNR LMYEKKLLSF QN

UniProtKB: 40S ribosomal protein S21

+
Macromolecule #37: 60S ribosomal protein L13

MacromoleculeName: 60S ribosomal protein L13 / type: protein_or_peptide / ID: 37 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 25.508193 KDa
SequenceString: MVAHNNVLPN VHLHKWWQRH VRVNFSKNIK KKKRRLLREK RRKANGGTPI EKLHPIVHCP TQRYNFRTRL GKGFTFEELK GAGLTPRAA QTIGICYDKR RKNRSEESLT KNVERLLKYK NSLVMIPLKK NKAKKGIGGI PADADKNTIK EFRNKKPLLS I FKKEKNTK ...String:
MVAHNNVLPN VHLHKWWQRH VRVNFSKNIK KKKRRLLREK RRKANGGTPI EKLHPIVHCP TQRYNFRTRL GKGFTFEELK GAGLTPRAA QTIGICYDKR RKNRSEESLT KNVERLLKYK NSLVMIPLKK NKAKKGIGGI PADADKNTIK EFRNKKPLLS I FKKEKNTK PFYETIEVSK IDKEFLAYKT LRRAKLAERR KNRRQQKKDI KFKSKDN

UniProtKB: 60S ribosomal protein L13

+
Macromolecule #38: 60S ribosomal protein L27

MacromoleculeName: 60S ribosomal protein L27 / type: protein_or_peptide / ID: 38 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.78518 KDa
SequenceString:
MGKLLKPGKV IIILNGRRAG KKAVIVNTYE GQTRERPYSY CLVAGIEKHP LKVNKSMTKK KIVKRSKVKA FIKCINVNHI LPTRYQVAN DFDIKSLASD DVLKSKNKKK EVKKLGKIFR DKFLEPVNKK TGEVSKDISF LHKKLYF

UniProtKB: 60S ribosomal protein L27

+
Macromolecule #39: 60S ribosomal protein L28

MacromoleculeName: 60S ribosomal protein L28 / type: protein_or_peptide / ID: 39 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.437823 KDa
SequenceString:
MSNVSNALVW ELTRKSNCFI KKNKAGKKGV FLCDPLNVNY KNTPSSSGLV KSNSTNVTLK DGKVVFSVKT SKESNVVNQH FKAKNMKNV EKLLQQHGSF EKAKNKEKLL KKYKRLSKLY ETSHKKTN

UniProtKB: 60S ribosomal protein L28

+
Macromolecule #40: 60S ribosomal protein L29

MacromoleculeName: 60S ribosomal protein L29 / type: protein_or_peptide / ID: 40 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 8.041588 KDa
SequenceString:
MAKSKNHTNH NQNRKAHKNG IKKPKKHKFM SRKGLDPNFF RNQKYCLKGI QKKKKELKLK AKQEKNN

UniProtKB: 60S ribosomal protein L29

+
Macromolecule #41: 60S ribosomal protein L30e

MacromoleculeName: 60S ribosomal protein L30e / type: protein_or_peptide / ID: 41 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 11.79476 KDa
SequenceString:
MAKKSKKSAG DNINAKLQLV MKSGKYQFGR KSCLKALRTG KGKLVIVSSN CPSIQRSVIE YYAMLSKCGV HDYHGDNNDL GTACGKLFR ISCLVITDVG DSDIIKTNE

UniProtKB: 60S ribosomal protein L30e, putative

+
Macromolecule #42: 60S ribosomal protein L31

MacromoleculeName: 60S ribosomal protein L31 / type: protein_or_peptide / ID: 42 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.099854 KDa
SequenceString:
MVKGTVKKQK KTLKPVTKFI TINLSKLTHK VCYKRKAPRA IKEIRSIAGK LMHTKDVRLD VKLNKFIWSK GVRNPPKRVR VKLERKRNE DEDSKEKMYT IVEHVMVDSY KGLVNECEAN E

UniProtKB: 60S ribosomal protein L31

+
Macromolecule #43: 60S ribosomal protein L14

MacromoleculeName: 60S ribosomal protein L14 / type: protein_or_peptide / ID: 43 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 19.340373 KDa
SequenceString:
MPRVELTEEE KLYISKKNLL FKRFVEPGRL CLIEYGPYAG KLCFIVDIVT ITRVIVDGAF ITGVPRMVIP LKRLKLLKER IKINKNCKS GFLRKTVNST KVLEEFNNSK LGKKMIIKKK RDEATDFERF QVYFAKRELK KKMTTIKNKK NGENKKVKKN V QKVKA

UniProtKB: 60S ribosomal protein L14, putative

+
Macromolecule #44: 60S ribosomal protein L32

MacromoleculeName: 60S ribosomal protein L32 / type: protein_or_peptide / ID: 44 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 15.565751 KDa
SequenceString:
MAVKKVGKII KKRTKKFTRF QSNRFMRVKP AWRKPRGIDC RVRRRYKGTN LMPSIGYGSN KKTKFLLPNN KYKYVVKNVK EMEPLIMNH TKYCVQIAHN VSSKKRKQII ERAKQMNVSV INAKARLQKT EE

UniProtKB: 60S ribosomal protein L32

+
Macromolecule #45: 60S ribosomal protein L35ae

MacromoleculeName: 60S ribosomal protein L35ae / type: protein_or_peptide / ID: 45 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.306425 KDa
SequenceString:
MENVKVKKEQ TEVSQKKKVV KKVLKKNKKT SNKKLQAVRL YEKGVILGYK RSQRNQDPNF TLISIKNVNT KKHAQFYVGK RVAYVYRTT KHHDGVKIKC IWGKVCRTHG NSGVIRAKFK THIPPKAFGD RVRILMYPSN I

UniProtKB: 60S ribosomal protein L35ae, putative

+
Macromolecule #46: 60S ribosomal protein L34

MacromoleculeName: 60S ribosomal protein L34 / type: protein_or_peptide / ID: 46 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 17.406967 KDa
SequenceString:
MAQRVHYRRH NHYNTKSNKV RPVRTPGGKL TIHVVKKKAG KPKCADCKTA IQGVKALRPA DNYRARRKNR TVARAYGGSI CARCIRERI MRAFLFEEQK CVRQVLKEKK KQEKKVKKVK KEKKKVNAKE VKKTATDNKK AKKVADKKKG K

UniProtKB: 60S ribosomal protein L34

+
Macromolecule #47: 60S ribosomal protein L36

MacromoleculeName: 60S ribosomal protein L36 / type: protein_or_peptide / ID: 47 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 12.82544 KDa
SequenceString:
MGRKSTIKPA TGIAVGFNSG HVVTKRNLKL HKKKKPFSKR KELIKDVVRE ITGFSPYEKR IIELIKIGTS ASTKRSLKYA KKKLGTHKR GKAKREEIQK VVILQRRKAA EKH

UniProtKB: 60S ribosomal protein L36

+
Macromolecule #48: 60S ribosomal protein L38

MacromoleculeName: 60S ribosomal protein L38 / type: protein_or_peptide / ID: 48 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 10.341729 KDa
SequenceString:
MPKQITDIRK FLKISRKPDT TAVIIMKKKS KTKKNTVITK LKLRTKKYLY TMVFADRKKA ERIENSLLPS LKRIYYPQKK VGKTVKK

UniProtKB: 60S ribosomal protein L38

+
Macromolecule #49: 60S ribosomal protein L39

MacromoleculeName: 60S ribosomal protein L39 / type: protein_or_peptide / ID: 49 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 6.540912 KDa
SequenceString:
MGSIKRFRLK QRLGKCRRQN RPVPHWYRLK KDTKIRYNTK RRHWRRTKLG L

UniProtKB: 60S ribosomal protein L39

+
Macromolecule #50: Ubiquitin-60S ribosomal protein L40

MacromoleculeName: Ubiquitin-60S ribosomal protein L40 / type: protein_or_peptide / ID: 50 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.645169 KDa
SequenceString:
MQIFVKTLTG KTITLDVEPS DTIENVKAKI QDKEGIPPDQ QRLIFAGKQL EDGRTLSDYN IQKESTLHLV LRLRGGAIEP SLAQLAQKY NCQKLICRKC YARLHPRATN CRNKKCGRTN QLRPKKKLK

UniProtKB: Ubiquitin-60S ribosomal protein L40

+
Macromolecule #51: Ribosomal protein L15

MacromoleculeName: Ribosomal protein L15 / type: protein_or_peptide / ID: 51 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 24.19766 KDa
SequenceString: MGAYKYIQEI WKKKQSDAMH FLLRVRTWEY RQLPVVHRVS KPSRPDKARR LGYKAIQGFV IYRVRVRRGD RKKRVKKGIV HGKPKHQGV HKQKSTRNLK SVAEGKVGKS ICGNLRVLNS YWVGQDAVYK YYEVILVDPN HNAVRNNPKI NWICNPVHKH R ELRGLTSA ...String:
MGAYKYIQEI WKKKQSDAMH FLLRVRTWEY RQLPVVHRVS KPSRPDKARR LGYKAIQGFV IYRVRVRRGD RKKRVKKGIV HGKPKHQGV HKQKSTRNLK SVAEGKVGKS ICGNLRVLNS YWVGQDAVYK YYEVILVDPN HNAVRNNPKI NWICNPVHKH R ELRGLTSA GKKYRGLRVK GHLSAKSRPS IRANWKRRQL IKLRKCR

UniProtKB: Ribosomal protein L15

+
Macromolecule #52: Large ribosomal subunit protein eL43

MacromoleculeName: Large ribosomal subunit protein eL43 / type: protein_or_peptide / ID: 52 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 10.826083 KDa
SequenceString:
MSRRTKKVGL TGKYGTRYGS SLRKQIKKIE LMQHAKYLCT FCGKTATKRT CVGIWKCKKC KRKVCGGAWS LTTPAAVAAK STIIRLRKQ KEEAQKS

UniProtKB: Large ribosomal subunit protein eL43

+
Macromolecule #53: Large ribosomal subunit protein eL42

MacromoleculeName: Large ribosomal subunit protein eL42 / type: protein_or_peptide / ID: 53 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 12.194902 KDa
SequenceString:
MVNVPKTRKT YCSNKCKKHT MHKVSQYKKG KERLSSLGRR RYDMKQKGFG GQTKPVFKKK AKTTKKIVLK LECTKCKKKR FQTMKRCKT FEMGADKKKK GGAVY

UniProtKB: Large ribosomal subunit protein eL42

+
Macromolecule #54: 60S ribosomal protein L6

MacromoleculeName: 60S ribosomal protein L6 / type: protein_or_peptide / ID: 54 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 25.587623 KDa
SequenceString: MTNTSNELKH YNVKGKKKVL VPVNAKKTIN KKYFGRKVAS KKKYVVQRKL RKSIEVGKVA IILTGKHMGK RCIITKILNS GLLAVVGPY EINGVPLKRV DSRYLVVTST NIFNFENIAK LKDDFLNYAQ DIDDDSFIKT LEIKKKQKKL LKNKNEALFM N NVIDKIKE ...String:
MTNTSNELKH YNVKGKKKVL VPVNAKKTIN KKYFGRKVAS KKKYVVQRKL RKSIEVGKVA IILTGKHMGK RCIITKILNS GLLAVVGPY EINGVPLKRV DSRYLVVTST NIFNFENIAK LKDDFLNYAQ DIDDDSFIKT LEIKKKQKKL LKNKNEALFM N NVIDKIKE IRKEDPKVQK LEGIQKDIGS LLKPEILKNK VFAHYLKSKF TLRNDMVLHK MKF

UniProtKB: 60S ribosomal protein L6, putative

+
Macromolecule #55: 60S ribosomal protein L7a

MacromoleculeName: 60S ribosomal protein L7a / type: protein_or_peptide / ID: 55 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 32.760455 KDa
SequenceString: MAKDKKQQKK PSKKTPAPCP LSTKVTVKKE IKKEKKTGIK DNPLIFEKKK RSNIIGVGVR PKKDLSKYVK WPRYIRIQRK KKILLQRLK VPPSINQFNH TLPKSQTQDL LNFLKAYKPE SKTDKKQRLL NKAKEALNKN ITKDKKPLFL KYGINHITKL V ENKKANLV ...String:
MAKDKKQQKK PSKKTPAPCP LSTKVTVKKE IKKEKKTGIK DNPLIFEKKK RSNIIGVGVR PKKDLSKYVK WPRYIRIQRK KKILLQRLK VPPSINQFNH TLPKSQTQDL LNFLKAYKPE SKTDKKQRLL NKAKEALNKN ITKDKKPLFL KYGINHITKL V ENKKANLV VIANDVSPIE LVLFLPALCR LKEVPYCIVK DKATLGKLVH KKTATAVCLE SVKKEDQEKL DYFAKVCKEN FN DNVDLRR KWGGQKMSAK SMLLKKMKDK ARKIEEAKKK EISAKL

UniProtKB: 60S ribosomal protein L7a

+
Macromolecule #56: Ribosomal protein L37

MacromoleculeName: Ribosomal protein L37 / type: protein_or_peptide / ID: 56 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 10.571592 KDa
SequenceString:
MGKAGKGTGS FGKRNGKTHF LCLRCGKRSY HLQKKKCASC GYPSAKKRRF NWSVKAKRRN TTGTGRCRYI KTLRRKLKNK FTEGSTPKP KQR

UniProtKB: Ribosomal protein L37

+
Macromolecule #57: 60S ribosomal protein L13

MacromoleculeName: 60S ribosomal protein L13 / type: protein_or_peptide / ID: 57 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 23.805344 KDa
SequenceString: MYKKEYVIDC KGHLLGRLAS LIAKELLNGQ RIVAVRCEDI NISGSLYRNK LKYQEFLRLR TNTNPKKGPL HLREPSKILW RCVRGMLPH KTYKGQLALK KLKVCVGMPY PYDKKKKYVL PSALRAFRLK KHRRYCRLGT LSSRVGWNYD TLVKKNEVLR K QVSKAYYK ...String:
MYKKEYVIDC KGHLLGRLAS LIAKELLNGQ RIVAVRCEDI NISGSLYRNK LKYQEFLRLR TNTNPKKGPL HLREPSKILW RCVRGMLPH KTYKGQLALK KLKVCVGMPY PYDKKKKYVL PSALRAFRLK KHRRYCRLGT LSSRVGWNYD TLVKKNEVLR K QVSKAYYK KKVNNLNEKK EIKTEALNLI NPEQRQVLEN FGYA

UniProtKB: 60S ribosomal protein L13, putative

+
Macromolecule #58: 60S ribosomal protein L23, putative

MacromoleculeName: 60S ribosomal protein L23, putative / type: protein_or_peptide / ID: 58 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 15.015713 KDa
SequenceString:
MKRGRAGTLK NKMRITLSLP VGALINCCDN SGGKNLYIIA VQGFGSCLNR LPAASLGDMV LATVKKGKPD LRKKVLNAII CRQSKAWRR HEGYYIYFED NAGVIVNPKG EMKGSAITGP VARECAELWP KLSSAASAIV

UniProtKB: 60S ribosomal protein L23, putative

+
Macromolecule #59: 60S ribosomal protein L18-2

MacromoleculeName: 60S ribosomal protein L18-2 / type: protein_or_peptide / ID: 59 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 21.508783 KDa
SequenceString:
MGIALKNVGR IKKHGRKHLV SKNPYLRLLV KLYNFLARRT NANFNKIIAK RLIMPKRYRP PLSLSKLQYH MANHPNDIAV VVGSITDDK RLFSLKQLKV CALRFTETAR KRIEDAGGEC LTFDQLALKY PTGKKCVLLR GPTKARTAEK HFGKAPGKPK S KARPYVRS KGRKFEKARG RRKSRAYKK

UniProtKB: 60S ribosomal protein L18-2, putative

+
Macromolecule #60: 60S ribosomal protein L27a

MacromoleculeName: 60S ribosomal protein L27a / type: protein_or_peptide / ID: 60 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.765834 KDa
SequenceString:
MATRFKKNRK KRGHVSAGHG RVGKHRKHPG GRGKAGGLHH MRINFDKYHP GYFGKVGMRH LNLLKNRTYC PTINVDKLWG LLPEEKKKE FSENKDIAPV IDVTRKGYFK VLGNGKLKHN QPIVVKARYF SSVAEKKIKA VGGQCILVA

UniProtKB: 60S ribosomal protein L27a, putative

+
Macromolecule #61: 60S ribosomal protein L10

MacromoleculeName: 60S ribosomal protein L10 / type: protein_or_peptide / ID: 61 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 25.26548 KDa
SequenceString: MGRRPARCYR YCKNKPYPKS RYCRGVPDPK IRIYDMGRKK ADVNEFSGVV HLVSYEYEQI SSEALEAARI SANKYMITNC GKDNFHLRV RIHPFHVLRI NKMLSCAGAD RLQTGMRGAF GKPNGVVARV DIGQVLLSIR TKENFVSKAC EALRRAKYKF P GRQKVFVS ...String:
MGRRPARCYR YCKNKPYPKS RYCRGVPDPK IRIYDMGRKK ADVNEFSGVV HLVSYEYEQI SSEALEAARI SANKYMITNC GKDNFHLRV RIHPFHVLRI NKMLSCAGAD RLQTGMRGAF GKPNGVVARV DIGQVLLSIR TKENFVSKAC EALRRAKYKF P GRQKVFVS NKWGFTPFSK DEYQQYKKKG RIISDGVSCK FIREKGPLDK IYKDINTVLE S

UniProtKB: 60S ribosomal protein L10, putative

+
Macromolecule #62: 60S ribosomal protein L5

MacromoleculeName: 60S ribosomal protein L5 / type: protein_or_peptide / ID: 62 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 34.067352 KDa
SequenceString: MAYVKVVKNK AYFKRYQVKY RRRREGKTDY RARKALILQD KNKYNAQKLR FVVRKTNSQV ICQIACAHIE GDKILAEAKS KELIRYGIP VGLKNYAAAY ATGLLCARRF LKSLNLDTQF LGVEKVTGEI ENNEDKEDEE GRKPIKAFLD VGITRTTTGN R VFAALKGA ...String:
MAYVKVVKNK AYFKRYQVKY RRRREGKTDY RARKALILQD KNKYNAQKLR FVVRKTNSQV ICQIACAHIE GDKILAEAKS KELIRYGIP VGLKNYAAAY ATGLLCARRF LKSLNLDTQF LGVEKVTGEI ENNEDKEDEE GRKPIKAFLD VGITRTTTGN R VFAALKGA CDGGLNIPHG NNRFPGSKNE FNPEQLRKNI LGIHVAEYMK TLQEEDNDKY KTHFNDYLKN NIGADDIEQM YL NAHEKIR QNPEKESKDT KNVKKFVSKH EKPKKLNAKL RKKRVKEKLA LYVEKLQ

UniProtKB: 60S ribosomal protein L5, putative

+
Macromolecule #63: 60S ribosomal protein L17

MacromoleculeName: 60S ribosomal protein L17 / type: protein_or_peptide / ID: 63 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 19.431008 KDa
SequenceString: MVKYAKKIRN LGKCAKGAGV DLRVHFKNTY EAARAIRRMK LLEAKKYLND VIEKKRCVPF RKYNGGVGRT NQAKEFNHTQ GRWPAKSCK FLLNILDNVQ ANAESRNLDV SKLRLIHVMV NKARPGRRRT YKAHGRINPF MSSPCHIQII AREIN(UNK) (UNK)(UNK)(UNK) ...String:
MVKYAKKIRN LGKCAKGAGV DLRVHFKNTY EAARAIRRMK LLEAKKYLND VIEKKRCVPF RKYNGGVGRT NQAKEFNHTQ GRWPAKSCK FLLNILDNVQ ANAESRNLDV SKLRLIHVMV NKARPGRRRT YKAHGRINPF MSSPCHIQII AREIN(UNK) (UNK)(UNK)(UNK) (UNK)(UNK)(UNK)(UNK)(UNK)(UNK)(UNK)(UNK)(UNK)(UNK) (UNK)(UNK)(UNK) (UNK)(UNK)

UniProtKB: Large ribosomal subunit protein uL22

+
Macromolecule #64: 60S ribosomal protein L23

MacromoleculeName: 60S ribosomal protein L23 / type: protein_or_peptide / ID: 64 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 22.152748 KDa
SequenceString:
MTQVEKKKKN VKNVNKHKII HKRVIKKGNR KYTNGNTKVK YRKQVVKKTI NKNVSKKKLL KENVDKDEKK KKMKISIRFK KPKTLIYAR NPKCPRIVKS CHSKTLDKYG LIKYPLTSEK AMKKIEEINT LVFMCDKRAN KKNIKKSVKN LFGIECDKVN V LNTLNGDK KAYVRLSGEH DALEVANKIG IL

UniProtKB: 60S ribosomal protein L23

+
Macromolecule #65: 60S ribosomal protein L19

MacromoleculeName: 60S ribosomal protein L19 / type: protein_or_peptide / ID: 65 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 21.641096 KDa
SequenceString:
MSLTLQKRLA ASVLKCGKNK IWMDPNEISE ISLANSRFSI RKLYKEGLIL KKPQKVHSRA RVRLYKLAKR KGRHMGIGKR KGTKNARTN QKTLWIKRQR VLRRLLKRLR DSKKVDRHLY HSFYLKCKGN QFKNKRTLIE AIQREKNETL KKKAIADQLE A KRLKAQVL RNKRKLKKDK EVVA

UniProtKB: 60S ribosomal protein L19

+
Macromolecule #66: 60S ribosomal protein L26

MacromoleculeName: 60S ribosomal protein L26 / type: protein_or_peptide / ID: 66 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.855709 KDa
SequenceString:
MKFNKQKSSS RRKMRKAHFT APAGLRRKIM SSKLSKELRL KYKTRSLPVR KDDEVLICRG HNHGREGKVV KINRKRYKIY VERVTREKV NGESTFIGIH PSNVVLTKLK VDKNRKKILD RKAAKEN

UniProtKB: 60S ribosomal protein L26, putative

+
Macromolecule #67: 60S ribosomal protein L35

MacromoleculeName: 60S ribosomal protein L35 / type: protein_or_peptide / ID: 67 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 14.787824 KDa
SequenceString:
MSNVKAYELR TLKKKELLDK LDELKKELSG LRISKALGNS AKNSKIHGVR KNVARVLTVY NQKRKMELRQ LYKNKKFKPY NLRKKLTKN KRLQLSPKQK AAMTLRQKKK VQNFPQRKYL VVHKE

UniProtKB: 60S ribosomal protein L35, putative

+
Macromolecule #68: 60S ribosomal protein L7

MacromoleculeName: 60S ribosomal protein L7 / type: protein_or_peptide / ID: 68 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 30.593184 KDa
SequenceString: MADRYENQVE NELGKSMTSL RAKKVNKNKE LKQAAAKKIK TLKLINKKKR NDLRQRTLRY EEEYESERKK IIELKREARK NNCFYREAE KKVVFVIRLK GVNKLPPKVR SVFRLLRLLQ VHNGVFVKVN KATKEMLKIV EPYVTYGYPT LSTVRKLLYK R GYVRVGKV ...String:
MADRYENQVE NELGKSMTSL RAKKVNKNKE LKQAAAKKIK TLKLINKKKR NDLRQRTLRY EEEYESERKK IIELKREARK NNCFYREAE KKVVFVIRLK GVNKLPPKVR SVFRLLRLLQ VHNGVFVKVN KATKEMLKIV EPYVTYGYPT LSTVRKLLYK R GYVRVGKV RRYARKKIQD NADISKHLGK YNVHGIEDMV YQLYTCGPVF KKVNNFLWAF KLKPPRKGFK AKRHAFNEPR PG DWGNREA HINELINRMI

UniProtKB: 60S ribosomal protein L7, putative

+
Macromolecule #69: 60S ribosomal protein L2

MacromoleculeName: 60S ribosomal protein L2 / type: protein_or_peptide / ID: 69 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 28.064998 KDa
SequenceString: MGRVIRGQRK GRGSIFKSHN HHRKGAAKLR HLDYCEKKGY IKGLVKDIIH DPGRGAPLAK VIFKRTEKYG KKEELIIASE GMFTGQYIS CGTKAPLSVG NILPIGKMPE GTLICNLEHR TGNRGTLVKA SGCYATVVGQ SEDGKKTKVR LPSGAKKTID A KARAMVGV ...String:
MGRVIRGQRK GRGSIFKSHN HHRKGAAKLR HLDYCEKKGY IKGLVKDIIH DPGRGAPLAK VIFKRTEKYG KKEELIIASE GMFTGQYIS CGTKAPLSVG NILPIGKMPE GTLICNLEHR TGNRGTLVKA SGCYATVVGQ SEDGKKTKVR LPSGAKKTID A KARAMVGV VGAGGRIDKP ILKAGVAHHK YRVKRNCWPK VRGVAMNPVE HPHGGGNHQH IGHPSTVSRS APAGQKVGLI AA RRTGLLR GAKKTKLVGK SEE

UniProtKB: 60S ribosomal protein L2

+
Macromolecule #70: 60S ribosomal protein L3

MacromoleculeName: 60S ribosomal protein L3 / type: protein_or_peptide / ID: 70 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 44.31818 KDa
SequenceString: MSHRKFERPR HGSLGFLPRK RCKRLRGKIR SFPKDDKEKP PHFTAFMGYK AGMTHIVREV DKPGSKLHKK EIVEACTIIE CAPMVVVGI VGYRETPKGL RILSTVWANH VSDEFRRRYY KNWYKSEKKA FTKSLNVPEA TKNCLLKRIE KYCTVLRAIC H TQPSKTPL ...String:
MSHRKFERPR HGSLGFLPRK RCKRLRGKIR SFPKDDKEKP PHFTAFMGYK AGMTHIVREV DKPGSKLHKK EIVEACTIIE CAPMVVVGI VGYRETPKGL RILSTVWANH VSDEFRRRYY KNWYKSEKKA FTKSLNVPEA TKNCLLKRIE KYCTVLRAIC H TQPSKTPL RMKKAHIMEV QINGGSMKEK LEFVKEMLEK NLPVSTVFNP NEMIDVISVT KGHGTKGVVS RYGVKRLPRK TH RGLRKVA CIGAWHPARV QFQIPRHGQK GYFHRTERNK KIYRIGLKTD KNSASTDADI TEKKITPMGG FPHYGVVNED FLL LKGCVA GTKKRPITLR KNIVPQVSRD ALAQVSLKFI DTSSKIGHGR FQTSEEKVKY YGPLKKDLKA

UniProtKB: 60S ribosomal protein L3

+
Macromolecule #71: 60S ribosomal protein L4

MacromoleculeName: 60S ribosomal protein L4 / type: protein_or_peptide / ID: 71 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 46.311688 KDa
SequenceString: MATIRPVANV YSTNGKNVVG EVEIPVVFQT PIRNDLIQSV YTNMSKNRRH PYAVKLGAGY ETSAESWGTG RAVARIPRVP GGGTHRAGQ GAFGNMCRGG GMFNPTKIWR RWGRKVNLKE KRYAVCSSIA ASGVTSLVLA RGHRISHLKE VPLVVSNDIE S LSKTKEAV ...String:
MATIRPVANV YSTNGKNVVG EVEIPVVFQT PIRNDLIQSV YTNMSKNRRH PYAVKLGAGY ETSAESWGTG RAVARIPRVP GGGTHRAGQ GAFGNMCRGG GMFNPTKIWR RWGRKVNLKE KRYAVCSSIA ASGVTSLVLA RGHRISHLKE VPLVVSNDIE S LSKTKEAV NFLVSLGLKD EVNRLVKSKK IRAGKGKMRN RKYKIRNGPL IIYENDNGVK KAFRNIPGVD LCKVTKLNLL KL APGGSIG RLCIWSESAF KKLDVIYGKI HEKKVTKKNY ILPKSIVHNP DIYRIIHSDK VQASLLAKKK PCKKRLQNKN SLT NFAVRC RLNPAYKLLR SLAVLRMRKS ILEKSKNKKE KRVQKQIQKK ELQKINHDYY KGVAKAVKKK KKREEKKAKS KKTA NQAVI NVAAEE

UniProtKB: Large ribosomal subunit protein uL4

+
Macromolecule #72: 60S ribosomal protein L11a

MacromoleculeName: 60S ribosomal protein L11a / type: protein_or_peptide / ID: 72 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 20.268666 KDa
SequenceString:
MENKEQNVMR EIKVNKLVLN ICVGESGDRL TRAARVLEQL TEQKPIFGKC RFTIRSFGVR RNEKISCFVT VRGKKALEIL EKGLKVKEY ELRRKNFSDT GNFGFGIQEH IDLGIKYDPS TGIYGMDFYV HLSRSGYRVT RRTRRRSKIS KTHKVTKEDA M KWFQTKFD GILLK

UniProtKB: 60S ribosomal protein L11a, putative

+
Macromolecule #73: 60S ribosomal protein L18a

MacromoleculeName: 60S ribosomal protein L18a / type: protein_or_peptide / ID: 73 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 21.793611 KDa
SequenceString:
MVKKIDNSLN TNIHQYHIVG RAIPTAKDKN PNVYRMCIFA KNDTNAKSRF WYFMKKINKL KKSNGELLAC EQIKERFPLR VKNYGVLLR YDSRTGTHNM YKEFRDTTKE GAIAQLYSEM AGRHRARASS INIIRISEIS SSLVRRPHIK QLLKRRLRFP A LHLPTLQK EYRKKFASKR PSTYRM

UniProtKB: 60S ribosomal protein L18a

+
Macromolecule #74: 60S ribosomal protein L6

MacromoleculeName: 60S ribosomal protein L6 / type: protein_or_peptide / ID: 74 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 21.638562 KDa
SequenceString:
MKTIVSTQKV LIPEGVKVAI NARKVTVSGK YGTLRRSFRH LPIDIRLNKL KKYIKVVMWF GVPDSLACIR TVCTHLKNMF TGVTKKFLY KMRLVHAHFP INSNIVDNNT RIEIRNYLGE KSVRFVKALP GVVIEKSPNV KDEIYVSGAD IENVSLTAAL I HQSVLCRN KDIRKFLDGI YVSEVTTVEK DE

UniProtKB: 60S ribosomal protein L6, putative

+
Macromolecule #75: 60S ribosomal protein L21

MacromoleculeName: 60S ribosomal protein L21 / type: protein_or_peptide / ID: 75 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 18.840244 KDa
SequenceString:
MGGKSRGKRS GTRYKFSKKF RKHGECTANK YLEKLNYGDY VDIVCDSTQQ KGMPFNYYHG KTGKIFHITK RGVGVLVNKR VKHRIEQKK VCVRIEHVRK SRCNEDFLLR KIKNAELIKE AKLKNEHINI KRKTEGPKPA AMIKVPPSKI ITIEPLPFYE E Y

UniProtKB: 60S ribosomal protein L21

+
Macromolecule #76: 60S ribosomal protein L41

MacromoleculeName: 60S ribosomal protein L41 / type: protein_or_peptide / ID: 76 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 5.10831 KDa
SequenceString:
MAHGASRYKK SRAKMRWKWK KKRTRRLQKK RRKMRQRSR

UniProtKB: 60S ribosomal protein L41

+
Macromolecule #77: 60S ribosomal protein L22

MacromoleculeName: 60S ribosomal protein L22 / type: protein_or_peptide / ID: 77 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 16.42293 KDa
SequenceString:
MVAKKDSTKV SKKLKKKVVK KTKIVKGLKK QKMNKSTKGI KYVLDCTKPV KDTILDISGL EQFFKDKIKV DKKTNNLKNK VVVTSDEYK IYITVHIPFS KRYIKYLAKK YIKMHQIRDF LRVIAKGKLA YEFKYFQLNN

UniProtKB: Large ribosomal subunit protein eL22

+
Macromolecule #78: 60S ribosomal protein L24

MacromoleculeName: 60S ribosomal protein L24 / type: protein_or_peptide / ID: 78 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 19.29593 KDa
SequenceString:
MSQIKTTVKT EACSFSEYRI YPGRGQKYIA RDGKVYFYLS SKFASLALQK KKAAKLRWTQ TWRRNNKKTK IETTQRRRYK KTIKVQKAV CGLTVEDIRN RKAYVQSIEA KNKAKFGTKE KEDKKKTKDD KKKNLVHFQQ KKDFTKSKML NMAKSKMHKM M KK

UniProtKB: 60S ribosomal protein L24, putative

+
Macromolecule #7: E-site tRNA

MacromoleculeName: E-site tRNA / type: rna / ID: 7 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 23.774059 KDa
SequenceString:
GGGUAAUUGG CGCAGUUGGU UAGCGCGCGG GUCUCAUAAU CCCGAGGUCG UGAGUUCGAU CCUCACAUUA CCCA

GENBANK: GENBANK: LN999946.1

+
Macromolecule #8: 18S ribosomal RNA

MacromoleculeName: 18S ribosomal RNA / type: rna / ID: 8 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 671.3375 KDa
SequenceString: AACCUGGUUG AUCUUGCCAG UAGUCAUAUG CUUGUCUCAA AGAUUAAGCC AUGCAAGUGA AAGUAUAUAU AUAUUUUAUA UGUAGAAAC UGCGAACGGC UCAUUAAAAC AGUUAUAGUC UACUUGACAU UUUUAUUAUA AGGAUAACUA CGGAAAAGCU G UAGCUAAU ...String:
AACCUGGUUG AUCUUGCCAG UAGUCAUAUG CUUGUCUCAA AGAUUAAGCC AUGCAAGUGA AAGUAUAUAU AUAUUUUAUA UGUAGAAAC UGCGAACGGC UCAUUAAAAC AGUUAUAGUC UACUUGACAU UUUUAUUAUA AGGAUAACUA CGGAAAAGCU G UAGCUAAU ACUUGCUUUA UUAUCCUUUG AUUUUUAUCU UUGGAUAAGU AUUUGUUAGG CCUUAUAAGA AAAAAGUUAU UA ACUUAAG GAAUUAUAAC AAAGAAGUAA CACGUAAUAA AUUUAUUUUA UUUAGUGUGU AUCAAUCGAG UUUCUGACCU AUC AGCUUU UGAUGUUAGG GUAUUGGCCU AACAUGGCUA UGACGGGUAA CGGGGAAUUA GAGUUCGAUU CCGGAGAGGG AGCC UGAGA AAUAGCUACC ACAUCUAAGG AAGGCAGCAG GCGCGUAAAU UACCCAAUUC UAAAGAAGAG AGGUAGUGAC AAGAA AUAA CAAUGCAAGG CCAAUUUUUG GUUUUGUAAU UGGAAUGGUG GGAAUUUAAA ACCUUCCCAG AGUAACAAUU GGAGGG CAA GUCUGGUGCC AGCAGCCGCG GUAAUUCCAG CUCCAAUAGC GUAUAUUAAA AUUGUUGCAG UUAAAACGCU CGUAGUU GA AUUUCAAAGA AUCGAUAUUU UAUUGUAACU AUUCUAGGGG AACUAUUUUA GCUUUUCGCU UUAAUACGCU UCCUCUAU U AUUAUGUUCU UUAAAUAACA AAGAUUCUUU UUAAAAUCCC CACUUUUGCU UUUGCUUUUU UUGGGGAUUU UGUUACUUU GAGUAAAUUA GAGUGUUCAA AGCAAACAGU UAAAGCAUUU ACUGUGUUUG AAUACUAUAG CAUGGAAUAA CAAAAUUGAA CAAGCUAAA AUUUUUUGUU CUUUUUUCUU AUUUUGGCUU AGUUACGAUU AAUAGGAGUA GCUUGGGGAC AUUCGUAUUC A GAUGUCAG AGGUGAAAUU CUUAGAUUUU CUGGAGACGA ACAACUGCGA AAGCAUUUGU CUAAAAUACU UCCAUUAAUC AA GAACGAA AGUUAAGGGA GUGAAGACGA UCAGAUACCG UCGUAAUCUU AACCAUAAAC UAUGCCGACU AGGUGUUGGA UGA AAGUGU UAAAAAUAAA AGUCAUCUUU CGAGGUGACU UUUAGAUUGC UUCCUUCAGU ACCUUAUGAG AAAUCAAAGU CUUU GGGUU CUGGGGCGAG UAUUCGCGCA AGCGAGAAAG UUAAAAGAAU UGACGGAAGG GCACCACCAG GCGUGGAGCU UGCGG CUUA AUUUGACUCA ACACGGGGAA ACUCACUAGU UUAAGACAAG AGUAGGAUUG ACAGAUUAAU AGCUCUUUCU UGAUUU CUU GGAUGGUGAU GCAUGGCCGU UUUUAGUUCG UGAAUAUGAU UUGUCUGGUU AAUUCCGAUA ACGAACGAGA UCUUAAC CU GCUAAUUAGC GGCGAGUACA CUAUAUUCUU AUUUGAAAUU GAACAUAGGU AACUAUACAU UUAUUCAGUA AUCAAAUU A GGAUAUUUUU AUUAAAAUAU CCUUUUCCCU GUUCUACUAA UAAUUUGUUU UUUACUCUAU UUCUCUCUUC UUUUAAGAA UGUACUUGCU UGAUUGAAAA GCUUCUUAGA GGAACAUUGU GUGUCUAACA CAAGGAAGUU UAAGGCAACA ACAGGUCUGU GAUGUCCUU AGAUGAACUA GGCUGCACGC GUGCUACACU GAUAUAUAUA ACGAGUUUUU AAAAAUAUGC UUAUAUUUGU A UCUUUGAU GCUUAUAUUU UGCAUACUUU UCCUCCGCCG AAAGGCGUAG GUAAUCUUUA UCAAUAUAUA UCGUGAUGGG GA UAGAUUA UUGCAAUUAU UAAUCUUGAA CGAGGAAUGC CUAGUAAGCA UGAUUCAUCA GAUUGUGCUG ACUACGUCCC UGC CCUUUG UACACACCGC CCGUCGCUCC UACCGAUUGA AAGAUAUGAU GAAUUGUUUG GACAAGAAAA AUUGAAUUAU AUUC UUUUU UUUCUGGAAA AACCGUAAAU CCUAUCUUUU AAAGGAAGGA GAAGUCGUAA CAAGGUUUCC GUAGGUGAAC CUGCG GAAG GAUCAUUA

GENBANK: GENBANK: AL844504.2

+
Macromolecule #34: 28S ribosomal RNA

MacromoleculeName: 28S ribosomal RNA / type: rna / ID: 34 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 1.216213125 MDa
SequenceString: GUUUGAUUUG AUGUUAGGAG GGCAAAUCCG CCGAAUUUAA GCAUAUAAUU AAGCGGAAGA AAAGAAAAUA ACUAUGAUUC CUUUAGUAA CGGCGAGUGA ACAAGGACCA GCUCAAACGG UUAAUCCUUC GUUUGGUGCA AACCUUUCGA CGGAAUUGUC G UUGAAUUA ...String:
GUUUGAUUUG AUGUUAGGAG GGCAAAUCCG CCGAAUUUAA GCAUAUAAUU AAGCGGAAGA AAAGAAAAUA ACUAUGAUUC CUUUAGUAA CGGCGAGUGA ACAAGGACCA GCUCAAACGG UUAAUCCUUC GUUUGGUGCA AACCUUUCGA CGGAAUUGUC G UUGAAUUA UUCCAUGAAU GCCUUUAAUU UGAGCAAAGU GAGCAGGAAU GCUUCCCCAU AGAGGGUGAA AGGCCCAUAG UU CUUUUUA AUUUAUUCAU UGGAAUUUUU CAUGUCGAGU CGUGUUCUUU GAGAUUGGAG CACUAAUACG UGUGAUACAU UUC ACAUAA AGCUAAAUAU AUGUAGGAGA CCGAUAGCAA ACAAGUACCG UGAGGGAAAG AUGAAAUAGU ACUCAGGAAU GAGC AAUUA AAUAGUACCU GAAAUCGUUA AGAUGGAACG GAUUAAGAGA GAAAACAAGU AAAGAGGGGA AUUUUUAAUU UUUUU UGUU AUAAUUCUCU UCUUUAUUAA AAGAAACAUC AGUGAUUAAU UUAAUUUCAA UAAAGCAAUC CCCUGAAAUU CAAAAU UUC UUUUAAUUUU GUUUUCACUU UCUCCCCGCA CUAAUGUGGG GAAAACUGGC UUUAUUUCUU CAAUUAUUUU UUUUGCU GA GGAAUUUUAA AAUUAUUUGA AUUUUUCUUC UUAUAAUUUA AGUUGUUUCU AUACAGUACU UUCUUAACCC ACUCGUCU U GAAACACGGA CCAAGGAGUC UAGCAAAUGU GCAAGUGUAU AUGAUUCUUU AAACAUUUCU CUUUUUAAUA UACGCAUAA UUAAUGUAAU AUGUUUUCUU UAUUGUAGAU UUGUGGUGUU UAAUUUUUAU UAAAUCCCCA CUUUGCAUAC AAUACCGGUA AGCAAUUAU GCUUUAUUGA GUACGAGCAU AUUUGGUAGG ACCCGAGAGG CUUUGAACUA AGCGUGAUGA GAUUGAAGUC A GACGAAAG UCUGAUGGAG GAUCGAGUUG AUACUGACGU GCAAAUCGUU CAUUUCAAUC ACGUUUAGGG GCGAAAGACU AA UCGAAAA GCCUAUUAGC UGGUUAUUUU CGAAAGAUCU CUCAGGAUCG CUGGAGUUGA UUAAUAUAAU UUUACCAGGU AGA GAUAAU GAUUAGAGGA AUCAGGGAAA UCGUUUUCCU UGACCUAUUC UCAAACUCCC AAUAGGUAAA AAGGGCGAAA UAAC UCAAU UUGUAUUUCA CUCAUAUUAA AUAAAAUAAC UCCAAGUGGG CCAUUUUUGG UAAGCAGAAC UGGCGAUGAG GGAUG CUCC UAACGCUUGG AUAAGGUGCC UAAAUAUUCG CUCAUGAGAU CCCAUAAAAG GUGUUGGUUC AUAAUGACAG UAGGAC GGU GGUCAUGGAA GUCGAAAUCC GCUAAGGAGU GUGUAACAAC UCACCUACCG AAUGAACUAG CCCUGAAAAU GGAUGGC GC UAAAGCGGAU UACCGAUACC AAGCCAUAAA AAGAACAGAA AAAAUUUAUU UUUUUUUUAG AAUCUUUUUA UGAGUAGA A AAUCGUGGGG UUUGUGUUGA AGCGAAAUAC GUGAGUUUUC GUGGAACAUC UCCCUAGUGC AGAUCUUGGU GGAAGUAGC AACUAUUCAA AUGAGAACUU UGAAGACUGA AGUGGAGAAG GGUUUCUUGU CAACUGUGAU UGAACAAGAG UUAGCCGCUC CUAAGGGAU AGCUGAAAAG UGUUUAAAAG GGGGUUCCUU CCCCGUCUCA AAAGGGAAAC AGGUUGAUAU UCCUGUGCCA A UAGUAUUA UGAGUUUCUU AGAUGGUAAC AUAUAUAUAA AUGAACUCCU UUACAUAGGC UUUACACUCG GGGUGCGUUU UC UUUGCAC UUUACCUUUA UAACAAACCU UGGAAUCAAU UUACUUGGAG AAGAGGUUCG UUGAACUCAA UUCAAAAAAU UUC UUGAAC GGGGUUUUCG GAUUCAGUUC AUUUUAUUUU UUGUUUUGUA GCAAUAGUAA UUCGUUUUUA UGAAUUAUCC GAAG UGGUA AGGACUAUCC UUGAAAAAAG GAGGGAACGG CUUUGUAACU UGGUUUCUUC UGAUUCCAUU UUGCUUUGCU UAUAC UCUU AAUACUUGUA UGAGCGUACC AACAACCGCA UCAGGUCUCC AAGGUUAACA GCCUCUGGUU AAAUAGAAAA AAGUAG GUA AGGGAAGUCG GCAAAAUAGA UCCGUAACUU CGGGAAAAGG AUUGGCUCUG AGGACAUUAG AAAAGAGAAG AAAAAAA GA GGGUCGAAAA UAAAAUUGCA GUCUUUAUUU GCUUUUCUUU CGAUUUGCUU GUAAUCUGCU UUUUCUUUUU CUUCUUUC U UUUUUUCUCC CCCUCUUUUC GCCUUCACUU UAUUGUAAUU UUAUUACUUU AAUUUGAUAC CUAUAAUGUU AACUCAGAA CUGAAACGGA CAAGGGGAAU CCGACUGUUU AAUUAAAACA UAGCAUUGUG AAAAGCCACA ACUGGUAUUA ACACAAUGUG AUUUCUGCC CAGUGCUUUG AAUGUCAACU UGAUGAAAUU CAAUCAAGCG CAGGUAAACG GCGGGAGUAA CUAUGACUCU C UUAAGGUA GCCAAAUGCC UCGUCAUCUA AUUAGUGACG CGCAUGAAUG GAUUAACGAG AUUCCCACUG UCCCUACUUG CU AUCUAGC GAAACCACAG CCAAGGGAAC GGGCUUGGCA AAAUCAGCGG GGAAAGAAGA CCCUGUUGAG CUUUACUCUA GUC UGGCUU UGUGAAACGA CUUAAGAGGU GUAGCAUAAG UGGGAGUAGA AACUGAAAUA UGUUUUUACG ACAGUGAAAU ACCA CUACU UUUAAAGUUG UUUUACUUAU CCAUUUAUAG GGAAAUAUAU UAUGCUUUAU CCUUCGGGAA GGCAUUCUGA UAUUA UUUG AAUUUUUAAG AAACUUGUUU CUUAUCUUUC UCCCAAUUUC UAUGGAGACA UAGCCAGGUG GGGAGUUUGA CUGGGG CGG UACAUCUGUU AAAUAUUAAC GCAGAUGUCC AAAGACAAGC UCAAAGAGAA CAGAAAUCUC UUGUAGACUA AAAGGGG AA AAGCUUGUUU GAUUUCUAUU UUCAGAACAA GUAGAAAACG UGAAAGCGUG GCCUAUCGAU CCUUUAUAUU UGCAAAAU G ACGUAAAUUA CUUACUACUG UGCAUAUAGA GGUGUCUGAA AAGUUACCAC AGGGAUAACU GGCUUGUGGC UGCCAAGCG CUCCUAGCGA CGUAGCUUUU UGAUCCUUCG AUGUCGGCUC UUCCUAUCAU UGGGACGCAG AAGUCUCAAA GUGUCGGAUU GUUCACCCG CUAAUAGGGA ACGUGAGCUG GGUUUAGACC GUCGUGAGAC AGGUUAGUUU UACCCUACUG AUGAAUUUUA U UAUAUUUU UUAUAUAUAC AUAUAGUAUU GUGACAGUAA UCCAACUUGG UACGAGAGGA UUAGUUGGUU CAGACAAUUG GU ACAGCAA UUGGUUGACA AACCAGUGUU GCGAAGCUAA GUCUGUUGGA UAAUGGCUGA ACGCCUCUUA AGCCAGAAAC CAU GCUGAU UAAACAAUAC UAUUUCGUUC UUUUUUGUUU CCUUUUUUAC UGCUAAUGUA AAAGAGAAAU UAUAUAUGUA CCUU UUUUU GGUACAUAAA UAAUCCUAUC ACCUUUUUCG UGAGCUGUGA GCUGUGAGCU AGGCAAUAGU UCUUUAACAA CAAAA AAGA AUUGCACAAA CUGUAGACGA CUUUUUUGCC UCAGGGUGCU GUAAACAUGA AAGUAAACUU UGUUUUACGA UCUGUU GAG GCUUAUCCCU AGUGGUAAAG UGUUU

GENBANK: GENBANK: AL844506.3

+
Macromolecule #35: 5.8S ribosomal RNA

MacromoleculeName: 5.8S ribosomal RNA / type: rna / ID: 35 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 51.206461 KDa
SequenceString:
UAGCACAGUC UUAACGAUGG AUGUCUUGGU UCCUACAGCG AUGAAGGCCG CAGCAAAAUG CGAUACGCAA UGAAAAUUGC AGUGACUGU GAAUCAUCAG AAUGCUGAAU GUAAACUACA CCAAUUCCCU UCGGGGAAUA GUGGUACUCC UACAGAAAAU

GENBANK: GENBANK: XR_002273103.1

+
Macromolecule #36: 5S ribosomal RNA

MacromoleculeName: 5S ribosomal RNA / type: rna / ID: 36 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 38.346809 KDa
SequenceString:
UGACUCGUUC AUACUACAGU GGCCACACCA GAUCCCAUCA GAACUCUGAA GUUAAGCACU GUAAGGCUUG GCUAGUACUG AGGUGGGAG ACCGCUCGGG AACACCAGGU GAUGAGUCAU

GENBANK: GENBANK: LN999946.1

+
Macromolecule #79: P-site tRNA

MacromoleculeName: P-site tRNA / type: rna / ID: 79 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 24.496617 KDa
SequenceString:
CGCGGGGUGG AGCAGCCGGU AGCUCGUCGG GCUCAUAACC CGAAGGUCGU CGGUUCAAAU CCGGCCCCCG CAACCA

GENBANK: GENBANK: CP058798.1

+
Macromolecule #80: mRNA

MacromoleculeName: mRNA / type: rna / ID: 80 / Number of copies: 1
Source (natural)Organism: Plasmodium falciparum 3D7 (eukaryote)
Molecular weightTheoretical: 2.159299 KDa
SequenceString:
UAUGUUC

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 1.2 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.3 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 261029
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
