- EMDB-42932: CHMP1B/IST1 dsDNA bound copolymer -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-42932
TitleCHMP1B/IST1 dsDNA bound copolymer
Map dataRefined sharpened map
Sample
  • Complex: CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA
    • Complex: Charged multivesicular body protein 1B (CHMP1B)
      • Protein or peptide: Charged multivesicular body protein 1b
    • Complex: Increased sodium tolerance 1 (IST1)
      • Protein or peptide: IST1 homolog
Keywordsnucleic acid binding / DNA BINDING PROTEIN
Function / homology
Function and homology information


MIT domain binding / multivesicular body-lysosome fusion / amphisome membrane / vesicle fusion with vacuole / ESCRT III complex disassembly / late endosome to lysosome transport / ESCRT III complex / kinetochore microtubule / endosome transport via multivesicular body sorting pathway / cytoskeleton-dependent cytokinesis ...MIT domain binding / multivesicular body-lysosome fusion / amphisome membrane / vesicle fusion with vacuole / ESCRT III complex disassembly / late endosome to lysosome transport / ESCRT III complex / kinetochore microtubule / endosome transport via multivesicular body sorting pathway / cytoskeleton-dependent cytokinesis / collateral sprouting / membrane coat / regulation of centrosome duplication / nuclear membrane reassembly / Sealing of the nuclear envelope (NE) by ESCRT-III / multivesicular body sorting pathway / positive regulation of collateral sprouting / midbody abscission / membrane fission / plasma membrane repair / late endosome to vacuole transport / ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway / multivesicular body assembly / multivesicular body membrane / Flemming body / regulation of mitotic spindle assembly / mitotic metaphase chromosome alignment / nucleus organization / viral budding via host ESCRT complex / endoplasmic reticulum-Golgi intermediate compartment / positive regulation of proteolysis / autophagosome membrane / autophagosome maturation / nuclear pore / multivesicular body / viral budding from plasma membrane / establishment of protein localization / kinetochore / autophagy / azurophil granule lumen / intracellular protein localization / nuclear envelope / protein transport / midbody / endosome membrane / cadherin binding / protein domain specific binding / lysosomal membrane / cell division / intracellular membrane-bounded organelle / centrosome / Neutrophil degranulation / chromatin / protein-containing complex binding / extracellular exosome / extracellular region / nucleoplasm / identical protein binding / plasma membrane / cytosol
Similarity search - Function
Vacuolar protein sorting-associated protein Ist1 / Vacuolar protein sorting-associated protein IST1-like / Regulator of Vps4 activity in the MVB pathway / Snf7 family / Snf7
Similarity search - Domain/homology
IST1 homolog / Charged multivesicular body protein 1b
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodhelical reconstruction / cryo EM / Resolution: 2.72 Å
AuthorsTalledge N / Laughlin TG / Alian A
Funding support United States, 6 items
OrganizationGrant numberCountry
National Institutes of Health/Office of the DirectorS10OD020054 United States
National Institutes of Health/Office of the Director1S10OD021741 United States
National Institutes of Health/Office of the Director1S10OD021596-01 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)1DP2GM110772-01 United States
Howard Hughes Medical Institute (HHMI) United States
Chan Zuckerberg Initiative United States
CitationJournal: To Be Published
Title: ESCRT-III Assembles Around Mis-segregated DNA to Engage NoCut
Authors: Talledge N / Glover J / McCullough J / Alian A / Sadler JBA / Dempsey N / Laughlin TG / Nguyen HC / Wenzel D / Lalonde MS / Ventimiglia LN / LaJoie D / Iwasa J / Starling T / Padilla-Parra S ...Authors: Talledge N / Glover J / McCullough J / Alian A / Sadler JBA / Dempsey N / Laughlin TG / Nguyen HC / Wenzel D / Lalonde MS / Ventimiglia LN / LaJoie D / Iwasa J / Starling T / Padilla-Parra S / Ullman KS / Frost A / Sundquist WI / Martin-Serrano J
History
DepositionNov 23, 2023-
Header (metadata) releaseNov 27, 2024-
Map releaseNov 27, 2024-
UpdateNov 27, 2024-
Current statusNov 27, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_42932.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationRefined sharpened map

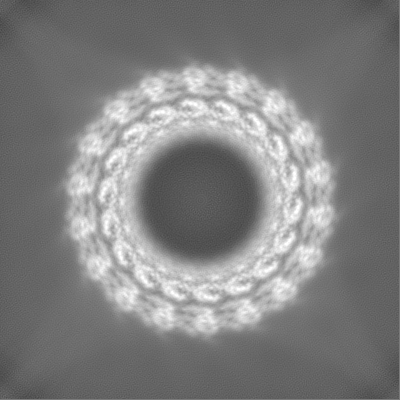

Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.89 Å/pix.
x 400 pix.
= 357.44 Å		0.89 Å/pix.
x 400 pix.
= 357.44 Å		0.89 Å/pix.
x 400 pix.
= 357.44 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.8936 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.08
Minimum - Maximum-0.49627075 - 1.0032086
Average (Standard dev.)0.010810178 (±0.06766632)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 357.44 Å
α=β=γ: 90.0 °

-
Supplemental data

-

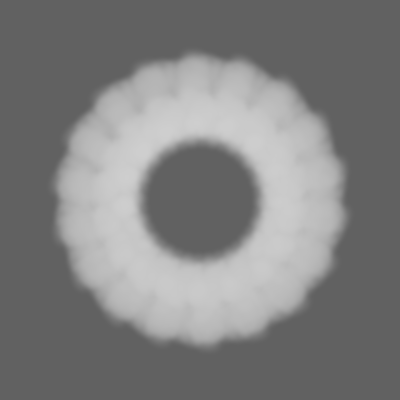

Mask #1

Fileemd_42932_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Mask #2

Fileemd_42932_msk_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined map

Fileemd_42932_additional_1.map
AnnotationRefined map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined symmetrized map

Fileemd_42932_additional_2.map
AnnotationRefined symmetrized map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined symmetrized sharpened map

Fileemd_42932_additional_3.map
AnnotationRefined symmetrized sharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Refinement mask

Fileemd_42932_half_map_1.map
AnnotationRefinement mask
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Refined half map B

Fileemd_42932_half_map_2.map
AnnotationRefined half map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA

EntireName: CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA
Components
  • Complex: CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA
    • Complex: Charged multivesicular body protein 1B (CHMP1B)
      • Protein or peptide: Charged multivesicular body protein 1b
    • Complex: Increased sodium tolerance 1 (IST1)
      • Protein or peptide: IST1 homolog

-
Supramolecule #1: CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA

SupramoleculeName: CHMP1B/IST1 copolymer bound to a 60-mer oligonucleotide of ssDNA
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Details: Complex assembly formed my mixing protein and oligonucleotide at a 1:20 molar ratio (protein to base) by dialysis into physiological buffer conditions
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 397.494 KDa

-
Supramolecule #2: Charged multivesicular body protein 1B (CHMP1B)

SupramoleculeName: Charged multivesicular body protein 1B (CHMP1B) / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Details: CHMP1B component of the nucleic acid templated helical assembly
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #3: Increased sodium tolerance 1 (IST1)

SupramoleculeName: Increased sodium tolerance 1 (IST1) / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2
Details: IST1 component of the nucleic acid templated assembly
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Charged multivesicular body protein 1b

MacromoleculeName: Charged multivesicular body protein 1b / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 22.108355 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: MSNMEKHLFN LKFAAKELSR SAKKCDKEEK AEKAKIKKAI QKGNMEVARI HAENAIRQKN QAVNFLRMSA RVDAVAARVQ TAVTMGKVT KSMAGVVKSM DATLKTMNLE KISALMDKFE HQFETLDVQT QQMEDTVSST TTLTTPQNQV DMLLQEMADE A GLDLNMEL ...String:
MSNMEKHLFN LKFAAKELSR SAKKCDKEEK AEKAKIKKAI QKGNMEVARI HAENAIRQKN QAVNFLRMSA RVDAVAARVQ TAVTMGKVT KSMAGVVKSM DATLKTMNLE KISALMDKFE HQFETLDVQT QQMEDTVSST TTLTTPQNQV DMLLQEMADE A GLDLNMEL PQGQTGSVGT SVASAEQDEL SQRLARLRDQ V

UniProtKB: Charged multivesicular body protein 1b

-
Macromolecule #2: IST1 homolog

MacromoleculeName: IST1 homolog / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 39.796402 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: MLGSGFKAER LRVNLRLVIN RLKLLEKKKT ELAQKARKEI ADYLAAGKDE RARIRVEHII REDYLVEAME ILELYCDLLL ARFGLIQSM KELDSGLAES VSTLIWAAPR LQSEVAELKI VADQLCAKYS KEYGKLCRTN QIGTVNDRLM HKLSVEAPPK I LVERYLIE ...String:
MLGSGFKAER LRVNLRLVIN RLKLLEKKKT ELAQKARKEI ADYLAAGKDE RARIRVEHII REDYLVEAME ILELYCDLLL ARFGLIQSM KELDSGLAES VSTLIWAAPR LQSEVAELKI VADQLCAKYS KEYGKLCRTN QIGTVNDRLM HKLSVEAPPK I LVERYLIE IAKNYNVPYE PDSVVMAEAP PGVETDLIDV GFTDDVKKGG PGRGGSGGFT APVGGPDGTV PMPMPMPMPS AN TPFSYPL PKGPSDFNGL PMGTYQAFPN IHPPQIPATP PSYESVDDIN ADKNISSAQI VGPGPKPEAS AKLPSRPADN YDN FVLPEL PSVPDTLPTA SAGASTSASE DIDFDDLSRR FEELKKKT

UniProtKB: IST1 homolog

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 8
Component:
ConcentrationFormulaName
50.0 mMTris-HClTris Hydrochloride
125.0 mMNaClSodium Chloride
GridModel: Quantifoil R0.6/1 / Material: GOLD / Mesh: 300 / Support film - Material: GOLD / Support film - topology: HOLEY / Support film - Film thickness: 250
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 292.15 K / Instrument: FEI VITROBOT MARK IV
DetailsSample is at 16 micromolar protein concentration.

-
Electron microscopy

MicroscopeTFS GLACIOS
Specialist opticsEnergy filter - Name: TFS Selectris / Energy filter - Slit width: 10 eV
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Number grids imaged: 1 / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Calibrated defocus max: 4.0 µm / Calibrated defocus min: 0.1 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 130000
Sample stageSpecimen holder model: OTHER / Cooling holder cryogen: NITROGEN

+
Image processing

Final reconstructionNumber classes used: 10
Applied symmetry - Helical parameters - Δz: 2.72 Å
Applied symmetry - Helical parameters - Δ&Phi: 3.025 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 2.72 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.2.1) / Number images used: 451289
Segment selectionNumber selected: 511337 / Software - Name: cryoSPARC (ver. 4.2.1)
Startup modelType of model: INSILICO MODEL
In silico model: Featureless hollow cylinder with 25 nm outer diameter and 8 nm inner diameter.
Final angle assignmentType: NOT APPLICABLE / Software - Name: cryoSPARC (ver. V4.2.1)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChainDetails

6tz4

chain_id: A, source_name: PDB, initial_model_type: experimental modelIsolated CHMP1B monomer for each biological unit used as initial model

3frr

chain_id: B, source_name: PDB, initial_model_type: experimental modelIsolated IST1 monomer for each biological unit used as initial model
RefinementSpace: REAL / Protocol: OTHER
Output model

PDB-8v2s:
CHMP1B/IST1 dsDNA bound copolymer

+
