- EMDB-42926: Cellular CHMP1B/IST1 filament - Class Id -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-42926
TitleCellular CHMP1B/IST1 filament - Class Id
Map dataRefined symmetrized sharpened map
Sample
  • Complex: CHMP1B/IST1 copolymer isolated and purified from HeLa cell over expression
    • Complex: Charged multivesicular body protein 1B (CHMP1B)
      • Protein or peptide: Charged multivesicular body protein 1B (CHMP1B)
    • Complex: Increased sodium tolerance 1 (IST1)
      • Protein or peptide: Increased sodium tolerance 1 (IST1)
Keywordsnucleic acid binding protein / cytoplasmic / HeLa / CHMP1B / IST1 / nucleic acids / CYTOSOLIC PROTEIN
Function / homology
Function and homology information


MIT domain binding / abscission / multivesicular body-lysosome fusion / amphisome membrane / vesicle fusion with vacuole / ESCRT III complex disassembly / late endosome to lysosome transport / ESCRT III complex / kinetochore microtubule / cytoskeleton-dependent cytokinesis ...MIT domain binding / abscission / multivesicular body-lysosome fusion / amphisome membrane / vesicle fusion with vacuole / ESCRT III complex disassembly / late endosome to lysosome transport / ESCRT III complex / kinetochore microtubule / cytoskeleton-dependent cytokinesis / endosome transport via multivesicular body sorting pathway / collateral sprouting / regulation of centrosome duplication / nuclear membrane reassembly / positive regulation of collateral sprouting / Sealing of the nuclear envelope (NE) by ESCRT-III / midbody abscission / multivesicular body sorting pathway / membrane coat / plasma membrane repair / membrane fission / late endosome to vacuole transport / ubiquitin-dependent protein catabolic process via the multivesicular body sorting pathway / multivesicular body membrane / multivesicular body assembly / regulation of mitotic spindle assembly / Flemming body / mitotic metaphase chromosome alignment / nucleus organization / viral budding via host ESCRT complex / endoplasmic reticulum-Golgi intermediate compartment / positive regulation of proteolysis / autophagosome membrane / autophagosome maturation / nuclear pore / multivesicular body / viral budding from plasma membrane / establishment of protein localization / kinetochore / autophagy / azurophil granule lumen / protein transport / protein localization / nuclear envelope / midbody / endosome membrane / cadherin binding / protein domain specific binding / lysosomal membrane / cell division / intracellular membrane-bounded organelle / centrosome / Neutrophil degranulation / protein-containing complex binding / chromatin / extracellular exosome / extracellular region / nucleoplasm / identical protein binding / plasma membrane / cytosol
Similarity search - Function
Vacuolar protein sorting-associated protein Ist1 / Vacuolar protein sorting-associated protein IST1-like / Regulator of Vps4 activity in the MVB pathway / Snf7 family / Snf7
Similarity search - Domain/homology
IST1 homolog / Charged multivesicular body protein 1b
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodhelical reconstruction / cryo EM / Resolution: 4.27 Å
AuthorsTalledge N / Laughlin TG / Alian A / McCullough J
Funding support United States, 6 items
OrganizationGrant numberCountry
National Institutes of Health/Office of the DirectorS10OD020054 United States
National Institutes of Health/Office of the Director1S10OD021741 United States
National Institutes of Health/Office of the Director1S10OD021596-01 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)1DP2GM110772-01 United States
Howard Hughes Medical Institute (HHMI) United States
Chan Zuckerberg Initiative United States
CitationJournal: To Be Published
Title: ESCRT-III Assembles Around Mis-segregated DNA to Engage NoCut
Authors: Talledge N / Glover J / McCullough J / Alian A / Sadler JBA / Dempsey N / Laughlin TG / Nguyen HC / Wenzel D / Lalonde MS / Ventimiglia LN / LaJoie D / Iwasa J / Starling T / Padilla-Parra S ...Authors: Talledge N / Glover J / McCullough J / Alian A / Sadler JBA / Dempsey N / Laughlin TG / Nguyen HC / Wenzel D / Lalonde MS / Ventimiglia LN / LaJoie D / Iwasa J / Starling T / Padilla-Parra S / Ullman KS / Frost A / Sundquist WI / Martin-Serrano J
History
DepositionNov 23, 2023-
Header (metadata) releaseNov 27, 2024-
Map releaseNov 27, 2024-
UpdateNov 27, 2024-
Current statusNov 27, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_42926.map.gz / Format: CCP4 / Size: 91.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationRefined symmetrized sharpened map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.19 Å/pix.
x 288 pix.
= 343.44 Å		1.19 Å/pix.
x 288 pix.
= 343.44 Å		1.19 Å/pix.
x 288 pix.
= 343.44 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.1925 Å
Density

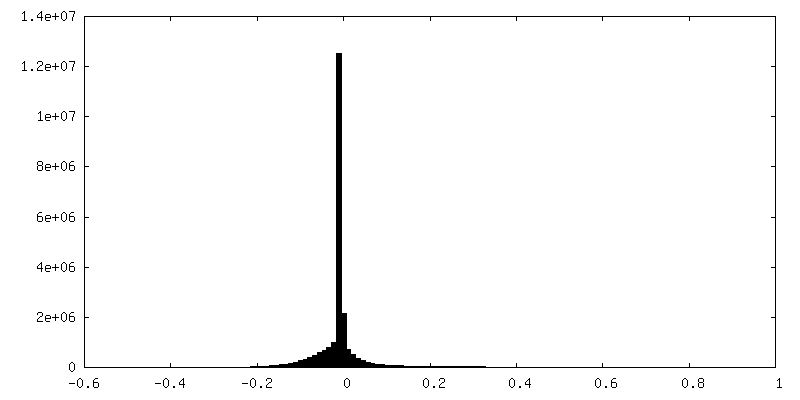

Histogram

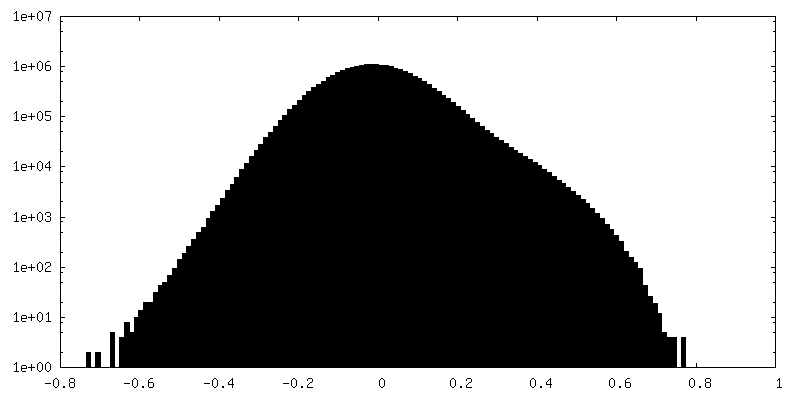

Histogram (log scale)
Contour LevelBy AUTHOR: 0.2
Minimum - Maximum-0.44874805 - 0.8426441
Average (Standard dev.)0.004938323 (±0.080380395)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions288288288
Spacing288288288
CellA=B=C: 343.44 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_42926_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

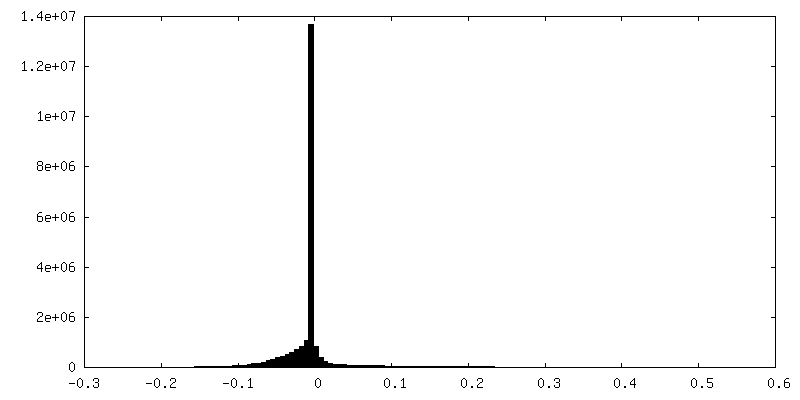

Histogram

Histogram (log scale)

-
Mask #2

Fileemd_42926_msk_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined map

Fileemd_42926_additional_1.map
AnnotationRefined map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined sharpened map

Fileemd_42926_additional_2.map
AnnotationRefined sharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Refined symmetrized map

Fileemd_42926_additional_3.map
AnnotationRefined symmetrized map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Refined half map B

Fileemd_42926_half_map_1.map
AnnotationRefined half map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Refined half map A

Fileemd_42926_half_map_2.map
AnnotationRefined half map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : CHMP1B/IST1 copolymer isolated and purified from HeLa cell over e...

EntireName: CHMP1B/IST1 copolymer isolated and purified from HeLa cell over expression
Components
  • Complex: CHMP1B/IST1 copolymer isolated and purified from HeLa cell over expression
    • Complex: Charged multivesicular body protein 1B (CHMP1B)
      • Protein or peptide: Charged multivesicular body protein 1B (CHMP1B)
    • Complex: Increased sodium tolerance 1 (IST1)
      • Protein or peptide: Increased sodium tolerance 1 (IST1)

-
Supramolecule #1: CHMP1B/IST1 copolymer isolated and purified from HeLa cell over e...

SupramoleculeName: CHMP1B/IST1 copolymer isolated and purified from HeLa cell over expression
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Details: pCAG-Myc-IST1 and pCAG-CHMP1B-FOS expression plasmids were transfected into HeLa cells. CHMP1B/IST1 filaments formed in cells. Cytoplasmic filaments were isolated, extracted, and purified ...Details: pCAG-Myc-IST1 and pCAG-CHMP1B-FOS expression plasmids were transfected into HeLa cells. CHMP1B/IST1 filaments formed in cells. Cytoplasmic filaments were isolated, extracted, and purified for generation of this sample
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #2: Charged multivesicular body protein 1B (CHMP1B)

SupramoleculeName: Charged multivesicular body protein 1B (CHMP1B) / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Details: CHMP1B component of the nucleic acid templated helical assembly
Source (natural)Organism: Homo sapiens (human) / Location in cell: Cytoplasm

-
Supramolecule #3: Increased sodium tolerance 1 (IST1)

SupramoleculeName: Increased sodium tolerance 1 (IST1) / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2
Details: IST1 component of the nucleic acid templated assembly
Source (natural)Organism: Homo sapiens (human) / Location in cell: cytoplasm

-
Macromolecule #1: Charged multivesicular body protein 1B (CHMP1B)

MacromoleculeName: Charged multivesicular body protein 1B (CHMP1B) / type: protein_or_peptide / ID: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSNMEKHLFN LKFAAKELSR SAKKCDKEEK AEKAKIKKAI QKGNMEVARI HAENAIRQKN QAVNFLRMS ARVDAVAARV QTAVTMGKVT KSMAGVVKSM DATLKTMNLE KISALMDKFE H QFETLDVQ TQQMEDTMSS TTTLTTPQNQ VDMLLQEMAD EAGLDLNMEL ...String:
MSNMEKHLFN LKFAAKELSR SAKKCDKEEK AEKAKIKKAI QKGNMEVARI HAENAIRQKN QAVNFLRMS ARVDAVAARV QTAVTMGKVT KSMAGVVKSM DATLKTMNLE KISALMDKFE H QFETLDVQ TQQMEDTMSS TTTLTTPQNQ VDMLLQEMAD EAGLDLNMEL PQGQTGSVGT SV ASAEQDE LSQRLARLRD QV

UniProtKB: Charged multivesicular body protein 1b

-
Macromolecule #2: Increased sodium tolerance 1 (IST1)

MacromoleculeName: Increased sodium tolerance 1 (IST1) / type: protein_or_peptide / ID: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MLGSGFKAER LRVNLRLVIN RLKLLEKKKT ELAQKARKEI ADYLAAGKDE RARIRVEHII REDYLVEAM EILELYCDLL LARFGLIQSM KELDSGLAES VSTLIWAAPR LQSEVAELKI V ADQLCAKY SKEYGKLCRT NQIGTVNDRL MHKLSVEAPP KILVERYLIE ...String:
MLGSGFKAER LRVNLRLVIN RLKLLEKKKT ELAQKARKEI ADYLAAGKDE RARIRVEHII REDYLVEAM EILELYCDLL LARFGLIQSM KELDSGLAES VSTLIWAAPR LQSEVAELKI V ADQLCAKY SKEYGKLCRT NQIGTVNDRL MHKLSVEAPP KILVERYLIE IAKNYNVPYE PD SVVMAEA PPGVETDLID VGFTDDVKKG GPGRGGSGGF TAPVGGPDGT VPMPMPMPMP SAN TPFSYP LPKGPSDFNG LPMGTYQAFP NIHPPQIPAT PPSYESVDDI NADKNISSAQ IVGP GPKPE ASAKLPSRPA DNYDNFVLPE LPSVPDTLPT ASAGASTSAS EDIDFDDLSR RFEEL KKKT

UniProtKB: IST1 homolog

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.4
Component:
ConcentrationFormulaName
2.7 mMKCLPotassium Chloride
137.0 mMNaClSodium Chloride
10.0 mMNa2HPO4Disodium phosphate
1.8 mMKH2PO4Potassium dihydrogen phosphate

Details: PBS
VitrificationCryogen name: ETHANE / Chamber humidity: 85 % / Chamber temperature: 284.15 K / Instrument: LEICA EM GP / Details: model: GP2 plunge freezer.
DetailsSample purified via sequential differential centrifugation method to isolate filaments from clarified Hela lysates.

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number grids imaged: 1 / Number real images: 3260 / Average electron dose: 46.0 e/Å2
Details: Dataset 1 - 1901 micrographs Dataset 2 - 1359 micrographs
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Calibrated defocus max: 4.0 µm / Calibrated defocus min: 0.1 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 130000
Sample stageSpecimen holder model: OTHER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 3.15 Å
Applied symmetry - Helical parameters - Δ&Phi: -20.65 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 4.27 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.3.1) / Number images used: 9125
Segment selectionNumber selected: 70300 / Software - Name: RELION (ver. 4.0)
Startup modelType of model: INSILICO MODEL
In silico model: Featureless hollow cylinder with 25 nm outer diameter and 8 nm inner diameter.
Final angle assignmentType: NOT APPLICABLE / Software - Name: cryoSPARC (ver. V4.3.1)

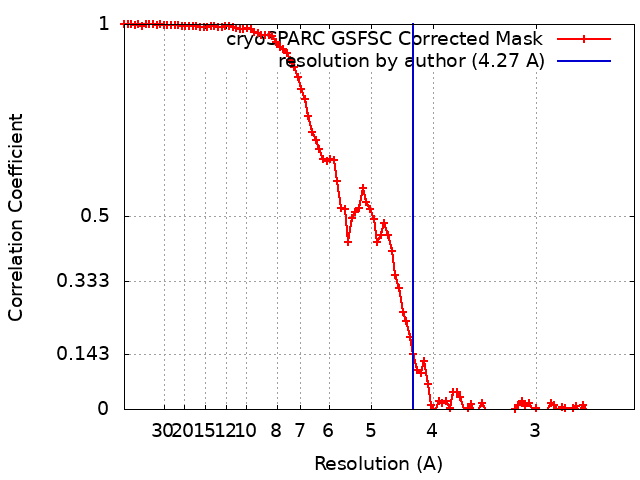

FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

6tz4

chain_id: A, source_name: PDB, initial_model_type: experimental model

3frr

chain_id: B, source_name: PDB, initial_model_type: experimental model

+
