- EMDB-13132: RNA polymerase II monomer without nucleic acid -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-13132
TitleRNA polymerase II monomer without nucleic acid
Map dataSharpened and local resolution filtered map
Sample
  • Complex: RNA Polymerase II dimer
Function / homology
Function and homology information


: / B-WICH complex positively regulates rRNA expression / RNA Polymerase I Transcription Initiation / RNA Polymerase I Promoter Escape / RNA Polymerase I Transcription Termination / RNA Polymerase III Transcription Initiation From Type 1 Promoter / RNA Polymerase III Transcription Initiation From Type 2 Promoter / RNA Polymerase III Transcription Initiation From Type 3 Promoter / Formation of RNA Pol II elongation complex / Formation of the Early Elongation Complex ...: / B-WICH complex positively regulates rRNA expression / RNA Polymerase I Transcription Initiation / RNA Polymerase I Promoter Escape / RNA Polymerase I Transcription Termination / RNA Polymerase III Transcription Initiation From Type 1 Promoter / RNA Polymerase III Transcription Initiation From Type 2 Promoter / RNA Polymerase III Transcription Initiation From Type 3 Promoter / Formation of RNA Pol II elongation complex / Formation of the Early Elongation Complex / Transcriptional regulation by small RNAs / RNA Polymerase II Pre-transcription Events / TP53 Regulates Transcription of DNA Repair Genes / FGFR2 alternative splicing / RNA polymerase II transcribes snRNA genes / mRNA Capping / mRNA Splicing - Minor Pathway / Processing of Capped Intron-Containing Pre-mRNA / RNA Polymerase II Promoter Escape / RNA Polymerase II Transcription Pre-Initiation And Promoter Opening / RNA Polymerase II Transcription Initiation / RNA Polymerase II Transcription Elongation / RNA Polymerase II Transcription Initiation And Promoter Clearance / RNA Pol II CTD phosphorylation and interaction with CE / Estrogen-dependent gene expression / Formation of TC-NER Pre-Incision Complex / Dual incision in TC-NER / Gap-filling DNA repair synthesis and ligation in TC-NER / mRNA Splicing - Major Pathway / organelle membrane / maintenance of transcriptional fidelity during transcription elongation by RNA polymerase II / positive regulation of nuclear-transcribed mRNA poly(A) tail shortening / RNA polymerase II activity / transcription elongation by RNA polymerase I / transcription-coupled nucleotide-excision repair / tRNA transcription by RNA polymerase III / RNA polymerase I complex / RNA polymerase III complex / positive regulation of translational initiation / RNA polymerase II, core complex / translation initiation factor binding / transcription initiation at RNA polymerase II promoter / P-body / ribonucleoside binding / fibrillar center / DNA-directed 5'-3' RNA polymerase activity / DNA-directed RNA polymerase / single-stranded DNA binding / transcription by RNA polymerase II / nucleic acid binding / single-stranded RNA binding / protein dimerization activity / nuclear speck / nucleotide binding / DNA-templated transcription / nucleolus / DNA binding / zinc ion binding / nucleus / metal ion binding / cytosol
Similarity search - Function
RNA-binding domain, S1 / DNA-directed RNA polymerase II subunit Rpb4-like / RNA polymerase Rpb4/RPC9, core / DNA-directed RNA-polymerase II subunit / Rpb4/RPC9 superfamily / Pol II subunit B9, C-terminal zinc ribbon / RNA polymerase RBP11 / RNA polymerase subunit Rpb4/RPC9 / RNA polymerase Rpb4 / Zinc finger TFIIS-type signature. ...RNA-binding domain, S1 / DNA-directed RNA polymerase II subunit Rpb4-like / RNA polymerase Rpb4/RPC9, core / DNA-directed RNA-polymerase II subunit / Rpb4/RPC9 superfamily / Pol II subunit B9, C-terminal zinc ribbon / RNA polymerase RBP11 / RNA polymerase subunit Rpb4/RPC9 / RNA polymerase Rpb4 / Zinc finger TFIIS-type signature. / HRDC-like superfamily / RNA polymerase Rpb7-like , N-terminal / RNA polymerase Rpb7-like, N-terminal domain superfamily / RNA polymerase subunit Rpb7-like / SHS2 domain found in N terminus of Rpb7p/Rpc25p/MJ0397 / RNA polymerase Rpb2, domain 5 / RNA polymerase Rpb2, domain 5 / RNA polymerase Rpb2, domain 4 / RNA polymerase Rpb2, domain 4 / DNA-directed RNA polymerase, M/15kDa subunit / RNA polymerases M/15 Kd subunit / RNA polymerase subunit 9 / DNA-directed RNA polymerase M, 15kDa subunit, conserved site / RNA polymerases M / 15 Kd subunits signature. / DNA-directed RNA polymerase subunit/transcription factor S / : / RNA polymerase, Rpb8 / DNA-directed RNA polymerases I, II, and III subunit RPABC4 / RNA polymerase Rpb8 / RNA polymerase subunit 8 / RNA polymerase, Rpb5, N-terminal / RNA polymerase Rpb5, N-terminal domain superfamily / RNA polymerase Rpb5, N-terminal domain / DNA-directed RNA polymerase, subunit RPB6 / DNA directed RNA polymerase, 7 kDa subunit / RNA polymerase archaeal subunit P/eukaryotic subunit RPABC4 / RNA polymerase, subunit H/Rpb5, conserved site / RNA polymerases H / 23 Kd subunits signature. / RNA polymerase subunit CX / DNA-directed RNA polymerase, 30-40kDa subunit, conserved site / DNA-directed RNA polymerase subunit Rpo3/Rpb3/RPAC1 / RNA polymerases D / 30 to 40 Kd subunits signature. / DNA-directed RNA polymerase Rpb11, 13-16kDa subunit, conserved site / DNA-directed RNA polymerase subunit Rpo11 / RNA polymerases L / 13 to 16 Kd subunits signature. / Zinc finger, TFIIS-type / DNA-directed RNA polymerase subunit Rpo5/Rpb5 / Transcription factor S-II (TFIIS) / Zinc finger TFIIS-type profile. / C2C2 Zinc finger / RNA polymerase subunit RPABC4/transcription elongation factor Spt4 / DNA-directed RNA polymerase, RBP11-like dimerisation domain / RNA polymerase Rpb3/Rpb11 dimerisation domain / RNA polymerase, subunit H/Rpb5 C-terminal / RPB5-like RNA polymerase subunit superfamily / RNA polymerase Rpb5, C-terminal domain / Archaeal Rpo6/eukaryotic RPB6 RNA polymerase subunit / DNA-directed RNA polymerase, 14-18kDa subunit, conserved site / RNA polymerases K / 14 to 18 Kd subunits signature. / Ribosomal protein S1-like RNA-binding domain / S1 RNA binding domain / S1 domain / RNA polymerase Rpb6 / RNA polymerase, subunit omega/Rpo6/RPB6 / RNA polymerase Rpb6 / RPB6/omega subunit-like superfamily / RNA polymerase Rpb2, domain 2 superfamily / DNA-directed RNA polymerase, insert domain / DNA-directed RNA polymerase, RpoA/D/Rpb3-type / RNA polymerase Rpb3/RpoA insert domain / RNA polymerase Rpb3/Rpb11 dimerisation domain / RNA polymerases D / RNA polymerase, beta subunit, protrusion / RNA polymerase beta subunit / DNA-directed RNA polymerase, insert domain superfamily / RNA polymerase, RBP11-like subunit / RNA polymerase Rpb2, domain 2 / RNA polymerase Rpb2, domain 2 / RNA polymerase, beta subunit, conserved site / RNA polymerase Rpb2, domain 7 / RNA polymerase Rpb2, domain 3 / RNA polymerase Rpb2, OB-fold / RNA polymerase Rpb2, domain 7 / RNA polymerase Rpb2, domain 3 / RNA polymerases beta chain signature. / DNA-directed RNA polymerase, subunit 2, hybrid-binding domain / DNA-directed RNA polymerase, subunit 2 / DNA-directed RNA polymerase, subunit 2, hybrid-binding domain superfamily / RNA polymerase Rpb2, domain 6 / Nucleic acid-binding, OB-fold
Similarity search - Domain/homology
DNA-directed RNA polymerase subunit beta / RNA polymerase II subunit D / DNA-directed RNA polymerase II subunit RPB3 / DNA-directed RNA polymerase II subunit RPB11-a / DNA-directed RNA polymerases I, II, and III subunit RPABC3 / DNA-directed RNA polymerases I, II, and III subunit RPABC2 / DNA-directed RNA polymerase II subunit RPB7 / RNA polymerase II, I and III subunit K / DNA-directed RNA polymerase II subunit E / DNA-directed RNA polymerase II subunit RPB9
Similarity search - Component
Biological speciesSus scrofa domesticus (domestic pig)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.1 Å
AuthorsAibara S / Dienemann C / Cramer P
Funding support Germany, 5 items
OrganizationGrant numberCountry
H2020 Marie Curie Actions of the European Commission894862 Germany
German Research Foundation (DFG)EXC 2067/1 39072994 Germany
German Research Foundation (DFG)SFB860 Germany
German Research Foundation (DFG)SPP2191 Germany
European Research Council (ERC)CHROMATRANS 882357 Germany
CitationJournal: Nucleic Acids Res / Year: 2021
Title: Structure of an inactive RNA polymerase II dimer.
Authors: Shintaro Aibara / Christian Dienemann / Patrick Cramer /
Abstract: Eukaryotic gene transcription is carried out by three RNA polymerases: Pol I, Pol II and Pol III. Although it has long been known that Pol I can form homodimers, it is unclear whether and how the two ...Eukaryotic gene transcription is carried out by three RNA polymerases: Pol I, Pol II and Pol III. Although it has long been known that Pol I can form homodimers, it is unclear whether and how the two other RNA polymerases dimerize. Here we present the cryo-electron microscopy (cryo-EM) structure of a mammalian Pol II dimer at 3.5 Å resolution. The structure differs from the Pol I dimer and reveals that one Pol II copy uses its RPB4-RPB7 stalk to penetrate the active centre cleft of the other copy, and vice versa, giving rise to a molecular handshake. The polymerase clamp domain is displaced and mobile, and the RPB7 oligonucleotide-binding fold mimics the DNA-RNA hybrid that occupies the cleft during active transcription. The Pol II dimer is incompatible with nucleic acid binding as required for transcription and may represent an inactive storage form of the polymerase.
History
DepositionJun 28, 2021-
Header (metadata) releaseOct 6, 2021-
Map releaseOct 6, 2021-
UpdateOct 20, 2021-
Current statusOct 20, 2021Processing site: PDBe / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 6
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by radius
  • Surface level: 6
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_13132.map.gz / Format: CCP4 / Size: 347.6 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationSharpened and local resolution filtered map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.82 Å/pix.
x 450 pix.
= 367.65 Å		0.82 Å/pix.
x 450 pix.
= 367.65 Å		0.82 Å/pix.
x 450 pix.
= 367.65 Å

Surface

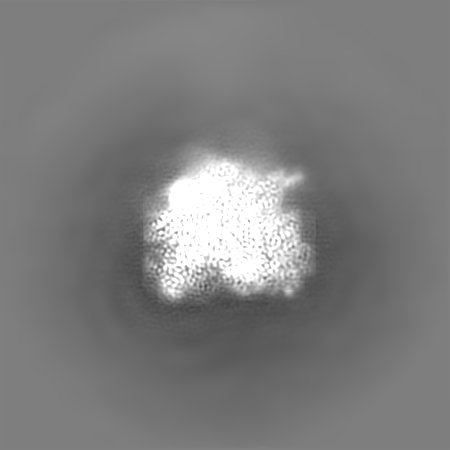

Projections

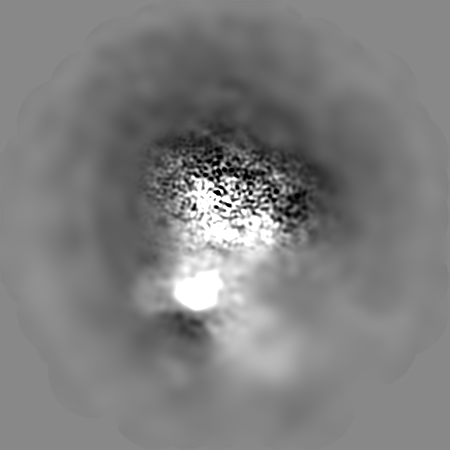

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.817 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 7.0 / Movie #1: 6
Minimum - Maximum-24.980377 - 49.495903
Average (Standard dev.)-0.0014955859 (±0.91391754)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions450450450
Spacing450450450
CellA=B=C: 367.65 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z0.8170.8170.817
M x/y/z450450450
origin x/y/z0.0000.0000.000
length x/y/z367.650367.650367.650
α/β/γ90.00090.00090.000
start NX/NY/NZ000
NX/NY/NZ450450450
MAP C/R/S321
start NC/NR/NS000
NC/NR/NS450450450
D min/max/mean-24.98049.496-0.001

-
Supplemental data

-
Sample components

-
Entire : RNA Polymerase II dimer

EntireName: RNA Polymerase II dimer
Components
  • Complex: RNA Polymerase II dimer

-
Supramolecule #1: RNA Polymerase II dimer

SupramoleculeName: RNA Polymerase II dimer / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#12
Source (natural)Organism: Sus scrofa domesticus (domestic pig)
Molecular weightTheoretical: 550 KDa

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 42.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.1 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 92854
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
