- EMDB-70103: Cryo-EM Structure of the Arabidopsis GA3-GID1A-RGA Complex -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-70103
TitleCryo-EM Structure of the Arabidopsis GA3-GID1A-RGA Complex
Map data
Sample
  • Complex: RGA-GID1A-GA3 Complex
    • Protein or peptide: DELLA protein RGA
    • Protein or peptide: Gibberellin receptor GID1A
  • Ligand: GIBBERELLIN A3
KeywordsRGA / GID1A / DELLA / Arabidopsis / PLANT PROTEIN
Function / homology
Function and homology information


fruit morphogenesis / gibberellin mediated signaling pathway / positive regulation of gibberellic acid mediated signaling pathway / floral organ morphogenesis / negative regulation of trichome patterning / negative regulation of developmental vegetative growth / negative regulation of leaf development / regulation of seed dormancy process / gibberellin binding / negative regulation of gibberellic acid mediated signaling pathway ...fruit morphogenesis / gibberellin mediated signaling pathway / positive regulation of gibberellic acid mediated signaling pathway / floral organ morphogenesis / negative regulation of trichome patterning / negative regulation of developmental vegetative growth / negative regulation of leaf development / regulation of seed dormancy process / gibberellin binding / negative regulation of gibberellic acid mediated signaling pathway / positive regulation of fertilization / meiotic cytokinesis / response to gibberellin / gibberellic acid mediated signaling pathway / regulation of seed germination / response to far red light / Hydrolases / regulation of protein catabolic process / response to cold / promoter-specific chromatin binding / cellular response to hypoxia / hydrolase activity / transcription cis-regulatory region binding / DNA-binding transcription factor activity / positive regulation of gene expression / regulation of DNA-templated transcription / positive regulation of DNA-templated transcription / nucleus / cytoplasm
Similarity search - Function
Transcriptional factor DELLA, N-terminal / DELLA, N-terminal domain superfamily / Transcriptional regulator DELLA protein N terminal / Transcriptional regulator DELLA protein N terminal / Transcription factor GRAS / GRAS domain family / GRAS family profile. / : / Lipase, GDXG, putative histidine active site / Lipolytic enzymes "G-D-X-G" family, putative histidine active site. ...Transcriptional factor DELLA, N-terminal / DELLA, N-terminal domain superfamily / Transcriptional regulator DELLA protein N terminal / Transcriptional regulator DELLA protein N terminal / Transcription factor GRAS / GRAS domain family / GRAS family profile. / : / Lipase, GDXG, putative histidine active site / Lipolytic enzymes "G-D-X-G" family, putative histidine active site. / Lipase, GDXG, putative serine active site / Lipolytic enzymes "G-D-X-G" family, putative serine active site. / Alpha/beta hydrolase fold-3 / alpha/beta hydrolase fold / Alpha/Beta hydrolase fold
Similarity search - Domain/homology
Gibberellin receptor GID1A / DELLA protein RGA
Similarity search - Component
Biological speciesArabidopsis thaliana (thale cress)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.06 Å
AuthorsDahal P / Sharma K / Borgnia M / Zhou P
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS) United States
CitationJournal: Proc.Natl.Acad.Sci.USA / Year: 2025
Title: Structural Insights into Proteolysis-Dependent and -Independent Suppression of the Master Regulator DELLA by Gibberellin Receptor
Authors: Dahal P / Wang Y / Hu J / Park J / Forker K / Zhang Z / Sharma K / Borgnia M / Sun TP / Zhou P
History
DepositionApr 8, 2025-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateJul 23, 2025-
Current statusJul 23, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_70103.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.85 Å/pix.
x 300 pix.
= 254.07 Å		0.85 Å/pix.
x 300 pix.
= 254.07 Å		0.85 Å/pix.
x 300 pix.
= 254.07 Å

Surface

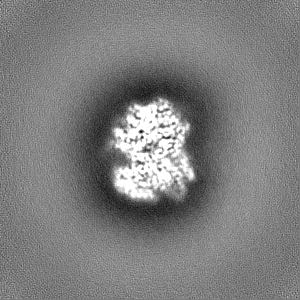

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.8469 Å
Density

Histogram

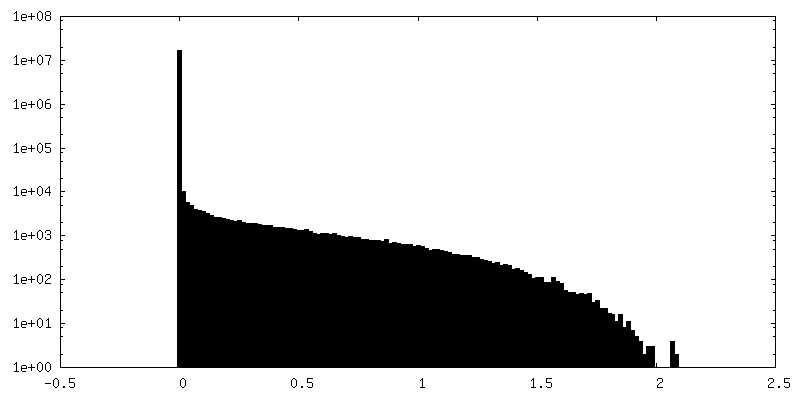

Histogram (log scale)
Contour LevelBy AUTHOR: 0.02
Minimum - Maximum-0.093437046 - 0.18980269
Average (Standard dev.)0.00006268568 (±0.0044320207)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 254.06999 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_70103_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: #1

Fileemd_70103_additional_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_70103_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_70103_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : RGA-GID1A-GA3 Complex

EntireName: RGA-GID1A-GA3 Complex
Components
  • Complex: RGA-GID1A-GA3 Complex
    • Protein or peptide: DELLA protein RGA
    • Protein or peptide: Gibberellin receptor GID1A
  • Ligand: GIBBERELLIN A3

-
Supramolecule #1: RGA-GID1A-GA3 Complex

SupramoleculeName: RGA-GID1A-GA3 Complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Arabidopsis thaliana (thale cress)

-
Macromolecule #1: DELLA protein RGA

MacromoleculeName: DELLA protein RGA / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Arabidopsis thaliana (thale cress)
Molecular weightTheoretical: 65.253309 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MKRDHHQFQG RLSNHGTSSS SSSISKDKMM MVKKEEDGGG NMDDELLAVL GYKVRSSEMA EVALKLEQLE TMMSNVQEDG LSHLATDTV HYNPSELYSW LDNMLSELNP PPLPASSNGL DPVLPSPEIC GFPASDYDLK VIPGNAIYQF PAIDSSSSSN N QNQQLQSC ...String:
MKRDHHQFQG RLSNHGTSSS SSSISKDKMM MVKKEEDGGG NMDDELLAVL GYKVRSSEMA EVALKLEQLE TMMSNVQEDG LSHLATDTV HYNPSELYSW LDNMLSELNP PPLPASSNGL DPVLPSPEIC GFPASDYDLK VIPGNAIYQF PAIDSSSSSN N QNQQLQSC SSPDSMVTST STGTQIGGVI GTTVTTTTTT TTAAGESTRS VILVDSQENG VRLVHALMAC AEAIQQNNLT LA EALVKQI GCLAVSQAGA MRKVATYFAE ALARRIYRLS PPQNQIDHCL SDTLQMHFYE TCPYLKFAHF TANQAILEAF EGK KRVHVI DFSMNQGLQW PALMQALALR EGGPPTFRLT GIGPPAPDNS DHLHEVGCKL AQLAEAIHVE FEYRGFVANS LADL DASML ELRPSDTEAV AVNSVFELHK LLGRPGGIEK VLGVVKQIKP VIFTVVEQES NHNGPVFLDR FTESLHYYST LFDSL EGVP NSQDKVMSEV YLGKQICNLV ACEGPDRVER HETLSQWGNR FGSSGLAPAH LGSNAFKQAS MLLSVFNSGQ GYRVEE SNG CLMLGWHTRP LITTSAWKLS TAAYGGWSHP QFER

UniProtKB: DELLA protein RGA

-
Macromolecule #2: Gibberellin receptor GID1A

MacromoleculeName: Gibberellin receptor GID1A / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO / EC number: Hydrolases
Source (natural)Organism: Arabidopsis thaliana (thale cress)
Molecular weightTheoretical: 39.775859 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MAASDEVNLI ESRTVVPLNT WVLISNFKVA YNILRRPDGT FNRHLAEYLD RKVTANANPV DGVFSFDVLI DRRINLLSRV YRPAYADQE QPPSILDLEK PVDGDIVPVI LFFHGGSFAH SSANSAIYDT LCRRLVGLCK CVVVSVNYRR APENPYPCAY D DGWIALNW ...String:
MAASDEVNLI ESRTVVPLNT WVLISNFKVA YNILRRPDGT FNRHLAEYLD RKVTANANPV DGVFSFDVLI DRRINLLSRV YRPAYADQE QPPSILDLEK PVDGDIVPVI LFFHGGSFAH SSANSAIYDT LCRRLVGLCK CVVVSVNYRR APENPYPCAY D DGWIALNW VNSRSWLKSK KDSKVHIFLA GDSSGGNIAH NVALRAGESG IDVLGNILLN PMFGGNERTE SEKSLDGKYF VT VRDRDWY WKAFLPEGED REHPACNPFS PRGKSLEGVS FPKSLVVVAG LDLIRDWQLA YAEGLKKAGQ EVKLMHLEKA TVG FYLLPN NNHFHNVMDE ISAFVNAECG GDYKDDDDK

UniProtKB: Gibberellin receptor GID1A

-
Macromolecule #3: GIBBERELLIN A3

MacromoleculeName: GIBBERELLIN A3 / type: ligand / ID: 3 / Number of copies: 1 / Formula: GA3
Molecular weightTheoretical: 346.374 Da
Chemical component information

ChemComp-GA3:
GIBBERELLIN A3 / hormone*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.6 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.06 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 398856
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelChain - Source name: AlphaFold / Chain - Initial model type: in silico model
Output model

PDB-9o4j:
Cryo-EM Structure of the Arabidopsis GA3-GID1A-RGA Complex

+
