Basic information

Entry
Database: EMDB / ID: EMD-65523
TitleCryo-EM structure of SARS-CoV-2 WT spike protein in complex with nAb 1C4
Map data
Sample
  • Complex: Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with nAb 1C4
    • Complex: SARS-CoV-2 spike protein of WT variant
      • Protein or peptide: Spike protein S1
    • Complex: The fragment of nAb 1C4
      • Protein or peptide: Light chain of nAb 1C4
      • Protein or peptide: Heavy chain of nAb 1C4
KeywordsSARS-CoV-2 / Neutralizing antibody / Cryo-EM / Viral protein/Immune system / Viral protein-immune system complex / VIRAL PROTEIN
Function / homology
Function and homology information


symbiont-mediated disruption of host tissue / Maturation of spike protein / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular region / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / positive regulation of viral entry into host cell ...symbiont-mediated disruption of host tissue / Maturation of spike protein / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular region / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / positive regulation of viral entry into host cell / membrane fusion / Attachment and Entry / entry receptor-mediated virion attachment to host cell / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / receptor-mediated virion attachment to host cell / host cell surface receptor binding / symbiont-mediated suppression of host innate immune response / endocytosis involved in viral entry into host cell / receptor ligand activity / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / symbiont entry into host cell / virion attachment to host cell / host cell plasma membrane / SARS-CoV-2 activates/modulates innate and adaptive immune responses / virion membrane / membrane / identical protein binding / plasma membrane
Similarity search - Function
Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, N-terminal domain superfamily / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Spike glycoprotein, betacoronavirus / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal ...Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, N-terminal domain superfamily / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Spike glycoprotein, betacoronavirus / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2
Similarity search - Domain/homology
Biological speciesSevere acute respiratory syndrome coronavirus 2 / Mus musculus (house mouse)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.33 Å
AuthorsSun H / Jiang Y / Li S / Zheng Q
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: PLoS Pathog / Year: 2025
Title: Engineering a multivalent antibody nanoparticle to overcome SARS-CoV-2 Omicron immune evasion.
Authors: Hui Sun / Yanan Jiang / Miaolin Lan / Ming Zhou / Gangshun Yi / Juan Shen / Tingting Deng / Liqin Liu / Yang Huang / Yu Li / Jinfu Su / Yanling Lin / Zhenqin Chen / Lizhi Zhou / Tingting Li ...Authors: Hui Sun / Yanan Jiang / Miaolin Lan / Ming Zhou / Gangshun Yi / Juan Shen / Tingting Deng / Liqin Liu / Yang Huang / Yu Li / Jinfu Su / Yanling Lin / Zhenqin Chen / Lizhi Zhou / Tingting Li / Hai Yu / Tong Cheng / Yali Zhang / Lunzhi Yuan / Shaowei Li / Ying Gu / Peijun Zhang / Ningshao Xia / Qingbing Zheng /
Abstract: The rapid evolution of SARS-CoV-2 and the subsequent emergence of Omicron subvariants pose significant challenges to the efficacy of existing vaccines and therapeutics, including those previously ...The rapid evolution of SARS-CoV-2 and the subsequent emergence of Omicron subvariants pose significant challenges to the efficacy of existing vaccines and therapeutics, including those previously reported most broad neutralizing antibodies (bnAbs). Here, we investigated the molecular basis of the altered neutralization profile of a bnAb, 1C4, against recent variants. 1C4 is effective against early variants from Alpha to Omicron BQ.1, but is circumvented by BQ.1.1, XBB and thereafter variants, primarily due to an additional R346T mutation that diminishes its binding affinity. Cryo-electron microscopy analysis revealed that despite the loss of neutralizing potency, 1C4 retained residual binding to the spike protein of immune-evasive variants such as XBB, which harbor altered receptor-binding domain (RBD). Furthermore, 1C4 exhibited a diminished capacity to inhibit ACE2 engagement with Omicron variants, amplifying the intricacies of viral immune evasion tactics. To address this, we employed the mi3-SpyCatcher-based nanoparticle to polymerize 1C4 (mi3-1C4), which reestablished the neutralization potency against recent variants by enhancing avidity via multivalent binding. Such multivalent binding can promote efficient spike aggregation as well as viral cross-linking, thereby providing enhanced protection against both the infection of Beta and XBB variants in a hamster model. Together, our findings delineate the molecular landscape of immune evasion by neutralizing antibodies and provide strategic insight for the adaptation of antibody engineering to keep pace with viral evolution.
History
DepositionJul 25, 2025-
Header (metadata) releaseMar 18, 2026-
Map releaseMar 18, 2026-
UpdateMar 18, 2026-
Current statusMar 18, 2026Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_65523.map.gz / Format: CCP4 / Size: 1 GB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.65 Å/pix.
x 648 pix.
= 421.2 Å		0.65 Å/pix.
x 648 pix.
= 421.2 Å		0.65 Å/pix.
x 648 pix.
= 421.2 Å

Surface

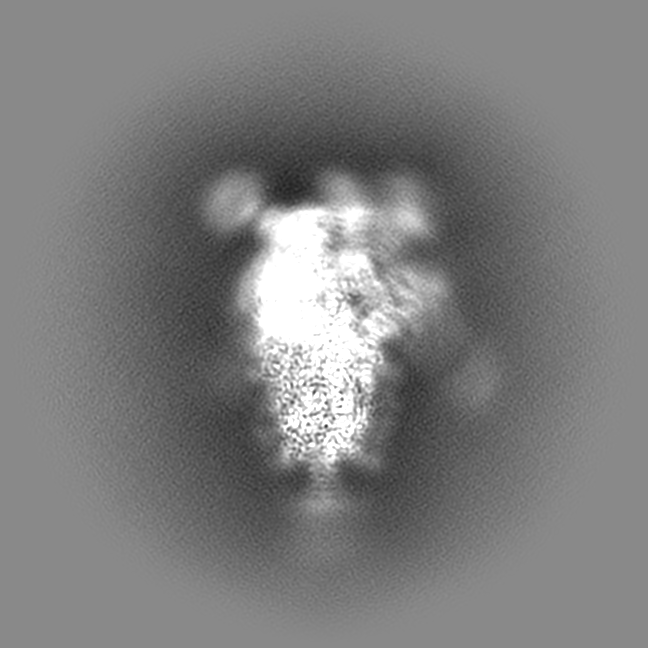

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.65 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.04
Minimum - Maximum-0.18047258 - 0.5195581
Average (Standard dev.)-0.00049424823 (±0.008958683)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions648648648
Spacing648648648
CellA=B=C: 421.19998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: #1

Fileemd_65523_additional_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_65523_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_65523_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with ...

EntireName: Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with nAb 1C4
Components
  • Complex: Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with nAb 1C4
    • Complex: SARS-CoV-2 spike protein of WT variant
      • Protein or peptide: Spike protein S1
    • Complex: The fragment of nAb 1C4
      • Protein or peptide: Light chain of nAb 1C4
      • Protein or peptide: Heavy chain of nAb 1C4

-
Supramolecule #1: Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with ...

SupramoleculeName: Cryo-EM structure of SARS-CoV-2 WT spike protein in complex with nAb 1C4
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all

-
Supramolecule #2: SARS-CoV-2 spike protein of WT variant

SupramoleculeName: SARS-CoV-2 spike protein of WT variant / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Supramolecule #3: The fragment of nAb 1C4

SupramoleculeName: The fragment of nAb 1C4 / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2-#3
Source (natural)Organism: Mus musculus (house mouse)

-
Macromolecule #1: Spike protein S1

MacromoleculeName: Spike protein S1 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2 / Strain: WT
Molecular weightTheoretical: 25.122336 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: RVQPTESIVR FPNITNLCPF GEVFNATRFA SVYAWNRKRI SNCVADYSVL YNSASFSTFK CYGVSPTKLN DLCFTNVYAD SFVIRGDEV RQIAPGQTGK IADYNYKLPD DFTGCVIAWN SNNLDSKVGG NYNYLYRLFR KSNLKPFERD ISTEIYQAGS T PCNGVEGF ...String:
RVQPTESIVR FPNITNLCPF GEVFNATRFA SVYAWNRKRI SNCVADYSVL YNSASFSTFK CYGVSPTKLN DLCFTNVYAD SFVIRGDEV RQIAPGQTGK IADYNYKLPD DFTGCVIAWN SNNLDSKVGG NYNYLYRLFR KSNLKPFERD ISTEIYQAGS T PCNGVEGF NCYFPLQSYG FQPTNGVGYQ PYRVVVLSFE LLHAPATVCG PKKSTNLVKN KCVNF

UniProtKB: Spike glycoprotein

-
Macromolecule #2: Light chain of nAb 1C4

MacromoleculeName: Light chain of nAb 1C4 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 11.642854 KDa
SequenceString:
DIVLTQSPAT LSVTPGDNVS LSCRASQIIS NNLHWYQQKS HESPRLLIKY ASQSISGIPS RFSGSGSGTD FTLSINSVET EDFGMYFCQ QSNTWPLTCG SGTKLELN

-
Macromolecule #3: Heavy chain of nAb 1C4

MacromoleculeName: Heavy chain of nAb 1C4 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 13.3849 KDa
SequenceString:
QIQLVQSGPE LKKPGETVKI SCKASGYTFT DYGLNWVKQA PGKGLKWMGW INTYSGEPTY NDEFRGRFAF SLETSTITAY LKINNLKNE DTATYFCARG GNWDWYFDVW GAGTTVTVSS

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TECNAI F30
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 48.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.5 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Tecnai F30 / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.33 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 91916
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
