- EMDB-62375: Focused refinement map of human PNPase in closed form -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-62375
TitleFocused refinement map of human PNPase in closed form
Map data
Sample
  • Complex: Human PNPase in open form
    • Protein or peptide: Polyribonucleotide nucleotidyltransferase 1, mitochondrial
Keywords3'-to-5' exoribonuclease / RNA degradation / RNA import / mitochondria / RNA BINDING PROTEIN
Function / homology
Function and homology information


RNA import into mitochondrion / mitochondrial mRNA polyadenylation / mitochondrial degradosome / mitochondrial mRNA catabolic process / positive regulation of mitochondrial RNA catabolic process / mitochondrial RNA 3'-end processing / Mitochondrial RNA degradation / positive regulation of miRNA catabolic process / mitochondrial RNA 5'-end processing / poly(G) binding ...RNA import into mitochondrion / mitochondrial mRNA polyadenylation / mitochondrial degradosome / mitochondrial mRNA catabolic process / positive regulation of mitochondrial RNA catabolic process / mitochondrial RNA 3'-end processing / Mitochondrial RNA degradation / positive regulation of miRNA catabolic process / mitochondrial RNA 5'-end processing / poly(G) binding / polyribonucleotide nucleotidyltransferase / polyribonucleotide nucleotidyltransferase activity / nuclear polyadenylation-dependent mRNA catabolic process / mitochondrial RNA catabolic process / positive regulation of mRNA catabolic process / regulation of cellular senescence / negative regulation of growth / rRNA import into mitochondrion / regulation of cellular respiration / response to growth hormone / RNA catabolic process / miRNA binding / poly(U) RNA binding / protein homotrimerization / mRNA catabolic process / cellular response to interferon-beta / response to cAMP / liver regeneration / mitochondrion organization / protein homooligomerization / mitochondrial intermembrane space / mRNA processing / 3'-5'-RNA exonuclease activity / cellular response to oxidative stress / regulation of cell cycle / ribosome / mitochondrial matrix / endoplasmic reticulum membrane / mitochondrion / RNA binding / identical protein binding / cytosol / cytoplasm
Similarity search - Function
Polyribonucleotide nucleotidyltransferase / Polyribonucleotide nucleotidyltransferase, RNA-binding domain / Polyribonucleotide nucleotidyltransferase, RNA-binding domain superfamily / Polyribonucleotide nucleotidyltransferase, RNA binding domain / Exoribonuclease, phosphorolytic domain 2 / 3' exoribonuclease family, domain 2 / Exoribonuclease, phosphorolytic domain 1 / PNPase/RNase PH domain superfamily / Exoribonuclease, PH domain 2 superfamily / 3' exoribonuclease family, domain 1 ...Polyribonucleotide nucleotidyltransferase / Polyribonucleotide nucleotidyltransferase, RNA-binding domain / Polyribonucleotide nucleotidyltransferase, RNA-binding domain superfamily / Polyribonucleotide nucleotidyltransferase, RNA binding domain / Exoribonuclease, phosphorolytic domain 2 / 3' exoribonuclease family, domain 2 / Exoribonuclease, phosphorolytic domain 1 / PNPase/RNase PH domain superfamily / Exoribonuclease, PH domain 2 superfamily / 3' exoribonuclease family, domain 1 / KH domain / K Homology domain, type 1 / Type-1 KH domain profile. / K Homology domain, type 1 superfamily / S1 domain profile. / Ribosomal protein S1-like RNA-binding domain / S1 RNA binding domain / S1 domain / K Homology domain / K homology RNA-binding domain / Ribosomal protein S5 domain 2-type fold / Nucleic acid-binding, OB-fold
Similarity search - Domain/homology
Polyribonucleotide nucleotidyltransferase 1, mitochondrial
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.84 Å
AuthorsLi YC / Yuan HS
Funding support Taiwan, 1 items
OrganizationGrant numberCountry
Academia Sinica (Taiwan) Taiwan
CitationJournal: Nucleic Acids Res / Year: 2025
Title: Structural insights into human PNPase in health and disease.
Authors: Yi-Ching Li / Chun-Hsiung Wang / Malay Patra / Yi-Ping Chen / Wei-Zen Yang / Hanna S Yuan /
Abstract: Human polynucleotide phosphorylase (hPNPase) is a 3'-to-5' exoribonuclease located in mitochondria, where it plays crucial roles in RNA degradation and RNA import. Mutations in hPNPase can impair ...Human polynucleotide phosphorylase (hPNPase) is a 3'-to-5' exoribonuclease located in mitochondria, where it plays crucial roles in RNA degradation and RNA import. Mutations in hPNPase can impair these functions, leading to various mitochondrial dysfunctions and diseases. However, the mechanisms by which hPNPase switches between its roles as an RNA-degrading enzyme and an RNA carrier, as well as how disease-associated mutations may affect these distinct functions, remain unclear. In this study, we present cryo-electron microscopy structures of hPNPase, highlighting the flexibility of its S1 domains, which cap the ring-like RNA-degradation chamber and shift between two distinctive open and closed conformations. We further demonstrate by small-angle X-ray scattering and biochemical analyses that the disease-associated mutations P467S and G499R impair hPNPase's stem-loop RNA-binding and degradation activities by limiting the S1 domain's ability to transition from an open to closed state. Conversely, the D713Y mutation, located within the S1 domain, does not affect the RNA-binding affinity of hPNPase, but diminishes its interaction with Suv3 helicase for cooperative degradation of structured RNA. Collectively, these findings underscore the critical role of S1 domain mobility in capturing structured RNA for degradation and import, as well as its involvement in mitochondrial degradosome assembly. Our study thereby reveals the molecular mechanism of hPNPase in RNA binding and degradation, and the multiple molecular defects that could be induced by disease-linked mutations in hPNPase.
History
DepositionNov 12, 2024-
Header (metadata) releaseMar 12, 2025-
Map releaseMar 12, 2025-
UpdateMar 12, 2025-
Current statusMar 12, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images

Downloads & links

-
Map

FileDownload / File: emd_62375.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 384 pix.
= 318.72 Å
0.83 Å/pix.
x 384 pix.
= 318.72 Å
0.83 Å/pix.
x 384 pix.
= 318.72 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.83 Å

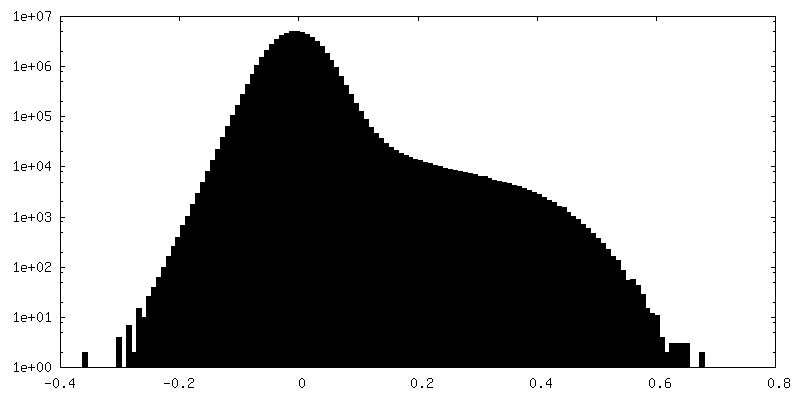

Density
Contour LevelBy AUTHOR: 0.11
Minimum - Maximum-0.15457188 - 0.63257515
Average (Standard dev.)0.0015609975 (±0.021239081)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 318.72 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_62375_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Half map: #1

Fileemd_62375_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Sample components

-
Entire : Human PNPase in open form

EntireName: Human PNPase in open form
Components
  • Complex: Human PNPase in open form
    • Protein or peptide: Polyribonucleotide nucleotidyltransferase 1, mitochondrial

-
Supramolecule #1: Human PNPase in open form

SupramoleculeName: Human PNPase in open form / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Polyribonucleotide nucleotidyltransferase 1, mitochondrial

MacromoleculeName: Polyribonucleotide nucleotidyltransferase 1, mitochondrial
type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO / EC number: polyribonucleotide nucleotidyltransferase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 82.425031 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MGAVAVDLGN RKLEISSGKL ARFADGSAVV QSGDTAVMVT AVSKTKPSPS QFMPLVVDYR QKAAAAGRIP TNYLRREVGT SDKEILTSR IIDRSIRPLF PAGYFYDTQV LCNLLAVDGV NEPDVLAING ASVALSLSDI PWNGPVGAVR IGIIDGEYVV N PTRKEMSS ...String:
MGAVAVDLGN RKLEISSGKL ARFADGSAVV QSGDTAVMVT AVSKTKPSPS QFMPLVVDYR QKAAAAGRIP TNYLRREVGT SDKEILTSR IIDRSIRPLF PAGYFYDTQV LCNLLAVDGV NEPDVLAING ASVALSLSDI PWNGPVGAVR IGIIDGEYVV N PTRKEMSS STLNLVVAGA PKSQIVMLEA SAENILQQDF CHAIKVGVKY TQQIIQGIQQ LVKETGVTKR TPQKLFTPSP EI VKYTHKL AMERLYAVFT DYEHDKVSRD EAVNKIRLDT EEQLKEKFPE ADPYEIIESF NVVAKEVFRS IVLNEYKRCD GRD LTSLRN VSCEVDMFKT LHGSALFQRG QTQVLCTVTF DSLESGIKSD QVITAINGIK DKNFMLHYEF PPYATNEIGK VTGL NRREL GHGALAEKAL YPVIPRDFPF TIRVTSEVLE SNGSSSMASA CGGSLALMDS GVPISSAVAG VAIGLVTKTD PEKGE IEDY RLLTDILGIE DYNGDMDFKI AGTNKGITAL QADIKLPGIP IKIVMEAIQQ ASVAKKEILQ IMNKTISKPR ASRKEN GPV VETVQVPLSK RAKFVGPGGY NLKKLQAETG VTISQVDEET FSVFAPTPSA MHEARDFITE ICKDDQEQQL EFGAVYT AT ITEIRDTGVM VKLYPNMTAV LLHNTQLDQR KIKHPTALGL EVGQEIQVKY FGRDPADGRM RLSRKVLQSP ATTVVRTL N DRSSIVMGEP ISQSSSNSQA AALEHHHHHH

UniProtKB: Polyribonucleotide nucleotidyltransferase 1, mitochondrial

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.6 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.84 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 809000
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
