Open data
-
Basic information
Entry | ![]() | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Title | WT Pseudomonas phage PP7 open tube VLP | |||||||||
![]() | sharpened b-factor -46 | |||||||||
![]() |
| |||||||||
![]() | VLP / PP7 / coat / tube / VIRUS LIKE PARTICLE | |||||||||
Biological species | ![]() | |||||||||
Method | single particle reconstruction / cryo EM / Resolution: 3.85 Å | |||||||||
![]() | Kopylov M / Hernandez C / Bobe D / Keshavarz-Joud P / Finn MG | |||||||||
Funding support | ![]()
| |||||||||
![]() | ![]() Title: Pleomorphism in wild-type and engineered PP7 virus-like particles Authors: Keshavarz-Joud P / Kopylov M / Zhao L / Hernandez C / Bobe D / Paraan M / Finn MG | |||||||||
History |
|
-
Structure visualization
Supplemental images |
---|
-
Downloads & links
-EMDB archive
Map data | ![]() | 266.8 MB | ![]() | |
---|---|---|---|---|
Header (meta data) | ![]() ![]() | 14.4 KB 14.4 KB | Display Display | ![]() |
FSC (resolution estimation) | ![]() | 13.9 KB | Display | ![]() |
Images | ![]() | 111.6 KB | ||
Masks | ![]() | 282.6 MB | ![]() | |
Filedesc metadata | ![]() | 4.1 KB | ||
Others | ![]() ![]() ![]() | 141.3 MB 262.1 MB 262.1 MB | ||
Archive directory | ![]() ![]() | HTTPS FTP |
-Validation report
Summary document | ![]() | 1.4 MB | Display | ![]() |
---|---|---|---|---|
Full document | ![]() | 1.4 MB | Display | |
Data in XML | ![]() | 23.2 KB | Display | |
Data in CIF | ![]() | 30 KB | Display | |
Arichive directory | ![]() ![]() | HTTPS FTP |
-Related structure data
-
Links
EMDB pages | ![]() ![]() |
---|
-
Map
File | ![]() | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Annotation | sharpened b-factor -46 | ||||||||||||||||||||
Voxel size | X=Y=Z: 1.076 Å | ||||||||||||||||||||

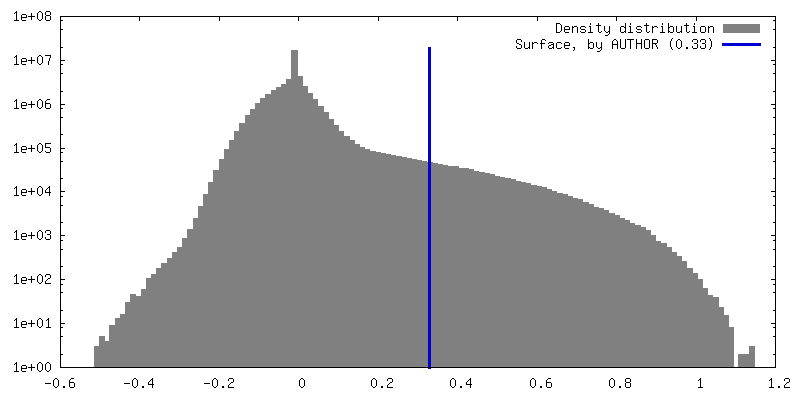

Density |
| ||||||||||||||||||||
Symmetry | Space group: 1 | ||||||||||||||||||||
Details | EMDB XML:
|
-Supplemental data
-Mask #1
File | ![]() | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

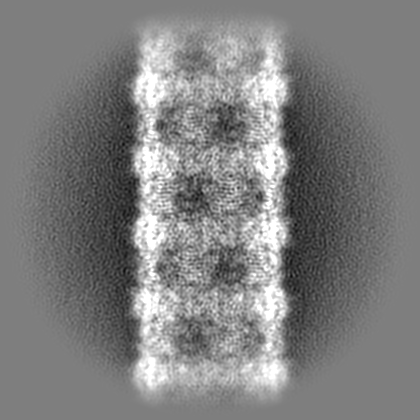

Projections & Slices |
| ||||||||||||
Density Histograms |
-Additional map: unsharpened
File | emd_44743_additional_1.map | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Annotation | unsharpened | ||||||||||||
Projections & Slices |
| ||||||||||||
Density Histograms |
-Half map: half a
File | emd_44743_half_map_1.map | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Annotation | half a | ||||||||||||
Projections & Slices |
| ||||||||||||
Density Histograms |
-Half map: half b
File | emd_44743_half_map_2.map | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Annotation | half b | ||||||||||||
Projections & Slices |
| ||||||||||||
Density Histograms |
-
Sample components
-Entire : C5 capped tube self-assembly of wild type PP7 bacteriophage prote...
Entire | Name: C5 capped tube self-assembly of wild type PP7 bacteriophage protein expressed in E.coli |
---|---|
Components |
|
-Supramolecule #1: C5 capped tube self-assembly of wild type PP7 bacteriophage prote...
Supramolecule | Name: C5 capped tube self-assembly of wild type PP7 bacteriophage protein expressed in E.coli type: complex / ID: 1 / Parent: 0 |
---|---|
Source (natural) | Organism: ![]() |
-Experimental details
-Structure determination
Method | cryo EM |
---|---|
![]() | single particle reconstruction |
Aggregation state | particle |
-
Sample preparation
Concentration | 1 mg/mL |
---|---|
Buffer | pH: 7.5 / Component - Concentration: 0.1 M / Component - Name: PBS |
Grid | Model: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Support film - Material: CARBON / Support film - topology: HOLEY |
Vitrification | Cryogen name: ETHANE |
-
Electron microscopy
Microscope | FEI TITAN KRIOS |
---|---|
Image recording | Film or detector model: GATAN K3 (6k x 4k) / Average electron dose: 52.0 e/Å2 |
Electron beam | Acceleration voltage: 300 kV / Electron source: ![]() |
Electron optics | Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 0.01 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm |
Experimental equipment | ![]() Model: Titan Krios / Image courtesy: FEI Company |
