- EMDB-36605: Cryo-EM structure of human 26S proteasomal RP subcomplex (Ea stat... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-36605
TitleCryo-EM structure of human 26S proteasomal RP subcomplex (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub.
Map dataComposite sharpened cryo-EM half map of human 26S RP (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub.
Sample
  • Complex: Human 26S proteasome
    • Complex: 19S regulatory particle (RP) of human 26S proteasome
      • Complex: AAA+-ATPase of 19S regulatory particle (RP) of human 26S proteasome
        • Protein or peptide: x 6 types
      • Protein or peptide: x 12 types
    • Complex: alpha subunits belonging to the 20S core particle (CP) of human 26S proteasome
      • Protein or peptide: x 7 types
    • Complex: K11/K48-branched ubiquitin (Ub) chain composed of three Ub
      • Protein or peptide: x 1 types
  • Ligand: x 3 types
Keywordsprotein degradation / macromolecular complex / ubiquitin-proteasome system / CYTOSOLIC PROTEIN
Function / homology
Function and homology information


positive regulation of inclusion body assembly / Impaired BRCA2 translocation to the nucleus / Impaired BRCA2 binding to SEM1 (DSS1) / thyrotropin-releasing hormone receptor binding / modulation by host of viral transcription / Hydrolases; Acting on peptide bonds (peptidases); Omega peptidases / integrator complex / proteasome accessory complex / purine ribonucleoside triphosphate binding / meiosis I ...positive regulation of inclusion body assembly / Impaired BRCA2 translocation to the nucleus / Impaired BRCA2 binding to SEM1 (DSS1) / thyrotropin-releasing hormone receptor binding / modulation by host of viral transcription / Hydrolases; Acting on peptide bonds (peptidases); Omega peptidases / integrator complex / proteasome accessory complex / purine ribonucleoside triphosphate binding / meiosis I / cytosolic proteasome complex / proteasome regulatory particle / positive regulation of proteasomal protein catabolic process / proteasome regulatory particle, lid subcomplex / proteasome-activating activity / proteasome regulatory particle, base subcomplex / metal-dependent deubiquitinase activity / hypothalamus gonadotrophin-releasing hormone neuron development / negative regulation of programmed cell death / protein K63-linked deubiquitination / Regulation of ornithine decarboxylase (ODC) / Proteasome assembly / Homologous DNA Pairing and Strand Exchange / Defective homologous recombination repair (HRR) due to BRCA1 loss of function / Defective HDR through Homologous Recombination Repair (HRR) due to PALB2 loss of BRCA1 binding function / Defective HDR through Homologous Recombination Repair (HRR) due to PALB2 loss of BRCA2/RAD51/RAD51C binding function / Resolution of D-loop Structures through Synthesis-Dependent Strand Annealing (SDSA) / female meiosis I / Cross-presentation of soluble exogenous antigens (endosomes) / positive regulation of protein monoubiquitination / Resolution of D-loop Structures through Holliday Junction Intermediates / proteasome core complex / Somitogenesis / fat pad development / mitochondrion transport along microtubule / K63-linked deubiquitinase activity / Impaired BRCA2 binding to RAD51 / proteasome binding / female gonad development / myofibril / seminiferous tubule development / transcription factor binding / regulation of protein catabolic process / immune system process / male meiosis I / proteasome storage granule / Presynaptic phase of homologous DNA pairing and strand exchange / positive regulation of intrinsic apoptotic signaling pathway by p53 class mediator / general transcription initiation factor binding / blastocyst development / polyubiquitin modification-dependent protein binding / positive regulation of RNA polymerase II transcription preinitiation complex assembly / protein deubiquitination / endopeptidase activator activity / NF-kappaB binding / proteasome assembly / proteasome core complex, alpha-subunit complex / mRNA export from nucleus / SARS-CoV-1 targets host intracellular signalling and regulatory pathways / energy homeostasis / inclusion body / enzyme regulator activity / regulation of neuron apoptotic process / ERAD pathway / regulation of proteasomal protein catabolic process / Maturation of protein E / Maturation of protein E / ER Quality Control Compartment (ERQC) / Myoclonic epilepsy of Lafora / FLT3 signaling by CBL mutants / Prevention of phagosomal-lysosomal fusion / IRAK2 mediated activation of TAK1 complex / Alpha-protein kinase 1 signaling pathway / Glycogen synthesis / IRAK1 recruits IKK complex / IRAK1 recruits IKK complex upon TLR7/8 or 9 stimulation / Membrane binding and targetting of GAG proteins / Endosomal Sorting Complex Required For Transport (ESCRT) / Regulation of TBK1, IKKε (IKBKE)-mediated activation of IRF3, IRF7 / Negative regulation of FLT3 / PTK6 Regulates RTKs and Their Effectors AKT1 and DOK1 / Regulation of TBK1, IKKε-mediated activation of IRF3, IRF7 upon TLR3 ligation / Constitutive Signaling by NOTCH1 HD Domain Mutants / IRAK2 mediated activation of TAK1 complex upon TLR7/8 or 9 stimulation / NOTCH2 Activation and Transmission of Signal to the Nucleus / TICAM1,TRAF6-dependent induction of TAK1 complex / TICAM1-dependent activation of IRF3/IRF7 / APC/C:Cdc20 mediated degradation of Cyclin B / Regulation of FZD by ubiquitination / Downregulation of ERBB4 signaling / p75NTR recruits signalling complexes / APC-Cdc20 mediated degradation of Nek2A / TRAF6 mediated IRF7 activation in TLR7/8 or 9 signaling / InlA-mediated entry of Listeria monocytogenes into host cells / Regulation of innate immune responses to cytosolic DNA / TRAF6-mediated induction of TAK1 complex within TLR4 complex / Regulation of pyruvate metabolism / proteasome complex / NF-kB is activated and signals survival / Downregulation of ERBB2:ERBB3 signaling
Similarity search - Function
: / Ubiquitin interaction motif / : / 26S proteasome regulatory subunit RPN7/PSMD6 C-terminal helix / 26S proteasome non-ATPase regulatory subunit Rpn12 / 26S proteasome regulatory subunit, C-terminal / Proteasome regulatory subunit C-terminal / 26S proteasome regulatory subunit RPN5, C-terminal domain / : / 26S proteasome regulatory subunit RPN5 C-terminal domain ...: / Ubiquitin interaction motif / : / 26S proteasome regulatory subunit RPN7/PSMD6 C-terminal helix / 26S proteasome non-ATPase regulatory subunit Rpn12 / 26S proteasome regulatory subunit, C-terminal / Proteasome regulatory subunit C-terminal / 26S proteasome regulatory subunit RPN5, C-terminal domain / : / 26S proteasome regulatory subunit RPN5 C-terminal domain / PSD13 N-terminal repeats / 26S proteasome regulatory subunit Rpn6, N-terminal / 6S proteasome subunit Rpn6, C-terminal helix domain / 26S proteasome regulatory subunit RPN6 N-terminal domain / 26S proteasome subunit RPN6 C-terminal helix domain / 26S Proteasome non-ATPase regulatory subunit 13 / : / 26S proteasome subunit RPN2, N-terminal domain / DSS1/SEM1 / DSS1/SEM1 family / DSS1_SEM1 / 26S proteasome regulatory complex, non-ATPase subcomplex, Rpn2/Psmd1 subunit / 26S proteasome regulatory subunit RPN2, C-terminal / 26S proteasome regulatory subunit RPN2 C-terminal domain / : / 26S proteasome regulatory subunit RPN11 C-terminal domain / Proteasome subunit Rpn10 / 26S Proteasome non-ATPase regulatory subunit 7/8 / 26S proteasome regulatory complex, non-ATPase subcomplex, Rpn1 subunit / RPN1, N-terminal / 26S proteasome non-ATPase regulatory subunit RPN1, C-terminal / RPN1 N-terminal domain / 26S proteasome non-ATPase regulatory subunit RPN1 C-terminal / : / 26S proteasome regulatory subunit 7, OB domain / : / : / : / PSMD12/CSN4, N-terminal / 26S proteasome regulatory subunit Rpn7/COP9 signalosome complex subunit 1 / 26S proteasome regulatory subunit Rpn7, N-terminal / 26S proteasome subunit RPN7 / 26S Proteasome non-ATPase regulatory subunit 12/COP9 signalosome complex subunit 4 / Proteasome/cyclosome repeat / Proteasome/cyclosome repeat / Ubiquitin-interacting motif. / PCI/PINT associated module / : / von Willebrand factor type A domain / Proteasomal ATPase OB C-terminal domain / Proteasomal ATPase OB C-terminal domain / CSN8/PSMD8/EIF3K / CSN8/PSMD8/EIF3K family / Proteasome subunit alpha 1 / HEAT repeats / Rpn11/EIF3F, C-terminal / Maintenance of mitochondrial structure and function / : / motif in proteasome subunits, Int-6, Nip-1 and TRIP-15 / PCI domain / Proteasome component (PCI) domain / PCI domain profile. / Ubiquitin interacting motif / Ubiquitin-interacting motif (UIM) domain profile. / JAB1/Mov34/MPN/PAD-1 ubiquitin protease / Proteasome subunit alpha6 / Proteasome subunit alpha5 / Proteasome beta-type subunit, conserved site / Proteasome subunit A N-terminal signature / Proteasome alpha-type subunits signature. / Proteasome alpha-subunit, N-terminal domain / Proteasome subunit A N-terminal signature Add an annotation / von Willebrand factor (vWF) type A domain / VWFA domain profile. / : / Proteasome alpha-type subunit / Proteasome alpha-type subunit profile. / Proteasome subunit / Proteasome, subunit alpha/beta / von Willebrand factor, type A / AAA ATPase, AAA+ lid domain / AAA+ lid domain / JAB/MPN domain / JAB1/MPN/MOV34 metalloenzyme domain / ATPase, AAA-type, conserved site / AAA-protein family signature. / MPN domain / MPN domain profile. / Nucleophile aminohydrolases, N-terminal / von Willebrand factor A-like domain superfamily / ATPase family associated with various cellular activities (AAA) / ATPase, AAA-type, core / : / Ubiquitin domain signature. / Ubiquitin conserved site / Ubiquitin domain / Armadillo-like helical / Ubiquitin family / Ubiquitin homologues / Tetratricopeptide-like helical domain superfamily
Similarity search - Domain/homology
26S proteasome non-ATPase regulatory subunit 11 / 26S proteasome non-ATPase regulatory subunit 12 / 26S proteasome non-ATPase regulatory subunit 14 / Proteasome subunit alpha type-7 / 26S proteasome non-ATPase regulatory subunit 3 / Polyubiquitin-B / 26S proteasome regulatory subunit 6A / Proteasome subunit alpha type-1 / Proteasome subunit alpha type-2 / Proteasome subunit alpha type-3 ...26S proteasome non-ATPase regulatory subunit 11 / 26S proteasome non-ATPase regulatory subunit 12 / 26S proteasome non-ATPase regulatory subunit 14 / Proteasome subunit alpha type-7 / 26S proteasome non-ATPase regulatory subunit 3 / Polyubiquitin-B / 26S proteasome regulatory subunit 6A / Proteasome subunit alpha type-1 / Proteasome subunit alpha type-2 / Proteasome subunit alpha type-3 / Proteasome subunit alpha type-4 / Proteasome subunit alpha type-5 / 26S proteasome regulatory subunit 7 / 26S proteasome regulatory subunit 6B / 26S proteasome non-ATPase regulatory subunit 8 / 26S proteasome non-ATPase regulatory subunit 7 / 26S proteasome non-ATPase regulatory subunit 4 / 26S proteasome complex subunit SEM1 / Proteasome subunit alpha type-6 / 26S proteasome regulatory subunit 4 / 26S proteasome regulatory subunit 8 / 26S proteasome regulatory subunit 10B / 26S proteasome non-ATPase regulatory subunit 2 / 26S proteasome non-ATPase regulatory subunit 6 / 26S proteasome non-ATPase regulatory subunit 1 / 26S proteasome non-ATPase regulatory subunit 13
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.6 Å
AuthorsHsu STD / Draczkowski P / Wang YS
Funding support Taiwan, 4 items
OrganizationGrant numberCountry
Academia Sinica (Taiwan)AS-CDA-109- L08 Taiwan
Ministry of Science and Technology (MoST, Taiwan)MOST 109-3114-Y-001-001 Taiwan
Ministry of Science and Technology (MoST, Taiwan)MOST 110-2113-M-001- 050-MY3 Taiwan
Ministry of Science and Technology (MoST, Taiwan)MOST 110-2311-B-001-013-MY3 Taiwan
CitationJournal: To Be Published
Title: Cryo-EM structure of human 26S proteasomal RP subcomplex bound with branched Ub chain.
Authors: Draczkowski P / Hsu STD / Wang YS
History
DepositionJun 17, 2023-
Header (metadata) releaseDec 18, 2024-
Map releaseDec 18, 2024-
UpdateDec 18, 2024-
Current statusDec 18, 2024Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_36605.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationComposite sharpened cryo-EM half map of human 26S RP (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
1.4 Å/pix.
x 400 pix.
= 560. Å		1.4 Å/pix.
x 400 pix.
= 560. Å		1.4 Å/pix.
x 400 pix.
= 560. Å

Surface

Projections

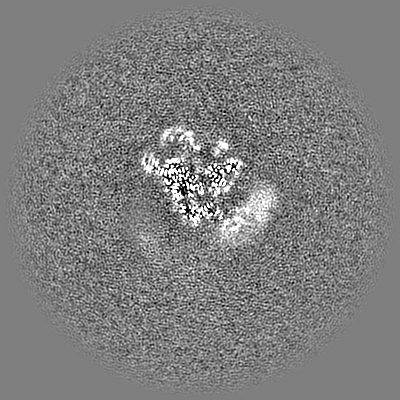

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.4 Å
Density

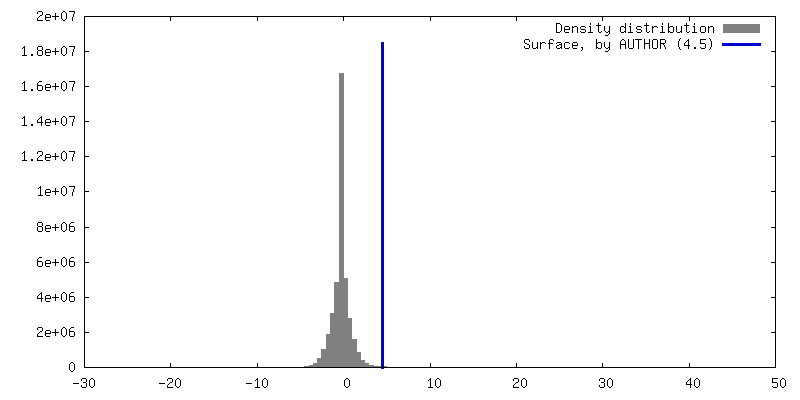

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 4.5
Minimum - Maximum-20.615373999999999 - 42.354686999999998
Average (Standard dev.)-0.000000000004151 (±1.0)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 560.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Composite unsharpened cryo-EM half map of human 26S...

Fileemd_36605_additional_1.map
AnnotationComposite unsharpened cryo-EM half map of human 26S RP (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Human 26S proteasome

EntireName: Human 26S proteasome
Components
  • Complex: Human 26S proteasome
    • Complex: 19S regulatory particle (RP) of human 26S proteasome
      • Complex: AAA+-ATPase of 19S regulatory particle (RP) of human 26S proteasome
        • Protein or peptide: 26S protease regulatory subunit 7
        • Protein or peptide: 26S protease regulatory subunit 4
        • Protein or peptide: 26S protease regulatory subunit 8
        • Protein or peptide: 26S protease regulatory subunit 6B
        • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 4
        • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 14
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 3
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 12
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 11
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 6
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 8
      • Protein or peptide: 26S proteasome complex subunit DSS1
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 2
      • Protein or peptide: 26S protease regulatory subunit 10B
      • Protein or peptide: 26S protease regulatory subunit 6A
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 1
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 7
      • Protein or peptide: 26S proteasome non-ATPase regulatory subunit 13
    • Complex: alpha subunits belonging to the 20S core particle (CP) of human 26S proteasome
      • Protein or peptide: Proteasome subunit alpha type-6
      • Protein or peptide: Proteasome subunit alpha type-2
      • Protein or peptide: Proteasome subunit alpha type-4
      • Protein or peptide: Proteasome subunit alpha type-7
      • Protein or peptide: Proteasome subunit alpha type-5
      • Protein or peptide: Proteasome subunit alpha type-1
      • Protein or peptide: Proteasome subunit alpha type-3
    • Complex: K11/K48-branched ubiquitin (Ub) chain composed of three Ub
      • Protein or peptide: Polyubiquitin-B
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION
  • Ligand: ADENOSINE-5'-DIPHOSPHATE

+
Supramolecule #1: Human 26S proteasome

SupramoleculeName: Human 26S proteasome / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#26
Details: Images of double-capped (RP-CP-RP) 26S proteasome particles were split in half. After combining with subset of single-capped (RP-CP) complexes the signal in particle images was partially ...Details: Images of double-capped (RP-CP-RP) 26S proteasome particles were split in half. After combining with subset of single-capped (RP-CP) complexes the signal in particle images was partially subtracted leaving only the signal of 19S RP together with alpha subunits of the 20S CP proteasomal subcomplex.
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #2: 19S regulatory particle (RP) of human 26S proteasome

SupramoleculeName: 19S regulatory particle (RP) of human 26S proteasome / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#4, #12-#25
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #3: AAA+-ATPase of 19S regulatory particle (RP) of human 26S proteasome

SupramoleculeName: AAA+-ATPase of 19S regulatory particle (RP) of human 26S proteasome
type: complex / ID: 3 / Parent: 2 / Macromolecule list: #1-#4, #24-#25
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #4: alpha subunits belonging to the 20S core particle (CP) of human 2...

SupramoleculeName: alpha subunits belonging to the 20S core particle (CP) of human 26S proteasome
type: complex / ID: 4 / Parent: 1 / Macromolecule list: #5-#11
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #5: K11/K48-branched ubiquitin (Ub) chain composed of three Ub

SupramoleculeName: K11/K48-branched ubiquitin (Ub) chain composed of three Ub
type: complex / ID: 5 / Parent: 1 / Macromolecule list: #26
Source (natural)Organism: Homo sapiens (human)

+
Macromolecule #1: 26S protease regulatory subunit 7

MacromoleculeName: 26S protease regulatory subunit 7 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 48.700805 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MPDYLGADQR KTKEDEKDDK PIRALDEGDI ALLKTYGQST YSRQIKQVED DIQQLLKKIN ELTGIKESDT GLAPPALWDL AADKQTLQS EQPLQVARCT KIINADSEDP KYIINVKQFA KFVVDLSDQV APTDIEEGMR VGVDRNKYQI HIPLPPKIDP T VTMMQVEE ...String:
MPDYLGADQR KTKEDEKDDK PIRALDEGDI ALLKTYGQST YSRQIKQVED DIQQLLKKIN ELTGIKESDT GLAPPALWDL AADKQTLQS EQPLQVARCT KIINADSEDP KYIINVKQFA KFVVDLSDQV APTDIEEGMR VGVDRNKYQI HIPLPPKIDP T VTMMQVEE KPDVTYSDVG GCKEQIEKLR EVVETPLLHP ERFVNLGIEP PKGVLLFGPP GTGKTLCARA VANRTDACFI RV IGSELVQ KYVGEGARMV RELFEMARTK KACLIFFDEI DAIGGARFDD GAGGDNEVQR TMLELINQLD GFDPRGNIKV LMA TNRPDT LDPALMRPGR LDRKIEFSLP DLEGRTHIFK IHARSMSVER DIRFELLARL CPNSTGAEIR SVCTEAGMFA IRAR RKIAT EKDFLEAVNK VIKSYAKFSA TPRYMTYN

UniProtKB: 26S proteasome regulatory subunit 7

+
Macromolecule #2: 26S protease regulatory subunit 4

MacromoleculeName: 26S protease regulatory subunit 4 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 49.260504 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MGQSQSGGHG PGGGKKDDKD KKKKYEPPVP TRVGKKKKKT KGPDAASKLP LVTPHTQCRL KLLKLERIKD YLLMEEEFIR NQEQMKPLE EKQEEERSKV DDLRGTPMSV GTLEEIIDDN HAIVSTSVGS EHYVSILSFV DKDLLEPGCS VLLNHKVHAV I GVLMDDTD ...String:
MGQSQSGGHG PGGGKKDDKD KKKKYEPPVP TRVGKKKKKT KGPDAASKLP LVTPHTQCRL KLLKLERIKD YLLMEEEFIR NQEQMKPLE EKQEEERSKV DDLRGTPMSV GTLEEIIDDN HAIVSTSVGS EHYVSILSFV DKDLLEPGCS VLLNHKVHAV I GVLMDDTD PLVTVMKVEK APQETYADIG GLDNQIQEIK ESVELPLTHP EYYEEMGIKP PKGVILYGPP GTGKTLLAKA VA NQTSATF LRVVGSELIQ KYLGDGPKLV RELFRVAEEH APSIVFIDEI DAIGTKRYDS NSGGEREIQR TMLELLNQLD GFD SRGDVK VIMATNRIET LDPALIRPGR IDRKIEFPLP DEKTKKRIFQ IHTSRMTLAD DVTLDDLIMA KDDLSGADIK AICT EAGLM ALRERRMKVT NEDFKKSKEN VLYKKQEGTP EGLYL

UniProtKB: 26S proteasome regulatory subunit 4

+
Macromolecule #3: 26S protease regulatory subunit 8

MacromoleculeName: 26S protease regulatory subunit 8 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 45.694047 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MALDGPEQME LEEGKAGSGL RQYYLSKIEE LQLIVNDKSQ NLRRLQAQRN ELNAKVRLLR EELQLLQEQG SYVGEVVRAM DKKKVLVKV HPEGKFVVDV DKNIDINDVT PNCRVALRND SYTLHKILPN KVDPLVSLMM VEKVPDSTYE MIGGLDKQIK E IKEVIELP ...String:
MALDGPEQME LEEGKAGSGL RQYYLSKIEE LQLIVNDKSQ NLRRLQAQRN ELNAKVRLLR EELQLLQEQG SYVGEVVRAM DKKKVLVKV HPEGKFVVDV DKNIDINDVT PNCRVALRND SYTLHKILPN KVDPLVSLMM VEKVPDSTYE MIGGLDKQIK E IKEVIELP VKHPELFEAL GIAQPKGVLL YGPPGTGKTL LARAVAHHTD CTFIRVSGSE LVQKFIGEGA RMVRELFVMA RE HAPSIIF MDEIDSIGSS RLEGGSGGDS EVQRTMLELL NQLDGFEATK NIKVIMATNR IDILDSALLR PGRIDRKIEF PPP NEEARL DILKIHSRKM NLTRGINLRK IAELMPGASG AEVKGVCTEA GMYALRERRV HVTQEDFEMA VAKVMQKDSE KNMS IKKLW K

UniProtKB: 26S proteasome regulatory subunit 8

+
Macromolecule #4: 26S protease regulatory subunit 6B

MacromoleculeName: 26S protease regulatory subunit 6B / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 47.426141 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MEEIGILVEK AQDEIPALSV SRPQTGLSFL GPEPEDLEDL YSRYKKLQQE LEFLEVQEEY IKDEQKNLKK EFLHAQEEVK RIQSIPLVI GQFLEAVDQN TAIVGSTTGS NYYVRILSTI DRELLKPNAS VALHKHSNAL VDVLPPEADS SIMMLTSDQK P DVMYADIG ...String:
MEEIGILVEK AQDEIPALSV SRPQTGLSFL GPEPEDLEDL YSRYKKLQQE LEFLEVQEEY IKDEQKNLKK EFLHAQEEVK RIQSIPLVI GQFLEAVDQN TAIVGSTTGS NYYVRILSTI DRELLKPNAS VALHKHSNAL VDVLPPEADS SIMMLTSDQK P DVMYADIG GMDIQKQEVR EAVELPLTHF ELYKQIGIDP PRGVLMYGPP GCGKTMLAKA VAHHTTAAFI RVVGSEFVQK YL GEGPRMV RDVFRLAKEN APAIIFIDEI DAIATKRFDA QTGADREVQR ILLELLNQMD GFDQNVNVKV IMATNRADTL DPA LLRPGR LDRKIEFPLP DRRQKRLIFS TITSKMNLSE EVDLEDYVAR PDKISGADIN SICQESGMLA VRENRYIVLA KDFE KAYKT VIKKDEQEHE FYK

UniProtKB: 26S proteasome regulatory subunit 6B

+
Macromolecule #5: Proteasome subunit alpha type-6

MacromoleculeName: Proteasome subunit alpha type-6 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 27.432459 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSRGSSAGFD RHITIFSPEG RLYQVEYAFK AINQGGLTSV AVRGKDCAVI VTQKKVPDKL LDSSTVTHLF KITENIGCVM TGMTADSRS QVQRARYEAA NWKYKYGYEI PVDMLCKRIA DISQVYTQNA EMRPLGCCMI LIGIDEEQGP QVYKCDPAGY Y CGFKATAA ...String:
MSRGSSAGFD RHITIFSPEG RLYQVEYAFK AINQGGLTSV AVRGKDCAVI VTQKKVPDKL LDSSTVTHLF KITENIGCVM TGMTADSRS QVQRARYEAA NWKYKYGYEI PVDMLCKRIA DISQVYTQNA EMRPLGCCMI LIGIDEEQGP QVYKCDPAGY Y CGFKATAA GVKQTESTSF LEKKVKKKFD WTFEQTVETA ITCLSTVLSI DFKPSEIEVG VVTVENPKFR ILTEAEIDAH LV ALAERD

UniProtKB: Proteasome subunit alpha type-6

+
Macromolecule #6: Proteasome subunit alpha type-2

MacromoleculeName: Proteasome subunit alpha type-2 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 25.927535 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MAERGYSFSL TTFSPSGKLV QIEYALAAVA GGAPSVGIKA ANGVVLATEK KQKSILYDER SVHKVEPITK HIGLVYSGMG PDYRVLVHR ARKLAQQYYL VYQEPIPTAQ LVQRVASVMQ EYTQSGGVRP FGVSLLICGW NEGRPYLFQS DPSGAYFAWK A TAMGKNYV ...String:
MAERGYSFSL TTFSPSGKLV QIEYALAAVA GGAPSVGIKA ANGVVLATEK KQKSILYDER SVHKVEPITK HIGLVYSGMG PDYRVLVHR ARKLAQQYYL VYQEPIPTAQ LVQRVASVMQ EYTQSGGVRP FGVSLLICGW NEGRPYLFQS DPSGAYFAWK A TAMGKNYV NGKTFLEKRY NEDLELEDAI HTAILTLKES FEGQMTEDNI EVGICNEAGF RRLTPTEVKD YLAAIA

UniProtKB: Proteasome subunit alpha type-2

+
Macromolecule #7: Proteasome subunit alpha type-4

MacromoleculeName: Proteasome subunit alpha type-4 / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 29.525842 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSRRYDSRTT IFSPEGRLYQ VEYAMEAIGH AGTCLGILAN DGVLLAAERR NIHKLLDEVF FSEKIYKLNE DMACSVAGIT SDANVLTNE LRLIAQRYLL QYQEPIPCEQ LVTALCDIKQ AYTQFGGKRP FGVSLLYIGW DKHYGFQLYQ SDPSGNYGGW K ATCIGNNS ...String:
MSRRYDSRTT IFSPEGRLYQ VEYAMEAIGH AGTCLGILAN DGVLLAAERR NIHKLLDEVF FSEKIYKLNE DMACSVAGIT SDANVLTNE LRLIAQRYLL QYQEPIPCEQ LVTALCDIKQ AYTQFGGKRP FGVSLLYIGW DKHYGFQLYQ SDPSGNYGGW K ATCIGNNS AAAVSMLKQD YKEGEMTLKS ALALAIKVLN KTMDVSKLSA EKVEIATLTR ENGKTVIRVL KQKEVEQLIK KH EEEEAKA EREKKEKEQK EKDK

UniProtKB: Proteasome subunit alpha type-4

+
Macromolecule #8: Proteasome subunit alpha type-7

MacromoleculeName: Proteasome subunit alpha type-7 / type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 27.929891 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSYDRAITVF SPDGHLFQVE YAQEAVKKGS TAVGVRGRDI VVLGVEKKSV AKLQDERTVR KICALDDNVC MAFAGLTADA RIVINRARV ECQSHRLTVE DPVTVEYITR YIASLKQRYT QSNGRRPFGI SALIVGFDFD GTPRLYQTDP SGTYHAWKAN A IGRGAKSV ...String:
MSYDRAITVF SPDGHLFQVE YAQEAVKKGS TAVGVRGRDI VVLGVEKKSV AKLQDERTVR KICALDDNVC MAFAGLTADA RIVINRARV ECQSHRLTVE DPVTVEYITR YIASLKQRYT QSNGRRPFGI SALIVGFDFD GTPRLYQTDP SGTYHAWKAN A IGRGAKSV REFLEKNYTD EAIETDDLTI KLVIKALLEV VQSGGKNIEL AVMRRDQSLK ILNPEEIEKY VAEIEKEKEE NE KKKQKKA S

UniProtKB: Proteasome subunit alpha type-7

+
Macromolecule #9: Proteasome subunit alpha type-5

MacromoleculeName: Proteasome subunit alpha type-5 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 26.435977 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MFLTRSEYDR GVNTFSPEGR LFQVEYAIEA IKLGSTAIGI QTSEGVCLAV EKRITSPLME PSSIEKIVEI DAHIGCAMSG LIADAKTLI DKARVETQNH WFTYNETMTV ESVTQAVSNL ALQFGEEDAD PGAMSRPFGV ALLFGGVDEK GPQLFHMDPS G TFVQCDAR ...String:
MFLTRSEYDR GVNTFSPEGR LFQVEYAIEA IKLGSTAIGI QTSEGVCLAV EKRITSPLME PSSIEKIVEI DAHIGCAMSG LIADAKTLI DKARVETQNH WFTYNETMTV ESVTQAVSNL ALQFGEEDAD PGAMSRPFGV ALLFGGVDEK GPQLFHMDPS G TFVQCDAR AIGSASEGAQ SSLQEVYHKS MTLKEAIKSS LIILKQVMEE KLNATNIELA TVQPGQNFHM FTKEELEEVI KD I

UniProtKB: Proteasome subunit alpha type-5

+
Macromolecule #10: Proteasome subunit alpha type-1

MacromoleculeName: Proteasome subunit alpha type-1 / type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO / EC number: proteasome endopeptidase complex
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 29.595627 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MFRNQYDNDV TVWSPQGRIH QIEYAMEAVK QGSATVGLKS KTHAVLVALK RAQSELAAHQ KKILHVDNHI GISIAGLTAD ARLLCNFMR QECLDSRFVF DRPLPVSRLV SLIGSKTQIP TQRYGRRPYG VGLLIAGYDD MGPHIFQTCP SANYFDCRAM S IGARSQSA ...String:
MFRNQYDNDV TVWSPQGRIH QIEYAMEAVK QGSATVGLKS KTHAVLVALK RAQSELAAHQ KKILHVDNHI GISIAGLTAD ARLLCNFMR QECLDSRFVF DRPLPVSRLV SLIGSKTQIP TQRYGRRPYG VGLLIAGYDD MGPHIFQTCP SANYFDCRAM S IGARSQSA RTYLERHMSE FMECNLNELV KHGLRALRET LPAEQDLTTK NVSIGIVGKD LEFTIYDDDD VSPFLEGLEE RP QRKAQPA QPADEPAEKA DEPMEH

UniProtKB: Proteasome subunit alpha type-1

+
Macromolecule #11: Proteasome subunit alpha type-3

MacromoleculeName: Proteasome subunit alpha type-3 / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 28.469252 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSSIGTGYDL SASTFSPDGR VFQVEYAMKA VENSSTAIGI RCKDGVVFGV EKLVLSKLYE EGSNKRLFNV DRHVGMAVAG LLADARSLA DIAREEASNF RSNFGYNIPL KHLADRVAMY VHAYTLYSAV RPFGCSFMLG SYSVNDGAQL YMIDPSGVSY G YWGCAIGK ...String:
MSSIGTGYDL SASTFSPDGR VFQVEYAMKA VENSSTAIGI RCKDGVVFGV EKLVLSKLYE EGSNKRLFNV DRHVGMAVAG LLADARSLA DIAREEASNF RSNFGYNIPL KHLADRVAMY VHAYTLYSAV RPFGCSFMLG SYSVNDGAQL YMIDPSGVSY G YWGCAIGK ARQAAKTEIE KLQMKEMTCR DIVKEVAKII YIVHDEVKDK AFELELSWVG ELTNGRHEIV PKDIREEAEK YA KESLKEE DESDDDNM

UniProtKB: Proteasome subunit alpha type-3

+
Macromolecule #12: 26S proteasome non-ATPase regulatory subunit 3

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 3 / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 61.0665 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MKQEGSARRR GADKAKPPPG GGEQEPPPPP APQDVEMKEE AATGGGSTGE ADGKTAAAAA EHSQRELDTV TLEDIKEHVK QLEKAVSGK EPRFVLRALR MLPSTSRRLN HYVLYKAVQG FFTSNNATRD FLLPFLEEPM DTEADLQFRP RTGKAASTPL L PEVEAYLQ ...String:
MKQEGSARRR GADKAKPPPG GGEQEPPPPP APQDVEMKEE AATGGGSTGE ADGKTAAAAA EHSQRELDTV TLEDIKEHVK QLEKAVSGK EPRFVLRALR MLPSTSRRLN HYVLYKAVQG FFTSNNATRD FLLPFLEEPM DTEADLQFRP RTGKAASTPL L PEVEAYLQ LLVVIFMMNS KRYKEAQKIS DDLMQKISTQ NRRALDLVAA KCYYYHARVY EFLDKLDVVR SFLHARLRTA TL RHDADGQ ATLLNLLLRN YLHYSLYDQA EKLVSKSVFP EQANNNEWAR YLYYTGRIKA IQLEYSEARR TMTNALRKAP QHT AVGFKQ TVHKLLIVVE LLLGEIPDRL QFRQPSLKRS LMPYFLLTQA VRTGNLAKFN QVLDQFGEKF QADGTYTLII RLRH NVIKT GVRMISLSYS RISLADIAQK LQLDSPEDAE FIVAKAIRDG VIEASINHEK GYVQSKEMID IYSTREPQLA FHQRI SFCL DIHNMSVKAM RFPPKSYNKD LESAEERRER EQQDLEFAKE MAEDDDDSFP

UniProtKB: 26S proteasome non-ATPase regulatory subunit 3

+
Macromolecule #13: 26S proteasome non-ATPase regulatory subunit 12

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 12 / type: protein_or_peptide / ID: 13 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 52.979359 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MADGGSERAD GRIVKMEVDY SATVDQRLPE CAKLAKEGRL QEVIETLLSL EKQTRTASDM VSTSRILVAV VKMCYEAKEW DLLNENIML LSKRRSQLKQ AVAKMVQQCC TYVEEITDLP IKLRLIDTLR MVTEGKIYVE IERARLTKTL ATIKEQNGDV K EAASILQE ...String:
MADGGSERAD GRIVKMEVDY SATVDQRLPE CAKLAKEGRL QEVIETLLSL EKQTRTASDM VSTSRILVAV VKMCYEAKEW DLLNENIML LSKRRSQLKQ AVAKMVQQCC TYVEEITDLP IKLRLIDTLR MVTEGKIYVE IERARLTKTL ATIKEQNGDV K EAASILQE LQVETYGSME KKERVEFILE QMRLCLAVKD YIRTQIISKK INTKFFQEEN TEKLKLKYYN LMIQLDQHEG SY LSICKHY RAIYDTPCIQ AESEKWQQAL KSVVLYVILA PFDNEQSDLV HRISGDKKLE EIPKYKDLLK LFTTMELMRW STL VEDYGM ELRKGSLESP ATDVFGSTEE GEKRWKDLKN RVVEHNIRIM AKYYTRITMK RMAQLLDLSV DESEAFLSNL VVNK TIFAK VDRLAGIINF QRPKDPNNLL NDWSQKLNSL MSLVNKTTHL IAKEEMIHNL Q

UniProtKB: 26S proteasome non-ATPase regulatory subunit 12

+
Macromolecule #14: 26S proteasome non-ATPase regulatory subunit 11

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 11 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 47.526688 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MAAAAVVEFQ RAQSLLSTDR EASIDILHSI VKRDIQENDE EAVQVKEQSI LELGSLLAKT GQAAELGGLL KYVRPFLNSI SKAKAARLV RSLLDLFLDM EAATGQEVEL CLECIEWAKS EKRTFLRQAL EARLVSLYFD TKRYQEALHL GSQLLRELKK M DDKALLVE ...String:
MAAAAVVEFQ RAQSLLSTDR EASIDILHSI VKRDIQENDE EAVQVKEQSI LELGSLLAKT GQAAELGGLL KYVRPFLNSI SKAKAARLV RSLLDLFLDM EAATGQEVEL CLECIEWAKS EKRTFLRQAL EARLVSLYFD TKRYQEALHL GSQLLRELKK M DDKALLVE VQLLESKTYH ALSNLPKARA ALTSARTTAN AIYCPPKLQA TLDMQSGIIH AAEEKDWKTA YSYFYEAFEG YD SIDSPKA ITSLKYMLLC KIMLNTPEDV QALVSGKLAL RYAGRQTEAL KCVAQASKNR SLADFEKALT DYRAELRDDP IIS THLAKL YDNLLEQNLI RVIEPFSRVQ IEHISSLIKL SKADVERKLS QMILDKKFHG ILDQGEGVLI IFDEPPVDKT YEAA LETIQ NMSKVVDSLY NKAKKLT

UniProtKB: 26S proteasome non-ATPase regulatory subunit 11

+
Macromolecule #15: 26S proteasome non-ATPase regulatory subunit 6

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 6 / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 45.592285 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MPLENLEEEG LPKNPDLRIA QLRFLLSLPE HRGDAAVRDE LMAAVRDNNM APYYEALCKS LDWQIDVDLL NKMKKANEDE LKRLDEELE DAEKNLGESE IRDAMMAKAE YLCRIGDKEG ALTAFRKTYD KTVALGHRLD IVFYLLRIGL FYMDNDLITR N TEKAKSLI ...String:
MPLENLEEEG LPKNPDLRIA QLRFLLSLPE HRGDAAVRDE LMAAVRDNNM APYYEALCKS LDWQIDVDLL NKMKKANEDE LKRLDEELE DAEKNLGESE IRDAMMAKAE YLCRIGDKEG ALTAFRKTYD KTVALGHRLD IVFYLLRIGL FYMDNDLITR N TEKAKSLI EEGGDWDRRN RLKVYQGLYC VAIRDFKQAA ELFLDTVSTF TSYELMDYKT FVTYTVYVSM IALERPDLRE KV IKGAEIL EVLHSLPAVR QYLFSLYECR YSVFFQSLAV VEQEMKKDWL FAPHYRYYVR EMRIHAYSQL LESYRSLTLG YMA EAFGVG VEFIDQELSR FIAAGRLHCK IDKVNEIVET NRPDSKNWQY QETIKKGDLL LNRVQKLSRV INM

UniProtKB: 26S proteasome non-ATPase regulatory subunit 6

+
Macromolecule #16: 26S proteasome non-ATPase regulatory subunit 8

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 8 / type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 39.667871 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MFIKGRAPRA PPRERRRATR GGLRQVVAPP RALGSTSRPH FRRASVCRRR CRKSGGLLAA SRKMAAAAVN GAAGFSSSGP AATSGAVLQ AATGMYEQLK GEWNRKSPNL SKCGEELGRL KLVLLELNFL PTTGTKLTKQ QLILARDILE IGAQWSILRK D IPSFERYM ...String:
MFIKGRAPRA PPRERRRATR GGLRQVVAPP RALGSTSRPH FRRASVCRRR CRKSGGLLAA SRKMAAAAVN GAAGFSSSGP AATSGAVLQ AATGMYEQLK GEWNRKSPNL SKCGEELGRL KLVLLELNFL PTTGTKLTKQ QLILARDILE IGAQWSILRK D IPSFERYM AQLKCYYFDY KEQLPESAYM HQLLGLNLLF LLSQNRVAEF HTELERLPAK DIQTNVYIKH PVSLEQYLME GS YNKVFLA KGNIPAESYT FFIDILLDTI RDEIAGCIEK AYEKILFTEA TRILFFNTPK KMTDYAKKRG WVLGPNNYYS FAS QQQKPE DTTIPSTELA KQVIEYARQL EMIV

UniProtKB: 26S proteasome non-ATPase regulatory subunit 8

+
Macromolecule #17: 26S proteasome complex subunit DSS1

MacromoleculeName: 26S proteasome complex subunit DSS1 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 8.284611 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
MSEKKQPVDL GLLEEDDEFE EFPAEDWAGL DEDEDAHVWE DNWDDDNVED DFSNQLRAEL EKHGYKMETS

UniProtKB: 26S proteasome complex subunit SEM1

+
Macromolecule #18: 26S proteasome non-ATPase regulatory subunit 2

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 2 / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 100.313625 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MEEGGRDKAP VQPQQSPAAA PGGTDEKPSG KERRDAGDKD KEQELSEEDK QLQDELEMLV ERLGEKDTSL YRPALEELRR QIRSSTTSM TSVPKPLKFL RPHYGKLKEI YENMAPGENK RFAADIISVL AMTMSGEREC LKYRLVGSQE ELASWGHEYV R HLAGEVAK ...String:
MEEGGRDKAP VQPQQSPAAA PGGTDEKPSG KERRDAGDKD KEQELSEEDK QLQDELEMLV ERLGEKDTSL YRPALEELRR QIRSSTTSM TSVPKPLKFL RPHYGKLKEI YENMAPGENK RFAADIISVL AMTMSGEREC LKYRLVGSQE ELASWGHEYV R HLAGEVAK EWQELDDAEK VQREPLLTLV KEIVPYNMAH NAEHEACDLL MEIEQVDMLE KDIDENAYAK VCLYLTSCVN YV PEPENSA LLRCALGVFR KFSRFPEALR LALMLNDMEL VEDIFTSCKD VVVQKQMAFM LGRHGVFLEL SEDVEEYEDL TEI MSNVQL NSNFLALARE LDIMEPKVPD DIYKTHLENN RFGGSGSQVD SARMNLASSF VNGFVNAAFG QDKLLTDDGN KWLY KNKDH GMLSAAASLG MILLWDVDGG LTQIDKYLYS SEDYIKSGAL LACGIVNSGV RNECDPALAL LSDYVLHNSN TMRLG SIFG LGLAYAGSNR EDVLTLLLPV MGDSKSSMEV AGVTALACGM IAVGSCNGDV TSTILQTIME KSETELKDTY ARWLPL GLG LNHLGKGEAI EAILAALEVV SEPFRSFANT LVDVCAYAGS GNVLKVQQLL HICSEHFDSK EKEEDKDKKE KKDKDKK EA PADMGAHQGV AVLGIALIAM GEEIGAEMAL RTFGHLLRYG EPTLRRAVPL ALALISVSNP RLNILDTLSK FSHDADPE V SYNSIFAMGM VGSGTNNARL AAMLRQLAQY HAKDPNNLFM VRLAQGLTHL GKGTLTLCPY HSDRQLMSQV AVAGLLTVL VSFLDVRNII LGKSHYVLYG LVAAMQPRML VTFDEELRPL PVSVRVGQAV DVVGQAGKPK TITGFQTHTT PVLLAHGERA ELATEEFLP VTPILEGFVI LRKNPNYDL

UniProtKB: 26S proteasome non-ATPase regulatory subunit 2

+
Macromolecule #19: 26S protease regulatory subunit 10B

MacromoleculeName: 26S protease regulatory subunit 10B / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 44.241008 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MADPRDKALQ DYRKKLLEHK EIDGRLKELR EQLKELTKQY EKSENDLKAL QSVGQIVGEV LKQLTEEKFI VKATNGPRYV VGCRRQLDK SKLKPGTRVA LDMTTLTIMR YLPREVDPLV YNMSHEDPGN VSYSEIGGLS EQIRELREVI ELPLTNPELF Q RVGIIPPK ...String:
MADPRDKALQ DYRKKLLEHK EIDGRLKELR EQLKELTKQY EKSENDLKAL QSVGQIVGEV LKQLTEEKFI VKATNGPRYV VGCRRQLDK SKLKPGTRVA LDMTTLTIMR YLPREVDPLV YNMSHEDPGN VSYSEIGGLS EQIRELREVI ELPLTNPELF Q RVGIIPPK GCLLYGPPGT GKTLLARAVA SQLDCNFLKV VSSSIVDKYI GESARLIREM FNYARDHQPC IIFMDEIDAI GG RRFSEGT SADREIQRTL MELLNQMDGF DTLHRVKMIM ATNRPDTLDP ALLRPGRLDR KIHIDLPNEQ ARLDILKIHA GPI TKHGEI DYEAIVKLSD GFNGADLRNV CTEAGMFAIR ADHDFVVQED FMKAVRKVAD SKKLESKLDY KPV

UniProtKB: 26S proteasome regulatory subunit 10B

+
Macromolecule #20: 26S protease regulatory subunit 6A

MacromoleculeName: 26S protease regulatory subunit 6A / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 49.266457 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MNLLPNIESP VTRQEKMATV WDEAEQDGIG EEVLKMSTEE IIQRTRLLDS EIKIMKSEVL RVTHELQAMK DKIKENSEKI KVNKTLPYL VSNVIELLDV DPNDQEEDGA NIDLDSQRKG KCAVIKTSTR QTYFLPVIGL VDAEKLKPGD LVGVNKDSYL I LETLPTEY ...String:
MNLLPNIESP VTRQEKMATV WDEAEQDGIG EEVLKMSTEE IIQRTRLLDS EIKIMKSEVL RVTHELQAMK DKIKENSEKI KVNKTLPYL VSNVIELLDV DPNDQEEDGA NIDLDSQRKG KCAVIKTSTR QTYFLPVIGL VDAEKLKPGD LVGVNKDSYL I LETLPTEY DSRVKAMEVD ERPTEQYSDI GGLDKQIQEL VEAIVLPMNH KEKFENLGIQ PPKGVLMYGP PGTGKTLLAR AC AAQTKAT FLKLAGPQLV QMFIGDGAKL VRDAFALAKE KAPSIIFIDE LDAIGTKRFD SEKAGDREVQ RTMLELLNQL DGF QPNTQV KVIAATNRVD ILDPALLRSG RLDRKIEFPM PNEEARARIM QIHSRKMNVS PDVNYEELAR CTDDFNGAQC KAVC VEAGM IALRRGATEL THEDYMEGIL EVQAKKKANL QYYA

UniProtKB: 26S proteasome regulatory subunit 6A

+
Macromolecule #21: 26S proteasome non-ATPase regulatory subunit 1

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 1 / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 105.958234 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MITSAAGIIS LLDEDEPQLK EFALHKLNAV VNDFWAEISE SVDKIEVLYE DEGFRSRQFA ALVASKVFYH LGAFEESLNY ALGAGDLFN VNDNSEYVET IIAKCIDHYT KQCVENADLP EGEKKPIDQR LEGIVNKMFQ RCLDDHKYKQ AIGIALETRR L DVFEKTIL ...String:
MITSAAGIIS LLDEDEPQLK EFALHKLNAV VNDFWAEISE SVDKIEVLYE DEGFRSRQFA ALVASKVFYH LGAFEESLNY ALGAGDLFN VNDNSEYVET IIAKCIDHYT KQCVENADLP EGEKKPIDQR LEGIVNKMFQ RCLDDHKYKQ AIGIALETRR L DVFEKTIL ESNDVPGMLA YSLKLCMSLM QNKQFRNKVL RVLVKIYMNL EKPDFINVCQ CLIFLDDPQA VSDILEKLVK ED NLLMAYQ ICFDLYESAS QQFLSSVIQN LRTVGTPIAS VPGSTNTGTV PGSEKDSDSM ETEEKTSSAF VGKTPEASPE PKD QTLKMI KILSGEMAIE LHLQFLIRNN NTDLMILKNT KDAVRNSVCH TATVIANSFM HCGTTSDQFL RDNLEWLARA TNWA KFTAT ASLGVIHKGH EKEALQLMAT YLPKDTSPGS AYQEGGGLYA LGLIHANHGG DIIDYLLNQL KNASNDIVRH GGSLG LGLA AMGTARQDVY DLLKTNLYQD DAVTGEAAGL ALGLVMLGSK NAQAIEDMVG YAQETQHEKI LRGLAVGIAL VMYGRM EEA DALIESLCRD KDPILRRSGM YTVAMAYCGS GNNKAIRRLL HVAVSDVNDD VRRAAVESLG FILFRTPEQC PSVVSLL SE SYNPHVRYGA AMALGICCAG TGNKEAINLL EPMTNDPVNY VRQGALIASA LIMIQQTEIT CPKVNQFRQL YSKVINDK H DDVMAKFGAI LAQGILDAGG HNVTISLQSR TGHTHMPSVV GVLVFTQFWF WFPLSHFLSL AYTPTCVIGL NKDLKMPKV QYKSNCKPST FAYPAPLEVP KEKEKEKVST AVLSITAKAK KKEKEKEKKE EEKMEVDEAE KKEEKEKKKE PEPNFQLLDN PARVMPAQL KVLTMPETCR YQPFKPLSIG GIIILKDTSE DIEELVEPVA AHGPKIEEEE QEPEPPEPFE YIDD

UniProtKB: 26S proteasome non-ATPase regulatory subunit 1

+
Macromolecule #22: 26S proteasome non-ATPase regulatory subunit 7

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 7 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 37.086441 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MPELAVQKVV VHPLVLLSVV DHFNRIGKVG NQKRVVGVLL GSWQKKVLDV SNSFAVPFDE DDKDDSVWFL DHDYLENMYG MFKKVNARE RIVGWYHTGP KLHKNDIAIN ELMKRYCPNS VLVIIDVKPK DLGLPTEAYI SVEEVHDDGT PTSKTFEHVT S EIGAEEAE ...String:
MPELAVQKVV VHPLVLLSVV DHFNRIGKVG NQKRVVGVLL GSWQKKVLDV SNSFAVPFDE DDKDDSVWFL DHDYLENMYG MFKKVNARE RIVGWYHTGP KLHKNDIAIN ELMKRYCPNS VLVIIDVKPK DLGLPTEAYI SVEEVHDDGT PTSKTFEHVT S EIGAEEAE EVGVEHLLRD IKDTTVGTLS QRITNQVHGL KGLNSKLLDI RSYLEKVATG KLPINHQIIY QLQDVFNLLP DV SLQEFVK AFYLKTNDQM VVVYLASLIR SVVALHNLIN NKIANRDAEK KEGQEKEESK KDRKEDKEKD KDKEKSDVKK EEK KEKK

UniProtKB: 26S proteasome non-ATPase regulatory subunit 7

+
Macromolecule #23: 26S proteasome non-ATPase regulatory subunit 13

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 13 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 42.995359 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MKDVPGFLQQ SQNSGPGQPA VWHRLEELYT KKLWHQLTLQ VLDFVQDPCF AQGDGLIKLY ENFISEFEHR VNPLSLVEII LHVVRQMTD PNVALTFLEK TREKVKSSDE AVILCKTAIG ALKLNIGDLQ VTKETIEDVE EMLNNLPGVT SVHSRFYDLS S KYYQTIGN ...String:
MKDVPGFLQQ SQNSGPGQPA VWHRLEELYT KKLWHQLTLQ VLDFVQDPCF AQGDGLIKLY ENFISEFEHR VNPLSLVEII LHVVRQMTD PNVALTFLEK TREKVKSSDE AVILCKTAIG ALKLNIGDLQ VTKETIEDVE EMLNNLPGVT SVHSRFYDLS S KYYQTIGN HASYYKDALR FLGCVDIKDL PVSEQQERAF TLGLAGLLGE GVFNFGELLM HPVLESLRNT DRQWLIDTLY AF NSGNVER FQTLKTAWGQ QPDLAANEAQ LLRKIQLLCL MEMTFTRPAN HRQLTFEEIA KSAKITVNEV ELLVMKALSV GLV KGSIDE VDKRVHMTWV QPRVLDLQQI KGMKDRLEFW CTDVKSMEML VEHQAHDILT

UniProtKB: 26S proteasome non-ATPase regulatory subunit 13

+
Macromolecule #24: 26S proteasome non-ATPase regulatory subunit 4

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 4 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 40.78159 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MVLESTMVCV DNSEYMRNGD FLPTRLQAQQ DAVNIVCHSK TRSNPENNVG LITLANDCEV LTTLTPDTGR ILSKLHTVQP KGKITFCTG IRVAHLALKH RQGKNHKMRI IAFVGSPVED NEKDLVKLAK RLKKEKVNVD IINFGEEEVN TEKLTAFVNT L NGKDGTGS ...String:
MVLESTMVCV DNSEYMRNGD FLPTRLQAQQ DAVNIVCHSK TRSNPENNVG LITLANDCEV LTTLTPDTGR ILSKLHTVQP KGKITFCTG IRVAHLALKH RQGKNHKMRI IAFVGSPVED NEKDLVKLAK RLKKEKVNVD IINFGEEEVN TEKLTAFVNT L NGKDGTGS HLVTVPPGPS LADALISSPI LAGEGGAMLG LGASDFEFGV DPSADPELAL ALRVSMEEQR QRQEEEARRA AA ASAAEAG IATTGTEDSD DALLKMTISQ QEFGRTGLPD LSSMTEEEQI AYAMQMSLQG AEFGQAESAD IDASSAMDTS EPA KEEDDY DVMQDPEFLQ SVLENLPGVD PNNEAIRNAM GSLASQATKD GKKDKKEEDK K

UniProtKB: 26S proteasome non-ATPase regulatory subunit 4

+
Macromolecule #25: 26S proteasome non-ATPase regulatory subunit 14

MacromoleculeName: 26S proteasome non-ATPase regulatory subunit 14 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
EC number: Hydrolases; Acting on peptide bonds (peptidases); Omega peptidases
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 34.620023 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MDRLLRLGGG MPGLGQGPPT DAPAVDTAEQ VYISSLALLK MLKHGRAGVP MEVMGLMLGE FVDDYTVRVI DVFAMPQSGT GVSVEAVDP VFQAKMLDML KQTGRPEMVV GWYHSHPGFG CWLSGVDINT QQSFEALSER AVAVVVDPIQ SVKGKVVIDA F RLINANMM ...String:
MDRLLRLGGG MPGLGQGPPT DAPAVDTAEQ VYISSLALLK MLKHGRAGVP MEVMGLMLGE FVDDYTVRVI DVFAMPQSGT GVSVEAVDP VFQAKMLDML KQTGRPEMVV GWYHSHPGFG CWLSGVDINT QQSFEALSER AVAVVVDPIQ SVKGKVVIDA F RLINANMM VLGHEPRQTT SNLGHLNKPS IQALIHGLNR HYYSITINYR KNELEQKMLL NLHKKSWMEG LTLQDYSEHC KH NESVVKE MLELAKNYNK AVEEEDKMTP EQLAIKNVGK QDPKRHLEEH VDVLMTSNIV QCLAAMLDTV VFK

UniProtKB: 26S proteasome non-ATPase regulatory subunit 14

+
Macromolecule #26: Polyubiquitin-B

MacromoleculeName: Polyubiquitin-B / type: protein_or_peptide / ID: 26
Details: GSGGS linker sequence remaining at C-terminus after TEV cleavage
Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 8.950154 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
GSGGSMQIFV KTLTGKTITL EVEPSDTIEN VKAKIQDKEG IPPDQQRLIF AGKQLEDGRT LSDYNIQRES TLHLVLRLRG G

UniProtKB: Polyubiquitin-B

+
Macromolecule #27: ADENOSINE-5'-TRIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 27 / Number of copies: 4 / Formula: ATP
Molecular weightTheoretical: 507.181 Da
Chemical component information

ChemComp-ATP:
ADENOSINE-5'-TRIPHOSPHATE / ATP, energy-carrying molecule*YM

+
Macromolecule #28: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 28 / Number of copies: 5 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #29: ADENOSINE-5'-DIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-DIPHOSPHATE / type: ligand / ID: 29 / Number of copies: 2 / Formula: ADP
Molecular weightTheoretical: 427.201 Da
Chemical component information

ChemComp-ADP:
ADENOSINE-5'-DIPHOSPHATE / ADP, energy-carrying molecule*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1 mg/mL
BufferpH: 7.6
Component:
ConcentrationFormulaName
20.0 mMC8H18N2O4SHEPES
40.0 mMNaClsodium chloride
5.0 mMMgCl2magnesium chloride
2.0 mMC2H6OS2-Mercaptoethanol
0.5 mMC12H8N21,10-Phenanthroline
2.0 mMC10H16N5O13P3adenosine triphosphate
GridModel: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 30 sec. / Pretreatment - Atmosphere: AIR / Details: 20 mA
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV / Details: incubation time= 3 s blotting time= 2.5 s.
DetailsThe complex was additionally supplemented with an excess of preformed and SEC-purified RPN13:UCHL5 complex.

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Number grids imaged: 3 / Number real images: 15242 / Average exposure time: 1.8 sec. / Average electron dose: 49.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 1.2 µm / Nominal magnification: 70000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 2695911
Startup modelType of model: INSILICO MODEL
In silico model: Generated by cryoSPARC using Ab-initio Reconstruction job type.
Final reconstructionNumber classes used: 1 / Applied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 3.6 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 3.1)
Details: Performed in cryoSPARC using Non-uniform Refinment and Local Refinment job types.
Number images used: 54794
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.1)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 3.1)
Details: Performed in cryoSPARC using Non-uniform Refinment and Local Refinment job types.
Final 3D classificationNumber classes: 6 / Software - Name: cryoSPARC (ver. 3.1)
Details: 3D variability analysis (3DVA) followed by Heterogenous refinement using 3DVA cluster volumes as starting references.
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelPDB ID:

6msb


Chain - Source name: PDB / Chain - Initial model type: experimental model
RefinementSpace: REAL / Protocol: OTHER / Overall B value: 121.58 / Target criteria: 0.83
Output model

PDB-8jrt:
Cryo-EM structure of human 26S proteasomal RP subcomplex (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub.

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
