Basic information

Entry
Database: EMDB / ID: EMD-33894
TitleOmicron Spike trimer bound with side P3E6 Fab (1 RBD up and 2 RBDs down)
Map data
Sample
  • Complex: The complex of Omicron Spike trimer bound with P3E6 Fab
    • Complex: Spike glycoproteinSpike protein
    • Complex: P3E6 Fab
KeywordsCOVID-19 / P3E6 / Omicron / spike protein / VIRAL PROTEIN / VIRAL PROTEIN-IMMUNE SYSTEM complex
Biological speciesSevere acute respiratory syndrome coronavirus 2 / Homo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.27 Å
AuthorsTang B / Dang S
Funding support Hong Kong, 1 items
OrganizationGrant numberCountry
The University Grants Committee, Research Grants Council (RGC) Hong Kong
CitationJournal: Emerg Microbes Infect / Year: 2023
Title: Structural insights into broadly neutralizing antibodies elicited by hybrid immunity against SARS-CoV-2.
Authors: Mengxiao Luo / Biao Zhou / Eswar R Reddem / Bingjie Tang / Bohao Chen / Runhong Zhou / Hang Liu / Lihong Liu / Phinikoula S Katsamba / Ka-Kit Au / Hiu-On Man / Kelvin Kai-Wang To / Kwok-Yung ...Authors: Mengxiao Luo / Biao Zhou / Eswar R Reddem / Bingjie Tang / Bohao Chen / Runhong Zhou / Hang Liu / Lihong Liu / Phinikoula S Katsamba / Ka-Kit Au / Hiu-On Man / Kelvin Kai-Wang To / Kwok-Yung Yuen / Lawrence Shapiro / Shangyu Dang / David D Ho / Zhiwei Chen /
Abstract: Increasing spread by SARS-CoV-2 Omicron variants challenges existing vaccines and broadly reactive neutralizing antibodies (bNAbs) against COVID-19. Here we determine the diversity, potency, breadth ...Increasing spread by SARS-CoV-2 Omicron variants challenges existing vaccines and broadly reactive neutralizing antibodies (bNAbs) against COVID-19. Here we determine the diversity, potency, breadth and structural insights of bNAbs derived from memory B cells of BNT162b2-vaccinee after homogeneous Omicron BA.1 breakthrough infection. The infection activates diverse memory B cell clonotypes for generating potent class I/II and III bNAbs with new epitopes mapped to the receptor-binding domain (RBD). The top eight bNAbs neutralize wildtype and BA.1 potently but display divergent IgH/IgL sequences and neuralization profiles against other variants of concern (VOCs). Two of them (P2D9 and P3E6) belonging to class III NAbs display comparable potency against BA.4/BA.5, although structural analysis reveals distinct modes of action. P3E6 neutralizes all variants tested through a unique bivalent interaction with two RBDs. Our findings provide new insights into hybrid immunity on BNT162b2-induced diverse memory B cells in response to Omicron breakthrough infection for generating diverse bNAbs with distinct structural basis.
History
DepositionJul 22, 2022-
Header (metadata) releaseDec 28, 2022-
Map releaseDec 28, 2022-
UpdateDec 13, 2023-
Current statusDec 13, 2023Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_33894.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Voxel sizeX=Y=Z: 1.06 Å
Density
Contour LevelBy AUTHOR: 0.22
Minimum - Maximum-0.3158549 - 1.3319087
Average (Standard dev.)0.00076644577 (±0.048656758)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions320320320
Spacing320320320
CellA=B=C: 339.19998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_33894_half_map_1.map
Projections & Slices
AxesZYX

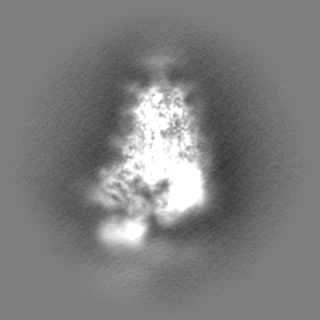

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_33894_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : The complex of Omicron Spike trimer bound with P3E6 Fab

EntireName: The complex of Omicron Spike trimer bound with P3E6 Fab
Components
  • Complex: The complex of Omicron Spike trimer bound with P3E6 Fab
    • Complex: Spike glycoproteinSpike protein
    • Complex: P3E6 Fab

-
Supramolecule #1: The complex of Omicron Spike trimer bound with P3E6 Fab

SupramoleculeName: The complex of Omicron Spike trimer bound with P3E6 Fab
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Supramolecule #2: Spike glycoprotein

SupramoleculeName: Spike glycoprotein / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #3: P3E6 Fab

SupramoleculeName: P3E6 Fab / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #2

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELDBright-field microscopy / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.0 µm
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6z97

Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.27 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 82194

+
