Basic information

Entry
Database: EMDB / ID: EMD-33851
TitleCryo-EM map of Rpd3S complex bound to H3K36me3 nucleosome in close state
Map data
Sample
  • Complex: Rpd3S complex with H3K36me3 nucleosome
    • Complex: SIN3/RPD3/EAF3/RCO1
      • Protein or peptide: x 4 types
    • Complex: Histone H4/H2A/H2B 1.1
      • Protein or peptide: x 3 types
    • Complex: DNA
      • DNA: x 2 types
    • Complex: Histone H3
      • Protein or peptide: x 1 types
  • Ligand: x 1 types
KeywordsDynamic Histone Modifications / Gene Regulation / Histone Deacetylase Complex
Function / homology
Function and homology information


nucleosome disassembly/reassembly complex / negative regulation of antisense RNA transcription / Snt2C complex / negative regulation of silent mating-type cassette heterochromatin formation / negative regulation of reciprocal meiotic recombination / Rpd3L complex / protein localization to nucleolar rDNA repeats / negative regulation of rDNA heterochromatin formation / Rpd3L-Expanded complex / Rpd3S complex ...nucleosome disassembly/reassembly complex / negative regulation of antisense RNA transcription / Snt2C complex / negative regulation of silent mating-type cassette heterochromatin formation / negative regulation of reciprocal meiotic recombination / Rpd3L complex / protein localization to nucleolar rDNA repeats / negative regulation of rDNA heterochromatin formation / Rpd3L-Expanded complex / Rpd3S complex / rDNA chromatin condensation / regulation of RNA stability / nucleophagy / HDACs deacetylate histones / DNA replication-dependent chromatin assembly / histone deacetylase / nucleosome disassembly / SUMOylation of chromatin organization proteins / cellular response to nitrogen starvation / negative regulation of transcription by RNA polymerase I / regulation of DNA-templated DNA replication initiation / histone deacetylase activity / NuA4 histone acetyltransferase complex / Sin3-type complex / positive regulation of macroautophagy / Estrogen-dependent gene expression / histone deacetylase complex / histone acetyltransferase complex / methylated histone binding / nuclear periphery / meiotic cell cycle / positive regulation of transcription elongation by RNA polymerase II / transcription elongation by RNA polymerase II / heterochromatin formation / double-strand break repair via nonhomologous end joining / G1/S transition of mitotic cell cycle / structural constituent of chromatin / transcription corepressor activity / G2/M transition of mitotic cell cycle / nucleosome / nucleosome assembly / cellular response to heat / response to oxidative stress / transcription coactivator activity / protein heterodimerization activity / cell division / DNA repair / negative regulation of DNA-templated transcription / DNA-templated transcription / regulation of DNA-templated transcription / chromatin / regulation of transcription by RNA polymerase II / negative regulation of transcription by RNA polymerase II / positive regulation of transcription by RNA polymerase II / DNA binding / identical protein binding / nucleus / metal ion binding / cytoplasm
Similarity search - Function
: / : / MSL3 chromodomain-like / Histone deacetylase interacting domain / Sin3, C-terminal / Transcriptional regulatory protein Sin3-like / Sin3 family co-repressor / C-terminal domain of Sin3a protein / Histone deacetylase (HDAC) interacting / Paired amphipathic helix ...: / : / MSL3 chromodomain-like / Histone deacetylase interacting domain / Sin3, C-terminal / Transcriptional regulatory protein Sin3-like / Sin3 family co-repressor / C-terminal domain of Sin3a protein / Histone deacetylase (HDAC) interacting / Paired amphipathic helix / Paired amphipathic helix superfamily / Paired amphipathic helix repeat / PAH domain profile. / MRG / MRG domain / MRG, C-terminal domain superfamily / MRG / MRG domain profile. / Histone deacetylase / Chromo/chromo shadow domain / Chromatin organization modifier domain / Chromo-like domain superfamily / : / Histone deacetylase family / Histone deacetylase domain / Histone deacetylase domain superfamily / Histone deacetylase domain / Ureohydrolase domain superfamily / Zinc finger, PHD-type, conserved site / PHD-finger / Zinc finger PHD-type signature. / Histone H2B signature. / Histone H2B / Histone H2B / Histone H2A conserved site / Histone H2A signature. / Histone H2A, C-terminal domain / C-terminus of histone H2A / Histone H2A / Histone 2A / Histone H4, conserved site / Histone H4 signature. / TATA box binding protein associated factor / TATA box binding protein associated factor (TAF), histone-like fold domain / Histone H4 / Histone H4 / CENP-T/Histone H4, histone fold / Centromere kinetochore component CENP-T histone fold / Zinc finger PHD-type profile. / Zinc finger, PHD-finger / Zinc finger, PHD-type / PHD zinc finger / Histone H3 signature 1. / Histone H3 signature 2. / Histone H3 / Histone H3/CENP-A / Zinc finger, FYVE/PHD-type / Histone H2A/H2B/H3 / Core histone H2A/H2B/H3/H4 / Histone-fold / Zinc finger, RING/FYVE/PHD-type
Similarity search - Domain/homology
Histone H3 / Histone H2B 1.1 / Transcriptional regulatory protein SIN3 / Histone deacetylase RPD3 / Histone H4 / Transcriptional regulatory protein RCO1 / Chromatin modification-related protein EAF3 / Histone H2A
Similarity search - Component
Biological speciesSaccharomyces cerevisiae S288C (yeast) / Xenopus laevis (African clawed frog) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.96 Å
AuthorsLi HT / Yan CY / Guan HP / Wang P
Funding support China, 4 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC)31725014 China
National Natural Science Foundation of China (NSFC)91753203 China
Ministry of Science and Technology (MoST, China)2020YFA0803300 China
Ministry of Science and Technology (MoST, China)2021YFA1300100 China
CitationJournal: Nature / Year: 2023
Title: Diverse modes of H3K36me3-guided nucleosomal deacetylation by Rpd3S.
Authors: Haipeng Guan / Pei Wang / Pei Zhang / Chun Ruan / Yutian Ou / Bo Peng / Xiangdong Zheng / Jianlin Lei / Bing Li / Chuangye Yan / Haitao Li /
Abstract: Context-dependent dynamic histone modifications constitute a key epigenetic mechanism in gene regulation. The Rpd3 small (Rpd3S) complex recognizes histone H3 trimethylation on lysine 36 (H3K36me3) ...Context-dependent dynamic histone modifications constitute a key epigenetic mechanism in gene regulation. The Rpd3 small (Rpd3S) complex recognizes histone H3 trimethylation on lysine 36 (H3K36me3) and deacetylates histones H3 and H4 at multiple sites across transcribed regions. Here we solved the cryo-electron microscopy structures of Saccharomyces cerevisiae Rpd3S in its free and H3K36me3 nucleosome-bound states. We demonstrated a unique architecture of Rpd3S, in which two copies of Eaf3-Rco1 heterodimers are asymmetrically assembled with Rpd3 and Sin3 to form a catalytic core complex. Multivalent recognition of two H3K36me3 marks, nucleosomal DNA and linker DNAs by Eaf3, Sin3 and Rco1 positions the catalytic centre of Rpd3 next to the histone H4 N-terminal tail for deacetylation. In an alternative catalytic mode, combinatorial readout of unmethylated histone H3 lysine 4 and H3K36me3 by Rco1 and Eaf3 directs histone H3-specific deacetylation except for the registered histone H3 acetylated lysine 9. Collectively, our work illustrates dynamic and diverse modes of multivalent nucleosomal engagement and methylation-guided deacetylation by Rpd3S, highlighting the exquisite complexity of epigenetic regulation with delicately designed multi-subunit enzymatic machineries in transcription and beyond.
History
DepositionJul 14, 2022-
Header (metadata) releaseJun 14, 2023-
Map releaseJun 14, 2023-
UpdateAug 30, 2023-
Current statusAug 30, 2023Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_33851.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.08 Å/pix.
x 300 pix.
= 324.75 Å		1.08 Å/pix.
x 300 pix.
= 324.75 Å		1.08 Å/pix.
x 300 pix.
= 324.75 Å

Surface

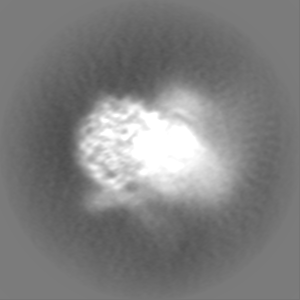

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.0825 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.011
Minimum - Maximum-0.004288175 - 0.036289982
Average (Standard dev.)0.00021931647 (±0.002053673)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 324.75 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_33851_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_33851_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Rpd3S complex with H3K36me3 nucleosome

EntireName: Rpd3S complex with H3K36me3 nucleosome
Components
  • Complex: Rpd3S complex with H3K36me3 nucleosome
    • Complex: SIN3/RPD3/EAF3/RCO1
      • Protein or peptide: Transcriptional regulatory protein SIN3
      • Protein or peptide: Histone deacetylase RPD3
      • Protein or peptide: Chromatin modification-related protein EAF3
      • Protein or peptide: Transcriptional regulatory protein RCO1
    • Complex: Histone H4/H2A/H2B 1.1
      • Protein or peptide: Histone H4
      • Protein or peptide: Histone H2A
      • Protein or peptide: Histone H2B 1.1
    • Complex: DNA
      • DNA: Wisdom 601 DNA (167-MER)
      • DNA: Wisdom 601 DNA (167-MER)
    • Complex: Histone H3
      • Protein or peptide: Histone H3
  • Ligand: ZINC ION

+
Supramolecule #1: Rpd3S complex with H3K36me3 nucleosome

SupramoleculeName: Rpd3S complex with H3K36me3 nucleosome / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#10
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast)
Molecular weightTheoretical: 723 kDa/nm

+
Supramolecule #2: SIN3/RPD3/EAF3/RCO1

SupramoleculeName: SIN3/RPD3/EAF3/RCO1 / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#4
Source (natural)Organism: Xenopus laevis (African clawed frog)

+
Supramolecule #3: Histone H4/H2A/H2B 1.1

SupramoleculeName: Histone H4/H2A/H2B 1.1 / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #5-#7
Source (natural)Organism: synthetic construct (others)

+
Supramolecule #4: DNA

SupramoleculeName: DNA / type: complex / ID: 4 / Parent: 1 / Macromolecule list: #8-#9
Source (natural)Organism: Xenopus laevis (African clawed frog)

+
Supramolecule #5: Histone H3

SupramoleculeName: Histone H3 / type: complex / ID: 5 / Parent: 1 / Macromolecule list: #10

+
Macromolecule #1: Transcriptional regulatory protein SIN3

MacromoleculeName: Transcriptional regulatory protein SIN3 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 175.047266 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MSQVWHNSNS QSNDVATSND ATGSNERNEK EPSLQGNKPG FVQQQQRITL PSLSALSTKE EDRRDSNGQQ ALTSHAAHIL GYPPPHSNA MPSIATDSAL KQPHEYHPRP KSSSSSPSIN ASLMNAGPAP LPTVGAASFS LSRFDNPLPI KAPVHTEEPK S YNGLQEEE ...String:
MSQVWHNSNS QSNDVATSND ATGSNERNEK EPSLQGNKPG FVQQQQRITL PSLSALSTKE EDRRDSNGQQ ALTSHAAHIL GYPPPHSNA MPSIATDSAL KQPHEYHPRP KSSSSSPSIN ASLMNAGPAP LPTVGAASFS LSRFDNPLPI KAPVHTEEPK S YNGLQEEE KATQRPQDCK EVPAGVQPAD APDPSSNHAD ANDDNNNNEN SHDEDADYRP LNVKDALSYL EQVKFQFSSR PD IYNLFLD IMKDFKSQAI DTPGVIERVS TLFRGYPILI QGFNTFLPQG YRIECSSNPD DPIRVTTPMG TTTVNNNISP SGR GTTDAQ ELGSFPESDG NGVQQPSNVP MVPSSVYQSE QNQDQQQSLP LLATSSGLPS IQQPEMPAHR QIPQSQSLVP QEDA KKNVD VEFSQAISYV NKIKTRFADQ PDIYKHFLEI LQTYQREQKP INEVYAQVTH LFQNAPDLLE DFKKFLPDSS ASANQ QVQH AQQHAQQQHE AQMHAQAQAQ AQAQAQVEQQ KQQQQFLYPA SGYYGHPSNR GIPQQNLPPI GSFSPPTNGS TVHEAY QDQ QHMQPPHFMP LPSIVQHGPN MVHQGIANEN PPLSDLRTSL TEQYAPSSIQ HQQQHPQSIS PIANTQYGDI PVRPEID LD PSIVPVVPEP TEPIENNISL NEEVTFFEKA KRYIGNKHLY TEFLKILNLY SQDILDLDDL VEKVDFYLGS NKELFTWF K NFVGYQEKTK CIENIVHEKH RLDLDLCEAF GPSYKRLPKS DTFMPCSGRD DMCWEVLNDE WVGHPVWASE DSGFIAHRK NQYEETLFKI EEERHEYDFY IESNLRTIQC LETIVNKIEN MTENEKANFK LPPGLGHTSM TIYKKVIRKV YDKERGFEII DALHEHPAV TAPVVLKRLK QKDEEWRRAQ REWNKVWREL EQKVFFKSLD HLGLTFKQAD KKLLTTKQLI SEISSIKVDQ T NKKIHWLT PKPKSQLDFD FPDKNIFYDI LCLADTFITH TTAYSNPDKE RLKDLLKYFI SLFFSISFEK IEESLYSHKQ NV SESSGSD DGSSIASRKR PYQQEMSLLD ILHRSRYQKL KRSNDEDGKV PQLSEPPEEE PNTIEEEELI DEEAKNPWLT GNL VEEANS QGIIQNRSIF NLFANTNIYI FFRHWTTIYE RLLEIKQMNE RVTKEINTRS TVTFAKDLDL LSSQLSEMGL DFVG EDAYK QVLRLSRRLI NGDLEHQWFE ESLRQAYNNK AFKLYTIDKV TQSLVKHAHT LMTDAKTAEI MALFVKDRNA STTSA KDQI IYRLQVRSHM SNTENMFRIE FDKRTLHVSI QYIALDDLTL KEPKADEDKW KYYVTSYALP HPTEGIPHEK LKIPFL ERL IEFGQDIDGT EVDEEFSPEG ISVSTLKIKI QPITYQLHIE NGSYDVFTRK ATNKYPTIAN DNTQKGMVSQ KKELISK FL DCAVGLRNNL DEAQKLSMQK KWENLKDSIA KTSAGNQGIE SETEKGKITK QEQSDNLDSS TASVLPASIT TVPQDDNI E TTGNTESSDK GAKIQ

UniProtKB: Transcriptional regulatory protein SIN3

+
Macromolecule #2: Histone deacetylase RPD3

MacromoleculeName: Histone deacetylase RPD3 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO / EC number: histone deacetylase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 48.961957 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MVYEATPFDP ITVKPSDKRR VAYFYDADVG NYAYGAGHPM KPHRIRMAHS LIMNYGLYKK MEIYRAKPAT KQEMCQFHTD EYIDFLSRV TPDNLEMFKR ESVKFNVGDD CPVFDGLYEY CSISGGGSME GAARLNRGKC DVAVNYAGGL HHAKKSEASG F CYLNDIVL ...String:
MVYEATPFDP ITVKPSDKRR VAYFYDADVG NYAYGAGHPM KPHRIRMAHS LIMNYGLYKK MEIYRAKPAT KQEMCQFHTD EYIDFLSRV TPDNLEMFKR ESVKFNVGDD CPVFDGLYEY CSISGGGSME GAARLNRGKC DVAVNYAGGL HHAKKSEASG F CYLNDIVL GIIELLRYHP RVLYIDIDVH HGDGVEEAFY TTDRVMTCSF HKYGEFFPGT GELRDIGVGA GKNYAVNVPL RD GIDDATY RSVFEPVIKK IMEWYQPSAV VLQCGGDSLS GDRLGCFNLS MEGHANCVNY VKSFGIPMMV VGGGGYTMRN VAR TWCFET GLLNNVVLDK DLPYNEYYEY YGPDYKLSVR PSNMFNVNTP EYLDKVMTNI FANLENTKYA PSVQLNHTPR DAED LGDVE EDSAEAKDTK GGSQYARDLH VEHDNEFY

UniProtKB: Histone deacetylase RPD3

+
Macromolecule #3: Chromatin modification-related protein EAF3

MacromoleculeName: Chromatin modification-related protein EAF3 / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 45.266406 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MVDLEQEFAL GGRCLAFHGP LMYEAKILKI WDPSSKMYTS IPNDKPGGSS QATKEIKPQK LGEDESIPEE IINGKCFFIH YQGWKSSWD EWVGYDRIRA YNEENIAMKK RLANEAKEAK KSLLEQQKKK KLSTSLGGPS NGGKRKGDSR SNASISKSTS Q SFLTSSVS ...String:
MVDLEQEFAL GGRCLAFHGP LMYEAKILKI WDPSSKMYTS IPNDKPGGSS QATKEIKPQK LGEDESIPEE IINGKCFFIH YQGWKSSWD EWVGYDRIRA YNEENIAMKK RLANEAKEAK KSLLEQQKKK KLSTSLGGPS NGGKRKGDSR SNASISKSTS Q SFLTSSVS GRKSGRSSAN SLHPGSSLRS SSDQNGNDDR RRSSSLSPNM LHHIAGYPTP KISLQIPIKL KSVLVDDWEY VT KDKKICR LPADVTVEMV LNKYEHEVSQ ELESPGSQSQ LSEYCAGLKL YFDKCLGNML LYRLERLQYD ELLKKSSKDQ KPL VPIRIY GAIHLLRLIS VLPELISSTT MDLQSCQLLI KQTEDFLVWL LMHVDEYFND KDPNRSDDAL YVNTSSQYEG VALG M

UniProtKB: Chromatin modification-related protein EAF3

+
Macromolecule #4: Transcriptional regulatory protein RCO1

MacromoleculeName: Transcriptional regulatory protein RCO1 / type: protein_or_peptide / ID: 4 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 78.951305 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MDTSKKDTTR SPSHSNSSSP SSSSLSSSSS KEKKRPKRLS SQNVNYDLKR RKIITSEGIE RSFKNEHSNL AVEDNIPEEE PKELLEKDS KGNIIKLNEP STISEDSKVS VTGLPLNKGP SEKIKRESLW NYRKNLGGQS NNSEMTLVPS KRFTQVPKNF Q DLNRNDLK ...String:
MDTSKKDTTR SPSHSNSSSP SSSSLSSSSS KEKKRPKRLS SQNVNYDLKR RKIITSEGIE RSFKNEHSNL AVEDNIPEEE PKELLEKDS KGNIIKLNEP STISEDSKVS VTGLPLNKGP SEKIKRESLW NYRKNLGGQS NNSEMTLVPS KRFTQVPKNF Q DLNRNDLK TFLTENMTEE SNIRSTIGWN GDIINRTRDR EPESDRDNKK LSNIRTKIIL STNATYDSKS KLFGQNSIKS TS NASEKIF RDKNNSTIDF ENEDFCSACN QSGSFLCCDT CPKSFHFLCL DPPIDPNNLP KGDWHCNECK FKIFINNSMA TLK KIESNF IKQNNNVKIF AKLLFNIDSH NPKQFQLPNY IKETFPAVKT GSRGQYSDEN DKIPLTDRQL FNTSYGQSIT KLDS YNPDT HIDSNSGKFL ICYKCNQTRL GSWSHPENSR LIMTCDYCQT PWHLDCVPRA SFKNLGSKWK CPLHSPTKVY KKIHH CQED NSVNYKVWKK QRLINKKNQL YYEPLQKIGY QNNGNIQIIP TTSHTDYDFN QDFKITQIDE NSIKYDFFDK IYKSKM VQK RKLFQFQESL IDKLVSNGSQ NGNSEDNMVK DIASLIYFQV SNNDKSSNNK SASKSNNLRK LWDLKELTNV VVPNELD SI QFNDFSSDEI KHLLYLKKII ESKPKEELLK FLNIENPENQ SE

UniProtKB: Transcriptional regulatory protein RCO1

+
Macromolecule #5: Histone H4

MacromoleculeName: Histone H4 / type: protein_or_peptide / ID: 5 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 11.263231 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
SGRGKGGKGL GKGGAKRHRK VLRDNIQGIT KPAIRRLARR GGVKRISGLI YEETRGVLKV FLENVIRDAV TYTEHAKRKT VTAMDVVYA LKRQGRTLYG FGG

UniProtKB: Histone H4

+
Macromolecule #6: Histone H2A

MacromoleculeName: Histone H2A / type: protein_or_peptide / ID: 6 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.978241 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
SGRGKQGGKT RAKAKTRSSR AGLQFPVGRV HRLLRKGNYA ERVGAGAPVY LAAVLEYLTA EILELAGNAA RDNKKTRIIP RHLQLAVRN DEELNKLLGR VTIAQGGVLP NIQSVLLPKK TESSKSAKSK

UniProtKB: Histone H2A

+
Macromolecule #7: Histone H2B 1.1

MacromoleculeName: Histone H2B 1.1 / type: protein_or_peptide / ID: 7 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.524752 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
AKSAPAPKKG SKKAVTKTQK KDGKKRRKTR KESYAIYVYK VLKQVHPDTG ISSKAMSIMN SFVNDVFERI AGEASRLAHY NKRSTITSR EIQTAVRLLL PGELAKHAVS EGTKAVTKYT SAK

UniProtKB: Histone H2B 1.1

+
Macromolecule #10: Histone H3

MacromoleculeName: Histone H3 / type: protein_or_peptide / ID: 10 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 15.34601 KDa
Recombinant expressionOrganism: synthetic construct (others)
SequenceString:
ARTKQTARKS TGGKAPRKQL ATKAARKSAP ATGGV(M3L)KPHR YRPGTVALRE IRRYQKSTEL LIRKLPFQRL VREIAQ DFK TDLRFQSSAV MALQEASEAY LVALFEDTNL CAIHAKRVTI MPKDIQLARR IRGERA

UniProtKB: Histone H3

+
Macromolecule #8: Wisdom 601 DNA (167-MER)

MacromoleculeName: Wisdom 601 DNA (167-MER) / type: dna / ID: 8 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 51.308688 KDa
SequenceString: (DC)(DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DC)(DT)(DG)(DC)(DA) (DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA)(DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT)(DA) (DG) (DA)(DC)(DA)(DG)(DC)(DT) ...String:
(DC)(DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DC)(DT)(DG)(DC)(DA) (DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA)(DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT)(DA) (DG) (DA)(DC)(DA)(DG)(DC)(DT)(DC)(DT) (DA)(DG)(DC)(DA)(DC)(DC)(DG)(DC)(DT)(DT) (DA)(DA) (DA)(DC)(DG)(DC)(DA)(DC)(DG) (DT)(DA)(DC)(DG)(DC)(DG)(DC)(DT)(DG)(DT) (DC)(DC)(DC) (DC)(DC)(DG)(DC)(DG)(DT) (DT)(DT)(DT)(DA)(DA)(DC)(DC)(DG)(DC)(DC) (DA)(DA)(DG)(DG) (DG)(DG)(DA)(DT)(DT) (DA)(DC)(DT)(DC)(DC)(DC)(DT)(DA)(DG)(DT) (DC)(DT)(DC)(DC)(DA) (DG)(DG)(DC)(DA) (DC)(DG)(DT)(DG)(DT)(DC)(DA)(DG)(DA)(DT) (DA)(DT)(DA)(DT)(DA)(DC) (DA)(DT)(DC) (DC)(DT)(DG)(DT)(DG)(DC)(DA)(DT)(DG)(DT) (DA)(DT)(DT)(DG)(DA)(DA)(DC) (DA)(DG) (DC)(DG)(DA)(DC)(DC)

+
Macromolecule #9: Wisdom 601 DNA (167-MER)

MacromoleculeName: Wisdom 601 DNA (167-MER) / type: dna / ID: 9 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 51.798 KDa
SequenceString: (DG)(DG)(DT)(DC)(DG)(DC)(DT)(DG)(DT)(DT) (DC)(DA)(DA)(DT)(DA)(DC)(DA)(DT)(DG)(DC) (DA)(DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT) (DA)(DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA) (DC) (DA)(DC)(DG)(DT)(DG)(DC) ...String:
(DG)(DG)(DT)(DC)(DG)(DC)(DT)(DG)(DT)(DT) (DC)(DA)(DA)(DT)(DA)(DC)(DA)(DT)(DG)(DC) (DA)(DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT) (DA)(DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA) (DC) (DA)(DC)(DG)(DT)(DG)(DC)(DC)(DT) (DG)(DG)(DA)(DG)(DA)(DC)(DT)(DA)(DG)(DG) (DG)(DA) (DG)(DT)(DA)(DA)(DT)(DC)(DC) (DC)(DC)(DT)(DT)(DG)(DG)(DC)(DG)(DG)(DT) (DT)(DA)(DA) (DA)(DA)(DC)(DG)(DC)(DG) (DG)(DG)(DG)(DG)(DA)(DC)(DA)(DG)(DC)(DG) (DC)(DG)(DT)(DA) (DC)(DG)(DT)(DG)(DC) (DG)(DT)(DT)(DT)(DA)(DA)(DG)(DC)(DG)(DG) (DT)(DG)(DC)(DT)(DA) (DG)(DA)(DG)(DC) (DT)(DG)(DT)(DC)(DT)(DA)(DC)(DG)(DA)(DC) (DC)(DA)(DA)(DT)(DT)(DG) (DA)(DG)(DC) (DG)(DG)(DC)(DC)(DT)(DG)(DC)(DA)(DG)(DA) (DC)(DC)(DG)(DG)(DG)(DA)(DT) (DT)(DC) (DT)(DC)(DC)(DA)(DG)

+
Macromolecule #11: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 11 / Number of copies: 5 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration0.7 mg/mL
BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsCalibrated defocus max: 1.8 µm / Calibrated defocus min: 1.5 µm / Illumination mode: SPOT SCAN / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 1.5 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.96 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 87742
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
