Basic information

Entry
Database: EMDB / ID: EMD-31684
TitleCryo-EM structure of MCM double hexamer with structured Mcm4-NSD
Map data
Sample
  • Complex: MCM double hexamer (DH)
    • Protein or peptide: DNA replication licensing factor MCM2
    • Protein or peptide: DNA replication licensing factor MCM3
    • Protein or peptide: DNA replication licensing factor MCM4
    • Protein or peptide: Minichromosome maintenance protein 5
    • Protein or peptide: DNA replication licensing factor MCM6
    • Protein or peptide: DNA replication licensing factor MCM7
  • Ligand: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
  • Ligand: MAGNESIUM ION
  • Ligand: ZINC ION
  • Ligand: ADENOSINE-5'-DIPHOSPHATE
KeywordsDNA replication initiation / Complex / Replicative helicase / Replication / CELL CYCLE
Function / homology
Function and homology information


MCM core complex / Assembly of the pre-replicative complex / Switching of origins to a post-replicative state / MCM complex binding / nuclear DNA replication / premeiotic DNA replication / replication fork protection complex / pre-replicative complex assembly involved in nuclear cell cycle DNA replication / Activation of the pre-replicative complex / mitotic DNA replication ...MCM core complex / Assembly of the pre-replicative complex / Switching of origins to a post-replicative state / MCM complex binding / nuclear DNA replication / premeiotic DNA replication / replication fork protection complex / pre-replicative complex assembly involved in nuclear cell cycle DNA replication / Activation of the pre-replicative complex / mitotic DNA replication / CMG complex / nuclear pre-replicative complex / DNA replication preinitiation complex / Activation of ATR in response to replication stress / MCM complex / double-strand break repair via break-induced replication / mitotic DNA replication initiation / single-stranded DNA helicase activity / silent mating-type cassette heterochromatin formation / regulation of DNA-templated DNA replication initiation / DNA strand elongation involved in DNA replication / nuclear replication fork / DNA replication origin binding / DNA replication initiation / subtelomeric heterochromatin formation / DNA helicase activity / transcription elongation by RNA polymerase II / helicase activity / heterochromatin formation / single-stranded DNA binding / DNA helicase / chromosome, telomeric region / DNA replication / DNA damage response / chromatin binding / ATP hydrolysis activity / zinc ion binding / nucleoplasm / ATP binding / nucleus / cytoplasm
Similarity search - Function
: / MCM3 winged helix domain / : / MCM5, C-terminal domain / DNA replication licensing factor MCM7, winged helix / DNA replication licensing factor Mcm5 / MCM4, winged helix domain / DNA replication licensing factor Mcm3 / Mini-chromosome maintenance complex protein 4 / : ...: / MCM3 winged helix domain / : / MCM5, C-terminal domain / DNA replication licensing factor MCM7, winged helix / DNA replication licensing factor Mcm5 / MCM4, winged helix domain / DNA replication licensing factor Mcm3 / Mini-chromosome maintenance complex protein 4 / : / MCM3-like, winged helix domain / DNA replication licensing factor Mcm6 / DNA replication licensing factor Mcm7 / Mcm6, C-terminal winged-helix domain / MCM6 C-terminal winged-helix domain / DNA replication licensing factor Mcm2 / Mini-chromosome maintenance protein 2 / Mini-chromosome maintenance, conserved site / MCM family signature. / MCM N-terminal domain / MCM N-terminal domain / MCM OB domain / MCM OB domain / Mini-chromosome maintenance protein / MCM, AAA-lid domain / MCM P-loop domain / MCM AAA-lid domain / MCM family domain profile. / minichromosome maintenance proteins / MCM domain / Winged helix-like DNA-binding domain superfamily / Nucleic acid-binding, OB-fold / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
DNA replication licensing factor MCM3 / DNA replication licensing factor MCM2 / Minichromosome maintenance protein 5 / DNA replication licensing factor MCM4 / DNA replication licensing factor MCM7 / DNA replication licensing factor MCM6
Similarity search - Component
Biological speciesSaccharomyces cerevisiae S288c (yeast) / Saccharomyces cerevisiae S288C (yeast)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.2 Å
AuthorsCheng J / Li N / Huo Y / Dang S / Tye B / Gao N / Zhai Y
Funding support China, 1 items
OrganizationGrant numberCountry
National Science Foundation (NSF, China) China
CitationJournal: Nat Commun / Year: 2022
Title: Structural Insight into the MCM double hexamer activation by Dbf4-Cdc7 kinase.
Authors: Jiaxuan Cheng / Ningning Li / Yunjing Huo / Shangyu Dang / Bik-Kwoon Tye / Ning Gao / Yuanliang Zhai /
Abstract: The Dbf4-dependent kinase Cdc7 (DDK) regulates DNA replication initiation by phosphorylation of the MCM double hexamer (MCM-DH) to promote helicase activation. Here, we determine a series of cryo ...The Dbf4-dependent kinase Cdc7 (DDK) regulates DNA replication initiation by phosphorylation of the MCM double hexamer (MCM-DH) to promote helicase activation. Here, we determine a series of cryo electron microscopy (cryo-EM) structures of yeast DDK bound to the MCM-DH. These structures, occupied by one or two DDKs, differ primarily in the conformations of the kinase core. The interactions of DDK with the MCM-DH are mediated exclusively by subunit Dbf4 straddling across the hexamer interface on the three N-terminal domains (NTDs) of subunits Mcm2, Mcm6, and Mcm4. This arrangement brings Cdc7 close to its only essential substrate, the N-terminal serine/threonine-rich domain (NSD) of Mcm4. Dbf4 further displaces the NSD from its binding site on Mcm4-NTD, facilitating an immediate targeting of this motif by Cdc7. Moreover, the active center of Cdc7 is occupied by a unique Dbf4 inhibitory loop, which is disengaged when the kinase core assumes wobbling conformations. This study elucidates the versatility of Dbf4 in regulating the ordered multisite phosphorylation of the MCM-DH by Cdc7 kinase during helicase activation.
History
DepositionAug 11, 2021-
Header (metadata) releaseApr 13, 2022-
Map releaseApr 13, 2022-
UpdateJul 2, 2025-
Current statusJul 2, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_31684.map.gz / Format: CCP4 / Size: 178 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.05 Å/pix.
x 360 pix.
= 378.72 Å		1.05 Å/pix.
x 360 pix.
= 378.72 Å		1.05 Å/pix.
x 360 pix.
= 378.72 Å

Surface

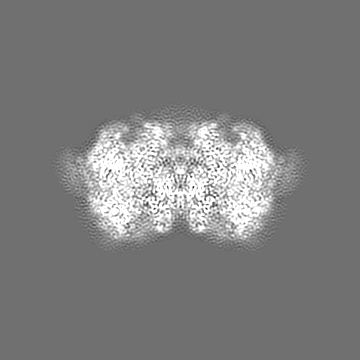

Projections

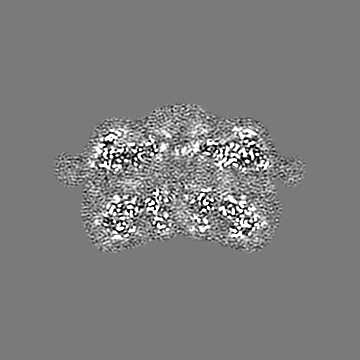

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.052 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.05
Minimum - Maximum-0.18039797 - 0.30735266
Average (Standard dev.)0.00054173055 (±0.00799891)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions360360360
Spacing360360360
CellA=B=C: 378.72003 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Sample components

+
Entire : MCM double hexamer (DH)

EntireName: MCM double hexamer (DH)
Components
  • Complex: MCM double hexamer (DH)
    • Protein or peptide: DNA replication licensing factor MCM2
    • Protein or peptide: DNA replication licensing factor MCM3
    • Protein or peptide: DNA replication licensing factor MCM4
    • Protein or peptide: Minichromosome maintenance protein 5
    • Protein or peptide: DNA replication licensing factor MCM6
    • Protein or peptide: DNA replication licensing factor MCM7
  • Ligand: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
  • Ligand: MAGNESIUM ION
  • Ligand: ZINC ION
  • Ligand: ADENOSINE-5'-DIPHOSPHATE

+
Supramolecule #1: MCM double hexamer (DH)

SupramoleculeName: MCM double hexamer (DH) / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#6
Source (natural)Organism: Saccharomyces cerevisiae S288c (yeast) / Strain: S288c

+
Macromolecule #1: DNA replication licensing factor MCM2

MacromoleculeName: DNA replication licensing factor MCM2 / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 98.911539 KDa
SequenceString: MSDNRRRRRE EDDSDSENEL PPSSPQQHFR GGMNPVSSPI GSPDMINPEG DDNEVDDVPD IDEVEEQMNE VDLMDDNMYE DYAADHNRD RYDPDQVDDR EQQELSLSER RRIDAQLNER DRLLRNVAYI DDEDEEQEGA AQLDEMGLPV QRRRRRRQYE D LENSDDDL ...String:
MSDNRRRRRE EDDSDSENEL PPSSPQQHFR GGMNPVSSPI GSPDMINPEG DDNEVDDVPD IDEVEEQMNE VDLMDDNMYE DYAADHNRD RYDPDQVDDR EQQELSLSER RRIDAQLNER DRLLRNVAYI DDEDEEQEGA AQLDEMGLPV QRRRRRRQYE D LENSDDDL LSDMDIDPLR EELTLESLSN VKANSYSEWI TQPNVSRTIA RELKSFLLEY TDETGRSVYG ARIRTLGEMN SE SLEVNYR HLAESKAILA LFLAKCPEEM LKIFDLVAME ATELHYPDYA RIHSEIHVRI SDFPTIYSLR ELRESNLSSL VRV TGVVTR RTGVFPQLKY VKFNCLKCGS ILGPFFQDSN EEIRISFCTN CKSKGPFRVN GEKTVYRNYQ RVTLQEAPGT VPPG RLPRH REVILLADLV DVSKPGEEVE VTGIYKNNYD GNLNAKNGFP VFATIIEANS IKRREGNTAN EGEEGLDVFS WTEEE EREF RKISRDRGII DKIISSMAPS IYGHRDIKTA VACSLFGGVP KNVNGKHSIR GDINVLLLGD PGTAKSQILK YVEKTA HRA VFATGQGASA VGLTASVRKD PITKEWTLEG GALVLADKGV CLIDEFDKMN DQDRTSIHEA MEQQSISISK AGIVTTL QA RCSIIAAANP NGGRYNSTLP LAQNVSLTEP ILSRFDILCV VRDLVDEEAD ERLATFVVDS HVRSHPENDE DREGEELK N NGESAIEQGE DEINEQLNAR QRRLQRQRKK EEEISPIPQE LLMKYIHYAR TKIYPKLHQM DMDKVSRVYA DLRRESIST GSFPITVRHL ESILRIAESF AKMRLSEFVS SYDLDRAIKV VVDSFVDAQK VSVRRQLRRS FAIYTLGH

UniProtKB: DNA replication licensing factor MCM2

+
Macromolecule #2: DNA replication licensing factor MCM3

MacromoleculeName: DNA replication licensing factor MCM3 / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 107.653508 KDa
SequenceString: MEGSTGFDGD ATTFFAPDAV FGDRVRRFQE FLDTFTSYRD SVRSIQVYNS NNAANYNDDQ DDADERDLLG DDDGDDLEKE KKAASSTSL NILPHRIIIS LDDLREFDRS FWSGILVEPA YFIPPAEKAL TDLADSMDDV PHPNASAVSS RHPWKLSFKG S FGAHALSP ...String:
MEGSTGFDGD ATTFFAPDAV FGDRVRRFQE FLDTFTSYRD SVRSIQVYNS NNAANYNDDQ DDADERDLLG DDDGDDLEKE KKAASSTSL NILPHRIIIS LDDLREFDRS FWSGILVEPA YFIPPAEKAL TDLADSMDDV PHPNASAVSS RHPWKLSFKG S FGAHALSP RTLTAQHLNK LVSVEGIVTK TSLVRPKLIR SVHYAAKTGR FHYRDYTDAT TTLTTRIPTP AIYPTEDTEG NK LTTEYGY STFIDHQRIT VQEMPEMAPA GQLPRSIDVI LDDDLVDKTK PGDRVNVVGV FKSLGAGGMN QSNSNTLIGF KTL ILGNTV YPLHARSTGV AARQMLTDFD IRNINKLSKK KDIFDILSQS LAPSIYGHDH IKKAILLMLM GGVEKNLENG SHLR GDINI LMVGDPSTAK SQLLRFVLNT ASLAIATTGR GSSGVGLTAA VTTDRETGER RLEAGAMVLA DRGVVCIDEF DKMTD VDRV AIHEVMEQQT VTIAKAGIHT TLNARCSVIA AANPVFGQYD VNRDPHQNIA LPDSLLSRFD LLFVVTDDIN EIRDRS ISE HVLRTHRYLP PGYLEGEPVR ERLNLSLAVG EDADINPEEH SNSGAGVENE GEDDEDHVFE KFNPLLQAGA KLAKNKG NY NGTEIPKLVT IPFLRKYVQY AKERVIPQLT QEAINVIVKN YTDLRNDDNT KKSPITARTL ETLIRLATAH AKVRLSKT V NKVDAKVAAN LLRFALLGED IGNDIDEEES EYEEALSKRS PQKSPKKRQR VRQPASNSGS PIKSTPRRST ASSVNATPS SARRILRFQD DEQNAGEDDN DIMSPLPADE EAELQRRLQL GLRVSPRRRE HLHAPEEGSS GPLTEVGTPR LPNVSSAGQD DEQQQSVIS FDNVEPGTIS TGRLSLISGI IARLMQTEIF EEESYPVASL FERINEELPE EEKFSAQEYL AGLKIMSDRN N LMVADDKV WRV

UniProtKB: DNA replication licensing factor MCM3

+
Macromolecule #3: DNA replication licensing factor MCM4

MacromoleculeName: DNA replication licensing factor MCM4 / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 105.138375 KDa
SequenceString: MSQQSSSPTK EDNNSSSPVV PNPDSVPPQL SSPALFYSSS SSQGDIYGRN NSQNLSQGEG NIRAAIGSSP LNFPSSSQRQ NSDVFQSQG RQGRIRSSAS ASGRSRYHSD LRSDRALPTS SSSLGRNGQN RVHMRRNDIH TSDLSSPRRI VDFDTRSGVN T LDTSSSSA ...String:
MSQQSSSPTK EDNNSSSPVV PNPDSVPPQL SSPALFYSSS SSQGDIYGRN NSQNLSQGEG NIRAAIGSSP LNFPSSSQRQ NSDVFQSQG RQGRIRSSAS ASGRSRYHSD LRSDRALPTS SSSLGRNGQN RVHMRRNDIH TSDLSSPRRI VDFDTRSGVN T LDTSSSSA PPSEASEPLR IIWGTNVSIQ ECTTNFRNFL MSFKYKFRKI LDEREEFINN TTDEELYYIK QLNEMRELGT SN LNLDARN LLAYKQTEDL YHQLLNYPQE VISIMDQTIK DCMVSLIVDN NLDYDLDEIE TKFYKVRPYN VGSCKGMREL NPN DIDKLI NLKGLVLRST PVIPDMKVAF FKCNVCDHTM AVEIDRGVIQ EPARCERIDC NEPNSMSLIH NRCSFADKQV IKLQ ETPDF VPDGQTPHSI SLCVYDELVD SCRAGDRIEV TGTFRSIPIR ANSRQRVLKS LYKTYVDVVH VKKVSDKRLD VDTST IEQE LMQNKVDHNE VEEVRQITDQ DLAKIREVAA REDLYSLLAR SIAPSIYELE DVKKGILLQL FGGTNKTFTK GGRYRG DIN ILLCGDPSTS KSQILQYVHK ITPRGVYTSG KGSSAVGLTA YITRDVDTKQ LVLESGALVL SDGGVCCIDE FDKMSDS TR SVLHEVMEQQ TISIAKAGII TTLNARSSIL ASANPIGSRY NPNLPVTENI DLPPPLLSRF DLVYLVLDKV DEKNDREL A KHLTNLYLED KPEHISQDDV LPVEFLTMYI SYAKEHIHPI ITEAAKTELV RAYVGMRKMG DDSRSDEKRI TATTRQLES MIRLAEAHAK MKLKNVVELE DVQEAVRLIR SAIKDYATDP KTGKIDMNLV QTGKSVIQRK LQEDLSREIM NVLKDQASDS MSFNELIKQ INEHSQDRVE SSDIQEALSR LQQEDKVIVL GEGVRRSVRL NNRV

UniProtKB: DNA replication licensing factor MCM4

+
Macromolecule #4: Minichromosome maintenance protein 5

MacromoleculeName: Minichromosome maintenance protein 5 / type: protein_or_peptide / ID: 4 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 86.505734 KDa
SequenceString: MSFDRPEIYS APVLQGESPN DDDNTEIIKS FKNFILEFRL DSQFIYRDQL RNNILVKNYS LTVNMEHLIG YNEDIYKKLS DEPSDIIPL FETAITQVAK RISILSRAQS ANNNDKDPEN TSMDTDSLLL NSLPTFQLIL NSNANQIPLR DLDSEHVSKI V RLSGIIIS ...String:
MSFDRPEIYS APVLQGESPN DDDNTEIIKS FKNFILEFRL DSQFIYRDQL RNNILVKNYS LTVNMEHLIG YNEDIYKKLS DEPSDIIPL FETAITQVAK RISILSRAQS ANNNDKDPEN TSMDTDSLLL NSLPTFQLIL NSNANQIPLR DLDSEHVSKI V RLSGIIIS TSVLSSRATY LSIMCRNCRH TTSITINNFN SITGNTVSLP RSCLSTIESE SSMANESNIG DESTKKNCGP DP YIIIHES SKFIDQQFLK LQEIPELVPV GEMPRNLTMT CDRYLTNKVI PGTRVTIVGI YSIYNSKNGA GSGRSGGGNG GSG VAIRTP YIKILGIQSD VETSSIWNSV TMFTEEEEEE FLQLSRNPKL YEILTNSIAP SIFGNEDIKK AIVCLLMGGS KKIL PDGMR LRGDINVLLL GDPGTAKSQL LKFVEKVSPI AVYTSGKGSS AAGLTASVQR DPMTREFYLE GGAMVLADGG VVCID EFDK MRDEDRVAIH EAMEQQTISI AKAGITTVLN SRTSVLAAAN PIYGRYDDLK SPGDNIDFQT TILSRFDMIF IVKDDH NEE RDISIANHVI NIHTGNANAM QNQQEENGSE ISIEKMKRYI TYCRLKCAPR LSPQAAEKLS SNFVTIRKQL LINELES TE RSSIPITIRQ LEAIIRITES LAKLELSPIA QERHVDEAIR LFQASTMDAA SQDPIGGLNQ ASGTSLSEIR RFEQELKR R LPIGWSTSYQ TLRREFVDTH RFSQLALDKA LYALEKHETI QLRHQGQNIY RSGV

UniProtKB: Minichromosome maintenance protein 5

+
Macromolecule #5: DNA replication licensing factor MCM6

MacromoleculeName: DNA replication licensing factor MCM6 / type: protein_or_peptide / ID: 5 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 113.110211 KDa
SequenceString: MSSPFPADTP SSNRPSNSSP PPSSIGAGFG SSSGLDSQIG SRLHFPSSSQ PHVSNSQTGP FVNDSTQFSS QRLQTDGSAT NDMEGNEPA RSFKSRALNH VKKVDDVTGE KVREAFEQFL EDFSVQSTDT GEVEKVYRAQ IEFMKIYDLN TIYIDYQHLS M RENGALAM ...String:
MSSPFPADTP SSNRPSNSSP PPSSIGAGFG SSSGLDSQIG SRLHFPSSSQ PHVSNSQTGP FVNDSTQFSS QRLQTDGSAT NDMEGNEPA RSFKSRALNH VKKVDDVTGE KVREAFEQFL EDFSVQSTDT GEVEKVYRAQ IEFMKIYDLN TIYIDYQHLS M RENGALAM AISEQYYRFL PFLQKGLRRV VRKYAPELLN TSDSLKRSEG DEGQADEDEQ QDDDMNGSSL PRDSGSSAAP GN GTSAMAT RSITTSTSPE QTERVFQISF FNLPTVHRIR DIRSEKIGSL LSISGTVTRT SEVRPELYKA SFTCDMCRAI VDN VEQSFK YTEPTFCPNP SCENRAFWTL NVTRSRFLDW QKVRIQENAN EIPTGSMPRT LDVILRGDSV ERAKPGDRCK FTGV EIVVP DVTQLGLPGV KPSSTLDTRG ISKTTEGLNS GVTGLRSLGV RDLTYKISFL ACHVISIGSN IGASSPDANS NNRET ELQM AANLQANNVY QDNERDQEVF LNSLSSDEIN ELKEMVKDEH IYDKLVRSIA PAVFGHEAVK KGILLQMLGG VHKSTV EGI KLRGDINICV VGDPSTSKSQ FLKYVVGFAP RSVYTSGKAS SAAGLTAAVV RDEEGGDYTI EAGALMLADN GICCIDE FD KMDISDQVAI HEAMEQQTIS IAKAGIHATL NARTSILAAA NPVGGRYNRK LSLRGNLNMT APIMSRFDLF FVILDDCN E KIDTELASHI VDLHMKRDEA IEPPFSAEQL RRYIKYARTF KPILTKEARS YLVEKYKELR KDDAQGFSRS SYRITVRQL ESMIRLSEAI ARANCVDEIT PSFIAEAYDL LRQSIIRVDV DDVEMDEEFD NIESQSHAAS GNNDDNDDGT GSGVITSEPP ADIEEGQSE ATARPGTSEK KKTTVTYDKY VSMMNMIVRK IAEVDREGAE ELTAVDIVDW YLLQKENDLG SLAEYWEERR L AFKVIKRL VKDRILMEIH GTRHNLRDLE NEENENNKTV YVIHPNCEVL DQLEPQDSS

UniProtKB: DNA replication licensing factor MCM6

+
Macromolecule #6: DNA replication licensing factor MCM7

MacromoleculeName: DNA replication licensing factor MCM7 / type: protein_or_peptide / ID: 6 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA helicase
Source (natural)Organism: Saccharomyces cerevisiae S288C (yeast) / Strain: S288c
Molecular weightTheoretical: 95.049875 KDa
SequenceString: MSAALPSIQL PVDYNNLFNE ITDFLVTFKQ DTLSSDATRN ENEDENLDAE NIEQHLLEKG PKYMAMLQKV ANRELNSVII DLDDILQYQ NEKFLQGTQA DDLVSAIQQN ANHFTELFCR AIDNNMPLPT KEIDYKDDVL DVILNQRRLR NERMLSDRTN E IRSENLMD ...String:
MSAALPSIQL PVDYNNLFNE ITDFLVTFKQ DTLSSDATRN ENEDENLDAE NIEQHLLEKG PKYMAMLQKV ANRELNSVII DLDDILQYQ NEKFLQGTQA DDLVSAIQQN ANHFTELFCR AIDNNMPLPT KEIDYKDDVL DVILNQRRLR NERMLSDRTN E IRSENLMD TTMDPPSSMN DALREVVEDE TELFPPNLTR RYFLYFKPLS QNCARRYRKK AISSKPLSVR QIKGDFLGQL IT VRGIITR VSDVKPAVEV IAYTCDQCGY EVFQEVNSRT FTPLSECTSE ECSQNQTKGQ LFMSTRASKF SAFQECKIQE LSQ QVPVGH IPRSLNIHVN GTLVRSLSPG DIVDVTGIFL PAPYTGFKAL KAGLLTETYL EAQFVRQHKK KFASFSLTSD VEER VMELI TSGDVYNRLA KSIAPEIYGN LDVKKALLLL LVGGVDKRVG DGMKIRGDIN VCLMGDPGVA KSQLLKAICK ISPRG VYTT GKGSSGVGLT AAVMKDPVTD EMILEGGALV LADNGICCID EFDKMDESDR TAIHEVMEQQ TISISKAGIN TTLNAR TSI LAAANPLYGR YNPRLSPLDN INLPAALLSR FDILFLMLDI PSRDDDEKLA EHVTYVHMHN KQPDLDFTPV EPSKMRE YI AYAKTKRPVM SEAVNDYVVQ AYIRLRQDSK REMDSKFSFG QATPRTLLGI IRLSQALAKL RLADMVDIDD VEEALRLV R VSKESLYQET NKSKEDESPT TKIFTIIKKM LQETGKNTLS YENIVKTVRL RGFTMLQLSN CIQEYSYLNV WHLINEGNT LKFVDDGTMD TDQEDSLVST PKLAPQTTAS ANVSAQDSDI DLQDA

UniProtKB: DNA replication licensing factor MCM7

+
Macromolecule #7: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER

MacromoleculeName: PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER / type: ligand / ID: 7 / Number of copies: 10 / Formula: AGS
Molecular weightTheoretical: 523.247 Da
Chemical component information

ChemComp-AGS:
PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER / ATP-gamma-S, energy-carrying molecule analogue*YM

+
Macromolecule #8: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 8 / Number of copies: 12 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #9: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 9 / Number of copies: 10 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

+
Macromolecule #10: ADENOSINE-5'-DIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-DIPHOSPHATE / type: ligand / ID: 10 / Number of copies: 2 / Formula: ADP
Molecular weightTheoretical: 427.201 Da
Chemical component information

ChemComp-ADP:
ADENOSINE-5'-DIPHOSPHATE / ADP, energy-carrying molecule*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
Sugar embeddingMaterial: Ice
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Average electron dose: 46.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.5 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

7w8g

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.2 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 150000
Initial angle assignmentType: PROJECTION MATCHING
Final angle assignmentType: ANGULAR RECONSTITUTION

+
