Basic information

Entry
Database: EMDB / ID: EMD-28273
TitleCryoEM structure of the high pH nitrogenase MoFe-protein under non-turnover conditions
Map data
Sample
  • Complex: Heterotetrameric nitrogenase MoFe-protein
    • Protein or peptide: Nitrogenase molybdenum-iron protein alpha chain
    • Protein or peptide: Nitrogenase molybdenum-iron protein beta chain
  • Ligand: iron-sulfur-molybdenum cluster with interstitial carbon
  • Ligand: 3-HYDROXY-3-CARBOXY-ADIPIC ACID
  • Ligand: FE(8)-S(7) CLUSTER
  • Ligand: FE (III) ION
  • Ligand: water
Keywordsnitrogenase / nitrogen fixation / reductase / MoFe / OXIDOREDUCTASE
Function / homology
Function and homology information


molybdenum-iron nitrogenase complex / nitrogenase / nitrogenase activity / nitrogen fixation / iron-sulfur cluster binding / ATP binding / metal ion binding
Similarity search - Function
Nitrogenase molybdenum-iron protein beta chain, N-terminal / Domain of unknown function (DUF3364) / Nitrogenase molybdenum-iron protein alpha chain / Nitrogenase molybdenum-iron protein beta chain / Nitrogenase component 1, alpha chain / Nitrogenase component 1, conserved site / Nitrogenases component 1 alpha and beta subunits signature 2. / Nitrogenases component 1 alpha and beta subunits signature 1. / Nitrogenase/oxidoreductase, component 1 / : / Nitrogenase component 1 type Oxidoreductase
Similarity search - Domain/homology
Nitrogenase molybdenum-iron protein alpha chain / Nitrogenase molybdenum-iron protein beta chain
Similarity search - Component
Biological speciesAzotobacter vinelandii (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.14 Å
AuthorsWarmack RA / Maggiolo AO / Rees DC
Funding support United States, 3 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM045162 United States
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM143836-01 United States
Howard Hughes Medical Institute (HHMI) United States
CitationJournal: Nat Commun / Year: 2023
Title: Structural consequences of turnover-induced homocitrate loss in nitrogenase.
Authors: Rebeccah A Warmack / Ailiena O Maggiolo / Andres Orta / Belinda B Wenke / James B Howard / Douglas C Rees /
Abstract: Nitrogenase catalyzes the ATP-dependent reduction of dinitrogen to ammonia during the process of biological nitrogen fixation that is essential for sustaining life. The active site FeMo-cofactor ...Nitrogenase catalyzes the ATP-dependent reduction of dinitrogen to ammonia during the process of biological nitrogen fixation that is essential for sustaining life. The active site FeMo-cofactor contains a [7Fe:1Mo:9S:1C] metallocluster coordinated with an R-homocitrate (HCA) molecule. Here, we establish through single particle cryoEM and chemical analysis of two forms of the Azotobacter vinelandii MoFe-protein - a high pH turnover inactivated species and a ∆NifV variant that cannot synthesize HCA - that loss of HCA is coupled to α-subunit domain and FeMo-cofactor disordering, and formation of a histidine coordination site. We further find a population of the ∆NifV variant complexed to an endogenous protein identified through structural and proteomic approaches as the uncharacterized protein NafT. Recognition by endogenous NafT demonstrates the physiological relevance of the HCA-compromised form, perhaps for cofactor insertion or repair. Our results point towards a dynamic active site in which HCA plays a role in enabling nitrogenase catalysis by facilitating activation of the FeMo-cofactor from a relatively stable form to a state capable of reducing dinitrogen under ambient conditions.
History
DepositionSep 30, 2022-
Header (metadata) releaseMar 8, 2023-
Map releaseMar 8, 2023-
UpdateMay 28, 2025-
Current statusMay 28, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_28273.map.gz / Format: CCP4 / Size: 729 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.65 Å/pix.
x 576 pix.
= 374.4 Å		0.65 Å/pix.
x 576 pix.
= 374.4 Å		0.65 Å/pix.
x 576 pix.
= 374.4 Å

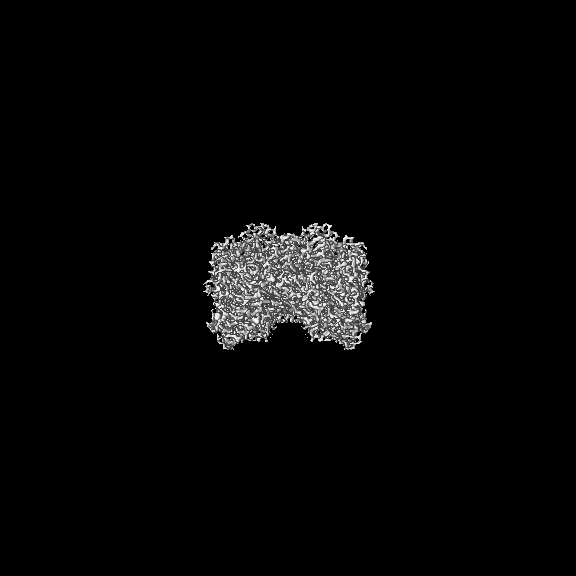

Surface

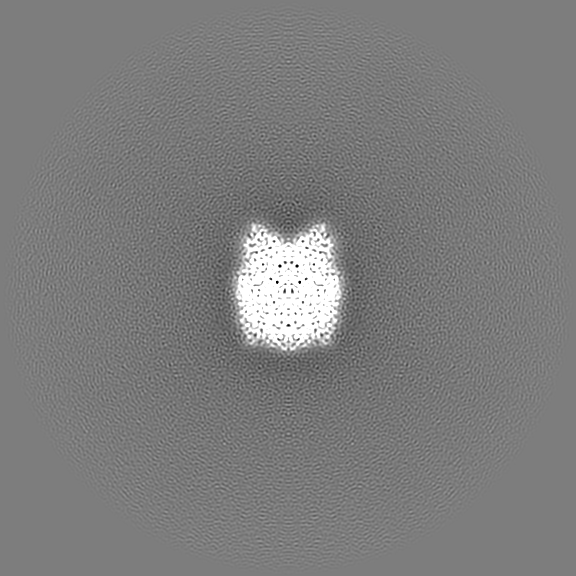

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.65 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.315
Minimum - Maximum-0.8809061 - 2.2288387
Average (Standard dev.)0.00027516953 (±0.029404532)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions576576576
Spacing576576576
CellA=B=C: 374.4 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_28273_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_28273_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Heterotetrameric nitrogenase MoFe-protein

EntireName: Heterotetrameric nitrogenase MoFe-protein
Components
  • Complex: Heterotetrameric nitrogenase MoFe-protein
    • Protein or peptide: Nitrogenase molybdenum-iron protein alpha chain
    • Protein or peptide: Nitrogenase molybdenum-iron protein beta chain
  • Ligand: iron-sulfur-molybdenum cluster with interstitial carbon
  • Ligand: 3-HYDROXY-3-CARBOXY-ADIPIC ACID
  • Ligand: FE(8)-S(7) CLUSTER
  • Ligand: FE (III) ION
  • Ligand: water

-
Supramolecule #1: Heterotetrameric nitrogenase MoFe-protein

SupramoleculeName: Heterotetrameric nitrogenase MoFe-protein / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Azotobacter vinelandii (bacteria)

-
Macromolecule #1: Nitrogenase molybdenum-iron protein alpha chain

MacromoleculeName: Nitrogenase molybdenum-iron protein alpha chain / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO / EC number: nitrogenase
Source (natural)Organism: Azotobacter vinelandii (bacteria)
Molecular weightTheoretical: 55.363043 KDa
SequenceString: MTGMSREEVE SLIQEVLEVY PEKARKDRNK HLAVNDPAVT QSKKCIISNK KSQPGLMTIR GCAYAGSKGV VWGPIKDMIH ISHGPVGCG QYSRAGRRNY YIGTTGVNAF VTMNFTSDFQ EKDIVFGGDK KLAKLIDEVE TLFPLNKGIS VQSECPIGLI G DDIESVSK ...String:
MTGMSREEVE SLIQEVLEVY PEKARKDRNK HLAVNDPAVT QSKKCIISNK KSQPGLMTIR GCAYAGSKGV VWGPIKDMIH ISHGPVGCG QYSRAGRRNY YIGTTGVNAF VTMNFTSDFQ EKDIVFGGDK KLAKLIDEVE TLFPLNKGIS VQSECPIGLI G DDIESVSK VKGAELSKTI VPVRCEGFRG VSQSLGHHIA NDAVRDWVLG KRDEDTTFAS TPYDVAIIGD YNIGGDAWSS RI LLEEMGL RCVAQWSGDG SISEIELTPK VKLNLVHCYR SMNYISRHME EKYGIPWMEY NFFGPTKTIE SLRAIAAKFD ESI QKKCEE VIAKYKPEWE AVVAKYRPRL EGKRVMLYIG GLRPRHVIGA YEDLGMEVVG TGYEFAHNDD YDRTMKEMGD STLL YDDVT GYEFEEFVKR IKPDLIGSGI KEKFIFQKMG IPFREMHSWD YSGPYHGFDG FAIFARDMDM TLNNPCWKKL QAPWE ASEG AEKVAASA

UniProtKB: Nitrogenase molybdenum-iron protein alpha chain

-
Macromolecule #2: Nitrogenase molybdenum-iron protein beta chain

MacromoleculeName: Nitrogenase molybdenum-iron protein beta chain / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO / EC number: nitrogenase
Source (natural)Organism: Azotobacter vinelandii (bacteria)
Molecular weightTheoretical: 59.535879 KDa
SequenceString: MSQQVDKIKA SYPLFLDQDY KDMLAKKRDG FEEKYPQDKI DEVFQWTTTK EYQELNFQRE ALTVNPAKAC QPLGAVLCAL GFEKTMPYV HGSQGCVAYF RSYFNRHFRE PVSCVSDSMT EDAAVFGGQQ NMKDGLQNCK ATYKPDMIAV STTCMAEVIG D DLNAFINN ...String:
MSQQVDKIKA SYPLFLDQDY KDMLAKKRDG FEEKYPQDKI DEVFQWTTTK EYQELNFQRE ALTVNPAKAC QPLGAVLCAL GFEKTMPYV HGSQGCVAYF RSYFNRHFRE PVSCVSDSMT EDAAVFGGQQ NMKDGLQNCK ATYKPDMIAV STTCMAEVIG D DLNAFINN SKKEGFIPDE FPVPFAHTPS FVGSHVTGWD NMFEGIARYF TLKSMDDKVV GSNKKINIVP GFETYLGNFR VI KRMLSEM GVGYSLLSDP EEVLDTPADG QFRMYAGGTT QEEMKDAPNA LNTVLLQPWH LEKTKKFVEG TWKHEVPKLN IPM GLDWTD EFLMKVSEIS GQPIPASLTK ERGRLVDMMT DSHTWLHGKR FALWGDPDFV MGLVKFLLEL GCEPVHILCH NGNK RWKKA VDAILAASPY GKNATVYIGK DLWHLRSLVF TDKPDFMIGN SYGKFIQRDT LHKGKEFEVP LIRIGFPIFD RHHLH RSTT LGYEGAMQIL TTLVNSILER LDEETRGMQA TDYNHDLVR

UniProtKB: Nitrogenase molybdenum-iron protein beta chain

-
Macromolecule #3: iron-sulfur-molybdenum cluster with interstitial carbon

MacromoleculeName: iron-sulfur-molybdenum cluster with interstitial carbon
type: ligand / ID: 3 / Number of copies: 2 / Formula: ICS
Molecular weightTheoretical: 787.451 Da
Chemical component information

ChemComp-ICE:
iron-sulfur-molybdenum cluster with interstitial carbon

-
Macromolecule #4: 3-HYDROXY-3-CARBOXY-ADIPIC ACID

MacromoleculeName: 3-HYDROXY-3-CARBOXY-ADIPIC ACID / type: ligand / ID: 4 / Number of copies: 2 / Formula: HCA
Molecular weightTheoretical: 206.15 Da
Chemical component information

ChemComp-HCA:
3-HYDROXY-3-CARBOXY-ADIPIC ACID

-
Macromolecule #5: FE(8)-S(7) CLUSTER

MacromoleculeName: FE(8)-S(7) CLUSTER / type: ligand / ID: 5 / Number of copies: 2 / Formula: CLF
Molecular weightTheoretical: 671.215 Da
Chemical component information

ChemComp-CLF:
FE(8)-S(7) CLUSTER

-
Macromolecule #6: FE (III) ION

MacromoleculeName: FE (III) ION / type: ligand / ID: 6 / Number of copies: 2 / Formula: FE
Molecular weightTheoretical: 55.845 Da

-
Macromolecule #7: water

MacromoleculeName: water / type: ligand / ID: 7 / Number of copies: 1693 / Formula: HOH
Molecular weightTheoretical: 18.015 Da
Chemical component information

ChemComp-HOH:
WATER

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration4.75 mg/mL
BufferpH: 7.8
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD / Nominal defocus max: -3.0 µm / Nominal defocus min: -0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.14 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 331604
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
