- EMDB-23295: Trimeric human Arginase 1 in complex with mAb1 - 2 hArg:2 mAb1 complex -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-23295
TitleTrimeric human Arginase 1 in complex with mAb1 - 2 hArg:2 mAb1 complex
Map dataFull sharpened map of 2 hARG trimers bound to 2 Mab1, with better definition for one of the trimer/Fab half.
Sample
  • Complex: Trimeric human arginase in complex with mAb1
    • Complex: mAb1
      • Protein or peptide: mAb1 heavy chain
      • Protein or peptide: mAb1 light chain
    • Complex: Arginase-1
      • Protein or peptide: Arginase-1
  • Ligand: MANGANESE (II) ION
Function / homology
Function and homology information


positive regulation of neutrophil mediated killing of fungus / Urea cycle / negative regulation of T-helper 2 cell cytokine production / arginine catabolic process to ornithine / arginase / arginase activity / urea cycle / negative regulation of type II interferon-mediated signaling pathway / defense response to protozoan / negative regulation of activated T cell proliferation ...positive regulation of neutrophil mediated killing of fungus / Urea cycle / negative regulation of T-helper 2 cell cytokine production / arginine catabolic process to ornithine / arginase / arginase activity / urea cycle / negative regulation of type II interferon-mediated signaling pathway / defense response to protozoan / negative regulation of activated T cell proliferation / arginine catabolic process / negative regulation of T cell proliferation / specific granule lumen / azurophil granule lumen / manganese ion binding / adaptive immune response / innate immune response / Neutrophil degranulation / extracellular space / extracellular region / nucleus / cytosol / cytoplasm
Similarity search - Function
Arginase / Ureohydrolase, manganese-binding site / Arginase family signature. / Ureohydrolase / Arginase family / Arginase family profile. / Ureohydrolase domain superfamily
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.15 Å
AuthorsGomez-Llorente Y / Scapin G / Palte RL
CitationJournal: Commun Biol / Year: 2021
Title: Cryo-EM structures of inhibitory antibodies complexed with arginase 1 provide insight into mechanism of action.
Authors: Rachel L Palte / Veronica Juan / Yacob Gomez-Llorente / Marc Andre Bailly / Kalyan Chakravarthy / Xun Chen / Daniel Cipriano / Ghassan N Fayad / Laurence Fayadat-Dilman / Symon Gathiaka / ...Authors: Rachel L Palte / Veronica Juan / Yacob Gomez-Llorente / Marc Andre Bailly / Kalyan Chakravarthy / Xun Chen / Daniel Cipriano / Ghassan N Fayad / Laurence Fayadat-Dilman / Symon Gathiaka / Heiko Greb / Brian Hall / Mas Handa / Mark Hsieh / Esther Kofman / Heping Lin / J Richard Miller / Nhung Nguyen / Jennifer O'Neil / Hussam Shaheen / Eric Sterner / Corey Strickland / Angie Sun / Shane Taremi / Giovanna Scapin /
Abstract: Human Arginase 1 (hArg1) is a metalloenzyme that catalyzes the hydrolysis of L-arginine to L-ornithine and urea, and modulates T-cell-mediated immune response. Arginase-targeted therapies have been ...Human Arginase 1 (hArg1) is a metalloenzyme that catalyzes the hydrolysis of L-arginine to L-ornithine and urea, and modulates T-cell-mediated immune response. Arginase-targeted therapies have been pursued across several disease areas including immunology, oncology, nervous system dysfunction, and cardiovascular dysfunction and diseases. Currently, all published hArg1 inhibitors are small molecules usually less than 350 Da in size. Here we report the cryo-electron microscopy structures of potent and inhibitory anti-hArg antibodies bound to hArg1 which form distinct macromolecular complexes that are greater than 650 kDa. With local resolutions of 3.5 Å or better we unambiguously mapped epitopes and paratopes for all five antibodies and determined that the antibodies act through orthosteric and allosteric mechanisms. These hArg1:antibody complexes present an alternative mechanism to inhibit hArg1 activity and highlight the ability to utilize antibodies as probes in the discovery and development of peptide and small molecule inhibitors for enzymes in general.
History
DepositionJan 15, 2021-
Header (metadata) releaseSep 1, 2021-
Map releaseSep 1, 2021-
UpdateSep 1, 2021-
Current statusSep 1, 2021Processing site: RCSB / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.3
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by cylindrical radius
  • Surface level: 0.3
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-7lez
  • Surface level: 0.3
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_23295.map.gz / Format: CCP4 / Size: 147.3 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationFull sharpened map of 2 hARG trimers bound to 2 Mab1, with better definition for one of the trimer/Fab half.
Voxel sizeX=Y=Z: 1.04 Å
Density
Contour LevelBy AUTHOR: 0.23 / Movie #1: 0.3
Minimum - Maximum-3.3925104 - 7.2240367
Average (Standard dev.)0.005500169 (±0.053701643)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions338338338
Spacing338338338
CellA=B=C: 351.52 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z1.041.041.04
M x/y/z338338338
origin x/y/z0.0000.0000.000
length x/y/z351.520351.520351.520
α/β/γ90.00090.00090.000
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS338338338
D min/max/mean-3.3937.2240.006

-
Supplemental data

-
Mask #1

Fileemd_23295_msk_1.map
Projections & Slices
AxesZYX

Projections

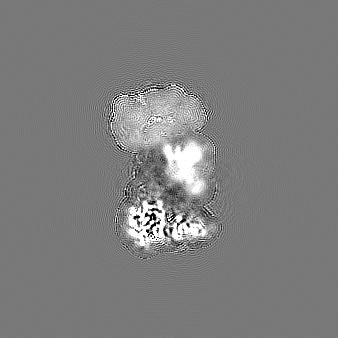

Slices (1/2)

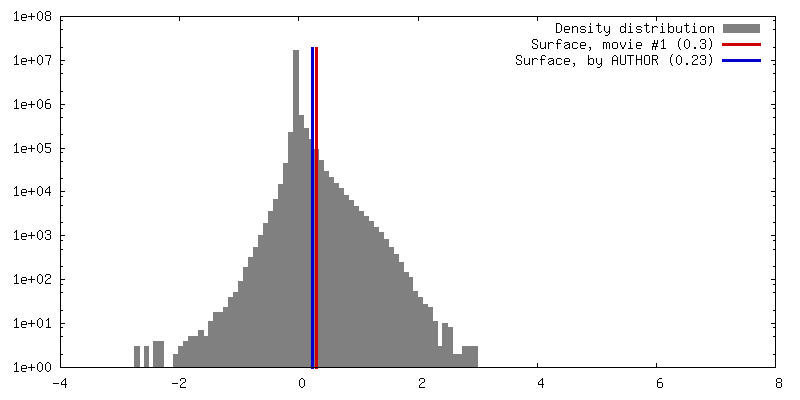

Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Map filtered at the final resolution.

Fileemd_23295_additional_1.map
AnnotationMap filtered at the final resolution.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map A.

Fileemd_23295_half_map_1.map
AnnotationHalf map A.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map B.

Fileemd_23295_half_map_2.map
AnnotationHalf map B.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Trimeric human arginase in complex with mAb1

EntireName: Trimeric human arginase in complex with mAb1
Components
  • Complex: Trimeric human arginase in complex with mAb1
    • Complex: mAb1
      • Protein or peptide: mAb1 heavy chain
      • Protein or peptide: mAb1 light chain
    • Complex: Arginase-1
      • Protein or peptide: Arginase-1
  • Ligand: MANGANESE (II) ION

-
Supramolecule #1: Trimeric human arginase in complex with mAb1

SupramoleculeName: Trimeric human arginase in complex with mAb1 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#3
Details: 2 trimers of human arginase bound to the Fab regions of 2 mAb1 molecules
Molecular weightExperimental: 427 KDa

-
Supramolecule #2: mAb1

SupramoleculeName: mAb1 / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#2
Source (natural)Organism: Homo sapiens (human)
Recombinant expressionOrganism: Cricetulus griseus (Chinese hamster)

-
Supramolecule #3: Arginase-1

SupramoleculeName: Arginase-1 / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #3
Source (natural)Organism: Homo sapiens (human)
Recombinant expressionOrganism: Escherichia coli (E. coli) / Recombinant strain: 'BL21-Gold(DE3)pLysS AG'

-
Macromolecule #1: mAb1 heavy chain

MacromoleculeName: mAb1 heavy chain / type: protein_or_peptide / ID: 1 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 50.269605 KDa
Recombinant expressionOrganism: Cricetulus griseus (Chinese hamster)
SequenceString: QVQLVQSGAE VKKPGASVKV SCKASGYTFT NYGISWVRQA PGQGLEWMGW ISAYNGNTNY AQKLQGRVTM TTDTSTSTAY MELRSLRSD DTAVYYCARE GAYGYRSPYH NWFDPWGQGT LVTVSSAKTT APSVYPLAPV CGDTTGSSVT LGCLVKGYFP E PVTLTWNS ...String:
QVQLVQSGAE VKKPGASVKV SCKASGYTFT NYGISWVRQA PGQGLEWMGW ISAYNGNTNY AQKLQGRVTM TTDTSTSTAY MELRSLRSD DTAVYYCARE GAYGYRSPYH NWFDPWGQGT LVTVSSAKTT APSVYPLAPV CGDTTGSSVT LGCLVKGYFP E PVTLTWNS GSLSSGVHTF PAVLQSDLYT LSSSVTVTSS TWPSQSITCN VAHPASSTKV DKKIEPRGPT IKPCPPCKCP AP NLLGGPS VFIFPPKIKD VLMISLSPIV TCVVVDVSED DPDVQISWFV NNVEVHTAQT QTHREDYNST LRVVSALPIQ HQD WMSGKE FKCKVNNKDL PAPIERTISK PKGSVRAPQV YVLPPPEEEM TKKQVTLTCM VTDFMPEDIY VEWTNNGKTE LNYK NTEPV LDSDGSYFMY SKLRVEKKNW VERNSYSCSV VHEGLHNHHT TKSFSRTPGK

-
Macromolecule #2: mAb1 light chain

MacromoleculeName: mAb1 light chain / type: protein_or_peptide / ID: 2 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.488965 KDa
Recombinant expressionOrganism: Cricetulus griseus (Chinese hamster)
SequenceString: EIVMTQSPAT LSLSPGERAT LSCRASQSVS SYLAWYQQKP GQAPRLLIYD ASNRATGIPA RFSGSGSGTD FTLTISSLEP EDFAVYYCQ QHSLLPRTFG GGTKVEIKRA DAAPTVSIFP PSSEQLTSGG ASVVCFLNNF YPKDINVKWK IDGSERQNGV L NSWTDQDS ...String:
EIVMTQSPAT LSLSPGERAT LSCRASQSVS SYLAWYQQKP GQAPRLLIYD ASNRATGIPA RFSGSGSGTD FTLTISSLEP EDFAVYYCQ QHSLLPRTFG GGTKVEIKRA DAAPTVSIFP PSSEQLTSGG ASVVCFLNNF YPKDINVKWK IDGSERQNGV L NSWTDQDS KDSTYSMSST LTLTKDEYER HNSYTCEATH KTSTSPIVKS FNRNEC

-
Macromolecule #3: Arginase-1

MacromoleculeName: Arginase-1 / type: protein_or_peptide / ID: 3 / Number of copies: 6 / Enantiomer: LEVO / EC number: arginase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 34.779879 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MSAKSRTIGI IGAPFSKGQP RGGVEEGPTV LRKAGLLEKL KEQECDVKDY GDLPFADIPN DSPFQIVKNP RSVGKASEQL AGKVAEVKK NGRISLVLGG DHSLAIGSIS GHARVHPDLG VIWVDAHTDI NTPLTTTSGN LHGQPVSFLL KELKGKIPDV P GFSWVTPC ...String:
MSAKSRTIGI IGAPFSKGQP RGGVEEGPTV LRKAGLLEKL KEQECDVKDY GDLPFADIPN DSPFQIVKNP RSVGKASEQL AGKVAEVKK NGRISLVLGG DHSLAIGSIS GHARVHPDLG VIWVDAHTDI NTPLTTTSGN LHGQPVSFLL KELKGKIPDV P GFSWVTPC ISAKDIVYIG LRDVDPGEHY ILKTLGIKYF SMTEVDRLGI GKVMEETLSY LLGRKKRPIH LSFDVDGLDP SF TPATGTP VVGGLTYREG LYITEEIYKT GLLSGLDIME VNPSLGKTPE EVTRTVNTAV AITLACFGLA REGNHKPIDY LNP PK

-
Macromolecule #4: MANGANESE (II) ION

MacromoleculeName: MANGANESE (II) ION / type: ligand / ID: 4 / Number of copies: 12 / Formula: MN
Molecular weightTheoretical: 54.938 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
GridModel: C-flat-1.2/1.3 / Material: COPPER / Mesh: 300 / Support film - Material: CARBON / Support film - topology: HOLEY / Pretreatment - Type: PLASMA CLEANING
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELDBright-field microscopy / Cs: 2.7 mm / Nominal defocus max: 1.8 µm / Nominal defocus min: 1.0 µm
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Detector mode: COUNTING / Digitization - Dimensions - Width: 3838 pixel / Digitization - Dimensions - Height: 3710 pixel / Number grids imaged: 1 / Number real images: 1506 / Average exposure time: 6.0 sec. / Average electron dose: 45.5 e/Å2
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

CTF correctionSoftware - Name: cryoSPARC (ver. 2.0.23)
Initial angle assignmentType: OTHER / Software - Name: cryoSPARC (ver. 2.0.23)
Final 3D classificationNumber classes: 3 / Software - Name: cryoSPARC (ver. 2.0.23)
Final angle assignmentType: OTHER / Software - Name: cryoSPARC (ver. 2.0.23)
Final reconstructionResolution.type: BY AUTHOR / Resolution: 4.15 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 2.0.23) / Number images used: 16810

-
Atomic model buiding 1

RefinementSpace: REAL / Protocol: RIGID BODY FIT
Output model

PDB-7lez:
Trimeric human Arginase 1 in complex with mAb1 - 2 hArg:2 mAb1 complex

+
