- EMDB-19065: Telomeric RAP1:DNA-PK complex -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-19065
TitleTelomeric RAP1:DNA-PK complex
Map data
Sample
  • Complex: Telomeric RAP1:DNA-PK complex
    • Protein or peptide: DNA-dependent protein kinase catalytic subunit
    • Protein or peptide: Telomeric repeat-binding factor 2-interacting protein 1
    • Protein or peptide: X-ray repair cross-complementing protein 6
    • Protein or peptide: X-ray repair cross-complementing protein 5
    • DNA: DNA (41-MER)
    • DNA: DNA (41-MER)
KeywordsTelomere NHEJ BRCT domain SAP domain / DNA BINDING PROTEIN
Function / homology
Function and homology information


negative regulation of DNA recombination at telomere / protection from non-homologous end joining at telomere / positive regulation of platelet formation / Ku70:Ku80 complex / negative regulation of telomere maintenance / negative regulation of t-circle formation / T cell receptor V(D)J recombination / DNA end binding / pro-B cell differentiation / telomere maintenance via telomere lengthening ...negative regulation of DNA recombination at telomere / protection from non-homologous end joining at telomere / positive regulation of platelet formation / Ku70:Ku80 complex / negative regulation of telomere maintenance / negative regulation of t-circle formation / T cell receptor V(D)J recombination / DNA end binding / pro-B cell differentiation / telomere maintenance via telomere lengthening / shelterin complex / small-subunit processome assembly / positive regulation of lymphocyte differentiation / DNA-dependent protein kinase activity / Telomere C-strand synthesis initiation / DNA-dependent protein kinase complex / histone H2AXS139 kinase activity / DNA-dependent protein kinase-DNA ligase 4 complex / immunoglobulin V(D)J recombination / nonhomologous end joining complex / immature B cell differentiation / regulation of smooth muscle cell proliferation / cellular response to X-ray / Telomere C-strand (Lagging Strand) Synthesis / nuclear telomere cap complex / double-strand break repair via alternative nonhomologous end joining / G-rich strand telomeric DNA binding / regulation of epithelial cell proliferation / double-strand break repair via classical nonhomologous end joining / telomere capping / Cytosolic sensors of pathogen-associated DNA / Processive synthesis on the C-strand of the telomere / Polymerase switching on the C-strand of the telomere / IRF3-mediated induction of type I IFN / Removal of the Flap Intermediate from the C-strand / positive regulation of neurogenesis / regulation of hematopoietic stem cell differentiation / regulation of telomere maintenance / recombinational repair / U3 snoRNA binding / protein localization to chromosome, telomeric region / maturation of 5.8S rRNA / T cell lineage commitment / regulation of double-strand break repair via homologous recombination / cellular hyperosmotic salinity response / negative regulation of cGAS/STING signaling pathway / positive regulation of double-strand break repair via nonhomologous end joining / nuclear chromosome / 2-LTR circle formation / B cell lineage commitment / telomeric DNA binding / hematopoietic stem cell proliferation / negative regulation of protein phosphorylation / positive regulation of telomere maintenance / positive regulation of protein kinase activity / site of DNA damage / Lyases; Carbon-oxygen lyases; Other carbon-oxygen lyases / peptidyl-threonine phosphorylation / Telomere Extension By Telomerase / 5'-deoxyribose-5-phosphate lyase activity / hematopoietic stem cell differentiation / ectopic germ cell programmed cell death / ATP-dependent activity, acting on DNA / somitogenesis / telomere maintenance via telomerase / phosphatase binding / Packaging Of Telomere Ends / Recognition and association of DNA glycosylase with site containing an affected purine / Cleavage of the damaged purine / mitotic G1 DNA damage checkpoint signaling / neurogenesis / Recognition and association of DNA glycosylase with site containing an affected pyrimidine / Cleavage of the damaged pyrimidine / telomere maintenance / Inhibition of DNA recombination at telomere / activation of innate immune response / DNA helicase activity / Meiotic synapsis / cyclin binding / positive regulation of erythrocyte differentiation / cellular response to leukemia inhibitory factor / positive regulation of translation / response to gamma radiation / male germ cell nucleus / small-subunit processome / Nonhomologous End-Joining (NHEJ) / enzyme activator activity / positive regulation of non-canonical NF-kappaB signal transduction / cellular response to gamma radiation / positive regulation of NF-kappaB transcription factor activity / protein-DNA complex / protein destabilization / regulation of circadian rhythm / brain development / peptidyl-serine phosphorylation / DNA Damage/Telomere Stress Induced Senescence / double-strand break repair via nonhomologous end joining / protein modification process / Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement / cellular response to insulin stimulus
Similarity search - Function
Rap1 Myb domain / Rap1 Myb domain / TRF2-interacting telomeric protein/Rap1, C-terminal / TRF2-interacting telomeric protein/Rap1, C-terminal domain superfamily / TRF2-interacting telomeric protein/Rap1 - C terminal domain / TE2IP/Rap1 / Ku70, bridge and pillars domain superfamily / : / DNA-dependent protein kinase catalytic subunit, CC3 / DNA-dependent protein kinase catalytic subunit, catalytic domain ...Rap1 Myb domain / Rap1 Myb domain / TRF2-interacting telomeric protein/Rap1, C-terminal / TRF2-interacting telomeric protein/Rap1, C-terminal domain superfamily / TRF2-interacting telomeric protein/Rap1 - C terminal domain / TE2IP/Rap1 / Ku70, bridge and pillars domain superfamily / : / DNA-dependent protein kinase catalytic subunit, CC3 / DNA-dependent protein kinase catalytic subunit, catalytic domain / DNA-dependent protein kinase catalytic subunit, CC5 / DNA-dependent protein kinase catalytic subunit, CC1/2 / DNA-PKcs, N-terminal / DNA-dependent protein kinase catalytic subunit, CC3 / DNA-PKcs, CC5 / DNA-PKcs, N-terminal / DNA-dependent protein kinase catalytic subunit, CC1/2 / NUC194 / Ku70 / Ku, C-terminal / Ku, C-terminal domain superfamily / Ku C terminal domain like / Ku80 / Ku70/Ku80 C-terminal arm / Ku70/Ku80 C-terminal arm / Ku70/Ku80, N-terminal alpha/beta / Ku70/Ku80 beta-barrel domain / Ku70/Ku80 N-terminal alpha/beta domain / Ku70 and Ku80 are 70kDa and 80kDa subunits of the Lupus Ku autoantigen / Ku70/Ku80 beta-barrel domain / SPOC-like, C-terminal domain superfamily / SAP domain superfamily / BRCT domain / SAP motif profile. / SAP domain / Putative DNA-binding (bihelical) motif predicted to be involved in chromosomal organisation / SAP domain / : / FATC domain / PIK-related kinase, FAT / FAT domain / FATC / FATC domain / PIK-related kinase / FAT domain profile. / FATC domain profile. / Phosphatidylinositol 3- and 4-kinases signature 1. / Phosphatidylinositol 3/4-kinase, conserved site / Phosphatidylinositol 3- and 4-kinases signature 2. / Phosphatidylinositol 3-/4-kinase, catalytic domain superfamily / Phosphoinositide 3-kinase, catalytic domain / Phosphatidylinositol 3- and 4-kinase / Phosphatidylinositol 3- and 4-kinases catalytic domain profile. / Phosphatidylinositol 3-/4-kinase, catalytic domain / von Willebrand factor (vWF) type A domain / von Willebrand factor, type A / BRCT domain / BRCT domain superfamily / von Willebrand factor A-like domain superfamily / Homeobox-like domain superfamily / Armadillo-like helical / Armadillo-type fold / Protein kinase-like domain superfamily
Similarity search - Domain/homology
X-ray repair cross-complementing protein 6 / X-ray repair cross-complementing protein 5 / DNA-dependent protein kinase catalytic subunit / Telomeric repeat-binding factor 2-interacting protein 1
Similarity search - Component
Biological speciesHomo sapiens (human) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.58 Å
AuthorsEickhoff P / Fisher CEL / Inian O / Guettler S / Douglas ME
Funding support United Kingdom, 1 items
OrganizationGrant numberCountry
Cancer Research UKC68409/A28129 United Kingdom
CitationJournal: Nature / Year: 2025
Title: Chromosome end protection by RAP1-mediated inhibition of DNA-PK.
Authors: Patrik Eickhoff / Ceylan Sonmez / Charlotte E L Fisher / Oviya Inian / Theodoros I Roumeliotis / Angela Dello Stritto / Jörg Mansfeld / Jyoti S Choudhary / Sebastian Guettler / Francisca ...Authors: Patrik Eickhoff / Ceylan Sonmez / Charlotte E L Fisher / Oviya Inian / Theodoros I Roumeliotis / Angela Dello Stritto / Jörg Mansfeld / Jyoti S Choudhary / Sebastian Guettler / Francisca Lottersberger / Max E Douglas /
Abstract: During classical non-homologous end joining (cNHEJ), DNA-dependent protein kinase (DNA-PK) encapsulates free DNA ends, forming a recruitment platform for downstream end-joining factors including ...During classical non-homologous end joining (cNHEJ), DNA-dependent protein kinase (DNA-PK) encapsulates free DNA ends, forming a recruitment platform for downstream end-joining factors including ligase 4 (LIG4). DNA-PK can also bind telomeres and regulate their resection, but does not initiate cNHEJ at this position. How the end-joining process is regulated in this context-specific manner is currently unclear. Here we show that the shelterin components TRF2 and RAP1 form a complex with DNA-PK that directly represses its end-joining function at telomeres. Biochemical experiments and cryo-electron microscopy reveal that when bound to TRF2, RAP1 establishes a network of interactions with KU and DNA that prevents DNA-PK from recruiting LIG4. In mouse and human cells, RAP1 is redundant with the Apollo nuclease in repressing cNHEJ at chromosome ends, demonstrating that the inhibition of DNA-PK prevents telomere fusions in parallel with overhang-dependent mechanisms. Our experiments show that the end-joining function of DNA-PK is directly and specifically repressed at telomeres, establishing a molecular mechanism for how individual linear chromosomes are maintained in mammalian cells.
History
DepositionDec 7, 2023-
Header (metadata) releaseMar 5, 2025-
Map releaseMar 5, 2025-
UpdateJul 16, 2025-
Current statusJul 16, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_19065.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.94 Å/pix.
x 384 pix.
= 360.96 Å		0.94 Å/pix.
x 384 pix.
= 360.96 Å		0.94 Å/pix.
x 384 pix.
= 360.96 Å

Surface

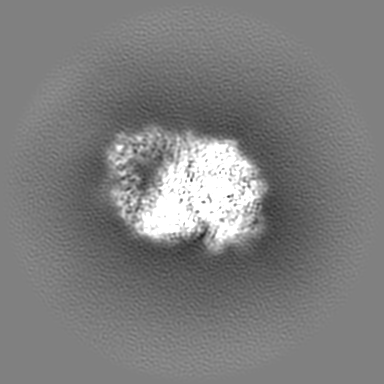

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.94 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 5.2
Minimum - Maximum-30.445450000000001 - 57.505833000000003
Average (Standard dev.)-0.002986591 (±1.0838451)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 360.96 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Sample components

-
Entire : Telomeric RAP1:DNA-PK complex

EntireName: Telomeric RAP1:DNA-PK complex
Components
  • Complex: Telomeric RAP1:DNA-PK complex
    • Protein or peptide: DNA-dependent protein kinase catalytic subunit
    • Protein or peptide: Telomeric repeat-binding factor 2-interacting protein 1
    • Protein or peptide: X-ray repair cross-complementing protein 6
    • Protein or peptide: X-ray repair cross-complementing protein 5
    • DNA: DNA (41-MER)
    • DNA: DNA (41-MER)

-
Supramolecule #1: Telomeric RAP1:DNA-PK complex

SupramoleculeName: Telomeric RAP1:DNA-PK complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: DNA-dependent protein kinase catalytic subunit

MacromoleculeName: DNA-dependent protein kinase catalytic subunit / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: non-specific serine/threonine protein kinase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 469.673219 KDa
SequenceString: MAGSGAGVRC SLLRLQETLS AADRCGAALA GHQLIRGLGQ ECVLSSSPAV LALQTSLVFS RDFGLLVFVR KSLNSIEFRE CREEILKFL CIFLEKMGQK IAPYSVEIKN TCTSVYTKDR AAKCKIPALD LLIKLLQTFR SSRLMDEFKI GELFSKFYGE L ALKKKIPD ...String:
MAGSGAGVRC SLLRLQETLS AADRCGAALA GHQLIRGLGQ ECVLSSSPAV LALQTSLVFS RDFGLLVFVR KSLNSIEFRE CREEILKFL CIFLEKMGQK IAPYSVEIKN TCTSVYTKDR AAKCKIPALD LLIKLLQTFR SSRLMDEFKI GELFSKFYGE L ALKKKIPD TVLEKVYELL GLLGEVHPSE MINNAENLFR AFLGELKTQM TSAVREPKLP VLAGCLKGLS SLLCNFTKSM EE DPQTSRE IFNFVLKAIR PQIDLKRYAV PSAGLRLFAL HASQFSTCLL DNYVSLFEVL LKWCAHTNVE LKKAALSALE SFL KQVSNM VAKNAEMHKN KLQYFMEQFY GIIRNVDSNN KELSIAIRGY GLFAGPCKVI NAKDVDFMYV ELIQRCKQMF LTQT DTGDD RVYQMPSFLQ SVASVLLYLD TVPEVYTPVL EHLVVMQIDS FPQYSPKMQL VCCRAIVKVF LALAAKGPVL RNCIS TVVH QGLIRICSKP VVLPKGPESE SEDHRASGEV RTGKWKVPTY KDYVDLFRHL LSSDQMMDSI LADEAFFSVN SSSESL NHL LYDEFVKSVL KIVEKLDLTL EIQTVGEQEN GDEAPGVWMI PTSDPAANLH PAKPKDFSAF INLVEFCREI LPEKQAE FF EPWVYSFSYE LILQSTRLPL ISGFYKLLSI TVRNAKKIKY FEGVSPKSLK HSPEDPEKYS CFALFVKFGK EVAVKMKQ Y KDELLASCLT FLLSLPHNII ELDVRAYVPA LQMAFKLGLS YTPLAEVGLN ALEEWSIYID RHVMQPYYKD ILPCLDGYL KTSALSDETK NNWEVSALSR AAQKGFNKVV LKHLKKTKNL SSNEAISLEE IRIRVVQMLG SLGGQINKNL LTVTSSDEMM KSYVAWDRE KRLSFAVPFR EMKPVIFLDV FLPRVTELAL TASDRQTKVA ACELLHSMVM FMLGKATQMP EGGQGAPPMY Q LYKRTFPV LLRLACDVDQ VTRQLYEPLV MQLIHWFTNN KKFESQDTVA LLEAILDGIV DPVDSTLRDF CGRCIREFLK WS IKQITPQ QQEKSPVNTK SLFKRLYSLA LHPNAFKRLG ASLAFNNIYR EFREEESLVE QFVFEALVIY MESLALAHAD EKS LGTIQQ CCDAIDHLCR IIEKKHVSLN KAKKRRLPRG FPPSASLCLL DLVKWLLAHC GRPQTECRHK SIELFYKFVP LLPG NRSPN LWLKDVLKEE GVSFLINTFE GGGCGQPSGI LAQPTLLYLR GPFSLQATLC WLDLLLAALE CYNTFIGERT VGALQ VLGT EAQSSLLKAV AFFLESIAMH DIIAAEKCFG TGAAGNRTSP QEGERYNYSK CTVVVRIMEF TTTLLNTSPE GWKLLK KDL CNTHLMRVLV QTLCEPASIG FNIGDVQVMA HLPDVCVNLM KALKMSPYKD ILETHLREKI TAQSIEELCA VNLYGPD AQ VDRSRLAAVV SACKQLHRAG LLHNILPSQS TDLHHSVGTE LLSLVYKGIA PGDERQCLPS LDLSCKQLAS GLLELAFA F GGLCERLVSL LLNPAVLSTA SLGSSQGSVI HFSHGEYFYS LFSETINTEL LKNLDLAVLE LMQSSVDNTK MVSAVLNGM LDQSFRERAN QKHQGLKLAT TILQHWKKCD SWWAKDSPLE TKMAVLALLA KILQIDSSVS FNTSHGSFPE VFTTYISLLA DTKLDLHLK GQAVTLLPFF TSLTGGSLEE LRRVLEQLIV AHFPMQSREF PPGTPRFNNY VDCMKKFLDA LELSQSPMLL E LMTEVLCR EQQHVMEELF QSSFRRIARR GSCVTQVGLL ESVYEMFRKD DPRLSFTRQS FVDRSLLTLL WHCSLDALRE FF STIVVDA IDVLKSRFTK LNESTFDTQI TKKMGYYKIL DVMYSRLPKD DVHAKESKIN QVFHGSCITE GNELTKTLIK LCY DAFTEN MAGENQLLER RRLYHCAAYN CAISVICCVF NELKFYQGFL FSEKPEKNLL IFENLIDLKR RYNFPVEVEV PMER KKKYI EIRKEAREAA NGDSDGPSYM SSLSYLADST LSEEMSQFDF STGVQSYSYS SQDPRPATGR FRRREQRDPT VHDDV LELE MDELNRHECM APLTALVKHM HRSLGPPQGE EDSVPRDLPS WMKFLHGKLG NPIVPLNIRL FLAKLVINTE EVFRPY AKH WLSPLLQLAA SENNGGEGIH YMVVEIVATI LSWTGLATPT GVPKDEVLAN RLLNFLMKHV FHPKRAVFRH NLEIIKT LV ECWKDCLSIP YRLIFEKFSG KDPNSKDNSV GIQLLGIVMA NDLPPYDPQC GIQSSEYFQA LVNNMSFVRY KEVYAAAA E VLGLILRYVM ERKNILEESL CELVAKQLKQ HQNTMEDKFI VCLNKVTKSF PPLADRFMNA VFFLLPKFHG VLKTLCLEV VLCRVEGMTE LYFQLKSKDF VQVMRHRDDE RQKVCLDIIY KMMPKLKPVE LRELLNPVVE FVSHPSTTCR EQMYNILMWI HDNYRDPES ETDNDSQEIF KLAKDVLIQG LIDENPGLQL IIRNFWSHET RLPSNTLDRL LALNSLYSPK IEVHFLSLAT N FLLEMTSM SPDYPNPMFE HPLSECEFQE YTIDSDWRFR STVLTPMFVE TQASQGTLQT RTQEGSLSAR WPVAGQIRAT QQ QHDFTLT QTADGRSSFD WLTGSSTDPL VDHTSPSSDS LLFAHKRSER LQRAPLKSVG PDFGKKRLGL PGDEVDNKVK GAA GRTDLL RLRRRFMRDQ EKLSLMYARK GVAEQKREKE IKSELKMKQD AQVVLYRSYR HGDLPDIQIK HSSLITPLQA VAQR DPIIA KQLFSSLFSG ILKEMDKFKT LSEKNNITQK LLQDFNRFLN TTFSFFPPFV SCIQDISCQH AALLSLDPAA VSAGC LASL QQPVGIRLLE EALLRLLPAE LPAKRVRGKA RLPPDVLRWV ELAKLYRSIG EYDVLRGIFT SEIGTKQITQ SALLAE ARS DYSEAAKQYD EALNKQDWVD GEPTEAEKDF WELASLDCYN HLAEWKSLEY CSTASIDSEN PPDLNKIWSE PFYQETY LP YMIRSKLKLL LQGEADQSLL TFIDKAMHGE LQKAILELHY SQELSLLYLL QDDVDRAKYY IQNGIQSFMQ NYSSIDVL L HQSRLTKLQS VQALTEIQEF ISFISKQGNL SSQVPLKRLL NTWTNRYPDA KMDPMNIWDD IITNRCFFLS KIEEKLTPL PEDNSMNVDQ DGDPSDRMEV QEQEEDISSL IRSCKFSMKM KMIDSARKQN NFSLAMKLLK ELHKESKTRD DWLVSWVQSY CRLSHCRSR SQGCSEQVLT VLKTVSLLDE NNVSSYLSKN ILAFRDQNIL LGTTYRIIAN ALSSEPACLA EIEEDKARRI L ELSGSSSE DSEKVIAGLY QRAFQHLSEA VQAAEEEAQP PSWSCGPAAG VIDAYMTLAD FCDQQLRKEE ENASVIDSAE LQ AYPALVV EKMLKALKLN SNEARLKFPR LLQIIERYPE ETLSLMTKEI SSVPCWQFIS WISHMVALLD KDQAVAVQHS VEE ITDNYP QAIVYPFIIS SESYSFKDTS TGHKNKEFVA RIKSKLDQGG VIQDFINALD QLSNPELLFK DWSNDVRAEL AKTP VNKKN IEKMYERMYA ALGDPKAPGL GAFRRKFIQT FGKEFDKHFG KGGSKLLRMK LSDFNDITNM LLLKMNKDSK PPGNL KECS PWMSDFKVEF LRNELEIPGQ YDGRGKPLPE YHVRIAGFDE RVTVMASLRR PKRIIIRGHD EREHPFLVKG GEDLRQ DQR VEQLFQVMNG ILAQDSACSQ RALQLRTYSV VPMTSRLGLI EWLENTVTLK DLLLNTMSQE EKAAYLSDPR APPCEYK DW LTKMSGKHDV GAYMLMYKGA NRTETVTSFR KRESKVPADL LKRAFVRMST SPEAFLALRS HFASSHALIC ISHWILGI G DRHLNNFMVA METGGVIGID FGHAFGSATQ FLPVPELMPF RLTRQFINLM LPMKETGLMY SIMVHALRAF RSDPGLLTN TMDVFVKEPS FDWKNFEQKM LKKGGSWIQE INVAEKNWYP RQKICYAKRK LAGANPAVIT CDELLLGHEK APAFRDYVAV ARGSKDHNI RAQEPESGLS EETQVKCLMD QATDPNILGR TWEGWEPWM

UniProtKB: DNA-dependent protein kinase catalytic subunit

-
Macromolecule #2: Telomeric repeat-binding factor 2-interacting protein 1

MacromoleculeName: Telomeric repeat-binding factor 2-interacting protein 1
type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 44.314871 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MAEAMDLGKD PNGPTHSSTL FVRDDGSSMS FYVRPSPAKR RLSTLILHGG GTVCRVQEPG AVLLAQPGEA LAEASGDFIS TQYILDCVE RNERLELEAY RLGPASAADT GSEAKPGALA EGAAEPEPQR HAGRIAFTDA DDVAILTYVK ENARSPSSVT G NALWKAME ...String:
MAEAMDLGKD PNGPTHSSTL FVRDDGSSMS FYVRPSPAKR RLSTLILHGG GTVCRVQEPG AVLLAQPGEA LAEASGDFIS TQYILDCVE RNERLELEAY RLGPASAADT GSEAKPGALA EGAAEPEPQR HAGRIAFTDA DDVAILTYVK ENARSPSSVT G NALWKAME KSSLTQHSWQ SLKDRYLKHL RGQEHKYLLG DAPVSPSSQK LKRKAEEDPE AADSGEPQNK RTPDLPEEEY VK EEIQENE EAVKKMLVEA TREFEEVVVD ESPPDFEIHI TMCDDDPPTP EEDSETQPDE EEEEEEEKVS QPEVGAAIKI IRQ LMEKFN LDLSTVTQAF LKNSGELEAT SAFLASGQRA DGYPIWSRQD DIDLQKDDED TREALVKKFG AQNVARRIEF RKK

UniProtKB: Telomeric repeat-binding factor 2-interacting protein 1

-
Macromolecule #3: X-ray repair cross-complementing protein 6

MacromoleculeName: X-ray repair cross-complementing protein 6 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
EC number: Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 69.945039 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MSGWESYYKT EGDEEAEEEQ EENLEASGDY KYSGRDSLIF LVDASKAMFE SQSEDELTPF DMSIQCIQSV YISKIISSDR DLLAVVFYG TEKDKNSVNF KNIYVLQELD NPGAKRILEL DQFKGQQGQK RFQDMMGHGS DYSLSEVLWV CANLFSDVQF K MSHKRIML ...String:
MSGWESYYKT EGDEEAEEEQ EENLEASGDY KYSGRDSLIF LVDASKAMFE SQSEDELTPF DMSIQCIQSV YISKIISSDR DLLAVVFYG TEKDKNSVNF KNIYVLQELD NPGAKRILEL DQFKGQQGQK RFQDMMGHGS DYSLSEVLWV CANLFSDVQF K MSHKRIML FTNEDNPHGN DSAKASRART KAGDLRDTGI FLDLMHLKKP GGFDISLFYR DIISIAEDED LRVHFEESSK LE DLLRKVR AKETRKRALS RLKLKLNKDI VISVGIYNLV QKALKPPPIK LYRETNEPVK TKTRTFNTST GGLLLPSDTK RSQ IYGSRQ IILEKEETEE LKRFDDPGLM LMGFKPLVLL KKHHYLRPSL FVYPEESLVI GSSTLFSALL IKCLEKEVAA LCRY TPRRN IPPYFVALVP QEEELDDQKI QVTPPGFQLV FLPFADDKRK MPFTEKIMAT PEQVGKMKAI VEKLRFTYRS DSFEN PVLQ QHFRNLEALA LDLMEPEQAV DLTLPKVEAM NKRLGSLVDE FKELVYPPDY NPEGKVTKRK HDNEGSGSKR PKVEYS EEE LKTHISKGTL GKFTVPMLKE ACRAYGLKSG LKKQELLEAL TKHFQD

UniProtKB: X-ray repair cross-complementing protein 6

-
Macromolecule #4: X-ray repair cross-complementing protein 5

MacromoleculeName: X-ray repair cross-complementing protein 5 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
EC number: Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 82.812438 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MVRSGNKAAV VLCMDVGFTM SNSIPGIESP FEQAKKVITM FVQRQVFAEN KDEIALVLFG TDGTDNPLSG GDQYQNITVH RHLMLPDFD LLEDIESKIQ PGSQQADFLD ALIVSMDVIQ HETIGKKFEK RHIEIFTDLS SRFSKSQLDI IIHSLKKCDI S LQFFLPFS ...String:
MVRSGNKAAV VLCMDVGFTM SNSIPGIESP FEQAKKVITM FVQRQVFAEN KDEIALVLFG TDGTDNPLSG GDQYQNITVH RHLMLPDFD LLEDIESKIQ PGSQQADFLD ALIVSMDVIQ HETIGKKFEK RHIEIFTDLS SRFSKSQLDI IIHSLKKCDI S LQFFLPFS LGKEDGSGDR GDGPFRLGGH GPSFPLKGIT EQQKEGLEIV KMVMISLEGE DGLDEIYSFS ESLRKLCVFK KI ERHSIHW PCRLTIGSNL SIRIAAYKSI LQERVKKTWT VVDAKTLKKE DIQKETVYCL NDDDETEVLK EDIIQGFRYG SDI VPFSKV DEEQMKYKSE GKCFSVLGFC KSSQVQRRFF MGNQVLKVFA ARDDEAAAVA LSSLIHALDD LDMVAIVRYA YDKR ANPQV GVAFPHIKHN YECLVYVQLP FMEDLRQYMF SSLKNSKKYA PTEAQLNAVD ALIDSMSLAK KDEKTDTLED LFPTT KIPN PRFQRLFQCL LHRALHPREP LPPIQQHIWN MLNPPAEVTT KSQIPLSKIK TLFPLIEAKK KDQVTAQEIF QDNHED GPT AKKLKTEQGG AHFSVSSLAE GSVTSVGSVN PAENFRVLVK QKKASFEEAS NQLINHIEQF LDTNETPYFM KSIDCIR AF REEAIKFSEE QRFNNFLKAL QEKVEIKQLN HFWEIVVQDG ITLITKEEAS GSSVTAEEAK KFLAPKDKPS GDTAAVFE E GGDVDDLLDM I

UniProtKB: X-ray repair cross-complementing protein 5

-
Macromolecule #5: DNA (41-MER)

MacromoleculeName: DNA (41-MER) / type: dna / ID: 5 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 31.10384 KDa
SequenceString: (DC)(DG)(DT)(DC)(DT)(DA)(DT)(DA)(DT)(DT) (DC)(DT)(DA)(DT)(DT)(DG)(DT)(DC)(DT)(DC) (DT)(DT)(DA)(DG)(DG)(DG)(DT)(DT)(DA) (DG)(DG)(DG)(DT)(DT)(DA)(DG)(DG)(DG)(DT) (DT) (DA)(DG)(DG)(DG)(DT)(DT) ...String:
(DC)(DG)(DT)(DC)(DT)(DA)(DT)(DA)(DT)(DT) (DC)(DT)(DA)(DT)(DT)(DG)(DT)(DC)(DT)(DC) (DT)(DT)(DA)(DG)(DG)(DG)(DT)(DT)(DA) (DG)(DG)(DG)(DT)(DT)(DA)(DG)(DG)(DG)(DT) (DT) (DA)(DG)(DG)(DG)(DT)(DT)(DA)(DG) (DG)(DG)(DT)(DT)(DA)(DG)(DG)(DG)(DT)(DT) (DA)(DG) (DG)(DG)(DT)(DT)(DA)(DG)(DG) (DG)(DT)(DT)(DA)(DA)(DC)(DA)(DT)(DC)(DA) (DG)(DT)(DC) (DT)(DC)(DA)(DC)(DA)(DT) (DA)(DG)(DA)(DT)(DT)(DA)(DG)(DC)(DT)(DC) (DA)(DC)(DG)(DC)

-
Macromolecule #6: DNA (41-MER)

MacromoleculeName: DNA (41-MER) / type: dna / ID: 6 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 30.589674 KDa
SequenceString: (DG)(DC)(DG)(DT)(DG)(DA)(DG)(DC)(DT)(DA) (DA)(DT)(DC)(DT)(DA)(DT)(DG)(DT)(DG)(DA) (DG)(DA)(DC)(DT)(DG)(DA)(DT)(DG)(DT) (DT)(DA)(DA)(DC)(DC)(DC)(DT)(DA)(DA)(DC) (DC) (DC)(DT)(DA)(DA)(DC)(DC) ...String:
(DG)(DC)(DG)(DT)(DG)(DA)(DG)(DC)(DT)(DA) (DA)(DT)(DC)(DT)(DA)(DT)(DG)(DT)(DG)(DA) (DG)(DA)(DC)(DT)(DG)(DA)(DT)(DG)(DT) (DT)(DA)(DA)(DC)(DC)(DC)(DT)(DA)(DA)(DC) (DC) (DC)(DT)(DA)(DA)(DC)(DC)(DC)(DT) (DA)(DA)(DC)(DC)(DC)(DT)(DA)(DA)(DC)(DC) (DC)(DT) (DA)(DA)(DC)(DC)(DC)(DT)(DA) (DA)(DC)(DC)(DC)(DT)(DA)(DA)(DC)(DC)(DC) (DT)(DA)(DA) (DG)(DA)(DG)(DA)(DC)(DA) (DA)(DT)(DA)(DG)(DA)(DA)(DT)(DA)(DT)(DA) (DG)(DA)(DC)(DG)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS GLACIOS
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.0 µm

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.58 Å / Resolution method: OTHER
Details: Composite map, resolution estimated from overall consensus map using a FSC 0.143 cut-off
Number images used: 526885
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
