Basic information

Entry
Database: EMDB / ID: EMD-17822
TitleK48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
Map dataComposite Map
Sample
  • Complex: K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and CDC34:NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
    • Complex: RING E3 ligase (RBX1) and Cullin-2 (CUL2)
      • Protein or peptide: E3 ubiquitin-protein ligase RBX1
      • Protein or peptide: Cullin-2
    • Complex: CDC34, NEDD8, ELOB, ELOC, FEM1C with UBE2R2-donor UB-acceptor UB-SIL1 peptide and K48-linked ubiquitin chain
      • Protein or peptide: Ubiquitin-conjugating enzyme E2 R2
      • Protein or peptide: Polyubiquitin-C,Nucleotide exchange factor SIL1
      • Protein or peptide: Protein fem-1 homolog C
      • Protein or peptide: Ubiquitin
      • Protein or peptide: Elongin-C
      • Protein or peptide: Elongin-B
  • Ligand: 5-azanylpentan-2-one
  • Ligand: ZINC ION
KeywordsCUL2 / FEM1C / ELOBC / SIL1 / Ubiquitin / Ubiquitin Ligase / Ubiquitin chain formation / Poliubiquitylation / LIGASE
Function / homology
Function and homology information


adenyl-nucleotide exchange factor activity / cotranslational protein targeting to membrane / cullin-RING-type E3 NEDD8 transferase / NEDD8 transferase activity / cullin-RING ubiquitin ligase complex / cellular response to chemical stress / Cul7-RING ubiquitin ligase complex / ubiquitin-dependent protein catabolic process via the C-end degron rule pathway / target-directed miRNA degradation / Loss of Function of FBXW7 in Cancer and NOTCH1 Signaling ...adenyl-nucleotide exchange factor activity / cotranslational protein targeting to membrane / cullin-RING-type E3 NEDD8 transferase / NEDD8 transferase activity / cullin-RING ubiquitin ligase complex / cellular response to chemical stress / Cul7-RING ubiquitin ligase complex / ubiquitin-dependent protein catabolic process via the C-end degron rule pathway / target-directed miRNA degradation / Loss of Function of FBXW7 in Cancer and NOTCH1 Signaling / elongin complex / VCB complex / positive regulation of protein autoubiquitination / protein neddylation / NEDD8 ligase activity / Cul5-RING ubiquitin ligase complex / negative regulation of response to oxidative stress / ubiquitin-ubiquitin ligase activity / SCF ubiquitin ligase complex / Cul2-RING ubiquitin ligase complex / Cul4A-RING E3 ubiquitin ligase complex / negative regulation of type I interferon production / Cul4B-RING E3 ubiquitin ligase complex / SCF-dependent proteasomal ubiquitin-dependent protein catabolic process / E2 ubiquitin-conjugating enzyme / Cul3-RING ubiquitin ligase complex / ubiquitin ligase complex scaffold activity / Prolactin receptor signaling / protein monoubiquitination / Pausing and recovery of Tat-mediated HIV elongation / Tat-mediated HIV elongation arrest and recovery / ubiquitin conjugating enzyme activity / cullin family protein binding / HIV elongation arrest and recovery / Pausing and recovery of HIV elongation / Tat-mediated elongation of the HIV-1 transcript / ubiquitin-like ligase-substrate adaptor activity / Formation of HIV-1 elongation complex containing HIV-1 Tat / Formation of HIV elongation complex in the absence of HIV Tat / protein K48-linked ubiquitination / RNA Polymerase II Transcription Elongation / Nuclear events stimulated by ALK signaling in cancer / Formation of RNA Pol II elongation complex / ubiquitin ligase complex / Maturation of protein E / Maturation of protein E / ER Quality Control Compartment (ERQC) / RNA Polymerase II Pre-transcription Events / Myoclonic epilepsy of Lafora / FLT3 signaling by CBL mutants / Prevention of phagosomal-lysosomal fusion / IRAK2 mediated activation of TAK1 complex / Alpha-protein kinase 1 signaling pathway / Glycogen synthesis / IRAK1 recruits IKK complex / IRAK1 recruits IKK complex upon TLR7/8 or 9 stimulation / Regulation of TBK1, IKKε (IKBKE)-mediated activation of IRF3, IRF7 / Regulation of TBK1, IKKε-mediated activation of IRF3, IRF7 upon TLR3 ligation / Membrane binding and targetting of GAG proteins / Endosomal Sorting Complex Required For Transport (ESCRT) / IRAK2 mediated activation of TAK1 complex upon TLR7/8 or 9 stimulation / TICAM1,TRAF6-dependent induction of TAK1 complex / Negative regulation of FLT3 / PTK6 Regulates RTKs and Their Effectors AKT1 and DOK1 / Constitutive Signaling by NOTCH1 HD Domain Mutants / TICAM1-dependent activation of IRF3/IRF7 / NOTCH2 Activation and Transmission of Signal to the Nucleus / Regulation of FZD by ubiquitination / positive regulation of TORC1 signaling / APC/C:Cdc20 mediated degradation of Cyclin B / post-translational protein modification / Downregulation of ERBB4 signaling / p75NTR recruits signalling complexes / regulation of cellular response to insulin stimulus / APC-Cdc20 mediated degradation of Nek2A / TRAF6 mediated IRF7 activation in TLR7/8 or 9 signaling / TRAF6-mediated induction of TAK1 complex within TLR4 complex / Regulation of innate immune responses to cytosolic DNA / intrinsic apoptotic signaling pathway / InlA-mediated entry of Listeria monocytogenes into host cells / Regulation of pyruvate metabolism / Downregulation of ERBB2:ERBB3 signaling / NF-kB is activated and signals survival / VLDLR internalisation and degradation / Pexophagy / NRIF signals cell death from the nucleus / Regulation of PTEN localization / Activated NOTCH1 Transmits Signal to the Nucleus / Regulation of BACH1 activity / Translesion synthesis by REV1 / Synthesis of active ubiquitin: roles of E1 and E2 enzymes / MAP3K8 (TPL2)-dependent MAPK1/3 activation / TICAM1, RIP1-mediated IKK complex recruitment / Translesion synthesis by POLK / transcription corepressor binding / Downregulation of TGF-beta receptor signaling / Activation of IRF3, IRF7 mediated by TBK1, IKKε (IKBKE) / T cell activation / Translesion synthesis by POLI / Gap-filling DNA repair synthesis and ligation in GG-NER
Similarity search - Function
Nucleotide exchange factor Fes1 / : / Nucleotide exchange factor Fes1 / : / Zinc finger, RING-H2-type / RING-H2 zinc finger domain / Cullin protein neddylation domain / : / Elongin B / Elongin-C ...Nucleotide exchange factor Fes1 / : / Nucleotide exchange factor Fes1 / : / Zinc finger, RING-H2-type / RING-H2 zinc finger domain / Cullin protein neddylation domain / : / Elongin B / Elongin-C / Cullin, conserved site / Cullin family signature. / Cullin repeat-like-containing domain superfamily / Cullin protein, neddylation domain / Cullin / Cullin protein neddylation domain / : / Cullin / Cullin, N-terminal / Cullin homology domain / Cullin homology domain superfamily / Cullin family / Cullin family profile. / S-phase kinase-associated protein 1-like / SKP1 component, POZ domain / Skp1 family, tetramerisation domain / Found in Skp1 protein family / Ubiquitin-conjugating enzyme, active site / Ubiquitin-conjugating (UBC) active site signature. / Ubiquitin-conjugating enzyme E2 / Ubiquitin-conjugating enzyme / Ubiquitin-conjugating (UBC) core domain profile. / Ubiquitin-conjugating enzyme E2, catalytic domain homologues / Ubiquitin-conjugating enzyme/RWD-like / SKP1/BTB/POZ domain superfamily / Ankyrin repeat / Ankyrin repeats (3 copies) / Ankyrin repeat profile. / Ankyrin repeat region circular profile. / ankyrin repeats / Ankyrin repeat / Zinc finger RING-type profile. / Zinc finger, RING-type / Ankyrin repeat-containing domain superfamily / : / Ubiquitin domain signature. / Ubiquitin conserved site / Ubiquitin domain / Armadillo-like helical / Ubiquitin family / Ubiquitin homologues / Tetratricopeptide-like helical domain superfamily / Ubiquitin domain profile. / Ubiquitin-like domain / Armadillo-type fold / Zinc finger, RING/FYVE/PHD-type / Ubiquitin-like domain superfamily / Winged helix DNA-binding domain superfamily / Winged helix-like DNA-binding domain superfamily
Similarity search - Domain/homology
Polyubiquitin-C / E3 ubiquitin-protein ligase RBX1 / Cullin-2 / Elongin-C / Elongin-B / Ubiquitin-conjugating enzyme E2 R2 / Protein fem-1 homolog C / Nucleotide exchange factor SIL1
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.76 Å
AuthorsLiwocha J / Prabu JR / Kleiger G / Schulman BA
Funding support Germany, 1 items
OrganizationGrant numberCountry
Max Planck Society Germany
CitationJournal: Nat Struct Mol Biol / Year: 2024
Title: Mechanism of millisecond Lys48-linked poly-ubiquitin chain formation by cullin-RING ligases.
Authors: Joanna Liwocha / Jerry Li / Nicholas Purser / Chutima Rattanasopa / Samuel Maiwald / David T Krist / Daniel C Scott / Barbara Steigenberger / J Rajan Prabu / Brenda A Schulman / Gary Kleiger /
Abstract: E3 ubiquitin ligases, in collaboration with E2 ubiquitin-conjugating enzymes, modify proteins with poly-ubiquitin chains. Cullin-RING ligase (CRL) E3s use Cdc34/UBE2R-family E2s to build Lys48-linked ...E3 ubiquitin ligases, in collaboration with E2 ubiquitin-conjugating enzymes, modify proteins with poly-ubiquitin chains. Cullin-RING ligase (CRL) E3s use Cdc34/UBE2R-family E2s to build Lys48-linked poly-ubiquitin chains to control an enormous swath of eukaryotic biology. Yet the molecular mechanisms underlying this exceptional linkage specificity and millisecond kinetics of poly-ubiquitylation remain unclear. Here we obtain cryogenic-electron microscopy (cryo-EM) structures that provide pertinent insight into how such poly-ubiquitin chains are forged. The CRL RING domain not only activates the E2-bound ubiquitin but also shapes the conformation of a distinctive UBE2R2 loop, positioning both the ubiquitin to be transferred and the substrate-linked acceptor ubiquitin within the active site. The structures also reveal how the ubiquitin-like protein NEDD8 uniquely activates CRLs during chain formation. NEDD8 releases the RING domain from the CRL, but unlike previous CRL-E2 structures, does not contact UBE2R2. These findings suggest how poly-ubiquitylation may be accomplished by many E2s and E3s.
History
DepositionJul 11, 2023-
Header (metadata) releaseFeb 14, 2024-
Map releaseFeb 14, 2024-
UpdateNov 13, 2024-
Current statusNov 13, 2024Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_17822.map.gz / Format: CCP4 / Size: 209.3 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationComposite Map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.85 Å/pix.
x 380 pix.
= 323.38 Å		0.85 Å/pix.
x 380 pix.
= 323.38 Å		0.85 Å/pix.
x 380 pix.
= 323.38 Å

Surface

Projections

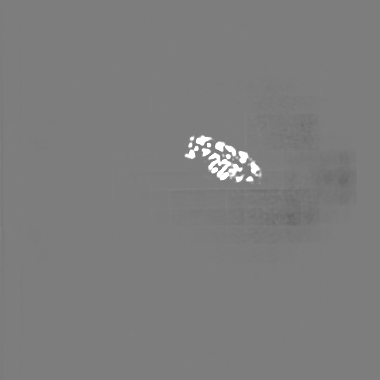

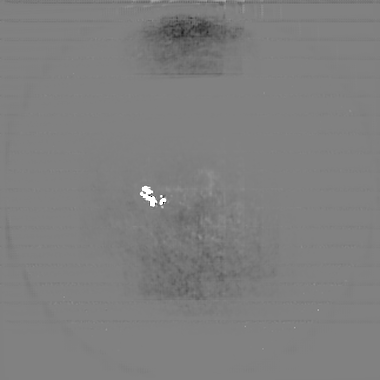

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.851 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.151
Minimum - Maximum-0.14253947 - 10.271395999999999
Average (Standard dev.)0.0047613564 (±0.10311599)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions380380380
Spacing380380380
CellA=B=C: 323.38 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Focused map 5

Fileemd_17822_additional_1.map
AnnotationFocused map 5
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Focused map 1

Fileemd_17822_additional_2.map
AnnotationFocused map 1
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Focused map 2

Fileemd_17822_additional_3.map
AnnotationFocused map 2
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Focused map 3

Fileemd_17822_additional_4.map
AnnotationFocused map 3
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Focused map 4

Fileemd_17822_additional_5.map
AnnotationFocused map 4
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : K48-linked ubiquitin chain formation with a cullin-RING E3 ligase...

EntireName: K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and CDC34:NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
Components
  • Complex: K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and CDC34:NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
    • Complex: RING E3 ligase (RBX1) and Cullin-2 (CUL2)
      • Protein or peptide: E3 ubiquitin-protein ligase RBX1
      • Protein or peptide: Cullin-2
    • Complex: CDC34, NEDD8, ELOB, ELOC, FEM1C with UBE2R2-donor UB-acceptor UB-SIL1 peptide and K48-linked ubiquitin chain
      • Protein or peptide: Ubiquitin-conjugating enzyme E2 R2
      • Protein or peptide: Polyubiquitin-C,Nucleotide exchange factor SIL1
      • Protein or peptide: Protein fem-1 homolog C
      • Protein or peptide: Ubiquitin
      • Protein or peptide: Elongin-C
      • Protein or peptide: Elongin-B
  • Ligand: 5-azanylpentan-2-one
  • Ligand: ZINC ION

+
Supramolecule #1: K48-linked ubiquitin chain formation with a cullin-RING E3 ligase...

SupramoleculeName: K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and CDC34:NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#8
Molecular weightTheoretical: 190 KDa

+
Supramolecule #2: RING E3 ligase (RBX1) and Cullin-2 (CUL2)

SupramoleculeName: RING E3 ligase (RBX1) and Cullin-2 (CUL2) / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #4, #6
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #3: CDC34, NEDD8, ELOB, ELOC, FEM1C with UBE2R2-donor UB-acceptor UB-...

SupramoleculeName: CDC34, NEDD8, ELOB, ELOC, FEM1C with UBE2R2-donor UB-acceptor UB-SIL1 peptide and K48-linked ubiquitin chain
type: complex / ID: 3 / Parent: 1 / Macromolecule list: #1-#3, #5, #7-#8
Source (natural)Organism: Homo sapiens (human)

+
Macromolecule #1: Ubiquitin-conjugating enzyme E2 R2

MacromoleculeName: Ubiquitin-conjugating enzyme E2 R2 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: E2 ubiquitin-conjugating enzyme
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 27.190932 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString: MAQQQMTSSQ KALMLELKSL QEEPVEGFRI TLVDESDLYN WEVAIFGPPN TLYEGGYFKA HIKFPIDYPY SPPTFRFLTK MWHPNIYEN GDVCISILHP PVDDPQSGEL PSERWNPTQN VRTILLSVIS LLNEPNTFSP ANVDASVMFR KWRDSKGKDK E YAEIIRKQ ...String:
MAQQQMTSSQ KALMLELKSL QEEPVEGFRI TLVDESDLYN WEVAIFGPPN TLYEGGYFKA HIKFPIDYPY SPPTFRFLTK MWHPNIYEN GDVCISILHP PVDDPQSGEL PSERWNPTQN VRTILLSVIS LLNEPNTFSP ANVDASVMFR KWRDSKGKDK E YAEIIRKQ VSATKAEAEK DGVKVPTTLA EYCIKTKVPS NDNSSDLLYD DLYDDDIDDE DEEEEDADCY DDDDSGNEES

UniProtKB: Ubiquitin-conjugating enzyme E2 R2

+
Macromolecule #2: Polyubiquitin-C,Nucleotide exchange factor SIL1

MacromoleculeName: Polyubiquitin-C,Nucleotide exchange factor SIL1 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 79.226711 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString: MQIFVKTLTG KTITLEVEPS DTIENVKAKI QDKEGIPPDQ QRLIFAGCQL EDGRTLSDYN IQKESTLHLV LRLRGGMQIF VKTLTGKTI TLEVEPSDTI ENVKAKIQDK EGIPPDQQRL IFAGKQLEDG RTLSDYNIQK ESTLHLVLRL RGGMQIFVKT L TGKTITLE ...String:
MQIFVKTLTG KTITLEVEPS DTIENVKAKI QDKEGIPPDQ QRLIFAGCQL EDGRTLSDYN IQKESTLHLV LRLRGGMQIF VKTLTGKTI TLEVEPSDTI ENVKAKIQDK EGIPPDQQRL IFAGKQLEDG RTLSDYNIQK ESTLHLVLRL RGGMQIFVKT L TGKTITLE VEPSDTIENV KAKIQDKEGI PPDQQRLIFA GKQLEDGRTL SDYNIQKEST LHLVLRLRGG MQIFVKTLTG KT ITLEVEP SDTIENVKAK IQDKEGIPPD QQRLIFAGKQ LEDGRTLSDY NIQKESTLHL VLRLRGGMQI FVKTLTGKTI TLE VEPSDT IENVKAKIQD KEGIPPDQQR LIFAGKQLED GRTLSDYNIQ KESTLHLVLR LRGGMQIFVK TLTGKTITLE VEPS DTIEN VKAKIQDKEG IPPDQQRLIF AGKQLEDGRT LSDYNIQKES TLHLVLRLRG GMQIFVKTLT GKTITLEVEP SDTIE NVKA KIQDKEGIPP DQQRLIFAGK QLEDGRTLSD YNIQKESTLH LVLRLRGGMQ IFVKTLTGKT ITLEVEPSDT IENVKA KIQ DKEGIPPDQQ RLIFAGKQLE DGRTLSDYNI QKESTLHLVL RLRGGMQIFV KTLTGKTITL EVEPSDTIEN VKAKIQD KE GIPPDQQRLI FAGKQLEDGR TLSDYNIQKE STLHLVLRLR GGVEGYFQEL LGSVNPTQGR AR

UniProtKB: Polyubiquitin-C, Nucleotide exchange factor SIL1

+
Macromolecule #3: Protein fem-1 homolog C

MacromoleculeName: Protein fem-1 homolog C / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 68.767312 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString: MDLKTAVFNA ARDGKLRLLT KLLASKSKEE VSSLISEKTN GATPLLMAAR YGHLDMVEFL LEQCSASIEV GGSVNFDGET IEGAPPLWA ASAAGHLKVV QSLLNHGASV NNTTLTNSTP LRAACFDGHL EIVKYLVEHK ADLEVSNRHG HTCLMISCYK G HKEIAQYL ...String:
MDLKTAVFNA ARDGKLRLLT KLLASKSKEE VSSLISEKTN GATPLLMAAR YGHLDMVEFL LEQCSASIEV GGSVNFDGET IEGAPPLWA ASAAGHLKVV QSLLNHGASV NNTTLTNSTP LRAACFDGHL EIVKYLVEHK ADLEVSNRHG HTCLMISCYK G HKEIAQYL LEKGADVNRK SVKGNTALHD CAESGSLDIM KMLLMYCAKM EKDGYGMTPL LSASVTGHTN IVDFLTHHAQ TS KTERINA LELLGATFVD KKRDLLGALK YWKKAMNMRY SDRTNIISKP VPQTLIMAYD YAKEVNSAEE LEGLIADPDE MRM QALLIR ERILGPSHPD TSYYIRYRGA VYADSGNFKR CINLWKYALD MQQSNLDPLS PMTASSLLSF AELFSFMLQD RAKG LLGTT VTFDDLMGIL CKSVLEIERA IKQTQCPADP LQLNKALSII LHLICLLEKV PCTLEQDHFK KQTIYRFLKL HPRGK NNFS PLHLAVDKNT TCVGRYPVCK FPSLQVTAIL IECGADVNVR DSDDNSPLHI AALNNHPDIM NLLIKSGAHF DATNLH KQT ASDLLDEKEI AKNLIQPINH TTLQCLAARV IVNHRIYYKG HIPEKLETFV SLHR

UniProtKB: Protein fem-1 homolog C

+
Macromolecule #4: E3 ubiquitin-protein ligase RBX1

MacromoleculeName: E3 ubiquitin-protein ligase RBX1 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO / EC number: RING-type E3 ubiquitin transferase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 12.289977 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString:
MAAAMDVDTP SGTNSGAGKK RFEVKKWNAV ALWAWDIVVD NCAICRNHIM DLCIECQANQ ASATSEECTV AWGVCNHAFH FHCISRWLK TRQVCPLDNR EWEFQKYGH

UniProtKB: E3 ubiquitin-protein ligase RBX1

+
Macromolecule #5: Ubiquitin

MacromoleculeName: Ubiquitin / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 77.120398 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString: MQIFVKTLTG KTITLEVEPS DTIENVKAKI QDKEGIPPDQ QRLIFAGCQL EDGRTLSDYN IQKESTLHLV LRLRGGMQIF VKTLTGKTI TLEVEPSDTI ENVKAKIQDK EGIPPDQQRL IFAGKQLEDG RTLSDYNIQK ESTLHLVLRL RGGMQIFVKT L TGKTITLE ...String:
MQIFVKTLTG KTITLEVEPS DTIENVKAKI QDKEGIPPDQ QRLIFAGCQL EDGRTLSDYN IQKESTLHLV LRLRGGMQIF VKTLTGKTI TLEVEPSDTI ENVKAKIQDK EGIPPDQQRL IFAGKQLEDG RTLSDYNIQK ESTLHLVLRL RGGMQIFVKT L TGKTITLE VEPSDTIENV KAKIQDKEGI PPDQQRLIFA GKQLEDGRTL SDYNIQKEST LHLVLRLRGG MQIFVKTLTG KT ITLEVEP SDTIENVKAK IQDKEGIPPD QQRLIFAGKQ LEDGRTLSDY NIQKESTLHL VLRLRGGMQI FVKTLTGKTI TLE VEPSDT IENVKAKIQD KEGIPPDQQR LIFAGKQLED GRTLSDYNIQ KESTLHLVLR LRGGMQIFVK TLTGKTITLE VEPS DTIEN VKAKIQDKEG IPPDQQRLIF AGKQLEDGRT LSDYNIQKES TLHLVLRLRG GMQIFVKTLT GKTITLEVEP SDTIE NVKA KIQDKEGIPP DQQRLIFAGK QLEDGRTLSD YNIQKESTLH LVLRLRGGMQ IFVKTLTGKT ITLEVEPSDT IENVKA KIQ DKEGIPPDQQ RLIFAGKQLE DGRTLSDYNI QKESTLHLVL RLRGGMQIFV KTLTGKTITL EVEPSDTIEN VKAKIQD KE GIPPDQQRLI FAGKQLEDGR TLSDYNIQKE STLHLVLRLR GGV

UniProtKB: Polyubiquitin-C

+
Macromolecule #6: Cullin-2

MacromoleculeName: Cullin-2 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 87.09893 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MSLKPRVVDF DETWNKLLTT IKAVVMLEYV ERATWNDRFS DIYALCVAYP EPLGERLYTE TKIFLENHVR HLHKRVLESE EQVLVMYHR YWEEYSKGAD YMDCLYRYLN TQFIKKNKLT EADLQYGYGG VDMNEPLMEI GELALDMWRK LMVEPLQAIL I RMLLREIK ...String:
MSLKPRVVDF DETWNKLLTT IKAVVMLEYV ERATWNDRFS DIYALCVAYP EPLGERLYTE TKIFLENHVR HLHKRVLESE EQVLVMYHR YWEEYSKGAD YMDCLYRYLN TQFIKKNKLT EADLQYGYGG VDMNEPLMEI GELALDMWRK LMVEPLQAIL I RMLLREIK NDRGGEDPNQ KVIHGVINSF VHVEQYKKKF PLKFYQEIFE SPFLTETGEY YKQEASNLLQ ESNCSQYMEK VL GRLKDEE IRCRKYLHPS SYTKVIHECQ QRMVADHLQF LHAECHNIIR QEKKNDMANM YVLLRAVSTG LPHMIQELQN HIH DEGLRA TSNLTQENMP TLFVESVLEV HGKFVQLINT VLNGDQHFMS ALDKALTSVV NYREPKSVCK APELLAKYCD NLLK KSAKG MTENEVEDRL TSFITVFKYI DDKDVFQKFY ARMLAKRLIH GLSMSMDSEE AMINKLKQAC GYEFTSKLHR MYTDM SVSA DLNNKFNNFI KNQDTVIDLG ISFQIYVLQA GAWPLTQAPS STFAIPQELE KSVQMFELFY SQHFSGRKLT WLHYLC TGE VKMNYLGKPY VAMVTTYQMA VLLAFNNSET VSYKELQDST QMNEKELTKT IKSLLDVKMI NHDSEKEDID AESSFSL NM NFSSKRTKFK ITTSMQKDTP QEMEQTRSAV DEDRKMYLQA AIVRIMKARK VLRHNALIQE VISQSRARFN PSISMIKK C IEVLIDKQYI ERSQASADEY SYVA

UniProtKB: Cullin-2

+
Macromolecule #7: Elongin-C

MacromoleculeName: Elongin-C / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 12.485135 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString:
MDGEEKTYGG CEGPDAMYVK LISSDGHEFI VKREHALTSG TIKAMLSGPG QFAENETNEV NFREIPSHVL SKVCMYFTYK VRYTNSSTE IPEFPIAPEI ALELLMAANF LDC

UniProtKB: Elongin-C

+
Macromolecule #8: Elongin-B

MacromoleculeName: Elongin-B / type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 13.147781 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString:
MDVFLMIRRH KTTIFTDAKE SSTVFELKRI VEGILKRPPD EQRLYKDDQL LDDGKTLGEC GFTSQTARPQ APATVGLAFR ADDTFEALC IEPFSSPPEL PDVMKPQDSG SSANEQAVQ

UniProtKB: Elongin-B

+
Macromolecule #9: 5-azanylpentan-2-one

MacromoleculeName: 5-azanylpentan-2-one / type: ligand / ID: 9 / Number of copies: 1 / Formula: SY8
Molecular weightTheoretical: 101.147 Da
Chemical component information

ChemComp-SY8:
5-azanylpentan-2-one

+
Macromolecule #10: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 10 / Number of copies: 3 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.6 µm / Nominal defocus min: 0.6 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

5n4w

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.76 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 61956
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
