Yorodumi- EMDB-32421: Cryo EM structure of SARS-CoV-2 spike in complex with TAU-2212 mA... -
+Open data
-Basic information
Entry | Database: EMDB / ID: EMD-32421 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Title | Cryo EM structure of SARS-CoV-2 spike in complex with TAU-2212 mAbs in conformation 4 | |||||||||
Map data | ||||||||||
Sample |
| |||||||||
Function / homology | Function and homology information Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell ...Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / suppression by virus of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / membrane fusion / receptor-mediated endocytosis of virus by host cell / Attachment and Entry / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / receptor ligand activity / symbiont-mediated suppression of host innate immune response / host cell surface receptor binding / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / identical protein binding / membrane / plasma membrane Similarity search - Function | |||||||||
Biological species | Severe acute respiratory syndrome coronavirus 2 / Homo sapiens (human) | |||||||||
Method | single particle reconstruction / cryo EM / Resolution: 3.3 Å | |||||||||
Authors | Xiang Y / Ma B / Li R | |||||||||
Funding support | China, 1 items
| |||||||||
Citation | Journal: Commun Biol / Year: 2022 Title: Conformational flexibility in neutralization of SARS-CoV-2 by naturally elicited anti-SARS-CoV-2 antibodies. Authors: Ruofan Li / Michael Mor / Bingting Ma / Alex E Clark / Joel Alter / Michal Werbner / Jamie Casey Lee / Sandra L Leibel / Aaron F Carlin / Moshe Dessau / Meital Gal-Tanamy / Ben A Croker / Ye ...Authors: Ruofan Li / Michael Mor / Bingting Ma / Alex E Clark / Joel Alter / Michal Werbner / Jamie Casey Lee / Sandra L Leibel / Aaron F Carlin / Moshe Dessau / Meital Gal-Tanamy / Ben A Croker / Ye Xiang / Natalia T Freund / Abstract: As new variants of SARS-CoV-2 continue to emerge, it is important to assess the cross-neutralizing capabilities of antibodies naturally elicited during wild type SARS-CoV-2 infection. In the present ...As new variants of SARS-CoV-2 continue to emerge, it is important to assess the cross-neutralizing capabilities of antibodies naturally elicited during wild type SARS-CoV-2 infection. In the present study, we evaluate the activity of nine anti-SARS-CoV-2 monoclonal antibodies (mAbs), previously isolated from convalescent donors infected with the Wuhan-Hu-1 strain, against the SARS-CoV-2 variants of concern (VOC) Alpha, Beta, Gamma, Delta and Omicron. By testing an array of mutated spike receptor binding domain (RBD) proteins, cell-expressed spike proteins from VOCs, and neutralization of SARS-CoV-2 VOCs as pseudoviruses, or as the authentic viruses in culture, we show that mAbs directed against the ACE2 binding site (ACE2bs) are more sensitive to viral evolution compared to anti-RBD non-ACE2bs mAbs, two of which retain their potency against all VOCs tested. At the second part of our study, we reveal the neutralization mechanisms at high molecular resolution of two anti-SARS-CoV-2 neutralizing mAbs by structural characterization. We solve the structures of the Delta-neutralizing ACE2bs mAb TAU-2303 with the SARS-CoV-2 spike trimer and RBD at 4.5 Å and 2.42 Å resolutions, respectively, revealing a similar mode of binding to that between the RBD and ACE2. Furthermore, we provide five additional structures (at resolutions of 4.7 Å, 7.3 Å, 6.4 Å, 3.3 Å, and 6.1 Å) of a second antibody, TAU-2212, complexed with the SARS-CoV-2 spike trimer. TAU-2212 binds an exclusively quaternary epitope, and exhibits a unique, flexible mode of neutralization that involves transitioning between five different conformations, with both arms of the antibody recruited for cross linking intra- and inter-spike RBD subunits. Our study provides additional mechanistic understanding about how antibodies neutralize SARS-CoV-2 and its emerging variants and provides insights on the likelihood of reinfections. | |||||||||
History |
|
-Structure visualization
Supplemental images |
---|
-Downloads & links
-EMDB archive
Map data | emd_32421.map.gz | 4.5 MB | EMDB map data format | |
---|---|---|---|---|
Header (meta data) | emd-32421-v30.xml emd-32421.xml | 15.2 KB 15.2 KB | Display Display | EMDB header |
FSC (resolution estimation) | emd_32421_fsc.xml | 10.6 KB | Display | FSC data file |
Images | emd_32421.png | 30.9 KB | ||
Archive directory | http://ftp.pdbj.org/pub/emdb/structures/EMD-32421 ftp://ftp.pdbj.org/pub/emdb/structures/EMD-32421 | HTTPS FTP |
-Validation report
Summary document | emd_32421_validation.pdf.gz | 377.9 KB | Display | EMDB validaton report |
---|---|---|---|---|
Full document | emd_32421_full_validation.pdf.gz | 377.4 KB | Display | |
Data in XML | emd_32421_validation.xml.gz | 12.1 KB | Display | |
Data in CIF | emd_32421_validation.cif.gz | 16.2 KB | Display | |
Arichive directory | https://ftp.pdbj.org/pub/emdb/validation_reports/EMD-32421 ftp://ftp.pdbj.org/pub/emdb/validation_reports/EMD-32421 | HTTPS FTP |
-Related structure data
Related structure data | 7wcdMC 7wbzC 7wc0C M: atomic model generated by this map C: citing same article (ref.) |
---|---|
Similar structure data | Similarity search - Function & homologyF&H Search |
-Links
EMDB pages | EMDB (EBI/PDBe) / EMDataResource |
---|---|
Related items in Molecule of the Month |
-Map
File | Download / File: emd_32421.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES) | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

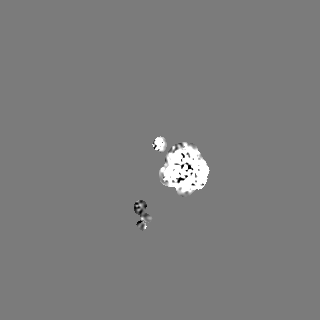

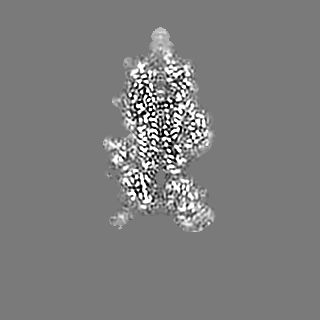

Projections & slices | Image control
Images are generated by Spider. | ||||||||||||||||||||||||||||||||||||
Voxel size | X=Y=Z: 0.97 Å | ||||||||||||||||||||||||||||||||||||
Density |
| ||||||||||||||||||||||||||||||||||||
Symmetry | Space group: 1 | ||||||||||||||||||||||||||||||||||||
Details | EMDB XML:
|
-Supplemental data
-Sample components
-Entire : Severe acute respiratory syndrome coronavirus 2 spike bound TAU-2...
Entire | Name: Severe acute respiratory syndrome coronavirus 2 spike bound TAU-2212 mAb |
---|---|
Components |
|
-Supramolecule #1: Severe acute respiratory syndrome coronavirus 2 spike bound TAU-2...
Supramolecule | Name: Severe acute respiratory syndrome coronavirus 2 spike bound TAU-2212 mAb type: complex / Chimera: Yes / ID: 1 / Parent: 0 / Macromolecule list: #1-#3 |
---|---|
Source (natural) | Organism: Severe acute respiratory syndrome coronavirus 2 |
Molecular weight | Experimental: 430.2 KDa |
-Supramolecule #2: huamn IgG TAU-2212
Supramolecule | Name: huamn IgG TAU-2212 / type: complex / Chimera: Yes / ID: 2 / Parent: 1 / Macromolecule list: #2-#3 |
---|---|
Source (natural) | Organism: Homo sapiens (human) |
Recombinant expression | Organism: Homo sapiens (human) |
-Supramolecule #3: SARS-CoV2 spike
Supramolecule | Name: SARS-CoV2 spike / type: complex / Chimera: Yes / ID: 3 / Parent: 1 / Macromolecule list: #1 |
---|
-Macromolecule #1: Spike glycoprotein
Macromolecule | Name: Spike glycoprotein / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: Severe acute respiratory syndrome coronavirus 2 |
Molecular weight | Theoretical: 136.963766 KDa |
Recombinant expression | Organism: Homo sapiens (human) |
Sequence | String: MFVFLVLLPL VSSQCVNLTT RTQLPPAYTN SFTRGVYYPD KVFRSSVLHS TQDLFLPFFS NVTWFHAIHV SGTNGTKRFD NPVLPFNDG VYFASTEKSN IIRGWIFGTT LDSKTQSLLI VNNATNVVIK VCEFQFCNDP FLGVYYHKNN KSWMESEFRV Y SSANNCTF ...String: MFVFLVLLPL VSSQCVNLTT RTQLPPAYTN SFTRGVYYPD KVFRSSVLHS TQDLFLPFFS NVTWFHAIHV SGTNGTKRFD NPVLPFNDG VYFASTEKSN IIRGWIFGTT LDSKTQSLLI VNNATNVVIK VCEFQFCNDP FLGVYYHKNN KSWMESEFRV Y SSANNCTF EYVSQPFLMD LEGKQGNFKN LREFVFKNID GYFKIYSKHT PINLVRDLPQ GFSALEPLVD LPIGINITRF QT LLALHRS YLTPGDSSSG WTAGAAAYYV GYLQPRTFLL KYNENGTITD AVDCALDPLS ETKCTLKSFT VEKGIYQTSN FRV QPTESI VRFPNITNLC PFGEVFNATR FASVYAWNRK RISNCVADYS VLYNSASFST FKCYGVSPTK LNDLCFTNVY ADSF VIRGD EVRQIAPGQT GKIADYNYKL PDDFTGCVIA WNSNNLDSKV GGNYNYLYRL FRKSNLKPFE RDISTEIYQA GSTPC NGVE GFNCYFPLQS YGFQPTNGVG YQPYRVVVLS FELLHAPATV CGPKKSTNLV KNKCVNFNFN GLTGTGVLTE SNKKFL PFQ QFGRDIADTT DAVRDPQTLE ILDITPCSFG GVSVITPGTN TSNQVAVLYQ DVNCTEVPVA IHADQLTPTW RVYSTGS NV FQTRAGCLIG AEHVNNSYEC DIPIGAGICA SYQTQTNSPG SASSVASQSI IAYTMSLGAE NSVAYSNNSI AIPTNFTI S VTTEILPVSM TKTSVDCTMY ICGDSTECSN LLLQYGSFCT QLNRALTGIA VEQDKNTQEV FAQVKQIYKT PPIKDFGGF NFSQILPDPS KPSKRSFIED LLFNKVTLAD AGFIKQYGDC LGDIAARDLI CAQKFNGLTV LPPLLTDEMI AQYTSALLAG TITSGWTFG AGAALQIPFA MQMAYRFNGI GVTQNVLYEN QKLIANQFNS AIGKIQDSLS STASALGKLQ DVVNQNAQAL N TLVKQLSS NFGAISSVLN DILSRLDPPE AEVQIDRLIT GRLQSLQTYV TQQLIRAAEI RASANLAATK MSECVLGQSK RV DFCGKGY HLMSFPQSAP HGVVFLHVTY VPAQEKNFTT APAICHDGKA HFPREGVFVS NGTHWFVTQR NFYEPQIITT DNT FVSGNC DVVIGIVNNT VYDPLQPELD SFKEELDKYF KNHTSPDVDL GDISGINASV VNIQKEIDRL NEVAKNLNES LIDL QELGK YEQGSGYIPE APRDGQAYVR KDGEWVLLST FL |
-Macromolecule #2: Heavy chain
Macromolecule | Name: Heavy chain / type: protein_or_peptide / ID: 2 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: Homo sapiens (human) |
Molecular weight | Theoretical: 25.694846 KDa |
Recombinant expression | Organism: Homo sapiens (human) |
Sequence | String: QVQLVQSGAE VKKPGASVKV SCKASGYTFT GYYMHWVRQA PGQGLEWMGW INPNSGGTNY AQKFQGWVTM TRDTSISTAY MELSRLRSD DTAVYYCARG WATYYDILTG YSLFDYWGQG TLVTVSSAST KGPSVFPLAP SSKSTSGGTA ALGCLVKDYF P EPVTVSWN ...String: QVQLVQSGAE VKKPGASVKV SCKASGYTFT GYYMHWVRQA PGQGLEWMGW INPNSGGTNY AQKFQGWVTM TRDTSISTAY MELSRLRSD DTAVYYCARG WATYYDILTG YSLFDYWGQG TLVTVSSAST KGPSVFPLAP SSKSTSGGTA ALGCLVKDYF P EPVTVSWN SGALTSGVHT FPAVLQSSGL YSLSSVVTVP SSSLGTQTYI CNVNHKPSNT KVDKRVEPKS CDKTHTCPPC |
-Macromolecule #3: Light chain
Macromolecule | Name: Light chain / type: protein_or_peptide / ID: 3 / Number of copies: 3 / Enantiomer: LEVO |
---|---|
Source (natural) | Organism: Homo sapiens (human) |
Molecular weight | Theoretical: 22.435834 KDa |
Recombinant expression | Organism: Homo sapiens (human) |
Sequence | String: SALTQPASVS GSPGQSITIS CTGTSSDVGS YNLVSWYQQH PGKAPKLMIY EVSKRPSGVS NRFSGSKSGN TASLTISGLQ AEDEADYYC CSYAGSSTPH VVFGGGTKLT VLGQPKAAPS VTLFPPSSEE LQANKATLVC LISDFYPGAV TVAWKADSSP V KAGVETTT ...String: SALTQPASVS GSPGQSITIS CTGTSSDVGS YNLVSWYQQH PGKAPKLMIY EVSKRPSGVS NRFSGSKSGN TASLTISGLQ AEDEADYYC CSYAGSSTPH VVFGGGTKLT VLGQPKAAPS VTLFPPSSEE LQANKATLVC LISDFYPGAV TVAWKADSSP V KAGVETTT PSKQSNNKYA ASSYLSLTPE QWKSHRSYSC QVTHEGSTVE KTVAPT |
-Macromolecule #4: 2-acetamido-2-deoxy-beta-D-glucopyranose
Macromolecule | Name: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 4 / Number of copies: 33 / Formula: NAG |
---|---|
Molecular weight | Theoretical: 221.208 Da |
Chemical component information | ChemComp-NAG: |
-Experimental details
-Structure determination
Method | cryo EM |
---|---|
Processing | single particle reconstruction |
Aggregation state | particle |
-Sample preparation
Buffer | pH: 7.7 |
---|---|
Vitrification | Cryogen name: ETHANE |
-Electron microscopy
Microscope | FEI TITAN KRIOS |
---|---|
Image recording | Film or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2 |
Electron beam | Acceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN |
Electron optics | Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.5 µm |
Experimental equipment | Model: Titan Krios / Image courtesy: FEI Company |
+Image processing
-Atomic model buiding 1
Refinement | Protocol: FLEXIBLE FIT |
---|---|
Output model | PDB-7wcd: |
