Basic information

Entry
Database: EMDB / ID: EMD-51354
TitleStaphylococcus aureus FusB bound to the small subunit of the Escherichia coli 70S ribosome (FusB-70S:SSU)
Map dataLocal filtered map
Sample
  • Complex: FusB on 70S ribosomes
    • Complex: FusB
      • Protein or peptide: x 1 types
    • Complex: mRNA
      • RNA: x 1 types
    • Complex: 70S ribosome
      • Protein or peptide: x 49 types
      • RNA: x 4 types
  • Ligand: x 4 types
KeywordsRIBOSOME / fusidic acid / EF-G / antibiotic / FusB
Function / homology
Function and homology information


negative regulation of cytoplasmic translational initiation / ornithine decarboxylase inhibitor activity / transcription antitermination factor activity, RNA binding / misfolded RNA binding / Group I intron splicing / RNA folding / transcriptional attenuation / positive regulation of ribosome biogenesis / endoribonuclease inhibitor activity / RNA-binding transcription regulator activity ...negative regulation of cytoplasmic translational initiation / ornithine decarboxylase inhibitor activity / transcription antitermination factor activity, RNA binding / misfolded RNA binding / Group I intron splicing / RNA folding / transcriptional attenuation / positive regulation of ribosome biogenesis / endoribonuclease inhibitor activity / RNA-binding transcription regulator activity / negative regulation of cytoplasmic translation / four-way junction DNA binding / DnaA-L2 complex / translation repressor activity / negative regulation of translational initiation / regulation of mRNA stability / negative regulation of DNA-templated DNA replication initiation / mRNA regulatory element binding translation repressor activity / assembly of large subunit precursor of preribosome / ribosome assembly / positive regulation of RNA splicing / transcription elongation factor complex / regulation of DNA-templated transcription elongation / cytosolic ribosome assembly / response to reactive oxygen species / DNA endonuclease activity / transcription antitermination / translational initiation / regulation of cell growth / DNA-templated transcription termination / response to radiation / maintenance of translational fidelity / mRNA 5'-UTR binding / regulation of translation / ribosome biogenesis / large ribosomal subunit / transferase activity / ribosome binding / ribosomal small subunit biogenesis / ribosomal small subunit assembly / small ribosomal subunit / small ribosomal subunit rRNA binding / 5S rRNA binding / ribosomal large subunit assembly / cytosolic small ribosomal subunit / large ribosomal subunit rRNA binding / cytosolic large ribosomal subunit / cytoplasmic translation / tRNA binding / negative regulation of translation / rRNA binding / ribosome / structural constituent of ribosome / translation / response to antibiotic / negative regulation of DNA-templated transcription / mRNA binding / DNA binding / RNA binding / zinc ion binding / metal ion binding / membrane / cytosol / cytoplasm
Similarity search - Function
Elongation factor G-binding protein, N-terminal / Elongation factor G-binding protein, C-terminal treble-clef zinc-finger / EF-G binding protein, N-terminal domain superfamily / Elongation factor G-binding protein, N-terminal / FBP C-terminal treble-clef zinc-finger / Ribosomal protein S21, conserved site / Ribosomal protein S21 signature. / Ribosomal protein L25, short-form / Ribosomal protein S14, bacterial/plastid / Ribosomal protein L31 type A ...Elongation factor G-binding protein, N-terminal / Elongation factor G-binding protein, C-terminal treble-clef zinc-finger / EF-G binding protein, N-terminal domain superfamily / Elongation factor G-binding protein, N-terminal / FBP C-terminal treble-clef zinc-finger / Ribosomal protein S21, conserved site / Ribosomal protein S21 signature. / Ribosomal protein L25, short-form / Ribosomal protein S14, bacterial/plastid / Ribosomal protein L31 type A / Ribosomal protein S21 superfamily / Ribosomal protein S21 / Ribosomal protein S16, conserved site / Ribosomal protein S16 signature. / Ribosomal protein L31 signature. / Ribosomal protein S21 / Ribosomal protein L31 / Ribosomal protein L31 superfamily / Ribosomal protein L31 / : / Ribosomal protein L16 signature 1. / Ribosomal protein L21, conserved site / Ribosomal protein L21 signature. / Ribosomal protein L16, conserved site / Ribosomal protein L16 signature 2. / Ribosomal protein L6, conserved site / Ribosomal protein L6 signature 1. / : / Ribosomal protein L9 signature. / Ribosomal protein L9, bacteria/chloroplast / Ribosomal protein L9, C-terminal / Ribosomal protein L9, C-terminal domain / Ribosomal protein L9, C-terminal domain superfamily / Ribosomal protein L17 signature. / Ribosomal L25p family / Ribosomal protein L25 / Ribosomal protein L36 signature. / Ribosomal protein L28/L24 superfamily / Ribosomal protein L32p, bacterial type / Ribosomal protein L25/Gln-tRNA synthetase, N-terminal / Ribosomal protein L25/Gln-tRNA synthetase, anti-codon-binding domain superfamily / Ribosomal protein L9, N-terminal domain superfamily / Ribosomal protein L9 / Ribosomal protein L9, N-terminal / Ribosomal protein L9, N-terminal domain / Ribosomal protein L33, conserved site / Ribosomal protein L33 signature. / Ribosomal protein L35, conserved site / Ribosomal protein L35 signature. / Ribosomal protein L28 / Ribosomal protein L35, non-mitochondrial / : / Ribosomal protein L5, bacterial-type / Ribosomal protein L18, bacterial-type / : / Ribosomal protein L6, bacterial-type / Ribosomal protein S3, bacterial-type / Ribosomal protein S19, bacterial-type / Ribosomal protein L9/RNase H1, N-terminal / Ribosomal protein S13, bacterial-type / Ribosomal protein S6, conserved site / Ribosomal protein S6 signature. / Ribosomal protein S7, bacterial/organellar-type / Ribosomal protein S9, bacterial/plastid / Ribosomal protein S11, bacterial-type / Ribosomal protein S20 / Ribosomal protein S20 superfamily / Ribosomal protein S20 / Ribosomal protein L36 / Ribosomal protein L36 superfamily / Ribosomal protein L36 / Ribosomal protein S4, bacterial-type / 30S ribosomal protein S17 / Ribosomal protein S5, bacterial-type / Ribosomal protein L19, conserved site / Ribosomal protein L19 signature. / Ribosomal protein L27, conserved site / Ribosomal protein L27 signature. / Ribosomal protein S6, plastid/chloroplast / Ribosomal protein L20 signature. / Ribosomal protein L22, bacterial/chloroplast-type / Ribosomal protein L14P, bacterial-type / Ribosomal protein L34, conserved site / Ribosomal protein L34 signature. / Ribosomal protein S2, bacteria/mitochondria/plastid / Ribosomal protein L2, bacterial/organellar-type / Ribosomal protein L35 / Ribosomal protein L35 superfamily / Ribosomal protein L35 / Ribosomal protein L33 / Ribosomal protein L33 / Ribosomal L28 family / Ribosomal protein L33 superfamily / Ribosomal protein L16 / Ribosomal protein L28/L24 / Ribosomal protein L18 / Ribosomal L18 of archaea, bacteria, mitoch. and chloroplast / Ribosomal protein S18, conserved site / Ribosomal protein S18 signature. / Ribosomal protein L30, bacterial-type
Similarity search - Domain/homology
Small ribosomal subunit protein bS6 / Small ribosomal subunit protein uS7 / Large ribosomal subunit protein uL15 / Large ribosomal subunit protein bL19 / Large ribosomal subunit protein bL20 / Large ribosomal subunit protein bL27 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL29 / Large ribosomal subunit protein bL31 / Large ribosomal subunit protein bL32 ...Small ribosomal subunit protein bS6 / Small ribosomal subunit protein uS7 / Large ribosomal subunit protein uL15 / Large ribosomal subunit protein bL19 / Large ribosomal subunit protein bL20 / Large ribosomal subunit protein bL27 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL29 / Large ribosomal subunit protein bL31 / Large ribosomal subunit protein bL32 / Large ribosomal subunit protein bL33 / Large ribosomal subunit protein bL34 / Large ribosomal subunit protein bL35 / Large ribosomal subunit protein bL36A / Large ribosomal subunit protein bL9 / Small ribosomal subunit protein uS10 / Small ribosomal subunit protein uS11 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS13 / Small ribosomal subunit protein bS16 / Small ribosomal subunit protein bS18 / Small ribosomal subunit protein uS19 / Small ribosomal subunit protein bS20 / Small ribosomal subunit protein uS2 / Small ribosomal subunit protein uS3 / Small ribosomal subunit protein uS4 / Small ribosomal subunit protein uS5 / Small ribosomal subunit protein uS8 / Small ribosomal subunit protein uS9 / Large ribosomal subunit protein uL13 / Large ribosomal subunit protein uL14 / Large ribosomal subunit protein uL16 / Large ribosomal subunit protein uL23 / Small ribosomal subunit protein uS15 / Large ribosomal subunit protein bL17 / Large ribosomal subunit protein bL21 / Large ribosomal subunit protein uL30 / Large ribosomal subunit protein uL6 / Small ribosomal subunit protein uS14 / Small ribosomal subunit protein uS17 / Large ribosomal subunit protein uL18 / Large ribosomal subunit protein uL2 / Large ribosomal subunit protein uL3 / Large ribosomal subunit protein uL24 / Large ribosomal subunit protein uL4 / Large ribosomal subunit protein uL22 / Large ribosomal subunit protein uL5 / Small ribosomal subunit protein bS21 / Large ribosomal subunit protein bL25 / Far1
Similarity search - Component
Biological speciesStaphylococcus aureus (bacteria) / Escherichia coli K-12 (bacteria)
Methodsingle particle reconstruction / cryo EM / Resolution: 1.87 Å
AuthorsGonzalez-Lopez A / Selmer M
Funding support Sweden, European Union, 5 items
OrganizationGrant numberCountry
Sven och Lilly Lawskis fond for naturvetenskaplig forskning Sweden
Uppsala Antibiotic Center Sweden
Swedish Research Council2016-06264 Sweden
Swedish Research Council2022-04511 Sweden
iNEXT-Discovery26535European Union
CitationJournal: Nat Commun / Year: 2025
Title: Structural mechanism of FusB-mediated rescue from fusidic acid inhibition of protein synthesis.
Authors: Adrián González-López / Xueliang Ge / Daniel S D Larsson / Carina Sihlbom Wallem / Suparna Sanyal / Maria Selmer /
Abstract: The antibiotic resistance protein FusB rescues protein synthesis from inhibition by fusidic acid (FA), which locks elongation factor G (EF-G) to the ribosome after GTP hydrolysis. Here, we present ...The antibiotic resistance protein FusB rescues protein synthesis from inhibition by fusidic acid (FA), which locks elongation factor G (EF-G) to the ribosome after GTP hydrolysis. Here, we present time-resolved single-particle cryo-EM structures explaining the mechanism of FusB-mediated rescue. FusB binds to the FA-trapped EF-G on the ribosome, causing large-scale conformational changes of EF-G that break interactions with the ribosome, tRNA, and mRNA. This leads to dissociation of EF-G from the ribosome, followed by FA release. We also observe two independent binding sites of FusB on the classical-state ribosome, overlapping with the binding site of EF-G to each of the ribosomal subunits, yet not inhibiting tRNA delivery. The affinity of FusB to the ribosome and the concentration of FusB in S. aureus during FusB-mediated resistance support that direct binding of FusB to ribosomes could occur in the cell. Our results reveal an intricate resistance mechanism involving specific interactions of FusB with both EF-G and the ribosome, and a non-canonical release pathway of EF-G.
History
DepositionAug 15, 2024-
Header (metadata) releaseMar 26, 2025-
Map releaseMar 26, 2025-
UpdateApr 30, 2025-
Current statusApr 30, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_51354.map.gz / Format: CCP4 / Size: 824 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationLocal filtered map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.65 Å/pix.
x 600 pix.
= 388.68 Å		0.65 Å/pix.
x 600 pix.
= 388.68 Å		0.65 Å/pix.
x 600 pix.
= 388.68 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.6478 Å
Density

Histogram

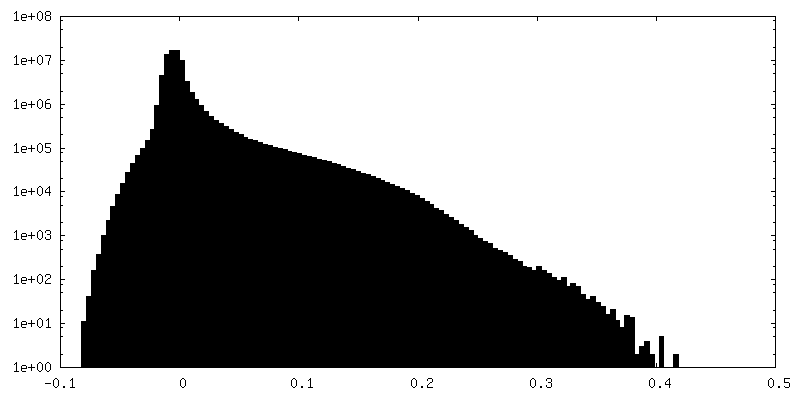

Histogram (log scale)
Contour LevelBy AUTHOR: 0.04
Minimum - Maximum-0.7140563 - 1.475742
Average (Standard dev.)0.0017020034 (±0.024019433)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions600600600
Spacing600600600
CellA=B=C: 388.68002 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_51354_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Unsharpened map

Fileemd_51354_additional_1.map
AnnotationUnsharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map A

Fileemd_51354_half_map_1.map
AnnotationHalf map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map B

Fileemd_51354_half_map_2.map
AnnotationHalf map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : FusB on 70S ribosomes

EntireName: FusB on 70S ribosomes
Components
  • Complex: FusB on 70S ribosomes
    • Complex: FusB
      • Protein or peptide: Far1
    • Complex: mRNA
      • RNA: mRNA
    • Complex: 70S ribosome
      • Protein or peptide: 50S ribosomal protein L33
      • Protein or peptide: 50S ribosomal protein L34
      • Protein or peptide: 50S ribosomal protein L35
      • Protein or peptide: 50S ribosomal protein L36
      • Protein or peptide: 50S ribosomal protein L31
      • RNA: 16S rRNA
      • Protein or peptide: 30S ribosomal protein S2
      • Protein or peptide: 30S ribosomal protein S3
      • Protein or peptide: 30S ribosomal protein S4
      • Protein or peptide: 30S ribosomal protein S5
      • Protein or peptide: 30S ribosomal protein S6
      • Protein or peptide: 30S ribosomal protein S7
      • Protein or peptide: 30S ribosomal protein S8
      • Protein or peptide: 30S ribosomal protein S9
      • Protein or peptide: 30S ribosomal protein S10
      • Protein or peptide: Small ribosomal subunit protein uS11
      • Protein or peptide: 30S ribosomal protein S12
      • Protein or peptide: 30S ribosomal protein S13
      • Protein or peptide: 30S ribosomal protein S14
      • Protein or peptide: 30S ribosomal protein S15
      • Protein or peptide: 30S ribosomal protein S16
      • Protein or peptide: 30S ribosomal protein S17
      • Protein or peptide: 30S ribosomal protein S18
      • Protein or peptide: 30S ribosomal protein S19
      • Protein or peptide: 30S ribosomal protein S20
      • Protein or peptide: 30S ribosomal protein S21
      • RNA: tRNA
      • RNA: 23S rRNA
      • RNA: 5S rRNA
      • Protein or peptide: 50S ribosomal protein L2
      • Protein or peptide: 50S ribosomal protein L3
      • Protein or peptide: 50S ribosomal protein L4
      • Protein or peptide: 50S ribosomal protein L5
      • Protein or peptide: 50S ribosomal protein L6
      • Protein or peptide: 50S ribosomal protein L9
      • Protein or peptide: 50S ribosomal protein L13
      • Protein or peptide: 50S ribosomal protein L14
      • Protein or peptide: 50S ribosomal protein L15
      • Protein or peptide: 50S ribosomal protein L16
      • Protein or peptide: 50S ribosomal protein L17
      • Protein or peptide: 50S ribosomal protein L18
      • Protein or peptide: 50S ribosomal protein L19
      • Protein or peptide: 50S ribosomal protein L20
      • Protein or peptide: 50S ribosomal protein L21
      • Protein or peptide: 50S ribosomal protein L22
      • Protein or peptide: 50S ribosomal protein L23
      • Protein or peptide: 50S ribosomal protein L24
      • Protein or peptide: 50S ribosomal protein L25
      • Protein or peptide: 50S ribosomal protein L27
      • Protein or peptide: 50S ribosomal protein L28
      • Protein or peptide: 50S ribosomal protein L29
      • Protein or peptide: 50S ribosomal protein L30
      • Protein or peptide: 50S ribosomal protein L32
  • Ligand: ZINC ION
  • Ligand: POTASSIUM ION
  • Ligand: MAGNESIUM ION
  • Ligand: water

+
Supramolecule #1: FusB on 70S ribosomes

SupramoleculeName: FusB on 70S ribosomes / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#55
Molecular weightTheoretical: 2.5 MDa

+
Supramolecule #2: FusB

SupramoleculeName: FusB / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #28
Source (natural)Organism: Staphylococcus aureus (bacteria)

+
Supramolecule #3: mRNA

SupramoleculeName: mRNA / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #6
Source (natural)Organism: Escherichia coli K-12 (bacteria)

+
Supramolecule #4: 70S ribosome

SupramoleculeName: 70S ribosome / type: complex / ID: 4 / Parent: 1 / Macromolecule list: #1-#5, #7-#27, #29-#55
Source (natural)Organism: Escherichia coli K-12 (bacteria)

+
Macromolecule #1: 50S ribosomal protein L33

MacromoleculeName: 50S ribosomal protein L33 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 6.388631 KDa
SequenceString:
MAKGIREKIK LVSSAGTGHF YTTTKNKRTK PEKLELKKFD PVVRQHVIYK EAKIK

UniProtKB: Large ribosomal subunit protein bL33

+
Macromolecule #2: 50S ribosomal protein L34

MacromoleculeName: 50S ribosomal protein L34 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 5.397463 KDa
SequenceString:
MKRTFQPSVL KRNRSHGFRA RMATKNGRQV LARRRAKGRA RLTVSK

UniProtKB: Large ribosomal subunit protein bL34

+
Macromolecule #3: 50S ribosomal protein L35

MacromoleculeName: 50S ribosomal protein L35 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 7.313032 KDa
SequenceString:
MPKIKTVRGA AKRFKKTGKG GFKHKHANLR HILTKKATKR KRHLRPKAMV SKGDLGLVIA CLPYA

UniProtKB: Large ribosomal subunit protein bL35

+
Macromolecule #4: 50S ribosomal protein L36

MacromoleculeName: 50S ribosomal protein L36 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 4.37739 KDa
SequenceString:
MKVRASVKKL CRNCKIVKRD GVIRVICSAE PKHKQRQG

UniProtKB: Large ribosomal subunit protein bL36A

+
Macromolecule #5: 50S ribosomal protein L31

MacromoleculeName: 50S ribosomal protein L31 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 7.887117 KDa
SequenceString:
MKKDIHPKYE EITASCSCGN VMKIRSTVGH DLNLDVCSKC HPFFTGKQRD VATGGRVDRF NKRFNIPGSK

UniProtKB: Large ribosomal subunit protein bL31

+
Macromolecule #8: 30S ribosomal protein S2

MacromoleculeName: 30S ribosomal protein S2 / type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 26.78167 KDa
SequenceString: MATVSMRDML KAGVHFGHQT RYWNPKMKPF IFGARNKVHI INLEKTVPMF NEALAELNKI ASRKGKILFV GTKRAASEAV KDAALSCDQ FFVNHRWLGG MLTNWKTVRQ SIKRLKDLET QSQDGTFDKL TKKEALMRTR ELEKLENSLG GIKDMGGLPD A LFVIDADH ...String:
MATVSMRDML KAGVHFGHQT RYWNPKMKPF IFGARNKVHI INLEKTVPMF NEALAELNKI ASRKGKILFV GTKRAASEAV KDAALSCDQ FFVNHRWLGG MLTNWKTVRQ SIKRLKDLET QSQDGTFDKL TKKEALMRTR ELEKLENSLG GIKDMGGLPD A LFVIDADH EHIAIKEANN LGIPVFAIVD TNSDPDGVDF VIPGNDDAIR AVTLYLGAVA ATVREGRSQD LASQAEESFV EA E

UniProtKB: Small ribosomal subunit protein uS2

+
Macromolecule #9: 30S ribosomal protein S3

MacromoleculeName: 30S ribosomal protein S3 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 26.031316 KDa
SequenceString: MGQKVHPNGI RLGIVKPWNS TWFANTKEFA DNLDSDFKVR QYLTKELAKA SVSRIVIERP AKSIRVTIHT ARPGIVIGKK GEDVEKLRK VVADIAGVPA QINIAEVRKP ELDAKLVADS ITSQLERRVM FRRAMKRAVQ NAMRLGAKGI KVEVSGRLGG A EIARTEWY ...String:
MGQKVHPNGI RLGIVKPWNS TWFANTKEFA DNLDSDFKVR QYLTKELAKA SVSRIVIERP AKSIRVTIHT ARPGIVIGKK GEDVEKLRK VVADIAGVPA QINIAEVRKP ELDAKLVADS ITSQLERRVM FRRAMKRAVQ NAMRLGAKGI KVEVSGRLGG A EIARTEWY REGRVPLHTL RADIDYNTSE AHTTYGVIGV KVWIFKGEIL GGMAAVEQPE KPAAQPKKQQ RKGRK

UniProtKB: Small ribosomal subunit protein uS3

+
Macromolecule #10: 30S ribosomal protein S4

MacromoleculeName: 30S ribosomal protein S4 / type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 23.514199 KDa
SequenceString: MARYLGPKLK LSRREGTDLF LKSGVRAIDT KCKIEQAPGQ HGARKPRLSD YGVQLREKQK VRRIYGVLER QFRNYYKEAA RLKGNTGEN LLALLEGRLD NVVYRMGFGA TRAEARQLVS HKAIMVNGRV VNIASYQVSP NDVVSIREKA KKQSRVKAAL E LAEQREKP ...String:
MARYLGPKLK LSRREGTDLF LKSGVRAIDT KCKIEQAPGQ HGARKPRLSD YGVQLREKQK VRRIYGVLER QFRNYYKEAA RLKGNTGEN LLALLEGRLD NVVYRMGFGA TRAEARQLVS HKAIMVNGRV VNIASYQVSP NDVVSIREKA KKQSRVKAAL E LAEQREKP TWLEVDAGKM EGTFKRKPER SDLSADINEH LIVELYSK

UniProtKB: Small ribosomal subunit protein uS4

+
Macromolecule #11: 30S ribosomal protein S5

MacromoleculeName: 30S ribosomal protein S5 / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 17.629398 KDa
SequenceString:
MAHIEKQAGE LQEKLIAVNR VSKTVKGGRI FSFTALTVVG DGNGRVGFGY GKAREVPAAI QKAMEKARRN MINVALNNGT LQHPVKGVH TGSRVFMQPA SEGTGIIAGG AMRAVLEVAG VHNVLAKAYG STNPINVVRA TIDGLENMNS PEMVAAKRGK S VEEILGK

UniProtKB: Small ribosomal subunit protein uS5

+
Macromolecule #12: 30S ribosomal protein S6

MacromoleculeName: 30S ribosomal protein S6 / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 15.727512 KDa
SequenceString:
MRHYEIVFMV HPDQSEQVPG MIERYTAAIT GAEGKIHRLE DWGRRQLAYP INKLHKAHYV LMNVEAPQEV IDELETTFRF NDAVIRSMV MRTKHAVTEA SPMVKAKDER RERRDDFANE TADDAEAGDS EEEEEE

UniProtKB: Small ribosomal subunit protein bS6

+
Macromolecule #13: 30S ribosomal protein S7

MacromoleculeName: 30S ribosomal protein S7 / type: protein_or_peptide / ID: 13 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 20.055156 KDa
SequenceString:
MPRRRVIGQR KILPDPKFGS ELLAKFVNIL MVDGKKSTAE SIVYSALETL AQRSGKSELE AFEVALENVR PTVEVKSRRV GGSTYQVPV EVRPVRRNAL AMRWIVEAAR KRGDKSMALR LANELSDAAE NKGTAVKKRE DVHRMAEANK AFAHYRWLSL R SFSHQAGA SSKQPALGYL N

UniProtKB: Small ribosomal subunit protein uS7

+
Macromolecule #14: 30S ribosomal protein S8

MacromoleculeName: 30S ribosomal protein S8 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 14.146557 KDa
SequenceString:
MSMQDPIADM LTRIRNGQAA NKAAVTMPSS KLKVAIANVL KEEGFIEDFK VEGDTKPELE LTLKYFQGKA VVESIQRVSR PGLRIYKRK DELPKVMAGL GIAVVSTSKG VMTDRAARQA GLGGEIICYV A

UniProtKB: Small ribosomal subunit protein uS8

+
Macromolecule #15: 30S ribosomal protein S9

MacromoleculeName: 30S ribosomal protein S9 / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 14.88627 KDa
SequenceString:
MAENQYYGTG RRKSSAARVF IKPGNGKIVI NQRSLEQYFG RETARMVVRQ PLELVDMVEK LDLYITVKGG GISGQAGAIR HGITRALME YDESLRSELR KAGFVTRDAR QVERKKVGLR KARRRPQFSK R

UniProtKB: Small ribosomal subunit protein uS9

+
Macromolecule #16: 30S ribosomal protein S10

MacromoleculeName: 30S ribosomal protein S10 / type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.755597 KDa
SequenceString:
MQNQRIRIRL KAFDHRLIDQ ATAEIVETAK RTGAQVRGPI PLPTRKERFT VLISPHVNKD ARDQYEIRTH LRLVDIVEPT EKTVDALMR LDLAAGVDVQ ISLG

UniProtKB: Small ribosomal subunit protein uS10

+
Macromolecule #17: Small ribosomal subunit protein uS11

MacromoleculeName: Small ribosomal subunit protein uS11 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.871959 KDa
SequenceString:
MAKAPIRARK RVRKQVSDGV AHIHASFNNT IVTITDRQGN ALGWATAGGS GFRGSRKSTP FAAQVAAERC ADAVKEYGIK NLEVMVKGP GPGRESTIRA LNAAGFRITN ITDVTPIPH(IAS) GCRPPKKRRV

UniProtKB: Small ribosomal subunit protein uS11

+
Macromolecule #18: 30S ribosomal protein S12

MacromoleculeName: 30S ribosomal protein S12 / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.814249 KDa
SequenceString:
MATVNQLVRK PRARKVAKSN VPALEACPQK RGVCTRVYTT TPKKPNSALR KVCRVRLTNG FEVTSYIGGE GHNLQEHSVI LIRGGRVK(D2T) LPGVRYHTVR GALDCSGVKD RKQARSKYGV KRPKA

UniProtKB: Small ribosomal subunit protein uS12

+
Macromolecule #19: 30S ribosomal protein S13

MacromoleculeName: 30S ribosomal protein S13 / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.128467 KDa
SequenceString:
MARIAGINIP DHKHAVIALT SIYGVGKTRS KAILAAAGIA EDVKISELSE GQIDTLRDEV AKFVVEGDLR REISMSIKRL MDLGCYRGL RHRRGLPVRG QRTKTNARTR KGPRKPIKK

UniProtKB: Small ribosomal subunit protein uS13

+
Macromolecule #20: 30S ribosomal protein S14

MacromoleculeName: 30S ribosomal protein S14 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.60656 KDa
SequenceString:
MAKQSMKARE VKRVALADKY FAKRAELKAI ISDVNASDED RWNAVLKLQT LPRDSSPSRQ RNRCRQTGRP HGFLRKFGLS RIKVREAAM RGEIPGLKKA SW

UniProtKB: Small ribosomal subunit protein uS14

+
Macromolecule #21: 30S ribosomal protein S15

MacromoleculeName: 30S ribosomal protein S15 / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 10.290816 KDa
SequenceString:
MSLSTEATAK IVSEFGRDAN DTGSTEVQVA LLTAQINHLQ GHFAEHKKDH HSRRGLLRMV SQRRKLLDYL KRKDVARYTQ LIERLGLRR

UniProtKB: Small ribosomal subunit protein uS15

+
Macromolecule #22: 30S ribosomal protein S16

MacromoleculeName: 30S ribosomal protein S16 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.207572 KDa
SequenceString:
MVTIRLARHG AKKRPFYQVV VADSRNARNG RFIERVGFFN PIASEKEEGT RLDLDRIAHW VGQGATISDR VAALIKEVNK AA

UniProtKB: Small ribosomal subunit protein bS16

+
Macromolecule #23: 30S ribosomal protein S17

MacromoleculeName: 30S ribosomal protein S17 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.724491 KDa
SequenceString:
MTDKIRTLQG RVVSDKMEKS IVVAIERFVK HPIYGKFIKR TTKLHVHDEN NECGIGDVVE IRECRPLSKT KSWTLVRVVE KAVL

UniProtKB: Small ribosomal subunit protein uS17

+
Macromolecule #24: 30S ribosomal protein S18

MacromoleculeName: 30S ribosomal protein S18 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.005472 KDa
SequenceString:
MARYFRRRKF CRFTAEGVQE IDYKDIATLK NYITESGKIV PSRITGTRAK YQRQLARAIK RARYLSLLPY TDRHQ

UniProtKB: Small ribosomal subunit protein bS18

+
Macromolecule #25: 30S ribosomal protein S19

MacromoleculeName: 30S ribosomal protein S19 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 10.455355 KDa
SequenceString:
MPRSLKKGPF IDLHLLKKVE KAVESGDKKP LRTWSRRSTI FPNMIGLTIA VHNGRQHVPV FVTDEMVGHK LGEFAPTRTY RGHAADKKA KKK

UniProtKB: Small ribosomal subunit protein uS19

+
Macromolecule #26: 30S ribosomal protein S20

MacromoleculeName: 30S ribosomal protein S20 / type: protein_or_peptide / ID: 26 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.708464 KDa
SequenceString:
MANIKSAKKR AIQSEKARKH NASRRSMMRT FIKKVYAAIE AGDKAAAQKA FNEMQPIVDR QAAKGLIHKN KAARHKANLT AQINKLA

UniProtKB: Small ribosomal subunit protein bS20

+
Macromolecule #27: 30S ribosomal protein S21

MacromoleculeName: 30S ribosomal protein S21 / type: protein_or_peptide / ID: 27 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 8.524039 KDa
SequenceString:
MPVIKVRENE PFDVALRRFK RSCEKAGVLA EVRRREFYEK PTTERKRAKA SAVKRHAKKL ARENARRTRL Y

UniProtKB: Small ribosomal subunit protein bS21

+
Macromolecule #28: Far1

MacromoleculeName: Far1 / type: protein_or_peptide / ID: 28 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Staphylococcus aureus (bacteria)
Molecular weightTheoretical: 25.225125 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: MKTMIYPHQY NYIRSVILRL KNVYKTVNDK ETVKVIQSET YNDINEIFGH IDDDIEESLK VLMNIRLSNK EIEAILNKFL EYVVPFELP SPQKLQKVFK KVKKIKIPQF EEYDLKVSSF VGWNELASNR KYIIYYDEKK QLKGLYGEIS NQVVKGFCTI C NKESNVSL ...String:
MKTMIYPHQY NYIRSVILRL KNVYKTVNDK ETVKVIQSET YNDINEIFGH IDDDIEESLK VLMNIRLSNK EIEAILNKFL EYVVPFELP SPQKLQKVFK KVKKIKIPQF EEYDLKVSSF VGWNELASNR KYIIYYDEKK QLKGLYGEIS NQVVKGFCTI C NKESNVSL FMKKSKTNSD GQYVKKGDYI CRDSIHCNKQ LTDINQFYNF IDKLD

UniProtKB: Far1

+
Macromolecule #32: 50S ribosomal protein L2

MacromoleculeName: 50S ribosomal protein L2 / type: protein_or_peptide / ID: 32 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 29.923619 KDa
SequenceString: MAVVKCKPTS PGRRHVVKVV NPELHKGKPF APLLEKNSKS GGRNNNGRIT TRHIGGGHKQ AYRIVDFKRN KDGIPAVVER LEYDPNRSA NIALVLYKDG ERRYILAPKG LKAGDQIQSG VDAAIKPGNT LPMRNIPVGS TVHNVEMKPG KGGQLARSAG T YVQIVARD ...String:
MAVVKCKPTS PGRRHVVKVV NPELHKGKPF APLLEKNSKS GGRNNNGRIT TRHIGGGHKQ AYRIVDFKRN KDGIPAVVER LEYDPNRSA NIALVLYKDG ERRYILAPKG LKAGDQIQSG VDAAIKPGNT LPMRNIPVGS TVHNVEMKPG KGGQLARSAG T YVQIVARD GAYVTLRLRS GEMRKVEADC RATLGEVGNA EHMLRVLGKA GAARWRGVRP TVRGTAMNPV DHPHGGGEGR NF GKHPVTP WGVQTKGKKT RSNKRTDKFI VRRRSK

UniProtKB: Large ribosomal subunit protein uL2

+
Macromolecule #33: 50S ribosomal protein L3

MacromoleculeName: 50S ribosomal protein L3 / type: protein_or_peptide / ID: 33 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 22.291562 KDa
SequenceString: MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN (MEQ)TPGKVF KG KKMAGQMGNE ...String:
MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN (MEQ)TPGKVF KG KKMAGQMGNE RVTVQSLDVV RVDAERNLLL VKGAVPGATG SDLIVKPAVK A

UniProtKB: Large ribosomal subunit protein uL3

+
Macromolecule #34: 50S ribosomal protein L4

MacromoleculeName: 50S ribosomal protein L4 / type: protein_or_peptide / ID: 34 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 22.121566 KDa
SequenceString: MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD ...String:
MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD VRDATGIDPV SLIAFDKVVM TADAVKQVEE MLA

UniProtKB: Large ribosomal subunit protein uL4

+
Macromolecule #35: 50S ribosomal protein L5

MacromoleculeName: 50S ribosomal protein L5 / type: protein_or_peptide / ID: 35 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 20.333611 KDa
SequenceString:
MAKLHDYYKD EVVKKLMTEF NYNSVMQVPR VEKITLNMGV GEAIADKKLL DNAAADLAAI SGQKPLITKA RKSVAGFKIR QGYPIGCKV TLRGERMWEF FERLITIAVP RIRDFRGLSA KSFDGRGNYS MGVREQIIFP EIDYDKVDRV RGLDITITTT A KSDEEGRA LLAAFDFPFR K

UniProtKB: Large ribosomal subunit protein uL5

+
Macromolecule #36: 50S ribosomal protein L6

MacromoleculeName: 50S ribosomal protein L6 / type: protein_or_peptide / ID: 36 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 18.932791 KDa
SequenceString:
MSRVAKAPVV VPAGVDVKIN GQVITIKGKN GELTRTLNDA VEVKHADNTL TFGPRDGYAD GWAQAGTARA LLNSMVIGVT EGFTKKLQL VGVGYRAAVK GNVINLSLGF SHPVDHQLPA GITAECPTQT EIVLKGADKQ VIGQVAADLR AYRRPEPYKG K GVRYADEV VRTKEAKKK

UniProtKB: Large ribosomal subunit protein uL6

+
Macromolecule #37: 50S ribosomal protein L9

MacromoleculeName: 50S ribosomal protein L9 / type: protein_or_peptide / ID: 37 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 15.78902 KDa
SequenceString:
MQVILLDKVA NLGSLGDQVN VKAGYARNFL VPQGKAVPAT KKNIEFFEAR RAELEAKLAE VLAAANARAE KINALETVTI ASKAGDEGK LFGSIGTRDI ADAVTAAGVE VAKSEVRLPN GVLRTTGEHE VSFQVHSEVF AKVIVNVVAE

UniProtKB: Large ribosomal subunit protein bL9

+
Macromolecule #38: 50S ribosomal protein L13

MacromoleculeName: 50S ribosomal protein L13 / type: protein_or_peptide / ID: 38 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 16.050606 KDa
SequenceString:
MKTFTAKPET VKRDWYVVDA TGKTLGRLAT ELARRLRGKH KAEYTPHVDT GDYIIVLNAD KVAVTGNKRT DKVYYHHTGH IGGIKQATF EEMIARRPER VIEIAVKGML PKGPLGRAMF RKLKVYAGNE HNHAAQQPQV LDI

UniProtKB: Large ribosomal subunit protein uL13

+
Macromolecule #39: 50S ribosomal protein L14

MacromoleculeName: 50S ribosomal protein L14 / type: protein_or_peptide / ID: 39 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.565067 KDa
SequenceString:
MIQEQTMLNV ADNSGARRVM CIKVLGGSHR RYAGVGDIIK ITIKEAIPRG KVKKGDVLKA VVVRTKKGVR RPDGSVIRFD GNACVLLNN NSEQPIGTRI FGPVTRELRS EKFMKIISLA PEVL

UniProtKB: Large ribosomal subunit protein uL14

+
Macromolecule #40: 50S ribosomal protein L15

MacromoleculeName: 50S ribosomal protein L15 / type: protein_or_peptide / ID: 40 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 15.008471 KDa
SequenceString:
MRLNTLSPAE GSKKAGKRLG RGIGSGLGKT GGRGHKGQKS RSGGGVRRGF EGGQMPLYRR LPKFGFTSRK AAITAEIRLS DLAKVEGGV VDLNTLKAAN IIGIQIEFAK VILAGEVTTP VTVRGLRVTK GARAAIEAAG GKIEE

UniProtKB: Large ribosomal subunit protein uL15

+
Macromolecule #41: 50S ribosomal protein L16

MacromoleculeName: 50S ribosomal protein L16 / type: protein_or_peptide / ID: 41 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 15.329343 KDa
SequenceString:
MLQPKRTKFR KMHKGRNRGL AQGTDVSFGS FGLKAVGRGR LTARQIEAAR RAMTRAVKRQ GKIWIRVFPD KPITEKPLAV (4D4)(MS6)GKGKGNV EYWVALIQPG KVLYEMDGVP EELAREAFKL AAAKLPIKTT FVTKTVM

UniProtKB: Large ribosomal subunit protein uL16

+
Macromolecule #42: 50S ribosomal protein L17

MacromoleculeName: 50S ribosomal protein L17 / type: protein_or_peptide / ID: 42 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 14.393657 KDa
SequenceString:
MRHRKSGRQL NRNSSHRQAM FRNMAGSLVR HEIIKTTLPK AKELRRVVEP LITLAKTDSV ANRRLAFART RDNEIVAKLF NELGPRFAS RAGGYTRILK CGFRAGDNAP MAYIELVDRS EKAEAAAE

UniProtKB: Large ribosomal subunit protein bL17

+
Macromolecule #43: 50S ribosomal protein L18

MacromoleculeName: 50S ribosomal protein L18 / type: protein_or_peptide / ID: 43 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 12.794668 KDa
SequenceString:
MDKKSARIRR ATRARRKLQE LGATRLVVHR TPRHIYAQVI APNGSEVLVA ASTVEKAIAE QLKYTGNKDA AAAVGKAVAE RALEKGIKD VSFDRSGFQY HGRVQALADA AREAGLQF

UniProtKB: Large ribosomal subunit protein uL18

+
Macromolecule #44: 50S ribosomal protein L19

MacromoleculeName: 50S ribosomal protein L19 / type: protein_or_peptide / ID: 44 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.159278 KDa
SequenceString:
MSNIIKQLEQ EQMKQDVPSF RPGDTVEVKV WVVEGSKKRL QAFEGVVIAI RNRGLHSAFT VRKISNGEGV ERVFQTHSPV VDSISVKRR GAVRKAKLYY LRERTGKAAR IKERLN

UniProtKB: Large ribosomal subunit protein bL19

+
Macromolecule #45: 50S ribosomal protein L20

MacromoleculeName: 50S ribosomal protein L20 / type: protein_or_peptide / ID: 45 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 13.528024 KDa
SequenceString:
MARVKRGVIA RARHKKILKQ AKGYYGARSR VYRVAFQAVI KAGQYAYRDR RQRKRQFRQL WIARINAAAR QNGISYSKFI NGLKKASVE IDRKILADIA VFDKVAFTAL VEKAKAALA

UniProtKB: Large ribosomal subunit protein bL20

+
Macromolecule #46: 50S ribosomal protein L21

MacromoleculeName: 50S ribosomal protein L21 / type: protein_or_peptide / ID: 46 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.586374 KDa
SequenceString:
MYAVFQSGGK QHRVSEGQTV RLEKLDIATG ETVEFAEVLM IANGEEVKIG VPFVDGGVIK AEVVAHGRGE KVKIVKFRRR KHYRKQQGH RQWFTDVKIT GISA

UniProtKB: Large ribosomal subunit protein bL21

+
Macromolecule #47: 50S ribosomal protein L22

MacromoleculeName: 50S ribosomal protein L22 / type: protein_or_peptide / ID: 47 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 12.253359 KDa
SequenceString:
METIAKHRHA RSSAQKVRLV ADLIRGKKVS QALDILTYTN KKAAVLVKKV LESAIANAEH NDGADIDDLK VTKIFVDEGP SMKRIMPRA KGRADRILKR TSHITVVVSD R

UniProtKB: Large ribosomal subunit protein uL22

+
Macromolecule #48: 50S ribosomal protein L23

MacromoleculeName: 50S ribosomal protein L23 / type: protein_or_peptide / ID: 48 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.22216 KDa
SequenceString:
MIREERLLKV LRAPHVSEKA STAMEKSNTI VLKVAKDATK AEIKAAVQKL FEVEVEVVNT LVVKGKVKRH GQRIGRRSDW KKAYVTLKE GQNLDFVGGA E

UniProtKB: Large ribosomal subunit protein uL23

+
Macromolecule #49: 50S ribosomal protein L24

MacromoleculeName: 50S ribosomal protein L24 / type: protein_or_peptide / ID: 49 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 11.33925 KDa
SequenceString:
MAAKIRRDDE VIVLTGKDKG KRGKVKNVLS SGKVIVEGIN LVKKHQKPVP ALNQPGGIVE KEAAIQVSNV AIFNAATGKA DRVGFRFED GKKVRFFKSN SETIK

UniProtKB: Large ribosomal subunit protein uL24

+
Macromolecule #50: 50S ribosomal protein L25

MacromoleculeName: 50S ribosomal protein L25 / type: protein_or_peptide / ID: 50 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 10.713465 KDa
SequenceString:
MFTINAEVRK EQGKGASRRL RAANKFPAII YGGKEAPLAI ELDHDKVMNM QAKAEFYSEV LTIVVDGKEI KVKAQDVQRH PYKPKLQHI DFVRA

UniProtKB: Large ribosomal subunit protein bL25

+
Macromolecule #51: 50S ribosomal protein L27

MacromoleculeName: 50S ribosomal protein L27 / type: protein_or_peptide / ID: 51 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.14654 KDa
SequenceString:
MAHKKAGGST RNGRDSEAKR LGVKRFGGES VLAGSIIVRQ RGTKFHAGAN VGCGRDHTLF AKADGKVKFE VKGPKNRKFI SIEAE

UniProtKB: Large ribosomal subunit protein bL27

+
Macromolecule #52: 50S ribosomal protein L28

MacromoleculeName: 50S ribosomal protein L28 / type: protein_or_peptide / ID: 52 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 9.027551 KDa
SequenceString:
MSRVCQVTGK RPVTGNNRSH ALNATKRRFL PNLHSHRFWV ESEKRFVTLR VSAKGMRVID KKGIDTVLAE LRARGEKY

UniProtKB: Large ribosomal subunit protein bL28

+
Macromolecule #53: 50S ribosomal protein L29

MacromoleculeName: 50S ribosomal protein L29 / type: protein_or_peptide / ID: 53 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 7.286464 KDa
SequenceString:
MKAKELREKS VEELNTELLN LLREQFNLRM QAASGQLQQS HLLKQVRRDV ARVKTLLNEK AGA

UniProtKB: Large ribosomal subunit protein uL29

+
Macromolecule #54: 50S ribosomal protein L30

MacromoleculeName: 50S ribosomal protein L30 / type: protein_or_peptide / ID: 54 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 6.55482 KDa
SequenceString:
MAKTIKITQT RSAIGRLPKH KATLLGLGLR RIGHTVERED TPAIRGMINA VSFMVKVEE

UniProtKB: Large ribosomal subunit protein uL30

+
Macromolecule #55: 50S ribosomal protein L32

MacromoleculeName: 50S ribosomal protein L32 / type: protein_or_peptide / ID: 55 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 6.463445 KDa
SequenceString:
MAVQQNKPTR SKRGMRRSHD ALTAVTSLSV DKTSGEKHLR HHITADGYYR GRKVIAK

UniProtKB: Large ribosomal subunit protein bL32

+
Macromolecule #6: mRNA

MacromoleculeName: mRNA / type: rna / ID: 6 / Number of copies: 1
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 7.889855 KDa
SequenceString:
GGCAAGGAGG UAAAAAUGGC AAAA

+
Macromolecule #7: 16S rRNA

MacromoleculeName: 16S rRNA / type: rna / ID: 7 / Number of copies: 1
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 503.697875 KDa
SequenceString: AAAUUGAAGA GUUUGAUCAU GGCUCAGAUU GAACGCUGGC GGCAGGCCUA ACACAUGCAA GUCGAACGGU AACAGGAAGA AGCUUGCUU CUUUGCUGAC GAGUGGCGGA CGGGUGAGUA AUGUCUGGGA AACUGCCUGA UGGAGGGGGA UAACUACUGG A AACGGUAG ...String:
AAAUUGAAGA GUUUGAUCAU GGCUCAGAUU GAACGCUGGC GGCAGGCCUA ACACAUGCAA GUCGAACGGU AACAGGAAGA AGCUUGCUU CUUUGCUGAC GAGUGGCGGA CGGGUGAGUA AUGUCUGGGA AACUGCCUGA UGGAGGGGGA UAACUACUGG A AACGGUAG CUAAUACCGC AUAACGUCGC AAGACCAAAG AGGGGGACCU UCGGGCCUCU UGCCAUCGGA UGUGCCCAGA UG GGAUUAG CUAGUAGGUG GGGUAACGGC UCACCUAGGC GACGAUCCCU AGCUGGUCUG AGAGGAUGAC CAGCCACACU GGA ACUGAG ACACGGUCCA GACUCCUACG GGAGGCAGCA GUGGGGAAUA UUGCACAAUG GGCGCAAGCC UGAUGCAGCC AUGC CGCGU GUAUGAAGAA GCCCUUCGGG UUGUAAAGUA CUUUCAGCGG GGAGGAAGGG AGUAAAGUUA AUACCUUUGC UCAUU GACG UUACCCGCAG AAGAAGCACC GGCUAACUCC G(PSU)GCCAGCAG CC(G7M)CGGUAAU ACGGAGGGUG CAAGCGUU A AUCGGAAUUA CUGGGCGUAA AGCGCACGCA GGCGGUUUGU UAAGUCAGAU GUGAAAUCCC CGGGCUCAAC CUGGGAACU GCAUCUGAUA CUGGCAAGCU UGAGUCUCGU AGAGGGGGGU AGAAUUCCAG GUGUAGCGGU GAAAUGCGUA GAGAUCUGGA GGAAUACCG GUGGCGAAGG CGGCCCCCUG GACGAAGACU GACGCUCAGG UGCGAAAGCG UGGGGAGCAA ACAGGAUUAG A UACCCUGG UAGUCCACGC CGUAAACGAU GUCGACUUGG AGGUUGUGCC CUUGAGGCGU GGCUUCCGGA GCUAACGCGU UA AGUCGAC CGCCUGGGGA GUACGGCCGC AAGGUUAAAA CUCAAAUGAA UUGACGGGGG CCCGCACAAG CGGUGGAGCA UGU GGUUUA AUUCGAU(2MG)(5MC)A ACGCGAAGAA CCUUACCUGG UCUUGACAUC CACGGAAGUU UUCAGAGAUG AGAAUG UGC CUUCGGGAAC CGUGAGACAG GUGCUGCAUG GCUGUCGUCA GCUCGUGUUG UGAAAUGUUG GGUUAAGUCC CGCAACG AG CGCAACCCUU AUCCUUUGUU GCCAGCGGUC CGGCCGGGAA CUCAAAGGAG ACUGCCAGUG AUAAACUGGA GGAAGGUG G GGAUGACGUC AAGUCAUCAU G(2MG)CCCUUACG ACCAGGGCUA CACACGUGCU ACAAUGGCGC AUACAAAGAG AAGCG ACCU CGCGAGAGCA AGCGGACCUC AUAAAGUGCG UCGUAGUCCG GAUUGGAGUC UGCAACUCGA CUCCAUGAAG UCGGAA UCG CUAGUAAUCG UGGAUCAGAA UGCCACGGUG AAUACGUUCC CGGGCCUUGU ACACACCG(4OC)C CGU(5MC)ACACC AUGGGAGUGG GUUGCAAAAG AAGUAGGUAG CUUAACCUUC GGGAGGGCGC UUACCACUUU GUGAUUCAUG ACUGGGGUGA AGUCG(UR3)AAC AAGGUAACCG UAGG(2MG)G(MA6)(MA6)CC UGCGGUUGGA UCACCUCCUU ACCUUAAAGA AGC

GENBANK: GENBANK: CP122880.1

+
Macromolecule #29: tRNA

MacromoleculeName: tRNA / type: rna / ID: 29 / Number of copies: 1
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 24.802785 KDa
SequenceString:
CGCGGGGUGG AGCAGCCUGG UAGCUCGUCG GGCUCAUAAC CCGAAGGUCG UCGGUUCAAA UCCGGCCCCC GCAACCA

GENBANK: GENBANK: AP023205.1

+
Macromolecule #30: 23S rRNA

MacromoleculeName: 23S rRNA / type: rna / ID: 30 / Number of copies: 1
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 950.257 KDa
SequenceString: GGGUUGUGAG GUUAAGCGAC UAAGCGUACA CGGUGGAUGC CCUGGCAGUC AGAGGCGAUG AAGGACGUGC UAAUCUGCGA UAAGCGUCG GUAAGGUGAU AUGAACCGUU AUAACCGGCG AUUUCCGAAU GGGGAAACCC AGUGUGUUUC GACACACUAU C AUUAACUG ...String:
GGGUUGUGAG GUUAAGCGAC UAAGCGUACA CGGUGGAUGC CCUGGCAGUC AGAGGCGAUG AAGGACGUGC UAAUCUGCGA UAAGCGUCG GUAAGGUGAU AUGAACCGUU AUAACCGGCG AUUUCCGAAU GGGGAAACCC AGUGUGUUUC GACACACUAU C AUUAACUG AAUCCAUAGG UUAAUGAGGC GAACCGGGGG AACUGAAACA UCUAAGUACC CCGAGGAAAA GAAAUCAACC GA GAUUCCC CCAGUAGCGG CGAGCGAACG GGGAGCAGCC CAGAGCCUGA AUCAGUGUGU GUGUUAGUGG AAGCGUCUGG AAA GGCGCG CGAUACAGGG UGACAGCCCC GUACACAAAA AUGCACAUGC UGUGAGCUCG AUGAGUAGGG CGGGACACGU GGUA UCCUG UCUGAAUAUG GGGGGACCAU CCUCCAAGGC UAAAUACUCC UGACUGACCG AUAGUGAACC AGUACCGUGA GGGAA AGGC GAAAAGAACC CCGGCGAGGG GAGUGAAAAA GAACCUGAAA CCGUGUACGU ACAAGCAGUG GGAGCACGCU UAGGCG UGU GACUGCGUAC CUUUUGUAUA AUGGGUCAGC GACUUAUAUU CUGUAGCAAG GUUAACCGAA UAGGGGAGCC GAAGGGA AA CCGAGUCUUA ACUGGGCGUU AAGUUGCAGG GUAUAGACCC GAAACCCGGU GAUCUAGCCA UGGGCAGGUU GAAGGUUG G GUAACACUAA CUGGAGGACC GAACCGACUA AU(1MG)(PSU)(5MU)GAAAA AUUAGCGGAU GACUUGUGGC UGGGGGU GA AAGGCCAAUC AAACCGGGAG AUAGCUGGUU CUCCCCGAAA GCUAUUUAGG UAGCGCCUCG UGAAUUCAUC UCCGGGGG U AGAGCACUGU UUCGGCAAGG GGGUCAUCCC GACUUACCAA CCCGAUGCAA ACUGCGAAUA CCGGAGAAUG UUAUCACGG GAGACACACG GCGGG(PSU)GCUA ACGUCCGUCG UGAAGAGGGA AACAACCCAG ACCGCCAGCU AAGGUCCCAA AGUCAU GGU UAAGUGGGAA ACGAUGUGGG AAGGCCCAGA CAGCCAGGAU GUUGGCUUAG AAGCAGCCAU CAUUUAAAGA AAGCGUA AU AGCUCACUGG UCGAGUCGGC CUGCGCGGAA GAUGUAACGG GGCUAAACCA UGCACCGAAG CUGCGGCAGC GACGCUUA U GCGUUGUUGG GUAGGGGAGC GUUCUGUAAG CCUGCGAAGG UGUGCUGUGA GGCAUGCUGG AGGUAUCAGA AGUGCGAAU GCUGACAUAA GUAACGAUAA AGCGGGUGAA AAGCCCGCUC GCCGGAAGAC CAAGGGUUCC UGUCCAACGU UAAUCGGGGC AGGGUGAGU CGACCCCUAA GGCGAGGCCG AAAGGCGUAG UCGAUGGGAA ACAGGUUAAU AUUCCUGUAC UUGGUGUUAC U GCGAAGGG GGGACGGAGA AGGCUAUGUU GGCCGGGCGA CGGUUGUCCC GGUUUAAGCG UGUAGGCUGG UUUUCCAGGC AA AUCCGGA AAAUCAAGGC UGAGGCGUGA UGACGAGGCA CUACGGUGCU GAAGCAACAA AUGCCCUGCU UCCAGGAAAA GCC UCUAAG CAUCAGGUAA CAUCAAAUCG UACCCCAAAC CGACAC(6MZ)GGU GGUCAGGUAG AGAAUACCAA GGCGCUUGAG AGAACUCGG GUGAAGGAAC UAGGCAAAAU GGUGCCGUAA CUUCGGGAGA AGGCACGCUG AUAUGUAGGU GAGGUCCCUC G CGGAUGGA GCUGAAAUCA GUCGAAGAUA CCAGCUGGCU GCAACUGUUU AUUAAAAACA CAGCACUGUG CAAACACGAA AG UGGACGU AUACGGUGUG ACGCCU(2MG)CCC GGUGCCGGAA GGUUAAUUGA UGGGGUUAGC GCAAGCGAAG CUCUUGAUC GAAGCCCCGG UAAACGGCGG CCG(PSU)AAC(3TD)A(PSU) AACGGUCCUA AGGUAGCGAA A(5MU)UCCUUGUC GGGU AAGUU CCGAC(5MC)UGCA CGAAUGGCGU AAUGAUGGCC AGGCUGUCUC CACCCGAGAC UCAGUGAAAU UGAACUCGCU G UG(6MZ)AGAUG CAGUGUACCC GCGGCAAGAC GGAAAGACCC CGU(G7M)AACCUU UACUAUAGCU UGACACUGAA CAUU GAGCC UUGAUGUGUA GGAUAGGUGG GAGGCUUUGA AGUGUGGACG CCAGUCUGCA UGGAGCCGAC CUUGAAAUAC CACCC UUUA AUGUUUGAUG UUCUAACGUU GACCCGUAAU CCGGGUUGCG GACAGUGUCU GGUGGGUAGU UUGACUG(OMG)GG CG GUCUCCU CCUAAAGAGU AACGGAGGAG CACGAAGGUU GGCUAAUCCU GGUCGGACAU CAGGAGGUUA GUGCAAUGGC AUA AGCCAG CUUGACUGCG AGCGUGACGG CGCGAGCAGG UGCGAAAGCA GGUCAUAGUG AUCCGGUGGU UCUGAAUGGA AGGG CCAUC GCUCAACGGA UAAAAGGUAC UCCG(2MG)GGA(H2U)A ACAGGC(PSU)GAU ACCGCCCAAG AGUUCAUAUC GAC GGCGGU GUUUGGCA(OMC)C UCG(2MA)(PSU)GUCGG CUCAUCACAU CCUGGGGCUG AAGUAGGUCC CAAGGGUAUG GC (OMU)GUUCGC CAUUUAAAGU GGUACGCGAG C(PSU)GGGUUUAG AACGUCGUGA GACAG(PSU)(PSU)CGG UCCCUAU CU GCCGUGGGCG CUGGAGAACU GAGGGGGGCU GCUCCUAGUA CGAGAGGACC GGAGUGGACG CAUCACUGGU GUUCGGGU U GUCAUGCCAA UGGCACUGCC CGGUAGCUAA AUGCGGAAGA GAUAAGUGCU GAAAGCAUCU AAGCACGAAA CUUGCCCCG AGAUGAGUUC UCCCUGACCC UUUAAGGGUC CUGAAGGAAC GUUGAAGACG ACGACGUUGA UAGGCCGGGU GUGUAAGCGC AGCGAUGCG UUGAGCUAAC CGGUACUAAU GAACCGUGAG GCUUAACCUU ACAACGCCGA AGCUGUU

+
Macromolecule #31: 5S rRNA

MacromoleculeName: 5S rRNA / type: rna / ID: 31 / Number of copies: 1
Source (natural)Organism: Escherichia coli K-12 (bacteria)
Molecular weightTheoretical: 38.483926 KDa
SequenceString:
UGCCUGGCGG CCGUAGCGCG GUGGUCCCAC CUGACCCCAU GCCGAACUCA GAAGUGAAAC GCCGUAGCGC CGAUGGUAGU GUGGGGUCU CCCCAUGCGA GAGUAGGGAA CUGCCAGGCA

GENBANK: GENBANK: CP028306.1

+
Macromolecule #56: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 56 / Number of copies: 3 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

+
Macromolecule #57: POTASSIUM ION

MacromoleculeName: POTASSIUM ION / type: ligand / ID: 57 / Number of copies: 112 / Formula: K
Molecular weightTheoretical: 39.098 Da

+
Macromolecule #58: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 58 / Number of copies: 303 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #59: water

MacromoleculeName: water / type: ligand / ID: 59 / Number of copies: 4235 / Formula: HOH
Molecular weightTheoretical: 18.015 Da
Chemical component information

ChemComp-HOH:
WATER

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
Component:
ConcentrationFormulaName
20.0 mMC8H18N2O4SHEPES-KOH
95.0 mMKClPotassium chloride
5.0 mMNH4ClAmmonium chloride
5.0 mMMg(OAc)2Magnesium acetate
0.5 mMCaCl2Calcium chloride
8.0 mM(CH2)4(NH2)2Putrescine
1.0 mMC7H19N3Spermidine
0.4 mMC33H50O6NaFusidic acid
5.0 mMC2H6OSBeta-Mercaptoethanol
GridModel: Quantifoil R2/1 / Material: COPPER / Mesh: 200 / Support film - Material: CARBON / Support film - topology: CONTINUOUS / Support film - Film thickness: 2
VitrificationCryogen name: ETHANE / Chamber humidity: 95 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Number grids imaged: 1 / Number real images: 32937 / Average exposure time: 1.2 sec. / Average electron dose: 45.47 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.0 µm / Nominal defocus min: 0.7000000000000001 µm / Nominal magnification: 130000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 3613403
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 1.87 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 4.4.1) / Number images used: 349231
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.4.1)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.4.1)
Final 3D classificationSoftware - Name: cryoSPARC (ver. 4.4.1)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial model
PDB IDChain

8cgk

source_name: PDB, initial_model_type: experimental model

8cf1

source_name: PDB, initial_model_type: experimental model

8cgj

source_name: PDB, initial_model_type: experimental model

7k00

source_name: PDB, initial_model_type: experimental model

7n2c

source_name: PDB, initial_model_type: experimental model
RefinementSpace: REAL
Output model

PDB-9ghe:
Staphylococcus aureus FusB bound to the small subunit of the Escherichia coli 70S ribosome (FusB-70S:SSU)

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
