- EMDB-75391: Structure of human VCP/p97 dodecamer bound to ADP (DMSO control) -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-75391
TitleStructure of human VCP/p97 dodecamer bound to ADP (DMSO control)
Map data
Sample
  • Complex: Human VCP/p97 bound to ADP (DMSO control)
    • Protein or peptide: Transitional endoplasmic reticulum ATPase
  • Ligand: ADENOSINE-5'-DIPHOSPHATE
  • Ligand: MAGNESIUM ION
  • Ligand: water
KeywordsVCP / p97 / dodecamer / CHAPERONE
Function / homology
Function and homology information


flavin adenine dinucleotide catabolic process / VCP-NSFL1C complex / endoplasmic reticulum stress-induced pre-emptive quality control / endosome to lysosome transport via multivesicular body sorting pathway / BAT3 complex binding / cellular response to arsenite ion / cytoplasmic ubiquitin ligase complex / Derlin-1 retrotranslocation complex / positive regulation of protein K63-linked deubiquitination / protein-DNA covalent cross-linking repair ...flavin adenine dinucleotide catabolic process / VCP-NSFL1C complex / endoplasmic reticulum stress-induced pre-emptive quality control / endosome to lysosome transport via multivesicular body sorting pathway / BAT3 complex binding / cellular response to arsenite ion / cytoplasmic ubiquitin ligase complex / Derlin-1 retrotranslocation complex / positive regulation of protein K63-linked deubiquitination / protein-DNA covalent cross-linking repair / deubiquitinase activator activity / positive regulation of oxidative phosphorylation / cytoplasm protein quality control / regulation of protein localization to chromatin / ubiquitin-modified protein reader activity / cellular response to misfolded protein / mitotic spindle disassembly / VCP-NPL4-UFD1 AAA ATPase complex / positive regulation of mitochondrial membrane potential / vesicle-fusing ATPase / K48-linked polyubiquitin modification-dependent protein binding / NAD+ metabolic process / regulation of aerobic respiration / retrograde protein transport, ER to cytosol / stress granule disassembly / ATPase complex / ubiquitin-specific protease binding / regulation of synapse organization / polyubiquitin modification-dependent protein binding / positive regulation of ATP biosynthetic process / ubiquitin-like protein ligase binding / intracellular membrane-bounded organelle / RHOH GTPase cycle / autophagosome maturation / MHC class I protein binding / HSF1 activation / endoplasmic reticulum to Golgi vesicle-mediated transport / negative regulation of hippo signaling / mitophagy / interstrand cross-link repair / ATP metabolic process / proteasome complex / protein unfolding / endoplasmic reticulum unfolded protein response / ribosome-associated ubiquitin-dependent protein catabolic process / Attachment and Entry / ERAD pathway / Protein methylation / translesion synthesis / negative regulation of smoothened signaling pathway / viral genome replication / negative regulation of protein localization to chromatin / macroautophagy / rescue of stalled cytosolic ribosome / lipid droplet / Josephin domain DUBs / autophagy / establishment of protein localization / proteasomal protein catabolic process / N-glycan trimming in the ER and Calnexin/Calreticulin cycle / positive regulation of protein-containing complex assembly / positive regulation of non-canonical NF-kappaB signal transduction / ADP binding / Hh mutants are degraded by ERAD / Dengue Virus Genome Translation and Replication / Translesion Synthesis by POLH / Hedgehog ligand biogenesis / Defective CFTR causes cystic fibrosis / AMPK-induced ERAD and lysosome mediated degradation of PD-L1(CD274) / ABC-family protein mediated transport / cytoplasmic stress granule / Ribosome Quality Control (RQC) complex extracts and degrades nascent peptide / double-strand break repair / Aggrephagy / positive regulation of canonical Wnt signaling pathway / positive regulation of protein catabolic process / azurophil granule lumen / Ovarian tumor domain proteases / positive regulation of proteasomal ubiquitin-dependent protein catabolic process / KEAP1-NFE2L2 pathway / site of double-strand break / cellular response to heat / E3 ubiquitin ligases ubiquitinate target proteins / Neddylation / secretory granule lumen / protein phosphatase binding / ubiquitin-dependent protein catabolic process / ficolin-1-rich granule lumen / proteasome-mediated ubiquitin-dependent protein catabolic process / regulation of apoptotic process / Attachment and Entry / protein ubiquitination / protein domain specific binding / DNA repair / ubiquitin protein ligase binding / lipid binding / DNA damage response / Neutrophil degranulation / endoplasmic reticulum membrane / perinuclear region of cytoplasm
Similarity search - Function
AAA ATPase, CDC48 family / CDC48, N-terminal subdomain / Cell division protein 48 (CDC48), N-terminal domain / Cell division protein 48 (CDC48) N-terminal domain / CDC48, domain 2 / Cell division protein 48 (CDC48) domain 2 / Cell division protein 48 (CDC48), domain 2 / : / CDC48 domain 2-like superfamily / Aspartate decarboxylase-like domain superfamily ...AAA ATPase, CDC48 family / CDC48, N-terminal subdomain / Cell division protein 48 (CDC48), N-terminal domain / Cell division protein 48 (CDC48) N-terminal domain / CDC48, domain 2 / Cell division protein 48 (CDC48) domain 2 / Cell division protein 48 (CDC48), domain 2 / : / CDC48 domain 2-like superfamily / Aspartate decarboxylase-like domain superfamily / AAA ATPase, AAA+ lid domain / AAA+ lid domain / ATPase, AAA-type, conserved site / AAA-protein family signature. / ATPase family associated with various cellular activities (AAA) / ATPase, AAA-type, core / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Transitional endoplasmic reticulum ATPase
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.13 Å
AuthorsTamayo-Jaramillo D / Shen PS
Funding support United States, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R35 GM133772 United States
National Institutes of Health/National Cancer Institute (NIH/NCI)R01 CA293084 United States
CitationJournal: Adv Sci (Weinh) / Year: 2026
Title: Development and Structural Characterization of UTE-156, a Covalent Inhibitor of the VCP/p97 AAA+ ATPase.
Authors: Daniela Tamayo-Jaramillo / Subramanya Hegde / Xuan Jia / Kimberly Coffman / Hariprasad Vankayalapati / David Bearss / Kevin B Jones / Alex W Stark / Peter S Shen /
Abstract: The AAA+ ATPase valosin-containing protein (VCP/p97) is a central regulator of protein homeostasis that is well characterized for its role in extracting and remodeling ubiquitinated substrates. ...The AAA+ ATPase valosin-containing protein (VCP/p97) is a central regulator of protein homeostasis that is well characterized for its role in extracting and remodeling ubiquitinated substrates. Dysregulation of VCP activity contributes to the pathogenesis of neurodegenerative diseases and cancer, making it an important therapeutic target. Here, we report the development and characterization of UTE-156, a novel covalent small-molecule inhibitor that modifies Cys522 within the D2 ATPase domain of VCP. UTE-156 potently inhibits VCP ATPase activity, while losing activity against a C522A mutant, supporting a covalent mechanism of action. High-resolution cryo-electron microscopy (cryo-EM) structures reveal that UTE-156 occupies the D2 nucleotide-binding site, sterically blocking ATP binding and inducing conformational remodeling of the pocket. Biochemical and cell-based assays demonstrate strong inhibitory potency but limited solubility and rapid metabolic turnover. These pharmacochemical limitations preclude immediate therapeutic use but underscore its value as a chemical probe. Together, these findings establish UTE-156 as a powerful tool for dissecting VCP function and provide a framework for future optimization of covalent modulators of protein homeostasis.
History
DepositionFeb 2, 2026-
Header (metadata) releaseMar 18, 2026-
Map releaseMar 18, 2026-
UpdateMay 13, 2026-
Current statusMay 13, 2026Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_75391.map.gz / Format: CCP4 / Size: 361.7 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 456 pix.
= 333.062 Å		0.73 Å/pix.
x 456 pix.
= 333.062 Å		0.73 Å/pix.
x 456 pix.
= 333.062 Å

Surface

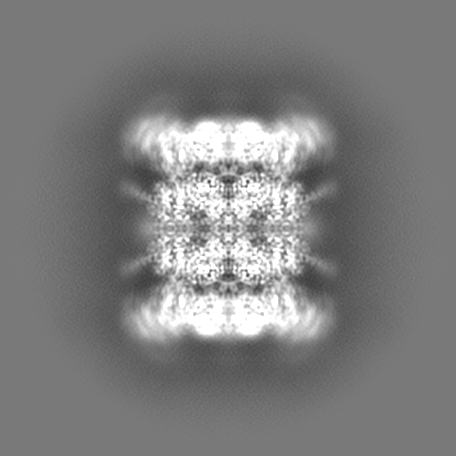

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.7304 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.016
Minimum - Maximum-0.06350661 - 0.18123187
Average (Standard dev.)0.00023901132 (±0.006446124)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions456456456
Spacing456456456
CellA=B=C: 333.0624 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_75391_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_75391_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Human VCP/p97 bound to ADP (DMSO control)

EntireName: Human VCP/p97 bound to ADP (DMSO control)
Components
  • Complex: Human VCP/p97 bound to ADP (DMSO control)
    • Protein or peptide: Transitional endoplasmic reticulum ATPase
  • Ligand: ADENOSINE-5'-DIPHOSPHATE
  • Ligand: MAGNESIUM ION
  • Ligand: water

-
Supramolecule #1: Human VCP/p97 bound to ADP (DMSO control)

SupramoleculeName: Human VCP/p97 bound to ADP (DMSO control) / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 1.084 MDa

-
Macromolecule #1: Transitional endoplasmic reticulum ATPase

MacromoleculeName: Transitional endoplasmic reticulum ATPase / type: protein_or_peptide / ID: 1 / Number of copies: 12 / Enantiomer: LEVO / EC number: vesicle-fusing ATPase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 89.43682 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MASGADSKGD DLSTAILKQK NRPNRLIVDE AINEDNSVVS LSQPKMDELQ LFRGDTVLLK GKKRREAVCI VLSDDTCSDE KIRMNRVVR NNLRVRLGDV ISIQPCPDVK YGKRIHVLPI DDTVEGITGN LFEVYLKPYF LEAYRPIRKG DIFLVRGGMR A VEFKVVET ...String:
MASGADSKGD DLSTAILKQK NRPNRLIVDE AINEDNSVVS LSQPKMDELQ LFRGDTVLLK GKKRREAVCI VLSDDTCSDE KIRMNRVVR NNLRVRLGDV ISIQPCPDVK YGKRIHVLPI DDTVEGITGN LFEVYLKPYF LEAYRPIRKG DIFLVRGGMR A VEFKVVET DPSPYCIVAP DTVIHCEGEP IKREDEEESL NEVGYDDIGG CRKQLAQIKE MVELPLRHPA LFKAIGVKPP RG ILLYGPP GTGKTLIARA VANETGAFFF LINGPEIMSK LAGESESNLR KAFEEAEKNA PAIIFIDELD AIAPKREKTH GEV ERRIVS QLLTLMDGLK QRAHVIVMAA TNRPNSIDPA LRRFGRFDRE VDIGIPDATG RLEILQIHTK NMKLADDVDL EQVA NETHG HVGADLAALC SEAALQAIRK KMDLIDLEDE TIDAEVMNSL AVTMDDFRWA LSQSNPSALR ETVVEVPQVT WEDIG GLED VKRELQELVQ YPVEHPDKFL KFGMTPSKGV LFYGPPGCGK TLLAKAIANE CQANFISIKG PELLTMWFGE SEANVR EIF DKARQAAPCV LFFDELDSIA KARGGNIGDG GGAADRVINQ ILTEMDGMST KKNVFIIGAT NRPDIIDPAI LRPGRLD QL IYIPLPDEKS RVAILKANLR KSPVAKDVDL EFLAKMTNGF SGADLTEICQ RACKLAIRES IESEIRRERE RQTNPSAM E VEEDDPVPEI RRDHFEEAMR FARRSVSDND IRKYEMFAQT LQQSRGFGSF RFPSGNQGGA GPSQGSGGGT GGSVYTEDN DDDLYG

UniProtKB: Transitional endoplasmic reticulum ATPase

-
Macromolecule #2: ADENOSINE-5'-DIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-DIPHOSPHATE / type: ligand / ID: 2 / Number of copies: 24 / Formula: ADP
Molecular weightTheoretical: 427.201 Da
Chemical component information

ChemComp-ADP:
ADENOSINE-5'-DIPHOSPHATE / ADP, energy-carrying molecule*YM

-
Macromolecule #3: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 3 / Number of copies: 24 / Formula: MG
Molecular weightTheoretical: 24.305 Da

-
Macromolecule #4: water

MacromoleculeName: water / type: ligand / ID: 4 / Number of copies: 60 / Formula: HOH
Molecular weightTheoretical: 18.015 Da
Chemical component information

ChemComp-HOH:
WATER

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4 / Details: 20 mM HEPES-KOH pH 7.4, 100 mM KOAc, 10mM MgCl2
GridModel: UltrAuFoil R1.2/1.3 / Material: GOLD / Mesh: 300 / Support film - Material: GOLD / Support film - topology: CONTINUOUS / Pretreatment - Type: PLASMA CLEANING / Pretreatment - Atmosphere: OTHER
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 277.15 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 50.64 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.2 µm / Nominal defocus min: 0.4 µm / Nominal magnification: 165000
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionSoftware - Name: cryoSPARC / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.13 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 79312
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC

+
