- EMDB-72487: Cryo-EM structure of DNMT3A2/3B3 in complex with H3K36me2 di-nucl... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-72487
TitleCryo-EM structure of DNMT3A2/3B3 in complex with H3K36me2 di-nucleosome with eight base pair linker
Map data
Sample
  • Complex: DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome
    • Protein or peptide: x 7 types
    • DNA: x 2 types
  • Ligand: x 2 types
KeywordsDNMT3A2/DNMT3B3 / DNA methylation / H3K36me2 di-nucleosome / DNA BINDING PROTEIN
Function / homology
Function and homology information


DNA (cytosine-5-)-methyltransferase activity, acting on CpG substrates / transposable element silencing by piRNA-mediated DNA methylation / protein-cysteine methyltransferase activity / positive regulation of cellular response to hypoxia / DNA-methyltransferase activity / regulatory ncRNA-mediated heterochromatin formation / unmethylated CpG binding / DNA (cytosine-5-)-methyltransferase / DNA (cytosine-5-)-methyltransferase activity / hepatocyte apoptotic process ...DNA (cytosine-5-)-methyltransferase activity, acting on CpG substrates / transposable element silencing by piRNA-mediated DNA methylation / protein-cysteine methyltransferase activity / positive regulation of cellular response to hypoxia / DNA-methyltransferase activity / regulatory ncRNA-mediated heterochromatin formation / unmethylated CpG binding / DNA (cytosine-5-)-methyltransferase / DNA (cytosine-5-)-methyltransferase activity / hepatocyte apoptotic process / response to vitamin A / XY body / SUMOylation of DNA methylation proteins / DNA methylation-dependent constitutive heterochromatin formation / cellular response to ethanol / negative regulation of gene expression via chromosomal CpG island methylation / response to ionizing radiation / lncRNA binding / chromosome, centromeric region / catalytic complex / heterochromatin / Transferases; Transferring one-carbon groups; Methyltransferases / response to cocaine / methylation / DNA methylation / PRC2 methylates histones and DNA / Defective pyroptosis / Regulation of endogenous retroelements by Piwi-interacting RNAs (piRNAs) / euchromatin / response to toxic substance / NoRC negatively regulates rRNA expression / response to lead ion / nucleosomal DNA binding / nuclear matrix / RMTs methylate histone arginines / innate immune response in mucosa / transcription corepressor activity / structural constituent of chromatin / response to estradiol / neuron differentiation / nucleosome / nucleosome assembly / chromatin organization / antimicrobial humoral immune response mediated by antimicrobial peptide / heterochromatin formation / cellular response to hypoxia / antibacterial humoral response / RNA polymerase II-specific DNA-binding transcription factor binding / response to xenobiotic stimulus / RNA polymerase II cis-regulatory region sequence-specific DNA binding / chromosome / protein heterodimerization activity / negative regulation of DNA-templated transcription / chromatin binding / positive regulation of gene expression / negative regulation of transcription by RNA polymerase II / : / DNA binding / zinc ion binding / nucleoplasm / identical protein binding / nucleus / cytoplasm
Similarity search - Function
DNA (cytosine-5)-methyltransferase 3B, ADD domain / DNA (cytosine-5)-methyltransferase 3A, ADD domain / : / DNA (cytosine-5-)-methyltransferase, N-terminal / DNMT3, cysteine rich ADD domain / : / DNMT3, cysteine rich ADD domain, GATA1-like zinc finger / DNMT3, ADD PHD zinc finger / ADD domain / ADD domain profile. ...DNA (cytosine-5)-methyltransferase 3B, ADD domain / DNA (cytosine-5)-methyltransferase 3A, ADD domain / : / DNA (cytosine-5-)-methyltransferase, N-terminal / DNMT3, cysteine rich ADD domain / : / DNMT3, cysteine rich ADD domain, GATA1-like zinc finger / DNMT3, ADD PHD zinc finger / ADD domain / ADD domain profile. / : / DNA methylase, C-5 cytosine-specific, active site / C-5 cytosine-specific DNA methylases active site. / C-5 cytosine-specific DNA methylase (Dnmt) domain profile. / C-5 cytosine methyltransferase / C-5 cytosine-specific DNA methylase / domain with conserved PWWP motif / PWWP domain / PWWP domain profile. / PWWP domain / : / Histone H2A conserved site / Histone H2A signature. / Histone H2B signature. / Histone H2B / Histone H2B / Histone H2A, C-terminal domain / C-terminus of histone H2A / Zinc finger, FYVE/PHD-type / Histone 2A / Histone H2A / TATA box binding protein associated factor / TATA box binding protein associated factor (TAF), histone-like fold domain / Histone H4, conserved site / Histone H4 signature. / Histone H4 / Histone H4 / CENP-T/Histone H4, histone fold / Centromere kinetochore component CENP-T histone fold / Histone H3 signature 1. / Histone H3 signature 2. / Histone H3 / Histone H3/CENP-A / Histone H2A/H2B/H3 / Core histone H2A/H2B/H3/H4 domain / Histone-fold / S-adenosyl-L-methionine-dependent methyltransferase superfamily
Similarity search - Domain/homology
Histone H3 / Histone H2B 1.1 / Histone H2A type 1 / Histone H4 / Histone H3.2 / DNA (cytosine-5)-methyltransferase 3B / DNA (cytosine-5)-methyltransferase 3A
Similarity search - Component
Biological speciesHomo sapiens (human) / Xenopus laevis (African clawed frog)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.84 Å
AuthorsXie X / Zhou XE / Worden EJ / Jones PA
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Cancer Institute (NIH/NCI)R35CA209859 United States
CitationJournal: Mol Cell / Year: 2026
Title: Nucleosome spacing regulates linker methylation by DNMT3A2/3B3.
Authors: Xiaoyan Xie / Minmin Liu / Gabriella N L Chua / X Edward Zhou / Michelle L Dykstra / Shixin Liu / Peter A Jones / Evan J Worden /
Abstract: De novo CpG methylation (mCpG) is deposited by DNMT3A and DNMT3B, which target DNA linkers between nucleosomes. Cells contain millions of unique linkers, but the rules dictating which linkers get ...De novo CpG methylation (mCpG) is deposited by DNMT3A and DNMT3B, which target DNA linkers between nucleosomes. Cells contain millions of unique linkers, but the rules dictating which linkers get targeted by DNMT3 enzymes are not understood. We show that nucleosome spacing controls linker DNA methylation and H3K36me2 recognition by human DNMT3A2/3B3, linking de novo methylation to chromatin architecture. We present structures of DNMT3A2/3B3 bound to dinucleosomes, revealing that short linkers promote dinucleosome bridging, blocking access to linker DNA and suppressing methylation, whereas long linkers allow DNMT3A2/3B3 to engage each nucleosome separately and methylate linker DNA. Finally, we show that DNMT3A2/3B3 positions proline-tryptophan-tryptophan-proline (PWWP) domains to scan for H3K36me2. However, H3K36me2 recognition is blocked when DNMT3A2/3B3 bridges dinucleosomes with short linkers, imposing an additional structural constraint on DNMT3A2/3B3 function. Together, these findings uncover the mechanisms that govern de novo methylation in chromatin and explain how DNMT3 enzymes target linkers in cells.
History
DepositionSep 3, 2025-
Header (metadata) releaseFeb 18, 2026-
Map releaseFeb 18, 2026-
UpdateAug 12, 2026-
Current statusAug 12, 2026Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_72487.map.gz / Format: CCP4 / Size: 343 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 448 pix.
= 370.944 Å		0.83 Å/pix.
x 448 pix.
= 370.944 Å		0.83 Å/pix.
x 448 pix.
= 370.944 Å

Surface

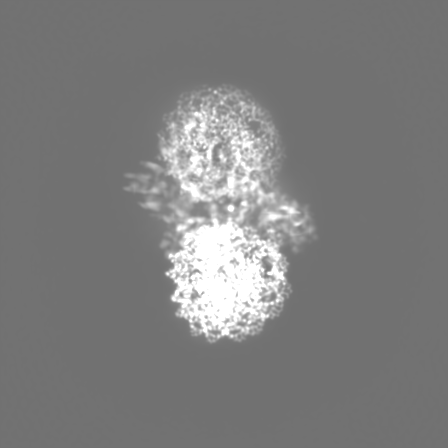

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.828 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0672
Minimum - Maximum-0.00040971627 - 4.7957535
Average (Standard dev.)0.0047881543 (±0.05771565)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions448448448
Spacing448448448
CellA=B=C: 370.944 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Sample components

+
Entire : DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome

EntireName: DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome
Components
  • Complex: DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome
    • Protein or peptide: Histone H3
    • Protein or peptide: Histone H4
    • Protein or peptide: Histone H2A type 1
    • Protein or peptide: Histone H2B 1.1
    • Protein or peptide: Histone H3.2
    • DNA: DNA (321-MER)
    • DNA: DNA (321-MER)
    • Protein or peptide: Isoform 7 of DNA (cytosine-5)-methyltransferase 3B
    • Protein or peptide: DNA (cytosine-5)-methyltransferase 3A
  • Ligand: ZINC ION
  • Ligand: S-ADENOSYL-L-HOMOCYSTEINE

+
Supramolecule #1: DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome

SupramoleculeName: DNMT3A/3B tetramer bound to H3K36me2 di-nucleosome / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#9
Source (natural)Organism: Homo sapiens (human)

+
Macromolecule #1: Histone H3

MacromoleculeName: Histone H3 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 15.330975 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
ARTKQTARKS TGGKAPRKQL ATKAARKSAP ATGGV(MLY)KPHR YRPGTVALRE IRRYQKSTEL LIRKLPFQRL VREIAQ DFK TDLRFQSSAV MALQEASEAY LVALFEDTNL CAIHAKRVTI MPKDIQLARR IRGERA

UniProtKB: Histone H3

+
Macromolecule #2: Histone H4

MacromoleculeName: Histone H4 / type: protein_or_peptide / ID: 2 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 11.394426 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSGRGKGGKG LGKGGAKRHR KVLRDNIQGI TKPAIRRLAR RGGVKRISGL IYEETRGVLK VFLENVIRDA VTYTEHAKRK TVTAMDVVY ALKRQGRTLY GFGG

UniProtKB: Histone H4

+
Macromolecule #3: Histone H2A type 1

MacromoleculeName: Histone H2A type 1 / type: protein_or_peptide / ID: 3 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.978241 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
SGRGKQGGKT RAKAKTRSSR AGLQFPVGRV HRLLRKGNYA ERVGAGAPVY LAAVLEYLTA EILELAGNAA RDNKKTRIIP RHLQLAVRN DEELNKLLGR VTIAQGGVLP NIQSVLLPKK TESSKSAKSK

UniProtKB: Histone H2A type 1

+
Macromolecule #4: Histone H2B 1.1

MacromoleculeName: Histone H2B 1.1 / type: protein_or_peptide / ID: 4 / Number of copies: 4 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 13.655948 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKSAPAPKK GSKKAVTKTQ KKDGKKRRKT RKESYAIYVY KVLKQVHPDT GISSKAMSIM NSFVNDVFER IAGEASRLAH YNKRSTITS REIQTAVRLL LPGELAKHAV SEGTKAVTKY TSAK

UniProtKB: Histone H2B 1.1

+
Macromolecule #5: Histone H3.2

MacromoleculeName: Histone H3.2 / type: protein_or_peptide / ID: 5 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Xenopus laevis (African clawed frog)
Molecular weightTheoretical: 15.30393 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
ARTKQTARKS TGGKAPRKQL ATKAARKSAP ATGGVKKPHR YRPGTVALRE IRRYQKSTEL LIRKLPFQRL VREIAQDFKT DLRFQSSAV MALQEASEAY LVALFEDTNL CAIHAKRVTI MPKDIQLARR IRGERA

UniProtKB: Histone H3.2

+
Macromolecule #8: Isoform 7 of DNA (cytosine-5)-methyltransferase 3B

MacromoleculeName: Isoform 7 of DNA (cytosine-5)-methyltransferase 3B / type: protein_or_peptide / ID: 8 / Number of copies: 4 / Enantiomer: LEVO / EC number: DNA (cytosine-5-)-methyltransferase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 65.568391 KDa
Recombinant expressionOrganism: Spodoptera (butterflies/moths)
SequenceString: DSQQGGMESP QVEADSGDGD SSEYQDGKEF GIGDLVWGKI KGFSWWPAMV VSWKATSKRQ AMSGMRWVQW FGDGKFSEVS ADKLVALGL FSQHFNLATF NKLVSYRKAM YHALEKARVR AGKTFPSSPG DSLEDQLKPM LEWAHGGFKP TGIEGLKPNN T QPENKTRR ...String:
DSQQGGMESP QVEADSGDGD SSEYQDGKEF GIGDLVWGKI KGFSWWPAMV VSWKATSKRQ AMSGMRWVQW FGDGKFSEVS ADKLVALGL FSQHFNLATF NKLVSYRKAM YHALEKARVR AGKTFPSSPG DSLEDQLKPM LEWAHGGFKP TGIEGLKPNN T QPENKTRR RTADDSATSD YCPAPKRLKT NCYNNGKDRG DEKDYDQSRE QMASDVANNK SSLEDGCLSC GRKNPVSFHP LF EGGLCQT CRDRFLELFY MYDDDGYQSY CTVCCEGREL LLCSNTSCCR CFCVECLEVL VGTGTAAEAK LQEPWSCYMC LPQ RCHGVL RRRKDWNVRL QAFFTSDTGL EYEAPKLYPA IPAARRRPIR VLSLFDGIAT GYLVLKELGI KVGKYVASEV CEES IAVGT VKHEGNIKYV NDVRNITKKN IEEWGPFDLV IGGSPCNDLS NVNPARKGLY EGTGRLFFEF YHLLNYSRPK EGDDR PFFW MFENVVAMKV GDKRDISRFL ECNPVMIDAI KVSAAHRARY FWGNLPGMNR IFGFPVHYTD VSNMGRGARQ KLLGRS WSV PVIRHLFAPL KDYFACE

UniProtKB: DNA (cytosine-5)-methyltransferase 3B

+
Macromolecule #9: DNA (cytosine-5)-methyltransferase 3A

MacromoleculeName: DNA (cytosine-5)-methyltransferase 3A / type: protein_or_peptide / ID: 9 / Number of copies: 4 / Enantiomer: LEVO / EC number: DNA (cytosine-5-)-methyltransferase
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 77.914711 KDa
Recombinant expressionOrganism: Spodoptera (butterflies/moths)
SequenceString: MNAVEENQGP GESQKVEEAS PPAVQQPTDP ASPTVATTPE PVGSDAGDKN ATKAGDDEPE YEDGRGFGIG ELVWGKLRGF SWWPGRIVS WWMTGRSRAA EGTRWVMWFG DGKFSVVCVE KLMPLSSFCS AFHQATYNKQ PMYRKAIYEV LQVASSRAGK L FPVCHDSD ...String:
MNAVEENQGP GESQKVEEAS PPAVQQPTDP ASPTVATTPE PVGSDAGDKN ATKAGDDEPE YEDGRGFGIG ELVWGKLRGF SWWPGRIVS WWMTGRSRAA EGTRWVMWFG DGKFSVVCVE KLMPLSSFCS AFHQATYNKQ PMYRKAIYEV LQVASSRAGK L FPVCHDSD ESDTAKAVEV QNKPMIEWAL GGFQPSGPKG LEPPEEEKNP YKEVYTDMWV EPEAAAYAPP PPAKKPRKST AE KPKVKEI IDERTRERLV YEVRQKCRNI EDICISCGSL NVTLEHPLFV GGMCQNCKNC FLECAYQYDD DGYQSYCTIC CGG REVLMC GNNNCCRCFC VECVDLLVGP GAAQAAIKED PWNCYMCGHK GTYGLLRRRE DWPSRLQMFF ANNHDQEFDP PKVY PPVPA EKRKPIRVLS LFDGIATGLL VLKDLGIQVD RYIASEVCED SITVGMVRHQ GKIMYVGDVR SVTQKHIQEW GPFDL VIGG SPCNDLSIVN PARKGLYEGT GRLFFEFYRL LHDARPKEGD DRPFFWLFEN VVAMGVSDKR DISRFLESNP VMIDAK EVS AAHRARYFWG NLPGMNRPLA STVNDKLELQ ECLEHGRIAK FSKVRTITTR SNSIKQGKDQ HFPVFMNEKE DILWCTE ME RVFGFPVHYT DVSNMSRLAR QRLLGRSWSV PVIRHLFAPL KEYFACV

UniProtKB: DNA (cytosine-5)-methyltransferase 3A

+
Macromolecule #6: DNA (321-MER)

MacromoleculeName: DNA (321-MER) / type: dna / ID: 6 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 99.578164 KDa
SequenceString: (DT)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC)(DA) (DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT)(DA)(DT) (DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA)(DC)(DG)(DT)(DG)(DC)(DC)(DT)(DG)(DG) (DA) (DG)(DA)(DC)(DT)(DA)(DG) ...String:
(DT)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC)(DA) (DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT)(DA)(DT) (DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA)(DC)(DG)(DT)(DG)(DC)(DC)(DT)(DG)(DG) (DA) (DG)(DA)(DC)(DT)(DA)(DG)(DG)(DG) (DA)(DG)(DT)(DA)(DA)(DT)(DC)(DC)(DC)(DC) (DT)(DT) (DG)(DG)(DC)(DG)(DG)(DT)(DT) (DA)(DA)(DA)(DA)(DC)(DG)(DC)(DG)(DG)(DG) (DG)(DG)(DA) (DC)(DA)(DG)(DC)(DG)(DC) (DG)(DT)(DA)(DC)(DG)(DT)(DG)(DC)(DG)(DT) (DT)(DT)(DA)(DA) (DG)(DC)(DG)(DG)(DT) (DG)(DC)(DT)(DA)(DG)(DA)(DG)(DC)(DT)(DG) (DT)(DC)(DT)(DA)(DC) (DG)(DA)(DC)(DC) (DA)(DA)(DT)(DT)(DG)(DA)(DG)(DC)(DG)(DG) (DC)(DC)(DT)(DC)(DG)(DG) (DC)(DA)(DC) (DC)(DG)(DG)(DG)(DA)(DT)(DT)(DC)(DT)(DC) (DC)(DA)(DG)(DC)(DA)(DG)(DC) (DT)(DG) (DC)(DA)(DA)(DC)(DA)(DG)(DG)(DA)(DT)(DG) (DT)(DA)(DT)(DA)(DT)(DA)(DT)(DC) (DT) (DG)(DA)(DC)(DA)(DC)(DG)(DT)(DG)(DC)(DC) (DT)(DG)(DG)(DA)(DG)(DA)(DC)(DT)(DA) (DG)(DG)(DG)(DA)(DG)(DT)(DA)(DA)(DT)(DC) (DC)(DC)(DC)(DT)(DT)(DG)(DG)(DC)(DG)(DG) (DT)(DT)(DA)(DA)(DA)(DA)(DC)(DG)(DC) (DG)(DG)(DG)(DG)(DG)(DA)(DC)(DA)(DG)(DC) (DG) (DC)(DG)(DT)(DA)(DC)(DG)(DT)(DG) (DC)(DG)(DT)(DT)(DT)(DA)(DA)(DG)(DC)(DG) (DG)(DT) (DG)(DC)(DT)(DA)(DG)(DA)(DG) (DC)(DT)(DG)(DT)(DC)(DT)(DA)(DC)(DG)(DA) (DC)(DC)(DA) (DA)(DT)(DT)(DG)(DA)(DG) (DC)(DG)(DG)(DC)(DC)(DT)(DC)(DG)(DG)(DC) (DA)(DC)(DC)(DG) (DG)(DG)(DA)(DT)(DT) (DC)(DT)(DC)(DC)(DA)(DG)(DG)(DG)(DC)(DG) (DG)(DC)(DC)(DG)(DA) (DT)

+
Macromolecule #7: DNA (321-MER)

MacromoleculeName: DNA (321-MER) / type: dna / ID: 7 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 98.701617 KDa
SequenceString: (DA)(DT)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC) (DC)(DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG) (DA)(DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA) (DT)(DT)(DG)(DG)(DT)(DC) ...String:
(DA)(DT)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC) (DC)(DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG) (DA)(DG)(DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA) (DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT) (DA)(DG)(DA)(DC)(DA)(DG)(DC)(DT)(DC)(DT) (DA)(DG) (DC)(DA)(DC)(DC)(DG)(DC)(DT) (DT)(DA)(DA)(DA)(DC)(DG)(DC)(DA)(DC)(DG) (DT)(DA)(DC) (DG)(DC)(DG)(DC)(DT)(DG) (DT)(DC)(DC)(DC)(DC)(DC)(DG)(DC)(DG)(DT) (DT)(DT)(DT)(DA) (DA)(DC)(DC)(DG)(DC) (DC)(DA)(DA)(DG)(DG)(DG)(DG)(DA)(DT)(DT) (DA)(DC)(DT)(DC)(DC) (DC)(DT)(DA)(DG) (DT)(DC)(DT)(DC)(DC)(DA)(DG)(DG)(DC)(DA) (DC)(DG)(DT)(DG)(DT)(DC) (DA)(DG)(DA) (DT)(DA)(DT)(DA)(DT)(DA)(DC)(DA)(DT)(DC) (DC)(DT)(DG)(DT)(DT)(DG)(DC) (DA)(DG) (DC)(DT)(DG)(DC)(DT)(DG)(DG)(DA)(DG)(DA) (DA)(DT)(DC)(DC)(DC)(DG)(DG)(DT) (DG) (DC)(DC)(DG)(DA)(DG)(DG)(DC)(DC)(DG)(DC) (DT)(DC)(DA)(DA)(DT)(DT)(DG)(DG)(DT) (DC)(DG)(DT)(DA)(DG)(DA)(DC)(DA)(DG)(DC) (DT)(DC)(DT)(DA)(DG)(DC)(DA)(DC)(DC)(DG) (DC)(DT)(DT)(DA)(DA)(DA)(DC)(DG)(DC) (DA)(DC)(DG)(DT)(DA)(DC)(DG)(DC)(DG)(DC) (DT) (DG)(DT)(DC)(DC)(DC)(DC)(DC)(DG) (DC)(DG)(DT)(DT)(DT)(DT)(DA)(DA)(DC)(DC) (DG)(DC) (DC)(DA)(DA)(DG)(DG)(DG)(DG) (DA)(DT)(DT)(DA)(DC)(DT)(DC)(DC)(DC)(DT) (DA)(DG)(DT) (DC)(DT)(DC)(DC)(DA)(DG) (DG)(DC)(DA)(DC)(DG)(DT)(DG)(DT)(DC)(DA) (DG)(DA)(DT)(DA) (DT)(DA)(DT)(DA)(DC) (DA)(DT)(DC)(DC)(DT)(DG)(DT)(DG)(DG)(DC) (DG)(DG)(DC)(DC)(DG) (DA)

+
Macromolecule #10: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 10 / Number of copies: 18 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

+
Macromolecule #11: S-ADENOSYL-L-HOMOCYSTEINE

MacromoleculeName: S-ADENOSYL-L-HOMOCYSTEINE / type: ligand / ID: 11 / Number of copies: 4 / Formula: SAH
Molecular weightTheoretical: 384.411 Da
Chemical component information

ChemComp-SAH:
S-ADENOSYL-L-HOMOCYSTEINE

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 61.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.5 µm / Nominal defocus min: 1.1 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: NONE
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6p7a

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.84 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 176300
Initial angle assignmentType: ANGULAR RECONSTITUTION
Final angle assignmentType: ANGULAR RECONSTITUTION

+
