Basic information

Entry
Database: EMDB / ID: EMD-70041
Title5mC Tetrahymena Ribozyme
Map data
Sample
  • Complex: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
    • RNA: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
KeywordsRNA / Tetrahymena ribozyme / 5mC / 5-methyl-cytidine / modified base
Biological speciesTetrahymena (eukaryote)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.9 Å
AuthorsMcRae EKS / Kumar DY
Funding support United States, 1 items
OrganizationGrant numberCountry
Cancer Prevention and Research Institute of Texas (CPRIT)RR230015 United States
CitationJournal: Res Sq / Year: 2025
Title: Base modifications reshape RNA folding landscapes and structure-function relationships in synthetic and natural RNAs.
Authors: Ewan McRae / Deepak Yadav / Haoyun Yang / Sukyeong Lee /
Abstract: Modified bases such as 5-methylcytosine (5mC) and N1-methyl-pseudouridine (N1Ψ) are widely used to reduce the immunogenicity of and enhance the stability and translational efficiency of therapeutic ...Modified bases such as 5-methylcytosine (5mC) and N1-methyl-pseudouridine (N1Ψ) are widely used to reduce the immunogenicity of and enhance the stability and translational efficiency of therapeutic RNAs, yet their effects on RNA 3D structure remain poorly understood. Here, we investigate how these base modifications influence the folding and function of structured RNAs using both an engineered RNA origami nanostructure and a naturally occurring ribozyme. We show that modified bases impair kinetic maturation of RNA nanostructures and promote alternative folding topologies via stabilization of noncanonical stacking arrangements. Cryo-EM and FRET experiments reveal that this conformational shift is driven not by changes in base pairing, but by altered stacking energetics at key junctions. Our findings highlight the need to consider structural consequences when using base modifications and offer design principles for the development of functional, structured RNAs in synthetic biology and therapeutic applications.
History
DepositionApr 4, 2025-
Header (metadata) releaseJul 16, 2025-
Map releaseJul 16, 2025-
UpdateJul 16, 2025-
Current statusJul 16, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_70041.map.gz / Format: CCP4 / Size: 28.7 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.84 Å/pix.
x 196 pix.
= 360.64 Å		1.84 Å/pix.
x 196 pix.
= 360.64 Å		1.84 Å/pix.
x 196 pix.
= 360.64 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.84 Å
Density

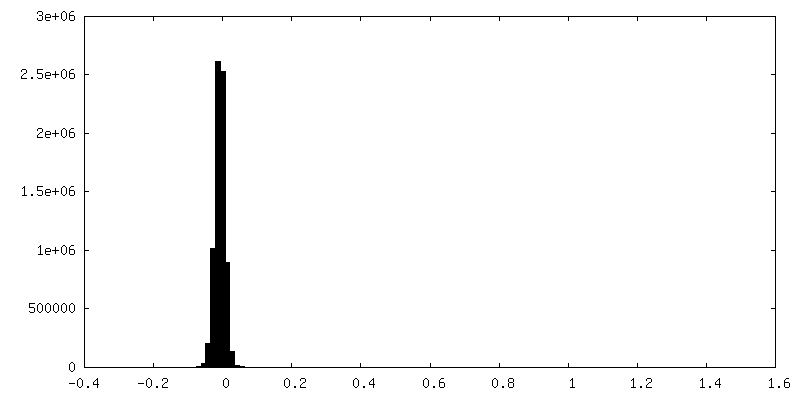

Histogram

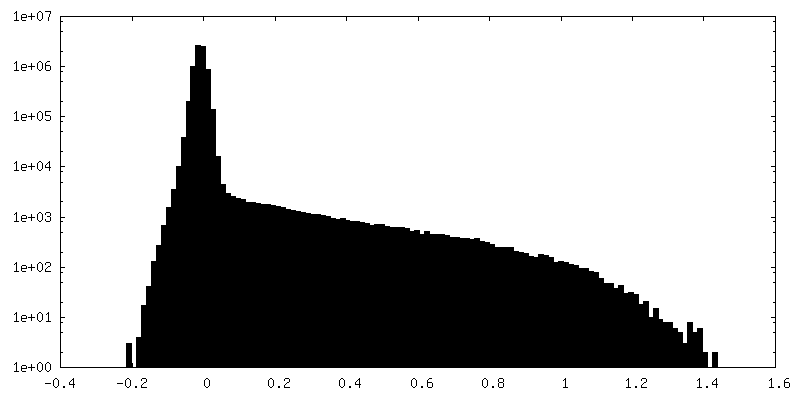

Histogram (log scale)
Contour LevelBy AUTHOR: 0.256
Minimum - Maximum-0.13191618 - 1.421244
Average (Standard dev.)0.0010485451 (±0.0384251)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions196196196
Spacing196196196
CellA=B=C: 360.64 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_70041_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_70041_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_70041_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine

EntireName: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
Components
  • Complex: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
    • RNA: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine

-
Supramolecule #1: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine

SupramoleculeName: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Tetrahymena (eukaryote)
Molecular weightTheoretical: 125 KDa

-
Macromolecule #1: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine

MacromoleculeName: L21-ScaI Tetrahymena ribozyme transcribed with 5-methyl-cytidine
type: rna / ID: 1
Source (natural)Organism: Tetrahymena (eukaryote)
SequenceString: GGAGGGAAAA GUUAUCAGGC AUGCACCUGG UAGCUAGUCU UUAAACCAAU AGAUUGCAUC GGUUUAAAAG GCAAGACCGU CAAAUUGCGG GAAAGGGGUC AACAGCCGUU CAGUACCAAG UCUCAGGGGA AACUUUGAGA UGGCCUUGCA AAGGGUAUGG UAAUAAGCUG ...String:
GGAGGGAAAA GUUAUCAGGC AUGCACCUGG UAGCUAGUCU UUAAACCAAU AGAUUGCAUC GGUUUAAAAG GCAAGACCGU CAAAUUGCGG GAAAGGGGUC AACAGCCGUU CAGUACCAAG UCUCAGGGGA AACUUUGAGA UGGCCUUGCA AAGGGUAUGG UAAUAAGCUG ACGGACAUGG UCCUAACCAC GCAGCCAAGU CCUAAGUCAA CAGAUCUUCU GUUGAUAUGG AUGCAGUUCA CAGACUAAAU GUCGGUCGGG GAAGAUGUAU UCUUCUCAUA AGAUAUAGUC GGACCUCUCC UUAAUGGGAG CUAGCGGAUG AAGUGAUGCA ACACUGGAGC CGCUGGGAAC UAAUUUGUAU GCGAAAGUAU AUUGAUUAGU UUUGGAGU

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration2 mg/mL
BufferpH: 8
Details: SEC purified in 50mM HEPES pH 8.0, 50mM KCl, 5mM MgCl2
GridModel: Quantifoil R2/1 / Support film - Material: CARBON / Support film - topology: HOLEY
VitrificationCryogen name: ETHANE
DetailsSEC purified in 50mM HEPES pH 8.0, 50mM KCl, 5mM MgCl2

-
Electron microscopy

MicroscopeTFS GLACIOS
Specialist opticsEnergy filter - Name: TFS Selectris X / Energy filter - Slit width: 10 eV
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.7000000000000001 µm / Nominal magnification: 130000

+
Image processing

Particle selectionNumber selected: 599317 / Details: Blob picking on denoised micrographs
CTF correctionSoftware - Name: cryoSPARC / Details: Patch CTF / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionNumber classes used: 1 / Applied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 4.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Software - details: non-uniform refinement / Number images used: 233268
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final 3D classificationNumber classes: 3 / Avg.num./class: 250000 / Software - Name: cryoSPARC

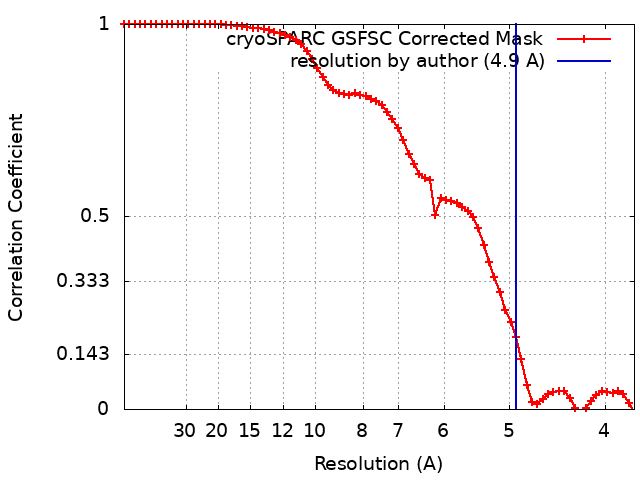

FSC plot (resolution estimation)

+
