- EMDB-63584: Structure of neuropeptide FF receptor 1 complex with NPFF -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-63584
TitleStructure of neuropeptide FF receptor 1 complex with NPFF
Map data
Sample
  • Complex: NPFFR1 complex with Gi-protein and neuropeptide FF
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
    • Protein or peptide: neuropeptide FF
    • Protein or peptide: Guanine nucleotide-binding protein G(i) subunit alpha-1
    • Protein or peptide: Neuropeptide FF receptor 1,Neuropeptide FF receptor 1,Lgbit
    • Protein or peptide: scfv16
KeywordsGPCR / NPFFR1 / NPVF / NPFF / MEMBRANE PROTEIN/IMMUNE SYSTEM / MEMBRANE PROTEIN-IMMUNE SYSTEM complex
Function / homology
Function and homology information


Orexin and neuropeptides FF and QRFP bind to their respective receptors / neuropeptide receptor activity / G-protein activation / Activation of the phototransduction cascade / Glucagon-type ligand receptors / Thromboxane signalling through TP receptor / Sensory perception of sweet, bitter, and umami (glutamate) taste / G beta:gamma signalling through PI3Kgamma / G beta:gamma signalling through CDC42 / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding ...Orexin and neuropeptides FF and QRFP bind to their respective receptors / neuropeptide receptor activity / G-protein activation / Activation of the phototransduction cascade / Glucagon-type ligand receptors / Thromboxane signalling through TP receptor / Sensory perception of sweet, bitter, and umami (glutamate) taste / G beta:gamma signalling through PI3Kgamma / G beta:gamma signalling through CDC42 / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding / Activation of G protein gated Potassium channels / Inhibition of voltage gated Ca2+ channels via Gbeta/gamma subunits / Ca2+ pathway / G alpha (z) signalling events / High laminar flow shear stress activates signaling by PIEZO1 and PECAM1:CDH5:KDR in endothelial cells / Glucagon-like Peptide-1 (GLP1) regulates insulin secretion / Vasopressin regulates renal water homeostasis via Aquaporins / Adrenaline,noradrenaline inhibits insulin secretion / ADP signalling through P2Y purinoceptor 12 / G alpha (q) signalling events / G alpha (i) signalling events / Thrombin signalling through proteinase activated receptors (PARs) / Activation of G protein gated Potassium channels / G-protein activation / G beta:gamma signalling through PI3Kgamma / Prostacyclin signalling through prostacyclin receptor / G beta:gamma signalling through PLC beta / ADP signalling through P2Y purinoceptor 1 / Thromboxane signalling through TP receptor / Presynaptic function of Kainate receptors / G beta:gamma signalling through CDC42 / Inhibition of voltage gated Ca2+ channels via Gbeta/gamma subunits / G alpha (12/13) signalling events / Glucagon-type ligand receptors / G beta:gamma signalling through BTK / ADP signalling through P2Y purinoceptor 12 / Adrenaline,noradrenaline inhibits insulin secretion / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding / Ca2+ pathway / Thrombin signalling through proteinase activated receptors (PARs) / G alpha (z) signalling events / Extra-nuclear estrogen signaling / photoreceptor outer segment membrane / G alpha (s) signalling events / G alpha (q) signalling events / spectrin binding / G alpha (i) signalling events / Glucagon-like Peptide-1 (GLP1) regulates insulin secretion / High laminar flow shear stress activates signaling by PIEZO1 and PECAM1:CDH5:KDR in endothelial cells / Vasopressin regulates renal water homeostasis via Aquaporins / alkylglycerophosphoethanolamine phosphodiesterase activity / photoreceptor outer segment / neuropeptide signaling pathway / adenylate cyclase inhibitor activity / cellular response to hormone stimulus / positive regulation of protein localization to cell cortex / Adenylate cyclase inhibitory pathway / T cell migration / D2 dopamine receptor binding / response to prostaglandin E / adenylate cyclase regulator activity / G protein-coupled serotonin receptor binding / adenylate cyclase-inhibiting serotonin receptor signaling pathway / cardiac muscle cell apoptotic process / photoreceptor inner segment / cellular response to forskolin / regulation of mitotic spindle organization / Regulation of insulin secretion / positive regulation of cholesterol biosynthetic process / negative regulation of insulin secretion / G protein-coupled receptor binding / G protein-coupled receptor activity / response to peptide hormone / adenylate cyclase-inhibiting G protein-coupled receptor signaling pathway / adenylate cyclase-modulating G protein-coupled receptor signaling pathway / G-protein beta/gamma-subunit complex binding / centriolar satellite / ADP signalling through P2Y purinoceptor 12 / Adrenaline,noradrenaline inhibits insulin secretion / GDP binding / G alpha (z) signalling events / cellular response to catecholamine stimulus / ADORA2B mediated anti-inflammatory cytokines production / adenylate cyclase-activating dopamine receptor signaling pathway / GPER1 signaling / cellular response to prostaglandin E stimulus / G-protein beta-subunit binding / heterotrimeric G-protein complex / sensory perception of taste / signaling receptor complex adaptor activity / retina development in camera-type eye / G protein activity / positive regulation of cytosolic calcium ion concentration / cell body / GTPase binding / midbody / cell cortex / G alpha (i) signalling events / G alpha (s) signalling events / phospholipase C-activating G protein-coupled receptor signaling pathway
Similarity search - Function
Neuropeptide FF receptor, type 1 / Neuropeptide FF receptor family / G-protein alpha subunit, group I / Serpentine type 7TM GPCR chemoreceptor Srsx / Guanine nucleotide binding protein (G-protein), alpha subunit / G protein alpha subunit, helical insertion / G-protein alpha subunit / G-alpha domain profile. / G protein alpha subunit / G-protein, gamma subunit ...Neuropeptide FF receptor, type 1 / Neuropeptide FF receptor family / G-protein alpha subunit, group I / Serpentine type 7TM GPCR chemoreceptor Srsx / Guanine nucleotide binding protein (G-protein), alpha subunit / G protein alpha subunit, helical insertion / G-protein alpha subunit / G-alpha domain profile. / G protein alpha subunit / G-protein, gamma subunit / G-protein gamma subunit domain profile. / G-protein gamma-like domain / G-protein gamma-like domain superfamily / GGL domain / G protein gamma subunit-like motifs / GGL domain / G protein beta WD-40 repeat protein / Guanine nucleotide-binding protein, beta subunit / G-protein, beta subunit / G-protein coupled receptors family 1 signature. / G protein-coupled receptor, rhodopsin-like / GPCR, rhodopsin-like, 7TM / G-protein coupled receptors family 1 profile. / 7 transmembrane receptor (rhodopsin family) / G-protein beta WD-40 repeat / WD40 repeat, conserved site / Trp-Asp (WD) repeats signature. / Trp-Asp (WD) repeats profile. / Trp-Asp (WD) repeats circular profile. / WD40 repeats / WD40 repeat / WD40-repeat-containing domain superfamily / WD40/YVTN repeat-like-containing domain superfamily / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 / Guanine nucleotide-binding protein G(i) subunit alpha-1 / Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 / Neuropeptide FF receptor 1
Similarity search - Component
Biological speciesHomo sapiens (human) / Rattus norvegicus (Norway rat) / Bos taurus (domestic cattle) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.93 Å
AuthorsPan BX / Jiang Y / Li XZ
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC) China
CitationJournal: Cell Rep / Year: 2025
Title: Structural basis of peptide recognition and modulation for neuropeptide FF receptors.
Authors: Xinzhu Li / Heng Zhang / Wen Hu / Kai Wu / Shuai Li / Sanshan Jin / Yuling Yin / Qingning Yuan / H Eric Xu / Benxun Pan / Yi Jiang /
Abstract: Neuropeptide FF receptors 1 and 2 (NPFFR1 and NPFFR2) are RF-amide peptide receptors that couple to G proteins and regulate pain, opioid tolerance, and metabolism. Despite their physiological ...Neuropeptide FF receptors 1 and 2 (NPFFR1 and NPFFR2) are RF-amide peptide receptors that couple to G proteins and regulate pain, opioid tolerance, and metabolism. Despite their physiological significance, their ligand selectivity and activation mechanisms remain unclear. Using cryoelectron microscopy, we resolved four NPFFR1 and NPFFR2 structures bound to NPFF or NPVF, revealing conserved C-terminal RF-amide interactions within the orthosteric pocket and N-terminal variations driving subtype specificity. Structural and mutagenesis analyses identified ECL2 and the receptor N terminus as key determinants of NPVF-NPFFR1 and NPFF-NPFFR2 selectivity. Additionally, the structures elucidate the activation mechanism and uncover distinct G-coupling features between NPFFR subtypes. These findings provide molecular insights into peptide recognition and receptor activation within the RF-amide family, offering a structural framework for designing selective NPFFR modulators to treat pain, addiction, and metabolic disorders with enhanced specificity and reduced off-target effects.
History
DepositionFeb 27, 2025-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateSep 3, 2025-
Current statusSep 3, 2025Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_63584.map.gz / Format: CCP4 / Size: 178 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)

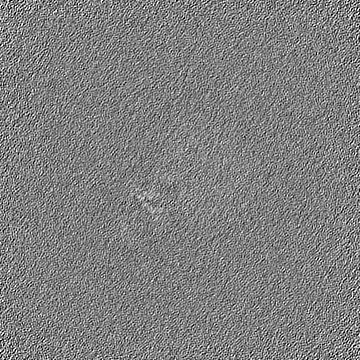

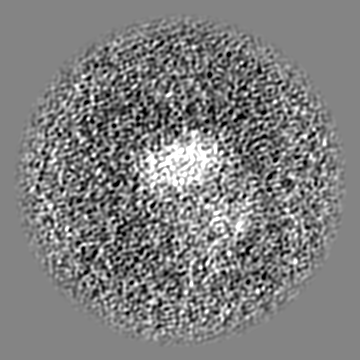

Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 360 pix.
= 262.8 Å		0.73 Å/pix.
x 360 pix.
= 262.8 Å		0.73 Å/pix.
x 360 pix.
= 262.8 Å

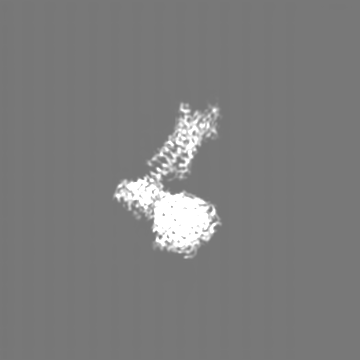

Surface

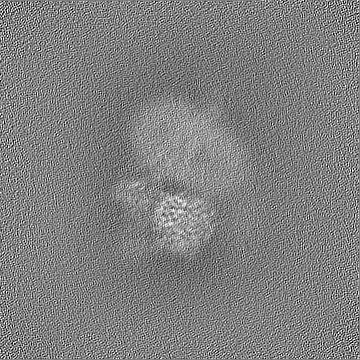

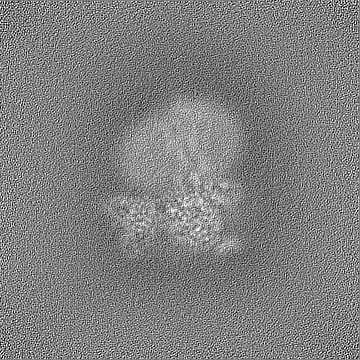

Projections

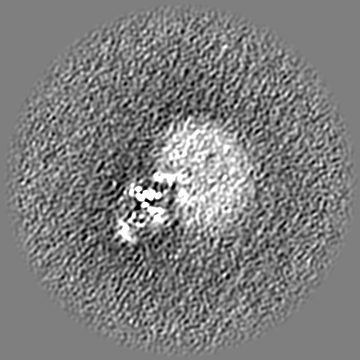

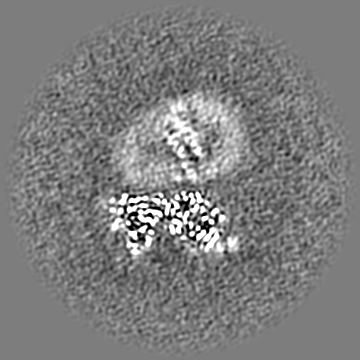

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.73 Å
Density

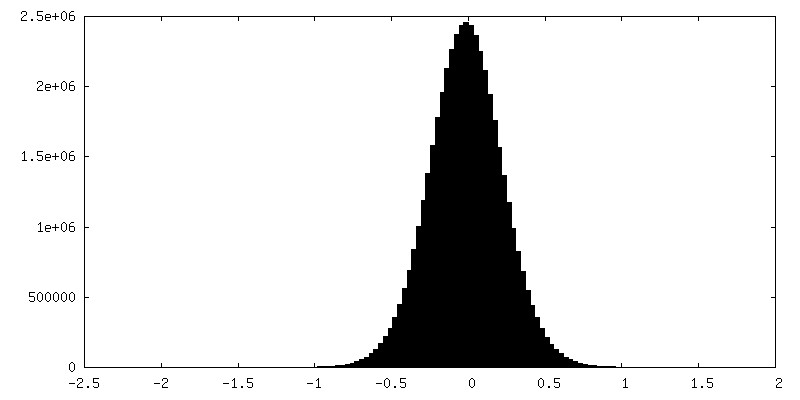

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.05
Minimum - Maximum-0.24448755 - 0.4463787
Average (Standard dev.)-0.000440479 (±0.0119170835)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions360360360
Spacing360360360
CellA=B=C: 262.80002 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_63584_msk_1.map
Projections & Slices
AxesZYX

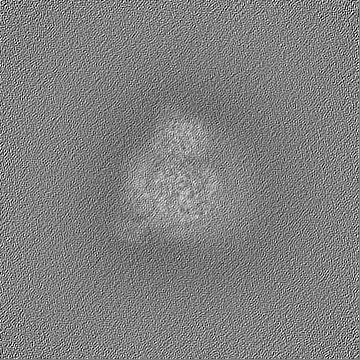

Projections

Slices (1/2)
Density Histograms

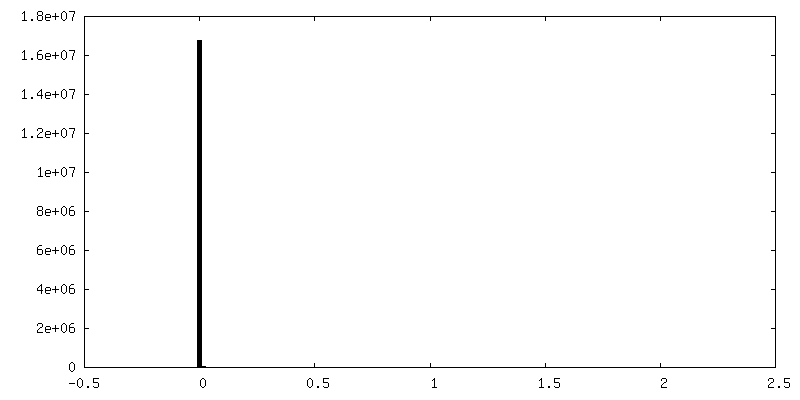

Histogram

Histogram (log scale)

-
Additional map: map processed by deepEMhancer

Fileemd_63584_additional_1.map
Annotationmap processed by deepEMhancer
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_63584_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_63584_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : NPFFR1 complex with Gi-protein and neuropeptide FF

EntireName: NPFFR1 complex with Gi-protein and neuropeptide FF
Components
  • Complex: NPFFR1 complex with Gi-protein and neuropeptide FF
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
    • Protein or peptide: neuropeptide FF
    • Protein or peptide: Guanine nucleotide-binding protein G(i) subunit alpha-1
    • Protein or peptide: Neuropeptide FF receptor 1,Neuropeptide FF receptor 1,Lgbit
    • Protein or peptide: scfv16

-
Supramolecule #1: NPFFR1 complex with Gi-protein and neuropeptide FF

SupramoleculeName: NPFFR1 complex with Gi-protein and neuropeptide FF / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Rattus norvegicus (Norway rat)
Molecular weightTheoretical: 39.750277 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MHHHHHHGSL LQSELDQLRQ EAEQLKNQIR DARKACADAT LSQITNNIDP VGRIQMRTRR TLRGHLAKIY AMHWGTDSRL LVSASQDGK LIIWDSYTTN KVHAIPLRSS WVMTCAYAPS GNYVACGGLD NICSIYNLKT REGNVRVSRE LAGHTGYLSC C RFLDDNQI ...String:
MHHHHHHGSL LQSELDQLRQ EAEQLKNQIR DARKACADAT LSQITNNIDP VGRIQMRTRR TLRGHLAKIY AMHWGTDSRL LVSASQDGK LIIWDSYTTN KVHAIPLRSS WVMTCAYAPS GNYVACGGLD NICSIYNLKT REGNVRVSRE LAGHTGYLSC C RFLDDNQI VTSSGDTTCA LWDIETGQQT TTFTGHTGDV MSLSLAPDTR LFVSGACDAS AKLWDVREGM CRQTFTGHES DI NAICFFP NGNAFATGSD DATCRLFDLR ADQELMTYSH DNIICGITSV SFSKSGRLLL AGYDDFNCNV WDALKADRAG VLA GHDNRV SCLGVTDDGM AVATGSWDSF LKIWNGSSGG GGSGGGGSSG

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

-
Macromolecule #2: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Bos taurus (domestic cattle)
Molecular weightTheoretical: 7.861143 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString:
MASNNTASIA QARKLVEQLK MEANIDRIKV SKAAADLMAY CEAHAKEDPL LTPVPASENP FREKKFFCAI L

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

-
Macromolecule #3: neuropeptide FF

MacromoleculeName: neuropeptide FF / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 934.095 Da
SequenceString:
LFQPQRF(NH2)

-
Macromolecule #4: Guanine nucleotide-binding protein G(i) subunit alpha-1

MacromoleculeName: Guanine nucleotide-binding protein G(i) subunit alpha-1
type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 40.445059 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MGCTLSAEDK AAVERSKMID RNLREDGEKA AREVKLLLLG AGESGKSTIV KQMKIIHEAG YSEEECKQYK AVVYSNTIQS IIAIIRAMG RLKIDFGDSA RADDARQLFV LAGAAEEGFM TAELAGVIKR LWKDSGVQAC FNRSREYQLN DSAAYYLNDL D RIAQPNYI ...String:
MGCTLSAEDK AAVERSKMID RNLREDGEKA AREVKLLLLG AGESGKSTIV KQMKIIHEAG YSEEECKQYK AVVYSNTIQS IIAIIRAMG RLKIDFGDSA RADDARQLFV LAGAAEEGFM TAELAGVIKR LWKDSGVQAC FNRSREYQLN DSAAYYLNDL D RIAQPNYI PTQQDVLRTR VKTTGIVETH FTFKDLHFKM FDVGAQRSER KKWIHCFEGV TAIIFCVALS DYDLVLAEDE EM NRMHESM KLFDSICNNK WFTDTSIILF LNKKDLFEEK IKKSPLTICY PEYAGSNTYE EAAAYIQCQF EDLNKRKDTK EIY THFTCS TDTKNVQFVF DAVTDVIIKN NLKDCGLF

UniProtKB: Guanine nucleotide-binding protein G(i) subunit alpha-1

-
Macromolecule #5: Neuropeptide FF receptor 1,Neuropeptide FF receptor 1,Lgbit

MacromoleculeName: Neuropeptide FF receptor 1,Neuropeptide FF receptor 1,Lgbit
type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 59.432602 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: MEGEPSQPPN SSWPLSQNGT NTEATPATNL TFSSYYQHTS PVAAMFIVAY ALIFLLCMVG NTLVCFIVLK NRHMHTVTNM FILNLAVSD LLVGIFCMPT TLVDNLITGW PFDNATCKMS GLVQGMSVSA SVFTLVAIAV ERFRCIVHPF REKLTLRKAL V TIAVIWAL ...String:
MEGEPSQPPN SSWPLSQNGT NTEATPATNL TFSSYYQHTS PVAAMFIVAY ALIFLLCMVG NTLVCFIVLK NRHMHTVTNM FILNLAVSD LLVGIFCMPT TLVDNLITGW PFDNATCKMS GLVQGMSVSA SVFTLVAIAV ERFRCIVHPF REKLTLRKAL V TIAVIWAL ALLIMCPSAV TLTVTREEHH FMVDARNRSY PLYSCWEAWP EKGMRRVYTT VLFSHIYLAP LALIVVMYAR IA RKLCQAP GPAPGGEEAA DPRASRRRAR VVHMLVMVAL FFTLSWLPLW ALLLLIDYGQ LSAPQLHLVT VYAFPFAHWL AFF NSSANP IIYGYFNENF RRGFQAAFRA RLCPRPSGSH KEAYSERGSS GGGGSGGGGS SGVFTLEDFV GDWEQTAAYN LDQV LEQGG VSSLLQNLAV SVTPIQRIVR SGENALKIDI HVIIPYEGLS ADQMAQIEEV FKVVYPVDDH HFKVILPYGT LVIDG VTPN MLNYFGRPYE GIAVFDGKKI TVTGTLWNGN KIIDERLITP DGSMLFRVTI NS

UniProtKB: Neuropeptide FF receptor 1

-
Macromolecule #6: scfv16

MacromoleculeName: scfv16 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 26.277299 KDa
Recombinant expressionOrganism: Spodoptera frugiperda (fall armyworm)
SequenceString: VQLVESGGGL VQPGGSRKLS CSASGFAFSS FGMHWVRQAP EKGLEWVAYI SSGSGTIYYA DTVKGRFTIS RDDPKNTLFL QMTSLRSED TAMYYCVRSI YYYGSSPFDF WGQGTTLTVS AGGGGSGGGG SGGGGSADIV MTQATSSVPV TPGESVSISC R SSKSLLHS ...String:
VQLVESGGGL VQPGGSRKLS CSASGFAFSS FGMHWVRQAP EKGLEWVAYI SSGSGTIYYA DTVKGRFTIS RDDPKNTLFL QMTSLRSED TAMYYCVRSI YYYGSSPFDF WGQGTTLTVS AGGGGSGGGG SGGGGSADIV MTQATSSVPV TPGESVSISC R SSKSLLHS NGNTYLYWFL QRPGQSPQLL IYRMSNLASG VPDRFSGSGS GTAFTLTISR LEAEDVGVYY CMQHLEYPLT FG AGTKLEL

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recording#0 - Image recording ID: 1 / #0 - Film or detector model: FEI FALCON IV (4k x 4k) / #0 - Average electron dose: 50.0 e/Å2 / #1 - Image recording ID: 2 / #1 - Film or detector model: FEI FALCON IV (4k x 4k) / #1 - Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: OTHER / Imaging mode: BRIGHT FIELD / Nominal defocus max: 5.0 µm / Nominal defocus min: 1.2 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing #1

Image processing ID1
Image recording ID1
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: EMDB MAP
EMDB ID:

37944

Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.93 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 35104
Initial angle assignmentType: NOT APPLICABLE
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
Image processing #2

Image processing ID2
Image recording ID2
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: EMDB MAP
EMDB ID:

37944

Initial angle assignmentType: NOT APPLICABLE
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
Image processing #3

Image processing ID3
Image recording ID1
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: EMDB MAP
EMDB ID:

37944

Initial angle assignmentType: NOT APPLICABLE
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

-
Atomic model buiding 1

RefinementSpace: REAL
Output model

PDB-9m2f:
Structure of neuropeptide FF receptor 1 complex with NPFF

+
