Basic information

Entry
Database: EMDB / ID: EMD-62885
TitleStructure of GPCR megacomplex bound to agonists
Map data
Sample
  • Complex: Structure of beta1-AR-Gs complex bound to epinephrine and an allosteric modulator
    • Protein or peptide: Guanine nucleotide-binding protein G(s) subunit alpha isoforms short
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
    • Protein or peptide: Beta-arrestin-1
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
    • Protein or peptide: Beta-2 adrenergic receptor
  • Ligand: (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER
  • Ligand: 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one
KeywordsGPCR / membrane protein
Function / homology
Function and homology information


angiotensin receptor binding / TGFBR3 regulates TGF-beta signaling / Activation of SMO / negative regulation of interleukin-8 production / sensory perception of chemical stimulus / desensitization of G protein-coupled receptor signaling pathway / mu-type opioid receptor binding / corticotropin-releasing hormone receptor 1 binding / beta2-adrenergic receptor activity / : ...angiotensin receptor binding / TGFBR3 regulates TGF-beta signaling / Activation of SMO / negative regulation of interleukin-8 production / sensory perception of chemical stimulus / desensitization of G protein-coupled receptor signaling pathway / mu-type opioid receptor binding / corticotropin-releasing hormone receptor 1 binding / beta2-adrenergic receptor activity / : / G-protein activation / Activation of the phototransduction cascade / Glucagon-type ligand receptors / Thromboxane signalling through TP receptor / Sensory perception of sweet, bitter, and umami (glutamate) taste / G beta:gamma signalling through PI3Kgamma / G beta:gamma signalling through CDC42 / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding / positive regulation of mini excitatory postsynaptic potential / arrestin family protein binding / Activation of G protein gated Potassium channels / Inhibition of voltage gated Ca2+ channels via Gbeta/gamma subunits / Ca2+ pathway / G alpha (z) signalling events / AMPA selective glutamate receptor signaling pathway / High laminar flow shear stress activates signaling by PIEZO1 and PECAM1:CDH5:KDR in endothelial cells / Glucagon-like Peptide-1 (GLP1) regulates insulin secretion / adenylate cyclase-inhibiting adrenergic receptor signaling pathway / positive regulation of autophagosome maturation / norepinephrine-epinephrine-mediated vasodilation involved in regulation of systemic arterial blood pressure / norepinephrine binding / Vasopressin regulates renal water homeostasis via Aquaporins / G protein-coupled receptor internalization / Adrenoceptors / Adrenaline,noradrenaline inhibits insulin secretion / ADP signalling through P2Y purinoceptor 12 / G alpha (q) signalling events / positive regulation of cardiac muscle cell contraction / positive regulation of lipophagy / beta-2 adrenergic receptor binding / G alpha (i) signalling events / Thrombin signalling through proteinase activated receptors (PARs) / Activation of G protein gated Potassium channels / G-protein activation / G beta:gamma signalling through PI3Kgamma / Prostacyclin signalling through prostacyclin receptor / G beta:gamma signalling through PLC beta / ADP signalling through P2Y purinoceptor 1 / Thromboxane signalling through TP receptor / Presynaptic function of Kainate receptors / G beta:gamma signalling through CDC42 / Inhibition of voltage gated Ca2+ channels via Gbeta/gamma subunits / G alpha (12/13) signalling events / Glucagon-type ligand receptors / G beta:gamma signalling through BTK / ADP signalling through P2Y purinoceptor 12 / Adrenaline,noradrenaline inhibits insulin secretion / negative regulation of G protein-coupled receptor signaling pathway / Cooperation of PDCL (PhLP1) and TRiC/CCT in G-protein beta folding / Ca2+ pathway / G alpha (z) signalling events / Thrombin signalling through proteinase activated receptors (PARs) / Extra-nuclear estrogen signaling / regulation of smooth muscle contraction / G alpha (q) signalling events / G alpha (s) signalling events / adrenergic receptor signaling pathway / photoreceptor outer segment membrane / sensory perception / Lysosome Vesicle Biogenesis / positive regulation of cardiac muscle hypertrophy / spectrin binding / stress fiber assembly / negative regulation of interleukin-6 production / Glucagon-like Peptide-1 (GLP1) regulates insulin secretion / response to psychosocial stress / G alpha (i) signalling events / endosome to lysosome transport / High laminar flow shear stress activates signaling by PIEZO1 and PECAM1:CDH5:KDR in endothelial cells / Vasopressin regulates renal water homeostasis via Aquaporins / Golgi Associated Vesicle Biogenesis / positive regulation of Rho protein signal transduction / positive regulation of glutamate receptor signaling pathway / alkylglycerophosphoethanolamine phosphodiesterase activity / sensory perception of taste / pseudopodium / negative regulation of Notch signaling pathway / negative regulation of cardiac muscle cell apoptotic process / adenylate cyclase binding / positive regulation of receptor internalization / potassium channel regulator activity / photoreceptor outer segment / D1 dopamine receptor binding / retina development in camera-type eye / neuronal dense core vesicle / adenylate cyclase-activating adrenergic receptor signaling pathway / insulin-like growth factor receptor binding / cardiac muscle cell apoptotic process / photoreceptor inner segment / clathrin-coated pit
Similarity search - Function
Arrestin, conserved site / Arrestins signature. / Arrestin / Arrestin, N-terminal / Arrestin-like, N-terminal / Arrestin C-terminal-like domain / Arrestin (or S-antigen), N-terminal domain / Arrestin (or S-antigen), C-terminal domain / Arrestin (or S-antigen), C-terminal domain / Arrestin-like, C-terminal ...Arrestin, conserved site / Arrestins signature. / Arrestin / Arrestin, N-terminal / Arrestin-like, N-terminal / Arrestin C-terminal-like domain / Arrestin (or S-antigen), N-terminal domain / Arrestin (or S-antigen), C-terminal domain / Arrestin (or S-antigen), C-terminal domain / Arrestin-like, C-terminal / Beta 2 adrenoceptor / Adrenoceptor family / G-protein alpha subunit, group S / Serpentine type 7TM GPCR chemoreceptor Srsx / G protein alpha subunit, helical insertion / G protein alpha subunit / Guanine nucleotide binding protein (G-protein), alpha subunit / G-protein alpha subunit / G-alpha domain profile. / G-protein, gamma subunit / G-protein gamma subunit domain profile. / G-protein gamma-like domain / G-protein gamma-like domain superfamily / GGL domain / G protein gamma subunit-like motifs / GGL domain / G protein beta WD-40 repeat protein / Guanine nucleotide-binding protein, beta subunit / G-protein, beta subunit / G-protein coupled receptors family 1 signature. / Immunoglobulin E-set / 7 transmembrane receptor (rhodopsin family) / G protein-coupled receptor, rhodopsin-like / GPCR, rhodopsin-like, 7TM / G-protein coupled receptors family 1 profile. / G-protein beta WD-40 repeat / WD40 repeat, conserved site / Trp-Asp (WD) repeats signature. / Trp-Asp (WD) repeats profile. / Trp-Asp (WD) repeats circular profile. / WD40 repeats / WD40 repeat / WD40-repeat-containing domain superfamily / WD40/YVTN repeat-like-containing domain superfamily / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Guanine nucleotide-binding protein G(s) subunit alpha isoforms short / Beta-2 adrenergic receptor / Beta-arrestin-1 / Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 / Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Similarity search - Component
Biological speciesHomo sapiens (human) / Bos taurus (domestic cattle) / Rattus norvegicus (Norway rat)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.22 Å
AuthorsHe G / Sun Q / Liu X
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC)32122041 China
CitationJournal: Cell / Year: 2026
Title: A GPCR-G protein-β-arrestin megacomplex enabled by a versatile allosteric modulator.
Authors: Guodong He / Qinxin Sun / Xinyu Xu / Fang Kong / Shuhao Zhang / Kexin Ye / Xiaoou Sun / Bin Lin / Xin Chen / Chuangye Yan / Xiangyu Liu /
Abstract: Approximately one-third of clinical drugs mediate their therapeutic effects through G protein-coupled receptors (GPCRs), highlighting their immense therapeutic relevance. Novel approaches to modulate ...Approximately one-third of clinical drugs mediate their therapeutic effects through G protein-coupled receptors (GPCRs), highlighting their immense therapeutic relevance. Novel approaches to modulate GPCR activity have the potential to yield unique pharmacological profiles. Conventionally, the G protein and β-arrestin signaling pathways downstream of GPCRs have been viewed as mutually exclusive. Using the in-house developed survival pressure selection (SPS) method, a high-throughput platform for GPCR agonist discovery, we identified an allosteric ligand that stabilizes a GPCR-G protein-β-arrestin megacomplex, thereby mediating sustained receptor signaling following internalization. Remarkably, this compound, atazanavir, exhibits pan-receptor activation across multiple family A GPCRs, including GPR119, βAR, and βAR, demonstrating the broad applicability of this regulatory mechanism. This discovery uncovers a distinct mechanism of GPCR regulation, opening alternative avenues for the development of therapeutics targeting GPCRs.
History
DepositionDec 27, 2024-
Header (metadata) releaseDec 31, 2025-
Map releaseDec 31, 2025-
UpdateJul 15, 2026-
Current statusJul 15, 2026Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_62885.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.08 Å/pix.
x 300 pix.
= 324. Å		1.08 Å/pix.
x 300 pix.
= 324. Å		1.08 Å/pix.
x 300 pix.
= 324. Å

Surface

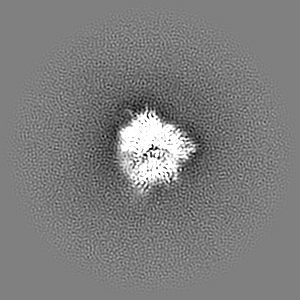

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.08 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.32
Minimum - Maximum-1.9766914 - 4.154982
Average (Standard dev.)-0.000031428306 (±0.05561801)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 324.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_62885_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_62885_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Structure of beta1-AR-Gs complex bound to epinephrine and an allo...

EntireName: Structure of beta1-AR-Gs complex bound to epinephrine and an allosteric modulator
Components
  • Complex: Structure of beta1-AR-Gs complex bound to epinephrine and an allosteric modulator
    • Protein or peptide: Guanine nucleotide-binding protein G(s) subunit alpha isoforms short
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
    • Protein or peptide: Beta-arrestin-1
    • Protein or peptide: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
    • Protein or peptide: Beta-2 adrenergic receptor
  • Ligand: (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER
  • Ligand: 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one

-
Supramolecule #1: Structure of beta1-AR-Gs complex bound to epinephrine and an allo...

SupramoleculeName: Structure of beta1-AR-Gs complex bound to epinephrine and an allosteric modulator
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#5
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Guanine nucleotide-binding protein G(s) subunit alpha isoforms short

MacromoleculeName: Guanine nucleotide-binding protein G(s) subunit alpha isoforms short
type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
EC number: Hydrolases; Acting on acid anhydrides; Acting on GTP to facilitate cellular and subcellular movement
Source (natural)Organism: Bos taurus (domestic cattle)
Molecular weightTheoretical: 45.769527 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MGCLGNSKTE DQRNEEKAQR EANKKIEKQL QKDKQVYRAT HRLLLLGAGE SGKSTIVKQM RILHVNGFNG EGGEEDPQAA RSNSDGEKA TKVQDIKNNL KEAIETIVAA MSNLVPPVEL ANPENQFRVD YILSVMNVPD FDFPPEFYEH AKALWEDEGV R ACYERSNE ...String:
MGCLGNSKTE DQRNEEKAQR EANKKIEKQL QKDKQVYRAT HRLLLLGAGE SGKSTIVKQM RILHVNGFNG EGGEEDPQAA RSNSDGEKA TKVQDIKNNL KEAIETIVAA MSNLVPPVEL ANPENQFRVD YILSVMNVPD FDFPPEFYEH AKALWEDEGV R ACYERSNE YQLIDCAQYF LDKIDVIKQD DYVPSDQDLL RCRVLTSGIF ETKFQVDKVN FHMFDVGGQR DERRKWIQCF ND VTAIIFV VASSSYNMVI REDNQTNRLQ EALNLFKSIW NNRWLRTISV ILFLNKQDLL AEKVLAGKSK IEDYFPEFAR YTT PEDATP EPGEDPRVTR AKYFIRDEFL RISTASGDGR HYCYPHFTCA VDTENIRRVF NDCRDIIQRM HLRQYELL

UniProtKB: Guanine nucleotide-binding protein G(s) subunit alpha isoforms short

-
Macromolecule #2: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Rattus norvegicus (Norway rat)
Molecular weightTheoretical: 38.744371 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString: MHHHHHHGSL LQSELDQLRQ EAEQLKNQIR DARKACADAT LSQITNNIDP VGRIQMRTRR TLRGHLAKIY AMHWGTDSRL LVSASQDGK LIIWDSYTTN KVHAIPLRSS WVMTCAYAPS GNYVACGGLD NICSIYNLKT REGNVRVSRE LAGHTGYLSC C RFLDDNQI ...String:
MHHHHHHGSL LQSELDQLRQ EAEQLKNQIR DARKACADAT LSQITNNIDP VGRIQMRTRR TLRGHLAKIY AMHWGTDSRL LVSASQDGK LIIWDSYTTN KVHAIPLRSS WVMTCAYAPS GNYVACGGLD NICSIYNLKT REGNVRVSRE LAGHTGYLSC C RFLDDNQI VTSSGDTTCA LWDIETGQQT TTFTGHTGDV MSLSLAPDTR LFVSGACDAS AKLWDVREGM CRQTFTGHES DI NAICFFP NGNAFATGSD DATCRLFDLR ADQELMTYSH DNIICGITSV SFSKSGRLLL AGYDDFNCNV WDALKADRAG VLA GHDNRV SCLGVTDDGM AVATGSWDSF LKIWN

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

-
Macromolecule #3: Beta-arrestin-1

MacromoleculeName: Beta-arrestin-1 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 44.140312 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: GDKGTRVFKK ASPNGKLTVY LGKRDFVDHI DLVDPVDGVV LVDPEYLKER RVYVTLTCAF RYGREDLDVL GLTFRKDLFV ANVQSFPPA PEDKKPLTRL QERLIKKLGE HAYPFTFEIP PNLPCSVTLQ PGPEDTGKAC GVDYEVKAFC AENLEEKIHK R NSVRLVIR ...String:
GDKGTRVFKK ASPNGKLTVY LGKRDFVDHI DLVDPVDGVV LVDPEYLKER RVYVTLTCAF RYGREDLDVL GLTFRKDLFV ANVQSFPPA PEDKKPLTRL QERLIKKLGE HAYPFTFEIP PNLPCSVTLQ PGPEDTGKAC GVDYEVKAFC AENLEEKIHK R NSVRLVIR KVQYAPERPG PQPTAETTRQ FLMSDKPLHL EASLDKEIYY HGEPISVNVH VTNNTNKTVK KIKISVRQYA DI CLFNTAQ YKCPVAMEEA DDTVAPSSTF CKVYTLTPFL ANNREKRGLA LDGKLKHEDT NLASSTLLRE GANREILGII VSY KVKVKL VVSRGGLLGD LASSDVAVEL PFTLMHPKPK EEPPHREVPE NETPVDTNLI ELDTNDDDIV FEDFAR

UniProtKB: Beta-arrestin-1

-
Macromolecule #4: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

MacromoleculeName: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Bos taurus (domestic cattle)
Molecular weightTheoretical: 7.56375 KDa
Recombinant expressionOrganism: Trichoplusia ni (cabbage looper)
SequenceString:
MASNNTASIA QARKLVEQLK MEANIDRIKV SKAAADLMAY CEAHAKEDPL LTPVPASENP FREKKFFC

UniProtKB: Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

-
Macromolecule #5: Beta-2 adrenergic receptor

MacromoleculeName: Beta-2 adrenergic receptor / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 47.584512 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: DYKDDDDAMG QPGNGSAFLL APNRSHAPDH DVTQQRDEVW VVGMGIVMSL IVLAIVFGNV LVITAIAKFE RLQTVTNYFI TSLACADLV MGLAVVPFGA AHILMKMWTF GNFWCEFWTS IDVLCVTASI ETLCVIAVDR YFAITSPFKY QSLLTKNKAR V IILMVWIV ...String:
DYKDDDDAMG QPGNGSAFLL APNRSHAPDH DVTQQRDEVW VVGMGIVMSL IVLAIVFGNV LVITAIAKFE RLQTVTNYFI TSLACADLV MGLAVVPFGA AHILMKMWTF GNFWCEFWTS IDVLCVTASI ETLCVIAVDR YFAITSPFKY QSLLTKNKAR V IILMVWIV SGLTSFLPIQ MHWYRATHQE AINCYANETC CDFFTNQAYA IASSIVSFYV PLVIMVFVYS RVFQEAKRQL QK IDKSEGR FHVQNLSQVE QDGRTGHGLR RSSKFCLKEH KALRTLSVIM GTFTLCWLPF FIVNIVHVIQ DNLIRKEVYI LLN WIGYVN SGFNPLIYCR SPDFRIAFQE LLCLRRSSLK AYGNGYSSNG NTGEQSGYHV EQEKENKLLC EDLPGTEDFV GHQG TVPSD NIDSQGRNCS TNDSLL

UniProtKB: Beta-2 adrenergic receptor

-
Macromolecule #6: (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9...

MacromoleculeName: (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER
type: ligand / ID: 6 / Number of copies: 1 / Formula: DR7
Molecular weightTheoretical: 704.855 Da

-
Macromolecule #7: 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxy...

MacromoleculeName: 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one
type: ligand / ID: 7 / Number of copies: 1 / Formula: P0G
Molecular weightTheoretical: 370.442 Da
Chemical component information

ChemComp-P0G:
8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.6 µm / Nominal defocus min: 1.3 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: NONE
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.22 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 154185
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
