- EMDB-61816: CryoEM structure of mouse RAG SEC-1DNA (12RSS side) -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-61816
TitleCryoEM structure of mouse RAG SEC-1DNA (12RSS side)
Map data
Sample
  • Complex: mouse RAG SEC
    • Protein or peptide: V(D)J recombination-activating protein 1
    • Protein or peptide: V(D)J recombination-activating protein 2
    • DNA: DNA (5'-D(P*TP*GP*GP*AP*TP*CP*TP*GP*GP*CP*CP*TP*G)-3')
    • DNA: DNA (39-MER)
    • DNA: DNA (30-MER)
    • DNA: DNA (39-MER)
    • DNA: DNA (5'-D(*CP*AP*GP*GP*CP*CP*AP*GP*AP*TP*CP*CP*A)-3')
    • DNA: DNA (30-MER)
  • Ligand: CALCIUM ION
  • Ligand: ZINC ION
KeywordsV(D)J recombination / RAG / PHD / Transposition / DNA BINDING PROTEIN / DNA BINDING PROTEIN-DNA complex
Function / homology
Function and homology information


mature B cell differentiation involved in immune response / B cell homeostatic proliferation / negative regulation of T cell differentiation in thymus / DN2 thymocyte differentiation / pre-B cell allelic exclusion / positive regulation of organ growth / regulation of behavioral fear response / V(D)J recombination / negative regulation of T cell apoptotic process / histone H3K4me3 reader activity ...mature B cell differentiation involved in immune response / B cell homeostatic proliferation / negative regulation of T cell differentiation in thymus / DN2 thymocyte differentiation / pre-B cell allelic exclusion / positive regulation of organ growth / regulation of behavioral fear response / V(D)J recombination / negative regulation of T cell apoptotic process / histone H3K4me3 reader activity / phosphatidylinositol-3,4-bisphosphate binding / negative regulation of thymocyte apoptotic process / phosphatidylinositol-3,5-bisphosphate binding / regulation of T cell differentiation / positive regulation of T cell differentiation / organ growth / T cell lineage commitment / B cell lineage commitment / T cell homeostasis / phosphatidylinositol-3,4,5-trisphosphate binding / T cell differentiation / protein autoubiquitination / phosphatidylinositol-4,5-bisphosphate binding / phosphatidylinositol binding / B cell differentiation / thymus development / RING-type E3 ubiquitin transferase / visual learning / ubiquitin-protein transferase activity / ubiquitin protein ligase activity / T cell differentiation in thymus / chromatin organization / endonuclease activity / DNA recombination / adaptive immune response / sequence-specific DNA binding / histone binding / Hydrolases; Acting on ester bonds / defense response to bacterium / chromatin binding / protein homodimerization activity / DNA binding / zinc ion binding / nucleoplasm / metal ion binding / identical protein binding / nucleus
Similarity search - Function
Recombination-activating protein 1 zinc-finger domain / V(D)J recombination-activating protein 1, Zinc finger / RAG nonamer-binding domain / NBD domain profile. / Zinc finger RAG1-type profile. / V(D)J recombination-activating protein 1 / RAG1 importin-binding / RAG1 importin binding / Recombination-activation protein 1 (RAG1), recombinase / Recombination activating protein 2 ...Recombination-activating protein 1 zinc-finger domain / V(D)J recombination-activating protein 1, Zinc finger / RAG nonamer-binding domain / NBD domain profile. / Zinc finger RAG1-type profile. / V(D)J recombination-activating protein 1 / RAG1 importin-binding / RAG1 importin binding / Recombination-activation protein 1 (RAG1), recombinase / Recombination activating protein 2 / RAG2 PHD domain / V-D-J recombination activating protein 2 / Recombination activating protein 2, PHD domain / Galactose oxidase/kelch, beta-propeller / Kelch-type beta propeller / Zinc finger, C3HC4 RING-type / Zinc finger, C3HC4 type (RING finger) / Zinc finger, RING-type, conserved site / Zinc finger RING-type signature. / Zinc finger C2H2 superfamily / Ring finger / Zinc finger, FYVE/PHD-type / Zinc finger RING-type profile. / Zinc finger, RING-type / Zinc finger, RING/FYVE/PHD-type
Similarity search - Domain/homology
V(D)J recombination-activating protein 1 / V(D)J recombination-activating protein 2
Similarity search - Component
Biological speciesMus musculus (house mouse) / Escherichia coli (E. coli)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.36 Å
AuthorsChen X / Yao L / Yang W / Gellert M
Funding support United States, China, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK) United States
National Natural Science Foundation of China (NSFC) China
CitationJournal: To Be Published
Title: CryoEM structure of mouse RAG SEC-12DNA
Authors: Chen X / Yao L / Yang W / Gellert M
History
DepositionOct 7, 2024-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateJul 23, 2025-
Current statusJul 23, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_61816.map.gz / Format: CCP4 / Size: 70.2 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 264 pix.
= 279.84 Å		1.06 Å/pix.
x 264 pix.
= 279.84 Å		1.06 Å/pix.
x 264 pix.
= 279.84 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.06 Å

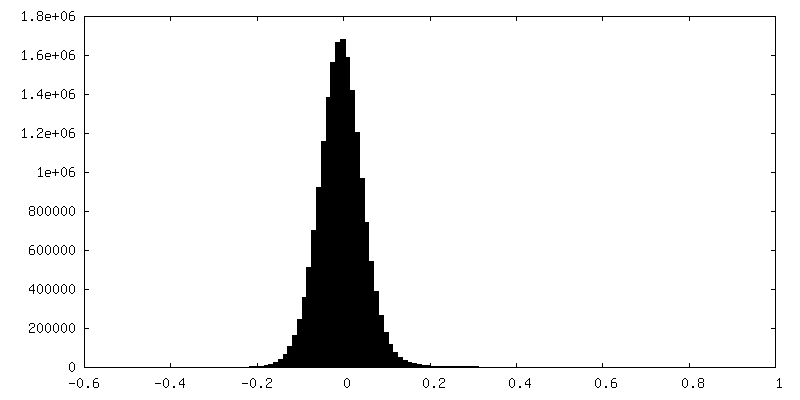

Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.09
Minimum - Maximum-0.33610463 - 0.65105313
Average (Standard dev.)-0.0004874811 (±0.021550069)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions264264264
Spacing264264264
CellA=B=C: 279.84 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_61816_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_61816_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : mouse RAG SEC

EntireName: mouse RAG SEC
Components
  • Complex: mouse RAG SEC
    • Protein or peptide: V(D)J recombination-activating protein 1
    • Protein or peptide: V(D)J recombination-activating protein 2
    • DNA: DNA (5'-D(P*TP*GP*GP*AP*TP*CP*TP*GP*GP*CP*CP*TP*G)-3')
    • DNA: DNA (39-MER)
    • DNA: DNA (30-MER)
    • DNA: DNA (39-MER)
    • DNA: DNA (5'-D(*CP*AP*GP*GP*CP*CP*AP*GP*AP*TP*CP*CP*A)-3')
    • DNA: DNA (30-MER)
  • Ligand: CALCIUM ION
  • Ligand: ZINC ION

+
Supramolecule #1: mouse RAG SEC

SupramoleculeName: mouse RAG SEC / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#8
Source (natural)Organism: Mus musculus (house mouse)

+
Macromolecule #1: V(D)J recombination-activating protein 1

MacromoleculeName: V(D)J recombination-activating protein 1 / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO / EC number: Hydrolases; Acting on ester bonds
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 119.389352 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MAASLPSTLS FSSAPDEIQH PQIKFSEWKF KLFRVRSFEK APEEAQKEKD SSEGKPYLEQ SPVVPEKPGG QNSILTQRAL KLHPKFSKK FHADGKSSDK AVHQARLRHF CRICGNRFKS DGHSRRYPVH GPVDAKTQSL FRKKEKRVTS WPDLIARIFR I DVKADVDS ...String:
MAASLPSTLS FSSAPDEIQH PQIKFSEWKF KLFRVRSFEK APEEAQKEKD SSEGKPYLEQ SPVVPEKPGG QNSILTQRAL KLHPKFSKK FHADGKSSDK AVHQARLRHF CRICGNRFKS DGHSRRYPVH GPVDAKTQSL FRKKEKRVTS WPDLIARIFR I DVKADVDS IHPTEFCHDC WSIMHRKFSS SHSQVYFPRK VTVEWHPHTP SCDICFTAHR GLKRKRHQPN VQLSKKLKTV LN HARRDRR KRTQARVSSK EVLKKISNCS KIHLSTKLLA VDFPAHFVKS ISCQICEHIL ADPVETSCKH LFCRICILRC LKV MGSYCP SCRYPCFPTD LESPVKSFLN ILNSLMVKCP AQDCNEEVSL EKYNHHVSSH KESKETLVHI NKGGRPRQHL LSLT RRAQK HRLRELKIQV KEFADKEEGG DVKAVCLTLF LLALRARNEH RQADELEAIM QGRGSGLQPA VCLAIRVNTF LSCSQ YHKM YRTVKAITGR QIFQPLHALR NAEKVLLPGY HPFEWQPPLK NVSSRTDVGI IDGLSGLASS VDEYPVDTIA KRFRYD SAL VSALMDMEED ILEGMRSQDL DDYLNGPFTV VVKESCDGMG DVSEKHGSGP AVPEKAVRFS FTVMRITIEH GSQNVKV FE EPKPNSELCC KPLCLMLADE SDHETLTAIL SPLIAEREAM KSSELTLEMG GIPRTFKFIF RGTGYDEKLV REVEGLEA S GSVYICTLCD TTRLEASQNL VFHSITRSHA ENLQRYEVWR SNPYHESVEE LRDRVKGVSA KPFIETVPSI DALHCDIGN AAEFYKIFQL EIGEVYKHPN ASKEERKRWQ ATLDKHLRKR MNLKPIMRMN GNFARKLMTQ ETVDAVCELI PSEERHEALR ELMDLYLKM KPVWRSSCPA KECPESLCQY SFNSQRFAEL LSTKFKYRYE GKITNYFHKT LAHVPEIIER DGSIGAWASE G NESGNKLF RRFRKMNARQ SKCYEMEDVL KHHWLYTSKY LQKFMNAHNA LKSSGFTMNS KETLGDPLGI EDSLESQDSM EF

UniProtKB: V(D)J recombination-activating protein 1

+
Macromolecule #2: V(D)J recombination-activating protein 2

MacromoleculeName: V(D)J recombination-activating protein 2 / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 59.13841 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSLQMVTVGH NIALIQPGFS LMNFDGQVFF FGQKGWPKRS CPTGVFHFDI KQNHLKLKPA IFSKDSCYLP PLRYPATCSY KGSIDSDKH QYIIHGGKTP NNELSDKIYI MSVACKNNKK VTFRCTEKDL VGDVPEPRYG HSIDVVYSRG KSMGVLFGGR S YMPSTQRT ...String:
MSLQMVTVGH NIALIQPGFS LMNFDGQVFF FGQKGWPKRS CPTGVFHFDI KQNHLKLKPA IFSKDSCYLP PLRYPATCSY KGSIDSDKH QYIIHGGKTP NNELSDKIYI MSVACKNNKK VTFRCTEKDL VGDVPEPRYG HSIDVVYSRG KSMGVLFGGR S YMPSTQRT TEKWNSVADC LPHVFLIDFE FGCATSYILP ELQDGLSFHV SIARNDTVYI LGGHSLASNI RPANLYRIRV DL PLGTPAV NCTVLPGGIS VSSAILTQTN NDEFVIVGGY QLENQKRMVC SLVSLGDNTI EISEMETPDW TSDIKHSKIW FGS NMGNGT IFLGIPGDNK QAMSEAFYFY TLRCSEEDLS EDQKIVSNSQ TSTEDPGDST PFEDSEEFCF SAEATSFDGD DEFD TYNED DEDDESVTGY WITCCPTCDV DINTWVPFYS TELNKPAMIY CSHGDGHWVH AQCMDLEERT LIHLSEGSNK YYCNE HVQI ARALQTPKRN PPLQKPPMKS LHKKGSGKVL TPAKKSFLRR LFD

UniProtKB: V(D)J recombination-activating protein 2

+
Macromolecule #3: DNA (5'-D(P*TP*GP*GP*AP*TP*CP*TP*GP*GP*CP*CP*TP*G)-3')

MacromoleculeName: DNA (5'-D(P*TP*GP*GP*AP*TP*CP*TP*GP*GP*CP*CP*TP*G)-3')
type: dna / ID: 3 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 3.998595 KDa
SequenceString:
(DT)(DG)(DG)(DA)(DT)(DC)(DT)(DG)(DG)(DC) (DC)(DT)(DG)

+
Macromolecule #4: DNA (39-MER)

MacromoleculeName: DNA (39-MER) / type: dna / ID: 4 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.96866 KDa
SequenceString:
(DG)(DG)(DT)(DT)(DT)(DT)(DT)(DG)(DT)(DC) (DT)(DG)(DG)(DC)(DT)(DT)(DC)(DA)(DC)(DA) (DC)(DT)(DT)(DG)(DA)(DT)(DT)(DT)(DG) (DC)(DA)(DT)(DC)(DA)(DC)(DT)(DG)(DT)(DG)

+
Macromolecule #5: DNA (30-MER)

MacromoleculeName: DNA (30-MER) / type: dna / ID: 5 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.138938 KDa
SequenceString:
(DC)(DA)(DC)(DA)(DG)(DT)(DG)(DA)(DT)(DA) (DC)(DA)(DG)(DC)(DC)(DC)(DT)(DT)(DA)(DA) (DC)(DA)(DA)(DA)(DA)(DA)(DC)(DC)(DC) (DG)

+
Macromolecule #6: DNA (39-MER)

MacromoleculeName: DNA (39-MER) / type: dna / ID: 6 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 12.036805 KDa
SequenceString:
(DC)(DA)(DC)(DA)(DG)(DT)(DG)(DA)(DT)(DG) (DC)(DA)(DA)(DA)(DT)(DC)(DA)(DA)(DG)(DT) (DG)(DT)(DG)(DA)(DA)(DG)(DC)(DC)(DA) (DG)(DA)(DC)(DA)(DA)(DA)(DA)(DA)(DC)(DC)

+
Macromolecule #7: DNA (5'-D(*CP*AP*GP*GP*CP*CP*AP*GP*AP*TP*CP*CP*A)-3')

MacromoleculeName: DNA (5'-D(*CP*AP*GP*GP*CP*CP*AP*GP*AP*TP*CP*CP*A)-3') / type: dna / ID: 7 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 3.945589 KDa
SequenceString:
(DC)(DA)(DG)(DG)(DC)(DC)(DA)(DG)(DA)(DT) (DC)(DC)(DA)

+
Macromolecule #8: DNA (30-MER)

MacromoleculeName: DNA (30-MER) / type: dna / ID: 8 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.306969 KDa
SequenceString:
(DC)(DG)(DG)(DG)(DT)(DT)(DT)(DT)(DT)(DG) (DT)(DT)(DA)(DA)(DG)(DG)(DG)(DC)(DT)(DG) (DT)(DA)(DT)(DC)(DA)(DC)(DT)(DG)(DT) (DG)

+
Macromolecule #9: CALCIUM ION

MacromoleculeName: CALCIUM ION / type: ligand / ID: 9 / Number of copies: 2 / Formula: CA
Molecular weightTheoretical: 40.078 Da

+
Macromolecule #10: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 10 / Number of copies: 2 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Average electron dose: 70.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 0.8 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionDetails: cryoSPARC / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.36 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 90752
Initial angle assignmentType: NOT APPLICABLE / Details: cryoSPARC
Final angle assignmentType: COMMON LINE

+
