- EMDB-60921: Cryo-EM structure of human NCX1 in PIP2 diC8 bound state -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-60921
TitleCryo-EM structure of human NCX1 in PIP2 diC8 bound state
Map data
Sample
  • Complex: human cardiac sodium calcium exchanger NCX1
    • Protein or peptide: Sodium/calcium exchanger 1
  • Ligand: CALCIUM ION
  • Ligand: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate
Keywordssodium calcium exchanger / Na/Ca exchanger / TRANSPORT PROTEIN
Function / homology
Function and homology information


relaxation of smooth muscle / calcium:sodium antiporter activity / vascular associated smooth muscle contraction / regulation of cell communication by electrical coupling / calcium ion export / negative regulation of protein serine/threonine kinase activity / membrane depolarization during cardiac muscle cell action potential / sodium ion export across plasma membrane / regulation of the force of heart contraction / cell communication by electrical coupling involved in cardiac conduction ...relaxation of smooth muscle / calcium:sodium antiporter activity / vascular associated smooth muscle contraction / regulation of cell communication by electrical coupling / calcium ion export / negative regulation of protein serine/threonine kinase activity / membrane depolarization during cardiac muscle cell action potential / sodium ion export across plasma membrane / regulation of the force of heart contraction / cell communication by electrical coupling involved in cardiac conduction / intracellular sodium ion homeostasis / sodium ion import across plasma membrane / calcium ion import / calcium ion transport into cytosol / Sodium/Calcium exchangers / regulation of cardiac muscle contraction by calcium ion signaling / cardiac muscle cell development / Reduction of cytosolic Ca++ levels / ankyrin binding / relaxation of cardiac muscle / calcium ion transmembrane import into cytosol / negative regulation of cytosolic calcium ion concentration / cellular response to caffeine / positive regulation of the force of heart contraction / calcium ion import across plasma membrane / intercalated disc / regulation of cardiac conduction / positive regulation of bone mineralization / regulation of cardiac muscle contraction by regulation of the release of sequestered calcium ion / calcium ion homeostasis / Ion homeostasis / monoatomic ion transport / cytoskeletal protein binding / cardiac muscle contraction / muscle contraction / axon terminus / response to muscle stretch / T-tubule / sodium ion transmembrane transport / regulation of heart rate / cell periphery / cellular response to reactive oxygen species / sarcolemma / calcium ion transmembrane transport / Z disc / intracellular calcium ion homeostasis / regulation of gene expression / transmembrane transporter binding / postsynapse / calmodulin binding / postsynaptic density / axon / neuronal cell body / synapse / dendrite / calcium ion binding / nucleoplasm / plasma membrane
Similarity search - Function
Sodium/calcium exchanger, isoform 1 / Sodium/calcium exchanger protein / Sodium/calcium exchanger domain, C-terminal extension / : / C-terminal extension of sodium/calcium exchanger domain / Na-Ca exchanger/integrin-beta4 / Calx-beta domain / Domains in Na-Ca exchangers and integrin-beta4 / Sodium/calcium exchanger membrane region / NCX, central ion-binding domain superfamily ...Sodium/calcium exchanger, isoform 1 / Sodium/calcium exchanger protein / Sodium/calcium exchanger domain, C-terminal extension / : / C-terminal extension of sodium/calcium exchanger domain / Na-Ca exchanger/integrin-beta4 / Calx-beta domain / Domains in Na-Ca exchangers and integrin-beta4 / Sodium/calcium exchanger membrane region / NCX, central ion-binding domain superfamily / Sodium/calcium exchanger protein / CalX-like domain superfamily / DnaJ domain
Similarity search - Domain/homology
Sodium/calcium exchanger 1
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.5 Å
AuthorsXue J / Jiang Y
Funding support United States, 3 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R35GM140892 United States
Welch FoundationI-1578 United States
Howard Hughes Medical Institute (HHMI) United States
CitationJournal: Elife / Year: 2025
Title: Structural mechanisms of PIP activation and SEA0400 inhibition in human cardiac sodium-calcium exchanger NCX1.
Authors: Jing Xue / Weizhong Zeng / Scott John / Nicole Attiq / Michela Ottolia / Youxing Jiang /
Abstract: Na/Ca exchangers (NCXs) transport Ca across the plasma membrane in exchange for Na and play a vital role in maintaining cellular Ca homeostasis. Our previous structural study of human cardiac NCX1 ...Na/Ca exchangers (NCXs) transport Ca across the plasma membrane in exchange for Na and play a vital role in maintaining cellular Ca homeostasis. Our previous structural study of human cardiac NCX1 (HsNCX1) reveals the overall architecture of the eukaryotic exchanger and the formation of the inactivation assembly by the intracellular regulatory domain that underlies the cytosolic Na-dependent inactivation and Ca activation of NCX1. Here, we present the cryo-EM structures of HsNCX1 in complex with a physiological activator phosphatidylinositol 4,5-bisphosphate (PIP), or pharmacological inhibitor SEA0400, that enhances the inactivation of the exchanger. We demonstrate that PIP binding stimulates NCX1 activity by inducing a conformational change at the interface between the transmembrane (TM) and cytosolic domains that destabilizes the inactivation assembly. In contrast, SEA0400 binding in the TM domain of NCX1 stabilizes the exchanger in an inward-facing conformation that facilitates the formation of the inactivation assembly, thereby promoting the Na-dependent inactivation of NCX1. Thus, this study reveals the structural basis of PIP activation and SEA0400 inhibition of NCX1 and provides some mechanistic understandings of cellular regulation and pharmacology of NCX family proteins.
History
DepositionJul 23, 2024-
Header (metadata) releaseMar 19, 2025-
Map releaseMar 19, 2025-
UpdateJun 4, 2025-
Current statusJun 4, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_60921.map.gz / Format: CCP4 / Size: 178 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.84 Å/pix.
x 360 pix.
= 302.4 Å		0.84 Å/pix.
x 360 pix.
= 302.4 Å		0.84 Å/pix.
x 360 pix.
= 302.4 Å

Surface

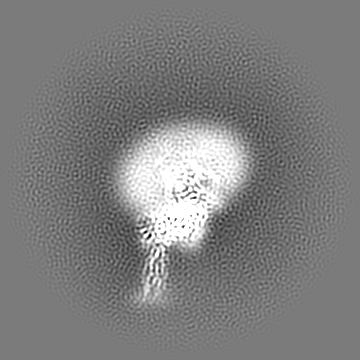

Projections

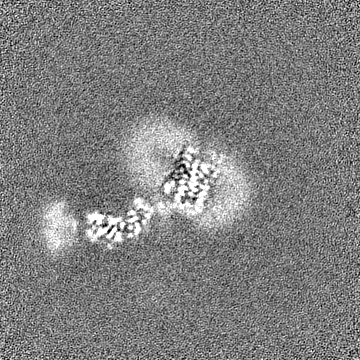

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.84 Å
Density

Histogram

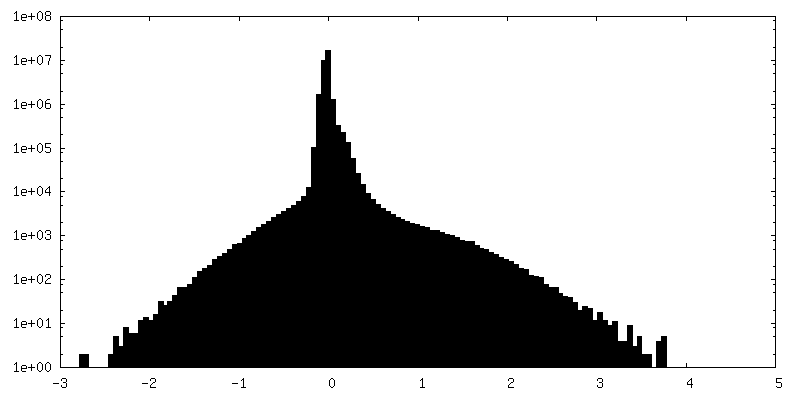

Histogram (log scale)
Contour LevelBy AUTHOR: 0.4
Minimum - Maximum-2.6003635 - 4.1552997
Average (Standard dev.)0.0015911028 (±0.06296779)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions360360360
Spacing360360360
CellA=B=C: 302.4 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: #2

Fileemd_60921_additional_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: #1

Fileemd_60921_additional_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_60921_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_60921_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : human cardiac sodium calcium exchanger NCX1

EntireName: human cardiac sodium calcium exchanger NCX1
Components
  • Complex: human cardiac sodium calcium exchanger NCX1
    • Protein or peptide: Sodium/calcium exchanger 1
  • Ligand: CALCIUM ION
  • Ligand: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate

-
Supramolecule #1: human cardiac sodium calcium exchanger NCX1

SupramoleculeName: human cardiac sodium calcium exchanger NCX1 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Sodium/calcium exchanger 1

MacromoleculeName: Sodium/calcium exchanger 1 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 109.18107 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MYNMRRLSLS PTFSMGFHLL VTVSLLFSHV DHVIAETEME GEGNETGECT GSYYCKKGVI LPIWEPQDPS FGDKIARATV YFVAMVYMF LGVSIIADRF MSSIEVITSQ EKEITIKKPN GETTKTTVRI WNETVSNLTL MALGSSAPEI LLSVIEVCGH N FTAGDLGP ...String:
MYNMRRLSLS PTFSMGFHLL VTVSLLFSHV DHVIAETEME GEGNETGECT GSYYCKKGVI LPIWEPQDPS FGDKIARATV YFVAMVYMF LGVSIIADRF MSSIEVITSQ EKEITIKKPN GETTKTTVRI WNETVSNLTL MALGSSAPEI LLSVIEVCGH N FTAGDLGP STIVGSAAFN MFIIIALCVY VVPDGETRKI KHLRVFFVTA AWSIFAYTWL YIILSVISPG VVEVWEGLLT FF FFPICVV FAWVADRRLL FYKYVYKRYR AGKQRGMIIE HEGDRPSSKT EIEMDGKVVN SHVENFLDGA LVLEVDERDQ DDE EARREM ARILKELKQK HPDKEIEQLI ELANYQVLSQ QQKSRAFYRI QATRLMTGAT ENDPVSKIFF EQGTYQCLEN CGTV ALTII RRGGDLTNTV FVDFRTEDGT ANAGSDYEFT EGTVVFKPGD TQKEIRVGII DDDIFEEDEN FLVHLSNVKV SSEAS EDGI LEANHVSTLA CLGSPSTATV TIFDDDHAGI FTFEEPVTHV SESIGIMEVK VLRTSGARGN VIVPYKTIEG TARGGG EDF EDTCGELEFQ NDEIVKTISV KVIDDEEYEK NKTFFLEIGE PRLVEMSEKK ALLLNELGGF TITGKYLFGQ PVFRKVH AR EHPILSTVIT IADEYDDKQP LTSKEEEERR IAEMGRPILG EHTKLEVIIE ESYEFKSTVD KLIKKTNLAL VVGTNSWR E QFIEAITVSA GEDDDDDECG EEKLPSCFDY VMHFLTVFWK VLFAFVPPTE YWNGWACFIV SILMIGLLTA FIGDLASHF GCTIGLKDSV TAVVFVALGT SVPDTFASKV AATQDQYADA SIGNVTGSNA VNVFLGIGVA WSIAAIYHAA NGEQFKVSPG TLAFSVTLF TIFAFINVGV LLYRRRPEIG GELGGPRTAK LLTSCLFVLL WLLYIFFSSL EAYCHIKGFA AAGGSWSHPQ F EKGGGSGG GSGGSAWSHP QFEK

UniProtKB: Sodium/calcium exchanger 1

-
Macromolecule #2: CALCIUM ION

MacromoleculeName: CALCIUM ION / type: ligand / ID: 2 / Number of copies: 5 / Formula: CA
Molecular weightTheoretical: 40.078 Da

-
Macromolecule #3: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(o...

MacromoleculeName: [(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate
type: ligand / ID: 3 / Number of copies: 1 / Formula: PIO
Molecular weightTheoretical: 746.566 Da
Chemical component information

ChemComp-PIO:
[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TECNAI SPHERA
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm

+
Image processing

CTF correctionType: NONE
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.5 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 117748
Initial angle assignmentType: NOT APPLICABLE
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
