- EMDB-60748: Cryo-EM structure of a TEF30-associated intermediate PSII core di... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-60748
TitleCryo-EM structure of a TEF30-associated intermediate PSII core dimer complex, type II, from Chlamydomonas reinhardtii
Map data
Sample
  • Complex: TEF30-associated PSII core dimer complex, type II
    • Protein or peptide: x 16 types
  • Ligand: x 12 types
Keywordsphotosystem II / PSII repair / PSII assembly / PSII intermediate / TEF30 / PHOTOSYNTHESIS
Function / homology
Function and homology information


oxygen evolving activity / photosystem II stabilization / photosystem II reaction center / photosystem II / oxidoreductase activity, acting on diphenols and related substances as donors, oxygen as acceptor / photosynthetic electron transport chain / response to herbicide / photosystem II / photosynthetic electron transport in photosystem II / chlorophyll binding ...oxygen evolving activity / photosystem II stabilization / photosystem II reaction center / photosystem II / oxidoreductase activity, acting on diphenols and related substances as donors, oxygen as acceptor / photosynthetic electron transport chain / response to herbicide / photosystem II / photosynthetic electron transport in photosystem II / chlorophyll binding / phosphate ion binding / photosynthesis, light reaction / chloroplast thylakoid membrane / : / photosynthesis / electron transfer activity / protein stabilization / iron ion binding / heme binding / metal ion binding
Similarity search - Function
Photosystem II reaction centre protein Ycf12 / Photosystem II complex subunit Ycf12 / Photosystem II reaction centre M protein (PsbM) / Photosystem II PsbM superfamily / Photosystem II PsbM / Photosystem II PsbZ, reaction centre / Photosystem II PsbZ superfamily / YCF9 / Photosystem II PsbX / Photosystem II reaction centre X protein (PsbX) ...Photosystem II reaction centre protein Ycf12 / Photosystem II complex subunit Ycf12 / Photosystem II reaction centre M protein (PsbM) / Photosystem II PsbM superfamily / Photosystem II PsbM / Photosystem II PsbZ, reaction centre / Photosystem II PsbZ superfamily / YCF9 / Photosystem II PsbX / Photosystem II reaction centre X protein (PsbX) / Photosystem II PsbT / Photosystem II PsbL / Photosystem II PsbL superfamily / Photosystem II PsbT superfamily / Photosystem II reaction centre T protein / PsbL protein / Photosystem II PsbK / Photosystem II CP43 reaction centre protein / Photosystem II PsbK superfamily / Photosystem II CP43 reaction centre protein superfamily / Photosystem II 4 kDa reaction centre component / Photosystem II PsbI / Photosystem II CP47 reaction centre protein / Photosystem II PsbI superfamily / Photosystem II reaction centre I protein (PSII 4.8 kDa protein) / Photosystem II reaction centre protein H / Photosystem II reaction centre protein H superfamily / Photosystem II 10 kDa phosphoprotein / Photosystem II protein D1 / Photosystem II D2 protein / Photosystem II cytochrome b559, conserved site / Photosystem II cytochrome b559, alpha subunit / Photosystem II cytochrome b559, beta subunit / Photosystem II cytochrome b559, N-terminal / Photosystem II cytochrome b559, alpha subunit, lumenal region / Photosystem II cytochrome b559, alpha subunit superfamily / Cytochrome b559, alpha (gene psbE) and beta (gene psbF)subunits / Lumenal portion of Cytochrome b559, alpha (gene psbE) subunit / Cytochrome b559 subunits heme-binding site signature. / : / Photosystem antenna protein-like / Photosystem antenna protein-like superfamily / Photosystem II protein / : / Photosynthetic reaction centre, L/M / Photosystem II protein D1/D2 superfamily / Photosynthetic reaction centre protein / Photosynthetic reaction center proteins signature. / PDZ domain / PDZ domain profile. / PDZ domain / Tetratricopeptide-like helical domain superfamily
Similarity search - Domain/homology
PDZ domain-containing protein / Uncharacterized protein / Photosystem II D2 protein / Photosystem II protein D1 / Photosystem II CP43 reaction center protein / Photosystem II reaction center protein K / Photosystem II reaction center protein H / Photosystem II reaction center protein L / Photosystem II CP47 reaction center protein / Photosystem II reaction center protein T ...PDZ domain-containing protein / Uncharacterized protein / Photosystem II D2 protein / Photosystem II protein D1 / Photosystem II CP43 reaction center protein / Photosystem II reaction center protein K / Photosystem II reaction center protein H / Photosystem II reaction center protein L / Photosystem II CP47 reaction center protein / Photosystem II reaction center protein T / Cytochrome b559 subunit alpha / Photosystem II reaction center protein Psb30 / Photosystem II reaction center protein I / Photosystem II reaction center protein Z / Photosystem II reaction center protein M / Cytochrome b559 subunit beta
Similarity search - Component
Biological speciesChlamydomonas reinhardtii (plant)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.3 Å
AuthorsWang Y / Wang C / Li A / Liu Z
Funding support China, 1 items
OrganizationGrant numberCountry
Chinese Academy of Sciences China
CitationJournal: To Be Published
Title: TEF30 fulfills versatile functions in the photosystem II repair process
Authors: Wang Y / Wang C / Li A / Liu Z
History
DepositionJul 9, 2024-
Header (metadata) releaseMay 21, 2025-
Map releaseMay 21, 2025-
UpdateMay 21, 2025-
Current statusMay 21, 2025Processing site: PDBc / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_60748.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.06 Å/pix.
x 300 pix.
= 318. Å		1.06 Å/pix.
x 300 pix.
= 318. Å		1.06 Å/pix.
x 300 pix.
= 318. Å

Surface

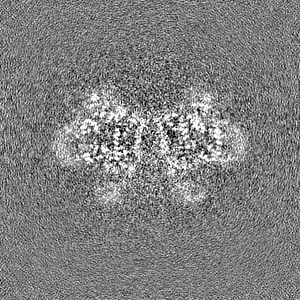

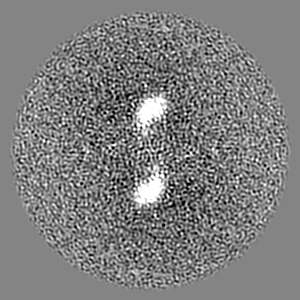

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.06 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.165
Minimum - Maximum-0.4847966 - 0.77000964
Average (Standard dev.)0.0010061095 (±0.029381195)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 317.99997 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_60748_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_60748_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : TEF30-associated PSII core dimer complex, type II

EntireName: TEF30-associated PSII core dimer complex, type II
Components
  • Complex: TEF30-associated PSII core dimer complex, type II
    • Protein or peptide: Photosystem II protein D1
    • Protein or peptide: Photosystem II CP47 reaction center protein
    • Protein or peptide: Photosystem II CP43 reaction center protein
    • Protein or peptide: Photosystem II D2 protein
    • Protein or peptide: Cytochrome b559 subunit alpha
    • Protein or peptide: Cytochrome b559 subunit beta
    • Protein or peptide: PDZ domain-containing protein
    • Protein or peptide: Photosystem II reaction center protein H
    • Protein or peptide: Photosystem II reaction center protein I
    • Protein or peptide: Photosystem II reaction center protein K
    • Protein or peptide: Photosystem II reaction center protein L
    • Protein or peptide: Photosystem II reaction center protein M
    • Protein or peptide: Photosystem II reaction center protein T
    • Protein or peptide: Photosystem II reaction center protein Psb30
    • Protein or peptide: Chloroplast photosystem II subunit X
    • Protein or peptide: Photosystem II reaction center protein Z
  • Ligand: FE (II) ION
  • Ligand: CHLOROPHYLL A
  • Ligand: PHEOPHYTIN A
  • Ligand: BETA-CAROTENE
  • Ligand: 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE
  • Ligand: 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
  • Ligand: 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
  • Ligand: DIGALACTOSYL DIACYL GLYCEROL (DGDG)
  • Ligand: DODECYL-ALPHA-D-MALTOSIDE
  • Ligand: BICARBONATE ION
  • Ligand: 2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE
  • Ligand: PROTOPORPHYRIN IX CONTAINING FE

+
Supramolecule #1: TEF30-associated PSII core dimer complex, type II

SupramoleculeName: TEF30-associated PSII core dimer complex, type II / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#16
Source (natural)Organism: Chlamydomonas reinhardtii (plant)

+
Macromolecule #1: Photosystem II protein D1

MacromoleculeName: Photosystem II protein D1 / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO / EC number: photosystem II
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 36.263301 KDa
SequenceString: NSSLWARFCE WITSTENRLY IGWFGVIMIP CLLTATSVFI IAFIAAPPVD IDGIREPVSG SLLYGNNIIT GAVIPTSNAI GLHFYPIWE AASLDEWLYN GGPYQLIVCH FLLGVYCYMG REWELSFRLG MRPWIAVAYS APVAAASAVF LVYPIGQGSF S DGMPLGIS ...String:
NSSLWARFCE WITSTENRLY IGWFGVIMIP CLLTATSVFI IAFIAAPPVD IDGIREPVSG SLLYGNNIIT GAVIPTSNAI GLHFYPIWE AASLDEWLYN GGPYQLIVCH FLLGVYCYMG REWELSFRLG MRPWIAVAYS APVAAASAVF LVYPIGQGSF S DGMPLGIS GTFNFMIVFQ AEHNILMHPF HMLGVAGVFG GSLFSAMHGS LVTSSLIRET TENESANEGY RFGQEEETYN IV AAHGYFG RLIFQYASFN NSRSLHFFLA AWPVIGIWFT ALGLSTMAFN LNGFNFNQSV VDSQGRVLNT WADIINRANL GME VMHERN A

UniProtKB: Photosystem II protein D1

+
Macromolecule #2: Photosystem II CP47 reaction center protein

MacromoleculeName: Photosystem II CP47 reaction center protein / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 52.938281 KDa
SequenceString: GLPWYRVHTV VINDPGRLIS VHLMHTALVS GWAGSMALFE ISVFDPSDPV LNPMWRQGMF VLPFMTRLGI TQSWGGWTIS GETATNPGI WSYEGVAAAH IILSGALFLA SVWHWTYWDL ELFRDPRTGK TALDLPKIFG IHLFLSGLLC FGFGAFHVTG V FGPGIWVS ...String:
GLPWYRVHTV VINDPGRLIS VHLMHTALVS GWAGSMALFE ISVFDPSDPV LNPMWRQGMF VLPFMTRLGI TQSWGGWTIS GETATNPGI WSYEGVAAAH IILSGALFLA SVWHWTYWDL ELFRDPRTGK TALDLPKIFG IHLFLSGLLC FGFGAFHVTG V FGPGIWVS DPYGLTGRVQ PVAPSWGADG FDPYNPGGIA SHHIAAGILG VLAGLFHLCV RPSIRLYFGL SMGSIETVLS SS IAAVFWA AFVVAGTMWY GSAATPIELF GPTRYQWDQG FFQQEIQKRV QASLAEGASL SDAWSRIPEK LAFYDYIGNN PAK GGLFRT GAMNSGDGIA VGWLGHASFK DQEGRELFVR RMPTFFETFP VLLLDKDGIV RADVPFRKAE SKYSIEQVGV SVTF YGGEL DGLTFTDPAT VKKYARKAQL GEIFEFDRST LQSDGVFRSS PRGWFTFGHV CFALLFFFGH IWHGARTIFR DVFAG

UniProtKB: Photosystem II CP47 reaction center protein

+
Macromolecule #3: Photosystem II CP43 reaction center protein

MacromoleculeName: Photosystem II CP43 reaction center protein / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 49.473355 KDa
SequenceString: GGRDQETTGF AWWSGNARLI NLSGKLLGAH VAHAGLIVFW AGAMNLFEVS HFVPEKPMYE QGLILLPHIA TLGYGVGPGG EIIDTFPYF VSGVLHLISS AVLGFGGVYH SLIGPETLEE SYPFFGYVWK DKNKMTNILG YHLIMLGLGA WLLVWKAMYF G GVYDTWAP ...String:
GGRDQETTGF AWWSGNARLI NLSGKLLGAH VAHAGLIVFW AGAMNLFEVS HFVPEKPMYE QGLILLPHIA TLGYGVGPGG EIIDTFPYF VSGVLHLISS AVLGFGGVYH SLIGPETLEE SYPFFGYVWK DKNKMTNILG YHLIMLGLGA WLLVWKAMYF G GVYDTWAP GGGDVRVITN PTTNAAVIFG YLVKSPFGGD GWICSVDNME DIIGGHIWIG TLEILGGIWH IYTTPWPWAR RA FVWSGEA YLSYSLGAIG VMGFIACCMS WFNNTAYPSE FYGPTGPEAS QSQAFTFLVR DQRLGANVAS AQGPTGLGKY LMR SPTGEI IFGGETMRFW DFRGPWLEPL RGPNGLDLNK LKNDIQPWQE RRAAEYMTHA PLGSLNSVGG VATEINAVNF VSPR SWLAC SHFCLGFFFF IGHLWHAGRA RAAAAGFEKG IDRFDEPVLS MRPLD

UniProtKB: Photosystem II CP43 reaction center protein

+
Macromolecule #4: Photosystem II D2 protein

MacromoleculeName: Photosystem II D2 protein / type: protein_or_peptide / ID: 4 / Number of copies: 2 / Enantiomer: LEVO / EC number: photosystem II
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 39.342836 KDa
SequenceString: TIAIGTYQEK RTWFDDADDW LRQDRFVFVG WSGLLLFPCA YFALGGWLTG TTFVTSWYTH GLATSYLEGC NFLTAAVSTP ANSMAHSLL FVWGPEAQGD FTRWCQLGGL WAFVALHGAF GLIGFMLRQF EIARSVNLRP YNAIAFSAPI AVFVSVFLIY P LGQSGWFF ...String:
TIAIGTYQEK RTWFDDADDW LRQDRFVFVG WSGLLLFPCA YFALGGWLTG TTFVTSWYTH GLATSYLEGC NFLTAAVSTP ANSMAHSLL FVWGPEAQGD FTRWCQLGGL WAFVALHGAF GLIGFMLRQF EIARSVNLRP YNAIAFSAPI AVFVSVFLIY P LGQSGWFF APSFGVAAIF RFILFFQGFH NWTLNPFHMM GVAGVLGAAL LCAIHGATVE NTLFEDGDGA NTFRAFNPTQ AE ETYSMVT ANRFWSQIFG VAFSNKRWLH FFMLLVPVTG LWMSAIGVVG LALNLRAYDF VSQEIRAAED PEFETFYTKN ILL NEGIRA WMAAQDQPHE RLVFPEEVLP RGNAL

UniProtKB: Photosystem II D2 protein

+
Macromolecule #5: Cytochrome b559 subunit alpha

MacromoleculeName: Cytochrome b559 subunit alpha / type: protein_or_peptide / ID: 5 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 8.484632 KDa
SequenceString:
RPFSDILTSI RYWVIHSITV PALFIAGWLF VSTGLAYDVF GTPRPNEYFT EDRQEAPLIT DRFNALEQVK KLSG

UniProtKB: Cytochrome b559 subunit alpha

+
Macromolecule #6: Cytochrome b559 subunit beta

MacromoleculeName: Cytochrome b559 subunit beta / type: protein_or_peptide / ID: 6 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 3.535273 KDa
SequenceString:
IFTVRWLAIH GIAVPTIFFL GAITAMQFIQ R

UniProtKB: Cytochrome b559 subunit beta

+
Macromolecule #7: PDZ domain-containing protein

MacromoleculeName: PDZ domain-containing protein / type: protein_or_peptide / ID: 7 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 22.399248 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: NFGQIMYAIR TRSGTVYMKL KKNYGDLSAL EEEGLDAAEK QWKKERAGGN YGAGTKEIQA RNYVQRKENE RKRREMFDDA LAKFKENDI QGALVEFENI IAMEPRNFVG DNFSRNTPIY KVTQYNIACC YSMLDQVEEA IKSLDAAMLS GFDNYDQIRR D KNLSKARA ...String:
NFGQIMYAIR TRSGTVYMKL KKNYGDLSAL EEEGLDAAEK QWKKERAGGN YGAGTKEIQA RNYVQRKENE RKRREMFDDA LAKFKENDI QGALVEFENI IAMEPRNFVG DNFSRNTPIY KVTQYNIACC YSMLDQVEEA IKSLDAAMLS GFDNYDQIRR D KNLSKARA NPKFQAVLDK YDEPVVNWNA VKATFGA

UniProtKB: PDZ domain-containing protein

+
Macromolecule #8: Photosystem II reaction center protein H

MacromoleculeName: Photosystem II reaction center protein H / type: protein_or_peptide / ID: 8 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 7.751167 KDa
SequenceString:
FQEPGLVTPL GTLLRPLNSE AGKVLPGWGT TVLMAVFILL FAAFLLIILE IYNSSLILDD VSMSWETLAK V

UniProtKB: Photosystem II reaction center protein H

+
Macromolecule #9: Photosystem II reaction center protein I

MacromoleculeName: Photosystem II reaction center protein I / type: protein_or_peptide / ID: 9 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 3.902687 KDa
SequenceString:
MLTLKIFVYT VVTFFVCLFI FGFLSNDPAR NPGK

UniProtKB: Photosystem II reaction center protein I

+
Macromolecule #10: Photosystem II reaction center protein K

MacromoleculeName: Photosystem II reaction center protein K / type: protein_or_peptide / ID: 10 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 4.147979 KDa
SequenceString:
KLPEAYAPFA PIVDVLPVIP VFFILLAFVW QAAVSFR

UniProtKB: Photosystem II reaction center protein K

+
Macromolecule #11: Photosystem II reaction center protein L

MacromoleculeName: Photosystem II reaction center protein L / type: protein_or_peptide / ID: 11 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 4.431229 KDa
SequenceString:
MARPNPNKQV VELNRTSLYW GLLLIFVLAV LFSSYIFN

UniProtKB: Photosystem II reaction center protein L

+
Macromolecule #12: Photosystem II reaction center protein M

MacromoleculeName: Photosystem II reaction center protein M / type: protein_or_peptide / ID: 12 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 2.971595 KDa
SequenceString:
NIYGLTATAL FIIIPTSFLL ILYVKTA

UniProtKB: Photosystem II reaction center protein M

+
Macromolecule #13: Photosystem II reaction center protein T

MacromoleculeName: Photosystem II reaction center protein T / type: protein_or_peptide / ID: 13 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 3.265905 KDa
SequenceString:
MEALVYTFLL VGTLGIIFFS IFFRDPPR

UniProtKB: Photosystem II reaction center protein T

+
Macromolecule #14: Photosystem II reaction center protein Psb30

MacromoleculeName: Photosystem II reaction center protein Psb30 / type: protein_or_peptide / ID: 14 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 3.08776 KDa
SequenceString:
IELALTLVSL VLVVSAGPLV VVLLSARGGN L

UniProtKB: Photosystem II reaction center protein Psb30

+
Macromolecule #15: Chloroplast photosystem II subunit X

MacromoleculeName: Chloroplast photosystem II subunit X / type: protein_or_peptide / ID: 15 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 3.05664 KDa
SequenceString:
AVTPSLKNFL GSLIAGATVL GGIALAITAV SK

UniProtKB: Uncharacterized protein

+
Macromolecule #16: Photosystem II reaction center protein Z

MacromoleculeName: Photosystem II reaction center protein Z / type: protein_or_peptide / ID: 16 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Chlamydomonas reinhardtii (plant)
Molecular weightTheoretical: 6.466732 KDa
SequenceString:
MTSILQVALL ALIFVSFALV VGVPVVFATP NGWTDNKGAV FSGLSLWLLL VFVVGILNSF V

UniProtKB: Photosystem II reaction center protein Z

+
Macromolecule #17: FE (II) ION

MacromoleculeName: FE (II) ION / type: ligand / ID: 17 / Number of copies: 2 / Formula: FE2
Molecular weightTheoretical: 55.845 Da

+
Macromolecule #18: CHLOROPHYLL A

MacromoleculeName: CHLOROPHYLL A / type: ligand / ID: 18 / Number of copies: 70 / Formula: CLA
Molecular weightTheoretical: 893.489 Da
Chemical component information

ChemComp-CLA:
CHLOROPHYLL A

+
Macromolecule #19: PHEOPHYTIN A

MacromoleculeName: PHEOPHYTIN A / type: ligand / ID: 19 / Number of copies: 4 / Formula: PHO
Molecular weightTheoretical: 871.2 Da
Chemical component information

ChemComp-PHO:
PHEOPHYTIN A

+
Macromolecule #20: BETA-CAROTENE

MacromoleculeName: BETA-CAROTENE / type: ligand / ID: 20 / Number of copies: 20 / Formula: BCR
Molecular weightTheoretical: 536.873 Da
Chemical component information

ChemComp-BCR:
BETA-CAROTENE

+
Macromolecule #21: 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE

MacromoleculeName: 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE / type: ligand / ID: 21 / Number of copies: 10 / Formula: LMG
Molecular weightTheoretical: 787.158 Da
Chemical component information

ChemComp-LMG:
1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE

+
Macromolecule #22: 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE

MacromoleculeName: 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE / type: ligand / ID: 22 / Number of copies: 14 / Formula: LHG
Molecular weightTheoretical: 722.97 Da
Chemical component information

ChemComp-LHG:
1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE / phospholipid*YM

+
Macromolecule #23: 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL

MacromoleculeName: 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
type: ligand / ID: 23 / Number of copies: 2 / Formula: SQD
Molecular weightTheoretical: 795.116 Da
Chemical component information

ChemComp-SQD:
1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL

+
Macromolecule #24: DIGALACTOSYL DIACYL GLYCEROL (DGDG)

MacromoleculeName: DIGALACTOSYL DIACYL GLYCEROL (DGDG) / type: ligand / ID: 24 / Number of copies: 6 / Formula: DGD
Molecular weightTheoretical: 949.299 Da
Chemical component information

ChemComp-DGD:
DIGALACTOSYL DIACYL GLYCEROL (DGDG)

+
Macromolecule #25: DODECYL-ALPHA-D-MALTOSIDE

MacromoleculeName: DODECYL-ALPHA-D-MALTOSIDE / type: ligand / ID: 25 / Number of copies: 2 / Formula: LMU
Molecular weightTheoretical: 510.615 Da
Chemical component information

ChemComp-LMU:
DODECYL-ALPHA-D-MALTOSIDE / detergent*YM

+
Macromolecule #26: BICARBONATE ION

MacromoleculeName: BICARBONATE ION / type: ligand / ID: 26 / Number of copies: 2 / Formula: BCT
Molecular weightTheoretical: 61.017 Da
Chemical component information

ChemComp-BCT:
BICARBONATE ION / pH buffer*YM

+
Macromolecule #27: 2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,...

MacromoleculeName: 2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE
type: ligand / ID: 27 / Number of copies: 2 / Formula: PL9
Molecular weightTheoretical: 749.201 Da
Chemical component information

ChemComp-PL9:
2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE

+
Macromolecule #28: PROTOPORPHYRIN IX CONTAINING FE

MacromoleculeName: PROTOPORPHYRIN IX CONTAINING FE / type: ligand / ID: 28 / Number of copies: 2 / Formula: HEM
Molecular weightTheoretical: 616.487 Da
Chemical component information

ChemComp-HEM:
PROTOPORPHYRIN IX CONTAINING FE

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.2
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 1.8 µm / Nominal defocus min: 1.3 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING ONLY
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6kac

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.3 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 33509
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
