Basic information

Entry
Database: EMDB / ID: EMD-55724
TitleCryo-EM structure of Pol epsilon-PCNA reconstituted on a DNA scaffold with 5'-overhangs on either side of the double-stranded segment
Map data
Sample
  • Complex: Ternary complex of Pol epsilon, PCNA and DNA
KeywordsPOLE1 / DNA / polymerase / epsilon / PCNA / leading strand / replication / replisome / DNA BINDING PROTEIN
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.9 Å
AuthorsRoske JJ / Yeeles JTP
Funding support United Kingdom, 1 items
OrganizationGrant numberCountry
UK Research and Innovation (UKRI) United Kingdom
CitationJournal: Proc Natl Acad Sci U S A / Year: 2026
Title: Cryo-EM maps of human DNA polymerase ε should be reevaluated in light of its unexpected behavior in vitro.
Authors: Johann J Roske / Joseph T P Yeeles /
History
DepositionNov 17, 2025-
Header (metadata) releaseMar 18, 2026-
Map releaseMar 18, 2026-
UpdateMar 18, 2026-
Current statusMar 18, 2026Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_55724.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.84 Å/pix.
x 400 pix.
= 336. Å		0.84 Å/pix.
x 400 pix.
= 336. Å		0.84 Å/pix.
x 400 pix.
= 336. Å

Surface

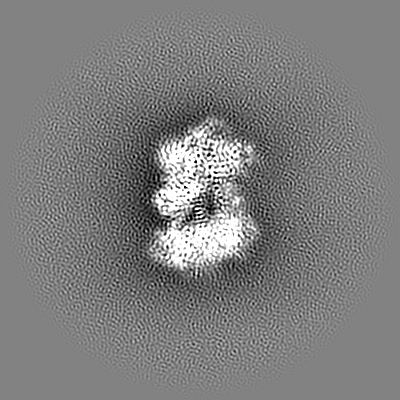

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.84 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.8
Minimum - Maximum-2.0883253 - 3.6624033
Average (Standard dev.)-0.00045299352 (±0.078622594)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 336.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_55724_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_55724_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Ternary complex of Pol epsilon, PCNA and DNA

EntireName: Ternary complex of Pol epsilon, PCNA and DNA
Components
  • Complex: Ternary complex of Pol epsilon, PCNA and DNA

-
Supramolecule #1: Ternary complex of Pol epsilon, PCNA and DNA

SupramoleculeName: Ternary complex of Pol epsilon, PCNA and DNA / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#4
Source (natural)Organism: Homo sapiens (human)

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.6 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 445670
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
