Basic information

Entry
Database: EMDB / ID: EMD-53136
TitleCryo-electron tomograms of Limonium bicolor salt gland.
Map dataThis is the tomogram shown in the original publication.
Sample
  • Tissue: Limonium bicolor salt gland
KeywordsLimonium bicolor / salt gland / PLANT PROTEIN
Biological speciesLimonium bicolor (plant)
Methodelectron tomography / cryo EM
AuthorsPoege M / Dickmanns M / Xu P / Li M / Schioetz OH / Kaiser COJ / Ma J / Bieber A / Capitanio C / Brenner JA ...Poege M / Dickmanns M / Xu P / Li M / Schioetz OH / Kaiser COJ / Ma J / Bieber A / Capitanio C / Brenner JA / Riggi M / Miras M / Kazemein Jasemi NS / Schulze SX / Simon R / Frommer WB / Plitzko JM / Baumeister W
Funding supportEuropean Union, 1 items
OrganizationGrant numberCountry
European Research Council (ERC)951292European Union
CitationJournal: To Be Published
Title: Making plant tissue accessible for cryo-electron tomography
Authors: Poege M / Dickmanns M / Xu P / Li M / Schioetz OH / Kaiser COJ / Ma J / Bieber A / Capitanio C / Brenner JA / Riggi M / Miras M / Kazemein Jasemi NS / Schulze SX / Simon R / Frommer WB / ...Authors: Poege M / Dickmanns M / Xu P / Li M / Schioetz OH / Kaiser COJ / Ma J / Bieber A / Capitanio C / Brenner JA / Riggi M / Miras M / Kazemein Jasemi NS / Schulze SX / Simon R / Frommer WB / Plitzko JM / Baumeister W
History
DepositionMar 14, 2025-
Header (metadata) releaseMar 25, 2026-
Map releaseMar 25, 2026-
UpdateMar 25, 2026-
Current statusMar 25, 2026Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_53136.map.gz / Format: CCP4 / Size: 2 GB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationThis is the tomogram shown in the original publication.
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
11.72 Å/pix.
x 512 pix.
= 6000.64 Å		11.72 Å/pix.
x 1024 pix.
= 12001.28 Å		11.72 Å/pix.
x 1024 pix.
= 12001.28 Å

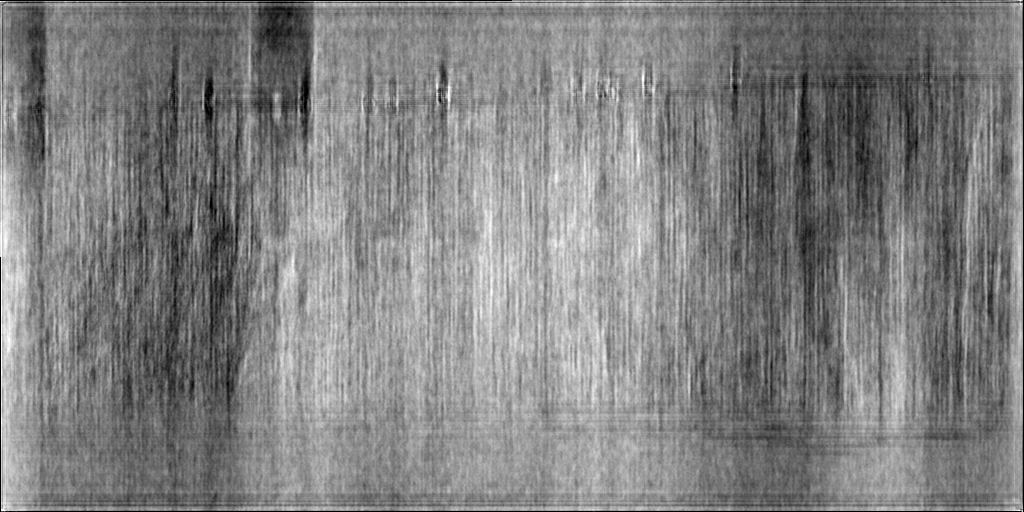

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

generated in cubic-lattice coordinate

Voxel sizeX=Y=Z: 11.72 Å
Density

Histogram

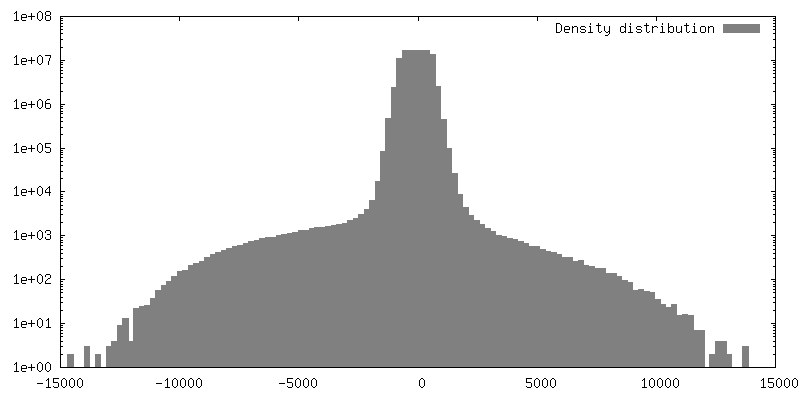

Histogram (log scale)
Minimum - Maximum-14810.67200000000048 - 14425.281000000000859
Average (Standard dev.)63.964396999999998 (±301.624019999999973)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions10241024512
Spacing10241024512
CellA: 12001.28 Å / B: 12001.28 Å / C: 6000.64 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: This is another tomogram example.

Fileemd_53136_additional_1.map
AnnotationThis is another tomogram example.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: This is another tomogram example.

Fileemd_53136_additional_2.map
AnnotationThis is another tomogram example.
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Limonium bicolor salt gland

EntireName: Limonium bicolor salt gland
Components
  • Tissue: Limonium bicolor salt gland

-
Supramolecule #1: Limonium bicolor salt gland

SupramoleculeName: Limonium bicolor salt gland / type: tissue / ID: 1 / Parent: 0
Source (natural)Organism: Limonium bicolor (plant) / Tissue: Salt gland

-
Experimental details

-
Structure determination

Methodcryo EM
Processingelectron tomography
Aggregation statetissue

-
Sample preparation

BufferpH: 6
VitrificationCryogen name: NITROGEN
Details: Tissue was high-pressure frozen as described in the publication and the corresponding protocol..
High pressure freezingInstrument: OTHER
Details: The value given for _em_high_pressure_freezing.instrument is Leica EM ICE. This is not in a list of allowed values {'OTHER', 'EMS-002 RAPID IMMERSION FREEZER', 'LEICA EM PACT2', 'BAL-TEC HPM ...Details: The value given for _em_high_pressure_freezing.instrument is Leica EM ICE. This is not in a list of allowed values {'OTHER', 'EMS-002 RAPID IMMERSION FREEZER', 'LEICA EM PACT2', 'BAL-TEC HPM 010', 'LEICA EM HPM100', 'LEICA EM PACT'} so OTHER is written into the XML file.
SectioningFocused ion beam - Instrument: OTHER / Focused ion beam - Ion: OTHER / Focused ion beam - Voltage: 30 / Focused ion beam - Current: 0.05 / Focused ion beam - Duration: 10 / Focused ion beam - Temperature: 90 K / Focused ion beam - Initial thickness: 800 / Focused ion beam - Final thickness: 300
Focused ion beam - Details: The value given for _em_focused_ion_beam.instrument is TFS Scios/Aquilos. This is not in a list of allowed values {'OTHER', 'DB235'} so OTHER is written into the XML file.

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: TFS Selectris X / Energy filter - Slit width: 10 eV
Image recordingFilm or detector model: TFS FALCON 4i (4k x 4k) / Average electron dose: 2.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 6.5 µm / Nominal defocus min: 5.5 µm / Nominal magnification: 42000
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Final reconstructionNumber images used: 51
CTF correctionType: NONE

+
