- EMDB-52166: In vitro grown G14R Alpha-Synuclein Fibrils -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-52166
TitleIn vitro grown G14R Alpha-Synuclein Fibrils
Map dataG14R_3d0_map
Sample
  • Organelle or cellular component: Alpha-Synuclein G14R
    • Protein or peptide: Alpha-synuclein
KeywordsAlpha-Synuclein / G14R Mutation / Fibrils / Cryo-EM / Protein Aggregation / Amyloid Structure / PROTEIN FIBRIL
Function / homology
Function and homology information


negative regulation of mitochondrial electron transport, NADH to ubiquinone / : / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / mitochondrial membrane organization ...negative regulation of mitochondrial electron transport, NADH to ubiquinone / : / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / mitochondrial membrane organization / regulation of synaptic vesicle recycling / negative regulation of chaperone-mediated autophagy / regulation of reactive oxygen species biosynthetic process / negative regulation of platelet-derived growth factor receptor signaling pathway / positive regulation of protein localization to cell periphery / negative regulation of exocytosis / regulation of glutamate secretion / response to iron(II) ion / SNARE complex assembly / positive regulation of neurotransmitter secretion / dopamine biosynthetic process / regulation of norepinephrine uptake / transporter regulator activity / regulation of locomotion / mitochondrial ATP synthesis coupled electron transport / regulation of macrophage activation / positive regulation of inositol phosphate biosynthetic process / synaptic vesicle priming / negative regulation of microtubule polymerization / synaptic vesicle transport / positive regulation of receptor recycling / dopamine uptake involved in synaptic transmission / protein kinase inhibitor activity / dynein complex binding / regulation of dopamine secretion / negative regulation of thrombin-activated receptor signaling pathway / cuprous ion binding / positive regulation of exocytosis / response to magnesium ion / synaptic vesicle exocytosis / enzyme inhibitor activity / positive regulation of endocytosis / kinesin binding / synaptic vesicle endocytosis / cysteine-type endopeptidase inhibitor activity / negative regulation of serotonin uptake / regulation of presynapse assembly / response to type II interferon / alpha-tubulin binding / supramolecular fiber organization / inclusion body / phospholipid metabolic process / cellular response to copper ion / axon terminus / cellular response to epinephrine stimulus / Hsp70 protein binding / response to interleukin-1 / regulation of microtubule cytoskeleton organization / SNARE binding / positive regulation of release of sequestered calcium ion into cytosol / adult locomotory behavior / negative regulation of protein kinase activity / excitatory postsynaptic potential / fatty acid metabolic process / phosphoprotein binding / protein tetramerization / microglial cell activation / regulation of long-term neuronal synaptic plasticity / synapse organization / ferrous iron binding / protein destabilization / PKR-mediated signaling / phospholipid binding / receptor internalization / tau protein binding / long-term synaptic potentiation / positive regulation of inflammatory response / synaptic vesicle membrane / actin cytoskeleton / actin binding / growth cone / cell cortex / cellular response to oxidative stress / neuron apoptotic process / chemical synaptic transmission / molecular adaptor activity / negative regulation of neuron apoptotic process / response to lipopolysaccharide / histone binding / amyloid fibril formation / lysosome / oxidoreductase activity / transcription cis-regulatory region binding / postsynapse / positive regulation of apoptotic process / Amyloid fiber formation / copper ion binding / response to xenobiotic stimulus / axon / neuronal cell body
Similarity search - Function
Synuclein / Alpha-synuclein / Synuclein
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.0 Å
AuthorsSicking K / Fernandez-Busnadiego R
Funding support Germany, United States, 5 items
OrganizationGrant numberCountry
German Research Foundation (DFG)EXC 2067/1-390729940 Germany
German Research Foundation (DFG)SFB1286 (B8) Germany
German Research Foundation (DFG)SFB1286 (A12) Germany
German Research Foundation (DFG)448415290 Germany
Michael J. Fox FoundationASAP-000282 United States
CitationJournal: medRxiv / Year: 2025
Title: A novel alpha-synuclein G14R missense variant is associated with atypical neuropathological features.
Authors: Christof Brücke / Mohammed Al-Azzani / Nagendran Ramalingam / Maria Ramón / Rita L Sousa / Fiamma Buratti / Michael Zech / Kevin Sicking / Leslie Amaral / Ellen Gelpi / Aswathy Chandran / ...Authors: Christof Brücke / Mohammed Al-Azzani / Nagendran Ramalingam / Maria Ramón / Rita L Sousa / Fiamma Buratti / Michael Zech / Kevin Sicking / Leslie Amaral / Ellen Gelpi / Aswathy Chandran / Aishwarya Agarwal / Susana R Chaves / Claudio O Fernández / Ulf Dettmer / Janin Lautenschläger / Markus Zweckstetter / Ruben Fernandez Busnadiego / Alexander Zimprich / Tiago Fleming Outeiro /
Abstract: BACKGROUND: Parkinson's disease (PD) affects millions of people worldwide, but only 5-10% of patients suffer from a monogenic form of the disease with Mendelian inheritance. , the gene encoding for ...BACKGROUND: Parkinson's disease (PD) affects millions of people worldwide, but only 5-10% of patients suffer from a monogenic form of the disease with Mendelian inheritance. , the gene encoding for the protein alpha-synuclein (aSyn), was the first to be associated with familial forms of PD and, since then, several missense variants and multiplications of the gene have been established as rare causes of autosomal dominant forms of PD.
AIM AND METHODS: A patient carrying aSyn missense mutation and his family members were studied. We present the clinical features, genetic testing - whole exome sequencing (WES), and neuropathological ...AIM AND METHODS: A patient carrying aSyn missense mutation and his family members were studied. We present the clinical features, genetic testing - whole exome sequencing (WES), and neuropathological findings. The functional consequences of this aSyn variant were extensively investigated using biochemical, biophysical, and cellular assays.
RESULTS: The patient exhibited a complex neurodegenerative disease that included generalized myocloni, bradykinesia, dystonia of the left arm and apraxia. WES identified a novel heterozygous variant ...RESULTS: The patient exhibited a complex neurodegenerative disease that included generalized myocloni, bradykinesia, dystonia of the left arm and apraxia. WES identified a novel heterozygous variant (cDNA 40G>A; protein G14R). Neuropathological examination showed extensive atypical aSyn pathology with frontotemporal lobar degeneration (FTLD) and nigral degeneration pattern with abundant ring-like neuronal inclusions, and few oligodendroglial inclusions. Sanger sequencing confirmed the variant in the healthy, elderly parent of the patient patient suggesting incomplete penetrance. NMR studies suggest that the G14R mutation induces a local structural alteration in aSyn, and lower thioflavin T binding in in vitro fibrillization assays. Interestingly, the G14R aSyn fibers display different fibrillar morphologies as revealed by cryo-electron microscopy. Cellular studies of the G14R variant revealed increased inclusion formation, enhanced membrane association, and impaired dynamic reversibility of serine-129 phosphorylation.
SUMMARY: The atypical neuropathological features observed, which are reminiscent of those observed for the G51D aSyn variant, suggest a causal role of the variant with a distinct clinical and ...SUMMARY: The atypical neuropathological features observed, which are reminiscent of those observed for the G51D aSyn variant, suggest a causal role of the variant with a distinct clinical and pathological phenotype, which is further supported by the properties of the mutant aSyn, compatible with the strain hypothesis of proteinopathies.
History
DepositionNov 20, 2024-
Header (metadata) releaseJan 29, 2025-
Map releaseJan 29, 2025-
UpdateJul 2, 2025-
Current statusJul 2, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images

Downloads & links

-
Map

FileDownload / File: emd_52166.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationG14R_3d0_map
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.92 Å/pix.
x 384 pix.
= 353.28 Å
0.92 Å/pix.
x 384 pix.
= 353.28 Å
0.92 Å/pix.
x 384 pix.
= 353.28 Å

Surface

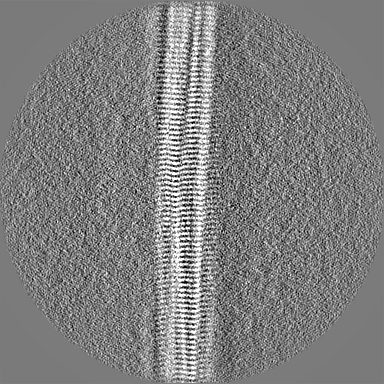

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.92 Å
Density
Contour LevelBy AUTHOR: 0.01
Minimum - Maximum-0.047346953 - 0.07762122
Average (Standard dev.)0.000010157621 (±0.0023181778)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 353.28 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: half2

Fileemd_52166_half_map_1.map
Annotationhalf2
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Half map: half1

Fileemd_52166_half_map_2.map
Annotationhalf1
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

-
Sample components

-
Entire : Alpha-Synuclein G14R

EntireName: Alpha-Synuclein G14R
Components
  • Organelle or cellular component: Alpha-Synuclein G14R
    • Protein or peptide: Alpha-synuclein

-
Supramolecule #1: Alpha-Synuclein G14R

SupramoleculeName: Alpha-Synuclein G14R / type: organelle_or_cellular_component / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 14.46 kDa/nm

-
Macromolecule #1: Alpha-synuclein

MacromoleculeName: Alpha-synuclein / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 14.576251 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MDVFMKGLSK AKERVVAAAE KTKQGVAEAA GKTKEGVLYV GSKTKEGVVH GVATVAEKTK EQVTNVGGAV VTGVTAVAQK TVEGAGSIA AATGFVKKDQ LGKNEEGAPQ EGILEDMPVD PDNEAYEMPS EEGYQDYEPE A

UniProtKB: Alpha-synuclein

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: OTHER / Nominal defocus max: 2.4 µm / Nominal defocus min: 1.2 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: INSILICO MODEL / In silico model: Featureless cylinder
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.0 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 128762
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
