- EMDB-51836: 50S subunit precursor C-CP_YjgA_L22 -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-51836
Title50S subunit precursor C-CP_YjgA_L22
Map data
Sample
  • Complex: pre50S precursor derived from Api137-treated cells
    • Protein or peptide: x 7 types
    • RNA: x 2 types
  • Protein or peptide: x 18 types
Keywordsribosome / antimicrobial peptide / RNA / ribosomal protein / PrAMP / proline-rich peptide / antibiotics / 50S / Api137
Function / homology
Function and homology information


ribosomal large subunit binding / transcriptional attenuation / positive regulation of ribosome biogenesis / endoribonuclease inhibitor activity / RNA-binding transcription regulator activity / negative regulation of cytoplasmic translation / translation repressor activity / mRNA regulatory element binding translation repressor activity / assembly of large subunit precursor of preribosome / ribosome assembly ...ribosomal large subunit binding / transcriptional attenuation / positive regulation of ribosome biogenesis / endoribonuclease inhibitor activity / RNA-binding transcription regulator activity / negative regulation of cytoplasmic translation / translation repressor activity / mRNA regulatory element binding translation repressor activity / assembly of large subunit precursor of preribosome / ribosome assembly / cytosolic ribosome assembly / response to reactive oxygen species / regulation of cell growth / DNA-templated transcription termination / response to radiation / mRNA 5'-UTR binding / ribosome biogenesis / large ribosomal subunit / ribosome binding / 5S rRNA binding / ribosomal large subunit assembly / large ribosomal subunit rRNA binding / cytosolic large ribosomal subunit / cytoplasmic translation / tRNA binding / negative regulation of translation / rRNA binding / ribosome / structural constituent of ribosome / translation / response to antibiotic / negative regulation of DNA-templated transcription / mRNA binding / DNA binding / RNA binding / zinc ion binding / cytosol / cytoplasm
Similarity search - Function
Ribosome-associated, YjgA / PSPTO4464-like domain superfamily / Dual-action ribosomal maturation protein DarP / Ribosomal protein L25, short-form / : / Ribosomal protein L21, conserved site / Ribosomal protein L21 signature. / Ribosomal protein L6, conserved site / Ribosomal protein L6 signature 1. / : ...Ribosome-associated, YjgA / PSPTO4464-like domain superfamily / Dual-action ribosomal maturation protein DarP / Ribosomal protein L25, short-form / : / Ribosomal protein L21, conserved site / Ribosomal protein L21 signature. / Ribosomal protein L6, conserved site / Ribosomal protein L6 signature 1. / : / Ribosomal protein L9 signature. / Ribosomal protein L9, bacteria/chloroplast / Ribosomal protein L9, C-terminal / Ribosomal protein L9, C-terminal domain / Ribosomal protein L9, C-terminal domain superfamily / Ribosomal protein L17 signature. / Ribosomal L25p family / Ribosomal protein L25 / Ribosomal protein L36 signature. / Ribosomal protein L28/L24 superfamily / Ribosomal protein L32p, bacterial type / Ribosomal protein L25/Gln-tRNA synthetase, N-terminal / Ribosomal protein L25/Gln-tRNA synthetase, anti-codon-binding domain superfamily / Ribosomal protein L9, N-terminal domain superfamily / Ribosomal protein L9 / Ribosomal protein L9, N-terminal / Ribosomal protein L9, N-terminal domain / : / Ribosomal protein L28 / Ribosomal protein L5, bacterial-type / Ribosomal protein L18, bacterial-type / : / Ribosomal protein L6, bacterial-type / Ribosomal protein L9/RNase H1, N-terminal / Ribosomal protein L36 / Ribosomal protein L36 superfamily / Ribosomal protein L36 / Ribosomal protein L19, conserved site / Ribosomal protein L19 signature. / Ribosomal protein L27, conserved site / Ribosomal protein L27 signature. / Ribosomal protein L20 signature. / Ribosomal protein L22, bacterial/chloroplast-type / Ribosomal protein L14P, bacterial-type / Ribosomal protein L34, conserved site / Ribosomal protein L34 signature. / Ribosomal L28 family / Ribosomal protein L28/L24 / Ribosomal protein L18 / Ribosomal L18 of archaea, bacteria, mitoch. and chloroplast / Ribosomal protein L30, bacterial-type / : / L28p-like / Ribosomal protein L27 / Ribosomal L27 protein / Ribosomal protein L20 / Ribosomal L32p protein family / Ribosomal protein L19 / Ribosomal protein L19 / Ribosomal protein L20 / Ribosomal protein L20, C-terminal / Ribosomal protein L19 superfamily / Ribosomal protein L21 / Ribosomal protein L17 / Ribosomal protein L32p / Ribosomal protein L17 superfamily / Ribosomal protein L17 / Ribosomal proteins 50S L24/mitochondrial 39S L24 / Ribosomal protein L21-like / L21-like superfamily / Ribosomal prokaryotic L21 protein / Ribosomal protein L24 / Ribosomal protein L34 / Ribosomal protein L34 / Ribosomal protein L13, bacterial-type / Ribosomal protein L3, bacterial/organelle-type / Ribosomal protein L15, bacterial-type / 50S ribosomal protein uL4 / Ribosomal protein L23/L25, conserved site / Ribosomal protein L23 signature. / Ribosomal protein L30, conserved site / Ribosomal protein L30 signature. / Ribosomal protein L5, conserved site / Ribosomal protein L5 signature. / Ribosomal protein L29, conserved site / Ribosomal protein L29 signature. / Ribosomal protein L5, N-terminal / Ribosomal protein L5 / Ribosomal protein L15, conserved site / Ribosomal protein L15 signature. / Ribosomal protein L5, C-terminal / ribosomal L5P family C-terminus / Ribosomal protein L5 / Ribosomal protein L5 domain superfamily / Ribosomal protein L6, alpha-beta domain / Ribosomal protein L6 / Ribosomal protein L6 / Ribosomal protein L6, alpha-beta domain superfamily / Ribosomal protein L13 signature. / Ribosomal protein L13, conserved site
Similarity search - Domain/homology
Large ribosomal subunit protein uL15 / Large ribosomal subunit protein bL19 / Large ribosomal subunit protein bL20 / Large ribosomal subunit protein bL27 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL29 / Large ribosomal subunit protein bL32 / Large ribosomal subunit protein bL34 / Large ribosomal subunit protein bL36A / Large ribosomal subunit protein bL9 ...Large ribosomal subunit protein uL15 / Large ribosomal subunit protein bL19 / Large ribosomal subunit protein bL20 / Large ribosomal subunit protein bL27 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL29 / Large ribosomal subunit protein bL32 / Large ribosomal subunit protein bL34 / Large ribosomal subunit protein bL36A / Large ribosomal subunit protein bL9 / Dual-action ribosomal maturation protein DarP / Large ribosomal subunit protein uL13 / Large ribosomal subunit protein uL14 / Large ribosomal subunit protein uL23 / Large ribosomal subunit protein bL17 / Large ribosomal subunit protein bL21 / Large ribosomal subunit protein uL30 / Large ribosomal subunit protein uL6 / Large ribosomal subunit protein uL18 / Large ribosomal subunit protein uL3 / Large ribosomal subunit protein uL24 / Large ribosomal subunit protein uL4 / Large ribosomal subunit protein uL22 / Large ribosomal subunit protein uL5 / Large ribosomal subunit protein bL25
Similarity search - Component
Biological speciesEscherichia coli (E. coli)
Methodsingle particle reconstruction / cryo EM / Resolution: 4.16 Å
AuthorsLauer S / Nikolay R / Spahn CMT
Funding support Germany, 4 items
OrganizationGrant numberCountry
German Federal Ministry for Education and Research16GW0300 Germany
German Federal Ministry for Education and Research16GW0299K Germany
German Research Foundation (DFG)EXC2008/1-390540038 Germany
German Research Foundation (DFG)INST 335/588-1 FUGG Germany
CitationJournal: Nat Commun / Year: 2025
Title: The proline-rich antimicrobial peptide Api137 disrupts large ribosomal subunit assembly and induces misfolding.
Authors: Simon Malte Lauer / Jakob Gasse / Andor Krizsan / Maren Reepmeyer / Thiemo Sprink / Rainer Nikolay / Christian M T Spahn / Ralf Hoffmann /
Abstract: The proline-rich antimicrobial designer peptide Api137 inhibits protein expression in bacteria by binding simultaneously to the ribosomal polypeptide exit tunnel and the release factor (RF), ...The proline-rich antimicrobial designer peptide Api137 inhibits protein expression in bacteria by binding simultaneously to the ribosomal polypeptide exit tunnel and the release factor (RF), depleting the cellular RF pool and leading to ribosomal arrest at stop codons. This study investigates the additional effect of Api137 on the assembly of ribosomes using an Escherichia coli reporter strain expressing one ribosomal protein per 30S and 50S subunit tagged with mCherry and EGFP, respectively. Separation of cellular extracts derived from cells exposed to Api137 in a sucrose gradient reveals elevated levels of partially assembled and not fully matured precursors of the 50S subunit (pre-50S). High-resolution structures obtained by cryogenic electron microscopy demonstrate that a large proportion of pre-50S states are missing up to five proteins (uL22, bL32, uL29, bL23, and uL16) and have misfolded helices in 23S rRNA domain IV. These data suggest a second mechanism for Api137, wherein it disrupts 50S subunit assembly by inducing the formation of misfolded precursor particles potentially incapable of evolving into active ribosomes, suggesting a bactericidal mechanism.
History
DepositionOct 17, 2024-
Header (metadata) releaseJan 22, 2025-
Map releaseJan 22, 2025-
UpdateJan 22, 2025-
Current statusJan 22, 2025Processing site: PDBe / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_51836.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.41 Å/pix.
x 300 pix.
= 424. Å		1.41 Å/pix.
x 300 pix.
= 424. Å		1.41 Å/pix.
x 300 pix.
= 424. Å

Surface

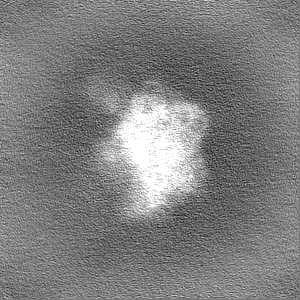

Projections

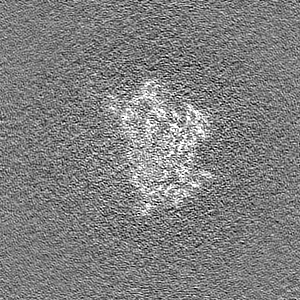

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.41333 Å
Density

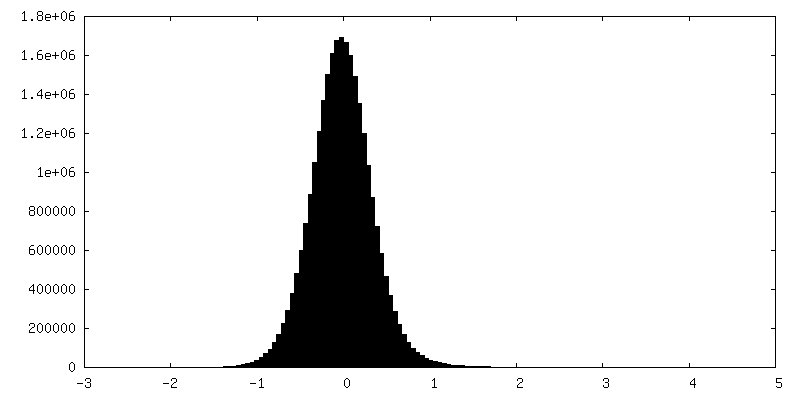

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.292
Minimum - Maximum-0.39719108 - 1.6590044
Average (Standard dev.)0.0008351865 (±0.09147947)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 424.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_51836_msk_1.map
Projections & Slices
AxesZYX

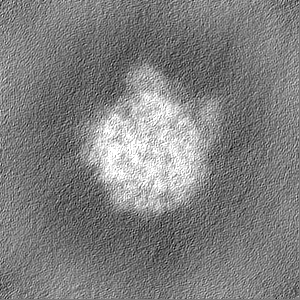

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_51836_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_51836_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : pre50S precursor derived from Api137-treated cells

EntireName: pre50S precursor derived from Api137-treated cells
Components
  • Complex: pre50S precursor derived from Api137-treated cells
    • Protein or peptide: Large ribosomal subunit protein bL32
    • Protein or peptide: Large ribosomal subunit protein bL34
    • Protein or peptide: Large ribosomal subunit protein bL36A
    • RNA: 23S ribosomal RNA
    • RNA: 5S ribosomal RNA
    • Protein or peptide: UPF0307 protein YjgA
    • Protein or peptide: 50S ribosomal protein L3
    • Protein or peptide: Large ribosomal subunit protein uL4
    • Protein or peptide: Large ribosomal subunit protein uL5
  • Protein or peptide: Large ribosomal subunit protein uL6
  • Protein or peptide: Large ribosomal subunit protein bL9
  • Protein or peptide: Large ribosomal subunit protein uL13
  • Protein or peptide: Large ribosomal subunit protein uL14
  • Protein or peptide: Large ribosomal subunit protein uL15
  • Protein or peptide: Large ribosomal subunit protein bL17
  • Protein or peptide: Large ribosomal subunit protein uL18
  • Protein or peptide: Large ribosomal subunit protein bL19
  • Protein or peptide: Large ribosomal subunit protein bL20
  • Protein or peptide: Large ribosomal subunit protein bL21
  • Protein or peptide: Large ribosomal subunit protein uL22
  • Protein or peptide: Large ribosomal subunit protein uL23
  • Protein or peptide: Large ribosomal subunit protein uL24
  • Protein or peptide: Large ribosomal subunit protein bL25
  • Protein or peptide: Large ribosomal subunit protein bL27
  • Protein or peptide: Large ribosomal subunit protein bL28
  • Protein or peptide: Large ribosomal subunit protein uL29
  • Protein or peptide: Large ribosomal subunit protein uL30

+
Supramolecule #1: pre50S precursor derived from Api137-treated cells

SupramoleculeName: pre50S precursor derived from Api137-treated cells / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#9
Source (natural)Organism: Escherichia coli (E. coli)

+
Macromolecule #1: Large ribosomal subunit protein bL32

MacromoleculeName: Large ribosomal subunit protein bL32 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 6.332249 KDa
SequenceString:
AVQQNKPTRS KRGMRRSHDA LTAVTSLSVD KTSGEKHLRH HITADGYYRG RKVIAK

UniProtKB: Large ribosomal subunit protein bL32

+
Macromolecule #2: Large ribosomal subunit protein bL34

MacromoleculeName: Large ribosomal subunit protein bL34 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 5.397463 KDa
SequenceString:
MKRTFQPSVL KRNRSHGFRA RMATKNGRQV LARRRAKGRA RLTVSK

UniProtKB: Large ribosomal subunit protein bL34

+
Macromolecule #3: Large ribosomal subunit protein bL36A

MacromoleculeName: Large ribosomal subunit protein bL36A / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 4.37739 KDa
SequenceString:
MKVRASVKKL CRNCKIVKRD GVIRVICSAE PKHKQRQG

UniProtKB: Large ribosomal subunit protein bL36A

+
Macromolecule #6: UPF0307 protein YjgA

MacromoleculeName: UPF0307 protein YjgA / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 21.395318 KDa
SequenceString:
MTKQPEDWLD DVPGDDIEDE DDEIIWVSKS EIKRDAEELK RLGAEIVDLG KNALDKIPLD ADLRAAIELA QRIKMEGRRR QLQLIGKML RQRDVEPIRQ ALDKLKNRHN QQVVLFHKLE NLRDRLIDQG DDAIAEVLNL WPDADRQQLR TLIRNAKKEK E GNKPPKSA RQIFQYLREL AENEG

UniProtKB: Dual-action ribosomal maturation protein DarP

+
Macromolecule #7: 50S ribosomal protein L3

MacromoleculeName: 50S ribosomal protein L3 / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 22.277535 KDa
SequenceString: MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN QTPGKVFKGK K MAGQMGNE ...String:
MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN QTPGKVFKGK K MAGQMGNE RVTVQSLDVV RVDAERNLLL VKGAVPGATG SDLIVKPAVK A

UniProtKB: Large ribosomal subunit protein uL3

+
Macromolecule #8: Large ribosomal subunit protein uL4

MacromoleculeName: Large ribosomal subunit protein uL4 / type: protein_or_peptide / ID: 8 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 22.121566 KDa
SequenceString: MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD ...String:
MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD VRDATGIDPV SLIAFDKVVM TADAVKQVEE MLA

UniProtKB: Large ribosomal subunit protein uL4

+
Macromolecule #9: Large ribosomal subunit protein uL5

MacromoleculeName: Large ribosomal subunit protein uL5 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 20.073234 KDa
SequenceString:
AKLHDYYKDE VVKKLMTEFN YNSVMQVPRV EKITLNMGVG EAIADKKLLD NAAADLAAIS GQKPLITKAR KSVAGFKIRQ GYPIGCKVT LRGERMWEFF ERLITIAVPR IRDFRGLSAK SFDGRGNYSM GVREQIIFPE IDYDKVDRVR GLDITITTTA K SDEEGRAL LAAFDFPFR

UniProtKB: Large ribosomal subunit protein uL5

+
Macromolecule #10: Large ribosomal subunit protein uL6

MacromoleculeName: Large ribosomal subunit protein uL6 / type: protein_or_peptide / ID: 10 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 18.801598 KDa
SequenceString:
SRVAKAPVVV PAGVDVKING QVITIKGKNG ELTRTLNDAV EVKHADNTLT FGPRDGYADG WAQAGTARAL LNSMVIGVTE GFTKKLQLV GVGYRAAVKG NVINLSLGFS HPVDHQLPAG ITAECPTQTE IVLKGADKQV IGQVAADLRA YRRPEPYKGK G VRYADEVV RTKEAKKK

UniProtKB: Large ribosomal subunit protein uL6

+
Macromolecule #11: Large ribosomal subunit protein bL9

MacromoleculeName: Large ribosomal subunit protein bL9 / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 15.78902 KDa
SequenceString:
MQVILLDKVA NLGSLGDQVN VKAGYARNFL VPQGKAVPAT KKNIEFFEAR RAELEAKLAE VLAAANARAE KINALETVTI ASKAGDEGK LFGSIGTRDI ADAVTAAGVE VAKSEVRLPN GVLRTTGEHE VSFQVHSEVF AKVIVNVVAE

UniProtKB: Large ribosomal subunit protein bL9

+
Macromolecule #12: Large ribosomal subunit protein uL13

MacromoleculeName: Large ribosomal subunit protein uL13 / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 16.050606 KDa
SequenceString:
MKTFTAKPET VKRDWYVVDA TGKTLGRLAT ELARRLRGKH KAEYTPHVDT GDYIIVLNAD KVAVTGNKRT DKVYYHHTGH IGGIKQATF EEMIARRPER VIEIAVKGML PKGPLGRAMF RKLKVYAGNE HNHAAQQPQV LDI

UniProtKB: Large ribosomal subunit protein uL13

+
Macromolecule #13: Large ribosomal subunit protein uL14

MacromoleculeName: Large ribosomal subunit protein uL14 / type: protein_or_peptide / ID: 13 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 13.45191 KDa
SequenceString:
MIQEQTMLNV ADNSGARRVM CIKVLGGSHR RYAGVGDIIK ITIKEAIPRG KVKKGDVLKA VVVRTKKGVR RPDGSVIRFD GNACVLLNN NSEQPIGTRI FGPVTRELRS EKFMKIISLA PEV

UniProtKB: Large ribosomal subunit protein uL14

+
Macromolecule #14: Large ribosomal subunit protein uL15

MacromoleculeName: Large ribosomal subunit protein uL15 / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 14.877273 KDa
SequenceString:
RLNTLSPAEG SKKAGKRLGR GIGSGLGKTG GRGHKGQKSR SGGGVRRGFE GGQMPLYRRL PKFGFTSRKA AITAEIRLSD LAKVEGGVV DLNTLKAANI IGIQIEFAKV ILAGEVTTPV TVRGLRVTKG ARAAIEAAGG KIEE

UniProtKB: Large ribosomal subunit protein uL15

+
Macromolecule #15: Large ribosomal subunit protein bL17

MacromoleculeName: Large ribosomal subunit protein bL17 / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 13.721938 KDa
SequenceString:
MRHRKSGRQL NRNSSHRQAM FRNMAGSLVR HEIIKTTLPK AKELRRVVEP LITLAKTDSV ANRRLAFART RDNEIVAKLF NELGPRFAS RAGGYTRILK CGFRAGDNAP MAYIELVDRS E

UniProtKB: Large ribosomal subunit protein bL17

+
Macromolecule #16: Large ribosomal subunit protein uL18

MacromoleculeName: Large ribosomal subunit protein uL18 / type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 12.663471 KDa
SequenceString:
DKKSARIRRA TRARRKLQEL GATRLVVHRT PRHIYAQVIA PNGSEVLVAA STVEKAIAEQ LKYTGNKDAA AAVGKAVAER ALEKGIKDV SFDRSGFQYH GRVQALADAA REAGLQF

UniProtKB: Large ribosomal subunit protein uL18

+
Macromolecule #17: Large ribosomal subunit protein bL19

MacromoleculeName: Large ribosomal subunit protein bL19 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 13.028082 KDa
SequenceString:
SNIIKQLEQE QMKQDVPSFR PGDTVEVKVW VVEGSKKRLQ AFEGVVIAIR NRGLHSAFTV RKISNGEGVE RVFQTHSPVV DSISVKRRG AVRKAKLYYL RERTGKAARI KERLN

UniProtKB: Large ribosomal subunit protein bL19

+
Macromolecule #18: Large ribosomal subunit protein bL20

MacromoleculeName: Large ribosomal subunit protein bL20 / type: protein_or_peptide / ID: 18 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 13.396828 KDa
SequenceString:
ARVKRGVIAR ARHKKILKQA KGYYGARSRV YRVAFQAVIK AGQYAYRDRR QRKRQFRQLW IARINAAARQ NGISYSKFIN GLKKASVEI DRKILADIAV FDKVAFTALV EKAKAALA

UniProtKB: Large ribosomal subunit protein bL20

+
Macromolecule #19: Large ribosomal subunit protein bL21

MacromoleculeName: Large ribosomal subunit protein bL21 / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 11.586374 KDa
SequenceString:
MYAVFQSGGK QHRVSEGQTV RLEKLDIATG ETVEFAEVLM IANGEEVKIG VPFVDGGVIK AEVVAHGRGE KVKIVKFRRR KHYRKQQGH RQWFTDVKIT GISA

UniProtKB: Large ribosomal subunit protein bL21

+
Macromolecule #20: Large ribosomal subunit protein uL22

MacromoleculeName: Large ribosomal subunit protein uL22 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 12.253359 KDa
SequenceString:
METIAKHRHA RSSAQKVRLV ADLIRGKKVS QALDILTYTN KKAAVLVKKV LESAIANAEH NDGADIDDLK VTKIFVDEGP SMKRIMPRA KGRADRILKR TSHITVVVSD R

UniProtKB: Large ribosomal subunit protein uL22

+
Macromolecule #21: Large ribosomal subunit protein uL23

MacromoleculeName: Large ribosomal subunit protein uL23 / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 10.546472 KDa
SequenceString:
MIREERLLKV LRAPHVSEKA STAMEKSNTI VLKVAKDATK AEIKAAVQKL FEVEVEVVNT LVVKGKVKRH GQRIGRRSDW KKAYVTLKE GQNL

UniProtKB: Large ribosomal subunit protein uL23

+
Macromolecule #22: Large ribosomal subunit protein uL24

MacromoleculeName: Large ribosomal subunit protein uL24 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 11.078874 KDa
SequenceString:
AAKIRRDDEV IVLTGKDKGK RGKVKNVLSS GKVIVEGINL VKKHQKPVPA LNQPGGIVEK EAAIQVSNVA IFNAATGKAD RVGFRFEDG KKVRFFKSNS ETI

UniProtKB: Large ribosomal subunit protein uL24

+
Macromolecule #23: Large ribosomal subunit protein bL25

MacromoleculeName: Large ribosomal subunit protein bL25 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 10.713465 KDa
SequenceString:
MFTINAEVRK EQGKGASRRL RAANKFPAII YGGKEAPLAI ELDHDKVMNM QAKAEFYSEV LTIVVDGKEI KVKAQDVQRH PYKPKLQHI DFVRA

UniProtKB: Large ribosomal subunit protein bL25

+
Macromolecule #24: Large ribosomal subunit protein bL27

MacromoleculeName: Large ribosomal subunit protein bL27 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 8.174394 KDa
SequenceString:
RNGRDSEAKR LGVKRFGGES VLAGSIIVRQ RGTKFHAGAN VGCGRDHTLF AKADGKVKFE VKGPKNRKFI SIEAE

UniProtKB: Large ribosomal subunit protein bL27

+
Macromolecule #25: Large ribosomal subunit protein bL28

MacromoleculeName: Large ribosomal subunit protein bL28 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 8.896354 KDa
SequenceString:
SRVCQVTGKR PVTGNNRSHA LNATKRRFLP NLHSHRFWVE SEKRFVTLRV SAKGMRVIDK KGIDTVLAEL RARGEKY

UniProtKB: Large ribosomal subunit protein bL28

+
Macromolecule #26: Large ribosomal subunit protein uL29

MacromoleculeName: Large ribosomal subunit protein uL29 / type: protein_or_peptide / ID: 26 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 7.286464 KDa
SequenceString:
MKAKELREKS VEELNTELLN LLREQFNLRM QAASGQLQQS HLLKQVRRDV ARVKTLLNEK AGA

UniProtKB: Large ribosomal subunit protein uL29

+
Macromolecule #27: Large ribosomal subunit protein uL30

MacromoleculeName: Large ribosomal subunit protein uL30 / type: protein_or_peptide / ID: 27 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 6.423625 KDa
SequenceString:
AKTIKITQTR SAIGRLPKHK ATLLGLGLRR IGHTVEREDT PAIRGMINAV SFMVKVEE

UniProtKB: Large ribosomal subunit protein uL30

+
Macromolecule #4: 23S ribosomal RNA

MacromoleculeName: 23S ribosomal RNA / type: rna / ID: 4 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 941.32125 KDa
SequenceString: GGUUAAGCGA CUAAGCGUAC ACGGUGGAUG CCCUGGCAGU CAGAGGCGAU GAAGGACGUG CUAAUCUGCG AUAAGCGUCG GUAAGGUGA UAUGAACCGU UAUAACCGGC GAUUUCCGAA UGGGGAAACC CAGUGUGUUU CGACACACUA UCAUUAACUG A AUCCAUAG ...String:
GGUUAAGCGA CUAAGCGUAC ACGGUGGAUG CCCUGGCAGU CAGAGGCGAU GAAGGACGUG CUAAUCUGCG AUAAGCGUCG GUAAGGUGA UAUGAACCGU UAUAACCGGC GAUUUCCGAA UGGGGAAACC CAGUGUGUUU CGACACACUA UCAUUAACUG A AUCCAUAG GUUAAUGAGG CGAACCGGGG GAACUGAAAC AUCUAAGUAC CCCGAGGAAA AGAAAUCAAC CGAGAUUCCC CC AGUAGCG GCGAGCGAAC GGGGAGCAGC CCAGAGCCUG AAUCAGUGUG UGUGUUAGUG GAAGCGUCUG GAAAGGCGCG CGA UACAGG GUGACAGCCC CGUACACAAA AAUGCACAUG CUGUGAGCUC GAUGAGUAGG GCGGGACACG UGGUAUCCUG UCUG AAUAU GGGGGGACCA UCCUCCAAGG CUAAAUACUC CUGACUGACC GAUAGUGAAC CAGUACCGUG AGGGAAAGGC GAAAA GAAC CCCGGCGAGG GGAGUGAAAA AGAACCUGAA ACCGUGUACG UACAAGCAGU GGGAGCACGC UUAGGCGUGU GACUGC GUA CCUUUUGUAU AAUGGGUCAG CGACUUAUAU UCUGUAGCAA GGUUAACCGA AUAGGGGAGC CGAAGGGAAA CCGAGUC UU AACUGGGCGU UAAGUUGCAG GGUAUAGACC CGAAACCCGG UGAUCUAGCC AUGGGCAGGU UGAAGGUUGG GUAACACU A ACUGGAGGAC CGAACCGACU AAUGUCGAAA AAUUAGCGGA UGACUUGUGG CUGGGGGUGA AAGGCCAAUC AAACCGGGA GAUAGCUGGU UCUCCCCGAA AGCUAUUUAG GUAGCGCCUC GUGAAUUCAU CUCCGGGGGU AGAGCACUGU UUCGGCAAGG GGGUCAUCC CGACUUACCA ACCCGAUGCA AACUGCGAAU ACCGGAGAAU GUUAUCACGG GAGACACACG GCGGGUGCUA A CGUCCGUC GUGAAGAGGG AAACAACCCA GACCGCCAGC UAAGGUCCCA AAGUCAUGGU UAAGUGGGAA ACGAUGUGGG AA GGCCCAG ACAGCCAGGA UGUUGGCUUA GAAGCAGCCA UCAUUUAAAG AAAGCGUAAU AGCUCACUGG UCGAGUCGGC CUG CGCGGA AGAUGUAACG GGGCUAAACC AUGCACCGAA GCUGCGGCAG CGACGCUUAU GCGUUGUUGG GUAGGGGAGC GUUC UGUAA GCCUGCGAAG GUGUGCUGUG AGGCAUGCUG GAGGUAUCAG AAGUGCGAAU GCUGACAUAA GUAACGAUAA AGCGG GUGA AAAGCCCGCU CGCCGGAAGA CCAAGGGUUC CUGUCCAACG UUAAUCGGGG CAGGGUGAGU CGACCCCUAA GGCGAG GCC GAAAGGCGUA GUCGAUGGGA AACAGGUUAA UAUUCCUGUA CUUGGUGUUA CUGCGAAGGG GGGACGGAGA AGGCUAU GU UGGCCGGGCG ACGGUUGUCC CGGUUUAAGC GUGUAGGCUG GUUUUCCAGG CAAAUCCGGA AAAUCAAGGC UGAGGCGU G AUGACGAGGC ACUACGGUGC UGAAGCAACA AAUGCCCUGC UUCCAGGAAA AGCCUCUAAG CAUCAGGUAA CAUCAAAUC GUACCCCAAA CCGACACAGG UGGUCAGGUA GAGAAUACCA AGGCGCUUGA GAGAACUCGG GUGAAGGAAC UAGGCAAAAU GGUGCCGUA ACUUCGGGAG AAGGCACGCU GAUAUGUAGG UGAGGUCCCU CGCGGAUGGA GCUGAAAUCA GUCGAAGAUA C CAGCUGGC UGCAACUGUU UAUUAAAAAC ACAGCACUGU GCAAACACGA AAGUGGACGU AUACGGUGUG ACGCCUGCCC GG UGCCGGG AGGUUAAUUG AUGGGGUUAG CGCAAGCGAA GCUCUUGAUC GAAGCCCCGG UAAACGGCGG CCGUAACUAU AAC GGUCCU AAGGUAGCGA AAUUCCUUGU CGGGUAAGUU CCGACCUGCA CGAAUGGCGU AAUGAUGGCC AGGCUGUCUC CACC CGAGA CUCAGUGAAA UUGAACUCGC UGUGAAGAUG CAGUGUACCC GCGGCAAGAC GGAAAGACCC CGUGAACCUU UACUA UAGC UUGACACUGA ACAUUGAGCC UUGAUGUGUA GGAUAGGUGG GAGGCUUUGA AGUGUGGACG CCAGUCUGCA UGGAGC CGA CCUUGAAAUA CCACCCUUUA AUGUUUGAUG UUCUAACGUU GACCCGUAAU CCGGGUUGCG GACAGUGUCU GGUGGGU AG UUUGACUGGG GCGGUCUCCU CCUAAAGAGU AACGGAGGAG CACGAAGGUU GGCUAAUCCU GGUCGGACAU CAGGAGGU U AGUGCAAUGG CAUAAGCCAG CUUGACUGCG AGCGUGACGG CGCGAGCAGG UGCGAAAGCA GGUCAUAGUG AUCCGGUGG UUCUGAAUGG AAGGGCCAUC GCUCAACGGA UAAAAGGUAC UCCGGGGAUA ACAGGCUGAU ACCGCCCAAG AGUUCAUAUC GACGGCGGU GUUUGGCACC UCGAUGUCGG CUCAUCACAU CCUGGGGCUG AAGUAGGUCC CAAGGGUAUG GCUGUUCGCC A UUUAAAGU GGUACGCGAG CUGGGUUUAG AACGUCGUGA GACAGUUCGG UCCCUAUCUG CCGUGGGCGC UGGAGAACUG AG GGGGGCU GCUCCUAGUA CGAGAGGACC GGAGUGGACG CAUCACUGGU GUUCGGGUUG UCAUGCCAAU GGCACUGCCC GGU AGCUAA AUGCGGAAGA GAUAAGUGCU GAAAGCAUCU AAGCACGAAA CUUGCCCCGA GAUGAGUUCU CCCUGACCCU UUAA GGGUC CUGAAGGAAC GUUGAAGACG ACGACGUUGA UAGGCCGGGU GUGUAAGCGC AGCGAUGCGU UGAGCUAACC GGUAC UAAU GAACCGUGAG GCUUAACCU

+
Macromolecule #5: 5S ribosomal RNA

MacromoleculeName: 5S ribosomal RNA / type: rna / ID: 5 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli) / Strain: MC4100
Molecular weightTheoretical: 38.813133 KDa
SequenceString:
UGCCUGGCGG CCGUAGCGCG GUGGUCCCAC CUGACCCCAU GCCGAACUCA GAAGUGAAAC GCCGUAGCGC CGAUGGUAGU GUGGGGUCU CCCCAUGCGA GAGUAGGGAA CUGCCAGGCA A

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Number real images: 2704 / Average exposure time: 1.17 sec. / Average electron dose: 45.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 100.0 µm / Illumination mode: OTHER / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 81000
Sample stageCooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 4.16 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 10197
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 4.21)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelPDB ID:

8rpy


Chain - Source name: PDB / Chain - Initial model type: experimental model
RefinementSpace: REAL / Protocol: RIGID BODY FIT
Output model

PDB-9h3s:
50S subunit precursor C-CP_YjgA_L22

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
