- EMDB-49676: KDM6B-nucleosome structure stabilized by H3K27C-UNC8015 covalent ... -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-49676
TitleKDM6B-nucleosome structure stabilized by H3K27C-UNC8015 covalent conjugate
Map datacomposite map
Sample
  • Complex: KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent conjugate
    • Complex: histones of nucleosome
      • Protein or peptide: Histone H3.2
      • Protein or peptide: Histone H4
      • Protein or peptide: Histone H2A type 1
      • Protein or peptide: Histone H2B type 1-C/E/F/G/I
    • Complex: Widom601 sequence with 20 bp linker DNA at both ends.
      • DNA: DNA (185-MER)
      • DNA: DNA (185-MER)
    • Complex: Mouse KDM6B C-terminal domain
      • Protein or peptide: Lysine-specific demethylase 6B
  • Ligand: FE (III) ION
  • Ligand: ZINC ION
  • Ligand: N-heptanoyl-N-hydroxy-beta-alanine
Keywordshistone H3K27 demethylation / GENE REGULATION / histone / chromatin / epigenetics / GENE REGULATION-DNA complex
Function / homology
Function and homology information


[histone H3]-trimethyl-L-lysine27 demethylase / HDMs demethylate histones / histone H3K27me2/H3K27me3 demethylase activity / endothelial cell differentiation / Oxidative Stress Induced Senescence / cardiac muscle cell differentiation / inflammatory response to antigenic stimulus / mesodermal cell differentiation / cell fate commitment / negative regulation of megakaryocyte differentiation ...[histone H3]-trimethyl-L-lysine27 demethylase / HDMs demethylate histones / histone H3K27me2/H3K27me3 demethylase activity / endothelial cell differentiation / Oxidative Stress Induced Senescence / cardiac muscle cell differentiation / inflammatory response to antigenic stimulus / mesodermal cell differentiation / cell fate commitment / negative regulation of megakaryocyte differentiation / protein localization to CENP-A containing chromatin / Chromatin modifying enzymes / Replacement of protamines by nucleosomes in the male pronucleus / response to fungicide / CENP-A containing nucleosome / Packaging Of Telomere Ends / Recognition and association of DNA glycosylase with site containing an affected purine / Cleavage of the damaged purine / Deposition of new CENPA-containing nucleosomes at the centromere / Recognition and association of DNA glycosylase with site containing an affected pyrimidine / Cleavage of the damaged pyrimidine / telomere organization / Interleukin-7 signaling / Inhibition of DNA recombination at telomere / RNA Polymerase I Promoter Opening / Meiotic synapsis / Assembly of the ORC complex at the origin of replication / SUMOylation of chromatin organization proteins / Regulation of endogenous retroelements by the Human Silencing Hub (HUSH) complex / DNA methylation / Condensation of Prophase Chromosomes / Chromatin modifications during the maternal to zygotic transition (MZT) / HCMV Late Events / SIRT1 negatively regulates rRNA expression / ERCC6 (CSB) and EHMT2 (G9a) positively regulate rRNA expression / PRC2 methylates histones and DNA / innate immune response in mucosa / hippocampus development / response to activity / Regulation of endogenous retroelements by KRAB-ZFP proteins / Defective pyroptosis / Regulation of endogenous retroelements by Piwi-interacting RNAs (piRNAs) / HDACs deacetylate histones / Nonhomologous End-Joining (NHEJ) / RNA Polymerase I Promoter Escape / Transcriptional regulation by small RNAs / Formation of the beta-catenin:TCF transactivating complex / RUNX1 regulates genes involved in megakaryocyte differentiation and platelet function / Activated PKN1 stimulates transcription of AR (androgen receptor) regulated genes KLK2 and KLK3 / HDMs demethylate histones / G2/M DNA damage checkpoint / NoRC negatively regulates rRNA expression / beta-catenin binding / DNA Damage/Telomere Stress Induced Senescence / B-WICH complex positively regulates rRNA expression / PKMTs methylate histone lysines / Meiotic recombination / Pre-NOTCH Transcription and Translation / Metalloprotease DUBs / RMTs methylate histone arginines / Activation of anterior HOX genes in hindbrain development during early embryogenesis / Transcriptional regulation of granulopoiesis / cellular response to hydrogen peroxide / HCMV Early Events / antimicrobial humoral immune response mediated by antimicrobial peptide / structural constituent of chromatin / UCH proteinases / antibacterial humoral response / nucleosome / heterochromatin formation / nucleosome assembly / E3 ubiquitin ligases ubiquitinate target proteins / Recruitment and ATM-mediated phosphorylation of repair and signaling proteins at DNA double strand breaks / HATs acetylate histones / RUNX1 regulates transcription of genes involved in differentiation of HSCs / positive regulation of cold-induced thermogenesis / Factors involved in megakaryocyte development and platelet production / chromatin organization / MLL4 and MLL3 complexes regulate expression of PPARG target genes in adipogenesis and hepatic steatosis / Processing of DNA double-strand break ends / regulation of gene expression / Senescence-Associated Secretory Phenotype (SASP) / Oxidative Stress Induced Senescence / Estrogen-dependent gene expression / sequence-specific DNA binding / gene expression / chromosome, telomeric region / defense response to Gram-positive bacterium / Ub-specific processing proteases / chromatin remodeling / Amyloid fiber formation / protein heterodimerization activity / chromatin binding / enzyme binding / negative regulation of transcription by RNA polymerase II / positive regulation of transcription by RNA polymerase II / protein-containing complex / DNA binding / extracellular space / RNA binding
Similarity search - Function
: / : / : / : / Lysine-specific demethylase 6/UTY, C-terminal helical domain / KDM6, GATA-like / JmjC domain, hydroxylase / A domain family that is part of the cupin metalloenzyme superfamily. / JmjC domain / JmjC domain profile. ...: / : / : / : / Lysine-specific demethylase 6/UTY, C-terminal helical domain / KDM6, GATA-like / JmjC domain, hydroxylase / A domain family that is part of the cupin metalloenzyme superfamily. / JmjC domain / JmjC domain profile. / : / Histone H2B signature. / Histone H2A conserved site / Histone H2A signature. / Histone H2B / Histone H2B / Histone H2A, C-terminal domain / C-terminus of histone H2A / Histone H2A / Histone 2A / TATA box binding protein associated factor / TATA box binding protein associated factor (TAF), histone-like fold domain / Histone H4, conserved site / Histone H4 signature. / Histone H4 / Histone H4 / CENP-T/Histone H4, histone fold / Centromere kinetochore component CENP-T histone fold / Histone H3 signature 1. / Histone H3 signature 2. / Histone H3 / Histone H3/CENP-A / Histone H2A/H2B/H3 / Core histone H2A/H2B/H3/H4 / Histone-fold
Similarity search - Domain/homology
Histone H2A type 1 / Histone H4 / Histone H2B type 1-C/E/F/G/I / Lysine-specific demethylase 6B / Histone H3.2
Similarity search - Component
Biological speciesHomo sapiens (human) / synthetic construct (others) / Mus musculus (house mouse)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.16 Å
AuthorsLin C-C / McGinty RK
Funding support United States, 3 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)R35GM133498 United States
National Institutes of Health/National Cancer Institute (NIH/NCI)R35GM139514 United States
National Institutes of Health/National Cancer Institute (NIH/NCI)R01CA010305 United States
CitationJournal: Mol.Cell / Year: 2025
Title: Structural mechanism of H3K27 demethylation and crosstalk with heterochromatin markers
Authors: Lin C-C / McGinty RK
History
DepositionMar 13, 2025-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateJul 23, 2025-
Current statusJul 23, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_49676.map.gz / Format: CCP4 / Size: 144.7 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Annotationcomposite map

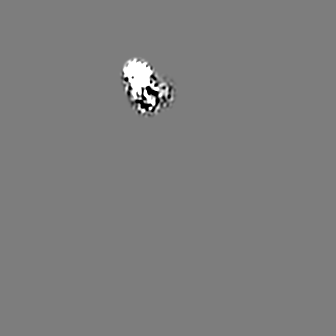

Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.88 Å/pix.
x 336 pix.
= 294.336 Å		0.88 Å/pix.
x 336 pix.
= 294.336 Å		0.88 Å/pix.
x 336 pix.
= 294.336 Å

Surface

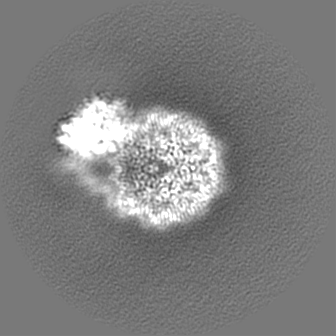

Projections

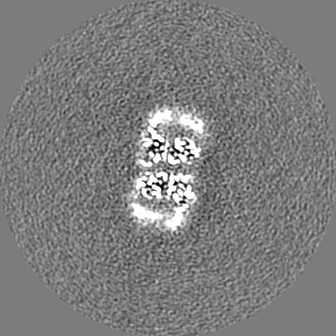

Slices (1/3)

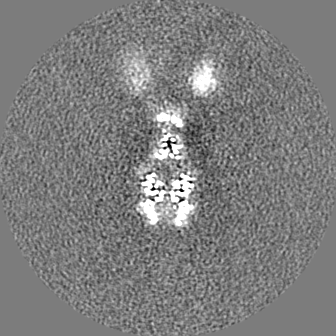

Slices (1/2)

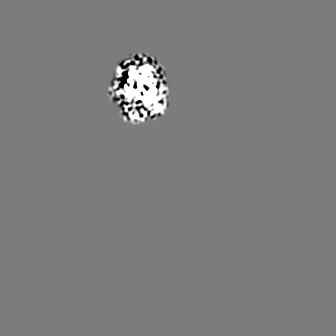

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.876 Å
Density

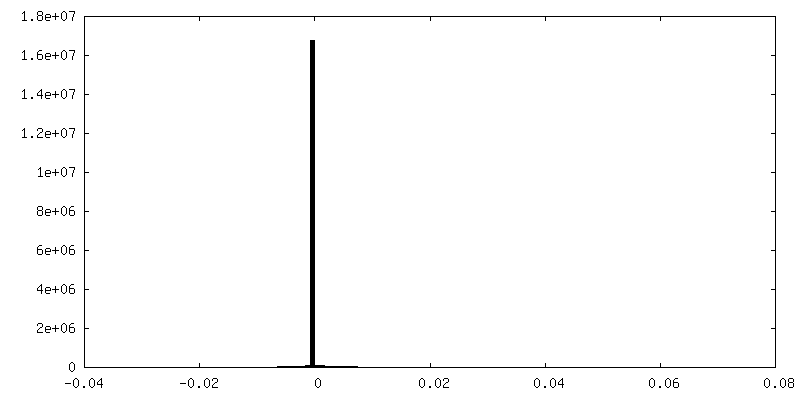

Histogram

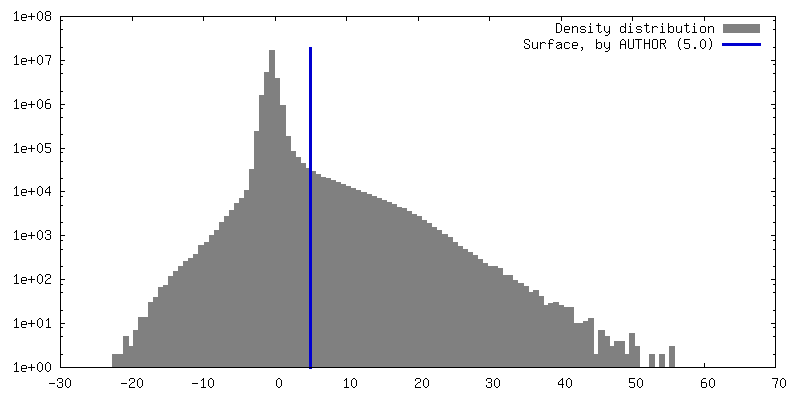

Histogram (log scale)
Contour LevelBy AUTHOR: 5.0
Minimum - Maximum-28.69088 - 61.239944000000001
Average (Standard dev.)0.020908983 (±1.1969961)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions336336336
Spacing336336336
CellA=B=C: 294.336 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Additional map: Overall map (consensus)

Fileemd_49676_additional_1.map
AnnotationOverall map (consensus)

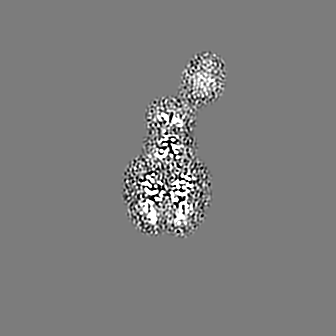

Projections & Slices
AxesZYX

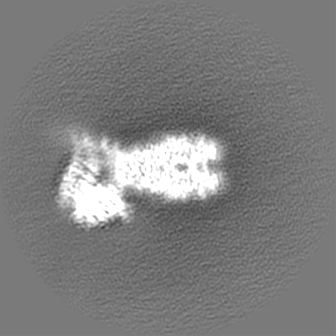

Projections

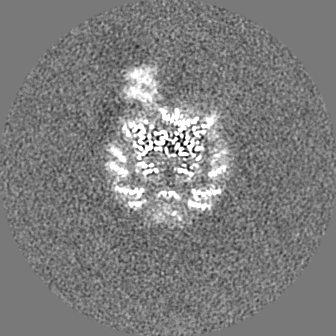

Slices (1/2)

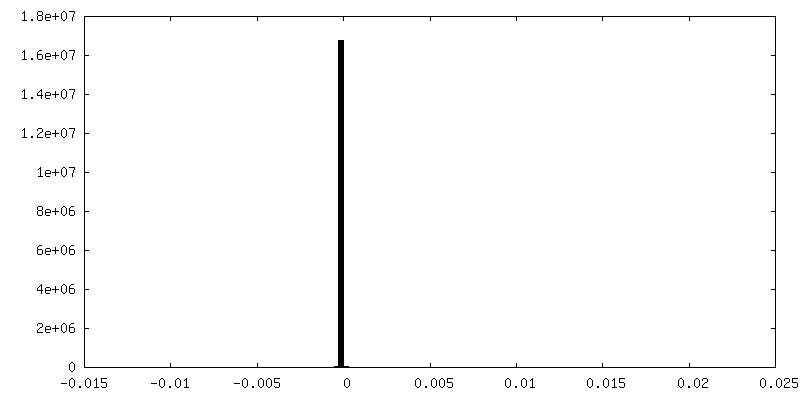

Density Histograms

Histogram

Histogram (log scale)

-
Additional map: KDM6B cis-linker DNA map (multi-body focused)

Fileemd_49676_additional_2.map
AnnotationKDM6B cis-linker DNA map (multi-body focused)
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: NCP map (multi-body focused)

Fileemd_49676_additional_3.map
AnnotationNCP map (multi-body focused)

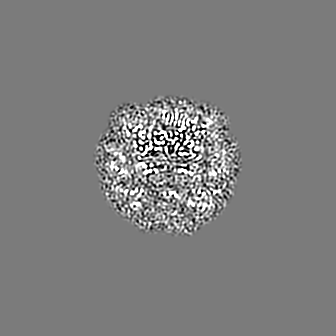

Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent co...

EntireName: KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent conjugate
Components
  • Complex: KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent conjugate
    • Complex: histones of nucleosome
      • Protein or peptide: Histone H3.2
      • Protein or peptide: Histone H4
      • Protein or peptide: Histone H2A type 1
      • Protein or peptide: Histone H2B type 1-C/E/F/G/I
    • Complex: Widom601 sequence with 20 bp linker DNA at both ends.
      • DNA: DNA (185-MER)
      • DNA: DNA (185-MER)
    • Complex: Mouse KDM6B C-terminal domain
      • Protein or peptide: Lysine-specific demethylase 6B
  • Ligand: FE (III) ION
  • Ligand: ZINC ION
  • Ligand: N-heptanoyl-N-hydroxy-beta-alanine

+
Supramolecule #1: KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent co...

SupramoleculeName: KDM6B-nucleosome complex stabilized by H3K27C-UNC8015 covalent conjugate
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#7

+
Supramolecule #2: histones of nucleosome

SupramoleculeName: histones of nucleosome / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#4
Source (natural)Organism: Homo sapiens (human)

+
Supramolecule #3: Widom601 sequence with 20 bp linker DNA at both ends.

SupramoleculeName: Widom601 sequence with 20 bp linker DNA at both ends. / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #5-#6
Source (natural)Organism: synthetic construct (others)

+
Supramolecule #4: Mouse KDM6B C-terminal domain

SupramoleculeName: Mouse KDM6B C-terminal domain / type: complex / ID: 4 / Parent: 1 / Macromolecule list: #7
Source (natural)Organism: Mus musculus (house mouse)

+
Macromolecule #1: Histone H3.2

MacromoleculeName: Histone H3.2 / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 15.231801 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
ARTKQTARKS TGGKAPRKQL ATKAARCSAP ATGGVKKPHR YRPGTVALRE IRRYQKSTEL LIRKLPFQRL VREIAQDFKT DLRFQSSAV MALQEASEAY LVGLFEDTNL AAIHAKRVTI MPKDIQLARR IRGERA

UniProtKB: Histone H3.2

+
Macromolecule #2: Histone H4

MacromoleculeName: Histone H4 / type: protein_or_peptide / ID: 2 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 11.263231 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
SGRGKGGKGL GKGGAKRHRK VLRDNIQGIT KPAIRRLARR GGVKRISGLI YEETRGVLKV FLENVIRDAV TYTEHAKRKT VTAMDVVYA LKRQGRTLYG FGG

UniProtKB: Histone H4

+
Macromolecule #3: Histone H2A type 1

MacromoleculeName: Histone H2A type 1 / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 13.990342 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
SGRGKQGGKA RAKAKTRSSR AGLQFPVGRV HRLLRKGNYA ERVGAGAPVY LAAVLEYLTA EILELAGNAA RDNKKTRIIP RHLQLAIRN DEELNKLLGK VTIAQGGVLP NIQAVLLPKK TESHHKAKGK

UniProtKB: Histone H2A type 1

+
Macromolecule #4: Histone H2B type 1-C/E/F/G/I

MacromoleculeName: Histone H2B type 1-C/E/F/G/I / type: protein_or_peptide / ID: 4 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 13.806018 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
PEPAKSAPAP KKGSKKAVTK AQKKDGKKRK RSRKESYSVY VYKVLKQVHP DTGISSKAMG IMNSFVNDIF ERIAGEASRL AHYNKRSTI TSREIQTAVR LLLPGELAKH AVSEGTKAVT KYTSSK

UniProtKB: Histone H2B type 1-C/E/F/G/I

+
Macromolecule #7: Lysine-specific demethylase 6B

MacromoleculeName: Lysine-specific demethylase 6B / type: protein_or_peptide / ID: 7 / Number of copies: 1 / Enantiomer: LEVO / EC number: [histone H3]-trimethyl-L-lysine27 demethylase
Source (natural)Organism: Mus musculus (house mouse)
Molecular weightTheoretical: 58.169383 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: GSDLTISHCA ADVMRASKNA KVKGKFRESY LSPAQSVKPK INTEEKLPRE KLNPPTPSIY LESKRDAFSP VLLQFCTDPR NPITVIRGL AGSLRLNLGL FSTKTLVEAS GEHTVEVRTQ VQQPSDENWD LTGTRQIWPC ESSRSHTTIA KYAQYQASSF Q ESLQEERE ...String:
GSDLTISHCA ADVMRASKNA KVKGKFRESY LSPAQSVKPK INTEEKLPRE KLNPPTPSIY LESKRDAFSP VLLQFCTDPR NPITVIRGL AGSLRLNLGL FSTKTLVEAS GEHTVEVRTQ VQQPSDENWD LTGTRQIWPC ESSRSHTTIA KYAQYQASSF Q ESLQEERE SEDEESEEPD STTGTSPSSA PDPKNHHIIK FGTNIDLSDA KRWKPQLQEL LKLPAFMRVT STGNMLSHVG HT ILGMNTV QLYMKVPGSR TPGHQENNNF CSVNINIGPG DCEWFAVHEH YWETISAFCD RHGVDYLTGS WWPILDDLYA SNI PVYRFV QRPGDLVWIN AGTVHWVQAT GWCNNIAWNV GPLTAYQYQL ALERYEWNEV KNVKSIVPMI HVSWNVARTV KISD PDLFK MIKFCLLQSM KHCQVQRESL VRAGKKIAYQ GRVKDEPAYY CNECDVEVFN ILFVTSENGS RNTYLVHCEG CARRR SAGL QGVVVLEQYR TEELAQAYDA FTLAPASTSR

UniProtKB: Lysine-specific demethylase 6B

+
Macromolecule #5: DNA (185-MER)

MacromoleculeName: DNA (185-MER) / type: dna / ID: 5 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 56.831191 KDa
SequenceString: (DA)(DT)(DC)(DC)(DC)(DT)(DA)(DT)(DA)(DC) (DG)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC)(DC) (DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG)(DA) (DG) (DG)(DC)(DC)(DG)(DC)(DT) ...String:
(DA)(DT)(DC)(DC)(DC)(DT)(DA)(DT)(DA)(DC) (DG)(DC)(DG)(DG)(DC)(DC)(DG)(DC)(DC)(DC) (DT)(DG)(DG)(DA)(DG)(DA)(DA)(DT)(DC) (DC)(DC)(DG)(DG)(DT)(DG)(DC)(DC)(DG)(DA) (DG) (DG)(DC)(DC)(DG)(DC)(DT)(DC)(DA) (DA)(DT)(DT)(DG)(DG)(DT)(DC)(DG)(DT)(DA) (DG)(DA) (DC)(DA)(DG)(DC)(DT)(DC)(DT) (DA)(DG)(DC)(DA)(DC)(DC)(DG)(DC)(DT)(DT) (DA)(DA)(DA) (DC)(DG)(DC)(DA)(DC)(DG) (DT)(DA)(DC)(DG)(DC)(DG)(DC)(DT)(DG)(DT) (DC)(DC)(DC)(DC) (DC)(DG)(DC)(DG)(DT) (DT)(DT)(DT)(DA)(DA)(DC)(DC)(DG)(DC)(DC) (DA)(DA)(DG)(DG)(DG) (DG)(DA)(DT)(DT) (DA)(DC)(DT)(DC)(DC)(DC)(DT)(DA)(DG)(DT) (DC)(DT)(DC)(DC)(DA)(DG) (DG)(DC)(DA) (DC)(DG)(DT)(DG)(DT)(DC)(DA)(DG)(DA)(DT) (DA)(DT)(DA)(DT)(DA)(DC)(DA) (DT)(DC) (DC)(DT)(DG)(DT)(DG)(DC)(DA)(DT)(DG)(DT) (DA)(DT)(DT)(DG)(DA)(DA)(DC)(DA) (DG) (DC)(DG)(DA)(DT)

+
Macromolecule #6: DNA (185-MER)

MacromoleculeName: DNA (185-MER) / type: dna / ID: 6 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 57.400559 KDa
SequenceString: (DA)(DT)(DC)(DG)(DC)(DT)(DG)(DT)(DT)(DC) (DA)(DA)(DT)(DA)(DC)(DA)(DT)(DG)(DC)(DA) (DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT)(DA) (DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA) (DC)(DG)(DT)(DG)(DC)(DC) ...String:
(DA)(DT)(DC)(DG)(DC)(DT)(DG)(DT)(DT)(DC) (DA)(DA)(DT)(DA)(DC)(DA)(DT)(DG)(DC)(DA) (DC)(DA)(DG)(DG)(DA)(DT)(DG)(DT)(DA) (DT)(DA)(DT)(DA)(DT)(DC)(DT)(DG)(DA)(DC) (DA) (DC)(DG)(DT)(DG)(DC)(DC)(DT)(DG) (DG)(DA)(DG)(DA)(DC)(DT)(DA)(DG)(DG)(DG) (DA)(DG) (DT)(DA)(DA)(DT)(DC)(DC)(DC) (DC)(DT)(DT)(DG)(DG)(DC)(DG)(DG)(DT)(DT) (DA)(DA)(DA) (DA)(DC)(DG)(DC)(DG)(DG) (DG)(DG)(DG)(DA)(DC)(DA)(DG)(DC)(DG)(DC) (DG)(DT)(DA)(DC) (DG)(DT)(DG)(DC)(DG) (DT)(DT)(DT)(DA)(DA)(DG)(DC)(DG)(DG)(DT) (DG)(DC)(DT)(DA)(DG) (DA)(DG)(DC)(DT) (DG)(DT)(DC)(DT)(DA)(DC)(DG)(DA)(DC)(DC) (DA)(DA)(DT)(DT)(DG)(DA) (DG)(DC)(DG) (DG)(DC)(DC)(DT)(DC)(DG)(DG)(DC)(DA)(DC) (DC)(DG)(DG)(DG)(DA)(DT)(DT) (DC)(DT) (DC)(DC)(DA)(DG)(DG)(DG)(DC)(DG)(DG)(DC) (DC)(DG)(DC)(DG)(DT)(DA)(DT)(DA) (DG) (DG)(DG)(DA)(DT)

+
Macromolecule #8: FE (III) ION

MacromoleculeName: FE (III) ION / type: ligand / ID: 8 / Number of copies: 1 / Formula: FE
Molecular weightTheoretical: 55.845 Da

+
Macromolecule #9: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 9 / Number of copies: 1 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

+
Macromolecule #10: N-heptanoyl-N-hydroxy-beta-alanine

MacromoleculeName: N-heptanoyl-N-hydroxy-beta-alanine / type: ligand / ID: 10 / Number of copies: 1 / Formula: OH0
Molecular weightTheoretical: 217.262 Da
Chemical component information

ChemComp-OH0:
N-heptanoyl-N-hydroxy-beta-alanine

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration0.75 mg/mL
BufferpH: 7.5
VitrificationCryogen name: ETHANE-PROPANE

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 55.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: SPOT SCAN / Imaging mode: BRIGHT FIELD / Nominal defocus max: 3.0 µm / Nominal defocus min: 0.5 µm / Nominal magnification: 45000
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 2417051
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6esf

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.16 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 43458
Initial angle assignmentType: ANGULAR RECONSTITUTION
Final angle assignmentType: ANGULAR RECONSTITUTION

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
