- EMDB-48521: Cryo-EM structure of hemagglutinin H5N1 in complex with Fab 310-12D03 -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-48521
TitleCryo-EM structure of hemagglutinin H5N1 in complex with Fab 310-12D03
Map data
Sample
  • Complex: Complex between hemagglutinin H5N1 and Fab 310-12D03
    • Protein or peptide: Hemagglutinin HA1 chain
    • Protein or peptide: Hemagglutinin HA2 chain
    • Protein or peptide: Heavy chain of Fab 310-12D03
    • Protein or peptide: Light chain of Fab 310-12D03
KeywordsHighly pathogenic avian influenza / hemagglutinin H5N1 / bird flu / VIRAL PROTEIN
Function / homology
Function and homology information


viral budding from plasma membrane / clathrin-dependent endocytosis of virus by host cell / host cell surface receptor binding / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / host cell plasma membrane / virion membrane / membrane
Similarity search - Function
Haemagglutinin, influenzavirus A / Haemagglutinin, HA1 chain, alpha/beta domain superfamily / Haemagglutinin / Haemagglutinin, influenzavirus A/B / Viral capsid/haemagglutinin protein
Similarity search - Domain/homology
Hemagglutinin / Hemagglutinin
Similarity search - Component
Biological speciesInfluenza A virus / Homo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.22 Å
AuthorsMalla TN / Tsybovsky Y / Zhou T
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID) United States
CitationJournal: To Be Published
Title: Potently Neutralizing Pan H5 monoclonal antibodies provide protection against HPAI H5N1
Authors: Abu-Shmais A / Malla T / Tsybovsky Y / Zhou T / Andrews S / Kanekiyo M
History
DepositionJan 2, 2025-
Header (metadata) releaseAug 13, 2025-
Map releaseAug 13, 2025-
UpdateAug 13, 2025-
Current statusAug 13, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_48521.map.gz / Format: CCP4 / Size: 244.1 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1 Å/pix.
x 400 pix.
= 400. Å		1 Å/pix.
x 400 pix.
= 400. Å		1 Å/pix.
x 400 pix.
= 400. Å

Surface

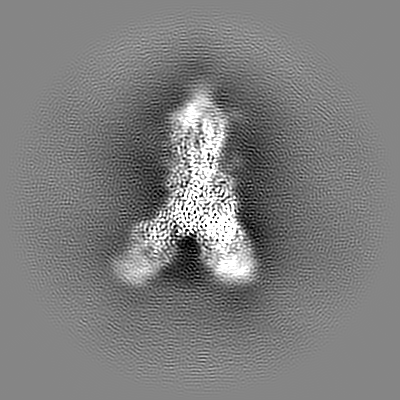

Projections

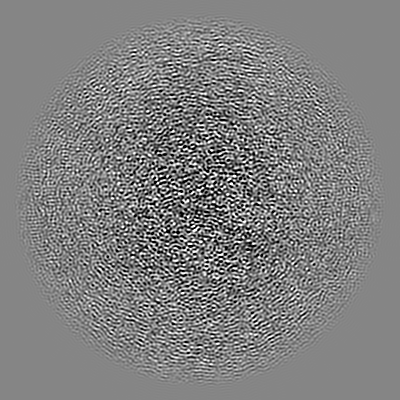

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.252
Minimum - Maximum-1.4865682 - 2.5514135
Average (Standard dev.)-0.00055639783 (±0.03209172)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions400400400
Spacing400400400
CellA=B=C: 400.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_48521_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Map sharpened by deepEMhancer

Fileemd_48521_additional_1.map
AnnotationMap sharpened by deepEMhancer
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Additional map: Unsharpened map

Fileemd_48521_additional_2.map
AnnotationUnsharpened map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_48521_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_48521_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Complex between hemagglutinin H5N1 and Fab 310-12D03

EntireName: Complex between hemagglutinin H5N1 and Fab 310-12D03
Components
  • Complex: Complex between hemagglutinin H5N1 and Fab 310-12D03
    • Protein or peptide: Hemagglutinin HA1 chain
    • Protein or peptide: Hemagglutinin HA2 chain
    • Protein or peptide: Heavy chain of Fab 310-12D03
    • Protein or peptide: Light chain of Fab 310-12D03

-
Supramolecule #1: Complex between hemagglutinin H5N1 and Fab 310-12D03

SupramoleculeName: Complex between hemagglutinin H5N1 and Fab 310-12D03 / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Influenza A virus / Strain: H5N1
Molecular weightTheoretical: 268.68 KDa

-
Macromolecule #1: Hemagglutinin HA1 chain

MacromoleculeName: Hemagglutinin HA1 chain / type: protein_or_peptide / ID: 1 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Influenza A virus
Molecular weightTheoretical: 38.59007 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MENIVLLLAI VSLVKSDQIC IGYHANNSTE QVDTIMEKNV TVTHAQDILE KTHNGKLCDL NGVKPLILKD CSVAGWLLGN PMCDEFIRV PEWSYIVERA NPANDLCFPG SLNDYEELKH MLSRINHFEK IQIIPKSSWP NHETSLGVSA ACPYQGAPSF F RNVVWLIK ...String:
MENIVLLLAI VSLVKSDQIC IGYHANNSTE QVDTIMEKNV TVTHAQDILE KTHNGKLCDL NGVKPLILKD CSVAGWLLGN PMCDEFIRV PEWSYIVERA NPANDLCFPG SLNDYEELKH MLSRINHFEK IQIIPKSSWP NHETSLGVSA ACPYQGAPSF F RNVVWLIK KNDAYPTIKI SYNNTNREDL LILWGIHHSN NAEEQTNLYK NPITYISVGT STLNQRLAPK IATRSQVNGQ RG RMDFFWT ILKPDDAIHF ESNGNFIAPE YAYKIVKKGD STIMKSGVEY GHCNTKCQTP VGAINSSMPF HNIHPLTIGE CPK YVKSNK LVLATGLRNS PLREKR

UniProtKB: Hemagglutinin

-
Macromolecule #2: Hemagglutinin HA2 chain

MacromoleculeName: Hemagglutinin HA2 chain / type: protein_or_peptide / ID: 2 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Influenza A virus
Molecular weightTheoretical: 26.166805 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: GLFGAIAGFI EGGWQGMVDG WYGYHHSNEQ GSGYAADKES TQKAIDGVTN KVNSIIDKMN TQFEAVGREF NNLERRIENL NKKMEDGFL DVWTYNAELL VLMENERTLD FHDSNVKNLY DKVRLQLRDN AKELGNGCFE FYHKCDNECM ESVRNGTYDY P QYSEEARL ...String:
GLFGAIAGFI EGGWQGMVDG WYGYHHSNEQ GSGYAADKES TQKAIDGVTN KVNSIIDKMN TQFEAVGREF NNLERRIENL NKKMEDGFL DVWTYNAELL VLMENERTLD FHDSNVKNLY DKVRLQLRDN AKELGNGCFE FYHKCDNECM ESVRNGTYDY P QYSEEARL KREEISGSGY IPEAPRDGQA YVRKDGEWVL LSTFLGSGLN DIFEAQKIEW HEGHHHHHH

UniProtKB: Hemagglutinin

-
Macromolecule #3: Heavy chain of Fab 310-12D03

MacromoleculeName: Heavy chain of Fab 310-12D03 / type: protein_or_peptide / ID: 3 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 13.08653 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
QVQLQESGPG LVKPSETLSL TCTVSGDSVS SGDYFWSWIR QPPGKGLEWI GYIFYGGNTK YNPSLKSRVA ISVDTSKDQF SLKLTSVTA ADTAVYYCAT SYITGIQGVD YWGQGTLITV SS

-
Macromolecule #4: Light chain of Fab 310-12D03

MacromoleculeName: Light chain of Fab 310-12D03 / type: protein_or_peptide / ID: 4 / Number of copies: 3 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 11.836159 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
EIVLTQSPGT LSLSPGERAT LSCRASQSVS SSFLAWYQQK PGQAPKLLIY GASSRATGIP DRFSGSGSGT DFTLTISRLE PEDFAVYYC QQYGYSLTWT FGQGTKVEIK

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4 / Details: 10 mM HEPES, 150 mM NaCl
GridModel: UltrAuFoil R1.2/1.3 / Support film - Material: CARBON / Support film - topology: HOLEY ARRAY / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 30 sec. / Pretreatment - Atmosphere: AIR
VitrificationCryogen name: ETHANE / Chamber humidity: 95 % / Chamber temperature: 277 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeTFS KRIOS
SoftwareName: SerialEM (ver. 4.09)
Image recordingFilm or detector model: DIRECT ELECTRON APOLLO (4k x 4k) / Digitization - Dimensions - Width: 4096 pixel / Digitization - Dimensions - Height: 4096 pixel / Average exposure time: 2.0 sec. / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.9000000000000001 µm / Nominal defocus min: 0.5 µm
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 1975843
CTF correctionSoftware - Name: cryoSPARC / Type: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionAlgorithm: BACK PROJECTION / Resolution.type: BY AUTHOR / Resolution: 3.22 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC / Number images used: 1051276
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelChain - Source name: AlphaFold / Chain - Initial model type: in silico model
SoftwareName: Coot
RefinementSpace: REAL
Output model

PDB-9mqd:
Cryo-EM structure of hemagglutinin H5N1 in complex with Fab 310-12D03

+
