Basic information

Entry
Database: EMDB / ID: EMD-47991
TitleHuman BEST1 bound to GABA in an open state
Map data
Sample
  • Complex: Human BEST1 bound to GABA in an open state
    • Protein or peptide: Bestrophin-1
  • Ligand: CHLORIDE ION
  • Ligand: CALCIUM ION
  • Ligand: GAMMA-AMINO-BUTANOIC ACID
  • Ligand: water
Keywordsbestrophin / ion channel / GABA / MEMBRANE PROTEIN
Function / homology
Function and homology information


membrane microdomain / bicarbonate channel activity / transepithelial chloride transport / gamma-aminobutyric acid secretion, neurotransmission / detection of light stimulus involved in visual perception / intracellularly calcium-gated chloride channel activity / ligand-gated channel activity / bicarbonate transmembrane transporter activity / glutamate secretion / chloride transport ...membrane microdomain / bicarbonate channel activity / transepithelial chloride transport / gamma-aminobutyric acid secretion, neurotransmission / detection of light stimulus involved in visual perception / intracellularly calcium-gated chloride channel activity / ligand-gated channel activity / bicarbonate transmembrane transporter activity / glutamate secretion / chloride transport / chloride channel activity / protein complex oligomerization / regulation of calcium ion transport / chloride channel complex / visual perception / basal plasma membrane / regulation of synaptic plasticity / Stimuli-sensing channels / presynapse / monoatomic ion transmembrane transport / basolateral plasma membrane / identical protein binding / membrane / plasma membrane / cytosol
Similarity search - Function
Bestrophin / Bestrophin/UPF0187 / Bestrophin, RFP-TM, chloride channel
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 2.45 Å
AuthorsPant S / Long SB
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS) United States
CitationJournal: To Be Published
Title: The pentameric chloride channel BEST1 is activated by extracellular GABA
Authors: Pant S / Tam SW / Long SB
History
DepositionNov 21, 2024-
Header (metadata) releaseApr 9, 2025-
Map releaseApr 9, 2025-
UpdateApr 9, 2025-
Current statusApr 9, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_47991.map.gz / Format: CCP4 / Size: 512 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.73 Å/pix.
x 512 pix.
= 371.2 Å		0.73 Å/pix.
x 512 pix.
= 371.2 Å		0.73 Å/pix.
x 512 pix.
= 371.2 Å

Surface

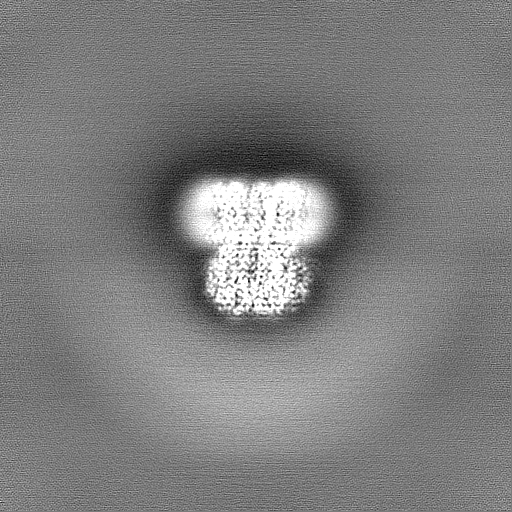

Projections

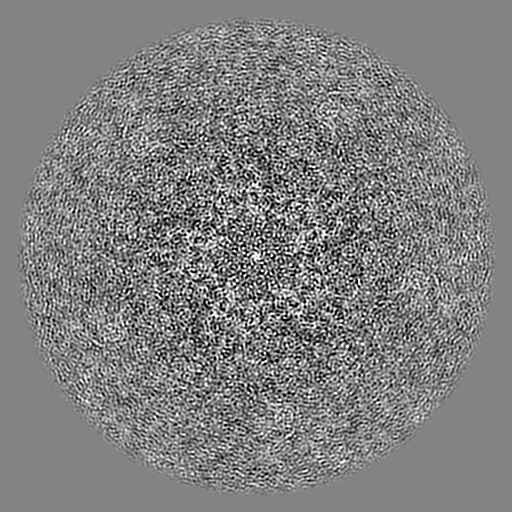

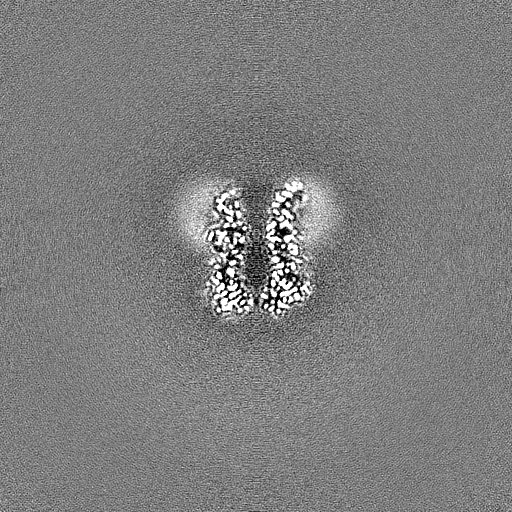

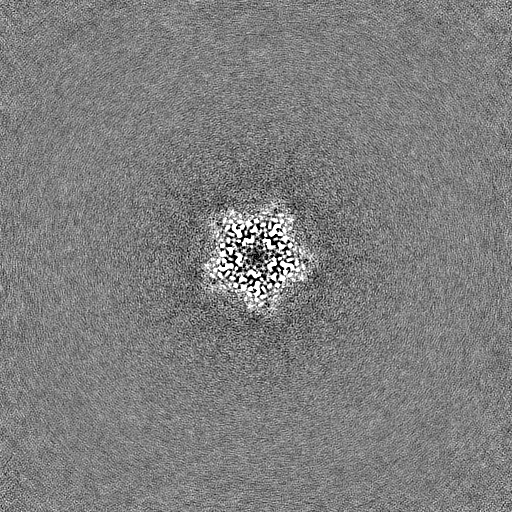

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.725 Å
Density

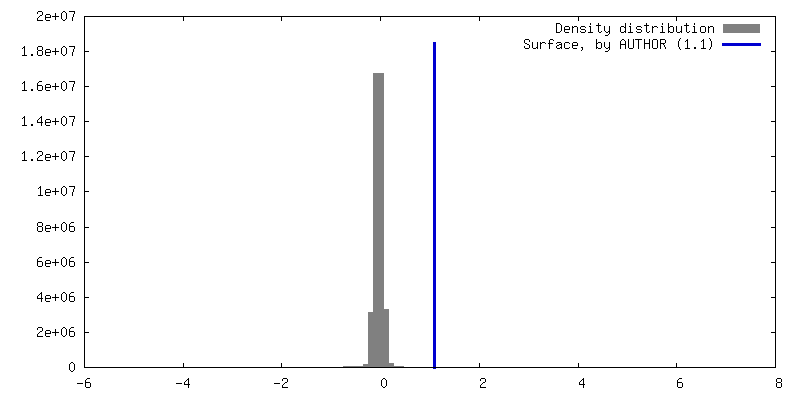

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 1.1
Minimum - Maximum-5.3665676 - 7.489035
Average (Standard dev.)0.0006650481 (±0.106392734)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions512512512
Spacing512512512
CellA=B=C: 371.2 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_47991_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_47991_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Human BEST1 bound to GABA in an open state

EntireName: Human BEST1 bound to GABA in an open state
Components
  • Complex: Human BEST1 bound to GABA in an open state
    • Protein or peptide: Bestrophin-1
  • Ligand: CHLORIDE ION
  • Ligand: CALCIUM ION
  • Ligand: GAMMA-AMINO-BUTANOIC ACID
  • Ligand: water

-
Supramolecule #1: Human BEST1 bound to GABA in an open state

SupramoleculeName: Human BEST1 bound to GABA in an open state / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 237 kDa/nm

-
Macromolecule #1: Bestrophin-1

MacromoleculeName: Bestrophin-1 / type: protein_or_peptide / ID: 1 / Number of copies: 5 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 47.416449 KDa
Recombinant expressionOrganism: Komagataella pastoris (fungus)
SequenceString: TITYTSQVAN ARLGSFSRLL LCWRGSIYKL LYGEFLIFLL CYYIIRFIYR LALTEEQQLM FEKLTLYCDS YIQLIPISFV LGFYVTLVV TRWWNQYENL PWPDRLMSLV SGFVEGKDEQ GRLLRRTLIR YANLGNVLIL RSVSTAVYKR FPSAQHLVQA G FMTPAEHK ...String:
TITYTSQVAN ARLGSFSRLL LCWRGSIYKL LYGEFLIFLL CYYIIRFIYR LALTEEQQLM FEKLTLYCDS YIQLIPISFV LGFYVTLVV TRWWNQYENL PWPDRLMSLV SGFVEGKDEQ GRLLRRTLIR YANLGNVLIL RSVSTAVYKR FPSAQHLVQA G FMTPAEHK QLEKLSLPHN MFWVPWVWFA NLSMKAWLGG RIRDPILLQS LLNEMNTLRT QCGHLYAYDW ISIPLVYTQV VT VAVYSFF LTCLVGRQFL NPAKAYPGHE LDLVVPVFTF LQFFFYVGWL KVAEQLINPF GEDDDDFETN WIVDRNLQVS LLA VDEMHQ DLPRMEPDMY WNKPEPQPPY TAASAQFRRA SFMGSTFNIS LNKEEMEFQP NQEDEEDAHA GIIGRFLGLQ SSNS LEVLF Q

UniProtKB: Bestrophin-1

-
Macromolecule #2: CHLORIDE ION

MacromoleculeName: CHLORIDE ION / type: ligand / ID: 2 / Number of copies: 5 / Formula: CL
Molecular weightTheoretical: 35.453 Da

-
Macromolecule #3: CALCIUM ION

MacromoleculeName: CALCIUM ION / type: ligand / ID: 3 / Number of copies: 5 / Formula: CA
Molecular weightTheoretical: 40.078 Da

-
Macromolecule #4: GAMMA-AMINO-BUTANOIC ACID

MacromoleculeName: GAMMA-AMINO-BUTANOIC ACID / type: ligand / ID: 4 / Number of copies: 5 / Formula: ABU
Molecular weightTheoretical: 103.12 Da
Chemical component information

ChemComp-ABU:
GAMMA-AMINO-BUTANOIC ACID

-
Macromolecule #5: water

MacromoleculeName: water / type: ligand / ID: 5 / Number of copies: 330 / Formula: HOH
Molecular weightTheoretical: 18.015 Da
Chemical component information

ChemComp-HOH:
WATER

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.6
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: FEI FALCON IV (4k x 4k) / Average electron dose: 60.3 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 2.45 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 295666
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD
FSC plot (resolution estimation)

+
