Basic information

Entry
Database: EMDB / ID: EMD-46550
TitleThe cryo-EM structure of the yeast RAD51 filament bound to ssDNA in the presence of ATP
Map datastructure of the yeast RAD51 filament bound to ssDNA in the presence of ATP
Sample
  • Complex: Rad51 filament - ssDNA
    • DNA: DNA (5'-D(P*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*T)-3')
    • Protein or peptide: DNA repair protein RAD51
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION
KeywordsDNA repair / Rad51 / homologous recombination / recombinase / DNA BINDING PROTEIN-DNA complex
Function / homology
Function and homology information


Presynaptic phase of homologous DNA pairing and strand exchange / heteroduplex formation / meiotic joint molecule formation / mitochondrial chromosome / mitotic recombination-dependent replication fork processing / chromosome organization involved in meiotic cell cycle / DNA recombinase assembly / DNA strand invasion / mitotic recombination / DNA strand exchange activity ...Presynaptic phase of homologous DNA pairing and strand exchange / heteroduplex formation / meiotic joint molecule formation / mitochondrial chromosome / mitotic recombination-dependent replication fork processing / chromosome organization involved in meiotic cell cycle / DNA recombinase assembly / DNA strand invasion / mitotic recombination / DNA strand exchange activity / telomere maintenance via recombination / reciprocal meiotic recombination / mitochondrial DNA repair / ATP-dependent DNA damage sensor activity / nuclear chromosome / ATP-dependent activity, acting on DNA / condensed nuclear chromosome / nucleotide-excision repair / double-strand break repair via homologous recombination / G2/M transition of mitotic cell cycle / double-strand break repair / single-stranded DNA binding / double-stranded DNA binding / DNA recombination / mitochondrial matrix / ATP hydrolysis activity / DNA binding / ATP binding / identical protein binding
Similarity search - Function
DNA recombination/repair protein Rad51 / DNA recombination and repair protein, RecA-like / DNA recombination and repair protein Rad51-like, C-terminal / Rad51 / DNA recombination and repair protein RecA, monomer-monomer interface / RecA family profile 2. / DNA recombination and repair protein RecA-like, ATP-binding domain / RecA family profile 1. / DNA repair Rad51/transcription factor NusA, alpha-helical / Helix-hairpin-helix domain ...DNA recombination/repair protein Rad51 / DNA recombination and repair protein, RecA-like / DNA recombination and repair protein Rad51-like, C-terminal / Rad51 / DNA recombination and repair protein RecA, monomer-monomer interface / RecA family profile 2. / DNA recombination and repair protein RecA-like, ATP-binding domain / RecA family profile 1. / DNA repair Rad51/transcription factor NusA, alpha-helical / Helix-hairpin-helix domain / ATPases associated with a variety of cellular activities / AAA+ ATPase domain / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
DNA repair protein RAD51
Similarity search - Component
Biological speciesSaccharomyces cerevisiae (brewer's yeast)
Methodhelical reconstruction / cryo EM / Resolution: 3.06 Å
AuthorsShin Y / Greene EC
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Cancer Institute (NIH/NCI) United States
CitationJournal: To Be Published
Title: The cryo-EM structure of the yeast RAD51 filament bound to ssDNA in the presence of ATP
Authors: Shin Y / Greene EC
History
DepositionAug 12, 2024-
Header (metadata) releaseFeb 19, 2025-
Map releaseFeb 19, 2025-
UpdateMay 21, 2025-
Current statusMay 21, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_46550.map.gz / Format: CCP4 / Size: 64 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Annotationstructure of the yeast RAD51 filament bound to ssDNA in the presence of ATP
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.85 Å/pix.
x 256 pix.
= 216.576 Å		0.85 Å/pix.
x 256 pix.
= 216.576 Å		0.85 Å/pix.
x 256 pix.
= 216.576 Å

Surface

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.846 Å
Density

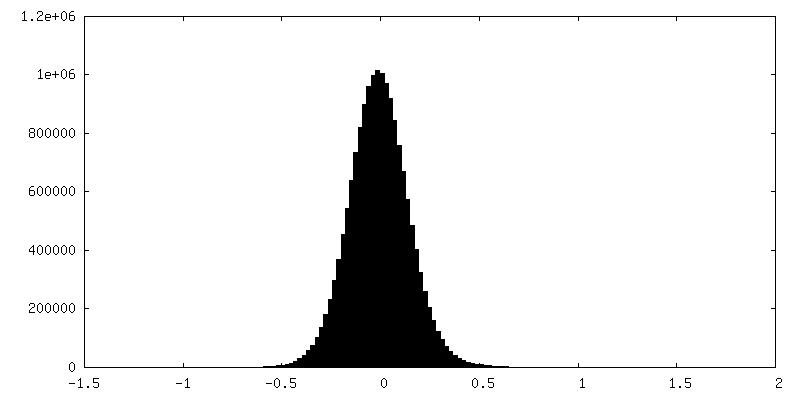

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.237
Minimum - Maximum-0.40083504 - 0.9273796
Average (Standard dev.)0.0071923737 (±0.045361273)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions256256256
Spacing256256256
CellA=B=C: 216.576 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: Half Map A

Fileemd_46550_half_map_1.map
AnnotationHalf Map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half Map B

Fileemd_46550_half_map_2.map
AnnotationHalf Map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Rad51 filament - ssDNA

EntireName: Rad51 filament - ssDNA
Components
  • Complex: Rad51 filament - ssDNA
    • DNA: DNA (5'-D(P*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*T)-3')
    • Protein or peptide: DNA repair protein RAD51
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
  • Ligand: MAGNESIUM ION

-
Supramolecule #1: Rad51 filament - ssDNA

SupramoleculeName: Rad51 filament - ssDNA / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#2
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)

-
Macromolecule #1: DNA (5'-D(P*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*T)-3')

MacromoleculeName: DNA (5'-D(P*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*TP*T)-3')
type: dna / ID: 1 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 5.430513 KDa
SequenceString:
(DT)(DT)(DT)(DT)(DT)(DT)(DT)(DT)(DT)(DT) (DT)(DT)(DT)(DT)(DT)(DT)(DT)(DT)

-
Macromolecule #2: DNA repair protein RAD51

MacromoleculeName: DNA repair protein RAD51 / type: protein_or_peptide / ID: 2 / Number of copies: 6 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 34.93007 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: FVPIEKLQVN GITMADVKKL RESGLHTAEA VAYAPRKDLL EIKGISEAKA DKLLNEAARL VPMGFVTAAD FHMRRSELIC LTTGSKNLD TLLGGGVETG SITELFGEFR TGKSQLCHTL AVTCQIPLDI GGGEGKCLYI DTEGTFRPVR LVSIAQRFGL D PDDALNNV ...String:
FVPIEKLQVN GITMADVKKL RESGLHTAEA VAYAPRKDLL EIKGISEAKA DKLLNEAARL VPMGFVTAAD FHMRRSELIC LTTGSKNLD TLLGGGVETG SITELFGEFR TGKSQLCHTL AVTCQIPLDI GGGEGKCLYI DTEGTFRPVR LVSIAQRFGL D PDDALNNV AYARAYNADH QLRLLDAAAQ MMSESRFSLI VVDSVMALYR TDFSGRGELS ARQMHLAKFM RALQRLADQF GV AVVVTNQ VVAQVDGGMA FNPDPKKPIG GNIMAHSSTT RLGFKKGKGC QRLCKVVDSP CLPEAECVFA IYEDGVGDPR EED E

UniProtKB: DNA repair protein RAD51

-
Macromolecule #3: ADENOSINE-5'-TRIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 3 / Number of copies: 6 / Formula: ATP
Molecular weightTheoretical: 507.181 Da
Chemical component information

ChemComp-ATP:
ADENOSINE-5'-TRIPHOSPHATE / ATP, energy-carrying molecule*YM

-
Macromolecule #4: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 4 / Number of copies: 12 / Formula: MG
Molecular weightTheoretical: 24.305 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE / Chamber humidity: 100 %

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 51.19 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: OTHER
Electron opticsIllumination mode: OTHER / Imaging mode: OTHER / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 16.0 Å
Applied symmetry - Helical parameters - Δ&Phi: 56 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Resolution.type: BY AUTHOR / Resolution: 3.06 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 270416
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final angle assignmentType: NOT APPLICABLE

+
