Basic information

Entry
Database: EMDB / ID: EMD-45650
TitleCryo-EM structure of acetylated alpha-synuclein A53T fibril - polymorph A
Map dataThe final map from Relion PostProcess
Sample
  • Organelle or cellular component: Acetylated alpha-synuclein A53T fibril - polymorph A
    • Protein or peptide: Alpha-synuclein
Keywordsamyloid / neurodegeneration / aggregrate / PROTEIN FIBRIL
Function / homology
Function and homology information


negative regulation of mitochondrial electron transport, NADH to ubiquinone / : / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / mitochondrial membrane organization ...negative regulation of mitochondrial electron transport, NADH to ubiquinone / : / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / mitochondrial membrane organization / regulation of synaptic vesicle recycling / negative regulation of chaperone-mediated autophagy / regulation of reactive oxygen species biosynthetic process / negative regulation of platelet-derived growth factor receptor signaling pathway / positive regulation of protein localization to cell periphery / negative regulation of exocytosis / regulation of glutamate secretion / response to iron(II) ion / SNARE complex assembly / positive regulation of neurotransmitter secretion / dopamine biosynthetic process / regulation of norepinephrine uptake / transporter regulator activity / regulation of locomotion / mitochondrial ATP synthesis coupled electron transport / regulation of macrophage activation / positive regulation of inositol phosphate biosynthetic process / synaptic vesicle priming / negative regulation of microtubule polymerization / synaptic vesicle transport / positive regulation of receptor recycling / dopamine uptake involved in synaptic transmission / protein kinase inhibitor activity / dynein complex binding / regulation of dopamine secretion / negative regulation of thrombin-activated receptor signaling pathway / cuprous ion binding / positive regulation of exocytosis / response to magnesium ion / synaptic vesicle exocytosis / enzyme inhibitor activity / positive regulation of endocytosis / kinesin binding / synaptic vesicle endocytosis / cysteine-type endopeptidase inhibitor activity / negative regulation of serotonin uptake / regulation of presynapse assembly / response to type II interferon / alpha-tubulin binding / supramolecular fiber organization / inclusion body / phospholipid metabolic process / cellular response to copper ion / axon terminus / cellular response to epinephrine stimulus / Hsp70 protein binding / response to interleukin-1 / regulation of microtubule cytoskeleton organization / SNARE binding / positive regulation of release of sequestered calcium ion into cytosol / adult locomotory behavior / negative regulation of protein kinase activity / excitatory postsynaptic potential / fatty acid metabolic process / phosphoprotein binding / protein tetramerization / microglial cell activation / regulation of long-term neuronal synaptic plasticity / synapse organization / ferrous iron binding / protein destabilization / PKR-mediated signaling / phospholipid binding / receptor internalization / tau protein binding / long-term synaptic potentiation / positive regulation of inflammatory response / synaptic vesicle membrane / actin cytoskeleton / actin binding / growth cone / cell cortex / cellular response to oxidative stress / neuron apoptotic process / chemical synaptic transmission / molecular adaptor activity / negative regulation of neuron apoptotic process / response to lipopolysaccharide / histone binding / amyloid fibril formation / lysosome / oxidoreductase activity / transcription cis-regulatory region binding / postsynapse / positive regulation of apoptotic process / Amyloid fiber formation / copper ion binding / response to xenobiotic stimulus / axon / neuronal cell body
Similarity search - Function
Synuclein / Alpha-synuclein / Synuclein
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodhelical reconstruction / cryo EM / Resolution: 2.21 Å
AuthorsAnsari S / Li Y / Frederick KK
Funding support United States, 2 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS134921 United States
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)NS111236 United States
CitationJournal: bioRxiv / Year: 2024
Title: In cell NMR reveals cells selectively amplify and structurally remodel amyloid fibrils.
Authors: Shoyab Ansari / Dominique Lagasca / Rania Dumarieh / Yiling Xiao / Sakshi Krishna / Yang Li / Kendra K Frederick /
Abstract: Amyloid forms of α-synuclein adopt different conformations depending on environmental conditions. Advances in structural biology have accelerated fibril characterization. However, it remains unclear ...Amyloid forms of α-synuclein adopt different conformations depending on environmental conditions. Advances in structural biology have accelerated fibril characterization. However, it remains unclear which conformations predominate in biological settings because current methods typically not only require isolating fibrils from their native environments, but they also do not provide insight about flexible regions. To address this, we characterized α-syn amyloid seeds and used sensitivity enhanced nuclear magnetic resonance to investigate the amyloid fibrils resulting from seeded amyloid propagation in different settings. We found that the amyloid fold and conformational preferences of flexible regions are faithfully propagated and in cellular lysates. However, seeded propagation of amyloids inside cells led to the minority conformation in the seeding population becoming predominant and more ordered, and altered the conformational preferences of flexible regions. The examination of the entire ensemble of protein conformations in biological settings that is made possible with this approach may advance our understanding of protein misfolding disorders and facilitate structure-based drug design efforts.
History
DepositionJul 9, 2024-
Header (metadata) releaseJun 25, 2025-
Map releaseJun 25, 2025-
UpdateJun 25, 2025-
Current statusJun 25, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_45650.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationThe final map from Relion PostProcess
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.84 Å/pix.
x 300 pix.
= 252. Å		0.84 Å/pix.
x 300 pix.
= 252. Å		0.84 Å/pix.
x 300 pix.
= 252. Å

Surface

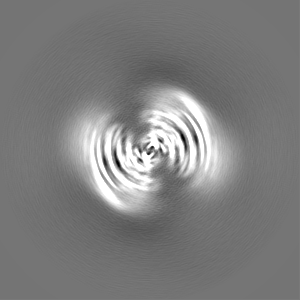

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.84 Å
Density

Histogram

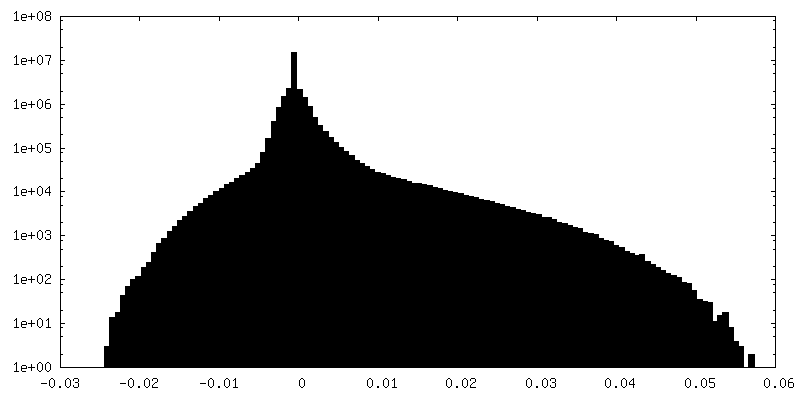

Histogram (log scale)
Contour LevelBy AUTHOR: 0.025
Minimum - Maximum-0.070783496 - 0.13769276
Average (Standard dev.)0.000077643344 (±0.002884208)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 251.99998 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_45650_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Unfiltered half map 2

Fileemd_45650_half_map_1.map
AnnotationUnfiltered half map 2
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Unfiltered half map 1

Fileemd_45650_half_map_2.map
AnnotationUnfiltered half map 1
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Acetylated alpha-synuclein A53T fibril - polymorph A

EntireName: Acetylated alpha-synuclein A53T fibril - polymorph A
Components
  • Organelle or cellular component: Acetylated alpha-synuclein A53T fibril - polymorph A
    • Protein or peptide: Alpha-synuclein

-
Supramolecule #1: Acetylated alpha-synuclein A53T fibril - polymorph A

SupramoleculeName: Acetylated alpha-synuclein A53T fibril - polymorph A / type: organelle_or_cellular_component / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Alpha-synuclein

MacromoleculeName: Alpha-synuclein / type: protein_or_peptide / ID: 1 / Number of copies: 8 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 14.506136 KDa
Recombinant expressionOrganism: Escherichia coli 'BL21-Gold(DE3)pLysS AG' (bacteria)
SequenceString:
MDVFMKGLSK AKEGVVAAAE KTKQGVAEAA GKTKEGVLYV GSKTKEGVVH GVTTVAEKTK EQVTNVGGAV VTGVTAVAQK TVEGAGSIA AATGFVKKDQ LGKNEEGAPQ EGILEDMPVD PDNEAYEMPS EEGYQDYEPE A

UniProtKB: Alpha-synuclein

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.2
Component:
ConcentrationFormulaName
2.67 mMKClPotassium Chloride
1.47 mMKH2PO4Potassium Phosphate Monobasic
136.9 mMNaClSodium Chloride
8.1 mMNa2HPO4Sodium Phosphate Dibasic
VitrificationCryogen name: ETHANE / Chamber humidity: 95 %

-
Electron microscopy

MicroscopeTFS KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Number grids imaged: 1 / Number real images: 7020 / Average exposure time: 3.5 sec. / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.2 µm / Nominal defocus min: 0.9 µm / Nominal magnification: 105000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 2.4 Å
Applied symmetry - Helical parameters - Δ&Phi: 179.61 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Algorithm: BACK PROJECTION / Resolution.type: BY AUTHOR / Resolution: 2.21 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 85236
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: OTHER
Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
