Basic information

Entry
Database: EMDB / ID: EMD-43830
TitleCryo-EM of Stenotrophomonas maltophilia flagellum
Map dataCryo-EM of Stenotrophomonas maltophilia flagellum
Sample
  • Complex: Flagellar filament
    • Protein or peptide: Flagellin
KeywordsFlagellum / Flagellar filament / filament / helical symmetry / PROTEIN FIBRIL
Function / homology:
Function and homology information
Biological speciesStenotrophomonas maltophilia (bacteria)
Methodhelical reconstruction / cryo EM / Resolution: 3.26 Å
AuthorsFields JL / Zhang H / Halder SK / Wu H / Wang F
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)GM138756 United States
CitationJournal: Nat Commun / Year: 2024
Title: Structural diversity and clustering of bacterial flagellar outer domains.
Authors: Jessie Lynda Fields / Hua Zhang / Nathan F Bellis / Holly A Petersen / Sajal K Halder / Shane T Rich-New / Mart Krupovic / Hui Wu / Fengbin Wang /
Abstract: Supercoiled flagellar filaments function as mechanical propellers within the bacterial flagellum complex, playing a crucial role in motility. Flagellin, the building block of the filament, features a ...Supercoiled flagellar filaments function as mechanical propellers within the bacterial flagellum complex, playing a crucial role in motility. Flagellin, the building block of the filament, features a conserved inner D0/D1 core domain across different bacterial species. In contrast, approximately half of the flagellins possess additional, highly divergent outer domain(s), suggesting varied functional potential. In this study, we report atomic structures of flagellar filaments from three distinct bacterial species: Cupriavidus gilardii, Stenotrophomonas maltophilia, and Geovibrio thiophilus. Our findings reveal that the flagella from the facultative anaerobic G. thiophilus possesses a significantly more negatively charged surface, potentially enabling adhesion to positively charged minerals. Furthermore, we analyze all AlphaFold predicted structures for annotated bacterial flagellins, categorizing the flagellin outer domains into 682 structural clusters. This classification provides insights into the prevalence and experimental verification of these outer domains. Remarkably, two of the flagellar structures reported herein belong to a distinct cluster, indicating additional opportunities on the study of the functional diversity of flagellar outer domains. Our findings underscore the complexity of bacterial flagellins and open up possibilities for future studies into their varied roles beyond motility.
History
DepositionFeb 27, 2024-
Header (metadata) releaseNov 13, 2024-
Map releaseNov 13, 2024-
UpdateMay 28, 2025-
Current statusMay 28, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_43830.map.gz / Format: CCP4 / Size: 125 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCryo-EM of Stenotrophomonas maltophilia flagellum
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.11 Å/pix.
x 320 pix.
= 355.2 Å		1.11 Å/pix.
x 320 pix.
= 355.2 Å		1.11 Å/pix.
x 320 pix.
= 355.2 Å

Surface

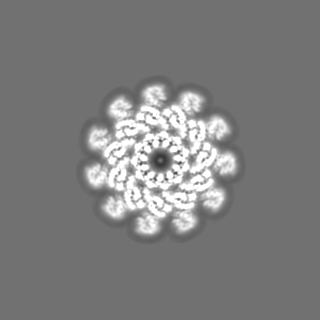

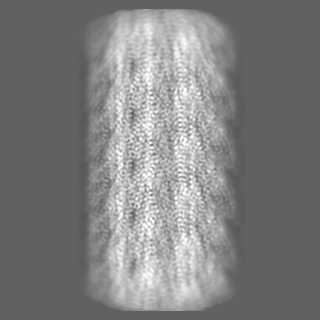

Projections

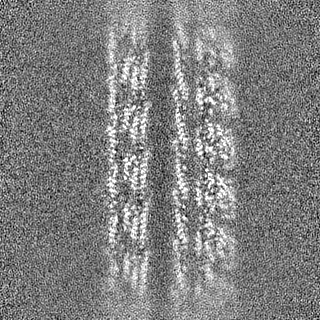

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.11 Å
Density

Histogram

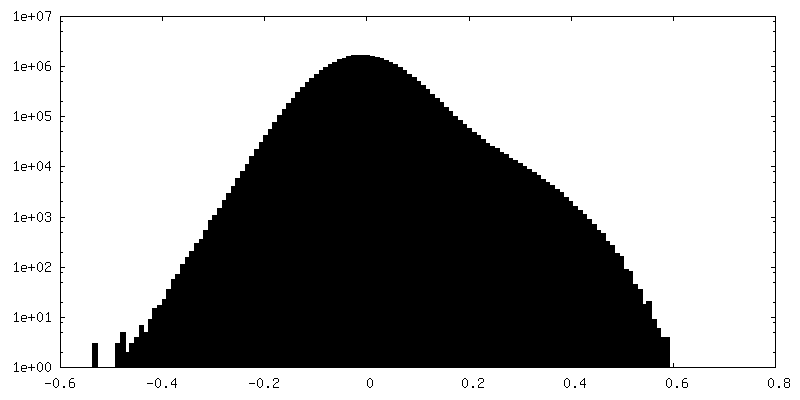

Histogram (log scale)
Contour LevelBy AUTHOR: 0.168
Minimum - Maximum-0.33103132 - 0.6598583
Average (Standard dev.)0.007933633 (±0.03856464)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin-160-160-160
Dimensions320320320
Spacing320320320
CellA=B=C: 355.2 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_43830_half_map_1.map
Projections & Slices
AxesZYX

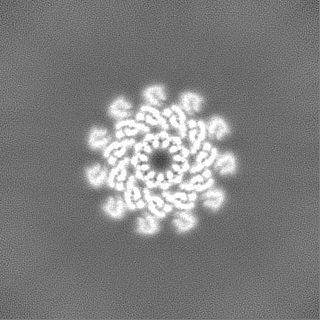

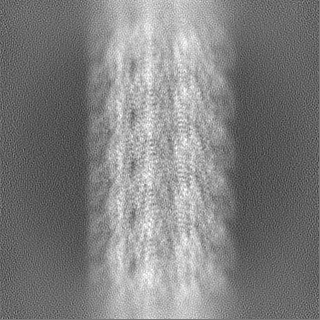

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_43830_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Flagellar filament

EntireName: Flagellar filament
Components
  • Complex: Flagellar filament
    • Protein or peptide: Flagellin

-
Supramolecule #1: Flagellar filament

SupramoleculeName: Flagellar filament / type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Stenotrophomonas maltophilia (bacteria)

-
Macromolecule #1: Flagellin

MacromoleculeName: Flagellin / type: protein_or_peptide / ID: 1 / Number of copies: 11 / Enantiomer: LEVO
Source (natural)Organism: Stenotrophomonas maltophilia (bacteria)
Molecular weightTheoretical: 40.14943 KDa
SequenceString: MAQVINTNTM SLNAQRNLST SGSSLATTIQ RLSSGSRINS AKDDAAGLAI SERFGTQIRG TDVAIRNAND GISLAQVAEG SLTEIGNNL QRVRELSVQA SNATNSASDR KALQAEVTQL VSEIDRVAKQ SDFNGTKLLD GTFSSQLFQV GANAGQAIAI D KTIDAKAG ...String:
MAQVINTNTM SLNAQRNLST SGSSLATTIQ RLSSGSRINS AKDDAAGLAI SERFGTQIRG TDVAIRNAND GISLAQVAEG SLTEIGNNL QRVRELSVQA SNATNSASDR KALQAEVTQL VSEIDRVAKQ SDFNGTKLLD GTFSSQLFQV GANAGQAIAI D KTIDAKAG SLGTSTFATG ATAALAASTD GARFSGTVMG VDIGTVEVKA GATTADASKA VATAINAKIG EAGIYAEANS DG TLKLSSV KEGKAVATAD IALMRSDYDA TAKTWGTAAA AGAYTAGTNT SANVQKLDVS TVLGAQQALE VVDKALGAIN STR ADLGAI QNRFTSVVAN LQTSSENLSA SRSRIKDTDF AKETAELTRT QILQQAGTAM LAQANQVPQG VLSLLR

UniProtKB: UNIPROTKB: A0A2Y9U6E5

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 5.03 Å
Applied symmetry - Helical parameters - Δ&Phi: 65.40 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Resolution.type: BY AUTHOR / Resolution: 3.26 Å / Resolution method: FSC 0.143 CUT-OFF
Details: The helical symmetry was relaxed in the final reconstruction
Number images used: 275407
CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final angle assignmentType: NOT APPLICABLE

+
