Basic information

Entry
Database: EMDB / ID: EMD-43335
TitleEscherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
Map dataEscherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
Sample
  • Complex: Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
    • Protein or peptide: x 59 types
    • DNA: x 2 types
    • RNA: x 5 types
  • Ligand: x 2 types
KeywordsTranscription / translation / coupling / RfaH / NusA / ops / TTC
Function / homology
Function and homology information


transcription antitermination factor activity, DNA binding / RNA polymerase complex / negative regulation of cytoplasmic translational initiation / transcription elongation-coupled chromatin remodeling / submerged biofilm formation / stringent response / cellular response to cell envelope stress / regulation of DNA-templated transcription initiation / bacterial-type flagellum assembly / bacterial-type RNA polymerase core enzyme binding ...transcription antitermination factor activity, DNA binding / RNA polymerase complex / negative regulation of cytoplasmic translational initiation / transcription elongation-coupled chromatin remodeling / submerged biofilm formation / stringent response / cellular response to cell envelope stress / regulation of DNA-templated transcription initiation / bacterial-type flagellum assembly / bacterial-type RNA polymerase core enzyme binding / cytosolic DNA-directed RNA polymerase complex / misfolded RNA binding / Group I intron splicing / RNA folding / bacterial-type flagellum-dependent cell motility / nitrate assimilation / positive regulation of ribosome biogenesis / translational termination / DnaA-L2 complex / negative regulation of translational initiation / negative regulation of DNA-templated DNA replication initiation / mRNA regulatory element binding translation repressor activity / assembly of large subunit precursor of preribosome / positive regulation of RNA splicing / ribosome assembly / transcription elongation factor complex / regulation of DNA-templated transcription elongation / cytosolic ribosome assembly / : / : / : / : / transcription antitermination / : / : / translational initiation / cell motility / DNA-templated transcription initiation / regulation of cell growth / DNA-templated transcription termination / maintenance of translational fidelity / mRNA 5'-UTR binding / ribonucleoside binding / DNA-directed RNA polymerase / large ribosomal subunit / transferase activity / ribosome binding / response to heat / ribosomal small subunit biogenesis / ribosomal small subunit assembly / small ribosomal subunit / small ribosomal subunit rRNA binding / 5S rRNA binding / ribosomal large subunit assembly / protein-containing complex assembly / cytosolic small ribosomal subunit / large ribosomal subunit rRNA binding / cytosolic large ribosomal subunit / intracellular iron ion homeostasis / cytoplasmic translation / tRNA binding / protein dimerization activity / negative regulation of translation / rRNA binding / structural constituent of ribosome / ribosome / translation / DNA-binding transcription factor activity / ribonucleoprotein complex / response to antibiotic / nucleotide binding / mRNA binding / magnesium ion binding / DNA binding / RNA binding / zinc ion binding / membrane / cytosol / cytoplasm
Similarity search - Function
Transcription antitermination protein RfaH / Transcription termination factor NusA, C-terminal duplication / Transcription termination factor NusA / Transcription factor NusA, N-terminal / KH domain, NusA-like / NusA, N-terminal domain superfamily / NusA N-terminal domain / NusA-like KH domain / Transcription termination/antitermination protein NusA, bacterial / Ribosomal protein S1 ...Transcription antitermination protein RfaH / Transcription termination factor NusA, C-terminal duplication / Transcription termination factor NusA / Transcription factor NusA, N-terminal / KH domain, NusA-like / NusA, N-terminal domain superfamily / NusA N-terminal domain / NusA-like KH domain / Transcription termination/antitermination protein NusA, bacterial / Ribosomal protein S1 / Ribosomal protein S1-like / RNA-binding domain, S1 / Ribosomal protein L7/L12, oligomerisation / Ribosomal protein L7/L12, oligomerisation domain superfamily / Ribosomal protein L7/L12 dimerisation domain / Ribosomal protein L7/L12 / Ribosomal protein L7/L12, C-terminal / Ribosomal protein L7/L12 C-terminal domain / NusG-like / Transcription termination factor nusG / Ribosomal protein L7/L12, C-terminal/adaptor protein ClpS-like / NusG, N-terminal / In Spt5p, this domain may confer affinity for Spt4p. It possesses a RNP-like fold. / DNA repair Rad51/transcription factor NusA, alpha-helical / Type-1 KH domain profile. / NusG, N-terminal domain superfamily / Helix-hairpin-helix domain / Ribosomal protein L10, eubacterial, conserved site / Ribosomal protein L10 signature. / Ribosomal protein L10 / : / S1 domain profile. / DNA-directed RNA polymerase, omega subunit / DNA-directed RNA polymerase, subunit beta-prime, bacterial type / DNA-directed RNA polymerase, beta subunit, external 1 domain superfamily / DNA-directed RNA polymerase, beta subunit, external 1 domain / RNA polymerase beta subunit external 1 domain / RNA polymerase, alpha subunit, C-terminal / Bacterial RNA polymerase, alpha chain C terminal domain / DNA-directed RNA polymerase, alpha subunit / DNA-directed RNA polymerase beta subunit, bacterial-type / Ribosomal protein S21, conserved site / Ribosomal protein S21 signature. / Ribosomal protein L11, bacterial-type / Ribosomal protein L25, short-form / Ribosomal protein S14, bacterial/plastid / Ribosomal protein S1-like RNA-binding domain / S1 RNA binding domain / Ribosomal protein L31 type A / Ribosomal protein S21 superfamily / S1 domain / Ribosomal protein S21 / Ribosomal protein S16, conserved site / Ribosomal protein S16 signature. / Ribosomal protein L31 signature. / Ribosomal protein S21 / Ribosomal protein L31 / Ribosomal protein L31 superfamily / Ribosomal protein L31 / Ribosomal protein L11, conserved site / Ribosomal protein L11 signature. / Ribosomal protein L10-like domain superfamily / Ribosomal protein L10P / Ribosomal protein L10 / Ribosomal protein L16 signature 1. / Ribosomal protein L21, conserved site / Ribosomal protein L21 signature. / Ribosomal protein L16 signature 2. / Ribosomal protein L16, conserved site / Ribosomal protein L6, conserved site / Ribosomal protein L6 signature 1. / : / Ribosomal protein L9 signature. / Ribosomal protein L9, bacteria/chloroplast / Ribosomal protein L9, C-terminal / Ribosomal protein L9, C-terminal domain / Ribosomal protein L9, C-terminal domain superfamily / Ribosomal protein L11, N-terminal / Ribosomal protein L11, N-terminal domain / Ribosomal protein L11/L12 / Ribosomal protein L11, C-terminal / Ribosomal protein L11, C-terminal domain superfamily / Ribosomal protein L11/L12, N-terminal domain superfamily / Ribosomal protein L11/L12 / Ribosomal protein L11, RNA binding domain / Ribosomal protein L17 signature. / Ribosomal L25p family / Ribosomal protein L25 / Ribosomal protein L36 signature. / Ribosomal protein L32p, bacterial type / Ribosomal protein L28/L24 superfamily / Ribosomal protein L25/Gln-tRNA synthetase, N-terminal / Ribosomal protein L25/Gln-tRNA synthetase, anti-codon-binding domain superfamily / Ribosomal protein L9, N-terminal domain superfamily / Ribosomal protein L9 / Ribosomal protein L9, N-terminal / Ribosomal protein L9, N-terminal domain / Ribosomal protein L33, conserved site / Ribosomal protein L33 signature. / Ribosomal protein L35, conserved site
Similarity search - Domain/homology
Large ribosomal subunit protein uL15 / Small ribosomal subunit protein bS18 / Large ribosomal subunit protein bL36 / Small ribosomal subunit protein bS21 / Large ribosomal subunit protein uL5 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL24 / Large ribosomal subunit protein bL17 / 30S ribosomal protein S1 / Small ribosomal subunit protein uS9 ...Large ribosomal subunit protein uL15 / Small ribosomal subunit protein bS18 / Large ribosomal subunit protein bL36 / Small ribosomal subunit protein bS21 / Large ribosomal subunit protein uL5 / Large ribosomal subunit protein bL28 / Large ribosomal subunit protein uL24 / Large ribosomal subunit protein bL17 / 30S ribosomal protein S1 / Small ribosomal subunit protein uS9 / Small ribosomal subunit protein uS13 / Small ribosomal subunit protein uS17 / Large ribosomal subunit protein uL4 / Large ribosomal subunit protein bL20 / Small ribosomal subunit protein uS11 / Small ribosomal subunit protein uS3 / Large ribosomal subunit protein bL34 / Transcription antitermination protein RfaH / Large ribosomal subunit protein uL6 / Large ribosomal subunit protein bL21 / Small ribosomal subunit protein uS15 / Small ribosomal subunit protein bS16 / Small ribosomal subunit protein uS2 / Small ribosomal subunit protein bS20 / Large ribosomal subunit protein uL29 / Large ribosomal subunit protein bL25 / Large ribosomal subunit protein bL32 / Small ribosomal subunit protein uS8 / Large ribosomal subunit protein bL33 / Small ribosomal subunit protein bS6 / Small ribosomal subunit protein uS7 / Large ribosomal subunit protein uL10 / Large ribosomal subunit protein uL11 / Large ribosomal subunit protein bL27 / Large ribosomal subunit protein bL31 / Large ribosomal subunit protein bL35 / Small ribosomal subunit protein uS12 / Small ribosomal subunit protein uS4 / Small ribosomal subunit protein uS5 / DNA-directed RNA polymerase subunit alpha / DNA-directed RNA polymerase subunit omega / DNA-directed RNA polymerase subunit beta' / DNA-directed RNA polymerase subunit beta / Large ribosomal subunit protein uL16 / Large ribosomal subunit protein uL2 / Large ribosomal subunit protein uL3 / Large ribosomal subunit protein uL22 / : / Small ribosomal subunit protein uS19 / Large ribosomal subunit protein uL13 / Large ribosomal subunit protein uL14 / Transcription termination/antitermination protein NusA / : / Small ribosomal subunit protein uS14 / Large ribosomal subunit protein bL12 / Large ribosomal subunit protein bL19 / Small ribosomal subunit protein uS10 / Large ribosomal subunit protein uL30 / Large ribosomal subunit protein bL9
Similarity search - Component
Biological speciesEscherichia coli (E. coli) / synthetic construct (others)
Methodsingle particle reconstruction / cryo EM / Resolution: 5.3 Å
AuthorsMolodtsov V / Wang C / Ebright RH
Funding support United States, 1 items
OrganizationGrant numberCountry
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS) United States
CitationJournal: To Be Published
Title: Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
Authors: Molodtsov V / Wang C / Ebright RH
History
DepositionJan 11, 2024-
Header (metadata) releaseJul 23, 2025-
Map releaseJul 23, 2025-
UpdateJul 23, 2025-
Current statusJul 23, 2025Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_43335.map.gz / Format: CCP4 / Size: 512 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationEscherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
1.04 Å/pix.
x 512 pix.
= 532.48 Å		1.04 Å/pix.
x 512 pix.
= 532.48 Å		1.04 Å/pix.
x 512 pix.
= 532.48 Å

Surface

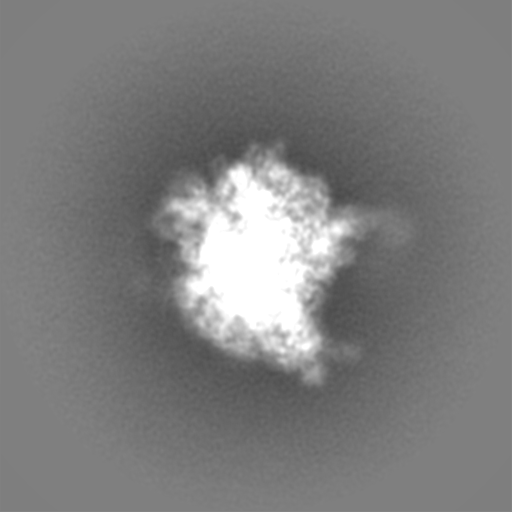

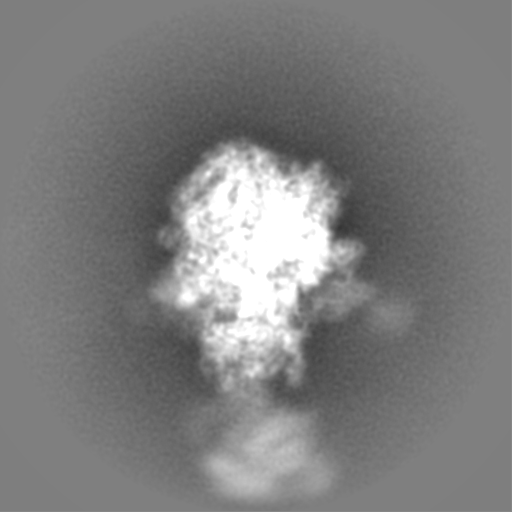

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 1.04 Å
Density

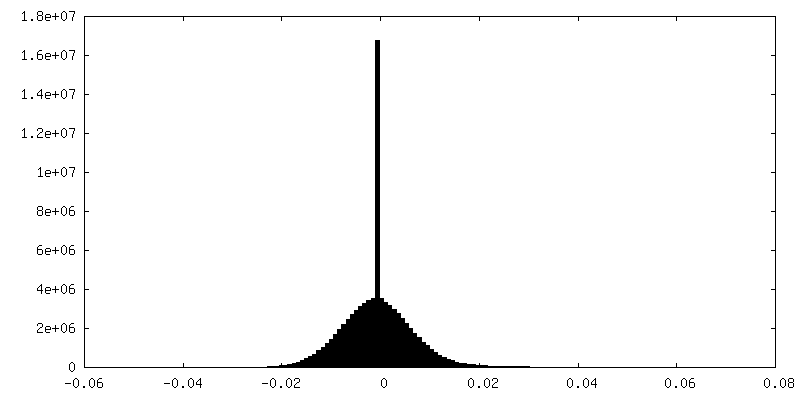

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0032
Minimum - Maximum-0.0074184756 - 0.035140168
Average (Standard dev.)-0.0001264977 (±0.002404005)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions512512512
Spacing512512512
CellA=B=C: 532.48 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: unmasked half map 1

Fileemd_43335_half_map_1.map
Annotationunmasked half map 1
Projections & Slices
AxesZYX

Projections

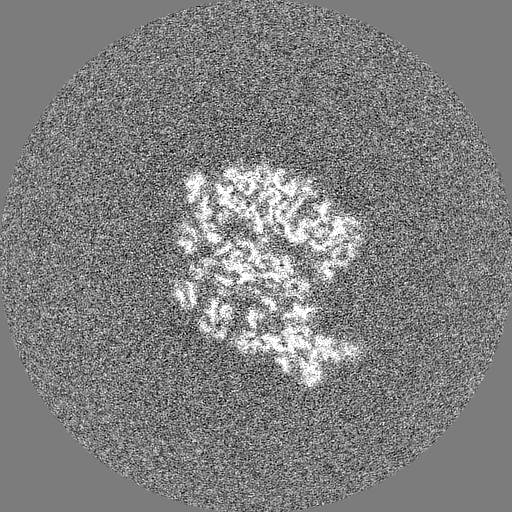

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: unmasked half map 2

Fileemd_43335_half_map_2.map
Annotationunmasked half map 2
Projections & Slices
AxesZYX

Projections

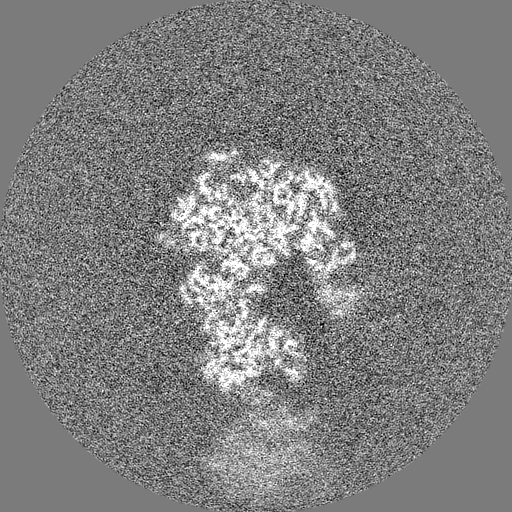

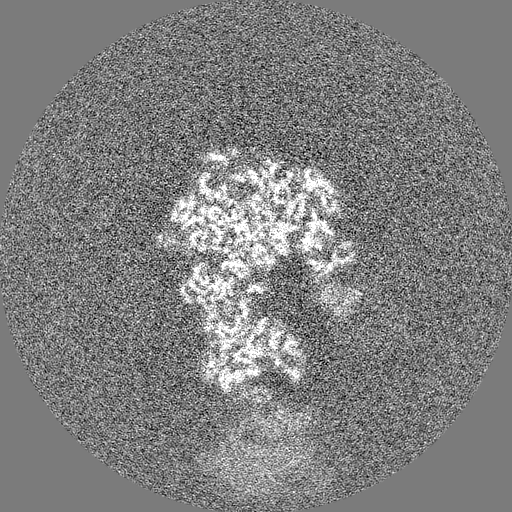

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

+
Entire : Escherichia coli transcription-translation loosely coupled comple...

EntireName: Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
Components
  • Complex: Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
    • Protein or peptide: Ribosomal protein L21
    • Protein or peptide: 50S ribosomal protein L22
    • Protein or peptide: 50S ribosomal protein L23
    • Protein or peptide: 50S ribosomal protein L24
    • Protein or peptide: 50S ribosomal protein L25
    • DNA: NT DNA ops
    • DNA: T DNA ops
    • RNA: mRNA with 36 nt long spacer
    • Protein or peptide: 50S ribosomal protein L10
    • RNA: E-site and P-site tRNA (fMet)
    • Protein or peptide: DNA-directed RNA polymerase subunit beta
    • Protein or peptide: Transcription antitermination protein RfaH
    • Protein or peptide: DNA-directed RNA polymerase subunit alpha
    • Protein or peptide: DNA-directed RNA polymerase subunit beta'
    • Protein or peptide: DNA-directed RNA polymerase subunit omega
    • Protein or peptide: Transcription termination/antitermination protein NusA
    • Protein or peptide: 30S ribosomal protein S18
    • RNA: 16S rRNA
    • Protein or peptide: 30S ribosomal protein S20
    • Protein or peptide: 30S ribosomal protein S21
    • Protein or peptide: 30S ribosomal protein S2
    • Protein or peptide: 30S ribosomal protein S1
    • Protein or peptide: 30S ribosomal protein S3
    • Protein or peptide: 30S ribosomal protein S4
    • Protein or peptide: 30S ribosomal protein S5
    • Protein or peptide: 30S ribosomal protein S6
    • Protein or peptide: 30S ribosomal protein S7
    • Protein or peptide: 30S ribosomal protein S8
    • Protein or peptide: 30S ribosomal protein S9
    • Protein or peptide: 30S ribosomal protein S10
    • Protein or peptide: 30S ribosomal protein S11
    • Protein or peptide: 30S ribosomal protein S12
    • Protein or peptide: 30S ribosomal protein S14
    • Protein or peptide: Small ribosomal subunit protein uS15
    • Protein or peptide: 30S ribosomal protein S16
    • Protein or peptide: 30S ribosomal protein S17
    • Protein or peptide: 30S ribosomal protein S19
    • Protein or peptide: 30S ribosomal protein S13
    • Protein or peptide: 50S ribosomal protein L11
    • Protein or peptide: 50S ribosomal protein L7/L12
    • RNA: 23S rRNA
    • Protein or peptide: 50S ribosomal protein L27
    • Protein or peptide: 50S ribosomal protein L28
    • RNA: 5S rRNA
    • Protein or peptide: 50S ribosomal protein L29
    • Protein or peptide: 50S ribosomal protein L30
    • Protein or peptide: 50S ribosomal protein L31
    • Protein or peptide: 50S ribosomal protein L2
    • Protein or peptide: 50S ribosomal protein L32
    • Protein or peptide: 50S ribosomal protein L3
    • Protein or peptide: 50S ribosomal protein L33
    • Protein or peptide: 50S ribosomal protein L4
    • Protein or peptide: 50S ribosomal protein L34
    • Protein or peptide: 50S ribosomal protein L5
    • Protein or peptide: 50S ribosomal protein L35
    • Protein or peptide: 50S ribosomal protein L6
    • Protein or peptide: 50S ribosomal protein L36
    • Protein or peptide: 50S ribosomal protein L9
    • Protein or peptide: 50S ribosomal protein L13
    • Protein or peptide: 50S ribosomal protein L14
    • Protein or peptide: 50S ribosomal protein L15
    • Protein or peptide: 50S ribosomal protein L16
    • Protein or peptide: 50S ribosomal protein L17
    • Protein or peptide: 50S ribosomal protein L18
    • Protein or peptide: 50S ribosomal protein L19
    • Protein or peptide: 50S ribosomal protein L20
  • Ligand: MAGNESIUM ION
  • Ligand: ZINC ION

+
Supramolecule #1: Escherichia coli transcription-translation loosely coupled comple...

SupramoleculeName: Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 36 nt long spacer, ops signal, RfaH, NusA, and fMet-tRNAs in E-site and P-site
type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#66
Source (natural)Organism: Escherichia coli (E. coli)

+
Macromolecule #1: Ribosomal protein L21

MacromoleculeName: Ribosomal protein L21 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.586374 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MYAVFQSGGK QHRVSEGQTV RLEKLDIATG ETVEFAEVLM IANGEEVKIG VPFVDGGVIK AEVVAHGRGE KVKIVKFRRR KHYRKQQGH RQWFTDVKIT GISA

UniProtKB: Large ribosomal subunit protein bL21

+
Macromolecule #2: 50S ribosomal protein L22

MacromoleculeName: 50S ribosomal protein L22 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 12.253359 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
METIAKHRHA RSSAQKVRLV ADLIRGKKVS QALDILTYTN KKAAVLVKKV LESAIANAEH NDGADIDDLK VTKIFVDEGP SMKRIMPRA KGRADRILKR TSHITVVVSD R

UniProtKB: Large ribosomal subunit protein uL22

+
Macromolecule #3: 50S ribosomal protein L23

MacromoleculeName: 50S ribosomal protein L23 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.22216 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MIREERLLKV LRAPHVSEKA STAMEKSNTI VLKVAKDATK AEIKAAVQKL FEVEVEVVNT LVVKGKVKRH GQRIGRRSDW KKAYVTLKE GQNLDFVGGA E

UniProtKB: UNIPROTKB: U9Y6C4

+
Macromolecule #4: 50S ribosomal protein L24

MacromoleculeName: 50S ribosomal protein L24 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.33925 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAAKIRRDDE VIVLTGKDKG KRGKVKNVLS SGKVIVEGIN LVKKHQKPVP ALNQPGGIVE KEAAIQVSNV AIFNAATGKA DRVGFRFED GKKVRFFKSN SETIK

UniProtKB: Large ribosomal subunit protein uL24

+
Macromolecule #5: 50S ribosomal protein L25

MacromoleculeName: 50S ribosomal protein L25 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 10.713465 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MFTINAEVRK EQGKGASRRL RAANKFPAII YGGKEAPLAI ELDHDKVMNM QAKAEFYSEV LTIVVDGKEI KVKAQDVQRH PYKPKLQHI DFVRA

UniProtKB: Large ribosomal subunit protein bL25

+
Macromolecule #9: 50S ribosomal protein L10

MacromoleculeName: 50S ribosomal protein L10 / type: protein_or_peptide / ID: 9 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 17.736596 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MALNLQDKQA IVAEVSEVAK GALSAVVADS RGVTVDKMTE LRKAGREAGV YMRVVRNTLL RRAVEGTPFE CLKDAFVGPT LIAYSMEHP GAAARLFKEF AKANAKFEVK AAAFEGELIP ASQIDRLATL PTYEEAIARL MATMKEASAG KLVRTLAAVR D AKEAA

UniProtKB: Large ribosomal subunit protein uL10

+
Macromolecule #11: DNA-directed RNA polymerase subunit beta

MacromoleculeName: DNA-directed RNA polymerase subunit beta / type: protein_or_peptide / ID: 11 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 150.820875 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MVYSYTEKKR IRKDFGKRPQ VLDVPYLLSI QLDSFQKFIE QDPEGQYGLE AAFRSVFPIQ SYSGNSELQY VSYRLGEPVF DVQECQIRG VTYSAPLRVK LRLVIYEREA PEGTVKDIKE QEVYMGEIPL MTDNGTFVIN GTERVIVSQL HRSPGVFFDS D KGKTHSSG ...String:
MVYSYTEKKR IRKDFGKRPQ VLDVPYLLSI QLDSFQKFIE QDPEGQYGLE AAFRSVFPIQ SYSGNSELQY VSYRLGEPVF DVQECQIRG VTYSAPLRVK LRLVIYEREA PEGTVKDIKE QEVYMGEIPL MTDNGTFVIN GTERVIVSQL HRSPGVFFDS D KGKTHSSG KVLYNARIIP YRGSWLDFEF DPKDNLFVRI DRRRKLPATI ILRALNYTTE QILDLFFEKV IFEIRDNKLQ ME LVPERLR GETASFDIEA NGKVYVEKGR RITARHIRQL EKDDVKLIEV PVEYIAGKVV AKDYIDESTG ELICAANMEL SLD LLAKLS QSGHKRIETL FTNDLDHGPY ISETLRVDPT NDRLSALVEI YRMMRPGEPP TREAAESLFE NLFFSEDRYD LSAV GRMKF NRSLLREEIE GSGILSKDDI IDVMKKLIDI RNGKGEVDDI DHLGNRRIRS VGEMAENQFR VGLVRVERAV KERLS LGDL DTLMPQDMIN AKPISAAVKE FFGSSQLSQF MDQNNPLSEI THKRRISALG PGGLTRERAG FEVRDVHPTH YGRVCP IET PEGPNIGLIN SLSVYAQTNE YGFLETPYRK VTDGVVTDEI HYLSAIEEGN YVIAQANSNL DEEGHFVEDL VTCRSKG ES SLFSRDQVDY MDVSTQQVVS VGASLIPFLE HDDANRALMG ANMQRQAVPT LRADKPLVGT GMERAVAVDS GVTAVAKR G GVVQYVDASR IVIKVNEDEM YPGEAGIDIY NLTKYTRSNQ NTCINQMPCV SLGEPVERGD VLADGPSTDL GELALGQNM RVAFMPWNGY NFEDSILVSE RVVQEDRFTT IHIQELACVS RDTKLGPEEI TADIPNVGEA ALSKLDESGI VYIGAEVTGG DILVGKVTP KGETQLTPEE KLLRAIFGEK ASDVKDSSLR VPNGVSGTVI DVQVFTRDGV EKDKRALEIE EMQLKQAKKD L SEELQILE AGLFSRIRAV LVAGGVEAEK LDKLPRDRWL ELGLTDEEKQ NQLEQLAEQY DELKHEFEKK LEAKRRKITQ GD DLAPGVL KIVKVYLAVK RRIQPGDKMA GRHGNKGVIS KINPIEDMPY DENGTPVDIV LNPLGVPSRM NIGQILETHL GMA AKGIGD KINAMLKQQQ EVAKLREFIQ RAYDLGADVR QKVDLSTFSD EEVMRLAENL RKGMPIATPV FDGAKEAEIK ELLK LGDLP TSGQIRLYDG RTGEQFERPV TVGYMYMLKL NHLVDDKMHA RSTGSYSLVT QQPLGGKAQF GGQRFGEMEV WALEA YGAA YTLQEMLTVK SDDVNGRTKM YKNIVDGNHQ MEPGMPESFN VLLKEIRSLG INIELEDE

UniProtKB: DNA-directed RNA polymerase subunit beta

+
Macromolecule #12: Transcription antitermination protein RfaH

MacromoleculeName: Transcription antitermination protein RfaH / type: protein_or_peptide / ID: 12 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 18.364217 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MQSWYLLYCK RGQLQRAQEH LERQAVNCLA PMITLEKIVR GKRTAVSEPL FPNYLFVEFD PEVIHTTTIN ATRGVSHFVR FGASPAIVP SAVIHQLSVY KPKDIVDPAT PYPGDKVIIT EGAFEGFQAI FTEPDGEARS MLLLNLINKE IKHSVKNTEF R KL

UniProtKB: Transcription antitermination protein RfaH

+
Macromolecule #13: DNA-directed RNA polymerase subunit alpha

MacromoleculeName: DNA-directed RNA polymerase subunit alpha / type: protein_or_peptide / ID: 13 / Number of copies: 2 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 36.55868 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MQGSVTEFLK PRLVDIEQVS STHAKVTLEP LERGFGHTLG NALRRILLSS MPGCAVTEVE IDGVLHEYST KEGVQEDILE ILLNLKGLA VRVQGKDEVI LTLNKSGIGP VTAADITHDG DVEIVKPQHV ICHLTDENAS ISMRIKVQRG RGYVPASTRI H SEEDERPI ...String:
MQGSVTEFLK PRLVDIEQVS STHAKVTLEP LERGFGHTLG NALRRILLSS MPGCAVTEVE IDGVLHEYST KEGVQEDILE ILLNLKGLA VRVQGKDEVI LTLNKSGIGP VTAADITHDG DVEIVKPQHV ICHLTDENAS ISMRIKVQRG RGYVPASTRI H SEEDERPI GRLLVDACYS PVERIAYNVE AARVEQRTDL DKLVIEMETN GTIDPEEAIR RAATILAEQL EAFVDLRDVR QP EVKEEKP EFDPILLRPV DDLELTVRSA NCLKAEAIHY IGDLVQRTEV ELLKTPNLGK KSLTEIKDVL ASRGLSLGMR LEN WPPASI ADE

UniProtKB: DNA-directed RNA polymerase subunit alpha

+
Macromolecule #14: DNA-directed RNA polymerase subunit beta'

MacromoleculeName: DNA-directed RNA polymerase subunit beta' / type: protein_or_peptide / ID: 14 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 155.366781 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MKDLLKFLKA QTKTEEFDAI KIALASPDMI RSWSFGEVKK PETINYRTFK PERDGLFCAR IFGPVKDYEC LCGKYKRLKH RGVICEKCG VEVTQTKVRR ERMGHIELAS PTAHIWFLKS LPSRIGLLLD MPLRDIERVL YFESYVVIEG GMTNLERQQI L TEEQYLDA ...String:
MKDLLKFLKA QTKTEEFDAI KIALASPDMI RSWSFGEVKK PETINYRTFK PERDGLFCAR IFGPVKDYEC LCGKYKRLKH RGVICEKCG VEVTQTKVRR ERMGHIELAS PTAHIWFLKS LPSRIGLLLD MPLRDIERVL YFESYVVIEG GMTNLERQQI L TEEQYLDA LEEFGDEFDA KMGAEAIQAL LKSMDLEQEC EQLREELNET NSETKRKKLT KRIKLLEAFV QSGNKPEWMI LT VLPVLPP DLRPLVPLDG GRFATSDLND LYRRVINRNN RLKRLLDLAA PDIIVRNEKR MLQEAVDALL DNGRRGRAIT GSN KRPLKS LADMIKGKQG RFRQNLLGKR VDYSGRSVIT VGPYLRLHQC GLPKKMALEL FKPFIYGKLE LRGLATTIKA AKKM VEREE AVVWDILDEV IREHPVLLNR APTLHRLGIQ AFEPVLIEGK AIQLHPLVCA AYNADFDGDQ MAVHVPLTLE AQLEA RALM MSTNNILSPA NGEPIIVPSQ DVVLGLYYMT RDCVNAKGEG MVLTGPKEAE RLYRSGLASL HARVKVRITE YEKDAN GEL VAKTSLKDTT VGRAILWMIV PKGLPYSIVN QALGKKAISK MLNTCYRILG LKPTVIFADQ IMYTGFAYAA RSGASVG ID DMVIPEKKHE IISEAEAEVA EIQEQFQSGL VTAGERYNKV IDIWAAANDR VSKAMMDNLQ TETVINRDGQ EEKQVSFN S IYMMADSGAR GSAAQIRQLA GMRGLMAKPD GSIIETPITA NFREGLNVLQ YFISTHGARK GLADTALKTA NSGYLTRRL VDVAQDLVVT EDDCGTHEGI MMTPVIEGGD VKEPLRDRVL GRVTAEDVLK PGTADILVPR NTLLHEQWCD LLEENSVDAV KVRSVVSCD TDFGVCAHCY GRDLARGHII NKGEAIGVIA AQSIGEPGTQ LTMRTFHIGG AASRAAAESS IQVKNKGSIK L SNVKSVVN SSGKLVITSR NTELKLIDEF GRTKESYKVP YGAVLAKGDG EQVAGGETVA NWDPHTMPVI TEVSGFVRFT DM IDGQTIT RQTDELTGLS SLVVLDSAER TAGGKDLRPA LKIVDAQGND VLIPGTDMPA QYFLPGKAIV QLEDGVQISS GDT LARIPQ ESGGTKDITG GLPRVADLFE ARRPKEPAIL AEISGIVSFG KETKGKRRLV ITPVDGSDPY EEMIPKWRQL NVFE GERVE RGDVISDGPE APHDILRLRG VHAVTRYIVN EVQDVYRLQG VKINDKHIEV IVRQMLRKAT IVNAGSSDFL EGEQV EYSR VKIANRELEA NGKVGATYSR DLLGITKASL ATESFISAAS FQETTRVLTE AAVAGKRDEL RGLKENVIVG RLIPAG TGY AYHQDRMRRR AAGEAPAAPQ VTAEDASASL AELLNAGLGG SDNE

UniProtKB: DNA-directed RNA polymerase subunit beta'

+
Macromolecule #15: DNA-directed RNA polymerase subunit omega

MacromoleculeName: DNA-directed RNA polymerase subunit omega / type: protein_or_peptide / ID: 15 / Number of copies: 1 / Enantiomer: LEVO / EC number: DNA-directed RNA polymerase
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 10.249547 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MARVTVQDAV EKIGNRFDLV LVAARRARQM QVGGKDPLVP EENDKTTVIA LREIEEGLIN NQILDVRERQ EQQEQEAAEL QAVTAIAEG RR

UniProtKB: DNA-directed RNA polymerase subunit omega

+
Macromolecule #16: Transcription termination/antitermination protein NusA

MacromoleculeName: Transcription termination/antitermination protein NusA
type: protein_or_peptide / ID: 16 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 54.932684 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MNKEILAVVE AVSNEKALPR EKIFEALESA LATATKKKYE QEIDVRVQID RKSGDFDTFR RWLVVDEVTQ PTKEITLEAA RYEDESLNL GDYVEDQIES VTFDRITTQT AKQVIVQKVR EAERAMVVDQ FREHEGEIIT GVVKKVNRDN ISLDLGNNAE A VILREDML ...String:
MNKEILAVVE AVSNEKALPR EKIFEALESA LATATKKKYE QEIDVRVQID RKSGDFDTFR RWLVVDEVTQ PTKEITLEAA RYEDESLNL GDYVEDQIES VTFDRITTQT AKQVIVQKVR EAERAMVVDQ FREHEGEIIT GVVKKVNRDN ISLDLGNNAE A VILREDML PRENFRPGDR VRGVLYSVRP EARGAQLFVT RSKPEMLIEL FRIEVPEIGE EVIEIKAAAR DPGSRAKIAV KT NDKRIDP VGACVGMRGA RVQAVSTELG GERIDIVLWD DNPAQFVINA MAPADVASIV VDEDKHTMDI AVEAGNLAQA IGR NGQNVR LASQLSGWEL NVMTVDDLQA KHQAEAHAAI DTFTKYLDID EDFATVLVEE GFSTLEELAY VPMKELLEIE GLDE PTVEA LRERAKNALA TIAQAQEESL GDNKPADDLL NLEGVDRDLA FKLAARGVCT LEDLAEQGID DLADIEGLTD EKAGA LIMA ARNICWFGDE A

UniProtKB: Transcription termination/antitermination protein NusA

+
Macromolecule #17: 30S ribosomal protein S18

MacromoleculeName: 30S ribosomal protein S18 / type: protein_or_peptide / ID: 17 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.005472 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MARYFRRRKF CRFTAEGVQE IDYKDIATLK NYITESGKIV PSRITGTRAK YQRQLARAIK RARYLSLLPY TDRHQ

UniProtKB: Small ribosomal subunit protein bS18

+
Macromolecule #19: 30S ribosomal protein S20

MacromoleculeName: 30S ribosomal protein S20 / type: protein_or_peptide / ID: 19 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.708464 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MANIKSAKKR AIQSEKARKH NASRRSMMRT FIKKVYAAIE AGDKAAAQKA FNEMQPIVDR QAAKGLIHKN KAARHKANLT AQINKLA

UniProtKB: Small ribosomal subunit protein bS20

+
Macromolecule #20: 30S ribosomal protein S21

MacromoleculeName: 30S ribosomal protein S21 / type: protein_or_peptide / ID: 20 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 8.524039 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MPVIKVRENE PFDVALRRFK RSCEKAGVLA EVRRREFYEK PTTERKRAKA SAVKRHAKKL ARENARRTRL Y

UniProtKB: Small ribosomal subunit protein bS21

+
Macromolecule #21: 30S ribosomal protein S2

MacromoleculeName: 30S ribosomal protein S2 / type: protein_or_peptide / ID: 21 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 26.78167 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MATVSMRDML KAGVHFGHQT RYWNPKMKPF IFGARNKVHI INLEKTVPMF NEALAELNKI ASRKGKILFV GTKRAASEAV KDAALSCDQ FFVNHRWLGG MLTNWKTVRQ SIKRLKDLET QSQDGTFDKL TKKEALMRTR ELEKLENSLG GIKDMGGLPD A LFVIDADH ...String:
MATVSMRDML KAGVHFGHQT RYWNPKMKPF IFGARNKVHI INLEKTVPMF NEALAELNKI ASRKGKILFV GTKRAASEAV KDAALSCDQ FFVNHRWLGG MLTNWKTVRQ SIKRLKDLET QSQDGTFDKL TKKEALMRTR ELEKLENSLG GIKDMGGLPD A LFVIDADH EHIAIKEANN LGIPVFAIVD TNSDPDGVDF VIPGNDDAIR AVTLYLGAVA ATVREGRSQD LASQAEESFV EA E

UniProtKB: Small ribosomal subunit protein uS2

+
Macromolecule #22: 30S ribosomal protein S1

MacromoleculeName: 30S ribosomal protein S1 / type: protein_or_peptide / ID: 22 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 61.238887 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MTESFAQLFE ESLKEIETRP GSIVRGVVVA IDKDVVLVDA GLKSESAIPA EQFKNAQGEL EIQVGDEVDV ALDAVEDGFG ETLLSREKA KRHEAWITLE KAYEDAETVT GVINGKVKGG FTVELNGIRA FLPGSLVDVR PVRDTLHLEG KELEFKVIKL D QKRNNVVV ...String:
MTESFAQLFE ESLKEIETRP GSIVRGVVVA IDKDVVLVDA GLKSESAIPA EQFKNAQGEL EIQVGDEVDV ALDAVEDGFG ETLLSREKA KRHEAWITLE KAYEDAETVT GVINGKVKGG FTVELNGIRA FLPGSLVDVR PVRDTLHLEG KELEFKVIKL D QKRNNVVV SRRAVIESEN SAERDQLLEN LQEGMEVKGI VKNLTDYGAF VDLGGVDGLL HITDMAWKRV KHPSEIVNVG DE ITVKVLK FDRERTRVSL GLKQLGEDPW VAIAKRYPEG TKLTGRVTNL TDYGCFVEIE EGVEGLVHVS EMDWTNKNIH PSK VVNVGD VVEVMVLDID EERRRISLGL KQCKANPWQQ FAETHNKGDR VEGKIKSITD FGIFIGLDGG IDGLVHLSDI SWNV AGEEA VREYKKGDEI AAVVLQVDAE RERISLGVKQ LAEDPFNNWV ALNKKGAIVT GKVTAVDAKG ATVELADGVE GYLRA SEAS RDRVEDATLV LSVGDEVEAK FTGVDRKNRA ISLSVRAKDE ADEKDAIATV NKQEDANFSN NAMAEAFKAA KGE

UniProtKB: 30S ribosomal protein S1

+
Macromolecule #23: 30S ribosomal protein S3

MacromoleculeName: 30S ribosomal protein S3 / type: protein_or_peptide / ID: 23 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 26.031316 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MGQKVHPNGI RLGIVKPWNS TWFANTKEFA DNLDSDFKVR QYLTKELAKA SVSRIVIERP AKSIRVTIHT ARPGIVIGKK GEDVEKLRK VVADIAGVPA QINIAEVRKP ELDAKLVADS ITSQLERRVM FRRAMKRAVQ NAMRLGAKGI KVEVSGRLGG A EIARTEWY ...String:
MGQKVHPNGI RLGIVKPWNS TWFANTKEFA DNLDSDFKVR QYLTKELAKA SVSRIVIERP AKSIRVTIHT ARPGIVIGKK GEDVEKLRK VVADIAGVPA QINIAEVRKP ELDAKLVADS ITSQLERRVM FRRAMKRAVQ NAMRLGAKGI KVEVSGRLGG A EIARTEWY REGRVPLHTL RADIDYNTSE AHTTYGVIGV KVWIFKGEIL GGMAAVEQPE KPAAQPKKQQ RKGRK

UniProtKB: Small ribosomal subunit protein uS3

+
Macromolecule #24: 30S ribosomal protein S4

MacromoleculeName: 30S ribosomal protein S4 / type: protein_or_peptide / ID: 24 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 23.514199 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MARYLGPKLK LSRREGTDLF LKSGVRAIDT KCKIEQAPGQ HGARKPRLSD YGVQLREKQK VRRIYGVLER QFRNYYKEAA RLKGNTGEN LLALLEGRLD NVVYRMGFGA TRAEARQLVS HKAIMVNGRV VNIASYQVSP NDVVSIREKA KKQSRVKAAL E LAEQREKP ...String:
MARYLGPKLK LSRREGTDLF LKSGVRAIDT KCKIEQAPGQ HGARKPRLSD YGVQLREKQK VRRIYGVLER QFRNYYKEAA RLKGNTGEN LLALLEGRLD NVVYRMGFGA TRAEARQLVS HKAIMVNGRV VNIASYQVSP NDVVSIREKA KKQSRVKAAL E LAEQREKP TWLEVDAGKM EGTFKRKPER SDLSADINEH LIVELYSK

UniProtKB: Small ribosomal subunit protein uS4

+
Macromolecule #25: 30S ribosomal protein S5

MacromoleculeName: 30S ribosomal protein S5 / type: protein_or_peptide / ID: 25 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 17.629398 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAHIEKQAGE LQEKLIAVNR VSKTVKGGRI FSFTALTVVG DGNGRVGFGY GKAREVPAAI QKAMEKARRN MINVALNNGT LQHPVKGVH TGSRVFMQPA SEGTGIIAGG AMRAVLEVAG VHNVLAKAYG STNPINVVRA TIDGLENMNS PEMVAAKRGK S VEEILGK

UniProtKB: Small ribosomal subunit protein uS5

+
Macromolecule #26: 30S ribosomal protein S6

MacromoleculeName: 30S ribosomal protein S6 / type: protein_or_peptide / ID: 26 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 15.727512 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MRHYEIVFMV HPDQSEQVPG MIERYTAAIT GAEGKIHRLE DWGRRQLAYP INKLHKAHYV LMNVEAPQEV IDELETTFRF NDAVIRSMV MRTKHAVTEA SPMVKAKDER RERRDDFANE TADDAEAGDS EEEEEE

UniProtKB: Small ribosomal subunit protein bS6

+
Macromolecule #27: 30S ribosomal protein S7

MacromoleculeName: 30S ribosomal protein S7 / type: protein_or_peptide / ID: 27 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 20.055156 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MPRRRVIGQR KILPDPKFGS ELLAKFVNIL MVDGKKSTAE SIVYSALETL AQRSGKSELE AFEVALENVR PTVEVKSRRV GGSTYQVPV EVRPVRRNAL AMRWIVEAAR KRGDKSMALR LANELSDAAE NKGTAVKKRE DVHRMAEANK AFAHYRWLSL R SFSHQAGA SSKQPALGYL N

UniProtKB: Small ribosomal subunit protein uS7

+
Macromolecule #28: 30S ribosomal protein S8

MacromoleculeName: 30S ribosomal protein S8 / type: protein_or_peptide / ID: 28 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 14.146557 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSMQDPIADM LTRIRNGQAA NKAAVTMPSS KLKVAIANVL KEEGFIEDFK VEGDTKPELE LTLKYFQGKA VVESIQRVSR PGLRIYKRK DELPKVMAGL GIAVVSTSKG VMTDRAARQA GLGGEIICYV A

UniProtKB: Small ribosomal subunit protein uS8

+
Macromolecule #29: 30S ribosomal protein S9

MacromoleculeName: 30S ribosomal protein S9 / type: protein_or_peptide / ID: 29 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 14.88627 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAENQYYGTG RRKSSAARVF IKPGNGKIVI NQRSLEQYFG RETARMVVRQ PLELVDMVEK LDLYITVKGG GISGQAGAIR HGITRALME YDESLRSELR KAGFVTRDAR QVERKKVGLR KARRRPQFSK R

UniProtKB: Small ribosomal subunit protein uS9

+
Macromolecule #30: 30S ribosomal protein S10

MacromoleculeName: 30S ribosomal protein S10 / type: protein_or_peptide / ID: 30 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.755597 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MQNQRIRIRL KAFDHRLIDQ ATAEIVETAK RTGAQVRGPI PLPTRKERFT VLISPHVNKD ARDQYEIRTH LRLVDIVEPT EKTVDALMR LDLAAGVDVQ ISLG

UniProtKB: Small ribosomal subunit protein uS10

+
Macromolecule #31: 30S ribosomal protein S11

MacromoleculeName: 30S ribosomal protein S11 / type: protein_or_peptide / ID: 31 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.870975 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKAPIRARK RVRKQVSDGV AHIHASFNNT IVTITDRQGN ALGWATAGGS GFRGSRKSTP FAAQVAAERC ADAVKEYGIK NLEVMVKGP GPGRESTIRA LNAAGFRITN ITDVTPIPHN GCRPPKKRRV

UniProtKB: Small ribosomal subunit protein uS11

+
Macromolecule #32: 30S ribosomal protein S12

MacromoleculeName: 30S ribosomal protein S12 / type: protein_or_peptide / ID: 32 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.768157 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MATVNQLVRK PRARKVAKSN VPALEACPQK RGVCTRVYTT TPKKPNSALR KVCRVRLTNG FEVTSYIGGE GHNLQEHSVI LIRGGRVKD LPGVRYHTVR GALDCSGVKD RKQARSKYGV KRPKA

UniProtKB: Small ribosomal subunit protein uS12

+
Macromolecule #33: 30S ribosomal protein S14

MacromoleculeName: 30S ribosomal protein S14 / type: protein_or_peptide / ID: 33 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 11.60656 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKQSMKARE VKRVALADKY FAKRAELKAI ISDVNASDED RWNAVLKLQT LPRDSSPSRQ RNRCRQTGRP HGFLRKFGLS RIKVREAAM RGEIPGLKKA SW

UniProtKB: Small ribosomal subunit protein uS14

+
Macromolecule #34: Small ribosomal subunit protein uS15

MacromoleculeName: Small ribosomal subunit protein uS15 / type: protein_or_peptide / ID: 34 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 10.290816 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSLSTEATAK IVSEFGRDAN DTGSTEVQVA LLTAQINHLQ GHFAEHKKDH HSRRGLLRMV SQRRKLLDYL KRKDVARYTQ LIERLGLRR

UniProtKB: Small ribosomal subunit protein uS15

+
Macromolecule #35: 30S ribosomal protein S16

MacromoleculeName: 30S ribosomal protein S16 / type: protein_or_peptide / ID: 35 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.207572 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MVTIRLARHG AKKRPFYQVV VADSRNARNG RFIERVGFFN PIASEKEEGT RLDLDRIAHW VGQGATISDR VAALIKEVNK AA

UniProtKB: Small ribosomal subunit protein bS16

+
Macromolecule #36: 30S ribosomal protein S17

MacromoleculeName: 30S ribosomal protein S17 / type: protein_or_peptide / ID: 36 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.724491 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MTDKIRTLQG RVVSDKMEKS IVVAIERFVK HPIYGKFIKR TTKLHVHDEN NECGIGDVVE IRECRPLSKT KSWTLVRVVE KAVL

UniProtKB: Small ribosomal subunit protein uS17

+
Macromolecule #37: 30S ribosomal protein S19

MacromoleculeName: 30S ribosomal protein S19 / type: protein_or_peptide / ID: 37 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 10.455355 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MPRSLKKGPF IDLHLLKKVE KAVESGDKKP LRTWSRRSTI FPNMIGLTIA VHNGRQHVPV FVTDEMVGHK LGEFAPTRTY RGHAADKKA KKK

UniProtKB: Small ribosomal subunit protein uS19

+
Macromolecule #38: 30S ribosomal protein S13

MacromoleculeName: 30S ribosomal protein S13 / type: protein_or_peptide / ID: 38 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.128467 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MARIAGINIP DHKHAVIALT SIYGVGKTRS KAILAAAGIA EDVKISELSE GQIDTLRDEV AKFVVEGDLR REISMSIKRL MDLGCYRGL RHRRGLPVRG QRTKTNARTR KGPRKPIKK

UniProtKB: Small ribosomal subunit protein uS13

+
Macromolecule #39: 50S ribosomal protein L11

MacromoleculeName: 50S ribosomal protein L11 / type: protein_or_peptide / ID: 39 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 14.894362 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKKVQAYVK LQVAAGMANP SPPVGPALGQ QGVNIMEFCK AFNAKTDSIE KGLPIPVVIT VYADRSFTFV TKTPPAAVLL KKAAGIKSG SGKPNKDKVG KISRAQLQEI AQTKAADMTG ADIEAMTRSI EGTARSMGLV VED

UniProtKB: Large ribosomal subunit protein uL11

+
Macromolecule #40: 50S ribosomal protein L7/L12

MacromoleculeName: 50S ribosomal protein L7/L12 / type: protein_or_peptide / ID: 40 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 12.309155 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSITKDQIIE AVAAMSVMDV VELISAMEEK FGVSAAAAVA VAAGPVEAAE EKTEFDVILK AAGANKVAVI KAVRGATGLG LKEAKDLVE SAPAALKEGV SKDDAEALKK ALEEAGAEVE VK

UniProtKB: Large ribosomal subunit protein bL12

+
Macromolecule #42: 50S ribosomal protein L27

MacromoleculeName: 50S ribosomal protein L27 / type: protein_or_peptide / ID: 42 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.14654 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAHKKAGGST RNGRDSEAKR LGVKRFGGES VLAGSIIVRQ RGTKFHAGAN VGCGRDHTLF AKADGKVKFE VKGPKNRKFI SIEAE

UniProtKB: Large ribosomal subunit protein bL27

+
Macromolecule #43: 50S ribosomal protein L28

MacromoleculeName: 50S ribosomal protein L28 / type: protein_or_peptide / ID: 43 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 9.027551 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSRVCQVTGK RPVTGNNRSH ALNATKRRFL PNLHSHRFWV ESEKRFVTLR VSAKGMRVID KKGIDTVLAE LRARGEKY

UniProtKB: Large ribosomal subunit protein bL28

+
Macromolecule #45: 50S ribosomal protein L29

MacromoleculeName: 50S ribosomal protein L29 / type: protein_or_peptide / ID: 45 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 7.286464 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MKAKELREKS VEELNTELLN LLREQFNLRM QAASGQLQQS HLLKQVRRDV ARVKTLLNEK AGA

UniProtKB: Large ribosomal subunit protein uL29

+
Macromolecule #46: 50S ribosomal protein L30

MacromoleculeName: 50S ribosomal protein L30 / type: protein_or_peptide / ID: 46 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 6.55482 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKTIKITQT RSAIGRLPKH KATLLGLGLR RIGHTVERED TPAIRGMINA VSFMVKVEE

UniProtKB: Large ribosomal subunit protein uL30

+
Macromolecule #47: 50S ribosomal protein L31

MacromoleculeName: 50S ribosomal protein L31 / type: protein_or_peptide / ID: 47 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 7.887117 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MKKDIHPKYE EITASCSCGN VMKIRSTVGH DLNLDVCSKC HPFFTGKQRD VATGGRVDRF NKRFNIPGSK

UniProtKB: Large ribosomal subunit protein bL31

+
Macromolecule #48: 50S ribosomal protein L2

MacromoleculeName: 50S ribosomal protein L2 / type: protein_or_peptide / ID: 48 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 29.923619 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MAVVKCKPTS PGRRHVVKVV NPELHKGKPF APLLEKNSKS GGRNNNGRIT TRHIGGGHKQ AYRIVDFKRN KDGIPAVVER LEYDPNRSA NIALVLYKDG ERRYILAPKG LKAGDQIQSG VDAAIKPGNT LPMRNIPVGS TVHNVEMKPG KGGQLARSAG T YVQIVARD ...String:
MAVVKCKPTS PGRRHVVKVV NPELHKGKPF APLLEKNSKS GGRNNNGRIT TRHIGGGHKQ AYRIVDFKRN KDGIPAVVER LEYDPNRSA NIALVLYKDG ERRYILAPKG LKAGDQIQSG VDAAIKPGNT LPMRNIPVGS TVHNVEMKPG KGGQLARSAG T YVQIVARD GAYVTLRLRS GEMRKVEADC RATLGEVGNA EHMLRVLGKA GAARWRGVRP TVRGTAMNPV DHPHGGGEGR NF GKHPVTP WGVQTKGKKT RSNKRTDKFI VRRRSK

UniProtKB: Large ribosomal subunit protein uL2

+
Macromolecule #49: 50S ribosomal protein L32

MacromoleculeName: 50S ribosomal protein L32 / type: protein_or_peptide / ID: 49 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 6.463445 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAVQQNKPTR SKRGMRRSHD ALTAVTSLSV DKTSGEKHLR HHITADGYYR GRKVIAK

UniProtKB: Large ribosomal subunit protein bL32

+
Macromolecule #50: 50S ribosomal protein L3

MacromoleculeName: 50S ribosomal protein L3 / type: protein_or_peptide / ID: 50 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 22.277535 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN QTPGKVFKGK K MAGQMGNE ...String:
MIGLVGKKVG MTRIFTEDGV SIPVTVIEVE ANRVTQVKDL ANDGYRAIQV TTGAKKANRV TKPEAGHFAK AGVEAGRGLW EFRLAEGEE FTVGQSISVE LFADVKKVDV TGTSKGKGFA GTVKRWNFRT QDATHGNSLS HRVPGSIGQN QTPGKVFKGK K MAGQMGNE RVTVQSLDVV RVDAERNLLL VKGAVPGATG SDLIVKPAVK A

UniProtKB: Large ribosomal subunit protein uL3

+
Macromolecule #51: 50S ribosomal protein L33

MacromoleculeName: 50S ribosomal protein L33 / type: protein_or_peptide / ID: 51 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 6.388631 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKGIREKIK LVSSAGTGHF YTTTKNKRTK PEKLELKKFD PVVRQHVIYK EAKIK

UniProtKB: Large ribosomal subunit protein bL33

+
Macromolecule #52: 50S ribosomal protein L4

MacromoleculeName: 50S ribosomal protein L4 / type: protein_or_peptide / ID: 52 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 22.121566 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD ...String:
MELVLKDAQS ALTVSETTFG RDFNEALVHQ VVVAYAAGAR QGTRAQKTRA EVTGSGKKPW RQKGTGRARS GSIKSPIWRS GGVTFAARP QDHSQKVNKK MYRGALKSIL SELVRQDRLI VVEKFSVEAP KTKLLAQKLK DMALEDVLII TGELDENLFL A ARNLHKVD VRDATGIDPV SLIAFDKVVM TADAVKQVEE MLA

UniProtKB: Large ribosomal subunit protein uL4

+
Macromolecule #53: 50S ribosomal protein L34

MacromoleculeName: 50S ribosomal protein L34 / type: protein_or_peptide / ID: 53 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 5.397463 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MKRTFQPSVL KRNRSHGFRA RMATKNGRQV LARRRAKGRA RLTVSK

UniProtKB: Large ribosomal subunit protein bL34

+
Macromolecule #54: 50S ribosomal protein L5

MacromoleculeName: 50S ribosomal protein L5 / type: protein_or_peptide / ID: 54 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 20.333611 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MAKLHDYYKD EVVKKLMTEF NYNSVMQVPR VEKITLNMGV GEAIADKKLL DNAAADLAAI SGQKPLITKA RKSVAGFKIR QGYPIGCKV TLRGERMWEF FERLITIAVP RIRDFRGLSA KSFDGRGNYS MGVREQIIFP EIDYDKVDRV RGLDITITTT A KSDEEGRA LLAAFDFPFR K

UniProtKB: Large ribosomal subunit protein uL5

+
Macromolecule #55: 50S ribosomal protein L35

MacromoleculeName: 50S ribosomal protein L35 / type: protein_or_peptide / ID: 55 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 7.313032 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MPKIKTVRGA AKRFKKTGKG GFKHKHANLR HILTKKATKR KRHLRPKAMV SKGDLGLVIA CLPYA

UniProtKB: Large ribosomal subunit protein bL35

+
Macromolecule #56: 50S ribosomal protein L6

MacromoleculeName: 50S ribosomal protein L6 / type: protein_or_peptide / ID: 56 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 18.932791 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSRVAKAPVV VPAGVDVKIN GQVITIKGKN GELTRTLNDA VEVKHADNTL TFGPRDGYAD GWAQAGTARA LLNSMVIGVT EGFTKKLQL VGVGYRAAVK GNVINLSLGF SHPVDHQLPA GITAECPTQT EIVLKGADKQ VIGQVAADLR AYRRPEPYKG K GVRYADEV VRTKEAKKK

UniProtKB: Large ribosomal subunit protein uL6

+
Macromolecule #57: 50S ribosomal protein L36

MacromoleculeName: 50S ribosomal protein L36 / type: protein_or_peptide / ID: 57 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 4.37739 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MKVRASVKKL CRNCKIVKRD GVIRVICSAE PKHKQRQG

UniProtKB: Large ribosomal subunit protein bL36

+
Macromolecule #58: 50S ribosomal protein L9

MacromoleculeName: 50S ribosomal protein L9 / type: protein_or_peptide / ID: 58 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 15.78902 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MQVILLDKVA NLGSLGDQVN VKAGYARNFL VPQGKAVPAT KKNIEFFEAR RAELEAKLAE VLAAANARAE KINALETVTI ASKAGDEGK LFGSIGTRDI ADAVTAAGVE VAKSEVRLPN GVLRTTGEHE VSFQVHSEVF AKVIVNVVAE

UniProtKB: Large ribosomal subunit protein bL9

+
Macromolecule #59: 50S ribosomal protein L13

MacromoleculeName: 50S ribosomal protein L13 / type: protein_or_peptide / ID: 59 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 16.050606 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MKTFTAKPET VKRDWYVVDA TGKTLGRLAT ELARRLRGKH KAEYTPHVDT GDYIIVLNAD KVAVTGNKRT DKVYYHHTGH IGGIKQATF EEMIARRPER VIEIAVKGML PKGPLGRAMF RKLKVYAGNE HNHAAQQPQV LDI

UniProtKB: Large ribosomal subunit protein uL13

+
Macromolecule #60: 50S ribosomal protein L14

MacromoleculeName: 50S ribosomal protein L14 / type: protein_or_peptide / ID: 60 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.565067 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MIQEQTMLNV ADNSGARRVM CIKVLGGSHR RYAGVGDIIK ITIKEAIPRG KVKKGDVLKA VVVRTKKGVR RPDGSVIRFD GNACVLLNN NSEQPIGTRI FGPVTRELRS EKFMKIISLA PEVL

UniProtKB: Large ribosomal subunit protein uL14

+
Macromolecule #61: 50S ribosomal protein L15

MacromoleculeName: 50S ribosomal protein L15 / type: protein_or_peptide / ID: 61 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 15.008471 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MRLNTLSPAE GSKKAGKRLG RGIGSGLGKT GGRGHKGQKS RSGGGVRRGF EGGQMPLYRR LPKFGFTSRK AAITAEIRLS DLAKVEGGV VDLNTLKAAN IIGIQIEFAK VILAGEVTTP VTVRGLRVTK GARAAIEAAG GKIEE

UniProtKB: Large ribosomal subunit protein uL15

+
Macromolecule #62: 50S ribosomal protein L16

MacromoleculeName: 50S ribosomal protein L16 / type: protein_or_peptide / ID: 62 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 15.312269 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MLQPKRTKFR KMHKGRNRGL AQGTDVSFGS FGLKAVGRGR LTARQIEAAR RAMTRAVKRQ GKIWIRVFPD KPITEKPLAV RMGKGKGNV EYWVALIQPG KVLYEMDGVP EELAREAFKL AAAKLPIKTT FVTKTVM

UniProtKB: Large ribosomal subunit protein uL16

+
Macromolecule #63: 50S ribosomal protein L17

MacromoleculeName: 50S ribosomal protein L17 / type: protein_or_peptide / ID: 63 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 14.393657 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MRHRKSGRQL NRNSSHRQAM FRNMAGSLVR HEIIKTTLPK AKELRRVVEP LITLAKTDSV ANRRLAFART RDNEIVAKLF NELGPRFAS RAGGYTRILK CGFRAGDNAP MAYIELVDRS EKAEAAAE

UniProtKB: Large ribosomal subunit protein bL17

+
Macromolecule #64: 50S ribosomal protein L18

MacromoleculeName: 50S ribosomal protein L18 / type: protein_or_peptide / ID: 64 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 12.794668 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MDKKSARIRR ATRARRKLQE LGATRLVVHR TPRHIYAQVI APNGSEVLVA ASTVEKAIAE QLKYTGNKDA AAAVGKAVAE RALEKGIKD VSFDRSGFQY HGRVQALADA AREAGLQF

UniProtKB: UNIPROTKB: S1E9N8

+
Macromolecule #65: 50S ribosomal protein L19

MacromoleculeName: 50S ribosomal protein L19 / type: protein_or_peptide / ID: 65 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.159278 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MSNIIKQLEQ EQMKQDVPSF RPGDTVEVKV WVVEGSKKRL QAFEGVVIAI RNRGLHSAFT VRKISNGEGV ERVFQTHSPV VDSISVKRR GAVRKAKLYY LRERTGKAAR IKERLN

UniProtKB: Large ribosomal subunit protein bL19

+
Macromolecule #66: 50S ribosomal protein L20

MacromoleculeName: 50S ribosomal protein L20 / type: protein_or_peptide / ID: 66 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 13.528024 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MARVKRGVIA RARHKKILKQ AKGYYGARSR VYRVAFQAVI KAGQYAYRDR RQRKRQFRQL WIARINAAAR QNGISYSKFI NGLKKASVE IDRKILADIA VFDKVAFTAL VEKAKAALA

UniProtKB: Large ribosomal subunit protein bL20

+
Macromolecule #6: NT DNA ops

MacromoleculeName: NT DNA ops / type: dna / ID: 6 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 11.786552 KDa
SequenceString:
(DC)(DC)(DG)(DT)(DC)(DA)(DT)(DG)(DA)(DT) (DC)(DA)(DT)(DA)(DG)(DG)(DC)(DG)(DG)(DT) (DA)(DG)(DC)(DG)(DT)(DG)(DC)(DG)(DC) (DC)(DA)(DG)(DA)(DC)(DA)(DG)(DG)(DG)

+
Macromolecule #7: T DNA ops

MacromoleculeName: T DNA ops / type: dna / ID: 7 / Number of copies: 1 / Classification: DNA
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 11.534374 KDa
SequenceString:
(DC)(DC)(DC)(DT)(DG)(DT)(DC)(DT)(DG)(DG) (DC)(DG)(DT)(DC)(DC)(DT)(DC)(DT)(DC)(DA) (DC)(DC)(DC)(DC)(DT)(DA)(DT)(DG)(DA) (DT)(DC)(DA)(DT)(DG)(DA)(DC)(DG)(DG)

+
Macromolecule #8: mRNA with 36 nt long spacer

MacromoleculeName: mRNA with 36 nt long spacer / type: rna / ID: 8 / Number of copies: 1
Source (natural)Organism: synthetic construct (others)
Molecular weightTheoretical: 16.586303 KDa
SequenceString:
AUGUUUUUUU UUUUUUUUUU UUUUUUUUUU UUUUUUUUUG AUUUGGUGAG AGG

+
Macromolecule #10: E-site and P-site tRNA (fMet)

MacromoleculeName: E-site and P-site tRNA (fMet) / type: rna / ID: 10 / Number of copies: 2
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 24.496617 KDa
SequenceString:
CGCGGGGUGG AGCAGCCGGU AGCUCGUCGG GCUCAUAACC CGAAGGUCGU CGGUUCAAAU CCGGCCCCCG CAACCA

GENBANK: GENBANK: CP058798.1

+
Macromolecule #18: 16S rRNA

MacromoleculeName: 16S rRNA / type: rna / ID: 18 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 499.690031 KDa
SequenceString: AAAUUGAAGA GUUUGAUCAU GGCUCAGAUU GAACGCUGGC GGCAGGCCUA ACACAUGCAA GUCGAACGGU AACAGGAAGA AGCUUGCUU CUUUGCUGAC GAGUGGCGGA CGGGUGAGUA AUGUCUGGGA AACUGCCUGA UGGAGGGGGA UAACUACUGG A AACGGUAG ...String:
AAAUUGAAGA GUUUGAUCAU GGCUCAGAUU GAACGCUGGC GGCAGGCCUA ACACAUGCAA GUCGAACGGU AACAGGAAGA AGCUUGCUU CUUUGCUGAC GAGUGGCGGA CGGGUGAGUA AUGUCUGGGA AACUGCCUGA UGGAGGGGGA UAACUACUGG A AACGGUAG CUAAUACCGC AUAACGUCGC AAGACCAAAG AGGGGGACCU UCGGGCCUCU UGCCAUCGGA UGUGCCCAGA UG GGAUUAG CUAGUAGGUG GGGUAACGGC UCACCUAGGC GACGAUCCCU AGCUGGUCUG AGAGGAUGAC CAGCCACACU GGA ACUGAG ACACGGUCCA GACUCCUACG GGAGGCAGCA GUGGGGAAUA UUGCACAAUG GGCGCAAGCC UGAUGCAGCC AUGC CGCGU GUAUGAAGAA GGCCUUCGGG UUGUAAAGUA CUUUCAGCGG GGAGGAAGGG AGUAAAGUUA AUACCUUUGC UCAUU GACG UUACCCGCAG AAGAAGCACC GGCUAACUCC GUGCCAGCAG CCGCGGUAAU ACGGAGGGUG CAAGCGUUAA UCGGAA UUA CUGGGCGUAA AGCGCACGCA GGCGGUUUGU UAAGUCAGAU GUGAAAUCCC CGGGCUCAAC CUGGGAACUG CAUCUGA UA CUGGCAAGCU UGAGUCUCGU AGAGGGGGGU AGAAUUCCAG GUGUAGCGGU GAAAUGCGUA GAGAUCUGGA GGAAUACC G GUGGCGAAGG CGGCCCCCUG GACGAAGACU GACGCUCAGG UGCGAAAGCG UGGGGAGCAA ACAGGAUUAG AUACCCUGG UAGUCCACGC CGUAAACGAU GUCGACUUGG AGGUUGUGCC CUUGAGGCGU GGCUUCCGGA GCUAACGCGU UAAGUCGACC GCCUGGGGA GUACGGCCGC AAGGUUAAAA CUCAAAUGAA UUGACGGGGG CCCGCACAAG CGGUGGAGCA UGUGGUUUAA U UCGAUGCA ACGCGAAGAA CCUUACCUGG UCUUGACAUC CACGGAAGUU UUCAGAGAUG AGAAUGUGCC UUCGGGAACC GU GAGACAG GUGCUGCAUG GCUGUCGUCA GCUCGUGUUG UGAAAUGUUG GGUUAAGUCC CGCAACGAGC GCAACCCUUA UCC UUUGUU GCCAGCGGUC CGGCCGGGAA CUCAAAGGAG ACUGCCAGUG AUAAACUGGA GGAAGGUGGG GAUGACGUCA AGUC AUCAU GGCCCUUACG ACCAGGGCUA CACACGUGCU ACAAUGGCGC AUACAAAGAG AAGCGACCUC GCGAGAGCAA GCGGA CCUC AUAAAGUGCG UCGUAGUCCG GAUUGGAGUC UGCAACUCGA CUCCAUGAAG UCGGAAUCGC UAGUAAUCGU GGAUCA GAA UGCCACGGUG AAUACGUUCC CGGGCCUUGU ACACACCGCC CGUCACACCA UGGGAGUGGG UUGCAAAAGA AGUAGGU AG CUUAACCUUC GGGAGGGCGC UUACCACUUU GUGAUUCAUG ACUGGGGUGA AGUCGUAACA AGGUAACCGU AGGGGAAC C UGCGGUUGGA UCACCUCCUU A

GENBANK: GENBANK: CP043227.1

+
Macromolecule #41: 23S rRNA

MacromoleculeName: 23S rRNA / type: rna / ID: 41 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 941.635438 KDa
SequenceString: GGUUAAGCGA CUAAGCGUAC ACGGUGGAUG CCCUGGCAGU CAGAGGCGAU GAAGGACGUG CUAAUCUGCG AUAAGCGUCG GUAAGGUGA UAUGAACCGU UAUAACCGGC GAUUUCCGAA UGGGGAAACC CAGUGUGUUU CGACACACUA UCAUUAACUG A AUCCAUAG ...String:
GGUUAAGCGA CUAAGCGUAC ACGGUGGAUG CCCUGGCAGU CAGAGGCGAU GAAGGACGUG CUAAUCUGCG AUAAGCGUCG GUAAGGUGA UAUGAACCGU UAUAACCGGC GAUUUCCGAA UGGGGAAACC CAGUGUGUUU CGACACACUA UCAUUAACUG A AUCCAUAG GUUAAUGAGG CGAACCGGGG GAACUGAAAC AUCUAAGUAC CCCGAGGAAA AGAAAUCAAC CGAGAUUCCC CC AGUAGCG GCGAGCGAAC GGGGAGCAGC CCAGAGCCUG AAUCAGUGUG UGUGUUAGUG GAAGCGUCUG GAAAGGCGCG CGA UACAGG GUGACAGCCC CGUACACAAA AAUGCACAUG CUGUGAGCUC GAUGAGUAGG GCGGGACACG UGGUAUCCUG UCUG AAUAU GGGGGGACCA UCCUCCAAGG CUAAAUACUC CUGACUGACC GAUAGUGAAC CAGUACCGUG AGGGAAAGGC GAAAA GAAC CCCGGCGAGG GGAGUGAAAA AGAACCUGAA ACCGUGUACG UACAAGCAGU GGGAGCACGC UUAGGCGUGU GACUGC GUA CCUUUUGUAU AAUGGGUCAG CGACUUAUAU UCUGUAGCAA GGUUAACCGA AUAGGGGAGC CGAAGGGAAA CCGAGUC UU AACUGGGCGU UAAGUUGCAG GGUAUAGACC CGAAACCCGG UGAUCUAGCC AUGGGCAGGU UGAAGGUUGG GUAACACU A ACUGGAGGAC CGAACCGACU AAUGUUGAAA AAUUAGCGGA UGACUUGUGG CUGGGGGUGA AAGGCCAAUC AAACCGGGA GAUAGCUGGU UCUCCCCGAA AGCUAUUUAG GUAGCGCCUC GUGAAUUCAU CUCCGGGGGU AGAGCACUGU UUCGGCAAGG GGGUCAACC CGACUUACCA ACCCGAUGCA AACUGCGAAU ACCGGAGAAU GUUAUCACGG GAGACACACG GCGGGUGCUA A CGUCCGUC GUGAAGAGGG AAACAACCCA GACCGCCAGC UAAGGUCCCA AAGUCAUGGU UAAGUGGGAA ACGAUGUGGG AA GGCCCAG ACAGCCAGGA UGUUGGCUUA GAAGCAGCCA UCAUUUAAAG AAAGCGUAAU AGCUCACUGG UCGAGUCGGC CUG CGCGGA AGAUGUAACG GGGCUAAACC AUGCACCGAA GCUGCGGCAG CGACGCUUAU GCGUUGUUGG GUAGGGGAGC GUUC UGUAA GCCUGCGAAG GUGUGCUGUG AGGCAUGCUG GAGGUAUCAG AAGUGCGAAU GCUGACAUAA GUAACGAUAA AGCGG GUGA AAAGCCCGCU CGCCGGAAGA CCAAGGGUUC CUGUCCAACG UUAAUCGGGG CAGGGUGAGU CGACCCCUAA GGCGAG GCC GAAAGGCGUA GUCGAUGGGA AACAGGUUAA UAUUCCUGUA CUUGGUGUUA CUGCGAAGGG GGGACGGAGA AGGCUAU GU UGGCCGGGCG ACGGUUGUCC CGGUUUAAGC GUGUAGGCUG GUUUUCCAGG CAAAUCCGGA AAAUCAAGGC UGAGGCGU G AUGACGAGGC ACUACGGUGC UGAAGCAACA AAUGCCCUGC UUCCAGGAAA AGCCUCUAAG CAUCAGGUAA CAUCAAAUC GUACCCCAAA CCGACACAGG UGGUCAGGUA GAGAAUACCA AGGCGCUUGA GAGAACUCGG GUGAAGGAAC UAGGCAAAAU GGUGCCGUA ACUUCGGGAG AAGGCACGCU GAUAUGUAGG UGAGGUCCCU CGCGGAUGGA GCUGAAAUCA GUCGAAGAUA C CAGCUGGC UGCAACUGUU UAUUAAAAAC ACAGCACUGU GCAAACACGA AAGUGGACGU AUACGGUGUG ACGCCUGCCC GG UGCCGGA AGGUUAAUUG AUGGGGUUAG CGCAAGCGAA GCUCUUGAUC GAAGCCCCGG UAAACGGCGG CCGUAACUAU AAC GGUCCU AAGGUAGCGA AAUUCCUUGU CGGGUAAGUU CCGACCUGCA CGAAUGGCGU AAUGAUGGCC AGGCUGUCUC CACC CGAGA CUCAGUGAAA UUGAACUCGC UGUGAAGAUG CAGUGUACCC GCGGCAAGAC GGAAAGACCC CGUGAACCUU UACUA UAGC UUGACACUGA ACAUUGAGCC UUGAUGUGUA GGAUAGGUGG GAGGCUUUGA AGUGUGGACG CCAGUCUGCA UGGAGC CGA CCUUGAAAUA CCACCCUUUA AUGUUUGAUG UUCUAACGUU GACCCGUAAU CCGGGUUGCG GACAGUGUCU GGUGGGU AG UUUGACUGGG GCGGUCUCCU CCUAAAGAGU AACGGAGGAG CACGAAGGUU GGCUAAUCCU GGUCGGACAU CAGGAGGU U AGUGCAAUGG CAUAAGCCAG CUUGACUGCG AGCGUGACGG CGCGAGCAGG UGCGAAAGCA GGUCAUAGUG AUCCGGUGG UUCUGAAUGG AAGGGCCAUC GCUCAACGGA UAAAAGGUAC UCCGGGGAUA ACAGGCUGAU ACCGCCCAAG AGUUCAUAUC GACGGCGGU GUUUGGCACC UCGAUGUCGG CUCAUCACAU CCUGGGGCUG AAGUAGGUCC CAAGGGUAUG GCUGUUCGCC A UUUAAAGU GGUACGCGAG CUGGGUUUAG AACGUCGUGA GACAGUUCGG UCCCUAUCUG CCGUGGGCGC UGGAGAACUG AG GGGGGCU GCUCCUAGUA CGAGAGGACC GGAGUGGACG CAUCACUGGU GUUCGGGUUG UCAUGCCAAU GGCACUGCCC GGU AGCUAA AUGCGGAAGA GAUAAGUGCU GAAAGCAUCU AAGCACGAAA CUUGCCCCGA GAUGAGUUCU CCCUGACCCU UUAA GGGUC CUGAAGGAAC GUUGAAGACG ACGACGUUGA UAGGCCGGGU GUGUAAGCGC AGCGAUGCGU UGAGCUAACC GGUAC UAAU GAACCGUGAG GCUUAACCUU

GENBANK: GENBANK: CP012869.1

+
Macromolecule #44: 5S rRNA

MacromoleculeName: 5S rRNA / type: rna / ID: 44 / Number of copies: 1
Source (natural)Organism: Escherichia coli (E. coli)
Molecular weightTheoretical: 38.79009 KDa
SequenceString:
UGCCUGGCGG CCGUAGCGCG GUGGUCCCAC CUGACCCCAU GCCGAACUCA GAAGUGAAAC GCCGUAGCGC CGAUGGUAGU GUGGGGUCU CCCCAUGCGA GAGUAGGGAA CUGCCAGGCA U

GENBANK: GENBANK: CP024273.1

+
Macromolecule #67: MAGNESIUM ION

MacromoleculeName: MAGNESIUM ION / type: ligand / ID: 67 / Number of copies: 1 / Formula: MG
Molecular weightTheoretical: 24.305 Da

+
Macromolecule #68: ZINC ION

MacromoleculeName: ZINC ION / type: ligand / ID: 68 / Number of copies: 2 / Formula: ZN
Molecular weightTheoretical: 65.409 Da

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: GATAN K2 SUMMIT (4k x 4k) / Average electron dose: 50.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.5 µm / Nominal defocus min: 1.25 µm
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

+
Image processing

CTF correctionType: PHASE FLIPPING AND AMPLITUDE CORRECTION
Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 5.3 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 20048
Initial angle assignmentType: COMMON LINE
Final angle assignmentType: COMMON LINE

+
About Yorodumi

-
News

-
Feb 9, 2022. New format data for meta-information of EMDB entries

New format data for meta-information of EMDB entries

  • Version 3 of the EMDB header file is now the official format.
  • The previous official version 1.9 will be removed from the archive.

Related info.:EMDB header

External links:wwPDB to switch to version 3 of the EMDB data model

-
Aug 12, 2020. Covid-19 info

Covid-19 info

URL: https://pdbj.org/emnavi/covid19.php

New page: Covid-19 featured information page in EM Navigator.

Related info.:Covid-19 info / Mar 5, 2020. Novel coronavirus structure data

+
Mar 5, 2020. Novel coronavirus structure data

Novel coronavirus structure data

Related info.:Yorodumi Speices / Aug 12, 2020. Covid-19 info

External links:COVID-19 featured content - PDBj / Molecule of the Month (242)：Coronavirus Proteases

+
Jan 31, 2019. EMDB accession codes are about to change! (news from PDBe EMDB page)

EMDB accession codes are about to change! (news from PDBe EMDB page)

  • The allocation of 4 digits for EMDB accession codes will soon come to an end. Whilst these codes will remain in use, new EMDB accession codes will include an additional digit and will expand incrementally as the available range of codes is exhausted. The current 4-digit format prefixed with “EMD-” (i.e. EMD-XXXX) will advance to a 5-digit format (i.e. EMD-XXXXX), and so on. It is currently estimated that the 4-digit codes will be depleted around Spring 2019, at which point the 5-digit format will come into force.
  • The EM Navigator/Yorodumi systems omit the EMD- prefix.

Related info.:Q: What is EMD? / ID/Accession-code notation in Yorodumi/EM Navigator

External links:EMDB Accession Codes are Changing Soon! / Contact to PDBj

+
Jul 12, 2017. Major update of PDB

Major update of PDB

  • wwPDB released updated PDB data conforming to the new PDBx/mmCIF dictionary.
  • This is a major update changing the version number from 4 to 5, and with Remediation, in which all the entries are updated.
  • In this update, many items about electron microscopy experimental information are reorganized (e.g. em_software).
  • Now, EM Navigator and Yorodumi are based on the updated data.

External links:wwPDB Remediation / Enriched Model Files Conforming to OneDep Data Standards Now Available in the PDB FTP Archive

-
Yorodumi

Thousand views of thousand structures

  • Yorodumi is a browser for structure data from EMDB, PDB, SASBDB, etc.
  • This page is also the successor to EM Navigator detail page, and also detail information page/front-end page for Omokage search.
  • The word "yorodu" (or yorozu) is an old Japanese word meaning "ten thousand". "mi" (miru) is to see.

Related info.:EMDB / PDB / SASBDB / Comparison of 3 databanks / Yorodumi Search / Aug 31, 2016. New EM Navigator & Yorodumi / Yorodumi Papers / Jmol/JSmol / Function and homology information / Changes in new EM Navigator and Yorodumi

Read more
