Basic information

Entry
Database: EMDB / ID: EMD-39372
TitleSARS-CoV-2 spike glycoprotein in complex with NT-108 scFv focused on RBD and NT-108 scFv interface
Map data
Sample
  • Complex: SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv
    • Complex: SARS-CoV-2 spike glycoprotein
      • Protein or peptide: Spike glycoprotein
    • Complex: NT-108 scFv
      • Protein or peptide: NT-108 scFv
KeywordsAntibody / Complex / VIRAL PROTEIN
Function / homology
Function and homology information


Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell ...Maturation of spike protein / viral translation / Translation of Structural Proteins / Virion Assembly and Release / host cell surface / host extracellular space / symbiont-mediated-mediated suppression of host tetherin activity / Induction of Cell-Cell Fusion / structural constituent of virion / entry receptor-mediated virion attachment to host cell / membrane fusion / Attachment and Entry / host cell endoplasmic reticulum-Golgi intermediate compartment membrane / positive regulation of viral entry into host cell / receptor-mediated virion attachment to host cell / host cell surface receptor binding / symbiont-mediated suppression of host innate immune response / receptor ligand activity / endocytosis involved in viral entry into host cell / fusion of virus membrane with host plasma membrane / fusion of virus membrane with host endosome membrane / viral envelope / virion attachment to host cell / SARS-CoV-2 activates/modulates innate and adaptive immune responses / host cell plasma membrane / virion membrane / identical protein binding / membrane / plasma membrane
Similarity search - Function
Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, betacoronavirus / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus ...Spike (S) protein S1 subunit, receptor-binding domain, SARS-CoV-2 / Spike (S) protein S1 subunit, N-terminal domain, SARS-CoV-like / Coronavirus spike glycoprotein S1, C-terminal / Coronavirus spike glycoprotein S1, C-terminal / Spike glycoprotein, betacoronavirus / Spike glycoprotein, N-terminal domain superfamily / Betacoronavirus spike (S) glycoprotein S1 subunit N-terminal (NTD) domain profile. / Betacoronavirus spike (S) glycoprotein S1 subunit C-terminal (CTD) domain profile. / Spike (S) protein S1 subunit, receptor-binding domain, betacoronavirus / Spike S1 subunit, receptor binding domain superfamily, betacoronavirus / Betacoronavirus spike glycoprotein S1, receptor binding / Spike glycoprotein S1, N-terminal domain, betacoronavirus-like / Betacoronavirus-like spike glycoprotein S1, N-terminal / Spike glycoprotein S2, coronavirus, heptad repeat 1 / Spike glycoprotein S2, coronavirus, heptad repeat 2 / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 1 (HR1) region profile. / Coronavirus spike (S) glycoprotein S2 subunit heptad repeat 2 (HR2) region profile. / Spike glycoprotein S2 superfamily, coronavirus / Spike glycoprotein S2, coronavirus / Coronavirus spike glycoprotein S2
Similarity search - Domain/homology
Biological speciesHomo sapiens (human) / Severe acute respiratory syndrome coronavirus 2
Methodsingle particle reconstruction / cryo EM / Resolution: 3.27 Å
AuthorsAnraku Y / Kita S / Onodera T / Tadokoro T / Ito S / Adachi Y / Kotaki R / Suzuki T / Hashiguchi T / Takahashi Y / Maenaka K
Funding support Japan, 8 items
OrganizationGrant numberCountry
Japan Agency for Medical Research and Development (AMED)JP17am0101093 Japan
Japan Agency for Medical Research and Development (AMED)JP20ae0101047 Japan
Japan Agency for Medical Research and Development (AMED)JP21fk0108463 Japan
Japan Agency for Medical Research and Development (AMED)JP22ama121037 Japan
Japan Society for the Promotion of Science (JSPS)JP20H05873 Japan
Japan Agency for Medical Research and Development (AMED)JP223fa627005 Japan
Japan Agency for Medical Research and Development (AMED)JP223fa627009 Japan
Japan Agency for Medical Research and Development (AMED)JP23jf0126002 Japan
CitationJournal: To Be Published
Title: Structural basis for potent neutralization activity of SARS-CoV-2 antibody, NT-108
Authors: Anraku Y / Maenaka K
History
DepositionMar 5, 2024-
Header (metadata) releaseMar 12, 2025-
Map releaseMar 12, 2025-
UpdateMar 12, 2025-
Current statusMar 12, 2025Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_39372.map.gz / Format: CCP4 / Size: 216 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.75 Å/pix.
x 384 pix.
= 289.459 Å		0.75 Å/pix.
x 384 pix.
= 289.459 Å		0.75 Å/pix.
x 384 pix.
= 289.459 Å

Surface

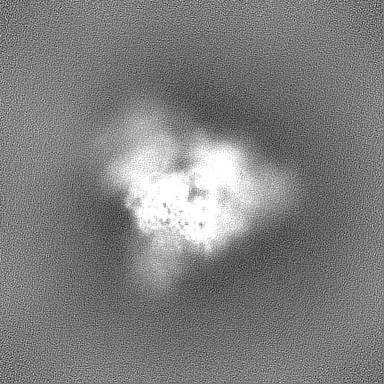

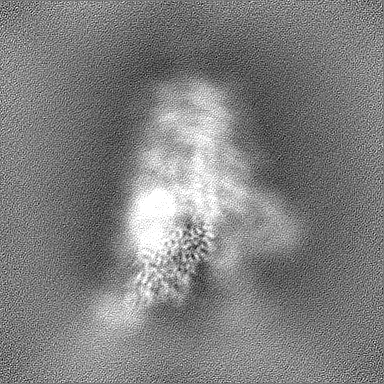

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.7538 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.281
Minimum - Maximum-0.62345564 - 1.2176955
Average (Standard dev.)0.0008623921 (±0.026209217)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions384384384
Spacing384384384
CellA=B=C: 289.4592 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Mask #1

Fileemd_39372_msk_1.map
Projections & Slices
AxesZYX

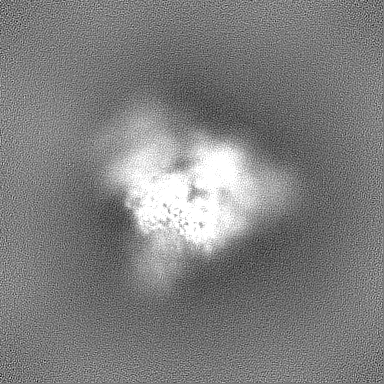

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_39372_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_39372_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv

EntireName: SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv
Components
  • Complex: SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv
    • Complex: SARS-CoV-2 spike glycoprotein
      • Protein or peptide: Spike glycoprotein
    • Complex: NT-108 scFv
      • Protein or peptide: NT-108 scFv

-
Supramolecule #1: SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv

SupramoleculeName: SARS-CoV-2 spike glycoprotein in complex with NT-108 scFv
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 20 KDa

-
Supramolecule #2: SARS-CoV-2 spike glycoprotein

SupramoleculeName: SARS-CoV-2 spike glycoprotein / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #2
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2

-
Supramolecule #3: NT-108 scFv

SupramoleculeName: NT-108 scFv / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #1
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: NT-108 scFv

MacromoleculeName: NT-108 scFv / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 26.820643 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: EIVLTQSPGT LSLSPGERAT LSCRASQSVS STFLAWYQQK PGQAPRLLIY GASYMATGIP DRFSGSGSGT DFTLTISRLE PEDFAVYYC QQYGSSLTFG GGTKLEIKGG GGSGGGGSGG GGSQVQLQQS GPGLVKPSQT LSLTCSISGD SVSSNSAAWN W IRQSPSRG ...String:
EIVLTQSPGT LSLSPGERAT LSCRASQSVS STFLAWYQQK PGQAPRLLIY GASYMATGIP DRFSGSGSGT DFTLTISRLE PEDFAVYYC QQYGSSLTFG GGTKLEIKGG GGSGGGGSGG GGSQVQLQQS GPGLVKPSQT LSLTCSISGD SVSSNSAAWN W IRQSPSRG LEWLGRTYYR SKWYNDYAGT VKSRIAINPD TSKNQFSLHL NSVTPEDTAV YFCARVISVA GYAFDIWGQG TM VTVSSHH HHHH

-
Macromolecule #2: Spike glycoprotein

MacromoleculeName: Spike glycoprotein / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 132.754922 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: SSQCVNLTTR TQLPPAYTNS FTRGVYYPDK VFRSSVLHST QDLFLPFFSN VTWFHAIHVS GTNGTKRFDN PVLPFNDGVY FASTEKSNI IRGWIFGTTL DSKTQSLLIV NNATNVVIKV CEFQFCNDPF LGVYYHKNNK SWMESEFRVY SSANNCTFEY V SQPFLMDL ...String:
SSQCVNLTTR TQLPPAYTNS FTRGVYYPDK VFRSSVLHST QDLFLPFFSN VTWFHAIHVS GTNGTKRFDN PVLPFNDGVY FASTEKSNI IRGWIFGTTL DSKTQSLLIV NNATNVVIKV CEFQFCNDPF LGVYYHKNNK SWMESEFRVY SSANNCTFEY V SQPFLMDL EGKQGNFKNL REFVFKNIDG YFKIYSKHTP INLVRDLPQG FSALEPLVDL PIGINITRFQ TLLALHRSYL TP GDSSSGW TAGAAAYYVG YLQPRTFLLK YNENGTITDA VDCALDPLSE TKCTLKSFTV EKGIYQTSNF RVQPTESIVR FPN ITNLCP FGEVFNATRF ASVYAWNRKR ISNCVADYSV LYNSASFSTF KCYGVSPTKL NDLCFTNVYA DSFVIRGDEV RQIA PGQTG KIADYNYKLP DDFTGCVIAW NSNNLDSKVG GNYNYLYRLF RKSNLKPFER DISTEIYQAG STPCNGVEGF NCYFP LQSY GFQPTNGVGY QPYRVVVLSF ELLHAPATVC GPKKSTNLVK NKCVNFNFNG LTGTGVLTES NKKFLPFQQF GRDIAD TTD AVRDPQTLEI LDITPCSFGG VSVITPGTNT SNQVAVLYQD VNCTEVPVAI HADQLTPTWR VYSTGSNVFQ TRAGCLI GA EHVNNSYECD IPIGAGICAS YQTQTNSPGS AGSVASQSII AYTMSLGAEN SVAYSNNSIA IPTNFTISVT TEILPVSM T KTSVDCTMYI CGDSTECSNL LLQYGSFCTQ LNRALTGIAV EQDKNTQEVF AQVKQIYKTP PIKDFGGFNF SQILPDPSK PSKRSPIEDL LFNKVTLADA GFIKQYGDCL GDIAARDLIC AQKFNGLTVL PPLLTDEMIA QYTSALLAGT ITSGWTFGAG PALQIPFPM QMAYRFNGIG VTQNVLYENQ KLIANQFNSA IGKIQDSLSS TPSALGKLQD VVNQNAQALN TLVKQLSSNF G AISSVLND ILSRLDPPEA EVQIDRLITG RLQSLQTYVT QQLIRAAEIR ASANLAATKM SECVLGQSKR VDFCGKGYHL MS FPQSAPH GVVFLHVTYV PAQEKNFTTA PAICHDGKAH FPREGVFVSN GTHWFVTQRN FYEPQIITTD NTFVSGNCDV VIG IVNNTV YDPLQPELDS FKEELDKYFK NHTSPDVDLG DISGINASVV NIQKEIDRLN EVAKNLNESL IDLQELGKYE QYI

UniProtKB: Spike glycoprotein

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1.1 mg/mL
BufferpH: 7.4
Component:
ConcentrationFormulaName
0.14 mol/LNaClsodium chloride
0.0027 mol/LKClkalium chloride
0.01 mol/LH3PO4phosphoric acid

Details: PBS
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 291 K / Instrument: FEI VITROBOT MARK IV / Details: blotting time 5 s and blotting force 5..

-
Electron microscopy

MicroscopeTFS KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Digitization - Dimensions - Width: 5760 pixel / Digitization - Dimensions - Height: 4092 pixel / Number real images: 2832 / Average exposure time: 1.5 sec. / Average electron dose: 53.52 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 1.8 µm / Nominal defocus min: 0.8 µm / Nominal magnification: 130000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Particle selectionNumber selected: 652138
Startup modelType of model: OTHER
Details: the map of SARS-CoV-2 Spike glycoprotein close state reconstructed using EMPIAR-10514 dataset
Final reconstructionNumber classes used: 2 / Applied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 3.27 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 3.3.1) / Number images used: 124137
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.1)
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: RELION (ver. 3.1)
Final 3D classificationNumber classes: 6 / Software - Name: RELION (ver. 3.1)
FSC plot (resolution estimation)

-
Atomic model buiding 1

Initial modelPDB ID:

8yk4


Chain - Source name: PDB / Chain - Initial model type: experimental model
RefinementSpace: REAL / Protocol: RIGID BODY FIT
Output model

PDB-8ykh:
Structure of SARS-CoV-2 spike RBD in complex with NT-108 scFv

+
