Basic information

Entry
Database: EMDB / ID: EMD-38863
TitleThe cryo-EM structure of spermine induced a-synuclein fibril in Tris buffer.
Map data
Sample
  • Organelle or cellular component: spermine induced alpha-synuclein fibril in Tris buffer
    • Protein or peptide: Alpha-synuclein
Keywordsamyloid / PROTEIN FIBRIL
Function / homology
Function and homology information


negative regulation of mitochondrial electron transport, NADH to ubiquinone / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / response to desipramine / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / regulation of synaptic vesicle recycling ...negative regulation of mitochondrial electron transport, NADH to ubiquinone / neutral lipid metabolic process / regulation of acyl-CoA biosynthetic process / negative regulation of dopamine uptake involved in synaptic transmission / negative regulation of norepinephrine uptake / response to desipramine / positive regulation of SNARE complex assembly / positive regulation of hydrogen peroxide catabolic process / supramolecular fiber / regulation of synaptic vesicle recycling / negative regulation of chaperone-mediated autophagy / regulation of reactive oxygen species biosynthetic process / positive regulation of protein localization to cell periphery / mitochondrial membrane organization / negative regulation of exocytosis / regulation of glutamate secretion / dopamine biosynthetic process / response to iron(II) ion / positive regulation of neurotransmitter secretion / regulation of macrophage activation / negative regulation of dopamine metabolic process / negative regulation of platelet-derived growth factor receptor signaling pathway / SNARE complex assembly / negative regulation of thrombin-activated receptor signaling pathway / Lewy body / regulation of locomotion / negative regulation of microtubule polymerization / positive regulation of inositol phosphate biosynthetic process / synaptic vesicle priming / regulation of norepinephrine uptake / transporter regulator activity / protein kinase inhibitor activity / dopamine uptake involved in synaptic transmission / synaptic vesicle transport / regulation of dopamine secretion / positive regulation of receptor recycling / positive regulation of exocytosis / mitochondrial ATP synthesis coupled electron transport / cuprous ion binding / nuclear outer membrane / dynein complex binding / response to magnesium ion / synaptic vesicle exocytosis / positive regulation of endocytosis / negative regulation of serotonin uptake / response to type II interferon / kinesin binding / cysteine-type endopeptidase inhibitor activity / regulation of presynapse assembly / synaptic vesicle endocytosis / alpha-tubulin binding / beta-tubulin binding / phospholipase binding / supramolecular fiber organization / phospholipid metabolic process / behavioral response to cocaine / cellular response to fibroblast growth factor stimulus / inclusion body / cellular response to epinephrine stimulus / Hsp70 protein binding / enzyme inhibitor activity / axon terminus / response to interleukin-1 / cellular response to copper ion / positive regulation of release of sequestered calcium ion into cytosol / regulation of microtubule cytoskeleton organization / SNARE binding / adult locomotory behavior / glutathione metabolic process / protein tetramerization / excitatory postsynaptic potential / protein sequestering activity / tubulin binding / phosphoprotein binding / microglial cell activation / ferrous iron binding / fatty acid metabolic process / PKR-mediated signaling / synapse organization / receptor internalization / regulation of long-term neuronal synaptic plasticity / phospholipid binding / protein destabilization / tau protein binding / enzyme activator activity / terminal bouton / positive regulation of inflammatory response / long-term synaptic potentiation / synaptic vesicle membrane / actin cytoskeleton / growth cone / actin binding / cellular response to oxidative stress / neuron apoptotic process / cell cortex / histone binding / response to lipopolysaccharide / microtubule binding / amyloid fibril formation / chemical synaptic transmission
Similarity search - Function
Synuclein / Alpha-synuclein / Synuclein
Similarity search - Domain/homology
Biological speciesHomo sapiens (human)
Methodhelical reconstruction / cryo EM / Resolution: 2.8 Å
AuthorsYao YX / Zhao QY / Liu C / Li D
Funding support1 items
OrganizationGrant numberCountry
Not funded
CitationJournal: J Biol Chem / Year: 2024
Title: Different charged biopolymers induce α-synuclein to form fibrils with distinct structures.
Authors: Yuxuan Yao / Qinyue Zhao / Youqi Tao / Kaien Liu / Tianyi Cao / Zipeng Chen / Cong Liu / WeiDong Le / Jing Zhao / Dan Li / Wenyan Kang /
Abstract: The aggregation of α-synuclein (α-syn) into amyloid fibrils, a key process in the development of Parkinson's disease (PD) and other synucleinopathies, is influenced by a range of factors such as ...The aggregation of α-synuclein (α-syn) into amyloid fibrils, a key process in the development of Parkinson's disease (PD) and other synucleinopathies, is influenced by a range of factors such as charged biopolymers, chaperones, and metabolites. However, the specific impacts of different biopolymers on α-syn fibril structure are not well understood. In our work, we found that different polyanions and polycations, such as polyphosphate (polyP), polyuridine (polyU), and polyamines (including putrescine, spermidine, and spermine), markedly altered the fibrillation kinetics of α-syn in vitro. Furthermore, the seeding assay revealed distinct cross-seeding capacities across different biopolymer-induced α-syn fibrils, suggesting the formation of structurally distinct strains under different conditions. Utilizing cryo-electron microscopy (cryo-EM), we further examined the detailed structural configuration of α-syn fibrils formed in the presence of these biopolymers. Notably, we found that while polyamines do not change the atomic structure of α-syn fibrils, polyU and polyP induce the formation of distinct amyloid fibrils, exhibiting a range of structural polymorphs. Our work offers valuable insights into how various charged biopolymers affect the aggregation process and the resultant structures of α-syn fibrils, thereby enhancing our understanding of the structural variations in α-syn fibrils across different pathological conditions.
History
DepositionJan 27, 2024-
Header (metadata) releaseJan 29, 2025-
Map releaseJan 29, 2025-
UpdateFeb 18, 2026-
Current statusFeb 18, 2026Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_38863.map.gz / Format: CCP4 / Size: 178 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.83 Å/pix.
x 360 pix.
= 298.8 Å		0.83 Å/pix.
x 360 pix.
= 298.8 Å		0.83 Å/pix.
x 360 pix.
= 298.8 Å

Surface

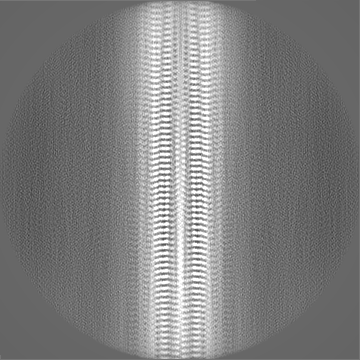

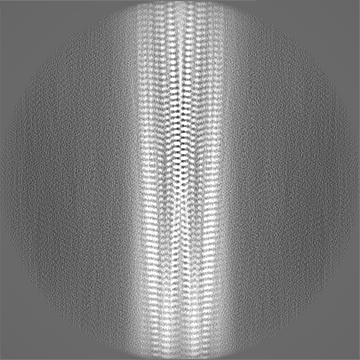

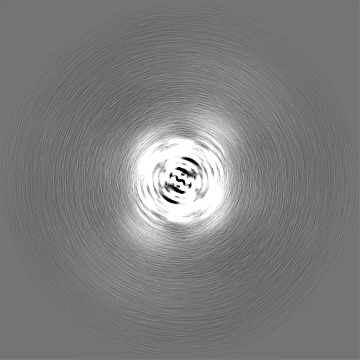

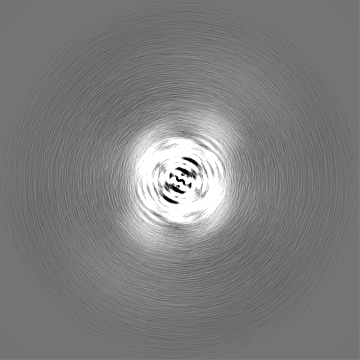

Projections

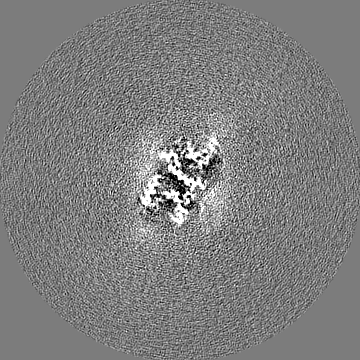

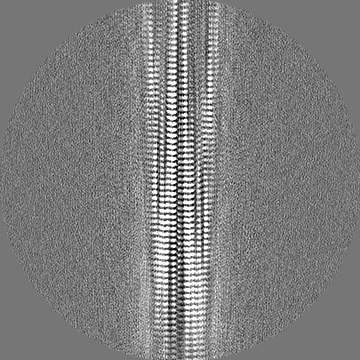

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.83 Å
Density

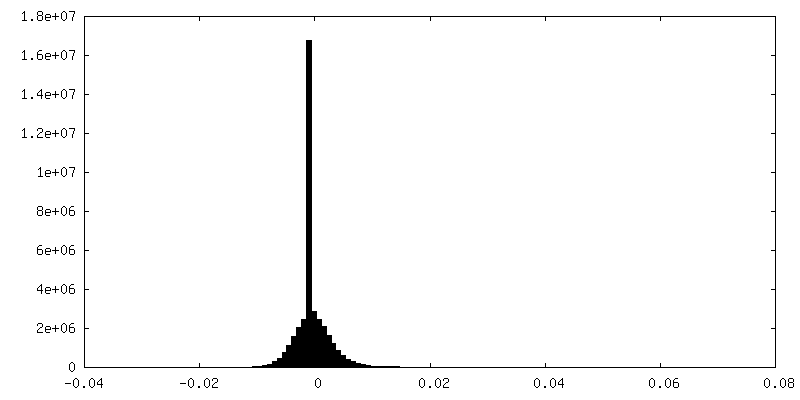

Histogram

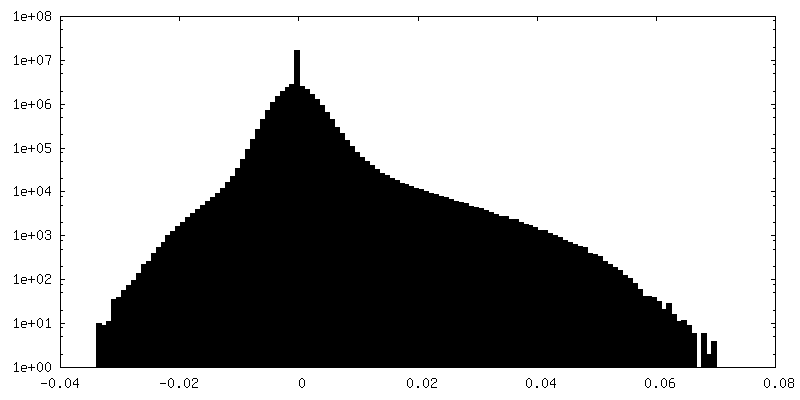

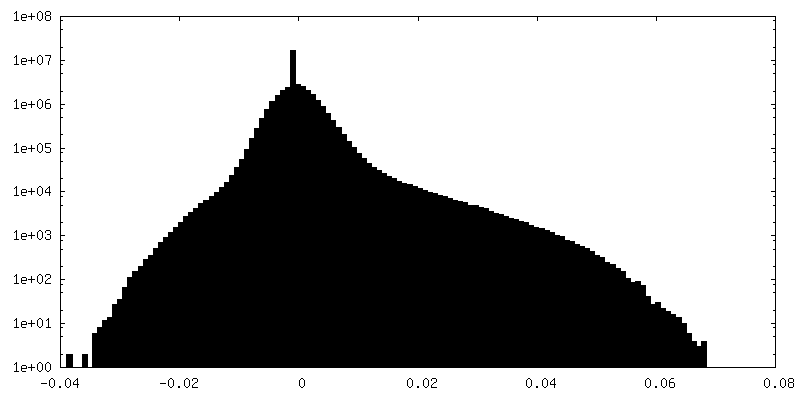

Histogram (log scale)
Contour LevelBy AUTHOR: 0.018
Minimum - Maximum-0.06765962 - 0.13182941
Average (Standard dev.)0.00031385483 (±0.0039951843)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions360360360
Spacing360360360
CellA=B=C: 298.8 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_38863_half_map_1.map
Projections & Slices
AxesZYX

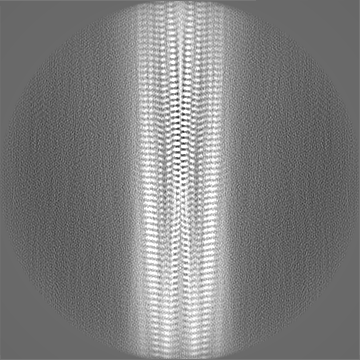

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_38863_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : spermine induced alpha-synuclein fibril in Tris buffer

EntireName: spermine induced alpha-synuclein fibril in Tris buffer
Components
  • Organelle or cellular component: spermine induced alpha-synuclein fibril in Tris buffer
    • Protein or peptide: Alpha-synuclein

-
Supramolecule #1: spermine induced alpha-synuclein fibril in Tris buffer

SupramoleculeName: spermine induced alpha-synuclein fibril in Tris buffer
type: organelle_or_cellular_component / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: Alpha-synuclein

MacromoleculeName: Alpha-synuclein / type: protein_or_peptide / ID: 1 / Number of copies: 6 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 14.476108 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MDVFMKGLSK AKEGVVAAAE KTKQGVAEAA GKTKEGVLYV GSKTKEGVVH GVATVAEKTK EQVTNVGGAV VTGVTAVAQK TVEGAGSIA AATGFVKKDQ LGKNEEGAPQ EGILEDMPVD PDNEAYEMPS EEGYQDYEPE A

UniProtKB: Alpha-synuclein

-
Experimental details

-
Structure determination

Methodcryo EM
Processinghelical reconstruction
Aggregation statefilament

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 55.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Final reconstructionApplied symmetry - Helical parameters - Δz: 2.415 Å
Applied symmetry - Helical parameters - Δ&Phi: 179.666 °
Applied symmetry - Helical parameters - Axial symmetry: C1 (asymmetric)
Resolution.type: BY AUTHOR / Resolution: 2.8 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 22991
CTF correctionType: NONE
Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

6a6b

Final angle assignmentType: NOT APPLICABLE
FSC plot (resolution estimation)

+
