- EMDB-33794: Core module of the NuA4 complex in S. cerevisiae -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-33794
TitleCore module of the NuA4 complex in S. cerevisiae
Map dataCore module of a HAT complex in S. cerevisiae
Sample
  • Complex: Cryo-EM structure of NuA4 complex
    • Protein or peptide: Actin
    • Protein or peptide: ARP4 isoform 1
    • Protein or peptide: Chromatin modification-related protein EAF1
    • Protein or peptide: SWR1-complex protein 4
    • Protein or peptide: Transcription-associated protein 1
    • Protein or peptide: Enhancer of polycomb-like protein 1
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE
Function / homology
Function and homology information


: / : / RHOB GTPase cycle / RHOA GTPase cycle / cellular bud neck contractile ring / mitotic actomyosin contractile ring contraction / piccolo histone acetyltransferase complex / ascospore wall assembly / vacuole inheritance / actin cortical patch ...: / : / RHOB GTPase cycle / RHOA GTPase cycle / cellular bud neck contractile ring / mitotic actomyosin contractile ring contraction / piccolo histone acetyltransferase complex / ascospore wall assembly / vacuole inheritance / actin cortical patch / Swr1 complex / SLIK (SAGA-like) complex / Ino80 complex / SAGA complex / intracellular membraneless organelle / establishment of cell polarity / NuA4 histone acetyltransferase complex / actin filament bundle / positive regulation of macroautophagy / protein secretion / Ub-specific processing proteases / actin filament / Hydrolases; Acting on acid anhydrides; Acting on acid anhydrides to facilitate cellular and subcellular movement / structural constituent of cytoskeleton / endocytosis / nucleosome / chromatin organization / chromatin remodeling / DNA repair / DNA-templated transcription / regulation of DNA-templated transcription / chromatin / regulation of transcription by RNA polymerase II / positive regulation of transcription by RNA polymerase II / ATP hydrolysis activity / ATP binding / identical protein binding / nucleus
Similarity search - Function
SWR1-complex protein 4/DNA methyltransferase 1-associated protein 1 / DAMP1, SANT/Myb-like domain / SANT/Myb-like domain of DAMP1 / Enhancer of polycomb protein / Tra1, HEAT repeat ring region / Tra1, HEAT repeat central region / Tra1 HEAT repeat central region / Tra1 HEAT repeat ring region / Myb-like domain profile. / domain in helicases and associated with SANT domains ...SWR1-complex protein 4/DNA methyltransferase 1-associated protein 1 / DAMP1, SANT/Myb-like domain / SANT/Myb-like domain of DAMP1 / Enhancer of polycomb protein / Tra1, HEAT repeat ring region / Tra1, HEAT repeat central region / Tra1 HEAT repeat central region / Tra1 HEAT repeat ring region / Myb-like domain profile. / domain in helicases and associated with SANT domains / Myb-like DNA-binding domain / HSA domain / Helicase/SANT-associated domain / HSA domain profile. / : / PIK-related kinase, FAT / FAT domain / FATC domain / PIK-related kinase / FAT domain profile. / FATC domain profile. / Enhancer of polycomb-like, N-terminal / Enhancer of polycomb-like / SANT SWI3, ADA2, N-CoR and TFIIIB'' DNA-binding domains / SANT/Myb domain / Phosphatidylinositol 3-/4-kinase, catalytic domain superfamily / Phosphoinositide 3-kinase, catalytic domain / Phosphatidylinositol 3- and 4-kinase / Phosphatidylinositol 3- and 4-kinases catalytic domain profile. / Phosphatidylinositol 3-/4-kinase, catalytic domain / Actins signature 1. / Actin, conserved site / Actins signature 2. / Actin/actin-like conserved site / Actins and actin-related proteins signature. / Actin / Actin family / Actin / Homeobox-like domain superfamily / ATPase, nucleotide binding domain / Armadillo-type fold / Protein kinase-like domain superfamily
Similarity search - Domain/homology
ARP4 isoform 1 / SWR1-complex protein 4 / Chromatin modification-related protein EAF1 / Transcription-associated protein 1 / Enhancer of polycomb-like protein 1 / Actin
Similarity search - Component
Biological speciesSaccharomyces cerevisiae (brewer's yeast)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.8 Å
AuthorsJi LT / Zhao LX / Xu K / Gao HH / Zhou Y / Kornberg RD / Zhang HQ
Funding support China, 1 items
OrganizationGrant numberCountry
National Natural Science Foundation of China (NSFC) China
CitationJournal: Proc Natl Acad Sci U S A / Year: 2022
Title: Structure of the NuA4 histone acetyltransferase complex.
Authors: Liting Ji / Lixia Zhao / Ke Xu / Huihan Gao / Yang Zhou / Roger D Kornberg / Heqiao Zhang /
Abstract: Nucleosome acetyltransferase of H4 (NuA4), one of two major histone acetyltransferase complexes in  specifically acetylates histone H2A and H4, resulting in increased transcriptional activity. Here ...Nucleosome acetyltransferase of H4 (NuA4), one of two major histone acetyltransferase complexes in  specifically acetylates histone H2A and H4, resulting in increased transcriptional activity. Here we present a 3.8-4.0 Å resolution structure of the NuA4 complex from cryoelectron microscopy and associated biochemical studies. The determined structure comprises six subunits and appropriately 5,000 amino acids, with a backbone formed by subunits Eaf1 and Eaf2 spanning from an Actin-Arp4 module to a platform subunit Tra1. Seven subunits are missing from the cryo-EM map. The locations of missing components, Yaf9, and three subunits of the Piccolo module Esa1, Yng2, and Eaf6 were determined. Biochemical studies showed that the Piccolo module and the complete NuA4 exhibit comparable histone acetyltransferase activities, but the Piccolo module binds to nucleosomes, whereas the complete NuA4 does not. The interaction lifetime of NuA4 and nucleosome is evidently short, possibly because of subunits of the NuA4 complex that diminish the affinity of the Piccolo module for the nucleosome, enabling rapid movement from nucleosome to nucleosome.
History
DepositionJul 8, 2022-
Header (metadata) releaseMar 8, 2023-
Map releaseMar 8, 2023-
UpdateMar 8, 2023-
Current statusMar 8, 2023Processing site: PDBj / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_33794.map.gz / Format: CCP4 / Size: 476.8 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
AnnotationCore module of a HAT complex in S. cerevisiae
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.66 Å/pix.
x 500 pix.
= 330. Å		0.66 Å/pix.
x 500 pix.
= 330. Å		0.66 Å/pix.
x 500 pix.
= 330. Å

Surface

Projections

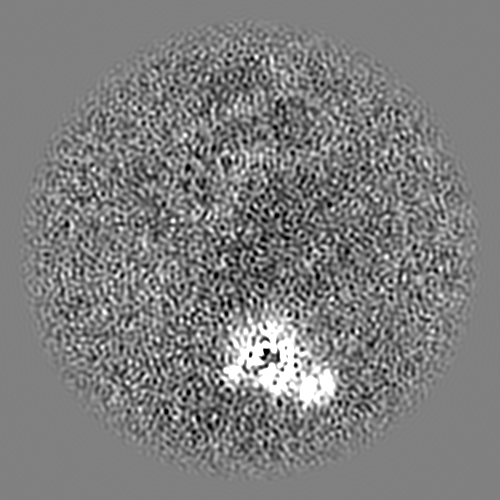

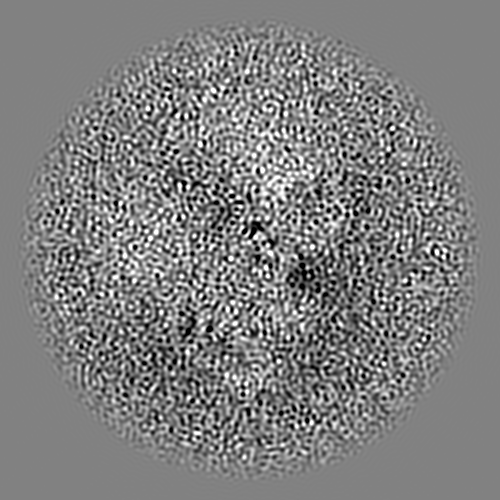

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.66 Å
Density

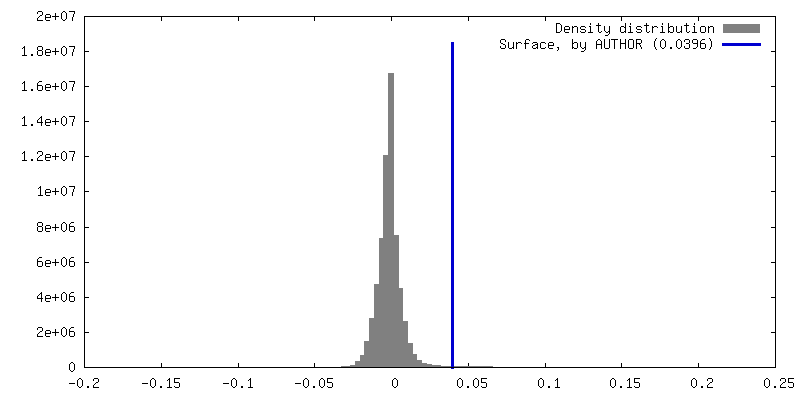

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.0396
Minimum - Maximum-0.15708733 - 0.23299527
Average (Standard dev.)0.00030020793 (±0.0081917215)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions500500500
Spacing500500500
CellA=B=C: 330.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: Half map A

Fileemd_33794_half_map_1.map
AnnotationHalf map A
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: Half map B

Fileemd_33794_half_map_2.map
AnnotationHalf map B
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : Cryo-EM structure of NuA4 complex

EntireName: Cryo-EM structure of NuA4 complex
Components
  • Complex: Cryo-EM structure of NuA4 complex
    • Protein or peptide: Actin
    • Protein or peptide: ARP4 isoform 1
    • Protein or peptide: Chromatin modification-related protein EAF1
    • Protein or peptide: SWR1-complex protein 4
    • Protein or peptide: Transcription-associated protein 1
    • Protein or peptide: Enhancer of polycomb-like protein 1
  • Ligand: ADENOSINE-5'-TRIPHOSPHATE

-
Supramolecule #1: Cryo-EM structure of NuA4 complex

SupramoleculeName: Cryo-EM structure of NuA4 complex / type: complex / ID: 1 / Chimera: Yes / Parent: 0 / Macromolecule list: #1-#6
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)

-
Macromolecule #1: Actin

MacromoleculeName: Actin / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast) / Strain: ATCC 204508 / S288c
Molecular weightTheoretical: 41.402184 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: EVAALVIDNG SGMCKAGFAG DDAPRAVFPS IVGRPRHQGI MVGMGQKDSY VGDEAQSKRG ILTLRYPIEH GIVTNWDDME KIWHHTFYN ELRVAPEEHP VLLTEAPMNP KSNREKMTQI MFETFNVPAF YVSIQAVLSL YSSGRTTGIV LDSGDGVTHV V PIYAGFSL ...String:
EVAALVIDNG SGMCKAGFAG DDAPRAVFPS IVGRPRHQGI MVGMGQKDSY VGDEAQSKRG ILTLRYPIEH GIVTNWDDME KIWHHTFYN ELRVAPEEHP VLLTEAPMNP KSNREKMTQI MFETFNVPAF YVSIQAVLSL YSSGRTTGIV LDSGDGVTHV V PIYAGFSL PHAILRIDLA GRDLTDYLMK ILSERGYSFS TTAEREIVRD IKEKLCYVAL DFEQEMQTAA QSSSIEKSYE LP DGQVITI GNERFRAPEA LFHPSVLGLE SAGIDQTTYN SIMKCDVDVR KELYGNIVMS GGTTMFPGIA ERMQKEITAL APS SMKVKI IAPPERKYSV WIGGSILASL TTFQQMWISK QEYDESGPSI VHHKCF

-
Macromolecule #2: ARP4 isoform 1

MacromoleculeName: ARP4 isoform 1 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast) / Strain: ATCC 204508 / S288c
Molecular weightTheoretical: 54.894684 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: MSNAALQVYG GDEVSAVVID PGSYTTNIGY SGSDFPQSIL PSVYGKYTAD EGNKKIFSEQ SIGIPRKDYE LKPIIENGLV IDWDTAQEQ WQWALQNELY LNSNSGIPAL LTEPVWNSTE NRKKSLEVLL EGMQFEACYL APTSTCVSFA AGRPNCLVVD I GHDTCSVS ...String:
MSNAALQVYG GDEVSAVVID PGSYTTNIGY SGSDFPQSIL PSVYGKYTAD EGNKKIFSEQ SIGIPRKDYE LKPIIENGLV IDWDTAQEQ WQWALQNELY LNSNSGIPAL LTEPVWNSTE NRKKSLEVLL EGMQFEACYL APTSTCVSFA AGRPNCLVVD I GHDTCSVS PIVDGMTLSK STRRNFIAGK FINHLIKKAL EPKEIIPLFA IKQRKPEFIK KTFDYEVDKS LYDYANNRGF FQ ECKETLC HICPTKTLEE TKTELSSTAK RSIESPWNEE IVFDNETRYG FAEELFLPKE DDIPANWPRS NSGVVKTWRN DYV PLKRTK PSGVNKSDKK VTPTEEKEQE AVSKSTSPAA NSADTPNETG KRPLEEEKPP KENNELIGLA DLVYSSIMSS DVDL RATLA HNVVLTGGTS SIPGLSDRLM TELNKILPSL KFRILTTGHT IERQYQSWLG GSILTSLGTF HQLWVGKKEY EEVGV ERLL NDRFR

-
Macromolecule #3: Chromatin modification-related protein EAF1

MacromoleculeName: Chromatin modification-related protein EAF1 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 112.667008 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: MSSRPSSAVP NSASLSEDQS SDRSKFPKAD DLIDERDRKL TELYCVSRLN QLLELTDENK LRKEIDAFLK KNDIRRGIRF DEASLPKLL HTAATPITKK KLKDVNLINV PNQRLSDSKM SRELPENSEN VSVKSESHFV PSHDNSIREN MMDSLRPAEK T GGMWNKRP ...String:
MSSRPSSAVP NSASLSEDQS SDRSKFPKAD DLIDERDRKL TELYCVSRLN QLLELTDENK LRKEIDAFLK KNDIRRGIRF DEASLPKLL HTAATPITKK KLKDVNLINV PNQRLSDSKM SRELPENSEN VSVKSESHFV PSHDNSIREN MMDSLRPAEK T GGMWNKRP LESTMGGEEE RHEKRQKMQS QSLESSNNSE MASLPISPRP PVPNALAHYT YYENIEYPPA DPTEVQPAVK FK DPLIKNI MAKEIDTSDH YNENNVDALE TVFLLMNDYI PSKIPQALPL AELKYMSQTL PLINLIPRAH KALTTNIINN ALN EARITV VGSRIEELRR LGLWSLRQPK RFIDPWKQHN THQNILLEEA KWMQADFKEG HKYKVAICTA MAQAIKDYWT YGEI CCVKR KTLLPGKENK LSDDGRISEK SGRPSDTSRN DSDISIAGKD DIGIIANVDD ITEKESAAAN DNDENGKNEA GAKSD FDFA DGLLSQEGAH DQIISSIDTK LLLKKPSSSS EVVLIQHEVA ASSALIETEE SKKELAPPFK LSIFVDELNT FEKTLI QDL PLYNGINEER PKKDDSLPFI PISKSVVSLD DNGFYKLLER QLIDEEPSIS QLSKRRGMFY GNRRNHYLRP PAVPSLR YL QNRTPTIWLS EDDQELVKNI NTYGYNWELI SAHMTHRLTY SYLSNIERRT PWQCFERFVQ LNERFNFSDL KGPRAHSA Q QWLIEAHKFQ QRQNRRISPL GVNTESIQRG HRRLRWASMF EAIRKCMKKR ENTPRPNPTQ PRKPLDCKNM KVPTPAEMS LLKAQRDEAL RRDIQLRRTV KNRLQQRQQQ SQQAHSSRAQ SPIPSNGKSS SNLARNGQAS APRPNQKQYT EQDIIESYSR KLLEQKPDI GPEMALKAAK NYYRTLREQQ QQLKQHQIQQ QRQQLQEESS HVQQLQQLQP GSQAPPPKSS PSQSSLSNIS N INSAPRIK SPTPQEILQR FQKQ

-
Macromolecule #4: SWR1-complex protein 4

MacromoleculeName: SWR1-complex protein 4 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 55.297684 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: MSSSDIFDVL NIKQKSRSPT NGQVSVPSSS AANRPKPQVT GMQRELFNLL GENQPPVVIK SGNNFKEKML STSKPSPWSF VEFKANNSV TLRHWVKGSK ELIGDTPKES PYSKFNQHLS IPSFTKEEYE AFMNENEGTQ KSVESEKNHN ENFTNEKKDE S KNSWSFEE ...String:
MSSSDIFDVL NIKQKSRSPT NGQVSVPSSS AANRPKPQVT GMQRELFNLL GENQPPVVIK SGNNFKEKML STSKPSPWSF VEFKANNSV TLRHWVKGSK ELIGDTPKES PYSKFNQHLS IPSFTKEEYE AFMNENEGTQ KSVESEKNHN ENFTNEKKDE S KNSWSFEE IEYLFNLCKK YDLRWFLIFD RYSYNNSRTL EDLKEKFYYT CRNYFKASDP SNPLLSSLNF SAEKEIERKK YL QRLLSRS AAEIAEEEAL VVESKKFEMA AKRTLAERES LLRLLDSPHS DQTITQYLTS QGMSQLYNAL LADKTRKRKH DLN IPENPW MKQQQQFAQH RQLQQLNVKK SEVKENLSPK KTKRQRQEMQ TALKRKSESA YAEQLLKDFN SDERKALGVI THGE KLSPG VYLRSTKLST FKPALQNKIL AILQELSLPS RPVMPSFDVM ERQEELLKKI NTLIDLKKHV DKYEAGMSIT K

-
Macromolecule #5: Transcription-associated protein 1

MacromoleculeName: Transcription-associated protein 1 / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 433.677281 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: MSLTEQIEQF ASRFRDDDAT LQSRYSTLSE LYDIMELLNS PEDYHFFLQA VIPLLLNQLK EVPISYDAHS PEQKLRNSML DIFNRCLMN QTFQPYAMEV LEFLLSVLPK ENEENGILCM KVLTTLFKSF KSILQDKLDS FIRIIIQIYK NTPNLINQTF Y EAGKAEQG ...String:
MSLTEQIEQF ASRFRDDDAT LQSRYSTLSE LYDIMELLNS PEDYHFFLQA VIPLLLNQLK EVPISYDAHS PEQKLRNSML DIFNRCLMN QTFQPYAMEV LEFLLSVLPK ENEENGILCM KVLTTLFKSF KSILQDKLDS FIRIIIQIYK NTPNLINQTF Y EAGKAEQG DLDSPKEPQA DELLDEFSKN DEEKDFPSKQ SSTEPRFENS TSSNGLRSSM FSFKILSECP ITMVTLYSSY KQ LTSTSLP EFTPLIMNLL NIQIKQQQEA REQAESRGEH FTSISTEIIN RPAYCDFILA QIKATSFLAY VFIRGYAPEF LQD YVNFVP DLIIRLLQDC PSELSSARKE LLHATRHILS TNYKKLFLPK LDYLFDERIL IGNGFTMHET LRPLAYSTVA DFIH NIRSE LQLSEIEKTI KIYTGYLLDE SLALTVQIMS AKLLLNLVER ILKLGKENPQ EAPRAKKLLM IIIDSYMNRF KTLNR QYDT IMKYYGRYET HKKEKAEKLK NSIQDNDKES EEFMRKVLEP SDDDHLMPQP KKEDINDSPD VEMTESDKVV KNDVEM FDI KNYAPILLLP TPTNDPIKDA FYLYRTLMSF LKTIIHDLKV FNPPPNEYTV ANPKLWASVS RVFSYEEVIV FKDLFHE CI IGLKFFKDHN EKLSPETTKK HFDISMPSLP VSATKDAREL MDYLAFMFMQ MDNATFNEII EQELPFVYER MLEDSGLL H VAQSFLTSEI TSPNFAGILL RFLKGKLKDL GNVDFNTSNV LIRLFKLSFM SVNLFPNINE VVLLPHLNDL ILNSLKYST TAEEPLVYFY LIRTLFRSIG GGRFENLYRS IKPILQVLLQ SLNQMILTAR LPHERELYVE LCITVPVRLS VLAPYLPFLM KPLVFALQQ YPDLVSQGLR TLELCIDNLT AEYFDPIIEP VIDDVSKALF NLLQPQPFNH AISHNVVRIL GKLGGRNRQF L KPPTDLTE KTELDIDAIA DFKINGMPED VPLSVTPGIQ SALNILQSYK SDIHYRKSAY KYLTCVLLLM TKSSAEFPTN YT ELLKTAV NSIKLERIGI EKNFDLEPTV NKRDYSNQEN LFLRLLESVF YATSIKELKD DAMDLLNNLL DHFCLLQVNT TLL NKRNYN GTFNIDLKNP NFMLDSSLIL DAIPFALSYY IPEVREVGVL AYKRIYEKSC LIYGEELALS HSFIPELAKQ FIHL CYDET YYNKRGGVLG IKVLIDNVKS SSVFLKKYQY NLANGLLFVL KDTQSEAPSA ITDSAEKLLI DLLSITFADV KEEDL GNKV LENTLTDIVC ELSNANPKVR NACQKSLHTI SNLTGIPIVK LMDHSKQFLL SPIFAKPLRA LPFTMQIGNV DAITFC LSL PNTFLTFNEE LFRLLQESIV LADAEDESLS TNIQKTTEYS TSEQLVQLRI ACIKLLAIAL KNEEFATAQQ GNIRIRI LA VFFKTMLKTS PEIINTTYEA LKGSLAENSK LPKELLQNGL KPLLMNLSDH QKLTVPGLDA LSKLLELLIA YFKVEIGR K LLDHLTAWCR VEVLDTLFGQ DLAEQMPTKI IVSIINIFHL LPPQADMFLN DLLLKVMLLE RKLRLQLDSP FRTPLARYL NRFHNPVTEY FKKNMTLRQL VLFMCNIVQR PEAKELAEDF EKELDNFYDF YISNIPKNQV RVVSFFTNMV DLFNTMVITN GDEWLKKKG NMILKLKDML NLTLKTIKEN SFYIDHLQLN QSIAKFQALY LRFTELSERD QNPLLLDFID FSFSNGIKAS Y SLKKFIFH NIIASSNKEK QNNFINDATL FVLSDKCLDA RIFVLKNVIN STLIYEVATS GSLKSYLVED KKPKWLELLH NK IWKNSNA ILAYDVLDHH DLFRFELLQL SAIFIKADPE IIAEIKKDII KFCWNFIKLE DTLIKQSAYL VTSYFISKFD FPI KVVTQV FVALLRSSHV EARYLVKQSL DVLTPVLHER MNAAGTPDTW INWVKRVMVE NSSSQNNILY QFLISHPDLF FNSR DLFIS NIIHHMNKIT FMSNSNSDSH TLAIDLASLI LYWENKTLEI TNVNNTKTDS DGDVVMSDSK SDINPVEADT TAIIV DANN NSPISLHLRE ACTAFLIRYV CASNHRAIET ELGLRAINIL SELISDKHWT NVNVKLVYFE KFLIFQDLDS ENILYY CMN ALDVLYVFFK NKTKEWIMEN LPTIQNLLEK CIKSDHHDVQ EALQKVLQVI MKAIKAQGVS VIIEEESPGK TFIQMLT SV ITQDLQETSS VTAGVTLAWV LFMNFPDNIV PLLTPLMKTF SKLCKDHLSI SQPKDAMALE EARITTKLLE KVLYILSL K VSLLGDSRRP FLSTVALLID HSMDQNFLRK IVNMSRSWIF NTEIFPTVKE KAAILTKMLA FEIRGEPSLS KLFYEIVLK LFDQEHFNNT EITVRMEQPF LVGTRVEDIG IRKRFMTILD NSLERDIKER LYYVIRDQNW EFIADYPWLN QALQLLYGSF NREKELSLK NIYCLSPPSI LQEYLPENAE MVTEVNDLEL SNFVKGHIAS MQGLCRIISS DFIDSLIEIF YQDPKAIHRA W VTLFPQVY KSIPKNEKYG FVRSIITLLS KPYHTRQISS RTNVINMLLD SISKIESLEL PPHLVKYLAI SYNAWYQSIN IL ESIQSNT SIDNTKIIEA NEDALLELYV NLQEEDMFYG LWRRRAKYTE TNIGLSYEQI GLWDKAQQLY EVAQVKARSG ALP YSQSEY ALWEDNWIQC AEKLQHWDVL TELAKHEGFT DLLLECGWRV ADWNSDRDAL EQSVKSVMDV PTPRRQMFKT FLAL QNFAE SRKGDQEVRK LCDEGIQLSL IKWVSLPIRY TPAHKWLLHG FQQYMEFLEA TQIYANLHTT TVQNLDSKAQ EIKRI LQAW RDRLPNTWDD VNMWNDLVTW RQHAFQVINN AYLPLIPALQ QSNSNSNINT HAYRGYHEIA WVINRFAHVA RKHNMP DVC ISQLARIYTL PNIEIQEAFL KLREQAKCHY QNMNELTTGL DVISNTNLVY FGTVQKAEFF TLKGMFLSKL RAYEEAN QA FATAVQIDLN LAKAWAQWGF FNDRRLSEEP NNISFASNAI SCYLQAAGLY KNSKIRELLC RILWLISIDD ASGMLTNA F DSFRGEIPVW YWITFIPQLL TSLSHKEANM VRHILIRIAK SYPQALHFQL RTTKEDFAVI QRQTMAVMGD KPDTNDRNG RRQPWEYLQE LNNILKTAYP LLALSLESLV AQINDRFKST TDEDLFRLIN VLLIDGTLNY NRLPFPRKNP KLPENTEKNL VKFSTTLLA PYIRPKFNAD FIDNKPDYET YIKRLRYWRR RLENKLDRAS KKENLEVLCP HLSNFHHQKF EDIEIPGQYL L NKDNNVHF IKIARFLPTV DFVRGTHSSY RRLMIRGHDG SVHSFAVQYP AVRHSRREER MFQLYRLFNK SLSKNVETRR RS IQFNLPI AIPLSPQVRI MNDSVSFTTL HEIHNEFCKK KGFDPDDIQD FMADKLNAAH DDALPAPDMT ILKVEIFNSI QTM FVPSNV LKDHFTSLFT QFEDFWLFRK QFASQYSSFV FMSYMMMINN RTPHKIHVDK TSGNVFTLEM LPSRFPYERV KPLL KNHDL SLPPDSPIFH NNEPVPFRLT PNIQSLIGDS ALEGIFAVNL FTISRALIEP DNELNTYLAL FIRDEIISWF SNLHR PIIE NPQLREMVQT NVDLIIRKVA QLGHLNSTPT VTTQFILDCI GSAVSPRNLA RTDVNFMPWF

-
Macromolecule #6: Enhancer of polycomb-like protein 1

MacromoleculeName: Enhancer of polycomb-like protein 1 / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Saccharomyces cerevisiae (brewer's yeast)
Molecular weightTheoretical: 96.889867 KDa
Recombinant expressionOrganism: Saccharomyces cerevisiae (brewer's yeast)
SequenceString: MPTPSNAIEI NDGSHKSGRS TRRSGSRSAH DDGLDSFSKG DSGAGASAGS SNSRFRHRKI SVKQHLKIYL PNDLKHLDKD ELQQREVVE IETGVEKNEE KEVHLHRILQ MGSGHTKHKD YIPTPDASMT WNEYDKFYTG SFQETTSYIK FSATVEDCCG T NYNMDERD ...String:
MPTPSNAIEI NDGSHKSGRS TRRSGSRSAH DDGLDSFSKG DSGAGASAGS SNSRFRHRKI SVKQHLKIYL PNDLKHLDKD ELQQREVVE IETGVEKNEE KEVHLHRILQ MGSGHTKHKD YIPTPDASMT WNEYDKFYTG SFQETTSYIK FSATVEDCCG T NYNMDERD ETFLNEQVNK GSSDILTEDE FEILCSSFEH AIHERQPFLS MDPESILSFE ELKPTLIKSD MADFNLRNQL NH EINSHKT HFITQFDPVS QMNTRPLIQL IEKFGSKIYD YWRERKIEVN GYEIFPQLKF ERPGEKEEID PYVCFRRREV RHP RKTRRI DILNSQRLRA LHQELKNAKD LALLVAKREN VSLNWINDEL KIFDQRVKIK NLKRSLNISG EDDDLINHKR KRPT IVTVE QREAELRKAE LKRAAAAAAA AKAKNNKRNN QLEDKSSRLT KQQQQQLLQQ QQQQQQNALK TENGKQLANA SSSST SQPI TSHVYVKLPS SKIPDIVLED VDALLNSKEK NARKFVQEKM EKRKIEDADV FFNLTDDPFN PVFDMSLPKN FSTSNV PFA SIASSKFQID RSFYSSHLPE YLKGISDDIR IYDSNGRSRN KDNYNLDTKR IKKTELYDPF QENLEIHSRE YPIKFRK RV GRSNIKYVDR MPNFTTSSTK SACSLMDFVD FDSIEKEQYS REGSNDTDSI NVYDSKYDEF VRLYDKWKYD SPQNEYGI K FSDEPARLNQ ISNDTQVIRF GTMLGTKSYE QLREATIKYR RDYITRLKQK HIQHLQQQQQ QQQQQQQQAQ QQKQKSQNN NSNSSNSLKK LNDSLINSEA KQNSSITQKN SS

-
Macromolecule #7: ADENOSINE-5'-TRIPHOSPHATE

MacromoleculeName: ADENOSINE-5'-TRIPHOSPHATE / type: ligand / ID: 7 / Number of copies: 1 / Formula: ATP
Molecular weightTheoretical: 507.181 Da
Chemical component information

ChemComp-ATP:
ADENOSINE-5'-TRIPHOSPHATE / ATP, energy-carrying molecule*YM

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration1 mg/mL
BufferpH: 8
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 301 K / Instrument: FEI VITROBOT MARK IV

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Image recordingFilm or detector model: GATAN K3 (6k x 4k) / Average electron dose: 60.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: SPOT SCAN / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.3 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

Startup modelType of model: PDB ENTRY
PDB model - PDB ID:

5jos

Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.8 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 197044
Initial angle assignmentType: ANGULAR RECONSTITUTION
Final angle assignmentType: ANGULAR RECONSTITUTION
FSC plot (resolution estimation)

+
