- EMDB-31555: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55 -

+
Open data


ID or keywords:

Loading...

-
Basic information

Entry
Database: EMDB / ID: EMD-31555
TitleComplex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55
Map data
Sample
  • Complex: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55
    • Complex: FMDV A/WH/CHA/09
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
    • Complex: bovine neutralizing scFv antibody R55
      • Protein or peptide: IG HEAVY CHAIN VARIABLE REGION
      • Protein or peptide: IG LAMDA CHAIN VARIABLE REGION
KeywordsVIRUS
Function / homology
Function and homology information


L-peptidase / icosahedral viral capsid / symbiont-mediated perturbation of host chromatin organization / picornain 3C / ribonucleoside triphosphate phosphatase activity / T=pseudo3 icosahedral viral capsid / host cell cytoplasmic vesicle membrane / endocytosis involved in viral entry into host cell / viral capsid / nucleoside-triphosphate phosphatase ...L-peptidase / icosahedral viral capsid / symbiont-mediated perturbation of host chromatin organization / picornain 3C / ribonucleoside triphosphate phosphatase activity / T=pseudo3 icosahedral viral capsid / host cell cytoplasmic vesicle membrane / endocytosis involved in viral entry into host cell / viral capsid / nucleoside-triphosphate phosphatase / channel activity / regulation of translation / monoatomic ion transmembrane transport / clathrin-dependent endocytosis of virus by host cell / host cell cytoplasm / RNA helicase activity / viral protein processing / host cell endoplasmic reticulum membrane / induction by virus of host autophagy / symbiont entry into host cell / RNA-directed RNA polymerase / viral RNA genome replication / cysteine-type endopeptidase activity / RNA-dependent RNA polymerase activity / DNA-templated transcription / host cell nucleus / virion attachment to host cell / structural molecule activity / proteolysis / RNA binding / ATP binding / membrane / cytoplasm
Similarity search - Function
Peptidase C28, foot-and-mouth virus L-proteinase / Foot-and-mouth virus L-proteinase / Aphthovirus leader protease (L(pro)) domain profile. / Foot-and-mouth disease virus VP1 coat / Capsid protein VP4, Picornavirus / Viral protein VP4 subunit / Capsid protein VP4 superfamily, Picornavirus / Helicase/polymerase/peptidase polyprotein, Calicivirus-type / Picornavirus coat protein / Peptidase C3A/C3B, picornaviral ...Peptidase C28, foot-and-mouth virus L-proteinase / Foot-and-mouth virus L-proteinase / Aphthovirus leader protease (L(pro)) domain profile. / Foot-and-mouth disease virus VP1 coat / Capsid protein VP4, Picornavirus / Viral protein VP4 subunit / Capsid protein VP4 superfamily, Picornavirus / Helicase/polymerase/peptidase polyprotein, Calicivirus-type / Picornavirus coat protein / Peptidase C3A/C3B, picornaviral / 3C cysteine protease (picornain 3C) / Picornavirales 3C/3C-like protease domain / Picornavirales 3C/3C-like protease domain profile. / Picornavirus capsid / picornavirus capsid protein / Helicase, superfamily 3, single-stranded RNA virus / Superfamily 3 helicase of positive ssRNA viruses domain profile. / Helicase, superfamily 3, single-stranded DNA/RNA virus / RNA helicase / Papain-like cysteine peptidase superfamily / Picornavirus/Calicivirus coat protein / Viral coat protein subunit / RNA-directed RNA polymerase, C-terminal domain / Viral RNA-dependent RNA polymerase / Reverse transcriptase/Diguanylate cyclase domain / RNA-directed RNA polymerase, catalytic domain / RdRp of positive ssRNA viruses catalytic domain profile. / Peptidase S1, PA clan, chymotrypsin-like fold / Peptidase S1, PA clan / DNA/RNA polymerase superfamily / P-loop containing nucleoside triphosphate hydrolase
Similarity search - Domain/homology
Genome polyprotein / Genome polyprotein / Genome polyprotein / Genome polyprotein
Similarity search - Component
Biological speciesFoot-and-mouth disease virus - type A / Bos taurus (cattle)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.91 Å
AuthorsYong H / Kun L
CitationJournal: J Virol / Year: 2021
Title: Structures of Foot-and-Mouth Disease Virus with Bovine Neutralizing Antibodies Reveal the Determinant of Intraserotype Cross-Neutralization.
Authors: Yong He / Kun Li / Li Wang / Zixian Sun / Yimei Cao / Pinghua Li / Pu Sun / Huifang Bao / Shasha Zhou / Sheng Wang / Xingwen Bai / Xuerong Liu / Lixia Zhao / Xiuli Fan / Zaixin Liu / Zengjun ...Authors: Yong He / Kun Li / Li Wang / Zixian Sun / Yimei Cao / Pinghua Li / Pu Sun / Huifang Bao / Shasha Zhou / Sheng Wang / Xingwen Bai / Xuerong Liu / Lixia Zhao / Xiuli Fan / Zaixin Liu / Zengjun Lu / Cheng Yang / Zhiyong Lou /
Abstract: Foot-and-mouth disease virus (FMDV) exhibits broad antigenic diversity with poor intraserotype cross-neutralizing activity. Studies of the determinant involved in this diversity are essential for the ...Foot-and-mouth disease virus (FMDV) exhibits broad antigenic diversity with poor intraserotype cross-neutralizing activity. Studies of the determinant involved in this diversity are essential for the development of broadly protective vaccines. In this work, we isolated a bovine antibody, designated R55, that displays cross-reaction with both FMDV A/AF/72 (hereafter named FMDV-AAF) and FMDV A/WH/09 (hereafter named FMDV-AWH) but only has a neutralizing effect on FMDV-AWH. Near-atomic resolution structures of FMDV-AAF-R55 and FMDV-AWH-R55 show that R55 engages the capsids of both FMDV-AAF and FMDV-AWH near the icosahedral 3-fold axis and binds to the βB and BC/HI-loops of VP2 and to the B-B knob of VP3. The common interaction residues are highly conserved, which is the major determinant for cross-reaction with both FMDV-AAF and FMDV-AWH. In addition, the cryo-EM structure of the FMDV-AWH-R55 complex also shows that R55 binds to E70 located at the VP3 BC-loop in an adjacent pentamer, which enhances the acid and thermal stabilities of the viral capsid. This may prevent capsid dissociation and genome release into host cells, eventually leading to neutralization of the viral infection. In contrast, R55 binds only to the FMDV-AAF capsid within one pentamer due to the E70G variation, which neither enhances capsid stability nor neutralizes FMDV-AAF infection. The E70G mutation is the major determinant involved in the neutralizing differences between FMDV-AWH and FMDV-AAF. The crucial amino acid E70 is a key component of the neutralizing epitopes, which may aid in the development of broadly protective vaccines. Foot-and-mouth disease virus (FMDV) causes a highly contagious and economically devastating disease in cloven-hoofed animals, and neutralizing antibodies play critical roles in the defense against viral infections. Here, we isolated a bovine antibody (R55) using the single B cell antibody isolation technique. Enzyme-linked immunosorbent assays (ELISA) and virus neutralization tests (VNT) showed that R55 displays cross-reactions with both FMDV-AWH and FMDV-AAF but only has a neutralizing effect on FMDV-AWH. Cryo-EM structures, fluorescence-based thermal stability assays and acid stability assays showed that R55 engages the capsid of FMDV-AWH near the icosahedral 3-fold axis and informs an interpentamer epitope, which overstabilizes virions to hinder capsid dissociation to release the genome, eventually leading to neutralization of viral infection. The crucial amino acid E70 forms a key component of neutralizing epitopes, and the determination of the E70G mutation involved in the neutralizing differences between FMDV-AWH and FMDV-AAF could aid in the development of broadly protective vaccines.
History
DepositionJul 20, 2021-
Header (metadata) releaseSep 29, 2021-
Map releaseSep 29, 2021-
UpdateOct 23, 2024-
Current statusOct 23, 2024Processing site: PDBj / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.023
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by radius
  • Surface level: 0.023
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-7fei
  • Surface level: 0.023
  • Imaged by UCSF Chimera
  • Download
  • Simplified surface model + fitted atomic model
  • Atomic modelsPDB-7fei
  • Imaged by Jmol
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_31555.map.gz / Format: CCP4 / Size: 421.9 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.93 Å/pix.
x 480 pix.
= 446.4 Å		0.93 Å/pix.
x 480 pix.
= 446.4 Å		0.93 Å/pix.
x 480 pix.
= 446.4 Å

Surface

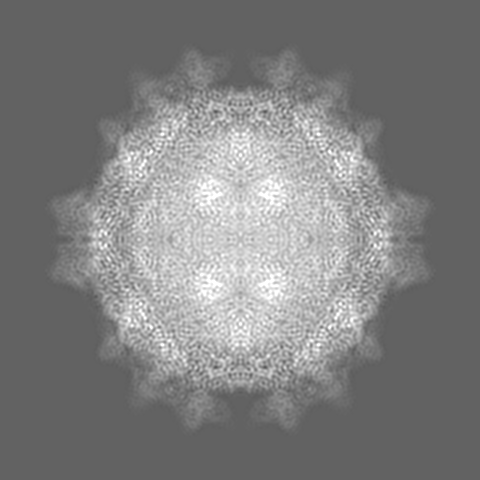

Projections

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.93 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.023 / Movie #1: 0.023
Minimum - Maximum-0.06038646 - 0.103979036
Average (Standard dev.)0.0015039692 (±0.0067287264)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin-239-239-239
Dimensions480480480
Spacing480480480
CellA=B=C: 446.4 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z0.930.930.93
M x/y/z480480480
origin x/y/z0.0000.0000.000
length x/y/z446.400446.400446.400
α/β/γ90.00090.00090.000
start NX/NY/NZ-220-220-220
NX/NY/NZ440440440
MAP C/R/S123
start NC/NR/NS-239-239-239
NC/NR/NS480480480
D min/max/mean-0.0600.1040.002

-
Supplemental data

-
Sample components

-
Entire : Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55

EntireName: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55
Components
  • Complex: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55
    • Complex: FMDV A/WH/CHA/09
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
      • Protein or peptide: Capsid protein VP0
    • Complex: bovine neutralizing scFv antibody R55
      • Protein or peptide: IG HEAVY CHAIN VARIABLE REGION
      • Protein or peptide: IG LAMDA CHAIN VARIABLE REGION

-
Supramolecule #1: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55

SupramoleculeName: Complex of FMDV A/WH/CHA/09 and bovine neutralizing scFv antibody R55
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Source (natural)Organism: Foot-and-mouth disease virus - type A

-
Supramolecule #2: FMDV A/WH/CHA/09

SupramoleculeName: FMDV A/WH/CHA/09 / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#4
Source (natural)Organism: Bos taurus (cattle)

-
Supramolecule #3: bovine neutralizing scFv antibody R55

SupramoleculeName: bovine neutralizing scFv antibody R55 / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #5-#6

-
Macromolecule #1: Capsid protein VP0

MacromoleculeName: Capsid protein VP0 / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Foot-and-mouth disease virus - type A
Molecular weightTheoretical: 23.402678 KDa
SequenceString: TTATGESADP VTTTVENYGG ETQVQRRHHT DVSFIMDRFV QIKPVSPTHV IDLMQTHQHG LVGAMLRAAT YYFSDLEIVV NHTGRLTWV PNGAPEAALD NTSNPTAYHK APFTRLALPY TAPHRVLATV YNGNSKYSAP ATRRGDLGSL AARLAAQLPA S FNYGAIRA ...String:
TTATGESADP VTTTVENYGG ETQVQRRHHT DVSFIMDRFV QIKPVSPTHV IDLMQTHQHG LVGAMLRAAT YYFSDLEIVV NHTGRLTWV PNGAPEAALD NTSNPTAYHK APFTRLALPY TAPHRVLATV YNGNSKYSAP ATRRGDLGSL AARLAAQLPA S FNYGAIRA TEIQELLVRM KRAELYCPRP LLAVKVTSQD RHKQKIIAPA KQLL

UniProtKB: Genome polyprotein

-
Macromolecule #2: Capsid protein VP0

MacromoleculeName: Capsid protein VP0 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO / EC number: RNA-directed RNA polymerase
Source (natural)Organism: Foot-and-mouth disease virus - type A
Molecular weightTheoretical: 24.541584 KDa
SequenceString: DKKTEETTLL EDRILTTRNG HTTSTTQSSV GVTYGYSTGE DHVSGPNTSG LETRVVQAER FFKKHLFDWT TDKPFGHIEK LELPTDHKG VYGQLVDSFA YMRNGWDVEV SAVGNQFNGG CLLVAMVPEF KEFTTREKYQ LTLFPHQFIS PRTNMTAHIT V PYLGVNRY ...String:
DKKTEETTLL EDRILTTRNG HTTSTTQSSV GVTYGYSTGE DHVSGPNTSG LETRVVQAER FFKKHLFDWT TDKPFGHIEK LELPTDHKG VYGQLVDSFA YMRNGWDVEV SAVGNQFNGG CLLVAMVPEF KEFTTREKYQ LTLFPHQFIS PRTNMTAHIT V PYLGVNRY DQYNKHKPWT LVVMVVSPLT TSSIGASQIK VYTNIAPTHV HVAGELPSKE

UniProtKB: Genome polyprotein

-
Macromolecule #3: Capsid protein VP0

MacromoleculeName: Capsid protein VP0 / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Foot-and-mouth disease virus - type A
Molecular weightTheoretical: 24.157025 KDa
SequenceString: GIVPVACSDG YGGLVTTDPK TADPAYGMVY NPPRTNYPGR FTNLLDVAEA CPTFLCFDDG KPYVVTRADE QRLLAKFDLS LAAKHMSNT YLSGIAQYYA QYSGTINLHF MFTGSTDSKA RYMVAYVPPG VTTPPDTPER AAHCIHAEWD TGLNSKFTFS I PYVSAADY ...String:
GIVPVACSDG YGGLVTTDPK TADPAYGMVY NPPRTNYPGR FTNLLDVAEA CPTFLCFDDG KPYVVTRADE QRLLAKFDLS LAAKHMSNT YLSGIAQYYA QYSGTINLHF MFTGSTDSKA RYMVAYVPPG VTTPPDTPER AAHCIHAEWD TGLNSKFTFS I PYVSAADY AYTASDVADT TNVQGWVCIY QITHGKAEQD TLVVSVSAGK DFELRLPIDP RAQ

UniProtKB: Genome polyprotein

-
Macromolecule #4: Capsid protein VP0

MacromoleculeName: Capsid protein VP0 / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Foot-and-mouth disease virus - type A
Molecular weightTheoretical: 8.778129 KDa
SequenceString:
GAGQSSPATG SQNQSGNTGS IINNYYMQQY QNSMDTQLGD NAISGGSNEG STDTTSSHTT NTQNNDWFSK LASSAFTGLF GALLA

UniProtKB: Genome polyprotein

-
Macromolecule #5: IG HEAVY CHAIN VARIABLE REGION

MacromoleculeName: IG HEAVY CHAIN VARIABLE REGION / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Bos taurus (cattle)
Molecular weightTheoretical: 13.615155 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString:
QVQLRESGPS LVKPSQTLSL TCTVSGFSLS DYAVGWVRQA PGKALEFLGS ISTGGNTGYN PALKSRLSIT KDNSKNQVSL SLSSVTTED TATYYCTKSI HSYSVFEYTY MQYVDAWGQG LLVPVSS

-
Macromolecule #6: IG LAMDA CHAIN VARIABLE REGION

MacromoleculeName: IG LAMDA CHAIN VARIABLE REGION / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Bos taurus (cattle)
Molecular weightTheoretical: 12.88685 KDa
Recombinant expressionOrganism: Escherichia coli BL21 (bacteria)
SequenceString:
WAQAVLTQPS SVSGSLGQRV SITCSGSSNN IGRYDVGWYQ QIPGSGLRTI IYASKNRPSG VPDRFSGSRS GNTATLTISS LQAEDEADY FCATGDYSSS TSVFGSGTTL TVLGDYKDDD DKGG

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.4
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TALOS ARCTICA
Image recordingFilm or detector model: DIRECT ELECTRON DE-16 (4k x 4k) / Average electron dose: 25.0 e/Å2
Electron beamAcceleration voltage: 200 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD
Experimental equipment
Model: Talos Arctica / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: EMDB MAP
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.91 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 14535
Initial angle assignmentType: ANGULAR RECONSTITUTION
Final angle assignmentType: ANGULAR RECONSTITUTION

+
