Basic information

Entry
Database: EMDB / ID: EMD-30127
TitleSARS-Cov-2 RNA-dependent RNA polymerase in complex with cofactors
Map data
Sample
  • Complex: SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors
    • Protein or peptide: RNA-directed RNA polymerase
    • Protein or peptide: Non-structural protein 7
    • Protein or peptide: Non-structural protein 8
KeywordsCOVID-19 / 2019-nCoV / SARS-CoV-2 / Virus / RdRp / nsp12 / nsp7 / nsp8 / RTC / cryo-EM / Viral protein / RNA polymerase / drug target / antiviral / replication transcription complex
Function / homology
Function and homology information


protein guanylyltransferase activity / RNA endonuclease activity producing 3'-phosphomonoesters, hydrolytic mechanism / mRNA guanylyltransferase activity / 5'-3' RNA helicase activity / Lyases; Phosphorus-oxygen lyases / symbiont-mediated suppression of host cytoplasmic pattern recognition receptor signaling pathway via inhibition of TBK1 activity / Assembly of the SARS-CoV-2 Replication-Transcription Complex (RTC) / Maturation of replicase proteins / ISG15-specific peptidase activity / Transcription of SARS-CoV-2 sgRNAs ...protein guanylyltransferase activity / RNA endonuclease activity producing 3'-phosphomonoesters, hydrolytic mechanism / mRNA guanylyltransferase activity / 5'-3' RNA helicase activity / Lyases; Phosphorus-oxygen lyases / symbiont-mediated suppression of host cytoplasmic pattern recognition receptor signaling pathway via inhibition of TBK1 activity / Assembly of the SARS-CoV-2 Replication-Transcription Complex (RTC) / Maturation of replicase proteins / ISG15-specific peptidase activity / Transcription of SARS-CoV-2 sgRNAs / TRAF3-dependent IRF activation pathway / Translation of Replicase and Assembly of the Replication Transcription Complex / Replication of the SARS-CoV-2 genome / snRNP Assembly / Hydrolases; Acting on ester bonds; Exoribonucleases producing 5'-phosphomonoesters / double membrane vesicle viral factory outer membrane / host cell endoplasmic reticulum-Golgi intermediate compartment / SARS coronavirus main proteinase / 3'-5'-RNA exonuclease activity / 5'-3' DNA helicase activity / host cell endosome / symbiont-mediated degradation of host mRNA / mRNA guanylyltransferase / symbiont-mediated suppression of host toll-like receptor signaling pathway / symbiont-mediated suppression of host ISG15-protein conjugation / G-quadruplex RNA binding / omega peptidase activity / symbiont-mediated suppression of host cytoplasmic pattern recognition receptor signaling pathway via inhibition of IRF3 activity / SARS-CoV-2 modulates host translation machinery / mRNA (guanine-N7)-methyltransferase / methyltransferase cap1 / host cell Golgi apparatus / symbiont-mediated perturbation of host ubiquitin-like protein modification / symbiont-mediated suppression of host NF-kappaB cascade / DNA helicase / methyltransferase cap1 activity / ubiquitinyl hydrolase 1 / mRNA 5'-cap (guanine-N7-)-methyltransferase activity / cysteine-type deubiquitinase activity / forked DNA-dependent helicase activity / single-stranded 3'-5' DNA helicase activity / four-way junction helicase activity / double-stranded DNA helicase activity / Hydrolases; Acting on peptide bonds (peptidases); Cysteine endopeptidases / single-stranded RNA binding / host cell perinuclear region of cytoplasm / viral protein processing / lyase activity / host cell endoplasmic reticulum membrane / RNA helicase / symbiont-mediated suppression of host type I interferon-mediated signaling pathway / copper ion binding / symbiont-mediated activation of host autophagy / viral translational frameshifting / RNA-directed RNA polymerase / chromatin extrusion motor activity / ATP-dependent H2AZ histone chaperone activity / ATP-dependent H3-H4 histone complex chaperone activity / cohesin loader activity / cysteine-type endopeptidase activity / viral RNA genome replication / DNA clamp loader activity / symbiont-mediated suppression of host gene expression / RNA-directed RNA polymerase activity / DNA-templated transcription / lipid binding / : / host cell nucleus / SARS-CoV-2 activates/modulates innate and adaptive immune responses / ATP hydrolysis activity / proteolysis / RNA binding / zinc ion binding / ATP binding / membrane
Similarity search - Function
RNA-dependent RNA polymerase, SARS-CoV-like / Nonstructural protein 14, betacoronavirus / NSP15, NendoU domain, coronavirus / Nonstructural protein 15, middle domain, alpha/betacoronavirus / Nonstructural protein 15, N-terminal domain, alpha/beta-coronavirus / NSP14, guanine-N7-methyltransferase domain, coronavirus / Coronavirus (CoV) guanine-N7-methyltransferase (N7-MTase) domain profile. / Coronavirus (CoV) Nsp15 N-terminal oligomerization domain profile. / NSP12 RNA-dependent RNA polymerase, coronavirus / : ...RNA-dependent RNA polymerase, SARS-CoV-like / Nonstructural protein 14, betacoronavirus / NSP15, NendoU domain, coronavirus / Nonstructural protein 15, middle domain, alpha/betacoronavirus / Nonstructural protein 15, N-terminal domain, alpha/beta-coronavirus / NSP14, guanine-N7-methyltransferase domain, coronavirus / Coronavirus (CoV) guanine-N7-methyltransferase (N7-MTase) domain profile. / Coronavirus (CoV) Nsp15 N-terminal oligomerization domain profile. / NSP12 RNA-dependent RNA polymerase, coronavirus / : / : / : / Coronavirus Nonstructural protein 13, 1B domain / Coronavirus Non-structural protein 13, zinc-binding domain / Coronavirus Nonstructural protein 13, stalk domain / Coronavirus Nsp12 RNA-dependent RNA polymerase (RdRp) domain profile. / Coronavirus Nsp12 Interface domain profile. / Non-structural protein NSP15, N-terminal domain superfamily, coronavirus / Non-structural protein NSP15, middle domain superfamily / Coronavirus replicase NSP15, N-terminal oligomerization / Nonstructural protein 15, middle domain, coronavirus / Nonstructural protein 13, 1B domain, coronavirus / Nidovirus 2-O-methyltransferase / Coronavirus replicase NSP15, middle domain / Coronavirus replicase NSP15, N-terminal oligomerisation / Nidovirus 2'-O-methyltransferase (2'-O-MTase) domain profile. / Non-structural protein NSP16, coronavirus-like / Non-structural protein 14, coronavirus / RNA polymerase, N-terminal, coronavirus / Nidovirus 3'-5' exoribonuclease domain / Coronavirus 2'-O-methyltransferase / Coronavirus proofreading exoribonuclease / Coronavirus RNA-dependent RNA polymerase, N-terminal / Nidovirus 3'-5' exoribonuclease (ExoN) domain profile. / Nonstructural protein 13, zinc-binding domain, coronavirus-like / Coronaviridae zinc-binding (CV ZBD) domain profile. / Arterivirus Nsp11 N-terminal/Coronavirus NSP15 middle domain / Arterivirus Nsp11 N-terminal/coronavirus NSP15 middle (AV-Nsp11N/CoV-Nsp15M) domain profile. / Nidoviral uridylate-specific endoribonuclease (NendoU) domain profile. / Nidovirus RdRp-associated nucleotidyl transferase (NiRAN) domain / Nidovirus RdRp-associated nucleotidyl transferase (NiRAN) domain profile. / Endoribonuclease EndoU-like / NendoU domain, nidovirus / Coronavirus replicase NSP15, uridylate-specific endoribonuclease / : / Lipocalin signature. / DNA2/NAM7 helicase-like, C-terminal / AAA domain / (+) RNA virus helicase core domain / (+)RNA virus helicase core domain profile. / Non-structural protein NSP3, SUD-N (Mac2) domain, betacoronavirus / Sarbecovirus Nsp3c-N domain profile. / Non-structural protein NSP3, N-terminal, betacoronavirus / Polyprotein cleavage domain PL2pro superfamily, betacoronavirus / Non-structural protein NSP3, SUD-N (Mac2) domain superfamily, betacoronavirus / Betacoronavirus SUD-C domain / Betacoronavirus replicase NSP3, N-terminal / NSP1 globular domain superfamily, betacoronavirus / Non-structural protein 2, SARS-CoV-like / Carbamoyl-phosphate synthase subdomain signature 2. / Betacoronavirus Nsp3c-M domain profile. / NSP1, globular domain, betacoronavirus / Non-structural protein NSP3, SUD-M domain, betacoronavirus / Non-structural protein NSP3, SUD-M domain superfamily, betacoronavirus / Betacoronavirus replicase NSP1 / Betacoronavirus single-stranded poly(A) binding domain / NSP1, C-terminal domain, betacoronavirus / : / Betacoronavirus (BetaCoV) Nsp1 C-terminal domain profile. / Betacoronavirus Nsp3e group 2-specific marker (G2M) domain profile. / Betacoronavirus Nsp3c-C domain profile. / Betacoronavirus Nsp3e nucleic acid-binding (NAB) domain profile. / DPUP/SUD, C-terminal, betacoronavirus / Non-structural protein NSP3, nucleic acid-binding domain, betacoronavirus / Non-structural protein NSP3A domain-like superfamily / Non-structural protein NSP3, nucleic acid-binding domain superfamily, betacoronavirus / Non-structural protein 6, betacoronavirus / Betacoronavirus nucleic acid-binding (NAB) / Papain-like viral protease, palm and finger domains, coronavirus / Papain-like protease, N-terminal domain superfamily, coronavirus / Coronavirus replicase NSP2, N-terminal / : / Coronavirus replicase NSP2, C-terminal / NSP1, globular domain, alpha/betacoronavirus / Coronavirus (CoV) Nsp2 middle domain profile. / Coronavirus (CoV) Nsp1 globular domain profile. / Coronavirus (CoV) Nsp2 N-terminal domain profile. / Coronavirus (CoV) Nsp2 C-terminal domain profile. / Nonstructural protein 2, N-terminal domain, coronavirus / Non-structural protein 2, C-terminal domain, coronavirus / NSP3, second ubiquitin-like (Ubl) domain, coronavirus / Coronavirus Nsp3a Ubl domain profile. / Coronavirus Nsp3d Ubl domain profile. / NSP3, first ubiquitin-like (Ubl) domain, coronavirus / : / : / Coronavirus replicase NSP7 / Peptidase family C16 domain profile. / Coronavirus 3Ecto domain profile. / Coronavirus RNA-dependent RNA polymerase (RdRp) Nsp7 cofactor domain profile.
Similarity search - Domain/homology
Replicase polyprotein 1ab
Similarity search - Component
Biological speciesSevere acute respiratory syndrome coronavirus 2
Methodsingle particle reconstruction / cryo EM / Resolution: 2.9 Å
AuthorsGao Y / Yan L
Funding support China, 4 items
OrganizationGrant numberCountry
Chinese Academy of SciencesXDB08020200 China
National Natural Science Foundation of China (NSFC)81520108019 China
National Natural Science Foundation of China (NSFC)813300237 China
Ministry of Science and Technology (MoST, China)2017YFC0840300 China
CitationJournal: Science / Year: 2020
Title: Structure of the RNA-dependent RNA polymerase from COVID-19 virus.
Authors: Yan Gao / Liming Yan / Yucen Huang / Fengjiang Liu / Yao Zhao / Lin Cao / Tao Wang / Qianqian Sun / Zhenhua Ming / Lianqi Zhang / Ji Ge / Litao Zheng / Ying Zhang / Haofeng Wang / Yan Zhu / ...Authors: Yan Gao / Liming Yan / Yucen Huang / Fengjiang Liu / Yao Zhao / Lin Cao / Tao Wang / Qianqian Sun / Zhenhua Ming / Lianqi Zhang / Ji Ge / Litao Zheng / Ying Zhang / Haofeng Wang / Yan Zhu / Chen Zhu / Tianyu Hu / Tian Hua / Bing Zhang / Xiuna Yang / Jun Li / Haitao Yang / Zhijie Liu / Wenqing Xu / Luke W Guddat / Quan Wang / Zhiyong Lou / Zihe Rao /
Abstract: A novel coronavirus [severe acute respiratory syndrome-coronavirus 2 (SARS-CoV-2)] outbreak has caused a global coronavirus disease 2019 (COVID-19) pandemic, resulting in tens of thousands of ...A novel coronavirus [severe acute respiratory syndrome-coronavirus 2 (SARS-CoV-2)] outbreak has caused a global coronavirus disease 2019 (COVID-19) pandemic, resulting in tens of thousands of infections and thousands of deaths worldwide. The RNA-dependent RNA polymerase [(RdRp), also named nsp12] is the central component of coronaviral replication and transcription machinery, and it appears to be a primary target for the antiviral drug remdesivir. We report the cryo-electron microscopy structure of COVID-19 virus full-length nsp12 in complex with cofactors nsp7 and nsp8 at 2.9-angstrom resolution. In addition to the conserved architecture of the polymerase core of the viral polymerase family, nsp12 possesses a newly identified β-hairpin domain at its N terminus. A comparative analysis model shows how remdesivir binds to this polymerase. The structure provides a basis for the design of new antiviral therapeutics that target viral RdRp.
History
DepositionMar 16, 2020-
Header (metadata) releaseMar 25, 2020-
Map releaseApr 1, 2020-
UpdateOct 16, 2024-
Current statusOct 16, 2024Processing site: PDBj / Status: Released

-
Structure visualization

Movie
  • Surface view with section colored by density value
  • Surface level: 0.4
  • Imaged by UCSF Chimera
  • Download
  • Surface view colored by radius
  • Surface level: 0.4
  • Imaged by UCSF Chimera
  • Download
  • Surface view with fitted model
  • Atomic models: PDB-6m71
  • Surface level: 0.4
  • Imaged by UCSF Chimera
  • Download
Movie viewer
Structure viewerEM map:
SurfViewMolmilJmol/JSmol
Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_30127.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesZ (Sec.)Y (Row.)X (Col.)
0.82 Å/pix.
x 300 pix.
= 246. Å		0.82 Å/pix.
x 300 pix.
= 246. Å		0.82 Å/pix.
x 300 pix.
= 246. Å

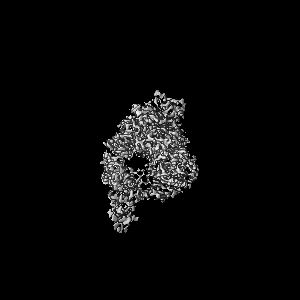

Surface

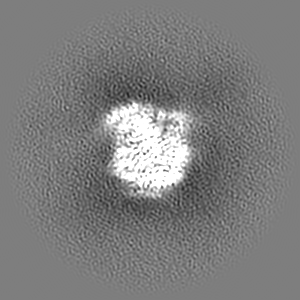

Projections

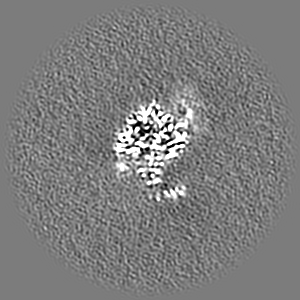

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.82 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 0.25 / Movie #1: 0.4
Minimum - Maximum-1.0932802 - 2.70944
Average (Standard dev.)0.0005679476 (±0.062876016)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderXYZ
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 246.0 Å
α=β=γ: 90.0 °

CCP4 map header:

modeImage stored as Reals
Å/pix. X/Y/Z0.820.820.82
M x/y/z300300300
origin x/y/z0.0000.0000.000
length x/y/z246.000246.000246.000
α/β/γ90.00090.00090.000
start NX/NY/NZ000
NX/NY/NZ256256256
MAP C/R/S123
start NC/NR/NS000
NC/NR/NS300300300
D min/max/mean-1.0932.7090.001

-
Supplemental data

-
Mask #1

Fileemd_30127_msk_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_30127_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_30127_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors

EntireName: SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors
Components
  • Complex: SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors
    • Protein or peptide: RNA-directed RNA polymerase
    • Protein or peptide: Non-structural protein 7
    • Protein or peptide: Non-structural protein 8

-
Supramolecule #1: SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors

SupramoleculeName: SARS-CoV-2 RNA-dependent RNA polymerase in complex with cofactors
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all
Details: The bacterially expressed full-length SARS-CoV-2 nsp12 (residues S1-Q932) was incubated with nsp7 (residues S1-Q83) and nsp8 (residues A1-Q198), and the complex was then purified
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 155 KDa

-
Macromolecule #1: RNA-directed RNA polymerase

MacromoleculeName: RNA-directed RNA polymerase / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO / EC number: RNA-directed RNA polymerase
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 108.162461 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: SADAQSFLNR VCGVSAARLT PCGTGTSTDV VYRAFDIYND KVAGFAKFLK TNCCRFQEKD EDDNLIDSYF VVKRHTFSNY QHEETIYNL LKDCPAVAKH DFFKFRIDGD MVPHISRQRL TKYTMADLVY ALRHFDEGNC DTLKEILVTY NCCDDDYFNK K DWYDFVEN ...String:
SADAQSFLNR VCGVSAARLT PCGTGTSTDV VYRAFDIYND KVAGFAKFLK TNCCRFQEKD EDDNLIDSYF VVKRHTFSNY QHEETIYNL LKDCPAVAKH DFFKFRIDGD MVPHISRQRL TKYTMADLVY ALRHFDEGNC DTLKEILVTY NCCDDDYFNK K DWYDFVEN PDILRVYANL GERVRQALLK TVQFCDAMRN AGIVGVLTLD NQDLNGNWYD FGDFIQTTPG SGVPVVDSYY SL LMPILTL TRALTAESHV DTDLTKPYIK WDLLKYDFTE ERLKLFDRYF KYWDQTYHPN CVNCLDDRCI LHCANFNVLF STV FPPTSF GPLVRKIFVD GVPFVVSTGY HFRELGVVHN QDVNLHSSRL SFKELLVYAA DPAMHAASGN LLLDKRTTCF SVAA LTNNV AFQTVKPGNF NKDFYDFAVS KGFFKEGSSV ELKHFFFAQD GNAAISDYDY YRYNLPTMCD IRQLLFVVEV VDKYF DCYD GGCINANQVI VNNLDKSAGF PFNKWGKARL YYDSMSYEDQ DALFAYTKRN VIPTITQMNL KYAISAKNRA RTVAGV SIC STMTNRQFHQ KLLKSIAATR GATVVIGTSK FYGGWHNMLK TVYSDVENPH LMGWDYPKCD RAMPNMLRIM ASLVLAR KH TTCCSLSHRF YRLANECAQV LSEMVMCGGS LYVKPGGTSS GDATTAYANS VFNICQAVTA NVNALLSTDG NKIADKYV R NLQHRLYECL YRNRDVDTDF VNEFYAYLRK HFSMMILSDD AVVCFNSTYA SQGLVASIKN FKSVLYYQNN VFMSEAKCW TETDLTKGPH EFCSQHTMLV KQGDDYVYLP YPDPSRILGA GCFVDDIVKT DGTLMIERFV SLAIDAYPLT KHPNQEYADV FHLYLQYIR KLHDELTGHM LDMYSVMLTN DNTSRYWEPE FYEAMYTPHT VLQHHHHHHH HHH

UniProtKB: Replicase polyprotein 1ab

-
Macromolecule #2: Non-structural protein 7

MacromoleculeName: Non-structural protein 7 / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 9.248804 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString:
SKMSDVKCTS VVLLSVLQQL RVESSSKLWA QCVQLHNDIL LAKDTTEAFE KMVSLLSVLL SMQGAVDINK LCEEMLDNRA TLQ

UniProtKB: Replicase polyprotein 1ab

-
Macromolecule #3: Non-structural protein 8

MacromoleculeName: Non-structural protein 8 / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Severe acute respiratory syndrome coronavirus 2
Molecular weightTheoretical: 21.903047 KDa
Recombinant expressionOrganism: Escherichia coli BL21(DE3) (bacteria)
SequenceString: AIASEFSSLP SYAAFATAQE AYEQAVANGD SEVVLKKLKK SLNVAKSEFD RDAAMQRKLE KMADQAMTQM YKQARSEDKR AKVTSAMQT MLFTMLRKLD NDALNNIINN ARDGCVPLNI IPLTTAAKLM VVIPDYNTYK NTCDGTTFTY ASALWEIQQV V DADSKIVQ ...String:
AIASEFSSLP SYAAFATAQE AYEQAVANGD SEVVLKKLKK SLNVAKSEFD RDAAMQRKLE KMADQAMTQM YKQARSEDKR AKVTSAMQT MLFTMLRKLD NDALNNIINN ARDGCVPLNI IPLTTAAKLM VVIPDYNTYK NTCDGTTFTY ASALWEIQQV V DADSKIVQ LSEISMDNSP NLAWPLIVTA LRANSAVKLQ

UniProtKB: Replicase polyprotein 1ab

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

Concentration0.7 mg/mL
BufferpH: 7.5
Component:
ConcentrationFormulaName
250.0 mMNaClsodium chloride
20.0 mMTris-HClTris (hydroxymethyl) aminomethane
4.0 mMMgCl2magnesium chloride

Details: Solutions were made fresh from concentrated to avoid microbial contamination.
GridModel: Quantifoil R1.2/1.3 / Material: COPPER / Mesh: 300 / Support film - Material: CARBON / Support film - topology: HOLEY / Pretreatment - Type: GLOW DISCHARGE / Pretreatment - Time: 25 sec. / Pretreatment - Atmosphere: OTHER / Pretreatment - Pressure: 101.325 kPa / Details: None.
VitrificationCryogen name: ETHANE / Chamber humidity: 100 % / Chamber temperature: 281 K / Instrument: FEI VITROBOT MARK II / Details: blot for 3 seconds before plunging..
DetailsThis sample was mono disperse.

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
TemperatureMin: 78.5 K / Max: 78.6 K
Alignment procedureComa free - Residual tilt: 10.0 mrad
Specialist opticsPhase plate: VOLTA PHASE PLATE / Chromatic aberration corrector: NONE / Energy filter - Name: GIF Bioquantum / Energy filter - Slit width: 30 eV
DetailsPreliminary grid screening was performed manually.
Image recordingFilm or detector model: GATAN K2 QUANTUM (4k x 4k) / Detector mode: SUPER-RESOLUTION / Digitization - Dimensions - Width: 3838 pixel / Digitization - Dimensions - Height: 3710 pixel / Digitization - Frames/image: 2-40 / Number grids imaged: 2 / Number real images: 7994 / Average exposure time: 5.0 sec. / Average electron dose: 60.0 e/Å2
Details: Images were collected in movie-mode at 8 frames per second.
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsC2 aperture diameter: 50.0 µm / Calibrated defocus max: 2.0 µm / Calibrated defocus min: 1.0 µm / Illumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Cs: 2.7 mm / Nominal defocus max: 2.0 µm / Nominal defocus min: 1.0 µm / Nominal magnification: 165000
Sample stageSpecimen holder model: FEI TITAN KRIOS AUTOGRID HOLDER / Cooling holder cryogen: NITROGEN
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

+
Image processing

DetailsThe selected images were normalized.
Particle selectionNumber selected: 2334248
Details: The particles were automatically selected using blob pickier (diameter range from 100 angstroms to 150 angstroms)
Startup modelType of model: NONE / Details: The startup models were generated automatically.
Final reconstructionNumber classes used: 1 / Applied symmetry - Point group: C1 (asymmetric) / Algorithm: FOURIER SPACE / Resolution.type: BY AUTHOR / Resolution: 2.9 Å / Resolution method: FSC 0.143 CUT-OFF / Software - Name: cryoSPARC (ver. 2.9.1)
Software - details: cryoSPARC was used to do final reconstruction
Details: The particle set was used to perform homogeneous refinement, yielding a resolution of 3.1-angstrom. After local refinement, the final resolution reached 2.9-angstrom.
Number images used: 110176
Initial angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 2.9.1)
Software - details: cryoSPARC was used to do initial angular assignment
Details: The initial angle assignment was generated by Ab-initio reconstruction.
Final angle assignmentType: MAXIMUM LIKELIHOOD / Software - Name: cryoSPARC (ver. 2.9.1)
Software - details: cryoSPARC was used to do final angular assignment.
Details: The final angle assignment was non-uniform refinement.
Final 3D classificationNumber classes: 5 / Avg.num./class: 183622 / Software - Name: cryoSPARC (ver. 2.9.1)
Software - details: cryoSPARC was used to do final classification
Details: The final 3D classification can distinguish one class matching complete complex.

-
Atomic model buiding 1

Initial model
PDB IDChain

6nur

chain_id: A, residue_range: 117-903, source_name: PDB, initial_model_type: experimental model

6nur

chain_id: B, residue_range: 77-191, source_name: PDB, initial_model_type: experimental model

6nur

chain_id: C, residue_range: 2-71, source_name: PDB, initial_model_type: experimental model

6nur

chain_id: D, residue_range: 84-192, source_name: PDB, initial_model_type: experimental model
DetailsAfter the corresponding amino acids were replaced with those from 2019-nCoV, the model was manually built in Coot with the guidance of the cryo-EM map, and in combination with real space refinement with Phenix.
RefinementSpace: REAL / Protocol: RIGID BODY FIT / Overall B value: 65 / Target criteria: correlation coefficient
Output model

PDB-6m71:
SARS-Cov-2 RNA-dependent RNA polymerase in complex with cofactors

+
