Basic information

Entry
Database: EMDB / ID: EMD-29220
TitleCryoEM structure of HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab
Map data
Sample
  • Complex: HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab
    • Complex: REGN6972 Fab light chain, REGN6972 Fab heavy chain
      • Protein or peptide: REGN6972 Fab light chain
      • Protein or peptide: REGN6972 Fab heavy chain
    • Complex: MHC class I antigen, Beta-2-microglobulin
      • Protein or peptide: MHC class I antigen
      • Protein or peptide: Beta-2-microglobulin
    • Complex: Melanoma-associated antigen 4 peptide
      • Protein or peptide: Melanoma-associated antigen 4 peptide
KeywordsHLA / MHC / IMMUNE SYSTEM / antibody
Function / homology
Function and homology information


antigen processing and presentation / positive regulation of cell cycle / positive regulation of ferrous iron binding / positive regulation of transferrin receptor binding / positive regulation of receptor binding / early endosome lumen / Nef mediated downregulation of MHC class I complex cell surface expression / negative regulation of receptor binding / DAP12 interactions / cellular response to iron ion ...antigen processing and presentation / positive regulation of cell cycle / positive regulation of ferrous iron binding / positive regulation of transferrin receptor binding / positive regulation of receptor binding / early endosome lumen / Nef mediated downregulation of MHC class I complex cell surface expression / negative regulation of receptor binding / DAP12 interactions / cellular response to iron ion / Endosomal/Vacuolar pathway / lumenal side of endoplasmic reticulum membrane / Antigen Presentation: Folding, assembly and peptide loading of class I MHC / peptide antigen assembly with MHC class II protein complex / cellular response to iron(III) ion / antigen processing and presentation of exogenous protein antigen via MHC class Ib, TAP-dependent / negative regulation of forebrain neuron differentiation / MHC class II protein complex / regulation of erythrocyte differentiation / peptide antigen assembly with MHC class I protein complex / ER to Golgi transport vesicle membrane / regulation of iron ion transport / response to molecule of bacterial origin / MHC class I peptide loading complex / HFE-transferrin receptor complex / T cell mediated cytotoxicity / antigen processing and presentation of endogenous peptide antigen via MHC class I / positive regulation of T cell cytokine production / antigen processing and presentation of exogenous peptide antigen via MHC class II / MHC class I protein complex / positive regulation of immune response / peptide antigen binding / negative regulation of neurogenesis / histone deacetylase binding / positive regulation of receptor-mediated endocytosis / positive regulation of T cell activation / multicellular organismal-level iron ion homeostasis / cellular response to nicotine / positive regulation of T cell mediated cytotoxicity / specific granule lumen / recycling endosome membrane / phagocytic vesicle membrane / positive regulation of cellular senescence / negative regulation of epithelial cell proliferation / Immunoregulatory interactions between a Lymphoid and a non-Lymphoid cell / Interferon gamma signaling / MHC class II protein complex binding / Modulation by Mtb of host immune system / late endosome membrane / sensory perception of smell / tertiary granule lumen / DAP12 signaling / positive regulation of protein binding / iron ion transport / negative regulation of neuron projection development / ER-Phagosome pathway / early endosome membrane / T cell differentiation in thymus / protein refolding / protein homotetramerization / intracellular iron ion homeostasis / amyloid fibril formation / learning or memory / immune response / Amyloid fiber formation / endoplasmic reticulum lumen / lysosomal membrane / Golgi membrane / external side of plasma membrane / focal adhesion / Neutrophil degranulation / negative regulation of apoptotic process / SARS-CoV-2 activates/modulates innate and adaptive immune responses / structural molecule activity / Golgi apparatus / cell surface / negative regulation of transcription by RNA polymerase II / endoplasmic reticulum / protein homodimerization activity / extracellular space / extracellular exosome / extracellular region / identical protein binding / membrane / nucleus / metal ion binding / plasma membrane / cytosol
Similarity search - Function
Melanoma associated antigen, N-terminal / Melanoma associated antigen family N terminal / Melanoma associated antigen family N terminal / MAGE conserved domain profile. / MAGE homology domain / Melanoma-associated antigen / MAGE homology domain, winged helix WH1 motif / MAGE homology domain, winged helix WH2 motif / MAGE homology domain / Melanoma-associated antigen ...Melanoma associated antigen, N-terminal / Melanoma associated antigen family N terminal / Melanoma associated antigen family N terminal / MAGE conserved domain profile. / MAGE homology domain / Melanoma-associated antigen / MAGE homology domain, winged helix WH1 motif / MAGE homology domain, winged helix WH2 motif / MAGE homology domain / Melanoma-associated antigen / MHC class I, alpha chain, C-terminal / MHC_I C-terminus / MHC class I alpha chain, alpha1 alpha2 domains / Class I Histocompatibility antigen, domains alpha 1 and 2 / Beta-2-Microglobulin / : / MHC class I-like antigen recognition-like / MHC class I-like antigen recognition-like superfamily / MHC classes I/II-like antigen recognition protein / : / Immunoglobulin/major histocompatibility complex, conserved site / Immunoglobulins and major histocompatibility complex proteins signature. / Immunoglobulin C-Type / Immunoglobulin C1-set / Immunoglobulin C1-set domain / Ig-like domain profile. / Immunoglobulin-like domain / Immunoglobulin-like domain superfamily / Immunoglobulin-like fold
Similarity search - Domain/homology
Melanoma-associated antigen 4 / Beta-2-microglobulin / MHC class I antigen
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.0 Å
AuthorsSaotome K / Franklin MC
Funding support1 items
OrganizationGrant numberCountry
Other private
CitationJournal: To Be Published
Title: CryoEM structure of REGN6972 Fab in complex with HLA-A2 MAGEA4 (230-239)
Authors: Saotome K / Franklin MC
History
DepositionDec 19, 2022-
Header (metadata) releaseDec 20, 2023-
Map releaseDec 20, 2023-
UpdateOct 30, 2024-
Current statusOct 30, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_29220.map.gz / Format: CCP4 / Size: 178 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.85 Å/pix.
x 360 pix.
= 306. Å		0.85 Å/pix.
x 360 pix.
= 306. Å		0.85 Å/pix.
x 360 pix.
= 306. Å

Surface

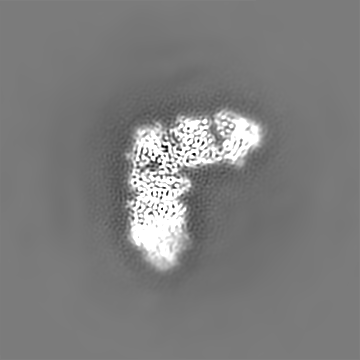

Projections

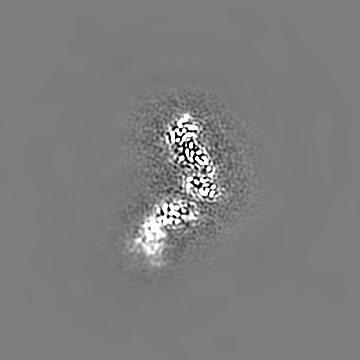

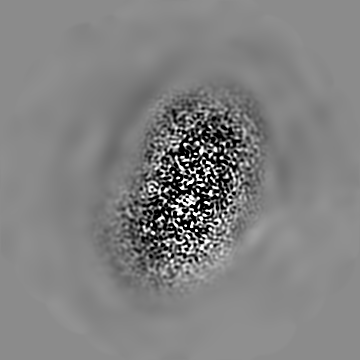

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.85 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 8.5
Minimum - Maximum-33.740105 - 63.079205000000002
Average (Standard dev.)0.000000000000457 (±1.0)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions360360360
Spacing360360360
CellA=B=C: 306.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #2

Fileemd_29220_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #1

Fileemd_29220_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab

EntireName: HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab
Components
  • Complex: HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab
    • Complex: REGN6972 Fab light chain, REGN6972 Fab heavy chain
      • Protein or peptide: REGN6972 Fab light chain
      • Protein or peptide: REGN6972 Fab heavy chain
    • Complex: MHC class I antigen, Beta-2-microglobulin
      • Protein or peptide: MHC class I antigen
      • Protein or peptide: Beta-2-microglobulin
    • Complex: Melanoma-associated antigen 4 peptide
      • Protein or peptide: Melanoma-associated antigen 4 peptide

-
Supramolecule #1: HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab

SupramoleculeName: HLA-A2 MAGEA4 (230-239) in complex with REGN6972 Fab and 2M2 Fab
type: complex / ID: 1 / Parent: 0 / Macromolecule list: all

-
Supramolecule #2: REGN6972 Fab light chain, REGN6972 Fab heavy chain

SupramoleculeName: REGN6972 Fab light chain, REGN6972 Fab heavy chain / type: complex / ID: 2 / Parent: 1 / Macromolecule list: #1-#2
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #3: MHC class I antigen, Beta-2-microglobulin

SupramoleculeName: MHC class I antigen, Beta-2-microglobulin / type: complex / ID: 3 / Parent: 1 / Macromolecule list: #3-#4
Source (natural)Organism: Homo sapiens (human)

-
Supramolecule #4: Melanoma-associated antigen 4 peptide

SupramoleculeName: Melanoma-associated antigen 4 peptide / type: complex / ID: 4 / Parent: 1 / Macromolecule list: #5

-
Macromolecule #1: REGN6972 Fab light chain

MacromoleculeName: REGN6972 Fab light chain / type: protein_or_peptide / ID: 1 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.420947 KDa
Recombinant expressionOrganism: Cricetulus griseus (Chinese hamster)
SequenceString: DIQMTQSPSS LSASVGDRVT ITCQASQDIS NYLNWYQQKR GKAPKLLIYD ASILETGVPS RFSGSGSGTD FTFTISSLQP EDIATYFCQ QFDNVPLTFG GGTKVEIKRT VAAPSVFIFP PSDEQLKSGT ASVVCLLNNF YPREAKVQWK VDNALQSGNS Q ESVTEQDS ...String:
DIQMTQSPSS LSASVGDRVT ITCQASQDIS NYLNWYQQKR GKAPKLLIYD ASILETGVPS RFSGSGSGTD FTFTISSLQP EDIATYFCQ QFDNVPLTFG GGTKVEIKRT VAAPSVFIFP PSDEQLKSGT ASVVCLLNNF YPREAKVQWK VDNALQSGNS Q ESVTEQDS KDSTYSLSST LTLSKADYEK HKVYACEVTH QGLSSPVTKS FNRGEC

-
Macromolecule #2: REGN6972 Fab heavy chain

MacromoleculeName: REGN6972 Fab heavy chain / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 25.272316 KDa
Recombinant expressionOrganism: Cricetulus griseus (Chinese hamster)
SequenceString: EVQLVESGGG LVQPGRSLRL SCAASGFTFD DYAMHWVRQA PGKGLEWVSG ISWNSGSIAY ADSVKGRFTI SRDNAKNSLY LQMNSLRSE DTALYHCAKD WRRTNYYGMD VWGQGTTVTV SSASTKGPSV FPLAPCSRST SESTAALGCL VKDYFPEPVT V SWNSGALT ...String:
EVQLVESGGG LVQPGRSLRL SCAASGFTFD DYAMHWVRQA PGKGLEWVSG ISWNSGSIAY ADSVKGRFTI SRDNAKNSLY LQMNSLRSE DTALYHCAKD WRRTNYYGMD VWGQGTTVTV SSASTKGPSV FPLAPCSRST SESTAALGCL VKDYFPEPVT V SWNSGALT SGVHTFPAVL QSSGLYSLSS VVTVPSSSLG TKTYTCNVDH KPSNTKVDKR VESKYGPPCP PCPAPPVA

-
Macromolecule #3: MHC class I antigen

MacromoleculeName: MHC class I antigen / type: protein_or_peptide / ID: 3 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 32.082512 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString: MGSHSMRYFF TSVSRPGRGE PRFIAVGYVD DTQFVRFDSD AASQRMEPRA PWIEQEGPEY WDGETRKVKA HSQTHRVDLG TLRGYYNQS EAGSHTVQRM YGCDVGSDWR FLRGYHQYAY DGKDYIALKE DLRSWTAADM AAQTTKHKWE AAHVAEQLRA Y LEGTCVEW ...String:
MGSHSMRYFF TSVSRPGRGE PRFIAVGYVD DTQFVRFDSD AASQRMEPRA PWIEQEGPEY WDGETRKVKA HSQTHRVDLG TLRGYYNQS EAGSHTVQRM YGCDVGSDWR FLRGYHQYAY DGKDYIALKE DLRSWTAADM AAQTTKHKWE AAHVAEQLRA Y LEGTCVEW LRRYLENGKE TLQRTDAPKT HMTHHAVSDH EATLRCWALS FYPAEITLTW QRDGEDQTQD TELVETRPAG DG TFQKWAA VVVPSGQEQR YTCHVQHEGL PKPLTLRWEP

UniProtKB: MHC class I antigen

-
Macromolecule #4: Beta-2-microglobulin

MacromoleculeName: Beta-2-microglobulin / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 11.879356 KDa
Recombinant expressionOrganism: Escherichia coli (E. coli)
SequenceString:
MIQRTPKIQV YSRHPAENGK SNFLNCYVSG FHPSDIEVDL LKNGERIEKV EHSDLSFSKD WSFYLLYYTE FTPTEKDEYA CRVNHVTLS QPKIVKWDRD M

UniProtKB: Beta-2-microglobulin

-
Macromolecule #5: Melanoma-associated antigen 4 peptide

MacromoleculeName: Melanoma-associated antigen 4 peptide / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 1.1342 KDa
SequenceString:
GVYDGREHTV

UniProtKB: Melanoma-associated antigen 4

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 7.5
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.4 µm / Nominal defocus min: 1.4000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.0 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 117411
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
