Basic information

Entry
Database: EMDB / ID: EMD-28570
TitleCryoEM structure of PN45545 TCR-CD3 complex
Map data
Sample
  • Complex: PN45545 TCR-CD3 complex
    • Protein or peptide: T-cell surface glycoprotein CD3 zeta chain
    • Protein or peptide: T-cell surface glycoprotein CD3 delta chain
    • Protein or peptide: T-cell surface glycoprotein CD3 epsilon chain
    • Protein or peptide: T-cell surface glycoprotein CD3 gamma chain
    • Protein or peptide: PN45545 TCR alpha chain
    • Protein or peptide: PN45545 TCR beta chain
  • Ligand: CHOLESTEROL HEMISUCCINATE
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose
KeywordsTCR / membrane protein / CD3 / IMMUNE SYSTEM
Function / homology
Function and homology information


regulation of lymphocyte apoptotic process / gamma-delta T cell receptor complex / Fc-gamma receptor III complex / T cell anergy / positive regulation of T cell anergy / positive regulation of cell-cell adhesion mediated by integrin / gamma-delta T cell activation / CD4-positive, alpha-beta T cell proliferation / negative thymic T cell selection / Fc-gamma receptor signaling pathway ...regulation of lymphocyte apoptotic process / gamma-delta T cell receptor complex / Fc-gamma receptor III complex / T cell anergy / positive regulation of T cell anergy / positive regulation of cell-cell adhesion mediated by integrin / gamma-delta T cell activation / CD4-positive, alpha-beta T cell proliferation / negative thymic T cell selection / Fc-gamma receptor signaling pathway / positive regulation of CD4-positive, alpha-beta T cell proliferation / alpha-beta T cell receptor complex / positive regulation of protein localization to cell surface / positive thymic T cell selection / signal complex assembly / Nef and signal transduction / positive regulation of cell-matrix adhesion / T cell receptor complex / smoothened signaling pathway / establishment or maintenance of cell polarity / positive regulation of interleukin-4 production / protein complex oligomerization / Translocation of ZAP-70 to Immunological synapse / Phosphorylation of CD3 and TCR zeta chains / dendrite development / alpha-beta T cell activation / Generation of second messenger molecules / immunological synapse / FCGR activation / PD-1 signaling / Role of phospholipids in phagocytosis / T cell receptor binding / negative regulation of smoothened signaling pathway / positive regulation of T cell proliferation / cell surface receptor protein tyrosine kinase signaling pathway / T cell costimulation / positive regulation of interleukin-2 production / positive regulation of calcium-mediated signaling / cerebellum development / FCGR3A-mediated IL10 synthesis / protein tyrosine kinase binding / T cell activation / apoptotic signaling pathway / FCGR3A-mediated phagocytosis / calcium-mediated signaling / clathrin-coated endocytic vesicle membrane / Regulation of actin dynamics for phagocytic cup formation / SH3 domain binding / positive regulation of type II interferon production / positive regulation of peptidyl-tyrosine phosphorylation / Immunoregulatory interactions between a Lymphoid and a non-Lymphoid cell / transmembrane signaling receptor activity / cell-cell junction / protein transport / Downstream TCR signaling / Cargo recognition for clathrin-mediated endocytosis / signaling receptor complex adaptor activity / Clathrin-mediated endocytosis / T cell receptor signaling pathway / cell body / protein-containing complex assembly / regulation of apoptotic process / adaptive immune response / dendritic spine / cell surface receptor signaling pathway / protein heterodimerization activity / G protein-coupled receptor signaling pathway / external side of plasma membrane / negative regulation of gene expression / positive regulation of gene expression / protein kinase binding / Golgi apparatus / endoplasmic reticulum / protein homodimerization activity / identical protein binding / plasma membrane / cytosol / cytoplasm
Similarity search - Function
CD3 gamma/delta subunit, Ig-like domain / T-cell surface glycoprotein CD3 delta chain / T-cell surface glycoprotein CD3 zeta subunit / Ig-like domain on T-cell surface glycoprotein CD3 epsilon chain / CD3 protein, epsilon/gamma/delta subunit / T-cell surface glycoprotein CD3 zeta subunit/High affinity IgE receptor gamma subunit / T-cell surface glycoprotein CD3 zeta chain / Immunoreceptor tyrosine-based activation motif / Phosphorylated immunoreceptor signalling ITAM / ITAM motif mammalian type profile. ...CD3 gamma/delta subunit, Ig-like domain / T-cell surface glycoprotein CD3 delta chain / T-cell surface glycoprotein CD3 zeta subunit / Ig-like domain on T-cell surface glycoprotein CD3 epsilon chain / CD3 protein, epsilon/gamma/delta subunit / T-cell surface glycoprotein CD3 zeta subunit/High affinity IgE receptor gamma subunit / T-cell surface glycoprotein CD3 zeta chain / Immunoreceptor tyrosine-based activation motif / Phosphorylated immunoreceptor signalling ITAM / ITAM motif mammalian type profile. / Immunoreceptor tyrosine-based activation motif / Immunoglobulin subtype 2 / Immunoglobulin C-2 Type / Immunoglobulin-like domain superfamily / Immunoglobulin-like fold
Similarity search - Domain/homology
T-cell surface glycoprotein CD3 delta chain / T-cell surface glycoprotein CD3 epsilon chain / T-cell surface glycoprotein CD3 gamma chain / T-cell surface glycoprotein CD3 zeta chain
Similarity search - Component
Biological speciesHomo sapiens (human)
Methodsingle particle reconstruction / cryo EM / Resolution: 3.04 Å
AuthorsSaotome K / Franklin MC
Funding support1 items
OrganizationGrant numberCountry
Other private
CitationJournal: Nat Commun / Year: 2023
Title: Structural analysis of cancer-relevant TCR-CD3 and peptide-MHC complexes by cryoEM.
Authors: Kei Saotome / Drew Dudgeon / Kiersten Colotti / Michael J Moore / Jennifer Jones / Yi Zhou / Ashique Rafique / George D Yancopoulos / Andrew J Murphy / John C Lin / William C Olson / Matthew C Franklin /
Abstract: The recognition of antigenic peptide-MHC (pMHC) molecules by T-cell receptors (TCR) initiates the T-cell mediated immune response. Structural characterization is key for understanding the specificity ...The recognition of antigenic peptide-MHC (pMHC) molecules by T-cell receptors (TCR) initiates the T-cell mediated immune response. Structural characterization is key for understanding the specificity of TCR-pMHC interactions and informing the development of therapeutics. Despite the rapid rise of single particle cryoelectron microscopy (cryoEM), x-ray crystallography has remained the preferred method for structure determination of TCR-pMHC complexes. Here, we report cryoEM structures of two distinct full-length α/β TCR-CD3 complexes bound to their pMHC ligand, the cancer-testis antigen HLA-A2/MAGEA4 (230-239). We also determined cryoEM structures of pMHCs containing MAGEA4 (230-239) peptide and the closely related MAGEA8 (232-241) peptide in the absence of TCR, which provided a structural explanation for the MAGEA4 preference displayed by the TCRs. These findings provide insights into the TCR recognition of a clinically relevant cancer antigen and demonstrate the utility of cryoEM for high-resolution structural analysis of TCR-pMHC interactions.
History
DepositionOct 13, 2022-
Header (metadata) releaseMay 3, 2023-
Map releaseMay 3, 2023-
UpdateOct 30, 2024-
Current statusOct 30, 2024Processing site: RCSB / Status: Released

-
Structure visualization

Supplemental images


Downloads & links

-
Map

FileDownload / File: emd_28570.map.gz / Format: CCP4 / Size: 103 MB / Type: IMAGE STORED AS FLOATING POINT NUMBER (4 BYTES)
Projections & slices

Image control

Size
Brightness
Contrast
Others
AxesX (Sec.)Y (Row.)Z (Col.)
0.85 Å/pix.
x 300 pix.
= 255. Å		0.85 Å/pix.
x 300 pix.
= 255. Å		0.85 Å/pix.
x 300 pix.
= 255. Å

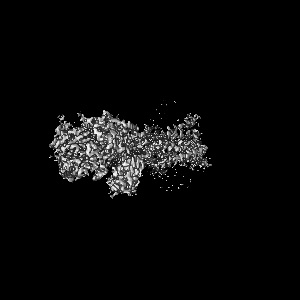

Surface

Projections

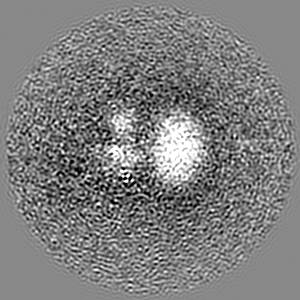

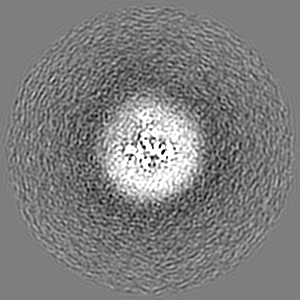

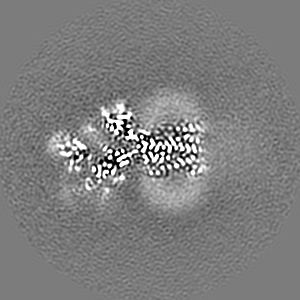

Slices (1/3)

Slices (1/2)

Slices (2/3)

Images are generated by Spider.

Voxel sizeX=Y=Z: 0.85 Å
Density

Histogram

Histogram (log scale)
Contour LevelBy AUTHOR: 4.5
Minimum - Maximum-26.880253 - 45.764113999999999
Average (Standard dev.)-0.000000000002079 (±1.0)
SymmetrySpace group: 1
Details

EMDB XML:

Map geometry
Axis orderZYX
Origin000
Dimensions300300300
Spacing300300300
CellA=B=C: 255.0 Å
α=β=γ: 90.0 °

-
Supplemental data

-
Half map: #1

Fileemd_28570_half_map_1.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Half map: #2

Fileemd_28570_half_map_2.map
Projections & Slices
AxesZYX

Projections

Slices (1/2)
Density Histograms

Histogram

Histogram (log scale)

-
Sample components

-
Entire : PN45545 TCR-CD3 complex

EntireName: PN45545 TCR-CD3 complex
Components
  • Complex: PN45545 TCR-CD3 complex
    • Protein or peptide: T-cell surface glycoprotein CD3 zeta chain
    • Protein or peptide: T-cell surface glycoprotein CD3 delta chain
    • Protein or peptide: T-cell surface glycoprotein CD3 epsilon chain
    • Protein or peptide: T-cell surface glycoprotein CD3 gamma chain
    • Protein or peptide: PN45545 TCR alpha chain
    • Protein or peptide: PN45545 TCR beta chain
  • Ligand: CHOLESTEROL HEMISUCCINATE
  • Ligand: 2-acetamido-2-deoxy-beta-D-glucopyranose

-
Supramolecule #1: PN45545 TCR-CD3 complex

SupramoleculeName: PN45545 TCR-CD3 complex / type: complex / ID: 1 / Parent: 0 / Macromolecule list: #1-#6
Source (natural)Organism: Homo sapiens (human)

-
Macromolecule #1: T-cell surface glycoprotein CD3 zeta chain

MacromoleculeName: T-cell surface glycoprotein CD3 zeta chain / type: protein_or_peptide / ID: 1 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 19.654486 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
MKWKALFTAA ILQAQLPITE AQSFGLLDPK LCYLLDGILF IYGVILTALF LRVKFSRSAD APAYQQGQNQ LYNELNLGRR EEYDVLDKR RGRDPEMGGK PQRRKNPQEG LYNELQKDKM AEAYSEIGMK GERRRGKGHD GLYQGLSTAT KDTYDALHMQ A LPPRGSGL EVLFQ

UniProtKB: T-cell surface glycoprotein CD3 zeta chain

-
Macromolecule #2: T-cell surface glycoprotein CD3 delta chain

MacromoleculeName: T-cell surface glycoprotein CD3 delta chain / type: protein_or_peptide / ID: 2 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 19.150719 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
MEHSTFLSGL VLATLLSQVS PFKIPIEELE DRVFVNCNTS ITWVEGTVGT LLSDITRLDL GKRILDPRGI YRCNGTDIYK DKESTVQVH YRMCQSCVEL DPATVAGIIV TDVIATLLLA LGVFCFAGHE TGRLSGAADT QALLRNDQVY QPLRDRDDAQ Y SHLGGNWA RNKGSG

UniProtKB: T-cell surface glycoprotein CD3 delta chain

-
Macromolecule #3: T-cell surface glycoprotein CD3 epsilon chain

MacromoleculeName: T-cell surface glycoprotein CD3 epsilon chain / type: protein_or_peptide / ID: 3 / Number of copies: 2 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 23.432459 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MGQSGTHWRV LGLCLLSVGV WGQDGNEEMG GITQTPYKVS ISGTTVILTC PQYPGSEILW QHNDKNIGGD EDDKNIGSDE DHLSLKEFS ELEQSGYYVC YPRGSKPEDA NFYLYLRARV CENCMEMDVM SVATIVIVDI CITGGLLLLV YYWSKNRKAK A KPVTRGAG ...String:
MGQSGTHWRV LGLCLLSVGV WGQDGNEEMG GITQTPYKVS ISGTTVILTC PQYPGSEILW QHNDKNIGGD EDDKNIGSDE DHLSLKEFS ELEQSGYYVC YPRGSKPEDA NFYLYLRARV CENCMEMDVM SVATIVIVDI CITGGLLLLV YYWSKNRKAK A KPVTRGAG AGGRQRGQNK ERPPPVPNPD YEPIRKGQRD LYSGLNQRRI GSG

UniProtKB: T-cell surface glycoprotein CD3 epsilon chain

-
Macromolecule #4: T-cell surface glycoprotein CD3 gamma chain

MacromoleculeName: T-cell surface glycoprotein CD3 gamma chain / type: protein_or_peptide / ID: 4 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 20.694639 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString:
MEQGKGLAVL ILAIILLQGT LAQSIKGNHL VKVYDYQEDG SVLLTCDAEA KNITWFKDGK MIGFLTEDKK KWNLGSNAKD PRGMYQCKG SQNKSKPLQV YYRMCQNCIE LNAATISGFL FAEIVSIFVL AVGVYFIAGQ DGVRQSRASD KQTLLPNDQL Y QPLKDRED DQYSHLQGNQ LRRNGSG

UniProtKB: T-cell surface glycoprotein CD3 gamma chain

-
Macromolecule #5: PN45545 TCR alpha chain

MacromoleculeName: PN45545 TCR alpha chain / type: protein_or_peptide / ID: 5 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 30.737512 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MSLSSLLKVV TASLWLGPGI AQKITQTQPG MFVQEKEAVT LDCTYDTSDP SYGLFWYKQP SSGEMIFLIY QGSYDQQNAT EGRYSLNFQ KARKSANLVI SASQLGDSAM YFCAMRGGGS GGSYIPTFGR GTSLIVHPNI QNPDPAVYQL RDSKSSDKSV C LFTDFDSQ ...String:
MSLSSLLKVV TASLWLGPGI AQKITQTQPG MFVQEKEAVT LDCTYDTSDP SYGLFWYKQP SSGEMIFLIY QGSYDQQNAT EGRYSLNFQ KARKSANLVI SASQLGDSAM YFCAMRGGGS GGSYIPTFGR GTSLIVHPNI QNPDPAVYQL RDSKSSDKSV C LFTDFDSQ TNVSQSKDSD VYITDKTVLD MRSMDFKSNS AVAWSNKSDF ACANAFNNSI IPEDTFFPSP ESSCDVKLVE KS FETDTNL NFQNLSVIGF RILLLKVAGF NLLMTLRLWS S

-
Macromolecule #6: PN45545 TCR beta chain

MacromoleculeName: PN45545 TCR beta chain / type: protein_or_peptide / ID: 6 / Number of copies: 1 / Enantiomer: LEVO
Source (natural)Organism: Homo sapiens (human)
Molecular weightTheoretical: 35.891855 KDa
Recombinant expressionOrganism: Homo sapiens (human)
SequenceString: MGFRLLCCVA FCLLGAGPVD VKVTQSSRYL VKRTGEKVFL ECVQDMDHEN MFWYRQDPGL GLRLIYFSYD VKMKEKGDIP EGYSVSREK KERFSLILES ASTNQTSMYL CASSFTGPYN SPLHFGNGTR LTVTEDLNKV FPPEVAVFEP SEAEISHTQK A TLVCLATG ...String:
MGFRLLCCVA FCLLGAGPVD VKVTQSSRYL VKRTGEKVFL ECVQDMDHEN MFWYRQDPGL GLRLIYFSYD VKMKEKGDIP EGYSVSREK KERFSLILES ASTNQTSMYL CASSFTGPYN SPLHFGNGTR LTVTEDLNKV FPPEVAVFEP SEAEISHTQK A TLVCLATG FFPDHVELSW WVNGKEVHSG VSTDPQPLKE QPALNDSRYC LSSRLRVSAT FWQNPRNHFR CQVQFYGLSE ND EWTQDRA KPVTQIVSAE AWGRADCGFT SVSYQQGVLS ATILYEILLG KATLYAVLVS ALVLMAMVKR KDSRGRAKRG SG

-
Macromolecule #9: CHOLESTEROL HEMISUCCINATE

MacromoleculeName: CHOLESTEROL HEMISUCCINATE / type: ligand / ID: 9 / Number of copies: 1 / Formula: Y01
Molecular weightTheoretical: 486.726 Da
Chemical component information

ChemComp-Y01:
CHOLESTEROL HEMISUCCINATE

-
Macromolecule #10: 2-acetamido-2-deoxy-beta-D-glucopyranose

MacromoleculeName: 2-acetamido-2-deoxy-beta-D-glucopyranose / type: ligand / ID: 10 / Number of copies: 5 / Formula: NAG
Molecular weightTheoretical: 221.208 Da
Chemical component information

ChemComp-NAG:
2-acetamido-2-deoxy-beta-D-glucopyranose

-
Experimental details

-
Structure determination

Methodcryo EM
Processingsingle particle reconstruction
Aggregation stateparticle

-
Sample preparation

BufferpH: 8
VitrificationCryogen name: ETHANE

-
Electron microscopy

MicroscopeFEI TITAN KRIOS
Specialist opticsEnergy filter - Name: GIF Bioquantum / Energy filter - Slit width: 20 eV
Image recordingFilm or detector model: GATAN K3 BIOQUANTUM (6k x 4k) / Average electron dose: 40.0 e/Å2
Electron beamAcceleration voltage: 300 kV / Electron source: FIELD EMISSION GUN
Electron opticsIllumination mode: FLOOD BEAM / Imaging mode: BRIGHT FIELD / Nominal defocus max: 2.4 µm / Nominal defocus min: 1.4000000000000001 µm
Experimental equipment
Model: Titan Krios / Image courtesy: FEI Company

-
Image processing

Startup modelType of model: NONE
Final reconstructionResolution.type: BY AUTHOR / Resolution: 3.04 Å / Resolution method: FSC 0.143 CUT-OFF / Number images used: 137831
Initial angle assignmentType: MAXIMUM LIKELIHOOD
Final angle assignmentType: MAXIMUM LIKELIHOOD

+
